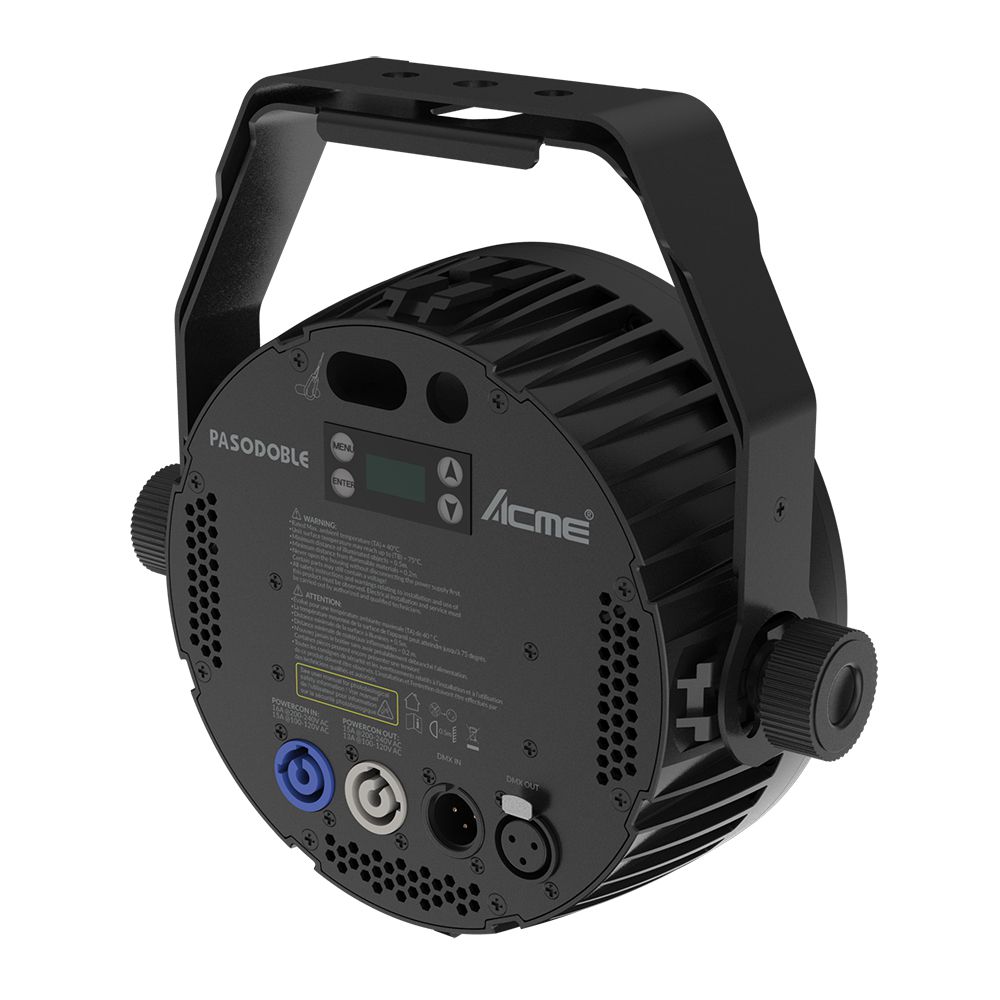

Acme – PASODOBLE

Functional Overview
The ACME PASODOBLE, using 12 pcs 8W RGBW LED, combines powerful output, shiny beam and colorful wash into its solid body. In order to meet the professionals requirement, we designed PASODOBLE as a versatile soldier, featuring 0~100% smooth dimming with 4 variable dimming curves, an outstanding strobe effect with variable speed, variable preset macro effects and smooth color mixing & changing, to create psychedelic effect. Very suitable for bars, ball rooms, night clubs, and other entertainment applications.

Features

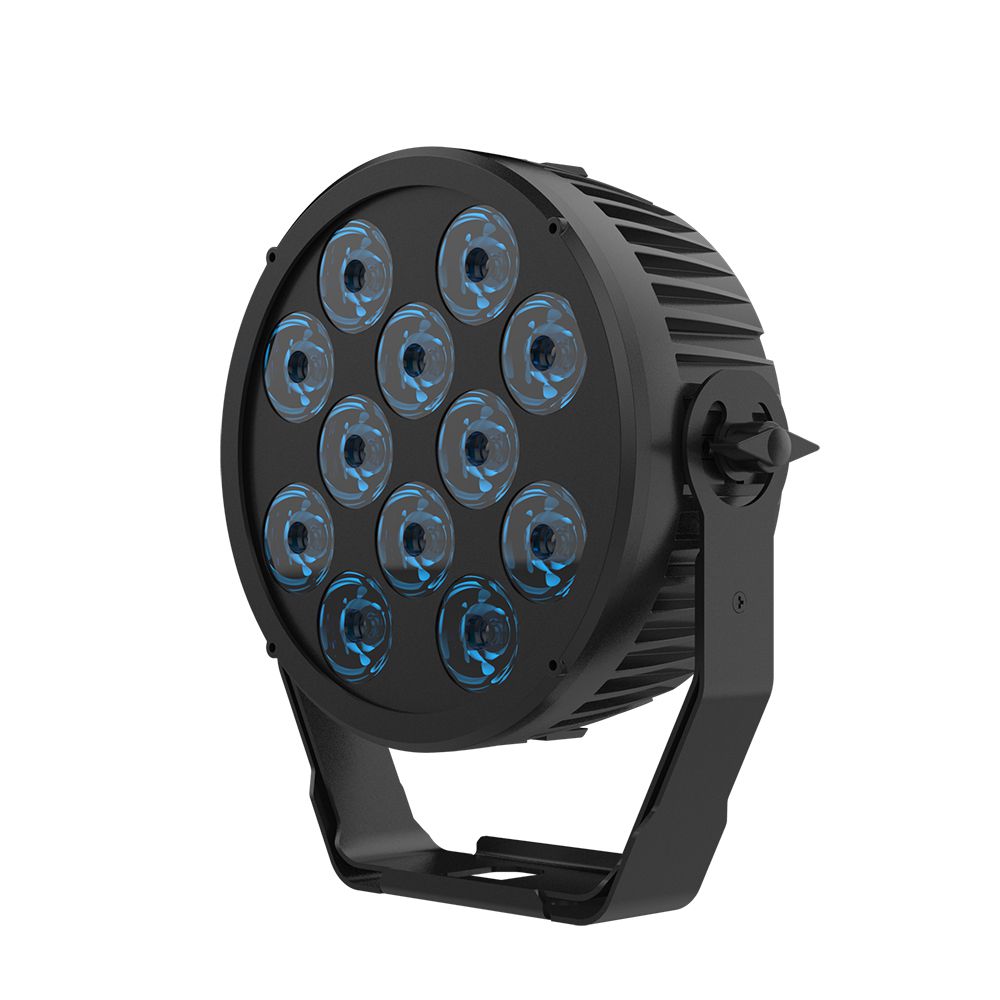

Light Source: 12 x 8W RGBW LED module
Outstanding color mixing effect
Compact design, small size
Multiple units can be split-jointed horizontally with buckle design
Outstanding strobe effect with variable speed
0~100% smooth dimming
Flicker free management

Technical & Specification
Model
PAR 12

Light source
Light Source: 12 x 8W RGBW LED module
LED life expectancy: 20000 hours

Optical system
Advanced optical system

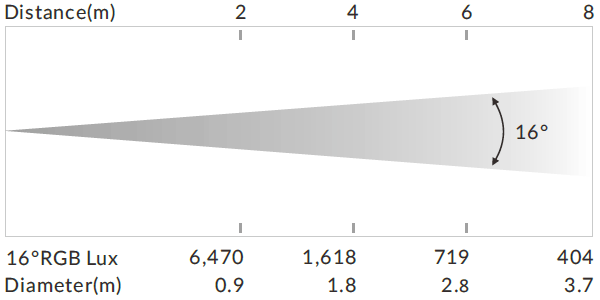

Beam Angle: 16°
Field Angle：27°
Luminous Flux：2815lm

Control and Program

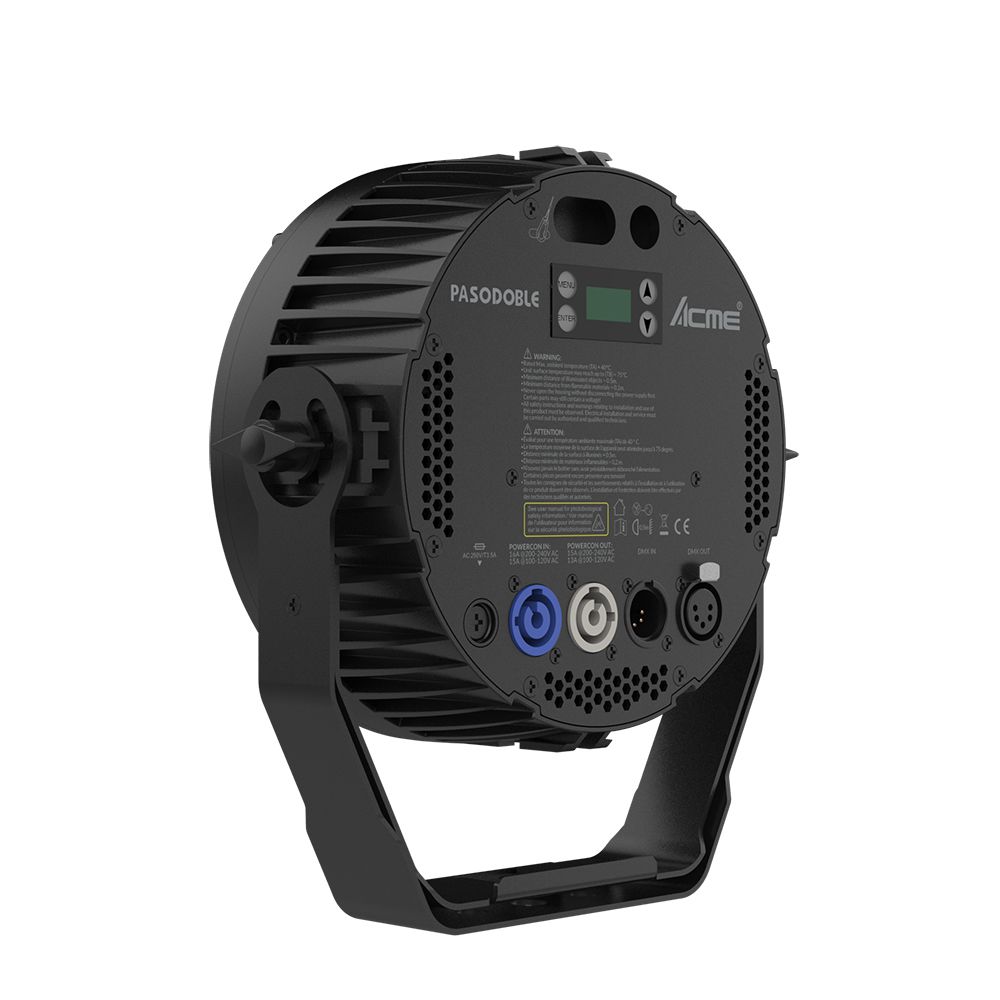

4-buttons touch panel
Display: OLED display
Protocols: DMX512, RDM
Upgrade the firmware via DMX link
DMX Protocol modes: 4
Control channels: 10/8/5/4

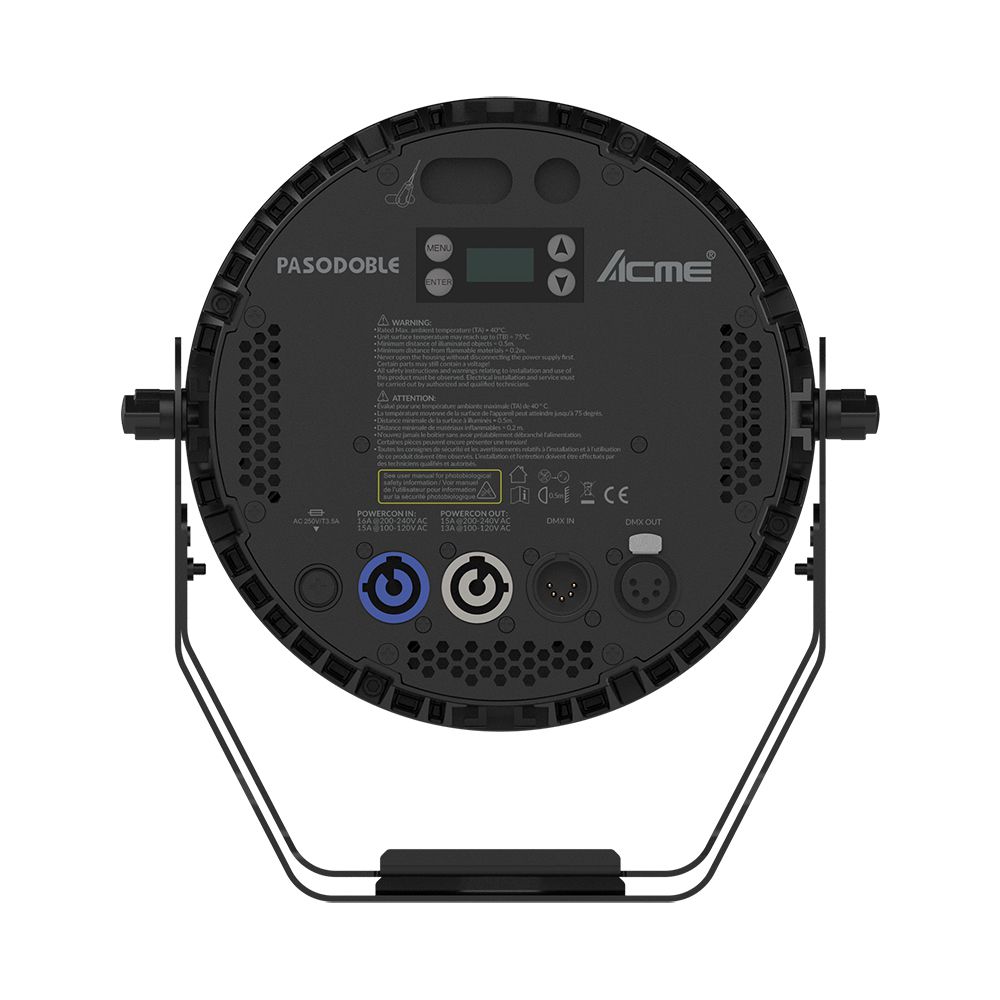

Electrical and Connectors
◦Power supply with electronic auto-ranging
◦Input voltage range: AC180~240V, 50/60Hz
◦Power consumption: 85W

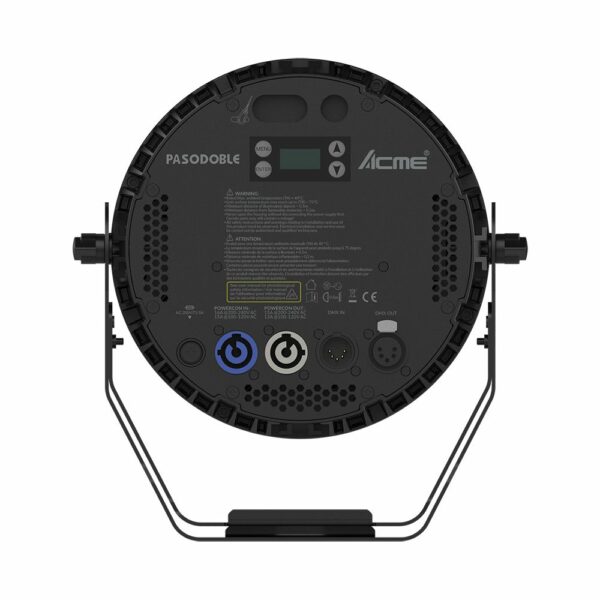

Power In/Out：Power connector In/Out
Data in/out: 3-pin XLR

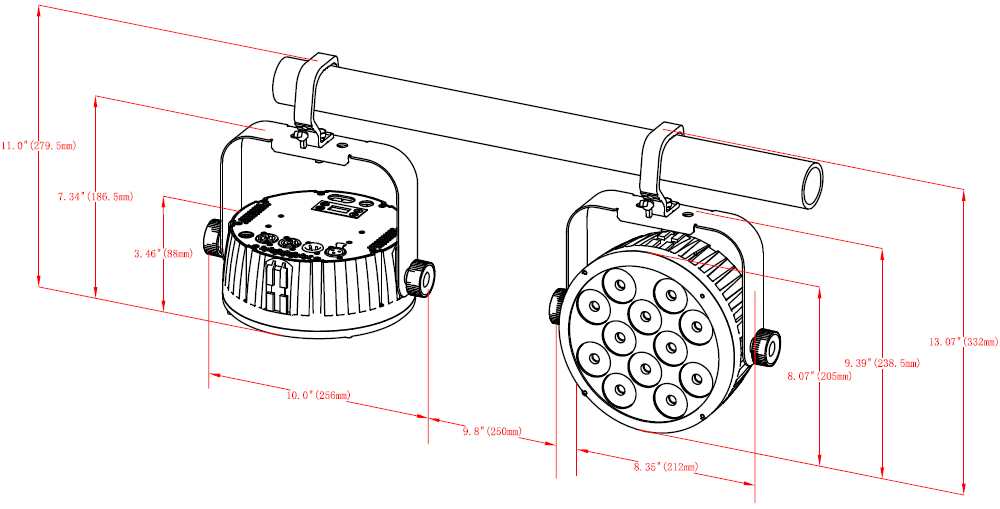

Fixture Specification
Height: 239mm (9.4″)
Width: 257 mm (10.11″)
Depth: 88 mm (3.5″)
Weight:3 kg (6.6 lbs)

Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Installation
Horizontally or vertically mounting are available
Operating position is universal
The feet support with locking points
Safety cable attachment point

Included items
User Manual

Optional Accessories (with item code)
Clamp：2060001627 (A011)
Signal Line：3-pin signal line
Safety cable : 2060001628 (A017)
