Adviesprijs 3.550,79 excl.btw

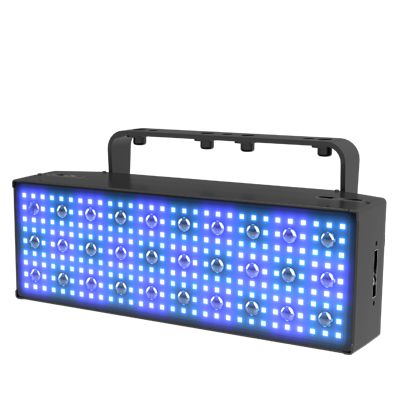

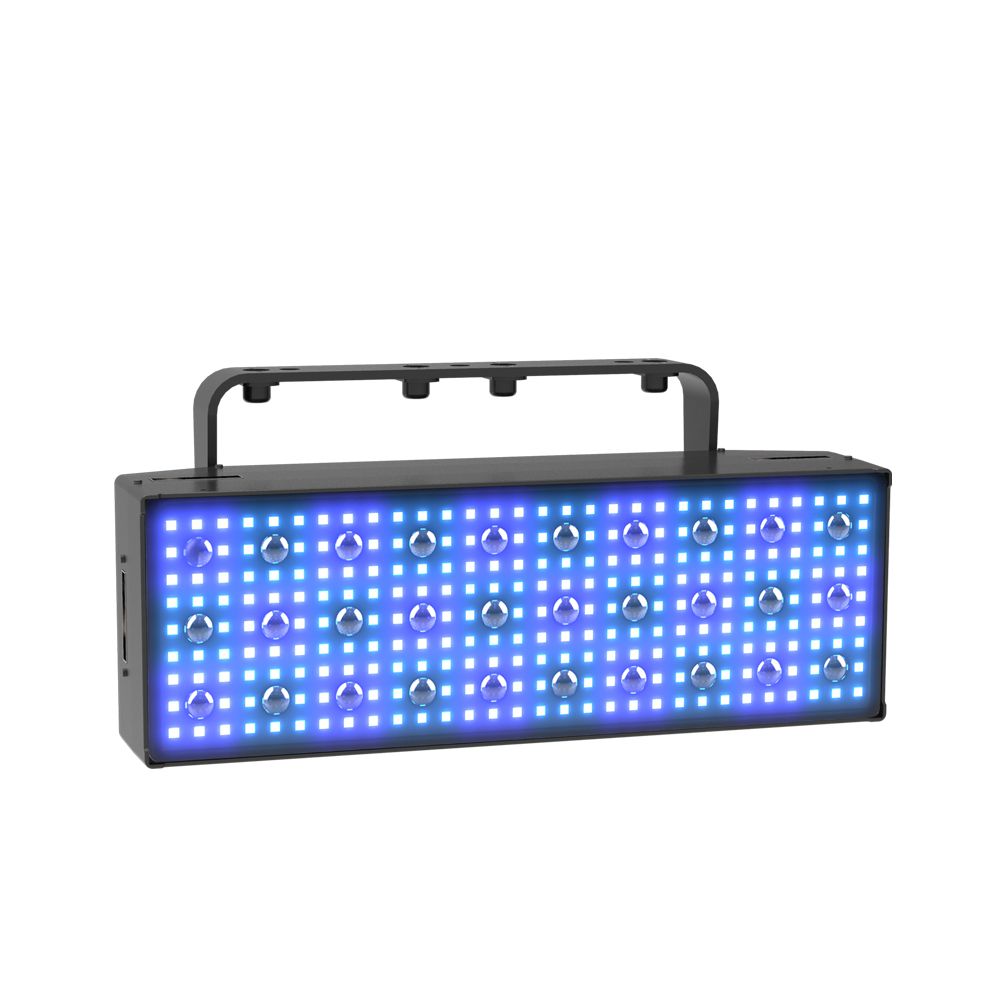

Pixel mapping – Strobe – beams – 240 x 12W RGBW & 30 x 10W CW LED – electronic Frost


Log in of registreer om uw korting te zien.
Of vraag vrijblijvend een offerte aan.

Demo? Bezoek onze showroom of maak een afspraak voor een demo op locatie.

Wij zijn er voor de professional. Totaal leverancier stage & entertainment

Deskundig advies op maat. Wij denken graag met je mee.

Gespecialiseerd in projectie. Voor elke project een oplossing.

Functional Overview

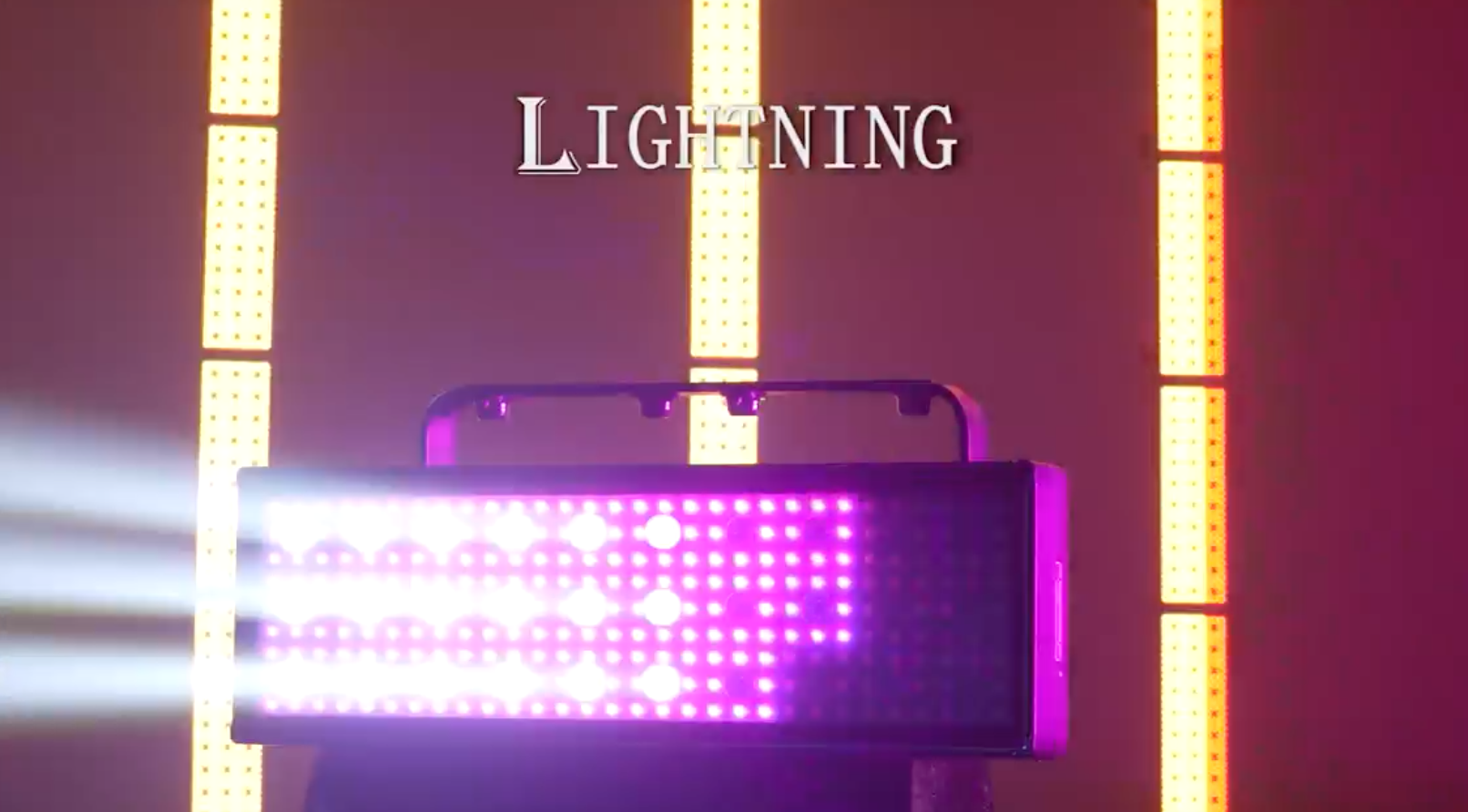

ACME LIGHTNING, being inspired by the elements lights hammering down from the heavy rainstorm, comes to a beyond thinking in our industry again. We are creating a multipurpose light panel that has dynamic strobes, powerful pointing beams, and a good quality flood wash. The bold attempt – Smart Glass Technology that we have just applied on the Pixel Line IP(PATENTED) is gaining huge success in the market, then we decide to make another push into the new LIGHTNING Strobe Wash. The controllable electronic frost function would fit kinds of soft appearance in contrast to the past effect lights. Equipped with 240 x 12W RGBW hybrid LEDs and 30 x 10W Cold White pixel beam in a parallel layout, RGBW LEDs are divided into 30 sections together with the Cold White Pixel Beams at 3.5 output degrees suspended in the middle (PATENTED). What a creative effects combo! The specified color wavelength system allows us to have a great mixing in all dimmer output levels and a variety of programmed light effects.

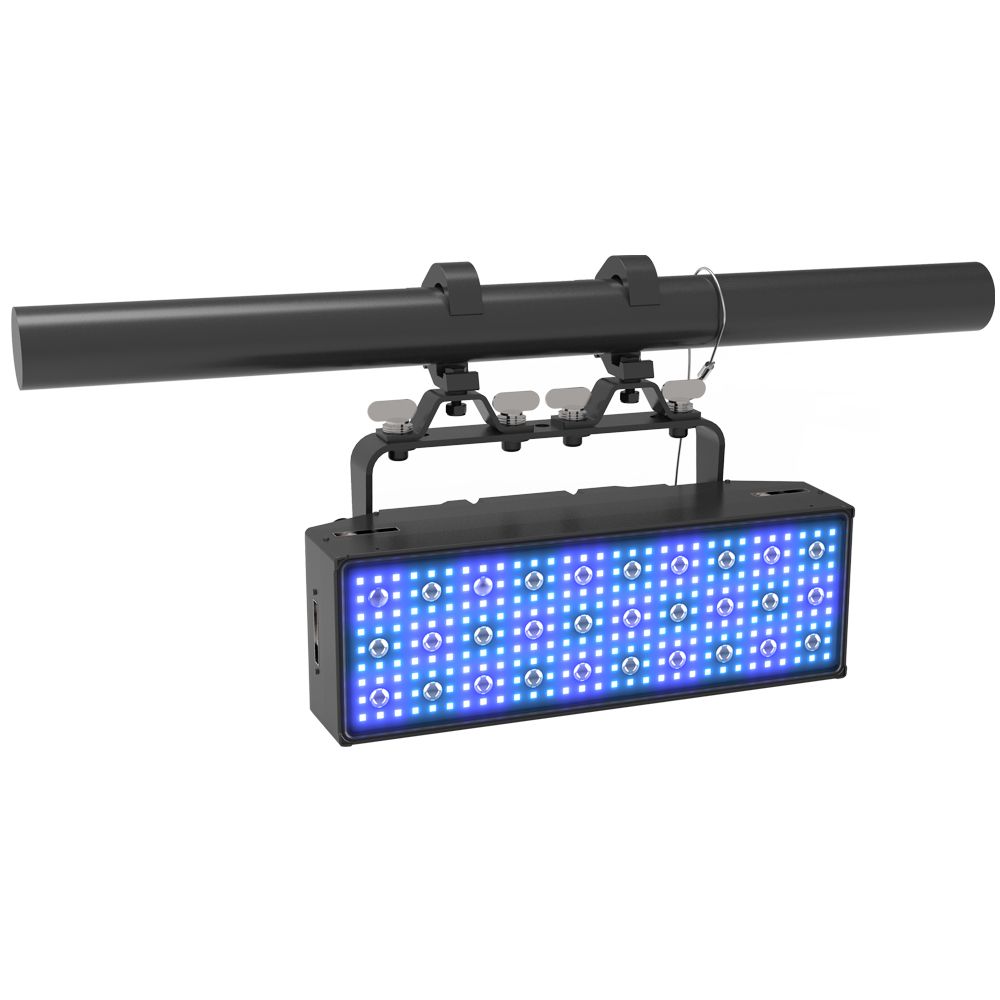

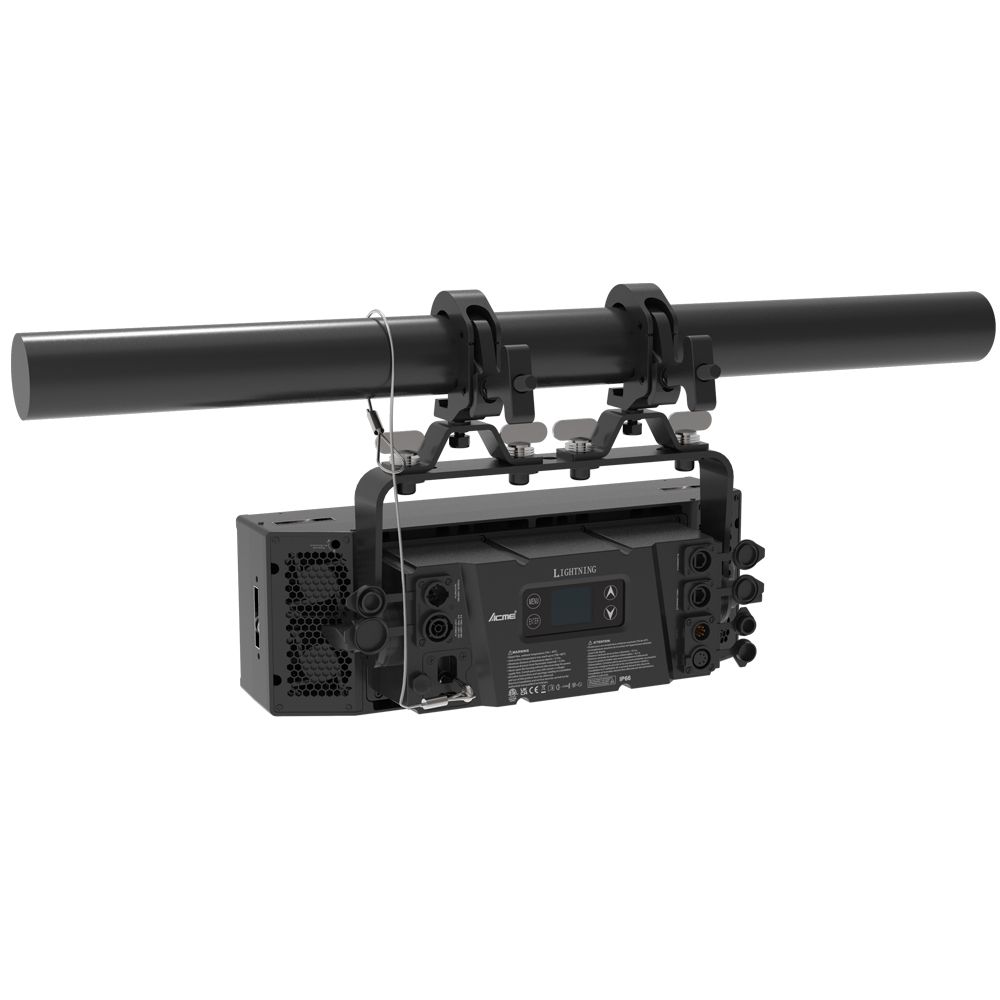

The friendly installing structure will be our main concern. A pair of fully-new designed foldable clamps have been integrated with the yoke. Two hiding twist-lock under the housing helps the fast positioning matrix line up. All-weather application fits for Concert Touring, TV shows, cooperated Events and Music Festivals, and numerous innovative achievements.

ACME LIGHTNING, a new definition of strobe wash art.

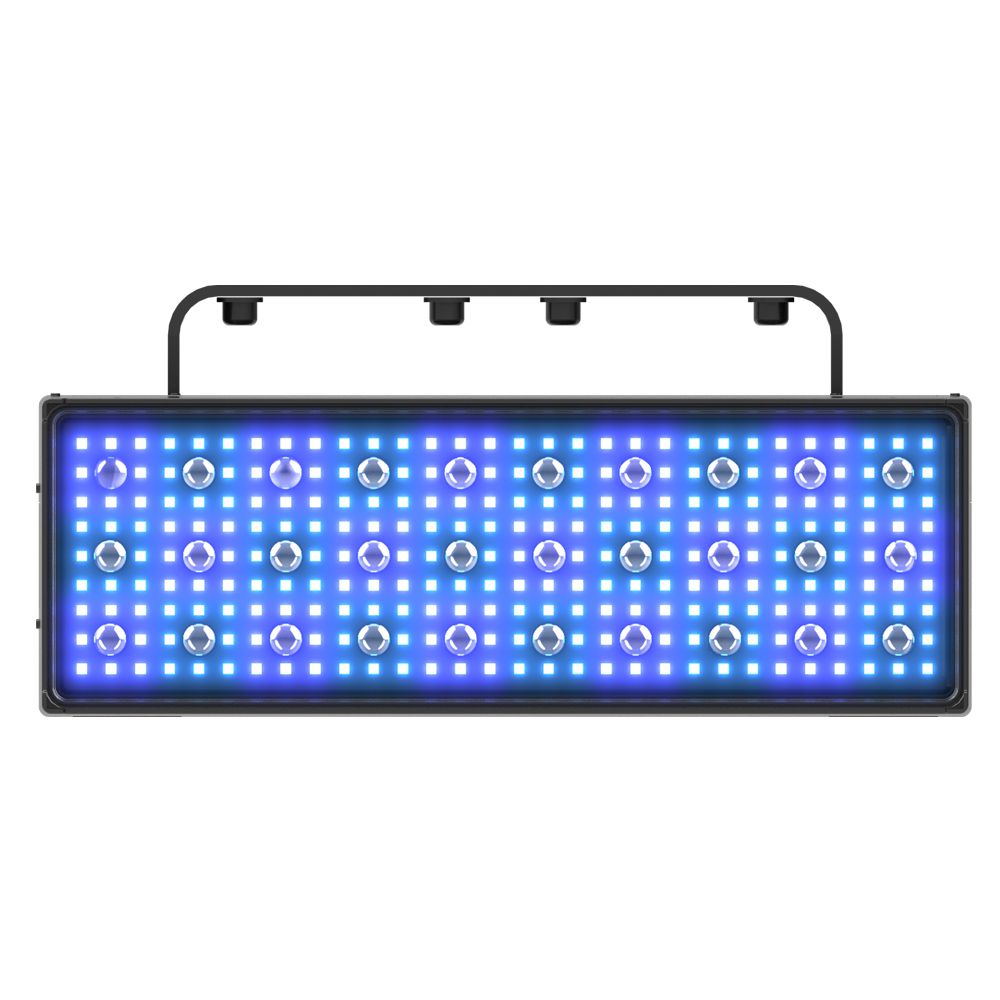

  • Light Sources:
    • 240 x 12W RGBW LED
    • 30 x 10W CW LED

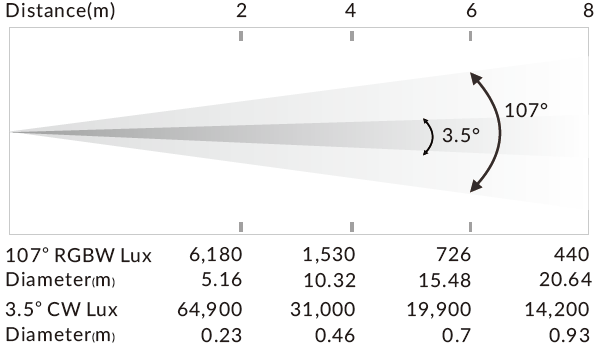

  • Beam Angle:
    • RGBW: 102°
    • Cold White Beam: 3.5°
  • 30 Controllable sections of RGBW area
  • 30 Shot out sections of Cold White Beams
  • Applied the Smart Glass as frontal glass, providing changeable frosted/transparent effect
  • 30 powerful beams output in a creative way
  • Outstanding color mixing
  • Dynamic strobing vivid effect

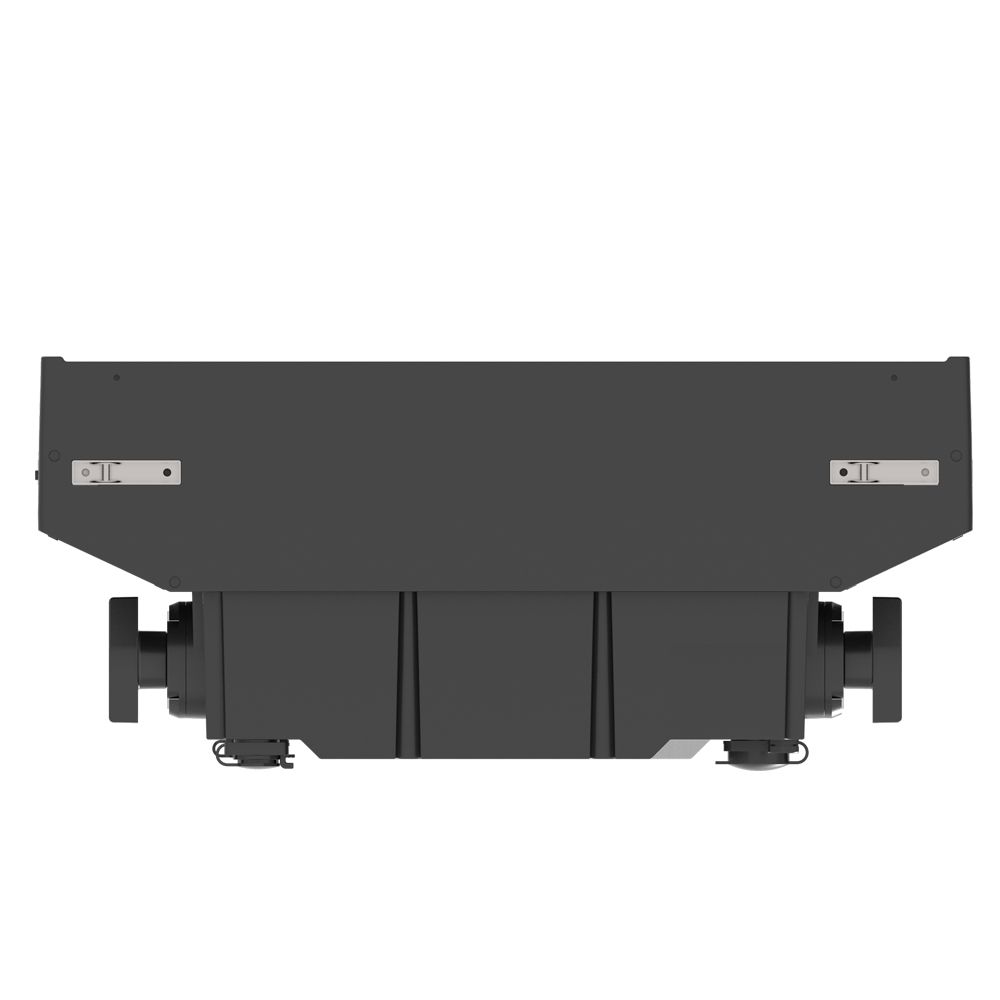

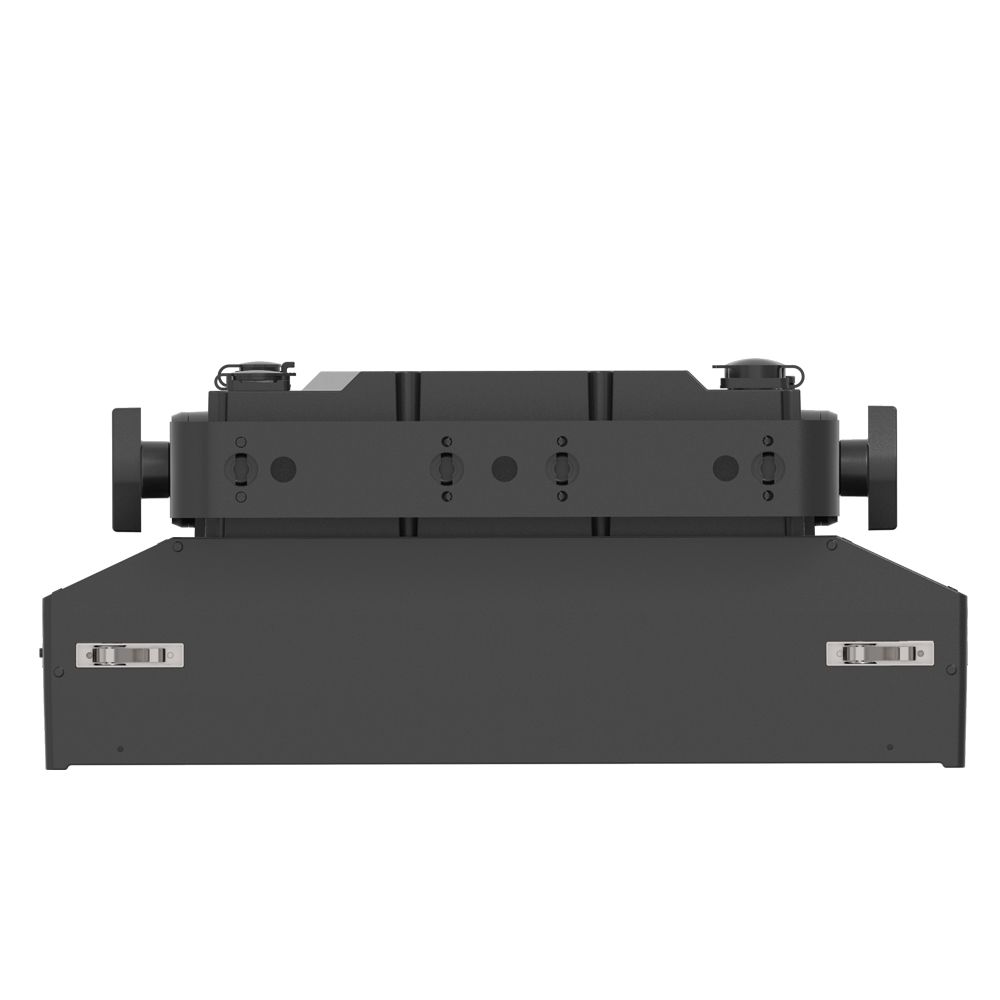

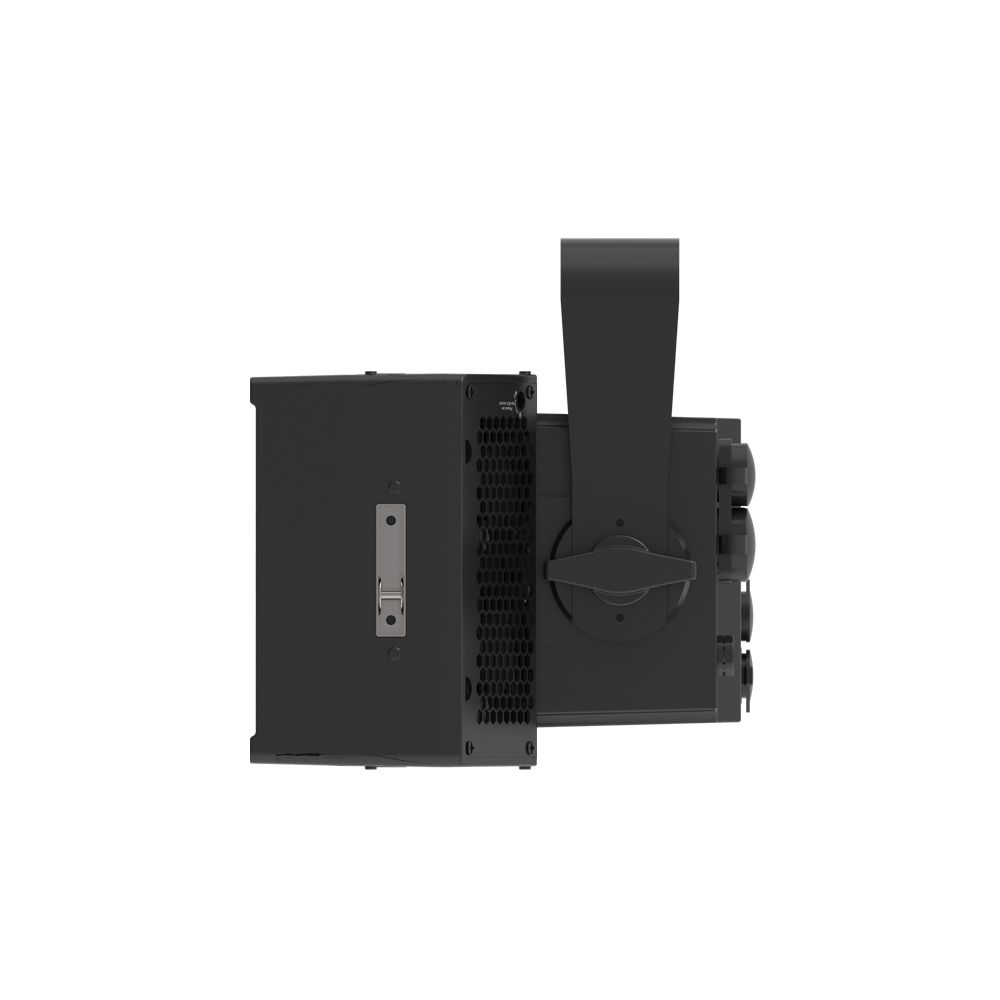

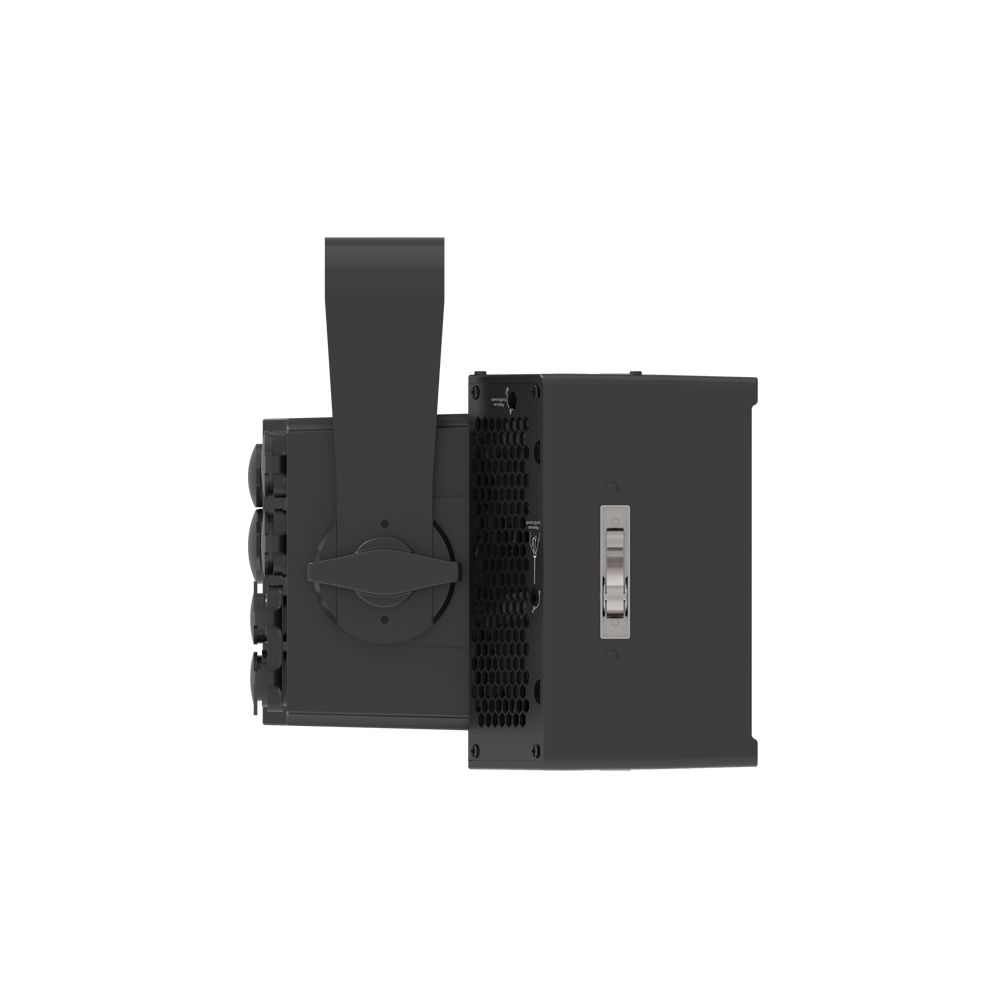

  • Hiding twist-lock design for quickly tool-free combining
  • 0~100% Smooth Dimming
  • Flicker Free Management from 900 Hz to 25,000 Hz



Light Source

  • Light Source:
    • 240 x 12W RGBW LED
    • 30 x 10W CW LED
  • Color Temperature(CW): 6,300 K
  • LED life expectancy: 20,000 hours
  • Beam Angle:
    • RGBW: 102°
    • CW Beam: 3.5°

Control and Program

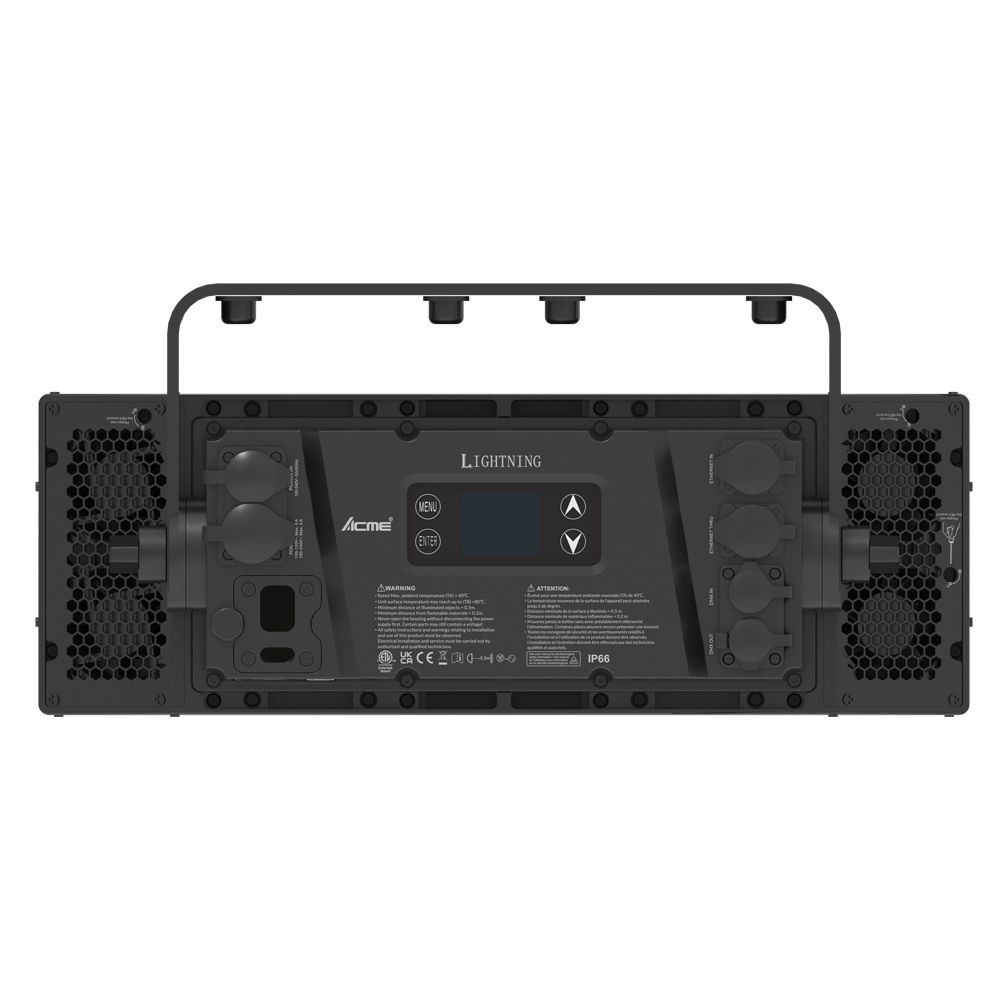

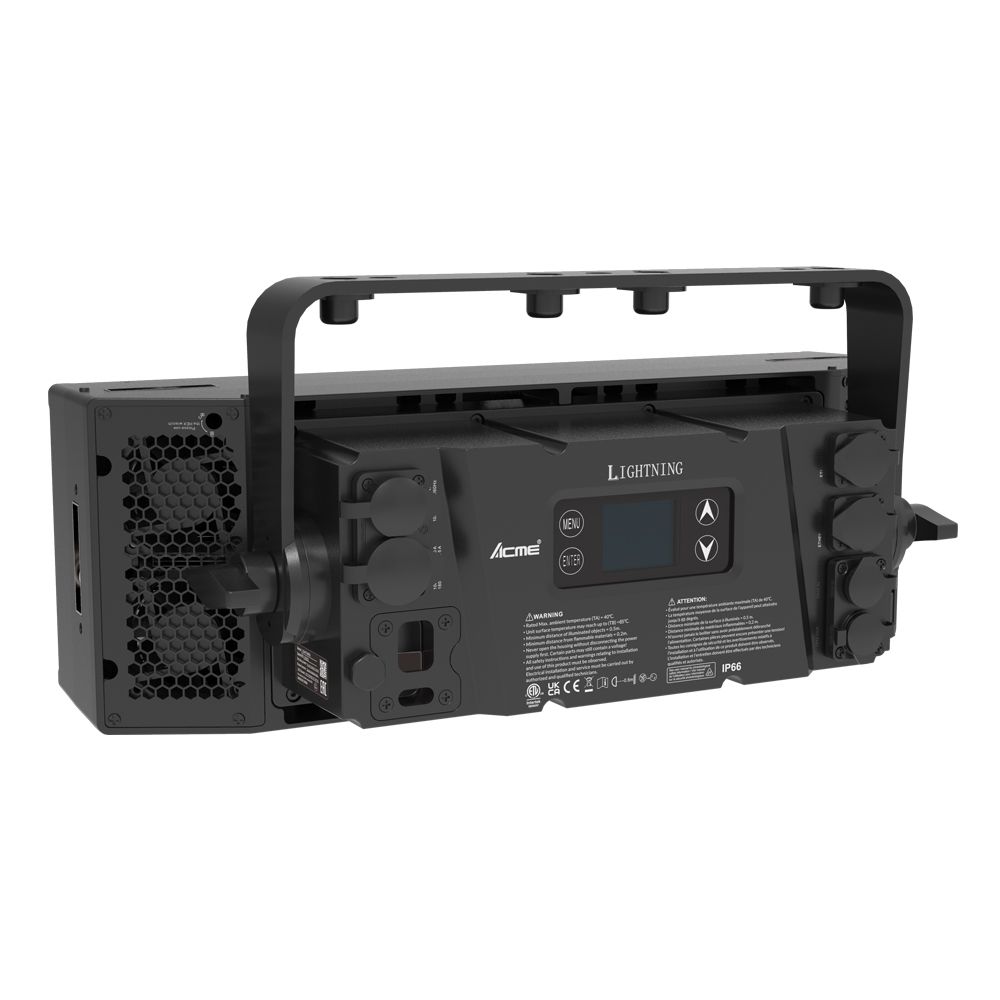

  • 4-Button touch panel
  • Display: Color Display
  • Protocols: DMX512,RDM,Art-Net,sACN
  • DMX Protocol modes: 10
  • Control channels: 10/17/24/21/26/36/41/61/150/158
  • Firmware Upgrade: Upgrade via DMX link

Electrical and Connectors

  • Input Voltage Range: 100-240~ 50/60Hz
  • Power consumption: 1,500 W
  • Power In/Out: Waterproof Power Connector In/Out
  • Data in/out: 3-pin/5-pin Waterproof XLR Socket,RJ45

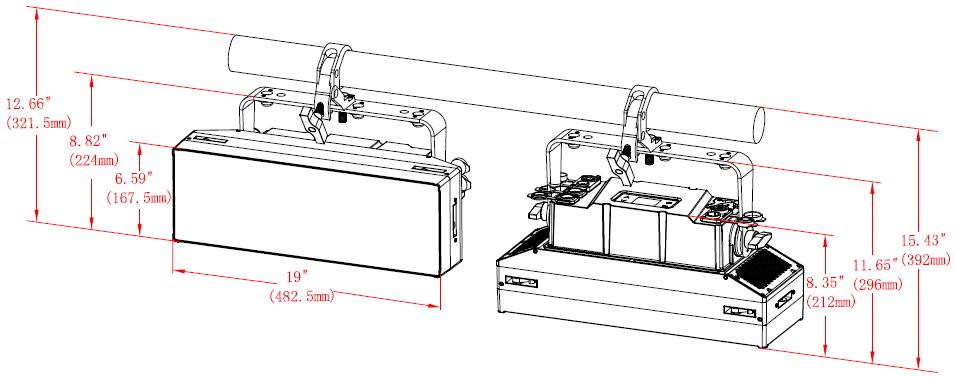

Fixture Specification

  • Fixture Dimensions:
    • Width: 483 mm (19″)
    • Depth: 212 mm (8.4″)
    • Height: 224 mm (8.8″)
    • Weight: 14 kg (31 lbs)
  • Flight Case Dimensions:
    • Width: 1,220 mm (48″)
    • Depth: 610 mm (24.0″)
    • Height: 655 mm (25.7″)
    • Weight: 105 kg (231 lbs)(include flight case, quad loader case)
  • Carton Dimensions:
    • Width: 590 mm (23″)
    • Depth: 320 mm (13″)
    • Height: 390 mm (15″)
    • Weight: 16.5 kg (37 lbs)(include carton,one-pack per carton)

Work Environment

  • Maximum ambient temperature: 40°C
  • Minimum operating temperature: 0°C
  • Maximum surface temperature: 65°C
  • Protection rating: IP66


  • Available in horizontal or vertical mounting
  • Universal operating position
  • Safety Rope Hole

Factory Configuration

  • Digital User Manual
  • Power Cable

Optional Accessories (with item code)

  • Quad-Loader Flight Case: 3205096016
  • Clamp: 2060001625(C-150B)
  • Safety cable: 2060000200(SW-02)
  • Signal Line: 3-pin or 5-pin Waterproof XLR signal line
