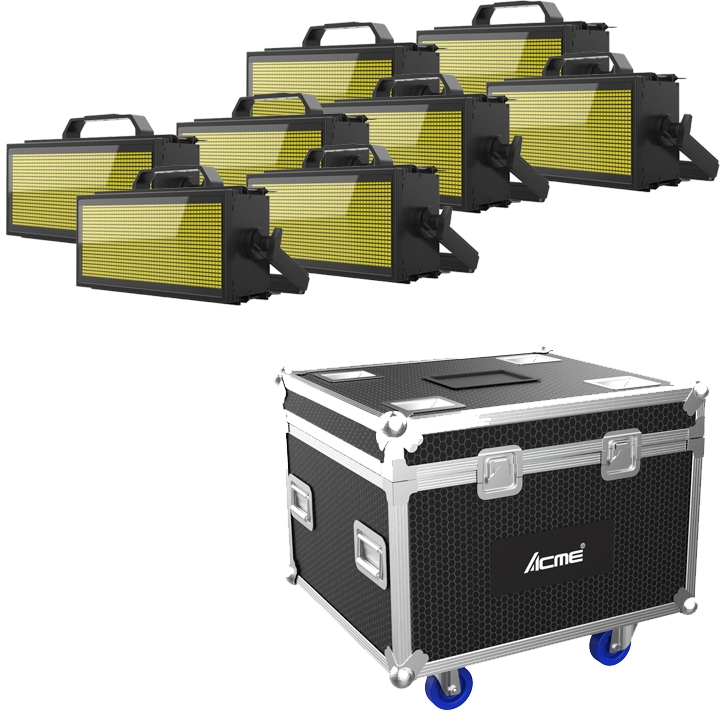

Acme 8x THUNDER + flightcase

Log in of registreer om uw korting te zien.
Of vraag vrijblijvend een offerte aan.

Demo? Bezoek onze showroom of maak een afspraak voor een demo op locatie.

Wij zijn er voor de professional. Totaal leverancier stage & entertainment

Deskundig advies op maat. Wij denken graag met je mee.

Gespecialiseerd in projectie. Voor elke project een oplossing.

Functional Overview
With its 1188x 0.8W RGBW SMD LED emitters, ACME’s THUNDER breaks new ground in the LED strobe market, delivering an extremely fast strobe with super-bright performance. Its front face is divided into three LED zones, each of which can becontrolled individually. Each zone provides fast feedback, individual RGBW Controland outstanding macro effects, offering wide-ranging color effects and pixel-mapping combinations for creative lighting designers.
The unit Features a wide 110° beam angle, smooth dimming performance for 0-100% and flicker-free operation. Equipped with a special patented plug structure, the THUNDER units can easily be combined with each other or with other BL200 series ACME fixtures (Stage Blinder IP) by horizontal or vertical assembly, to create large-area, high-power wall-washing effects or stage floor wash effects.
THUNDER also has an OLED screen and a DMX / RDM dual-Controlsystem, giving lighting designers fast and convenient operation. All functions are built-in to this compact, small, light-weight and IPX4-rated fixture. Thunder is suitable for many applications, such as concerts, evening parties, outdoor galas, cooperated events, etc.
Features
Light Source: 1188x 0.8W RGBW LED
3x individually controllable LED zones
Variable CTO: 2500K – 8000K
Outstanding high-brightness wash effect
Powerful strobe effect
Small size, light weight
High resolution dimmer, 0–100%
Flicker-free management
Protection Rating: IPX4, can be used outdoors all year round

Technical & Specification
Model
BL-200 CP

Light Source
Light Source: 1188x 0.8W RGBW LED
LED life expectancy: 20,000 hours

optical System& Effects

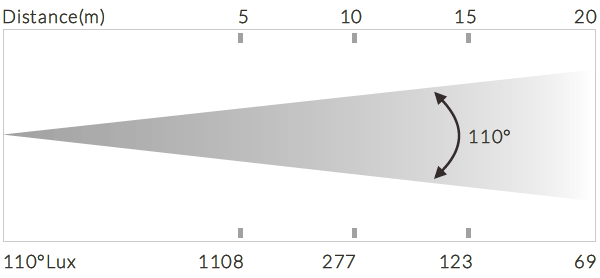

Beam Angle: 110°
RGBW color mixing
3x individually controllable LED zones
Outstanding high-brightness wash effect
Powerful strobe effect
High resolution dimmer, 0–100%

Appearance
Small size, light weight
No gaps between units in combination
Carry handles top and bottom for easy portability
Flexible stands for stable horizontal mounting, even on slopes

Controland Program
4-button touch panel
Display: OLED display
ControlMode: DMX-512, RDM
DMX Protocol modes: 4 (8-bit), 8 (16-bit), 8, 9 (16-bit), 16 channel
Firmware upgradeable via DMX link

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240V, 50/60Hz
Power consumption: 515W
Power in/out: waterproof power connector in/out
Data in/out: 3-pin or 5-pin IP XLR

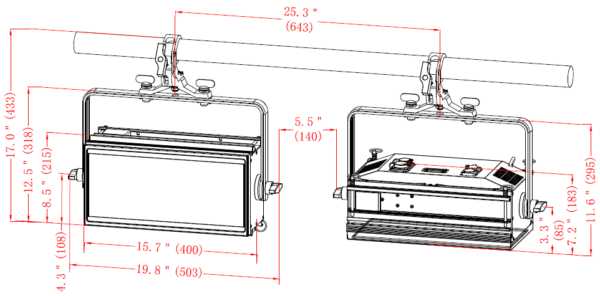

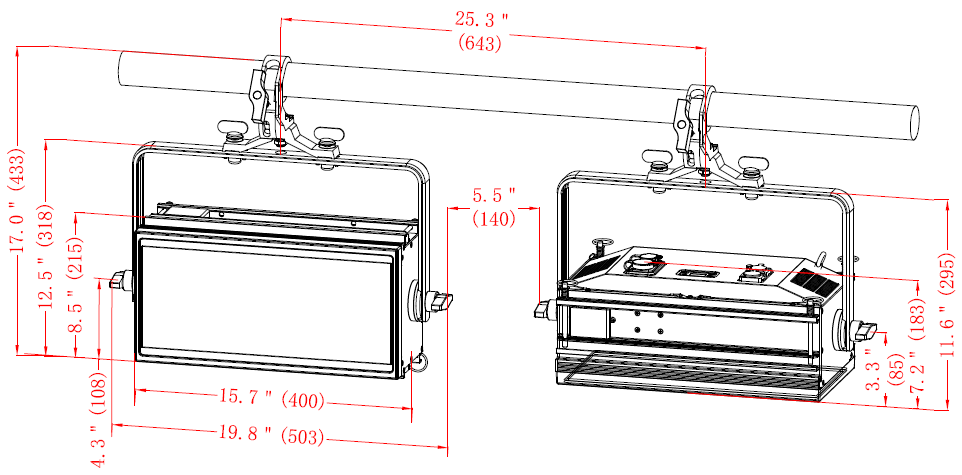

Fixture Specification
Height: 318mm (12.5”)
Width: 503mm (19.8”)
Depth: 183mm (7.2”)
Weight: 9.2kg (20.3lb)

Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IPX4

Approvals
CE compliant

Installation
Horizontal or vertical mounting available
Operating position is universal
2 pairs fast-lock points under base
2x fast-lock clamps for 50mm truss (install 1 or 2 clamps as required)
Safety cable attachment point

Included Items
User Manual
Power Cable
Top and bottom carry handles
Adjustable foot-stands
2x fast-lock clamps for 50mm truss

Optional Accessories (with item code)
Flight Case: 3205001263 (4 in 1)
Clamp: 2060001614 (C-250)
Safety cable: 2060001603-A (SW-05)
Signal line: 3-pin IP signal line
