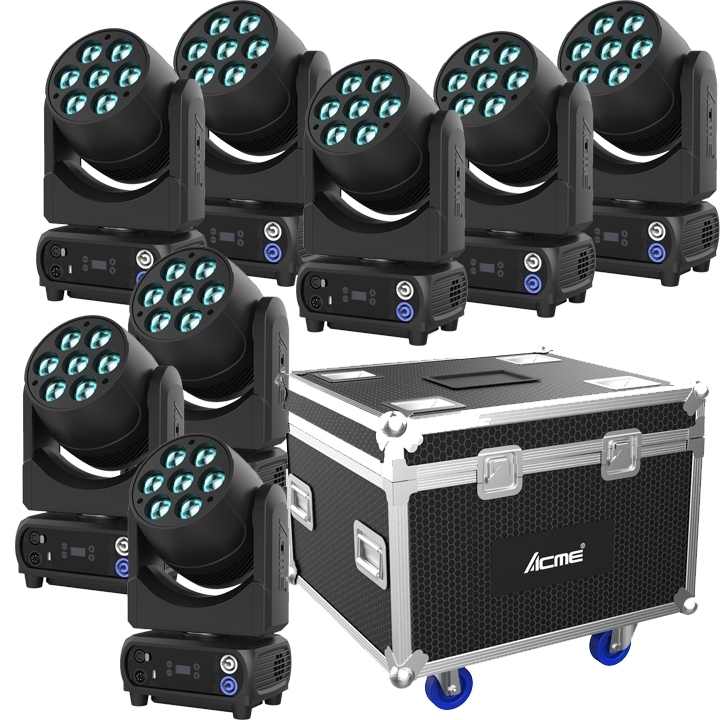

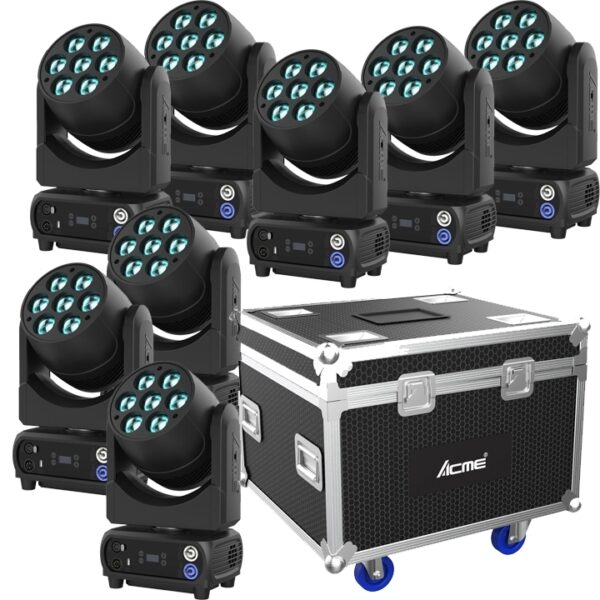

Acme 8x OXYGEN + flightcase

Adviesprijs 16.297,00 excl.btw

Demo? Bezoek onze showroom of maak een afspraak voor een demo op locatie.

Wij zijn er voor de professional. Totaal leverancier stage & entertainment

Deskundig advies op maat. Wij denken graag met je mee.

Gespecialiseerd in projectie. Voor elke project een oplossing.

Functional Overview
Oxygen is a small, super-fast, bright and lightweight LED wash luminaire utilizinga 7x40W Osram RGBW 4-in-1 Light Source. The fast zoom(1:7 ratio, 6-40˚)cango from a tight 6˚ beam to a wide, soft 40˚wash. The 7 LEDs offer variable-speed strobe, smooth dimming and color changing to create striking psychedelic effects. Other Features include familiarpowerconnectors, 5-pin XLR pass-through/daisy-chain, OLED touch display and remote RDM function.
The extremely compact fixture weighs just 5kg, so it can fit into virtually any position. It is ideal for all small-to-medium applications, particularly those where space and accessibility is an issue.
Light Source: Osram 7x40W RGBW LED
Powerful beam and wash effects
Variable CTO: 2500K – 8000K
Uniform RGBW color mixing and rainbow effect
Motorized linear zoom system
Zoom range: 6-40°
Outstanding strobe effect with variable speed
Smooth dimming from 0-100%
Compact design, small size
Fast and silent operation
Flicker-free management
Dust-proof and oil-proof design

Technical & Specification

Light Source
Light Source: Osram 7x40W RGBW LED
Color Temperature: 2500-8000K
LED life expectancy: 30,000 hours

Optical System
Advanced optical Systemfor clear, wide-ranging beam & wash effects
High-efficiency zoom optical System(ratio 1:6.7)

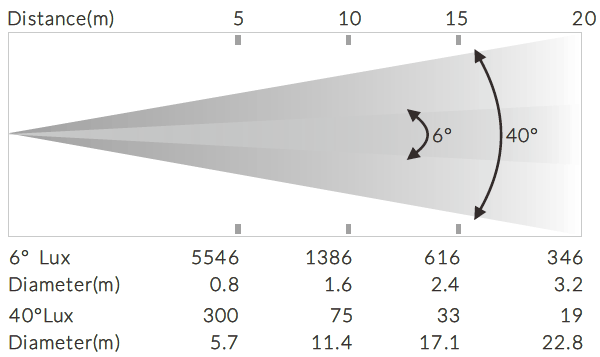

Zoom range: 6-40°
Total lumen output: up to 4,200 lumens

Control& Program
4-button touch panel
Display: OLED display
Protocols: DMX512, RDM
DMX Protocol modes: 2
Controlchannels: 17,37
Pan/TiltResolution: 16-bit
Dimmer: 16-bit
Firmware upgrade via DMX link & USB

Pan movement: 540°
Tilt movement: 250°
Automatic position correction

Electrical & Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240V, 50/60Hz
Power consumption: 340W
Power Connector input/output
Data in/out:  5-pin XLR (3p on order)

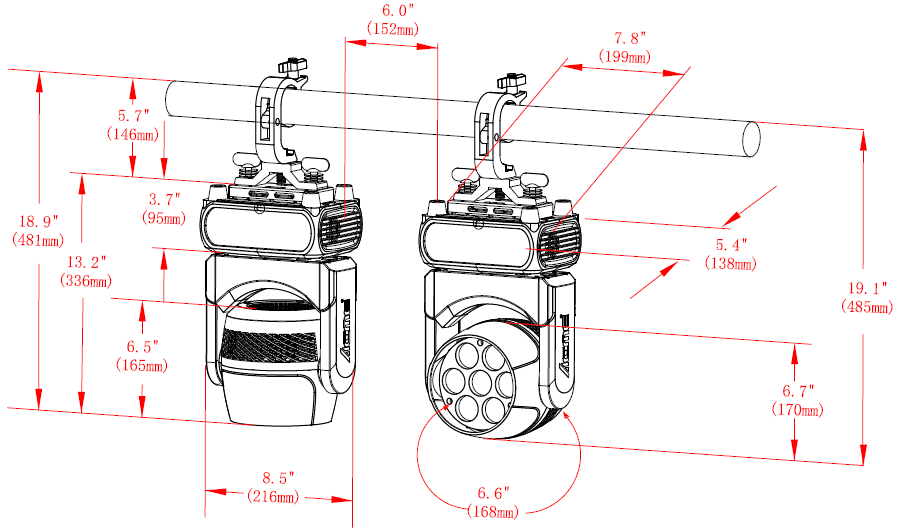

Fixture Specification
Height: 336mm (13.2”)
Width: 216mm (8.5”)
Depth: 138mm (5.4”)
Weight: 5kg (11lb)

Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

CE compliant

Horizontal or vertical mounting
Operating position is universal
2 pairs of 1/4-turn locking points under the base
1x fast-locked clamps with 1/4-turn locks for 50mm truss
Safety cable attachment point

Included Items
User Manual
Power Cable

Optional Accessories (with item code)
Raincover: 3033001749
Clamp: 2060001614 (C-250)
Safety cable: 2060000200 (SW-02)
Signal line: 3-pin or 5-pin signal line
