Functional Overview
The ACME SOLARIS presents new possibilitiesfor multi-function, multi-use moving panel luminaires. It is capable of providing a wide range of illumination and eye-candy effSOLARISface comprises a 6×6 array of 15W RGBW LEDs,interspersed with a 7×7 array of 0.06W White LEDs. All are designed for pixel mapping applications, offeringmany exciting possibilities for graphical effects. Producing 25,800 Lux @5m with a fixed 6˚ beam angle, the panel allows for split colors in mid-air, creating endless effects variety in any visual application.

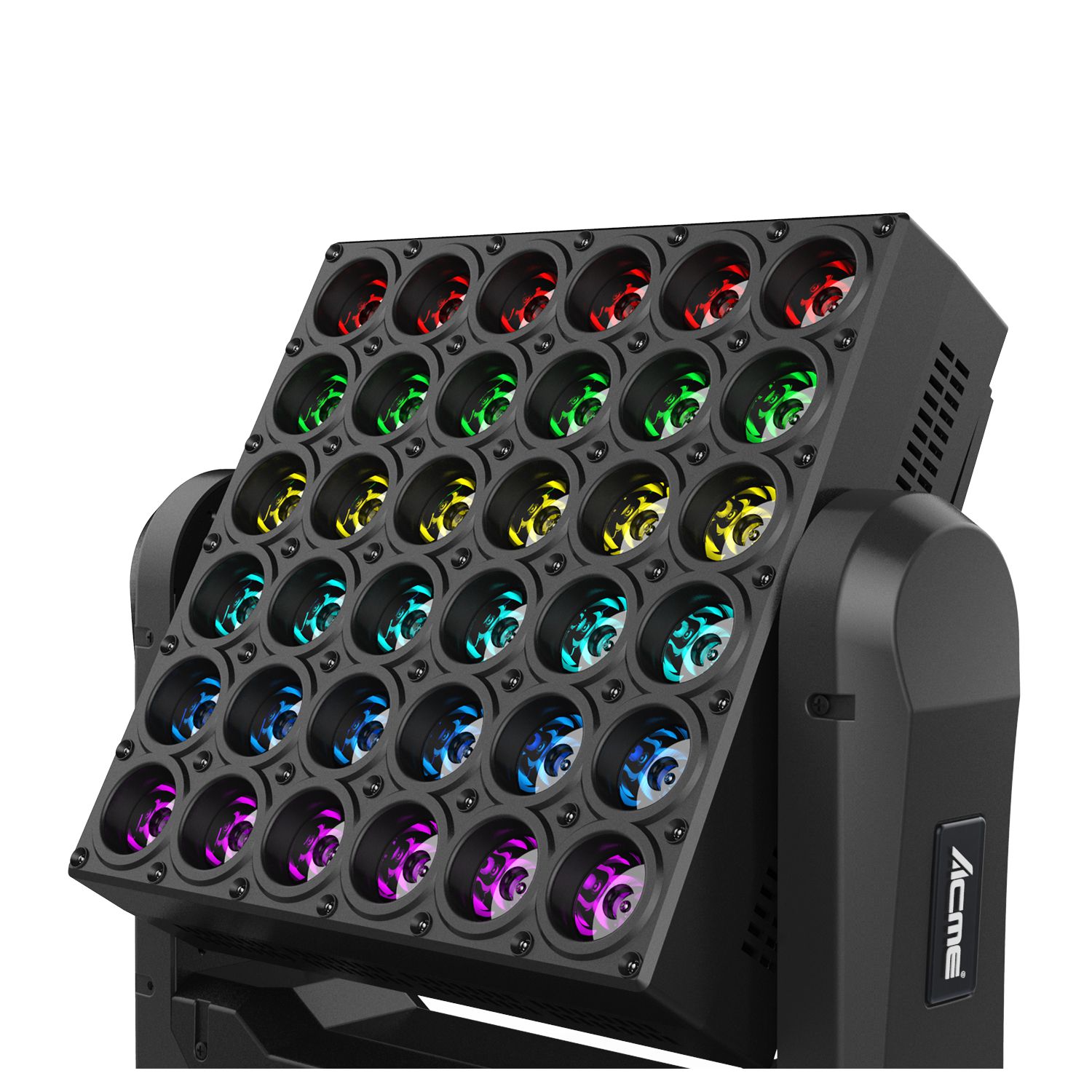

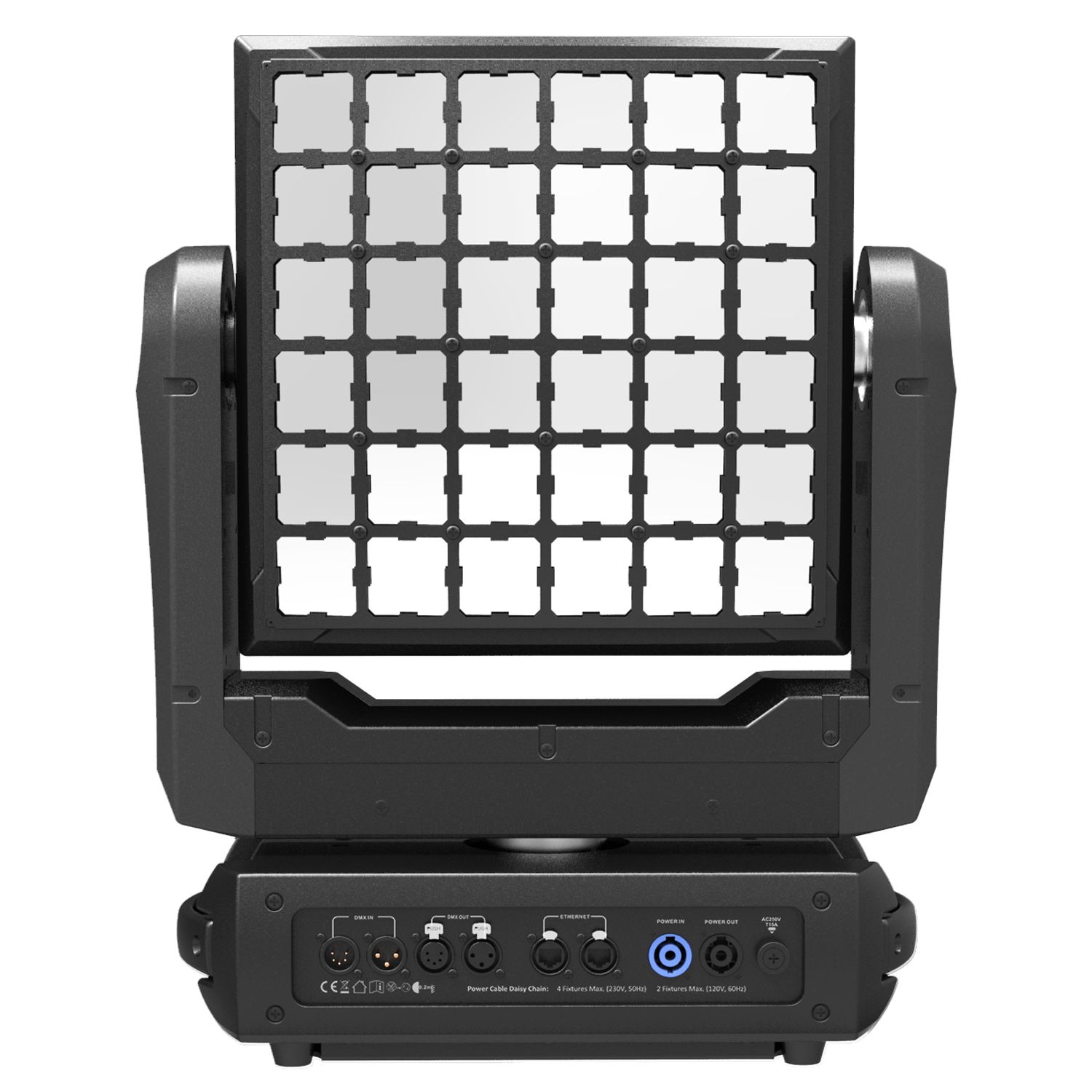

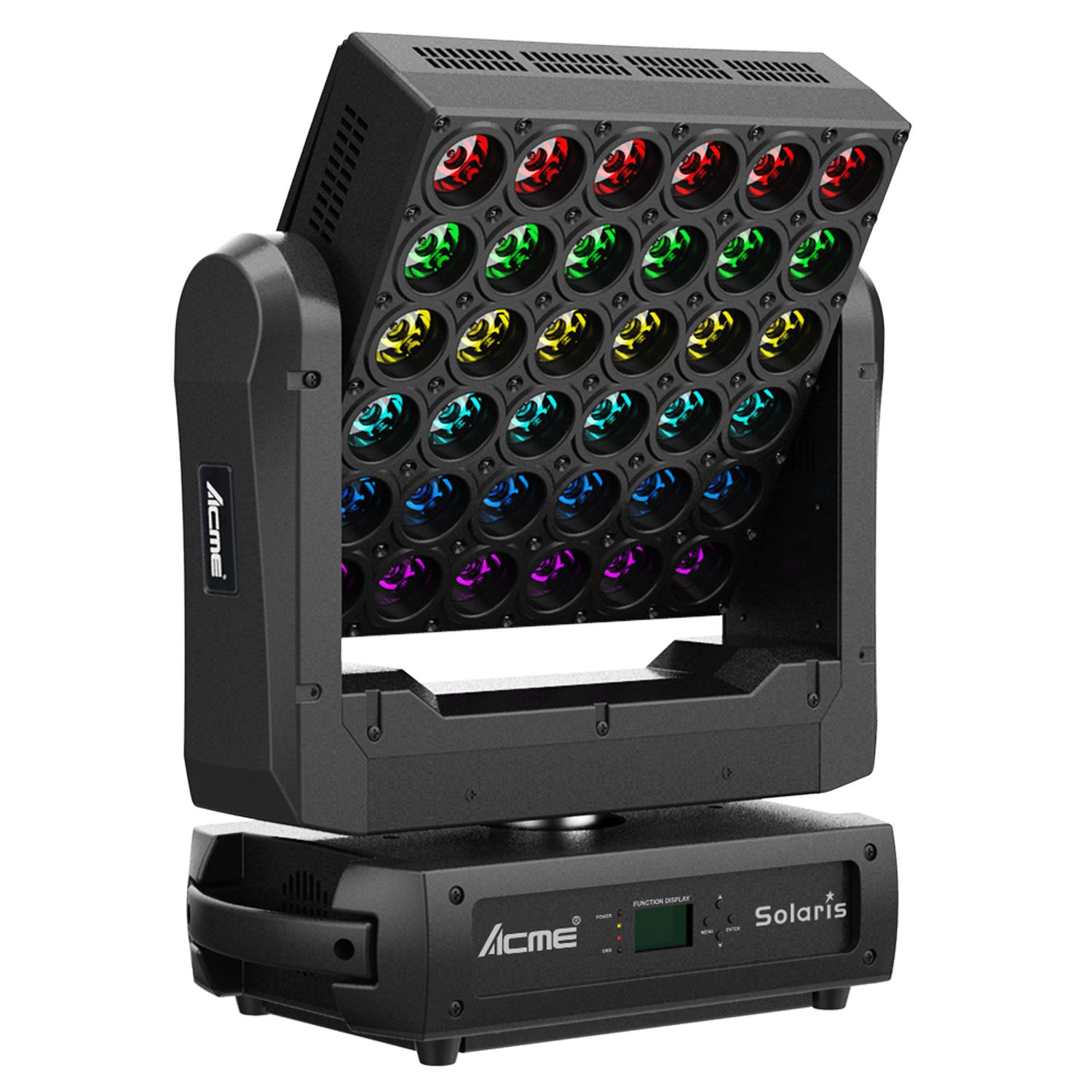

What’s more, SOLARIS’s infinite Pan and Tilt movement reveals a creative mirror panel on the unit’s rear face, giving the imaginative designer a whole new range of creativepossibilities upon which to reflect!
Features

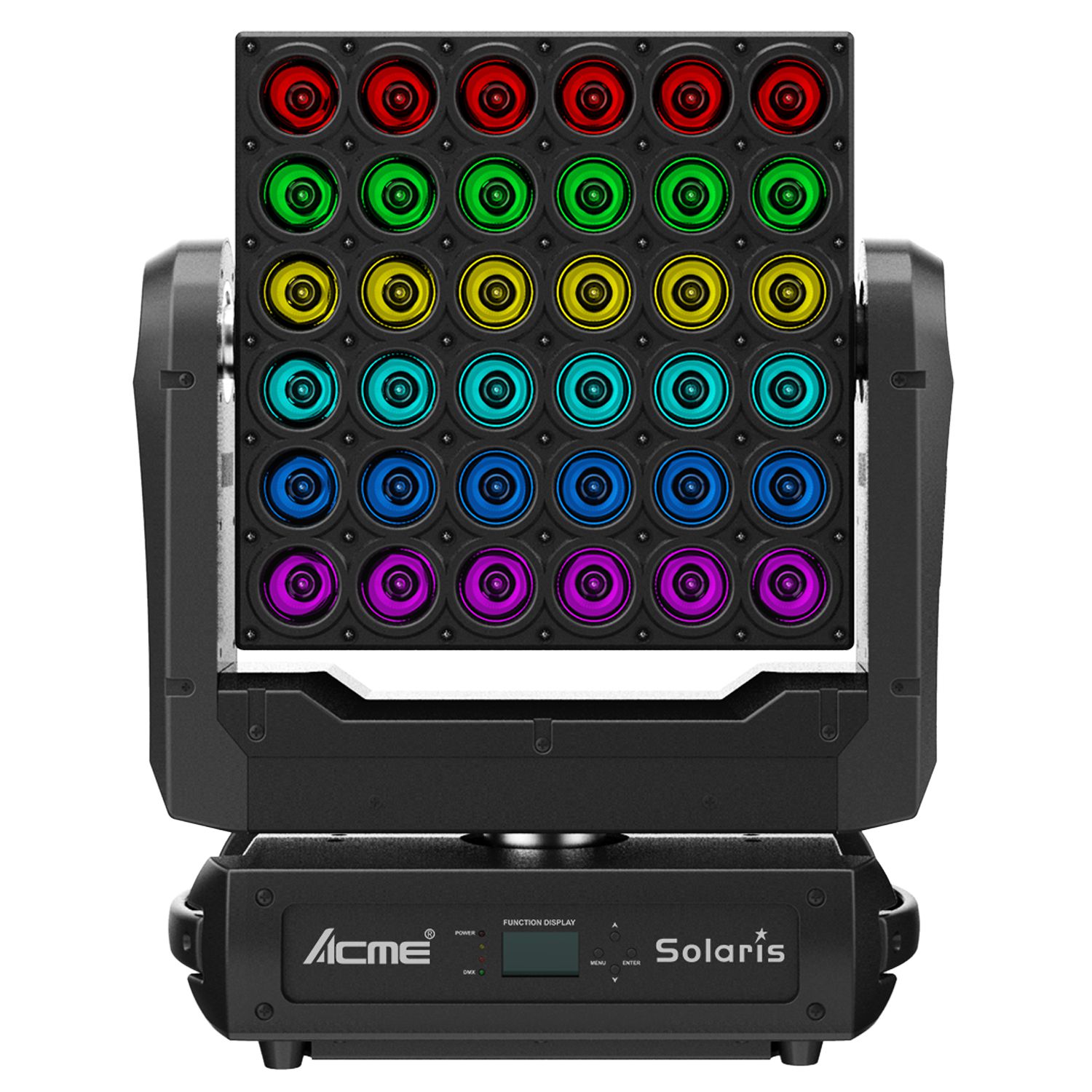

36 (6×6) 15W RGBW pixel ControlLED + 49 (7×7) 0.06W CW star-effect LED array
Pre-setsfor a variety of graphical matrix effects
Outstanding color mixing effect
Variable CTO: 2500K – 8000K
Smooth dimming from 0-100%, with 4 optional dimming curves
Outstanding strobe effect with variable speed
Excellent thermalcontrol
Low noise: fan speed can be adjusted automatically according to temperature
Optional reflector mirror modulecan create moonflower effect
Flicker-free management
Random strobe & pulse effects

Technical & Specification
Model
CM-S6

Light Source
Light Source: 36x15W RGBW LED + 49×0.06W CW LED
LED life expectancy: 20,000 hours

optical System& Effects

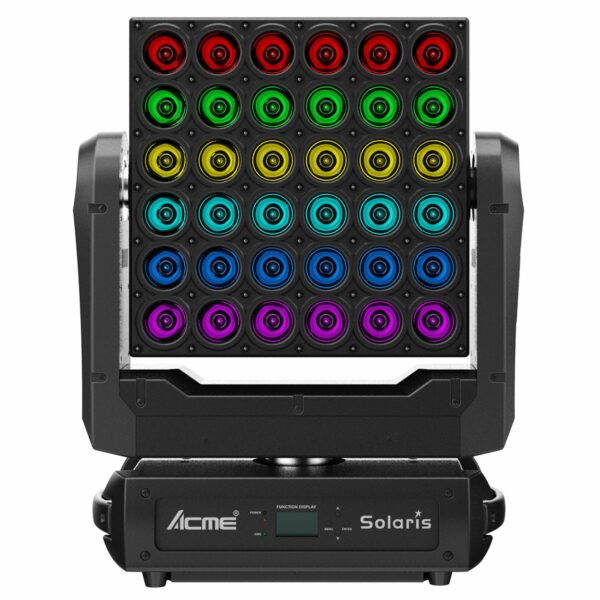

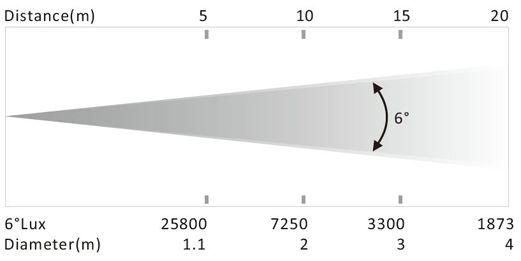

Beam angle: 6°
RGBW color mixing+CW ‘star’ effect
High-resolution dimmer 0-100%

Control& Program

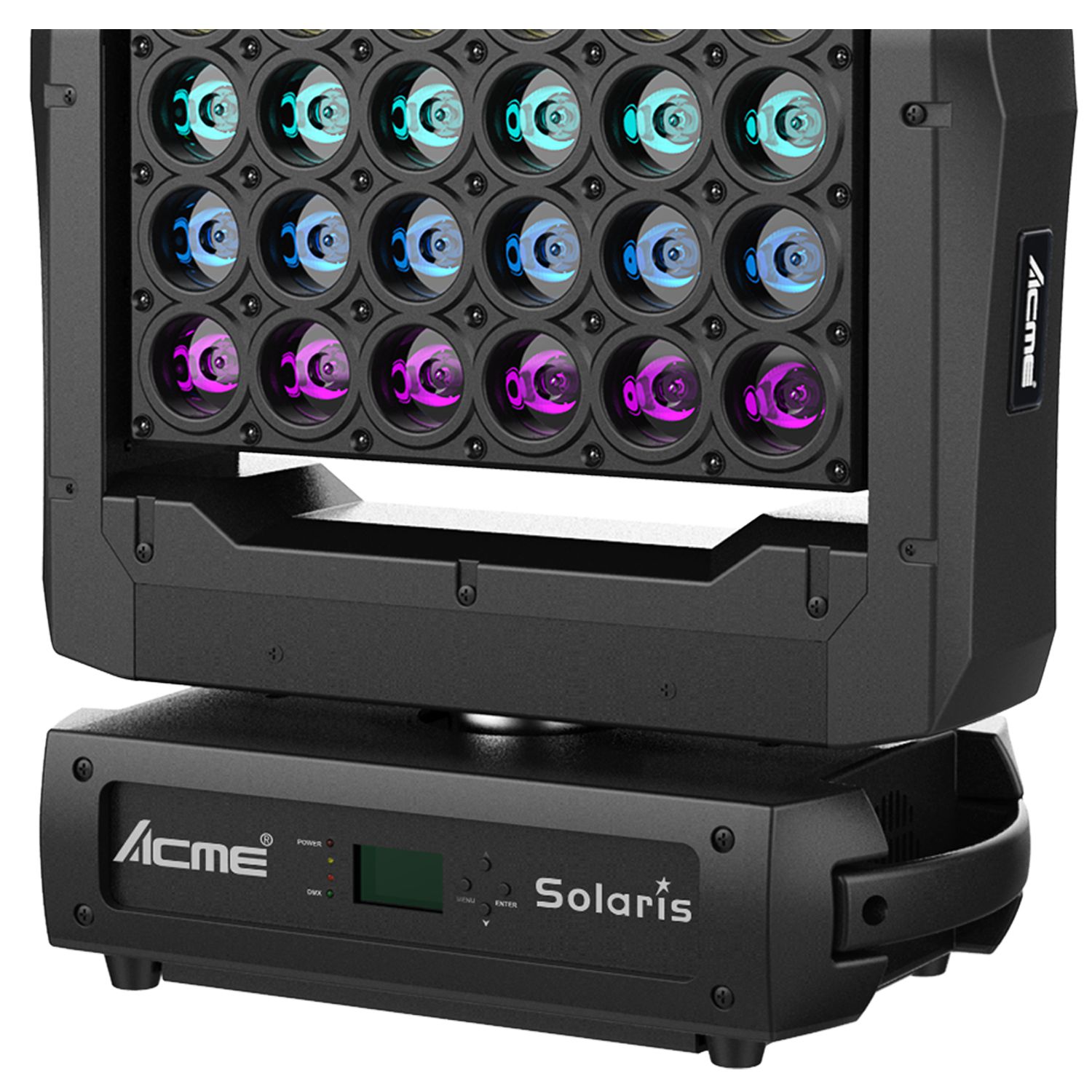

4-button touch panel
Display: LCD display
Protocols: DMX512,Art-Net,RDM
DMX Protocol modes: 4
Controlchannels: 21/22+144/166/206
Pan/TiltResolution: 16-bit
Dimmer: 16-bit
Firmware upgrade via DMX link

PAN & TILT
Pan movement: Infinite
Tilt movement: Infinite
Automatic position correction

Electrical & Connectors
Input voltage range: AC 100-240V, 50/60Hz
Power consumption: 580W

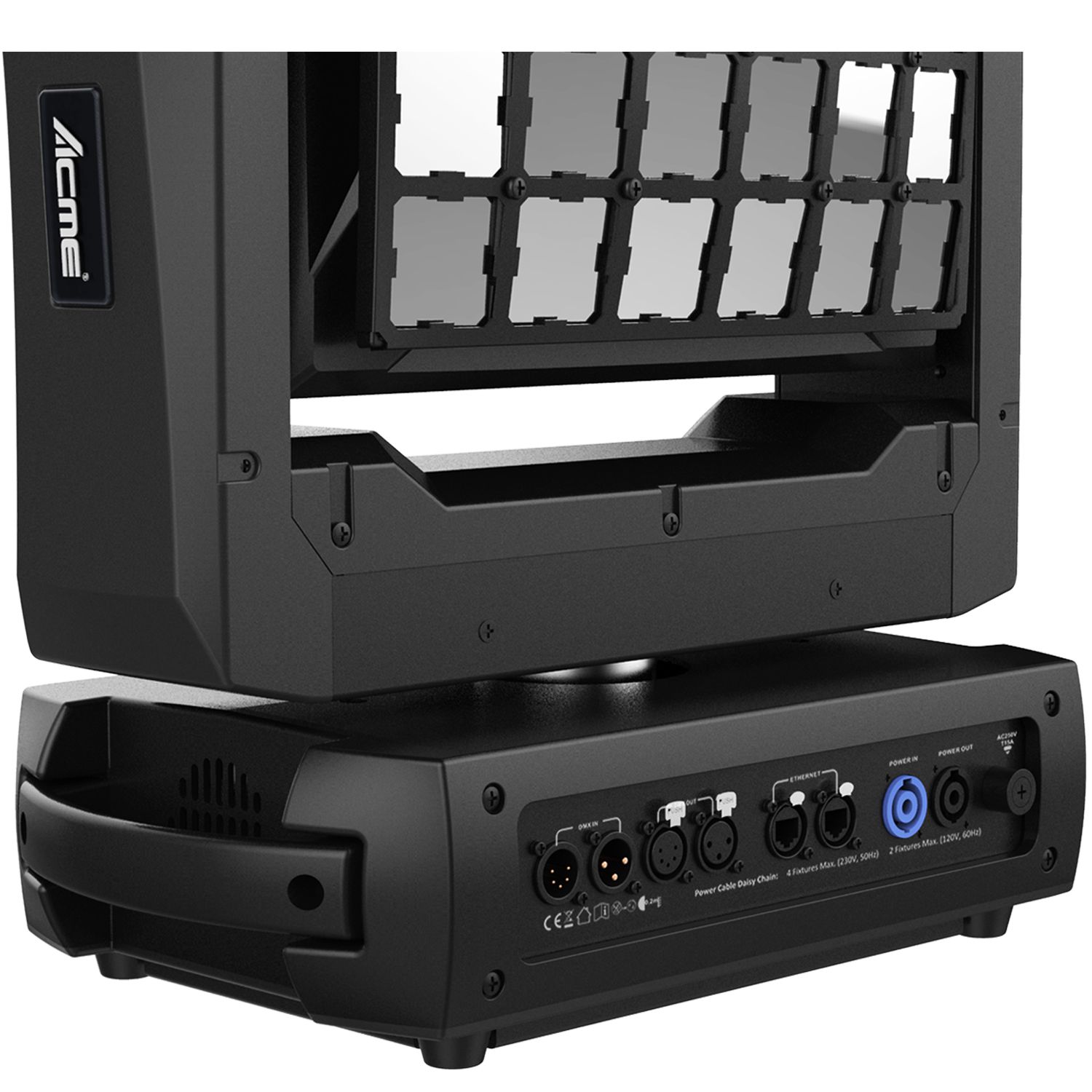

Power Connector in/out
Data in/out: 3-pin and 5-pin XLR
Art-Net input: RJ45

Fixture Specification
Height: 575mm (22.6”)
Width: 466mm (18.3”)
Depth: 246mm (9.6”)
Weight: 20kg (44lb)

Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Approvals
CE compliant

Installation
Horizontal or vertical mounting
Operating position is universal

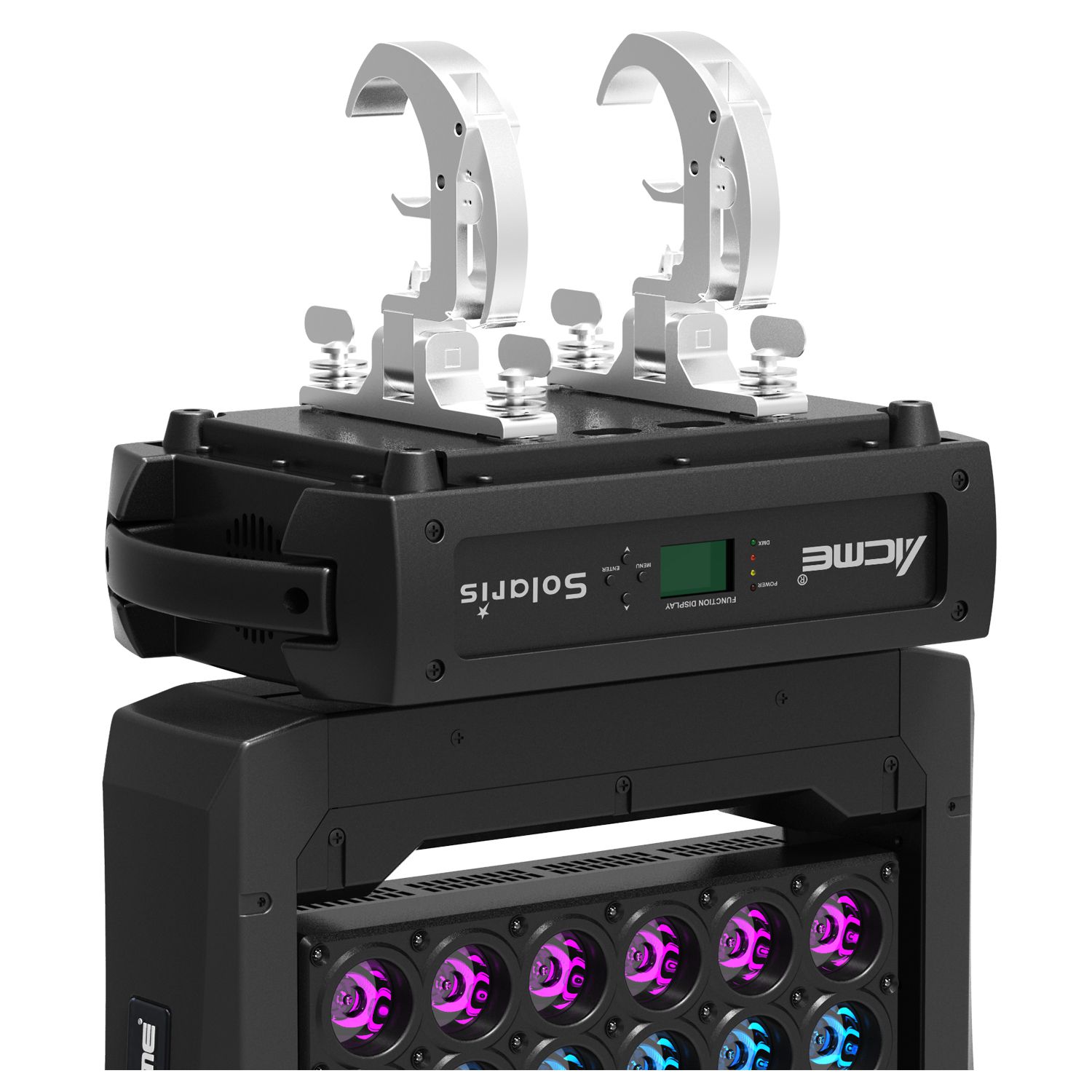

2x fast-lock clamps for 50mm truss
Safety cable attachment point

Included Items
User Manual
2x fast-lock clamps for 50mm truss

Optional Accessories (with item code)
Reflector mirror module: 3005003101
Raincover: 3033001749

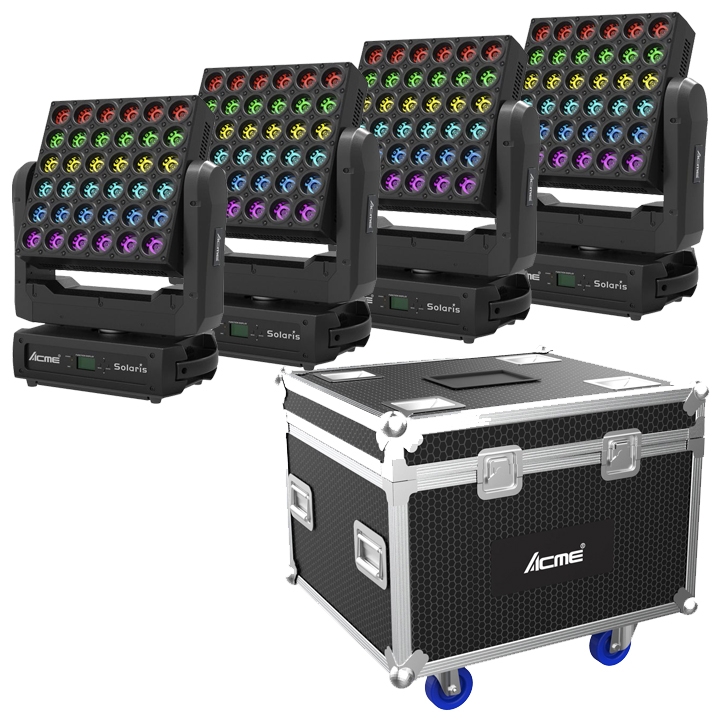

Flight case: 3205001189 (4 in 1)
Clamp: 2060001614 (C-250)
Safety cable: 2060001603-A (SW-05)

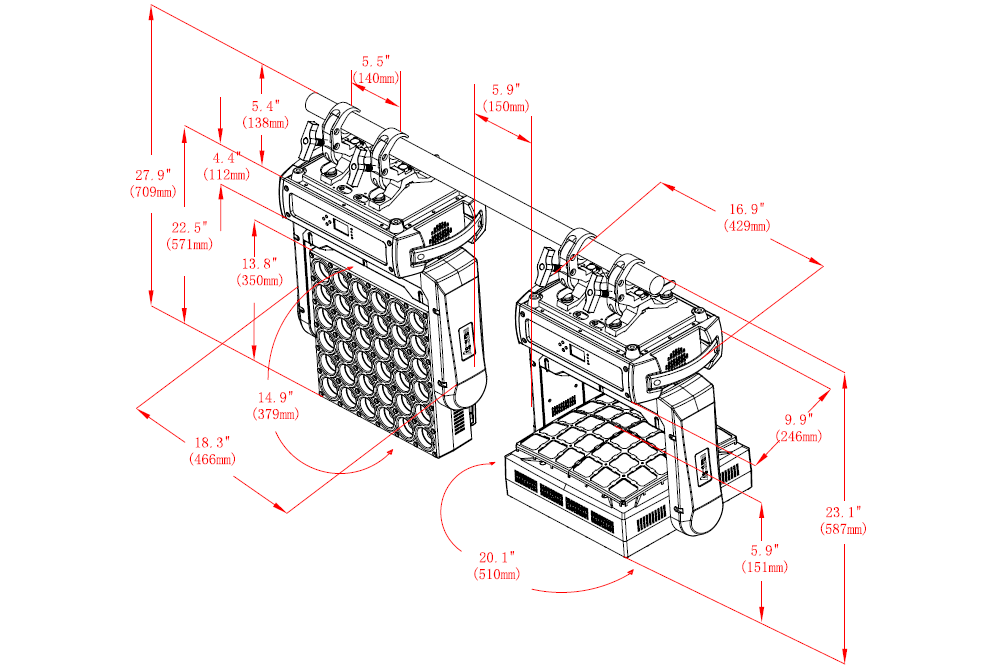

Afmetingen
