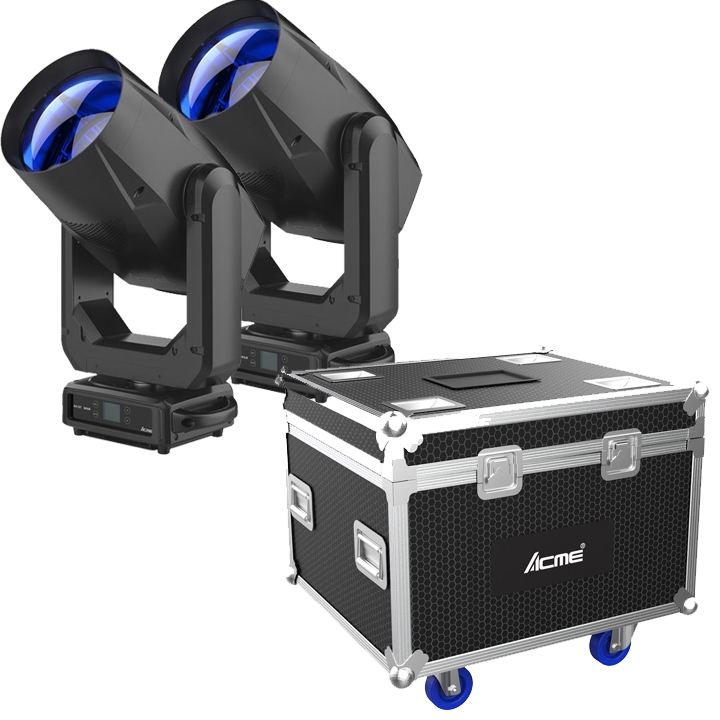

Acme 2x GEIST BEAM + flightcase

Adviesprijs 7.716,36 excl.btw

Log in of registreer om uw korting te zien.
Of vraag vrijblijvend een offerte aan.

Demo? Bezoek onze showroom of maak een afspraak voor een demo op locatie.

Wij zijn er voor de professional. Totaal leverancier stage & entertainment

Deskundig advies op maat. Wij denken graag met je mee.

Gespecialiseerd in projectie. Voor elke project een oplossing.

Functional Overview
ACME GEIST BEAM is an LED moving head fixture that creates a bright, super-concentrated solid projection with the minimum beam angle as small as 3°. To achieve the intense and focused beam with an LED source, ACME uses an entirely new high-efficiency 450W LED module combined with a 220m front lens, which can provide a punchy output of 354,000lux @5meter. The newly-designed compact base helps to decrease much weight and save you the cost of transportation. Additional benefits include full CMY color mixing and separate Color Wheel with 8 colors, fixed and rotating gobo wheels, loaded with user-favorite gobos plus shaking function, including a wide variety of effects, especially when combined with the two rotating prisms.
Designed to fulfill the larger stage and live-stream applications, the ACME Geist Beam is ideal for scenarios, requiring brighter and more lumen, yet long-distance casting fixture that offers you more than just BEAM.

Diameter of lens: 220mm
Fits a powerful 450W LED engine and its front lens is 220mm diameter
Color Temperature: 7000K
CRI Ra>70

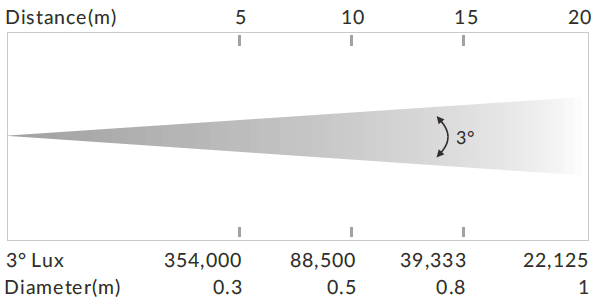

Output achieves 354,000 lux at 5 meters
Linear CMY color mixing
Excellent color macro effect
Rainbow effect rotating in both directions

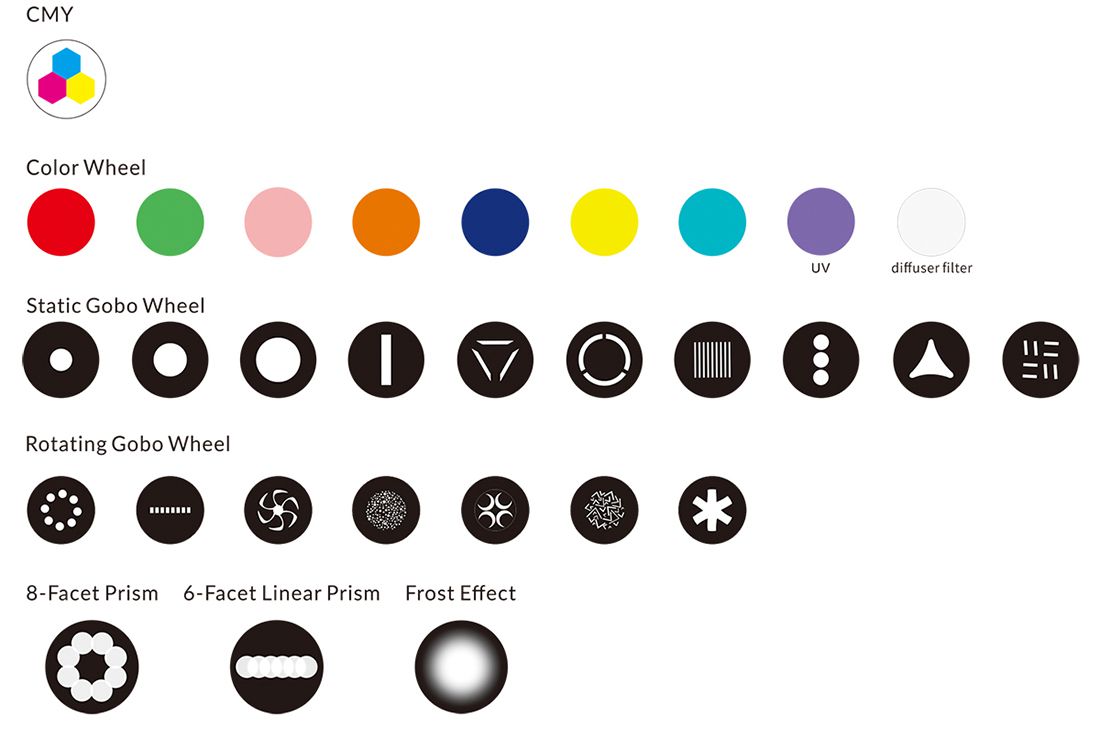

Static gobo wheel: 1 static gobo wheel with 10 gobos
Rotating gobo wheel: 1 rotating gobo wheel with 7 gobos, convenient replacment
Color Wheel: 1 Color Wheel with 8 colors
Prisms: 8-facet prism and 6-facet linear prism, can rotate in both directions and overlay uses
Beam angle: 3°
Frost: can be used independent
Outstanding strobe effect with variable speed
0-100% smooth dimming
Flicker free management
Dust-proof and oil-proof design

Technical & Specification

Light Source
Light Sources: Powerful 450W LED engine
LED life expectancy: 20000 hours

Optical System
Advanced optical Systemto ensure image quality, clear and sharp
High – efficiency Optical System
Beam Angle: 3°

Control& Program
4-buttons touch panel
Display: Color display
Protocols: DMX512, RDM, Art-Net, sACN
DMX Protocol modes: 2
Controlchannels: 16, 23
Pan/TiltResolution: 16 bit
Firmware Upgrade: Upgrade via DMX link or USB disk

Pan movement: 540°
Tilt movement: 270°
Fixation: Tilt lock
AutomaticPan/Tiltposition correction

Rotating Gobos
1 x Rotating Gobos with 7 gobos, convenient replacment

Static Gobos
1 x static gobos with 10 gobos

Color Wheel
1 x Color Wheel with 8 colors

Electrical & Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 500 W
Power In/Out:Power Connector in/out
Date In/Out:3-pin or 5-pin XLR, RJ45 connector in/out

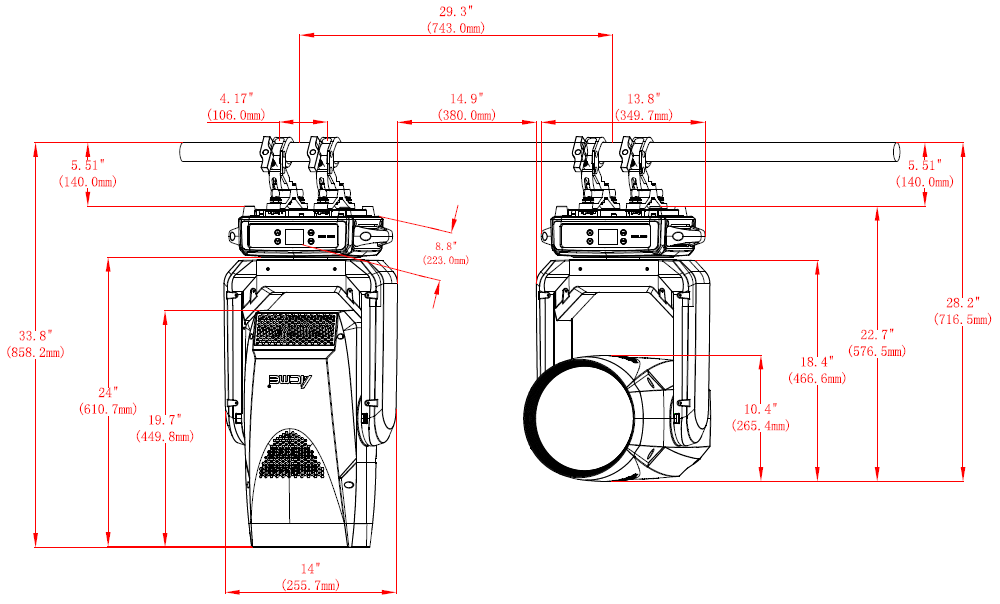

Fixture Specification
Height: 715 mm (28.1″)
Width: 350 mm (13.8″)
Depth: 223 mm (8.8″)
Weight: 27kg (60lbs)

Work Environment
Maximum ambient temperature: 45°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Horizontally or vertically mounting are available
Operating position is universal
2 pairs of 1/4-turn locking points under the base
2 x fast-locked clamps with 1/4-turn locks for 50 millimeter truss
Safety cable attachment hole

Included Items
User Manual
Power Cable
2 x fast-locked clamps with 1/4-turn locks for 50 millimeter truss

Optional Accessories (with item code)
Clamp: 2060001619 (C-150A)
Safety cable : 2060000200(SW-02)
Signal Line:3-pin or 5-pin signal line
