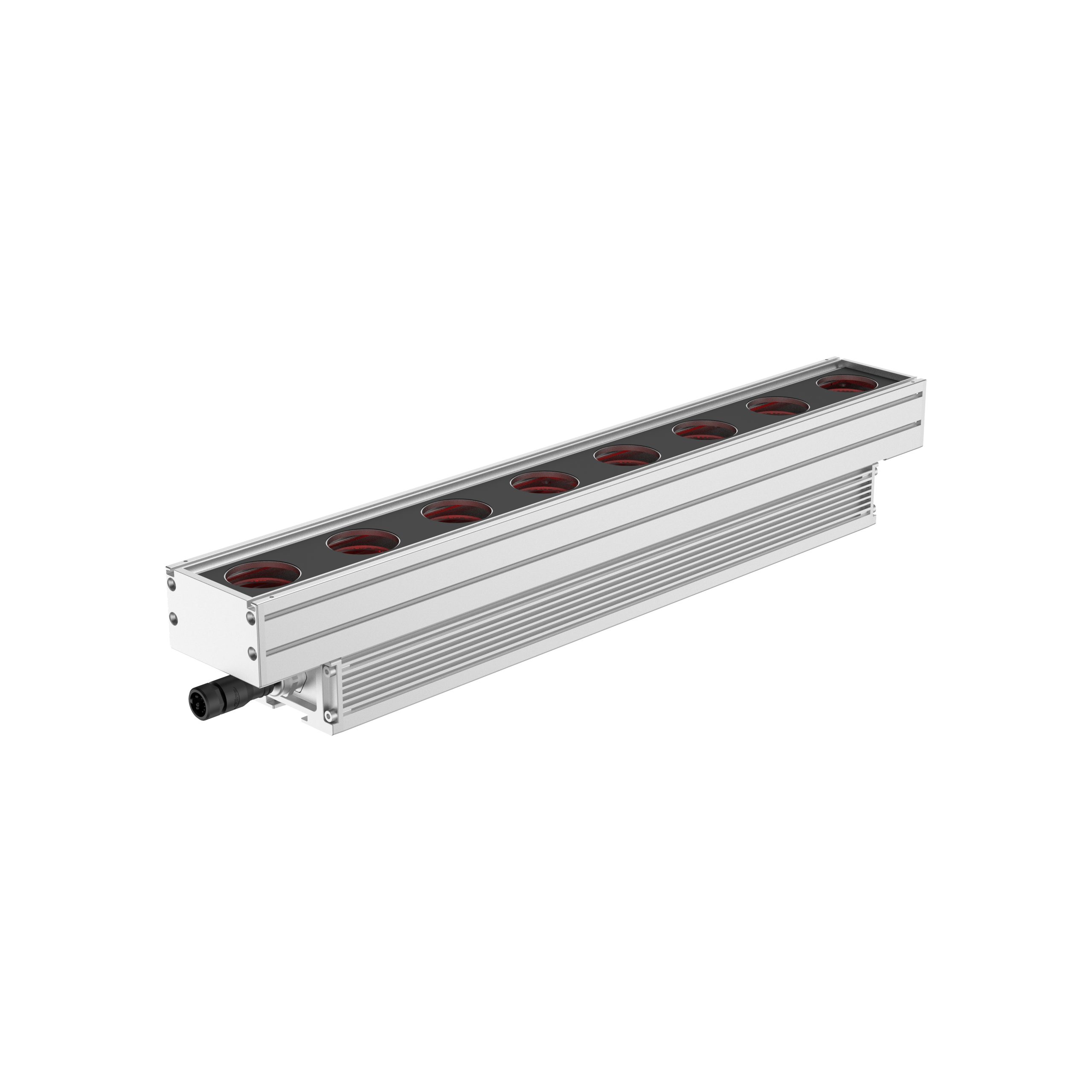

TEX L60 led bar

LED bar – 8 x 10W RGBW – IP66 – outdoor – Full Color – RDM – DMX – Stand alone

Beschrijving

OPTICS
LED: 8 x 10W
Multi Color (Quad): RGBW
Optional:
– Full White LED (FW): 2700K,3000K,3500K,4000K,4500K,5000K,5700K,6500K
– Tuneable White LED (TW): 3000K-6500K
Output(10°, 1FT/2FT/4FT)): 2700lm/4700lm/11000lm(FW,CRI 80)
2100lm/4000lm/8200lm(TW)
1600lm/3600lm/6300lm(Quad)
CRI(FW version): 90,80,70
LED life span: ≥50,000hrs
Beam angle: 10°, 12°, 15°, 25°, 30°, 60°, 15°x50°,etc.
Dimming: linear 0-100%
Optional accessory:
slanted baffle, louver(5.05.01.99.0408)

MECHANICS
Dimension: 1FT/2FT/4FT
Weight(1FT/2FT/4FT): 2.92kgs/5.68kgs/11.15kgs
Lens material : PMMA + anti-UV lens
Mounting: floor, ceiling or wall mounting (adjustable bracket)

ELECTRONICS
Power: 50W/100W/200W
Power factor: >0.9
Components: integrated driver and power supply
Connector: 8 pin power+DMX integrated cable + IP68 connector
Power: AC 100-277V 50/60Hz
Electronic accessory: plug, leader cable

SOFTWARE
Control: DMX512 /RDM (wireless/DALI/ 0-10V available on request)
DMX channel: 1FT: FW(1ch),TW(2chs),RGBW(4chs);
2FT: FW(1ch/2chs), TW(2chs/4chs), RGBW(4chs/8chs);
4FT: FW(1ch/4chs), TW(2chs,8chs), RGBW(4chs,16chs)

ENVIRONMENT
Ta:-20℃to +45℃
Anti-condensation system: optional
Corrosion resistance: optional for marine environment
Passive cooling: die cast aluminum housing
Compliance: IK08,IP66,Class I
