Spotlight – MINILUT LED 30 Z15 WW

Lucciola, LED, 48V, 30W, White 3000K, 15°

Beschrijving

Source:

– 15/30W LED COB/ARRAY
– Source life expectancy: > 50.000 h
– Note: for Luminous flux and Colour rendering refer to the table at the end of this document

CONTROL

– Protocols: DALI, Casambi

OPTICS

– 90mm High-quality PMMA lens optics
– Depends on mounted lamp
– Note: for Beam angles refer to the table at the end of this document

HOUSING

– Highly resistant body in extruded aluminum
– Finishing: Black
– IP 20

CONNECTION

– Power cable: 2m H05RN-F cable live end

COMPLIANCE

– CE
– EN 60598-1; EN 60598-2-17
– SSL Licensing Program
– Manufactured in Italy with Quality System ISO 9001:2015

THERMAL MANAGEMENT

– Wide ventilation slots for better LED cooling with selectable fan speed in: “standard”, “silent” and “auto” or DMX regulated
– High efficiency heat pipe cooling system
– No heat load from LED engine towards electronic and vice-versa avoiding the risk of failure due to overheating
– Ta max 40°C

ELECTRICAL

– CC LED driver 450/750 mA / 24-48 VDC0.98/

OPTIONS

– Track adaptor

Extra informatie

Type

*verplicht

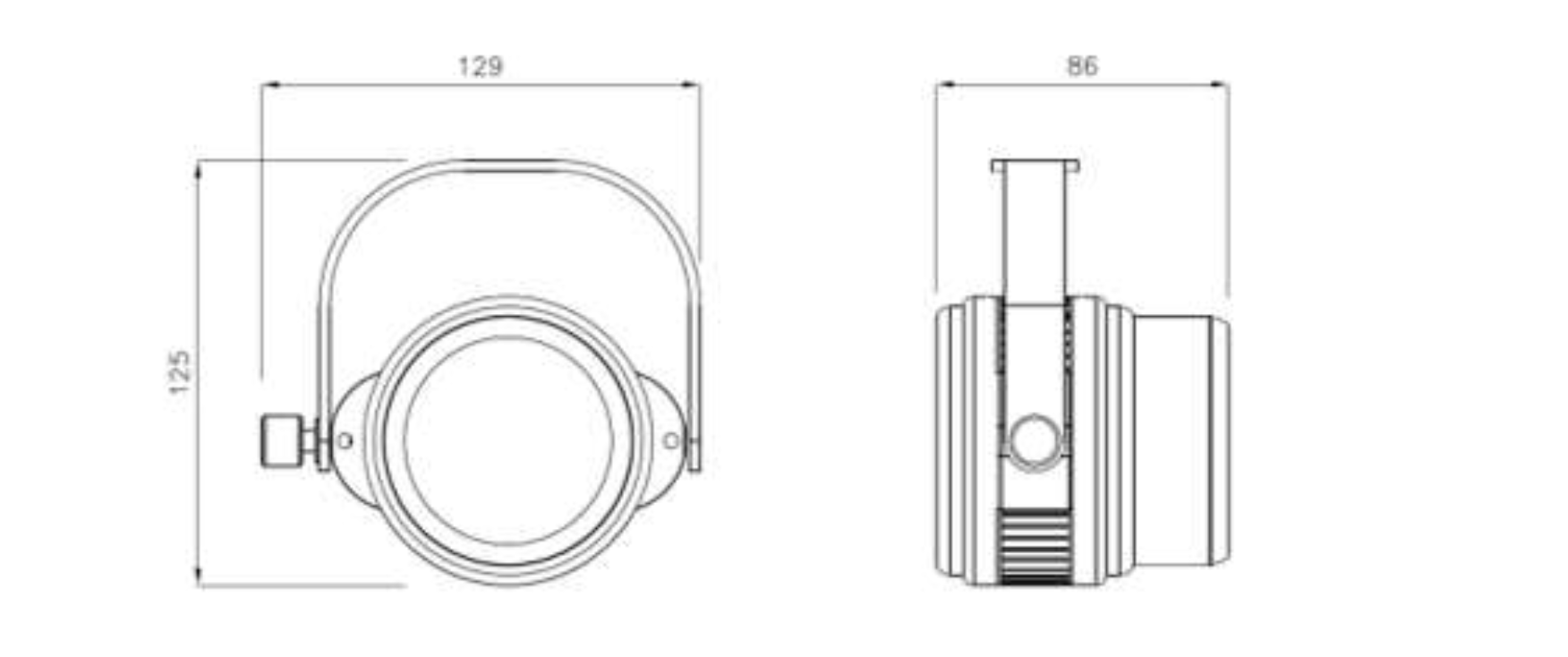

Afmetingen

afmetingen
