Spotdrive – Volgspot systeem

Adviesprijs 14.999,00 excl.btw

Availability: Beschikbaar via nabestelling
Productprijs
Aanvullende opties totaal:
Bestelling totaal:
Bekijk winkelwagen

Beschrijving

Te gebruiken met alle merken en types movingheads!

Spotdrive is een universele manier om movingheads te gebruiken als volgspot. Het systeem is gebaseerd op een tripod met encoders waar twee handvaten aan bevestigd zijn met op elk handvat een bedienpaneel. De faders worden standaard geconfigureerd als Iris en Dimmer. Potmeters voor Zoom, Focus, Pan en tilt speed. Daaronder zijn nog 2 potmeters aanwezig die gebruikt kunnen worden voor bijvoorbeeld CTO, Minus green of Frost. Alles is naar wens in te stellen op het ingebouwde menu met display. Optioneel kan het systeem meerdere movingheads aansturen doormiddel van een lichttafel aan te sluiten en in 3d markers te maken. De camera kan bevestigd worden op de te besturen head.



Full product details:

  • The SPOTDRIVE system is an intuitive remote control of moving head fixtures used as followspots,

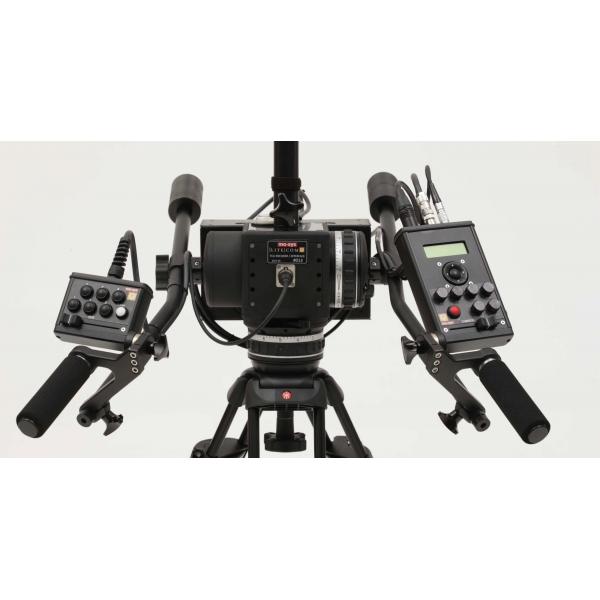

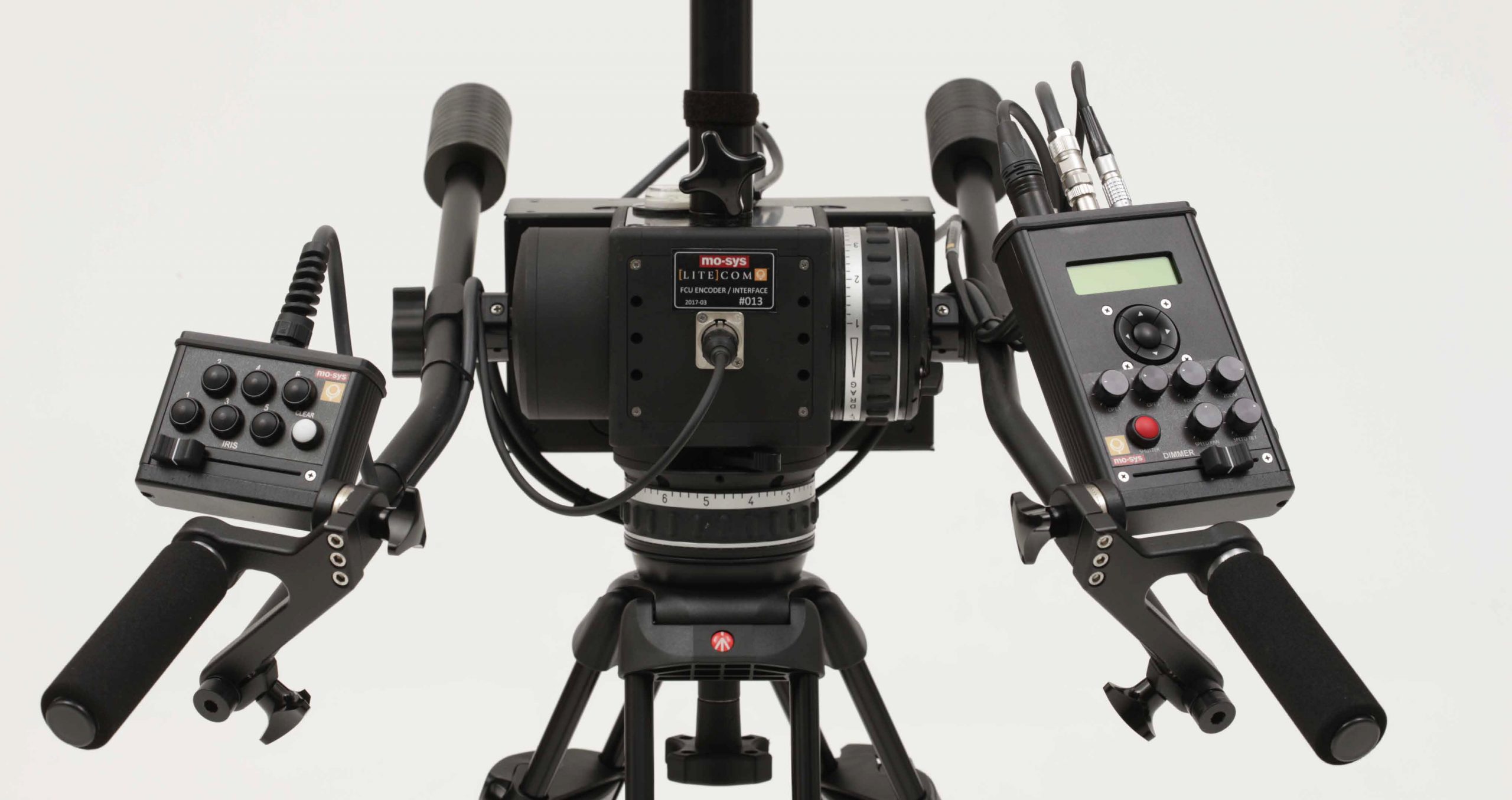

  • It is designed as a standard camera tripod stand with two handle bars, each with a control box attached,

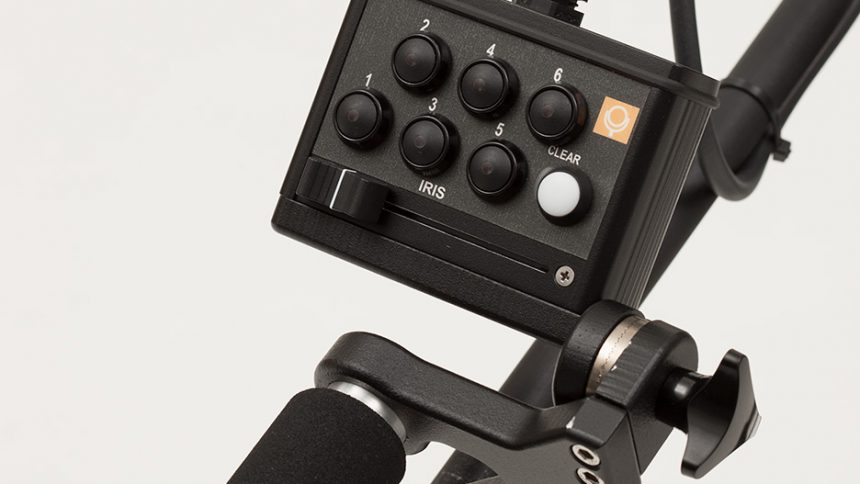

  • Slide controls for Iris and Dimmer,

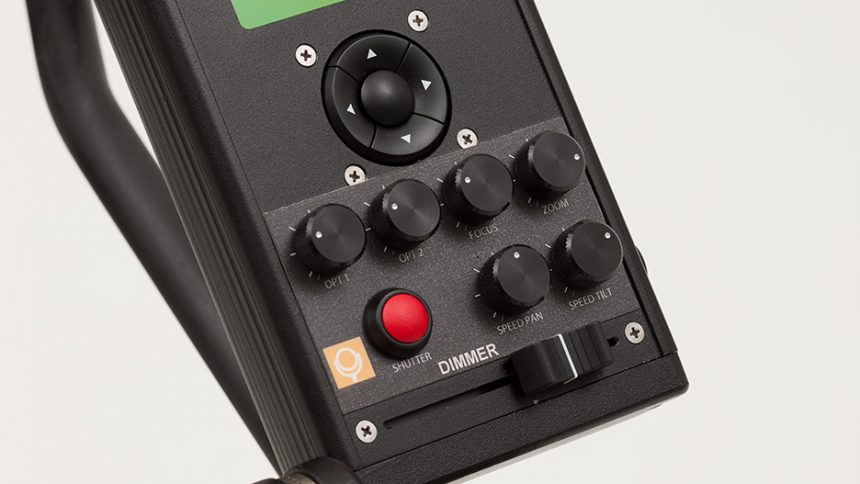

  • Rotary controls for Zoom, Focus, Pan Speed and Tilt Speed,
  • Two optional rotary controls for alternative use e.g. CTO, minus Green or Frost,
  • Shutter/Blackout momentary button,
  • Freeze button for easy positioning the handle bars related to fixture direction,
  • Seven pushbuttons for colours or filters, normally one as open. All configurable values within the same DMX channel,
  • All controls can be configured in the menu: DMX addresses, potentiometer endpoints and directions, as well the direction of pan and tilt movements can be altered,
  • Extremely low latency of the DMX output. If smoothing of the movements is required, this can be added in the menu,

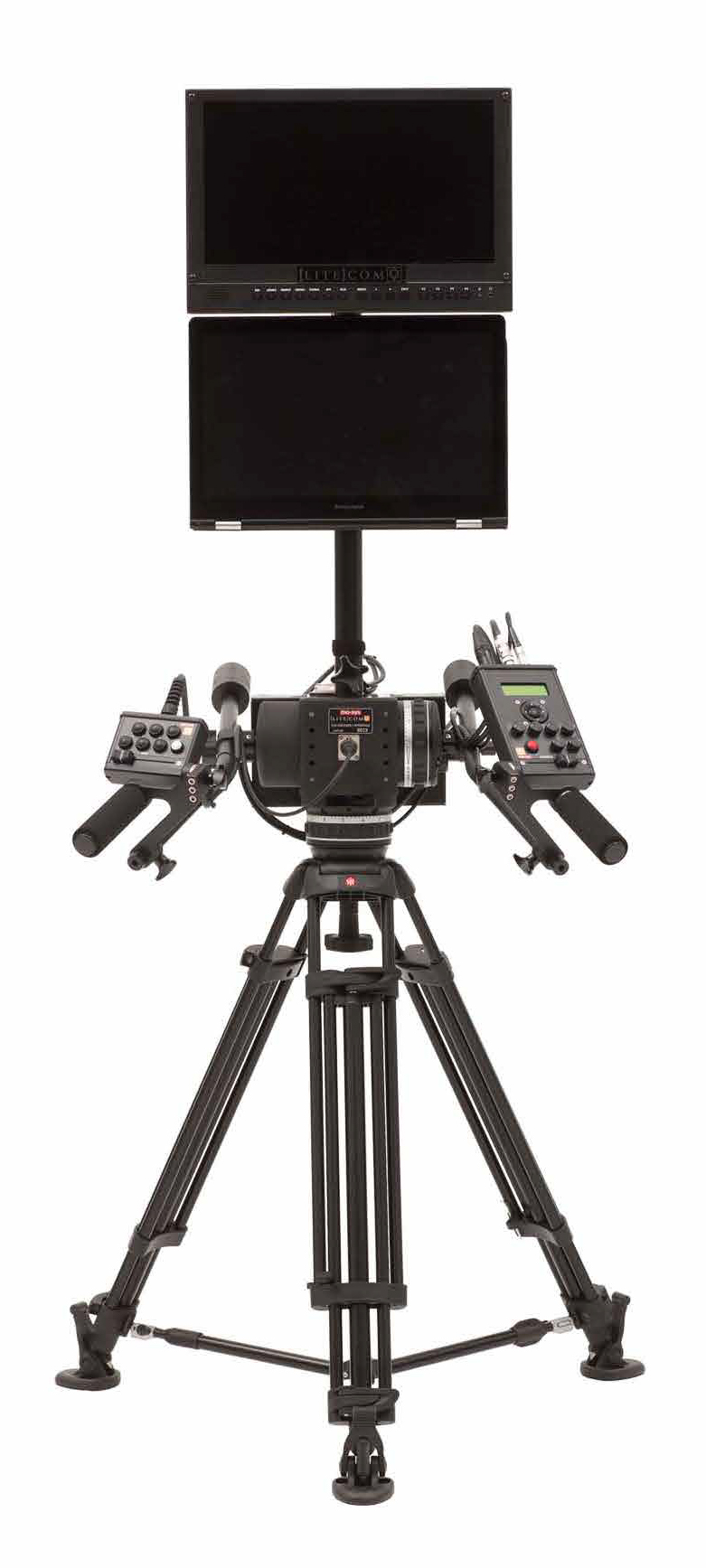

  • Following the pan movements there is a monitor pole with a 15” HD-SDI monitor for the fixture camera, also a Tablet PC can be added (PC is optional), intended for running a PC application extending operator parameters or for monitoring lighting console invoked changes. This can also be used for rundowns, if available,
  • Opposite the operator side there is a connection panel for power inlet and distribution to monitor and PC. This is also a connector for the main control box and the DMX output which can be sent directly to the fixture or the lighting console for shared operation,
  • It also provides HD-SDI fiber input which is converted to a HD-SDI BNC output, or if coax is used, BNC looping to the monitor. If standard BNC cables, distance is limited depending on cable specifications,
  • For truss mount above the fixture is a box for camera PSU and either BNC loop or fiber output to the control unit. This also contains powercon based split so only one powercable needed to the fixture location,

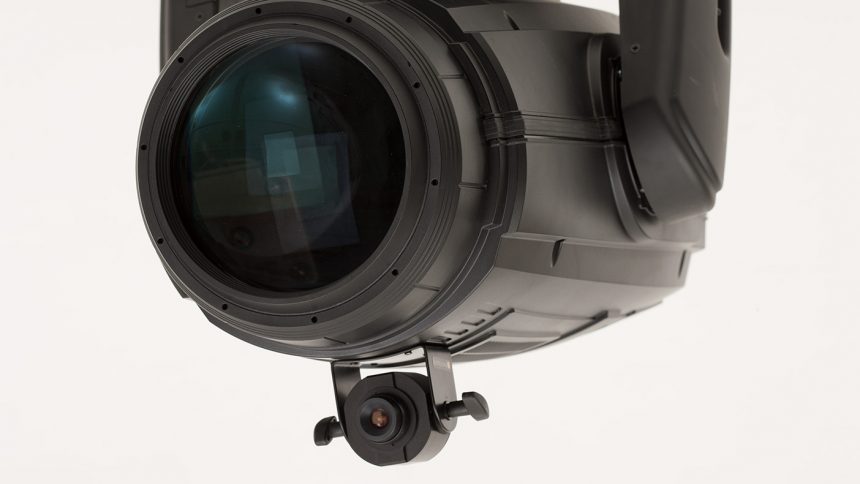

  • A camera is included and as standard mounted to a Robe BMFL cover, which can replace the existing cover. Preferably the cables should be going through the yoke internally in the fixture,
  • The camera has as standard an 8mm CS mount lens attached. Optionally a 6-60mm manual zoomlens can be included,
  • The SPOTDRIVE comes in a flight case and control part consists of only two assemblies, which can be joined quickly, and ready for use in a few minutes.

The system contains of :

  • 1 pcs. Tripod with an attached encoder head, for tracking the pan and tilt movement and power and LC/LC fiber convertor for monitoring.
  • 1 pcs. 17” SDI/HDMI Monitor, for the operator to orientate movement from the fixture mounted camera.
  • 1 pcs. Camera including bracket for mounting on the fixture with a changeable optic.
  • 1 pcs. Fixture box, With power link and LC/LC Fiber convertor. (Needs PowerCon for power)
  • 1 pcs. 2m CEE -> PowerCon cable (for powering the SpotDrive)
  • 1 pcs.. 0,7m PowerCon -> PowerCon OR PowerCon -> Thru1 (For fixture power from the fixture box)
  • 1 pcs. 2m Cable loom with Camera power and SDI from fixture box to Camera



For the camera solution either SDI or Fiber (LC/LC) can be used. For shorter distance the SDI solution will be fine, but for longer distance from the system to the fixture, a fiber solution is highly recommended.





Als introductie is het ook mogelijk om Spotdrive per maand te huren. Neem hiervoor vrijblijvend contact met ons op!
