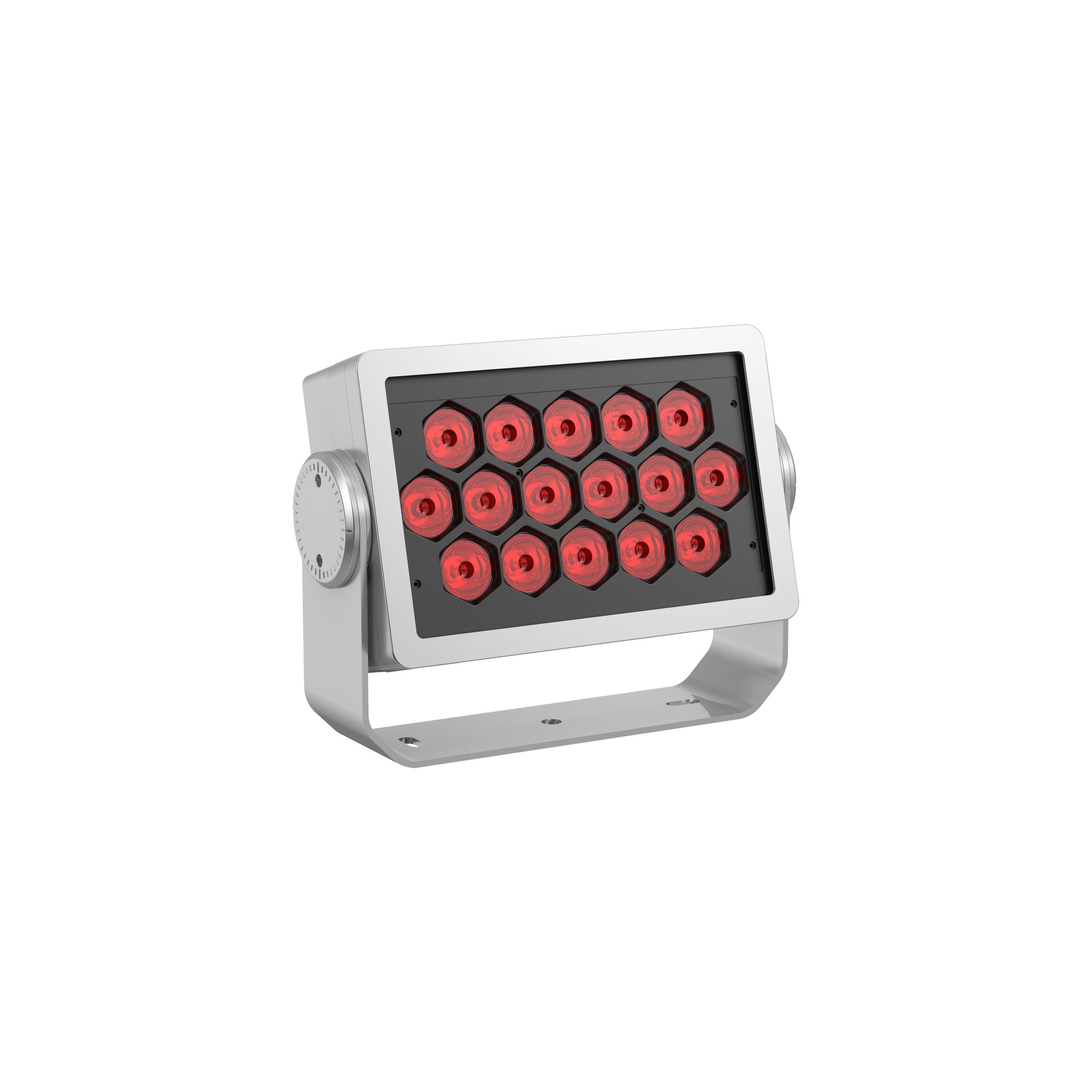

Rec S wall washer

Wall washer – 16 x 10W RGBW – IP66 – outdoor – Full Color – RDM – DMX – Stand alone – Afzonderlijk kantelbaar

Beschrijving

OPTICS
LED: 16 x 10W
Multi Color (Quad): RGBW
Optional:
– Full White LED (FW): 2700K,3000K,3500K,4000K,4500K,5000K,5700K,6500K
– Tuneable White LED (TW): 3000K-6500K
Output(10°): 6400lm(Quad)
CRI(FW version): 90,80,70
LED life span: ≥50,000hrs
Beam angle: 10°,12°,15°,25°,30°,60°,20°x65°,etc.
Dimming: linear 0-100%

Optional accessory:
Barndoors(5.05.01.99.0484),snoot,visor,yoke ,honeycomb louver(5.03.01.01.2143-B-N0)

MECHANICS
Dimension: 409x301x94mm
Weight: 8.85kgs
Lens material : PMMA + anti-UV lens
Mounting: floor, ceiling or wall mounting (adjustable bracket)

ELECTRONICS
Power: 160W
Power factor: >0.9,CCS auto calibrating
Components: integrated driver and power supply
Connector: 8 pin power+DMX integrated cable + IP68 connector
Power: AC 100-277V 50/60Hz
Electronic accessory: plug, leader cable

SOFTWARE
Control: DMX512 /RDM (wireless/DALI/ 0-10V available on request)
DMX channel: FW (1ch) ,TW (2chs) ,RGBW(4chs)

ENVIRONMENT
Ta:-20℃to +45℃
Anti-condensation system: optional
Corrosion resistance: optional for marine environment
Passive cooling: die cast aluminum housing
Compliance: IK08,IP66,Class I

Afmetingen

afmetingen
