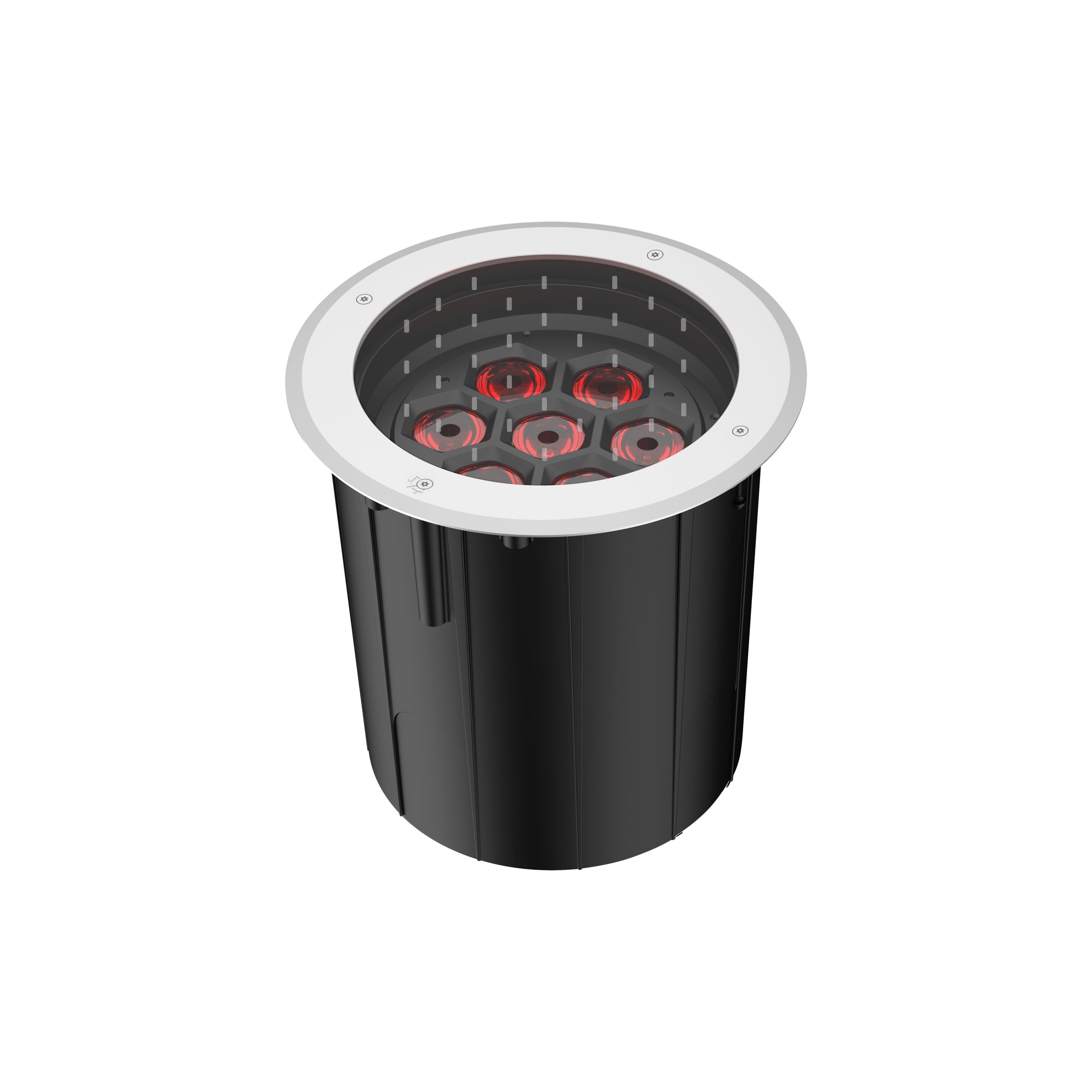

POT L Inbouw grondspot

Grondspot inbouw – 7 x 10W RGBW – IP66 – outdoor – Full Color – RDM – DMX – Stand alone

Beschrijving

OPTICS
LED: 7 x 10W
Multi Color (Quad): RGBW
Optional:
– Full White LED (FW): 2700K,3000K,3500K,4000K,4500K,5000K,5700K,6500K
– Tuneable White LED (TW): 3000K-6500K
Output(10°): 5100lm(FW,CRI 80);4000lm(TW);3100lm(Quad)
CRI(FW version): 90,80,70
LED life span: ≥50,000hrs
Beam angle: 10°,12°,15°,25°,30°,60°,20°x 65°,etc.
Adjustment: ±15°
Dimming: linear 0-100%
Optional accessory:
honeycomb louvre

MECHANICS
Dimension: Ф306x304mm
Weight: 8.47kgs
Lens material : PMMA
Finish: gray(stainless steel primary color)
Mounting: Inground

ELECTRONICS
Power: 85W
Power factor: >0.9
Components: integrated driver and power supply
Connector: 8 pin power+DMX integrated cable + IP68 connector
Power: AC 100-277V 50/60Hz
Electronic accessory: plug, leader cable

SOFTWARE
Control: DMX512 /RDM (wireless/DALI/ 0-10V available on request)
DMX channel: FW (1ch) ,TW (2chs) ,RGBW(4chs)

ENVIRONMENT
Ta:-20℃to +45℃
Anti-condensation system: optional
Corrosion resistance: optional for marine environment
Passive cooling: die cast aluminum housing
Compliance: IK10,IP68,Class I

Afmetingen

afmetingen
