Acme – Sandane Frost

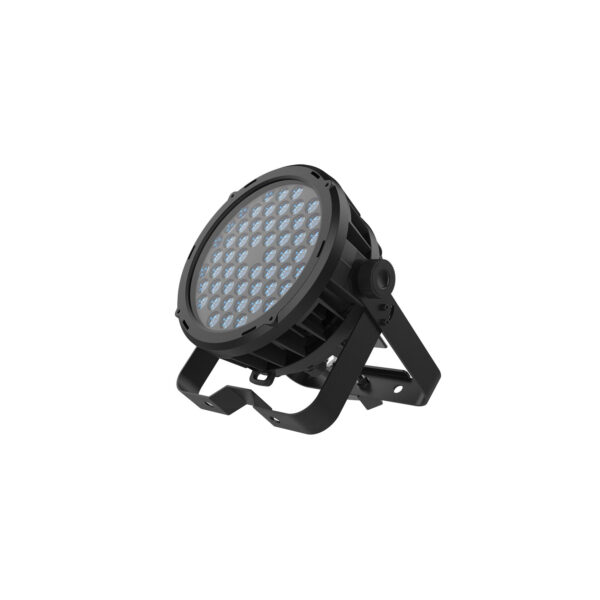

ACME SANDANE FROST is compact, lightweight, energy-efficient, and offers high light output. It features a dual mounting bracket design, providing various installation options. Equipped with 55 pcs 6W RGBL LED chips, it achieves exceptional color mixing effects. Additionally, it includes Electronic Frost function that can switch between different angles for hazy lighting effects. With IP66 protection rated, it is suitable for year-round outdoor use, making it ideal for outdoor open-air events.

Features

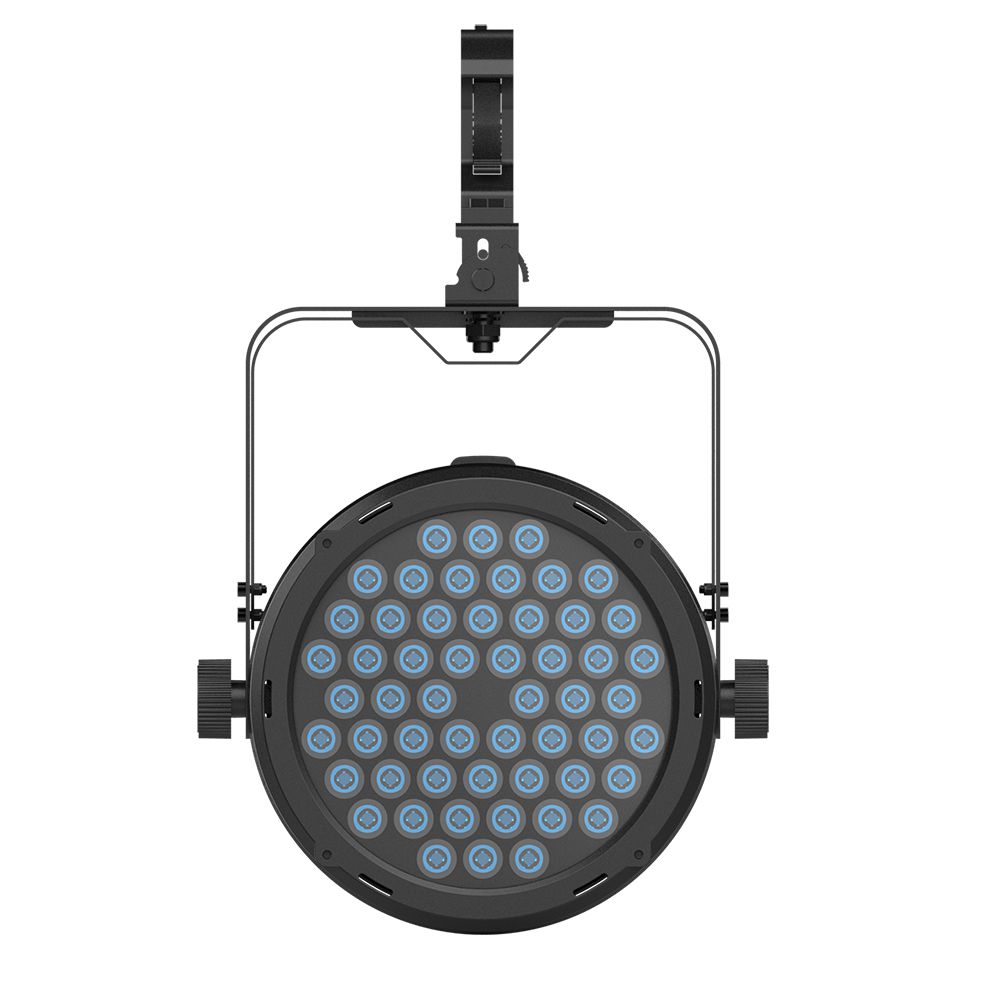

• Light Source: 55 x 6W RGBL LED engine
• Total Lumen Output of Fixture: 10,000 lm
• Variable CTO ranging from 2,500K-8,000K
• Frost effect for different flood ranges
• Compact size,light weight,high light efficiency,low energy consumption
• IP66 rated, can be outdoor use all year round
• Variable light adjustment from 0 to 100%
• Outstanding strobe effect with variable speed
• Double bracket design, and multiple installation methods are available

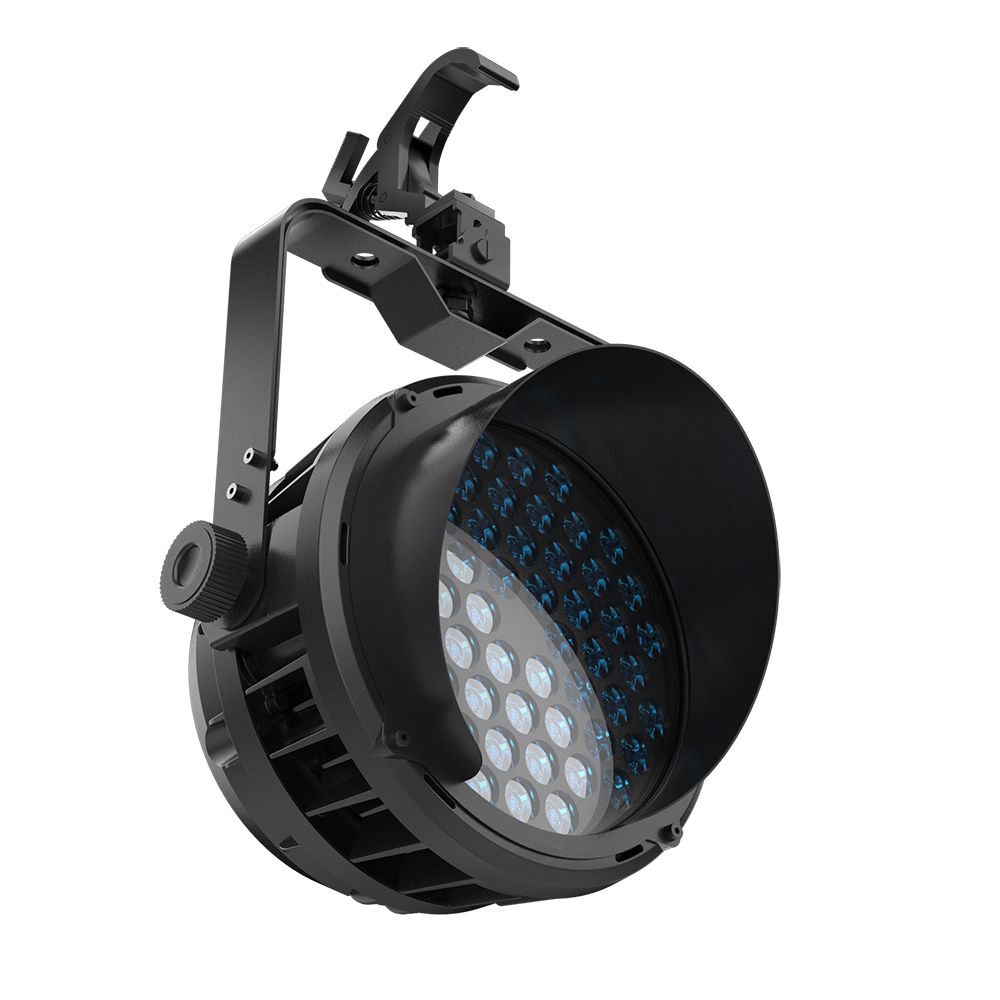

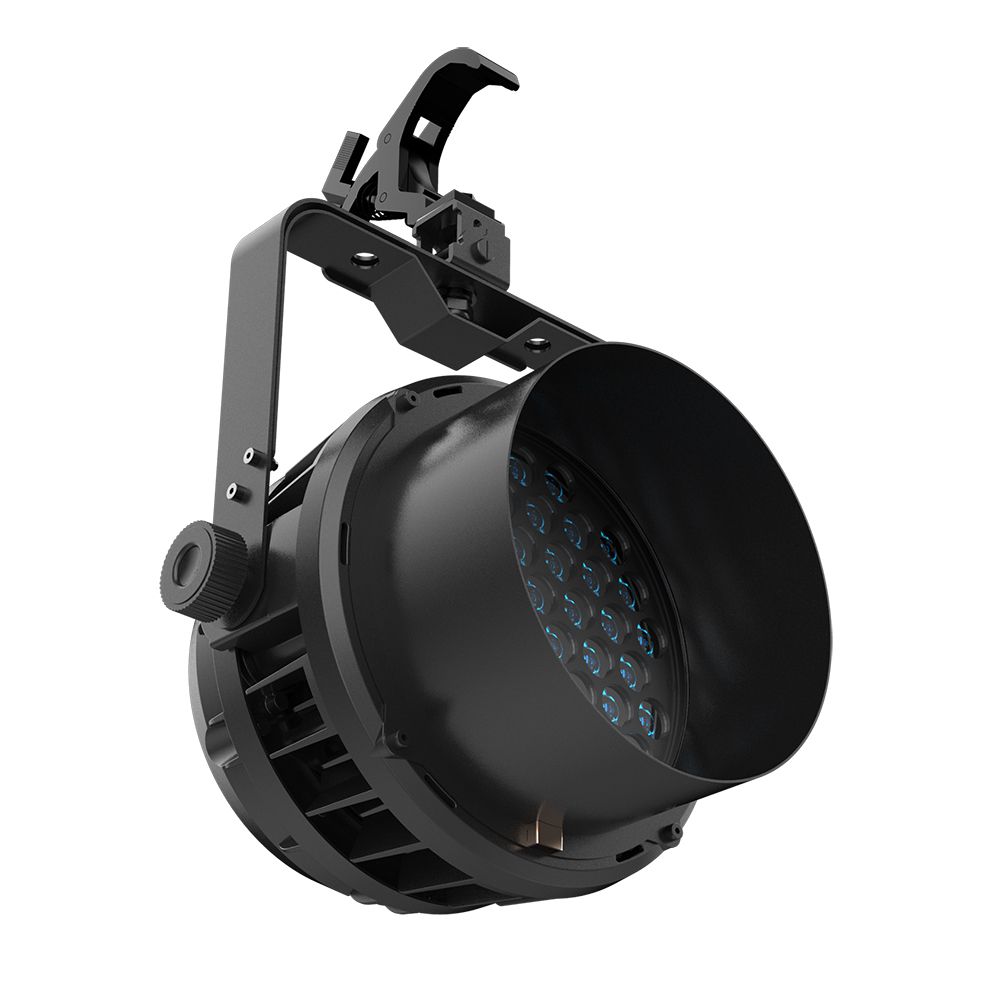

• Optional half or full size anti-glare shield

Model

• PAR 54 IP EF

Light Source

• Light Source: 55 x 6W RGBL LED engine
• Color Temperature Output of Fixture: 8,000K
• Total Lumen Output of Fixture: 10,000 lm
• Life Expectancy: 20,000 hours

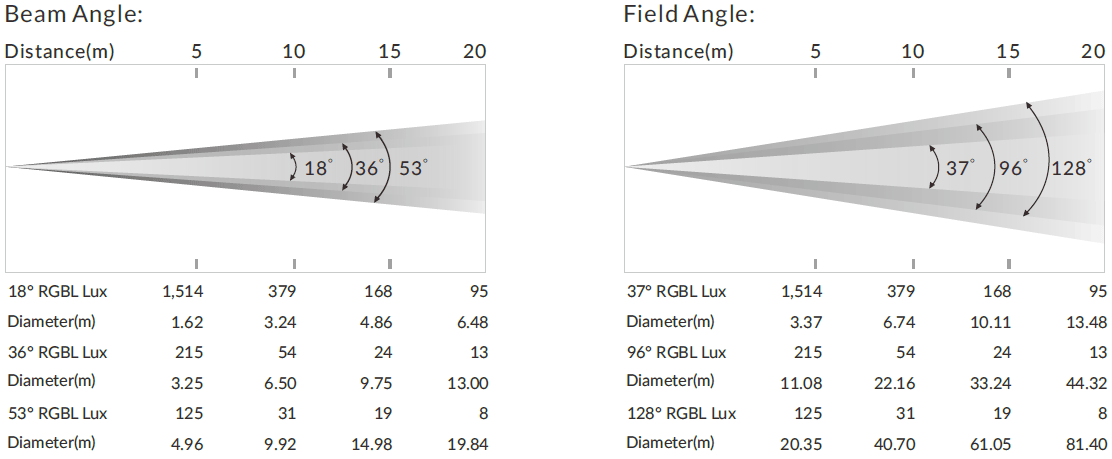

Optical System

• Beam Angles: 18°, 36°, 53°
• Field Angles: 37°, 96°, 128°

Control and Program

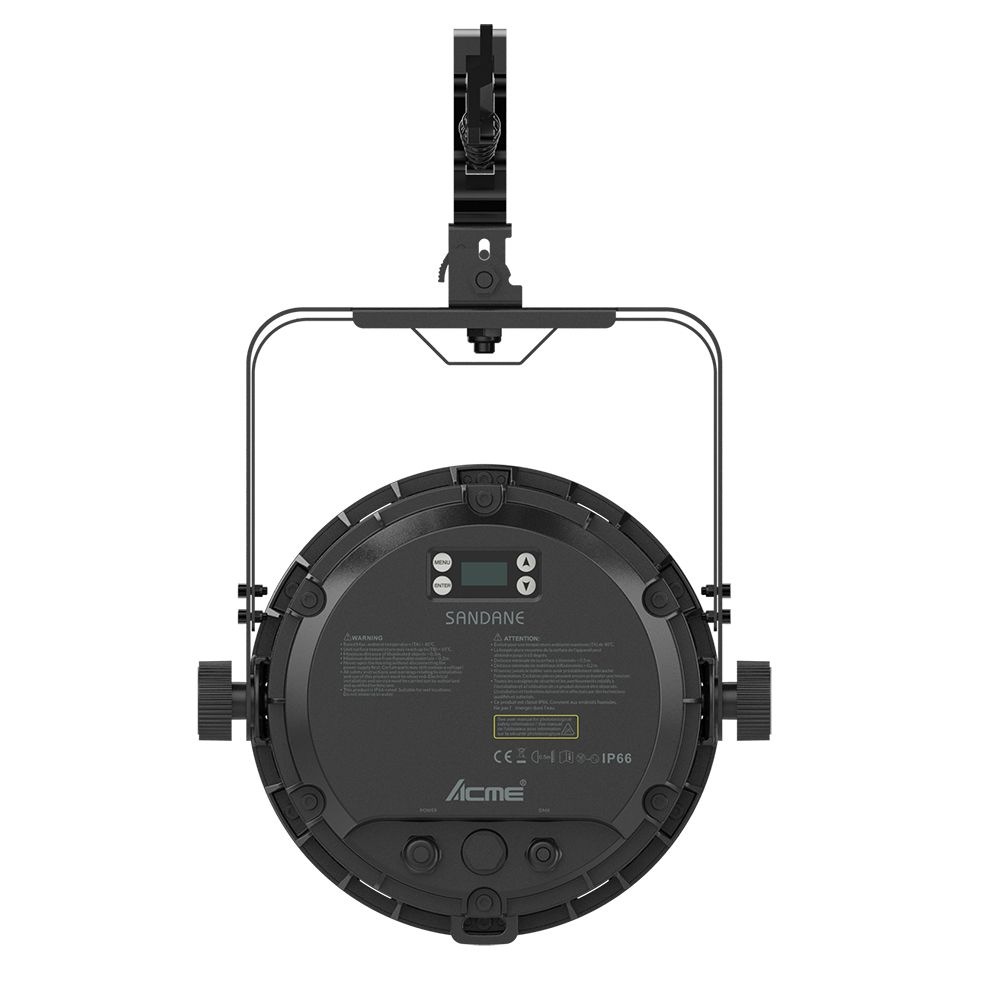

• 4-Button touch panel
• Display: OLED display
• Operational Modes: DMX control, show mode
• Protocols: DMX512, RDM
• DMX Protocol Modes: 5
• Control Channels: 11/9/8/7/6
• Firmware Upgrade: Upgrade via DMX link

Other Effects

• Outstanding strobe effect with variable speed
• Variable light adjustment from 0 to 100%

Electrical and Connectors

• Input Voltage Range: 100-240V~ 50/60Hz
• Power Consumption: 215W
• Power In/Out: Waterproof power connector in/out
• Data In/Out: 5-pin waterproof XLR

Fixture Specification

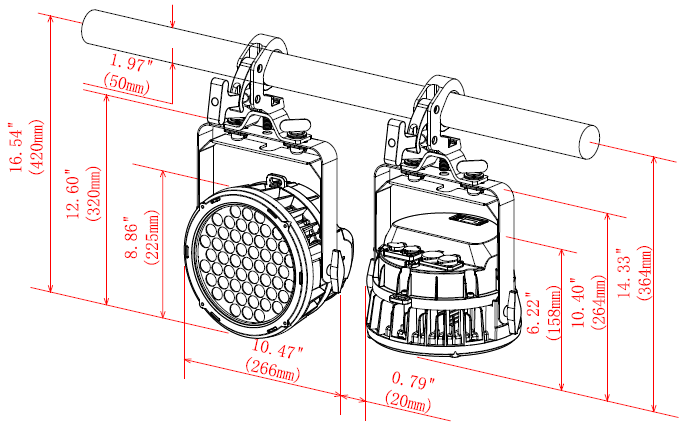

• Fixture Dimensions:
  • Width: 266 mm (10.5″)
  • Depth: 158 mm (6.2″)
  • Height: 320 mm (12.6″)
  • Weight: 5.0 kg (11.0 lbs)
• Flight Case Dimensions:
  • Width: 1,220 mm (48.0″)
  • Depth: 610 mm (24.0″)
  • Height: 630 mm (24.8″)
  • Weight: 95.0 kg (209.4 lbs.) (eight-pack loader case)
• Carton Dimensions:
  • Width: 405 mm (15.9″)
  • Depth: 355 mm (14.0″)
  • Height: 270 mm (10.6″)
  • Weight: 6.5 kg (14.3 lbs) (includse carton, one per carton)

Work Environment

• Maximum Ambient Temperature: 40°C
• Minimum Operating Temperature: -10°C
• Maximum Surface Temperature: 65°C
• Protection Rating: IP66

Approvals

• CE compliant
• UKCA compliant
• cETLus compliant

Installation

• Horizontally or vertically mounting are available
• Universal working position

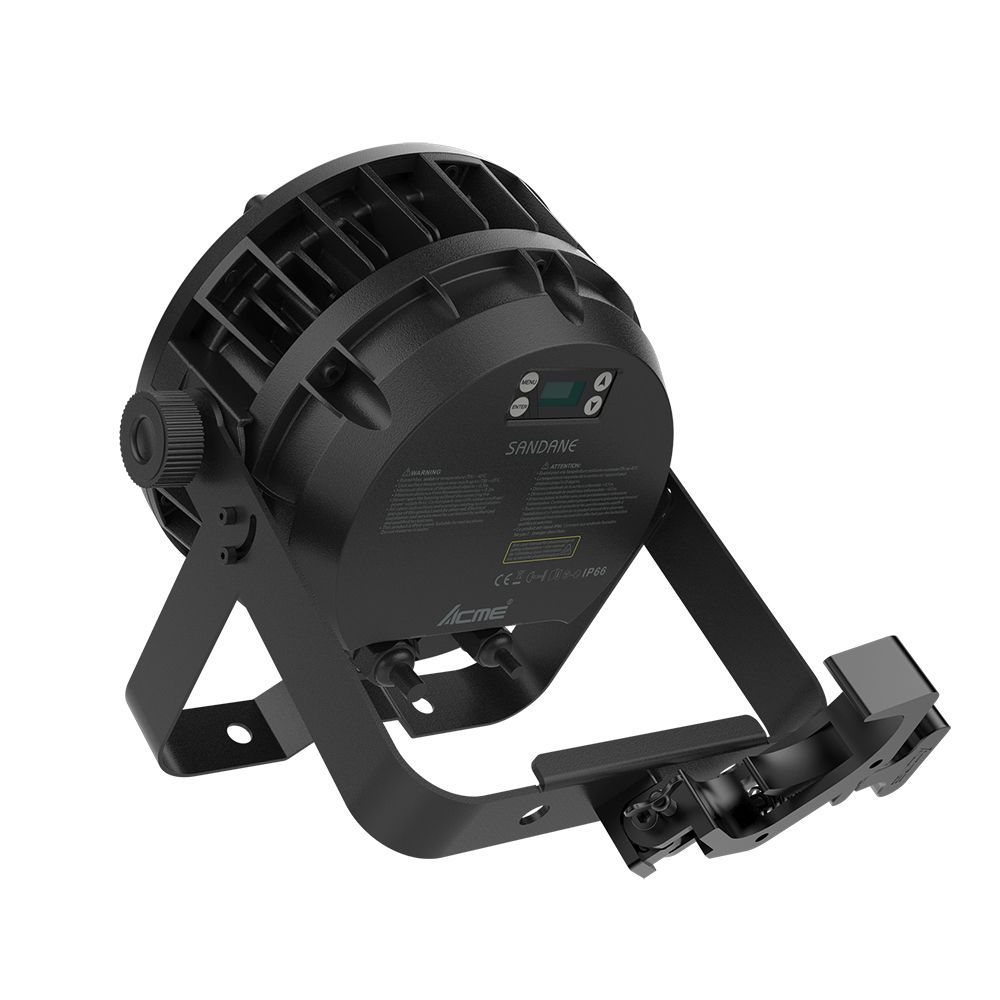

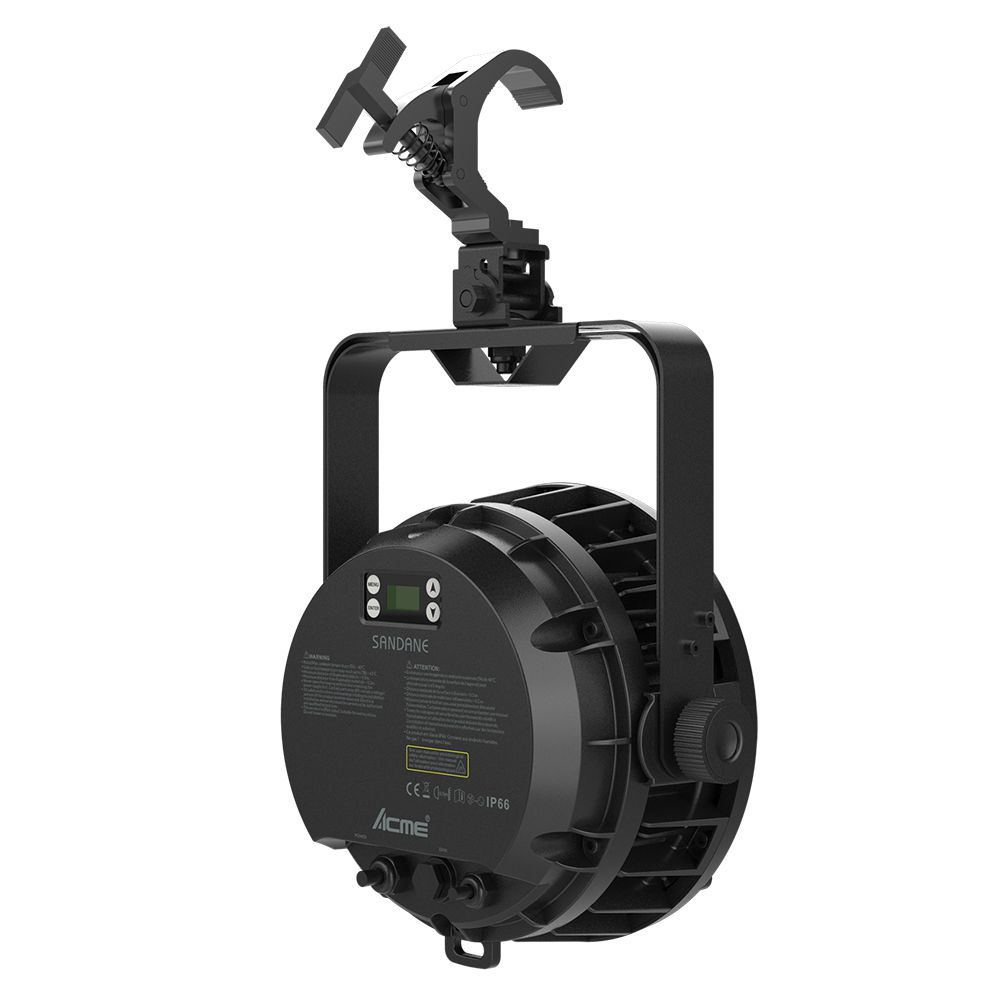

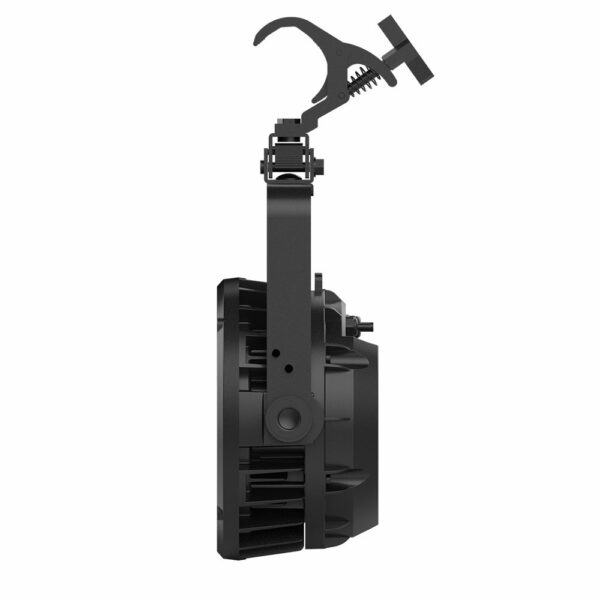

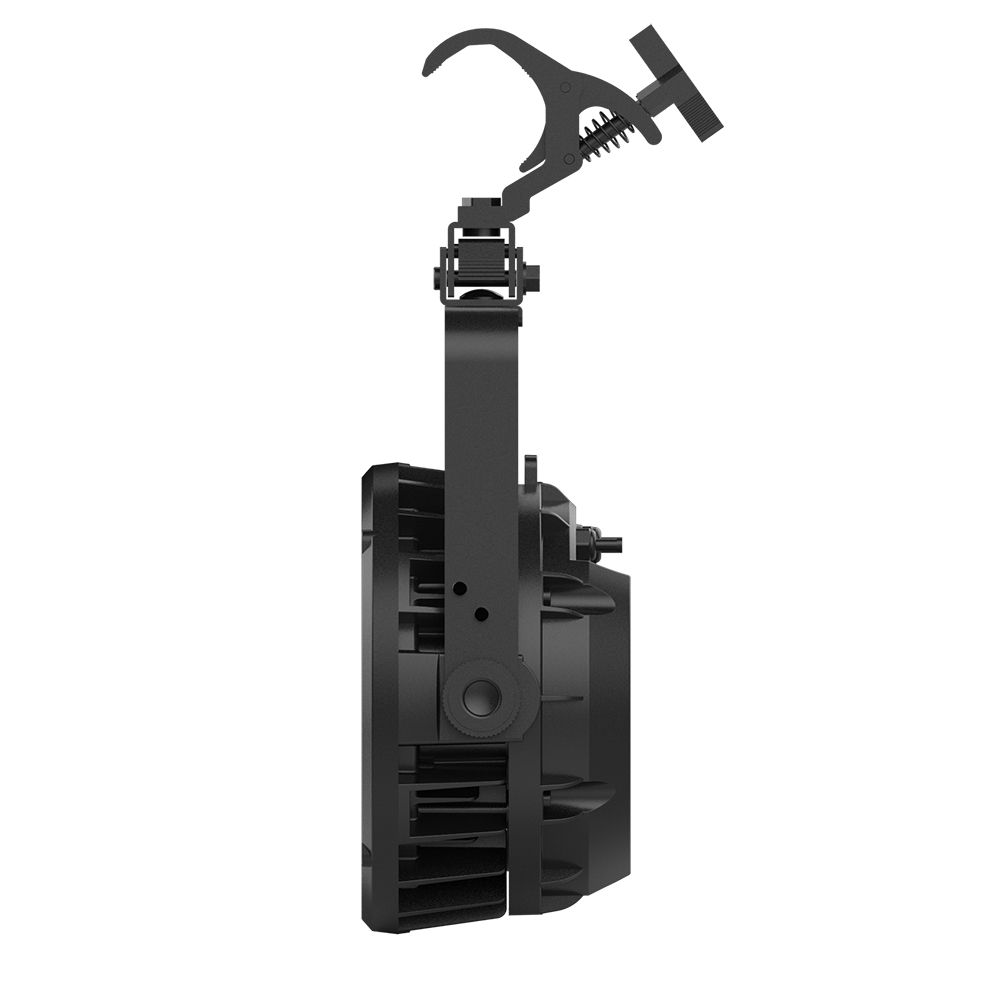

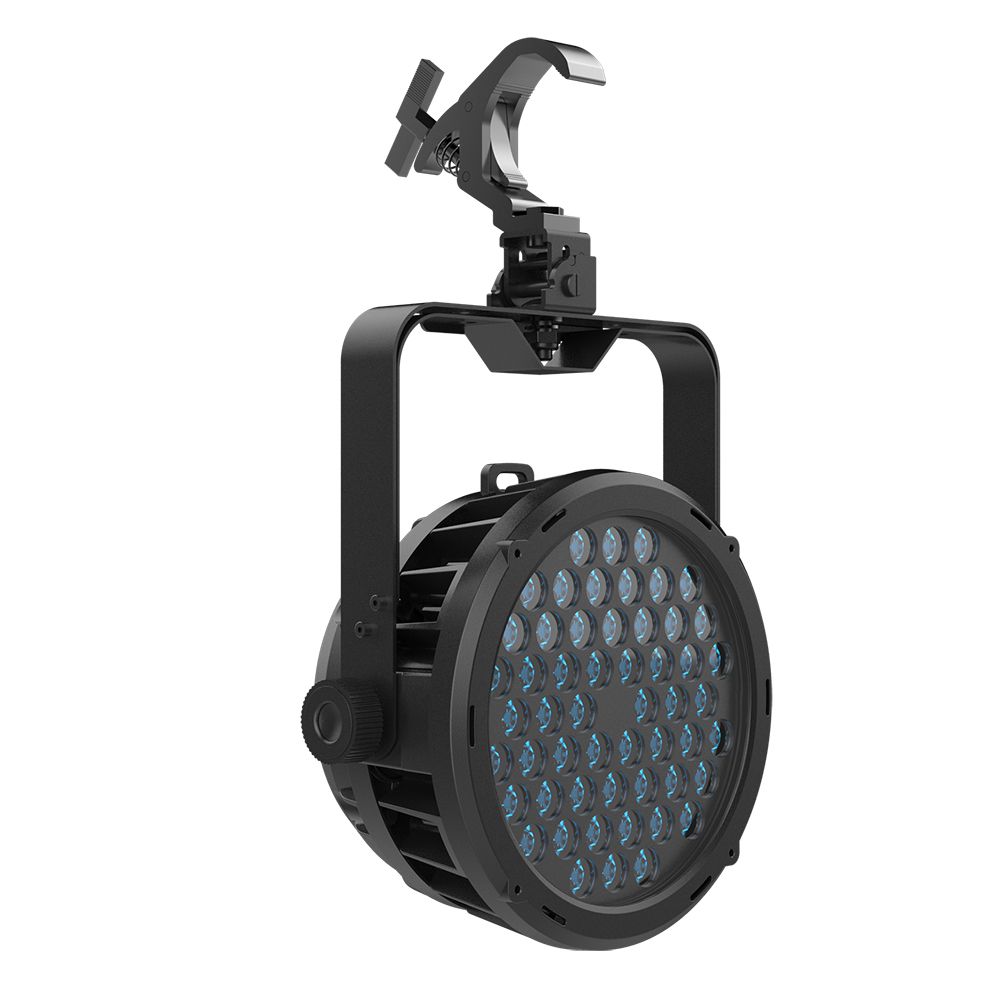

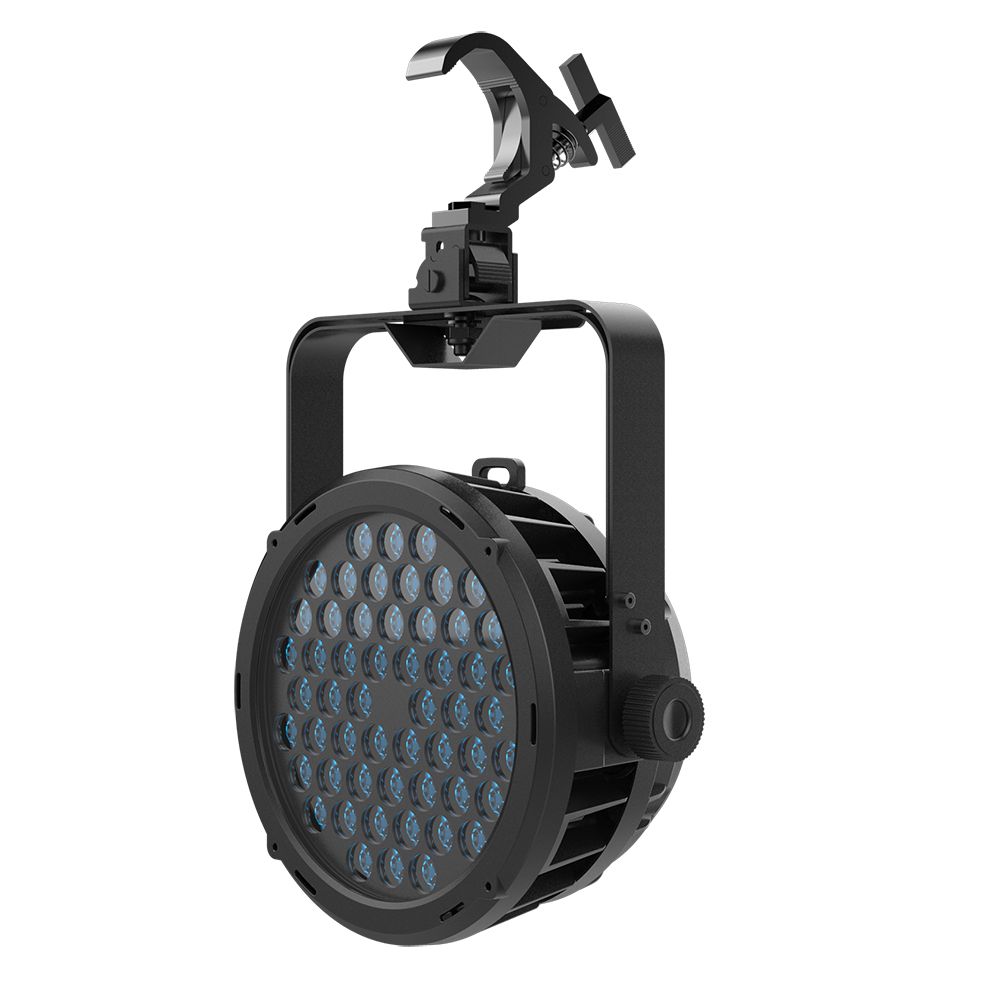

• Dual mounting bracket (with omega bracket and clamp)
• Safety rope hole

Included Items

• Digital user manual
• Power cable

Optional Accessories

• Flight Case: 3205001352 (Eight-pack Loader Case)
• Clamp: 2060001625 (C-150B)
• Signal Line: 5-pin waterproof signal line
• Safety Cable: 2060000200 (SW-02)
• Anti-glare Shield:

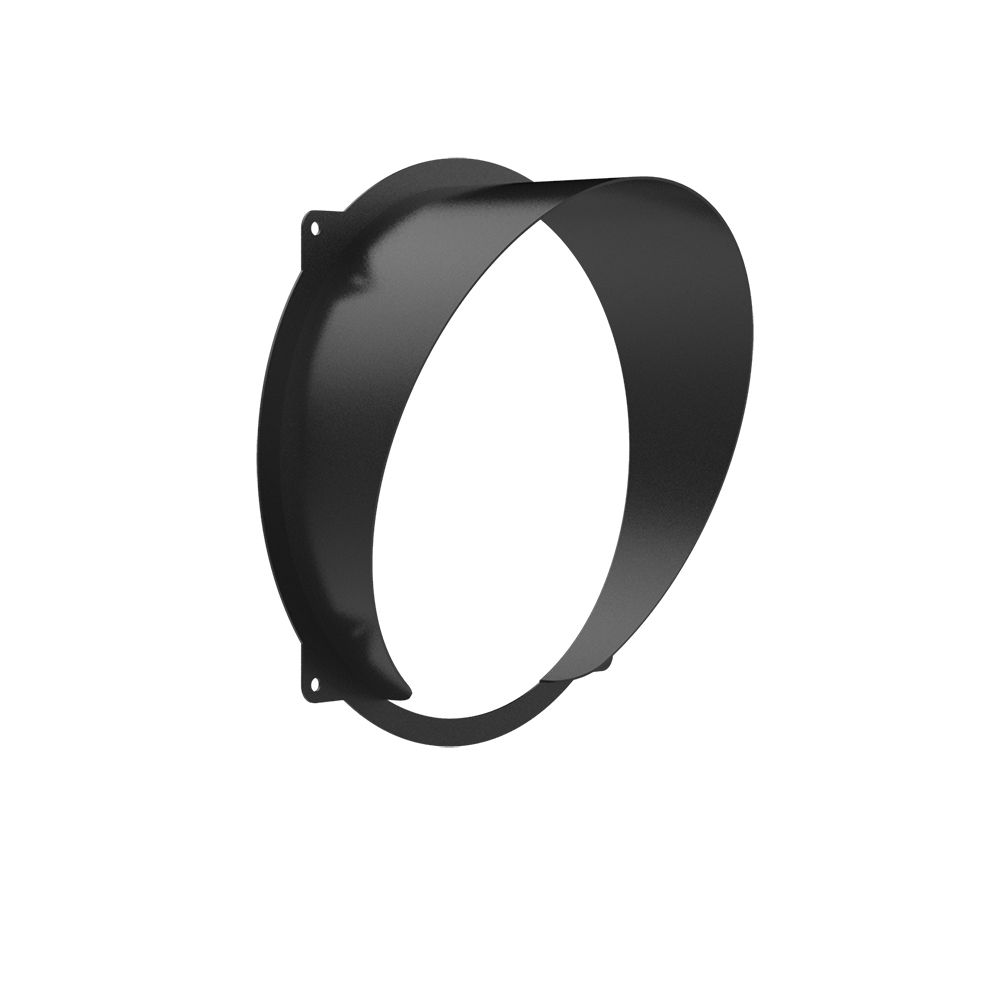

  • Half Size Anti-glare Shield: 63582245 (black)

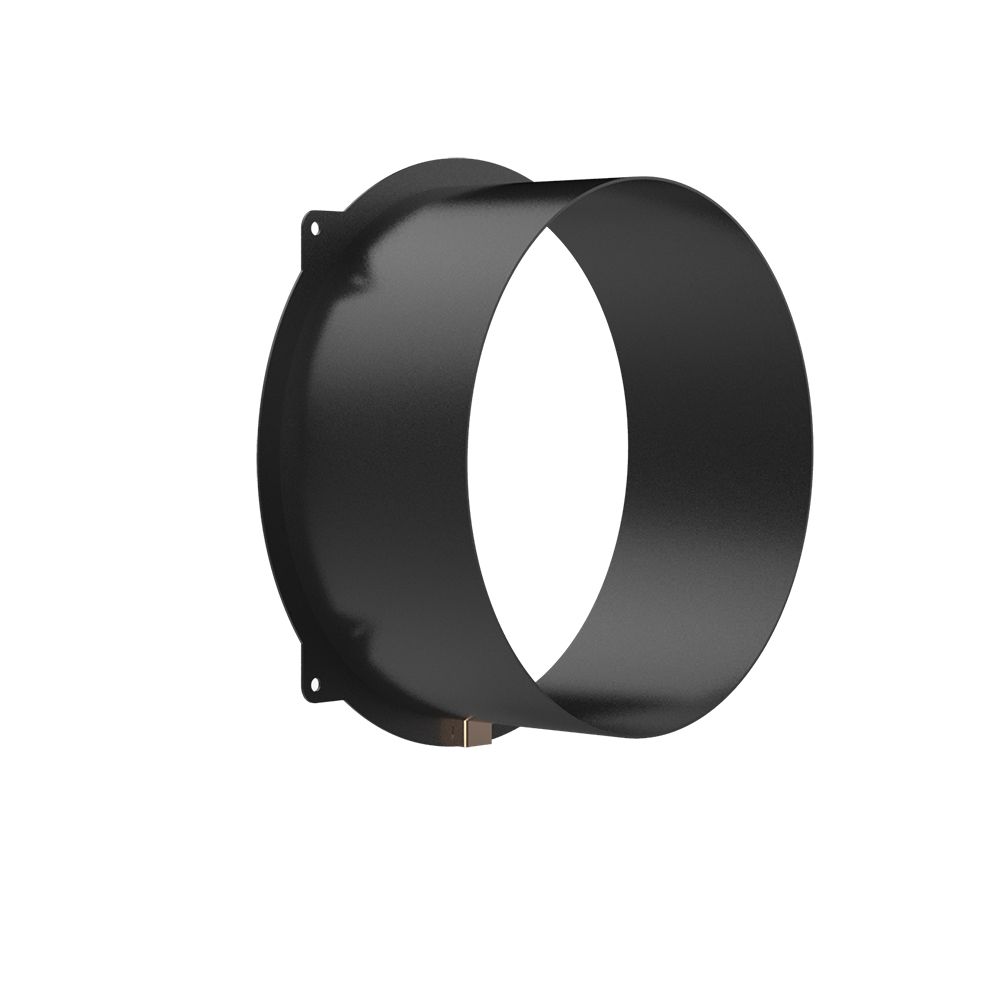

  • Full Size Anti-glare Shield: 63582244 (black)
• Barn Door:
  • Indoors Barndoor: 63582499 (black)
  • Outdoors Barndoor: 63582720 (black)
