Verkrijgbaar met verschillende aansluitingen.
Technical data
- Power consumption: 190W
- Power supply voltage: 85-265V
- Voltage frequency: 50/60Hz
- Diode type: 4in1
- Diode power: 10W

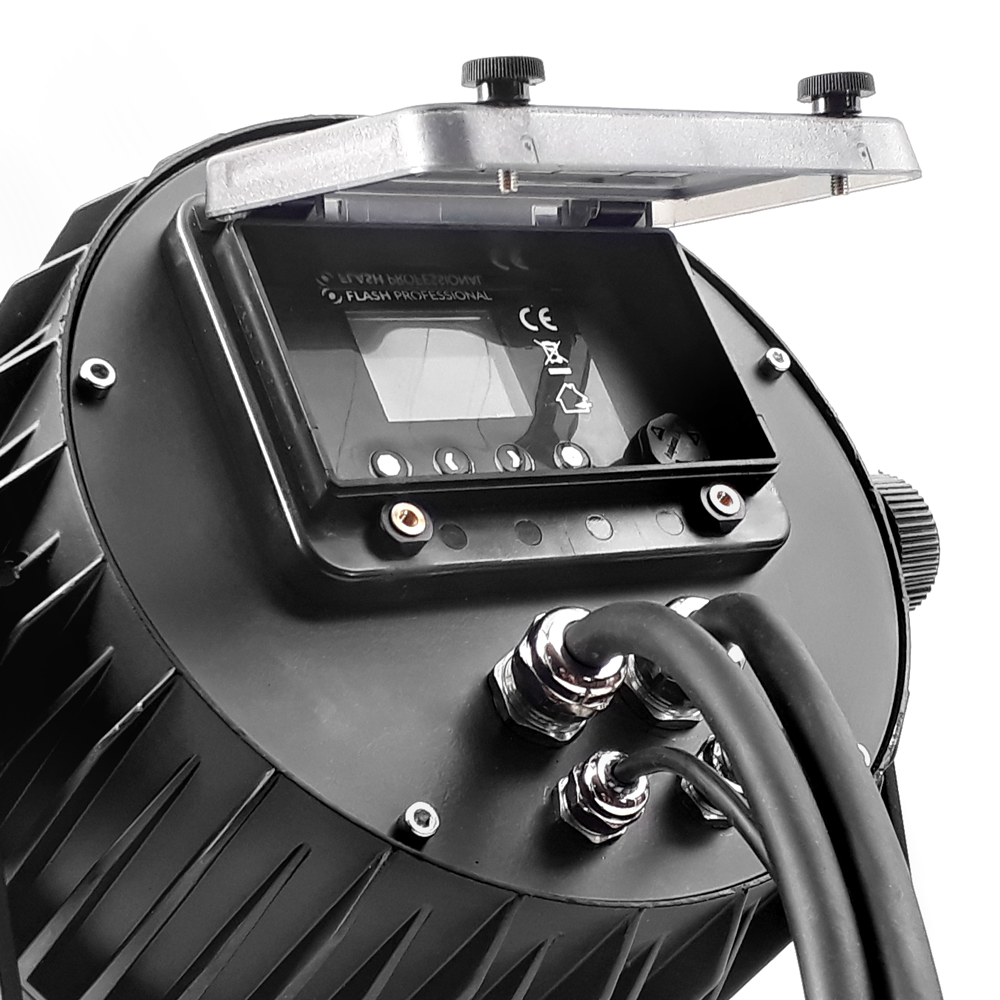

- Display: Color LCD
- Number of diodes:19
Utility data
- Color: RGBW
- Luminous flux: 0
- ZOOM: No
- Beam angle (min): 25°
- Beam angle (max): 25°
- Dimming: Linear: 0 – 100%
- Flash frequency (min): 0Hz
- Flash frequency (max): 9Hz
- FROST filter: No
- FOCUS: No
- Number of DMX channels: 9 channel modes (3-8 channels)
- DMX standard: DMX 512
- Control interface: 4 buttons
- Operating modes: DMX512, Auto, Sound-controlled, Master / Slave
- Features: 16-bit dimming, various dimming curves, bulb simulation, DMX Signal regeneration,
- Electronic protection against overheating

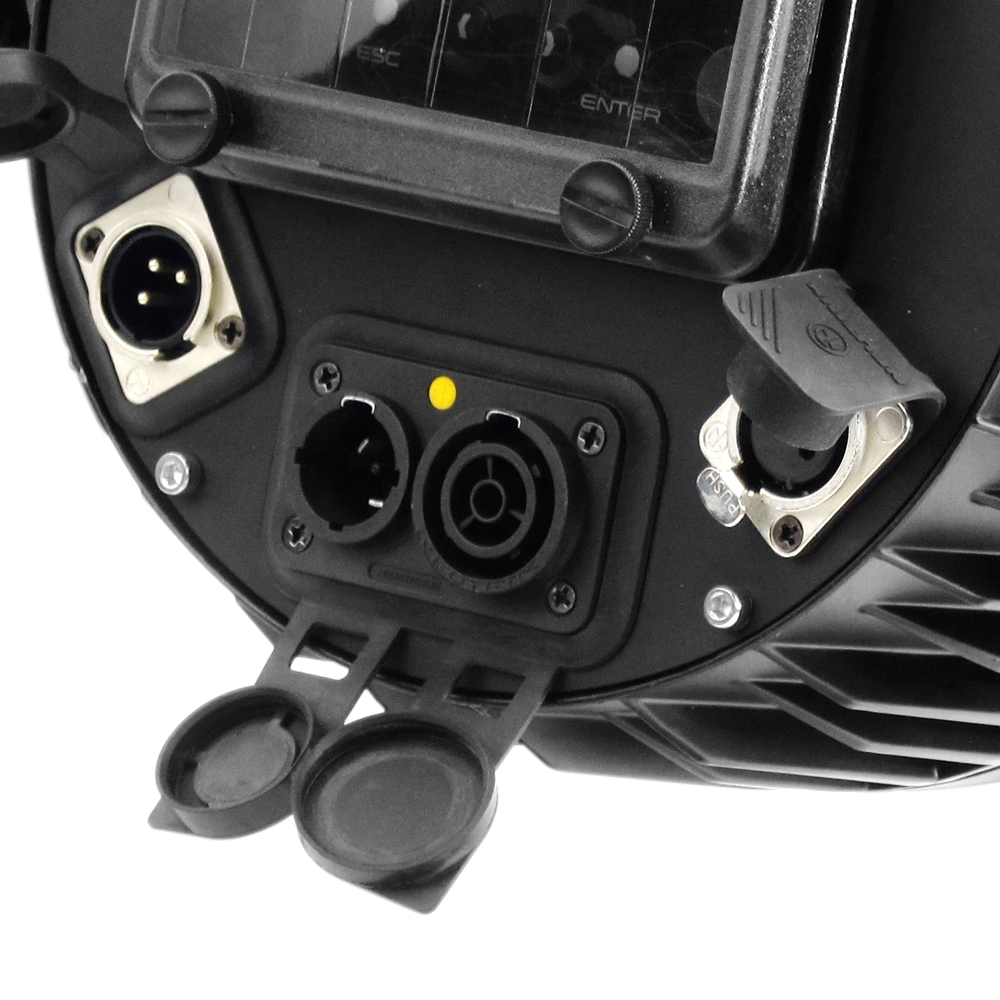

Interfaces

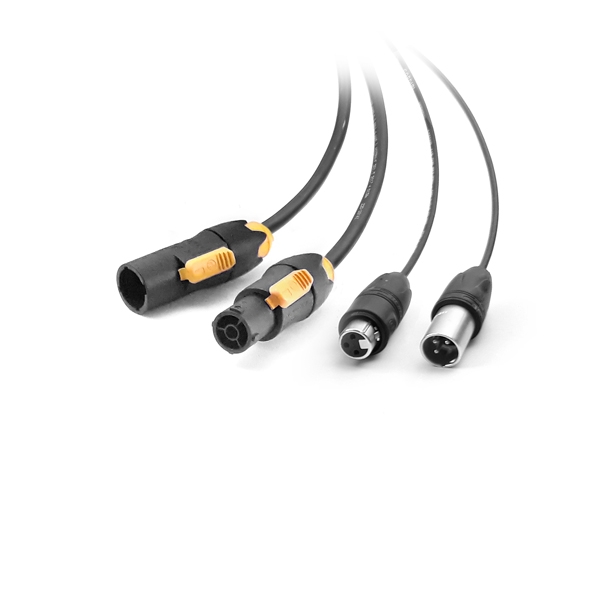

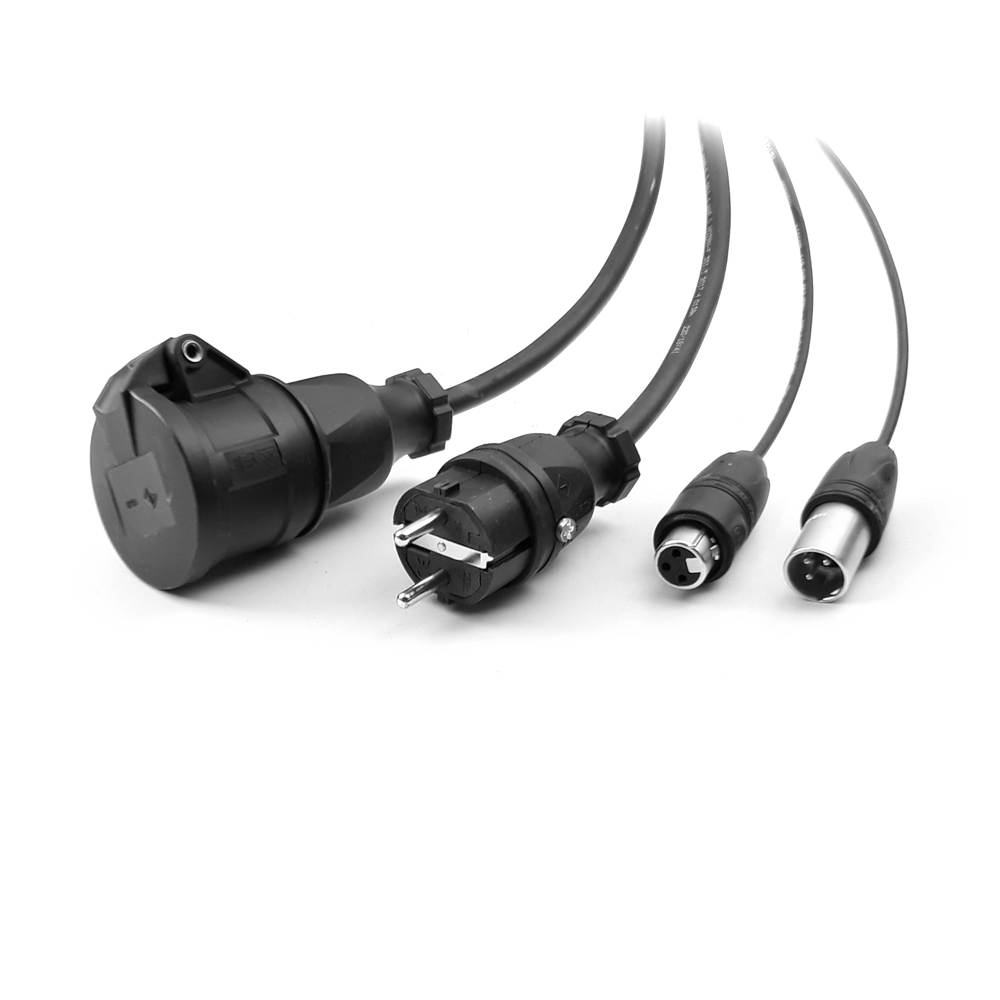

- AC IN: Various
- AC OUT: Various
- DMX IN: XLR – 3 pin
- DMX OUT: XLR – 3 pin
Physical characteristics
- IP Rating: IP65
- Housing made: Aluminum
- Cooling: Passive
- Height [cm]: 29
- Width [cm]: 29
- Depth [cm]: 17
- Weight [kg]: 4,4
- Weight with packaging [kg]: 5
- Type of packaging:Carton Box
