INNLED – TECNOPAR T4-E | Accu

Tecnopar – T4 – Buffetverlichting – barverlichting – accuverlichting

Beschikbare opties:

  • Behuizing zwart of wit
  • Standaard 26°
  • Variabel wit, 3000K of 5600K
  • Uitbreidbaar met Lumen Radio

Timeless lighting mast

Onze lichtmasten evolueren om een ​​duurzamere rol te vervullen.

Vastbesloten om het voortouw te nemen, biedt de T4-E een nieuwe batterij met gereviseerde lithium-ioncellen en zorgt voor volledige compatibiliteit met eerdere generaties T4’s, zodat hun gebruik zal voortduren.

Een identiek ontwerp dat dezelfde autonomie biedt, maar ook een paar nieuwe functies – waaronder de eerste INNLED lichtmast die compatibel is met LumenRadio®.

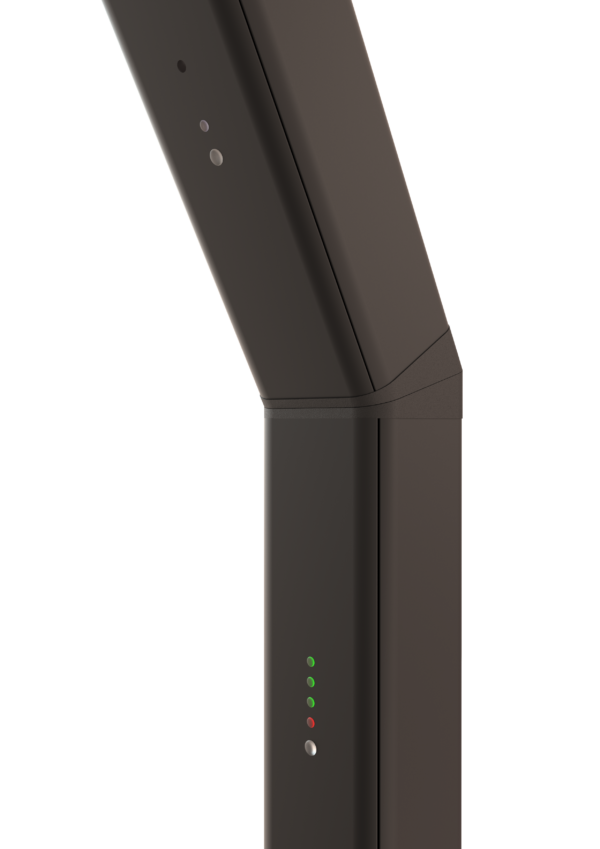

De accu zit in het onderste gedeelte van de mast waardoor hij extra stabiel is.

Ontdek het nu.

Composition

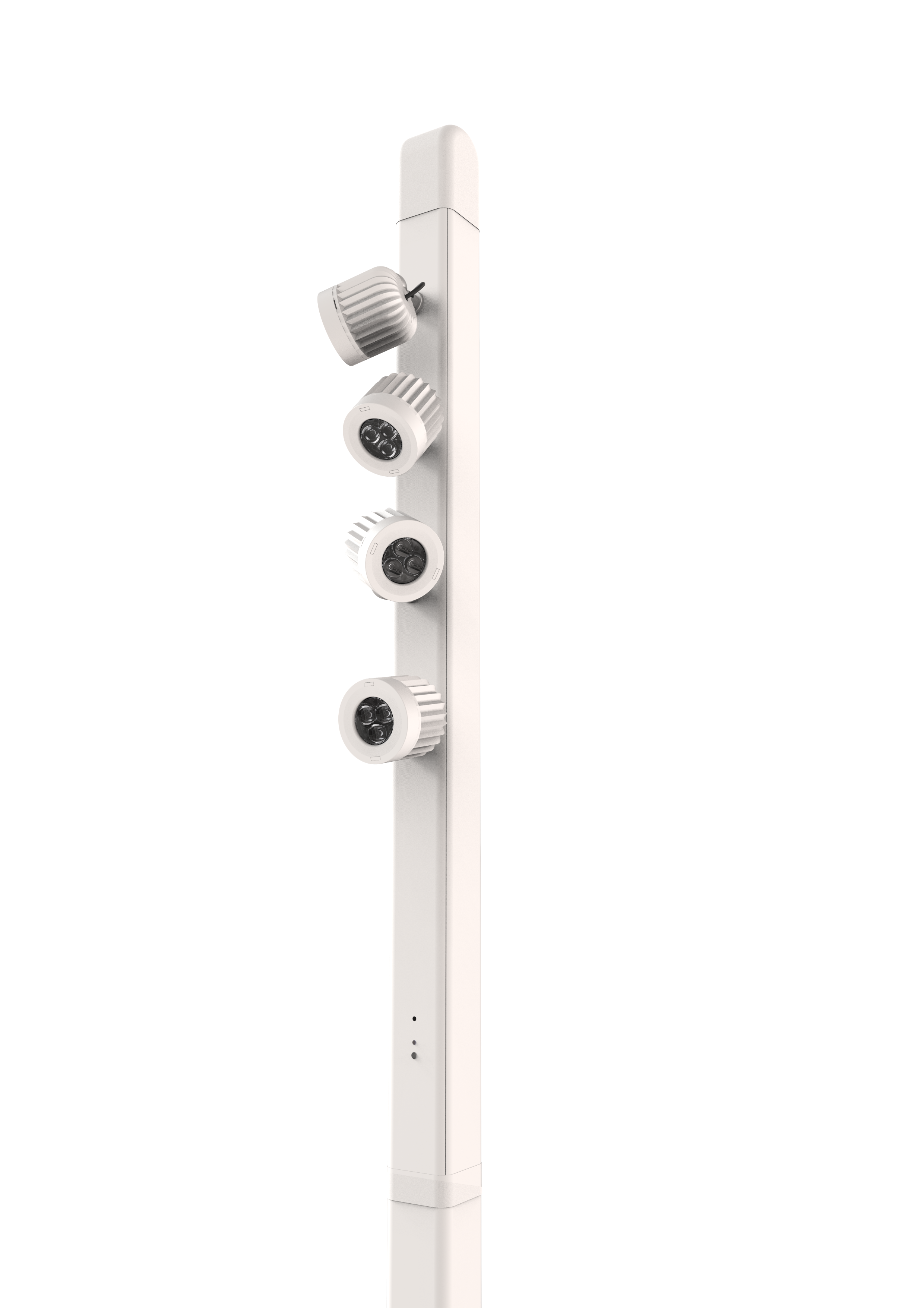

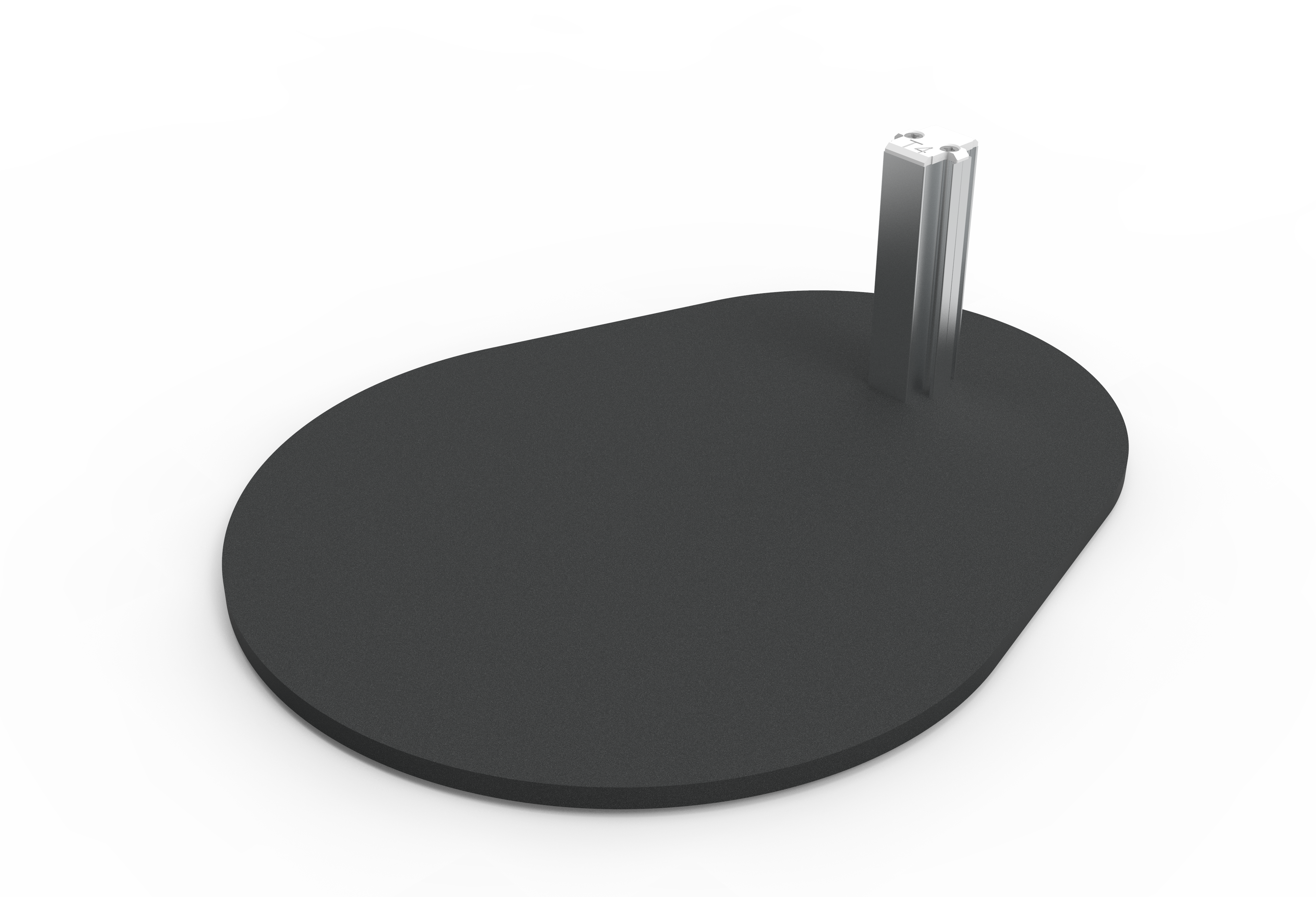

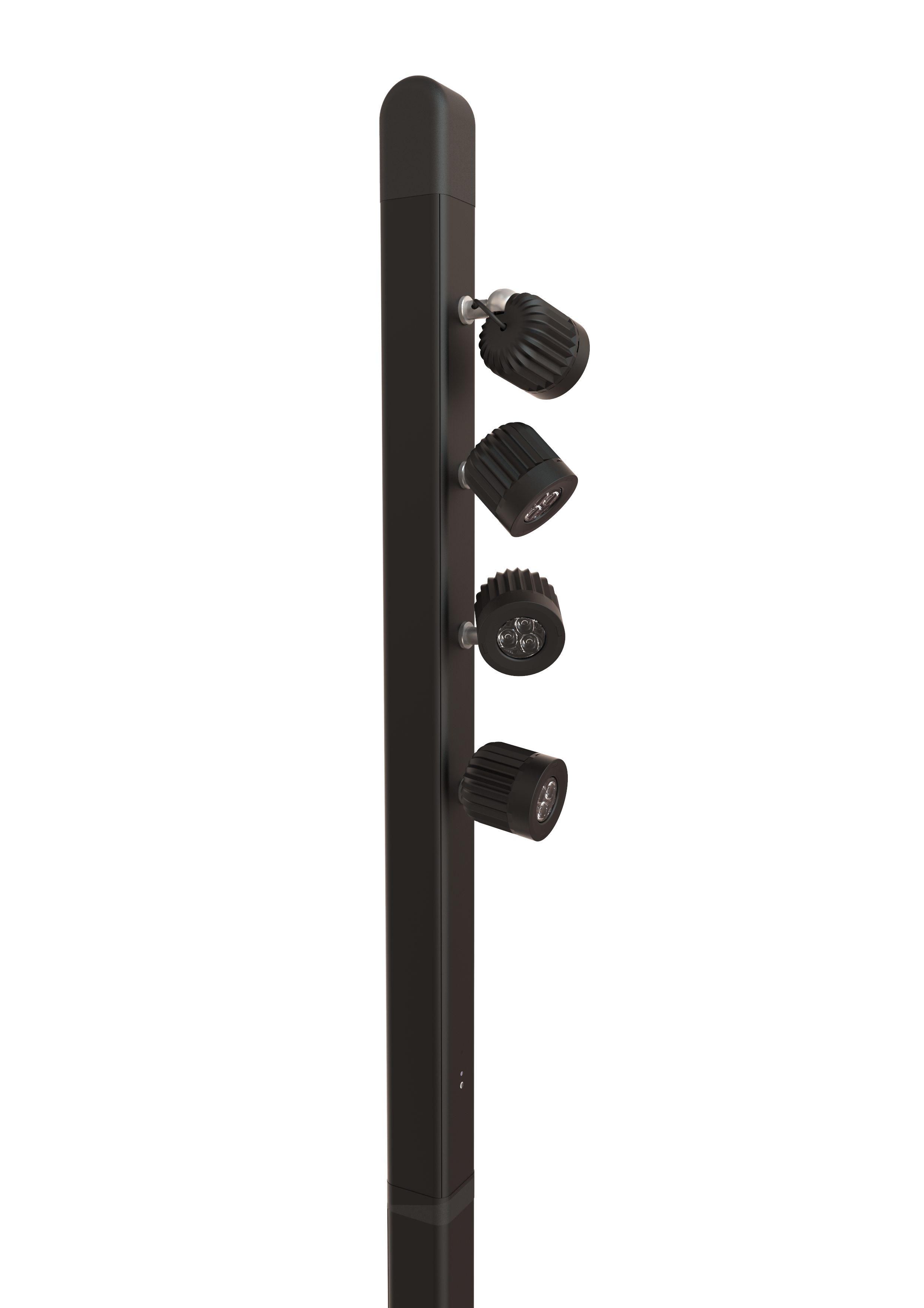

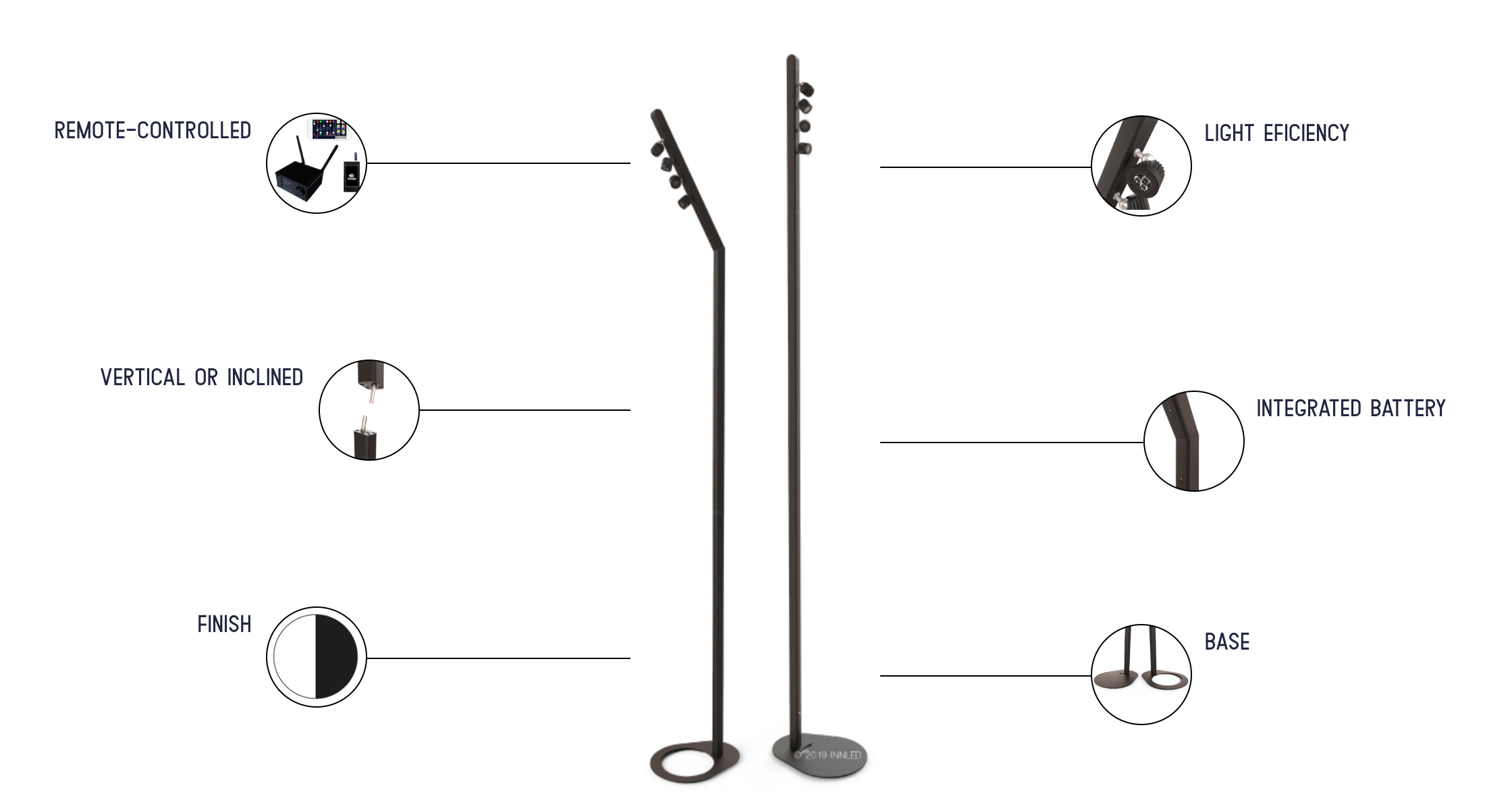

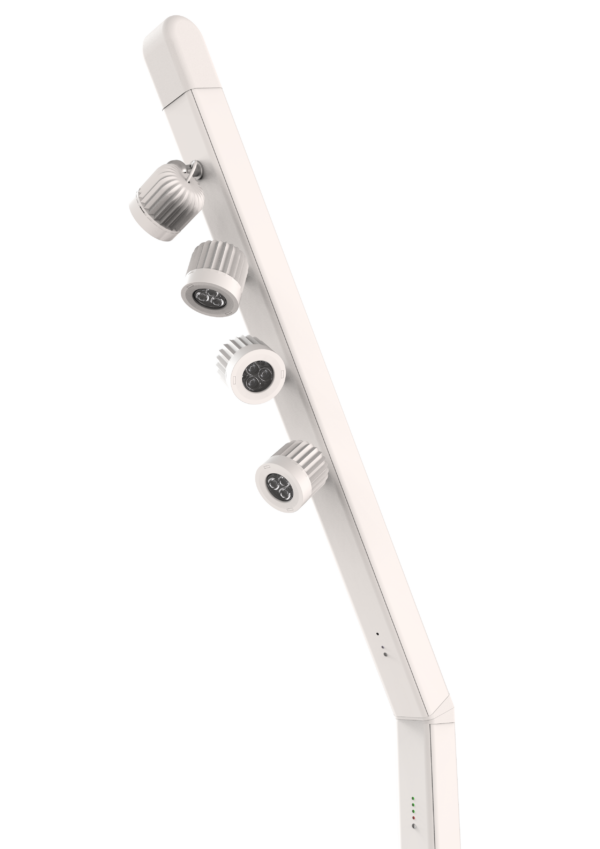

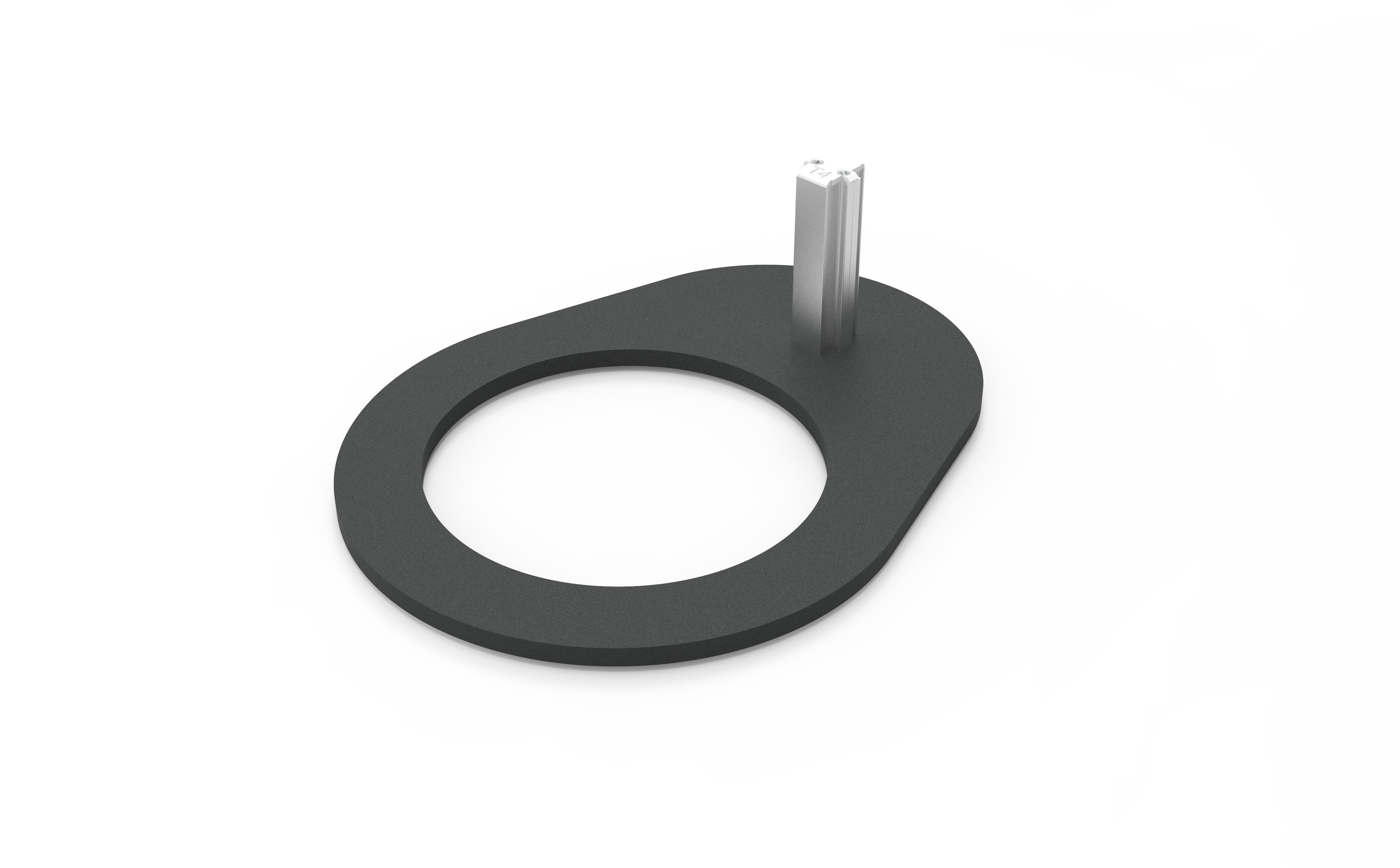

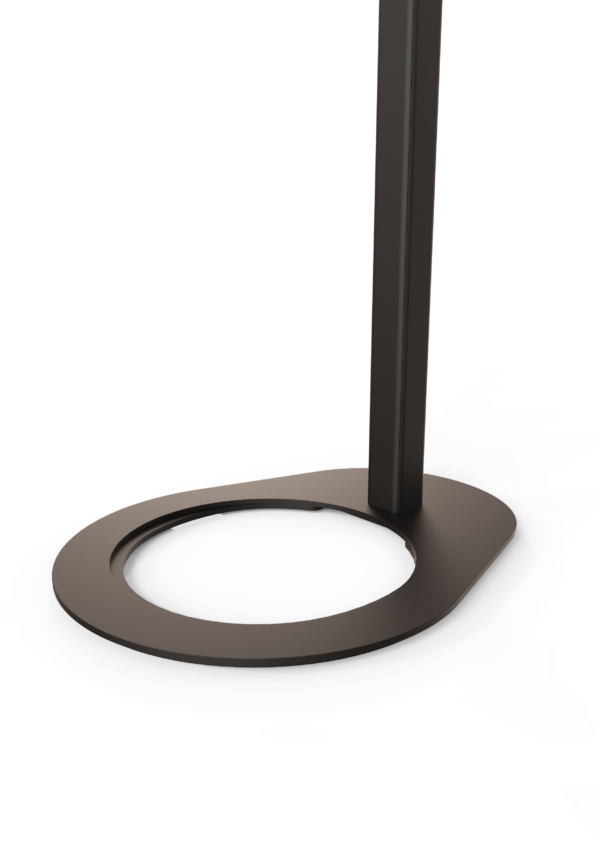

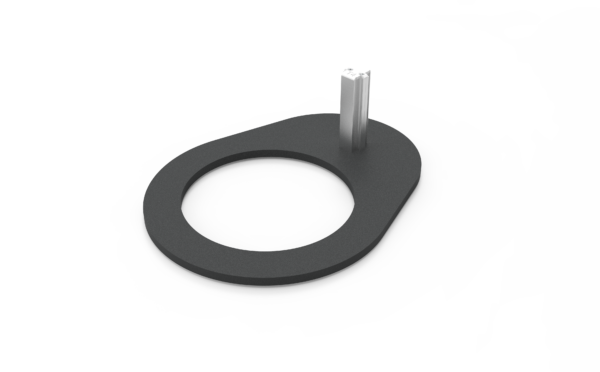

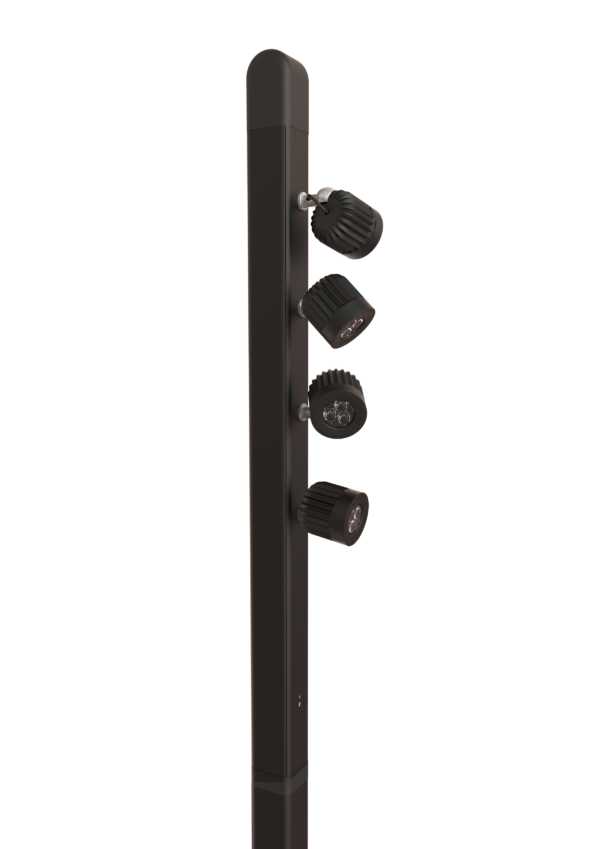

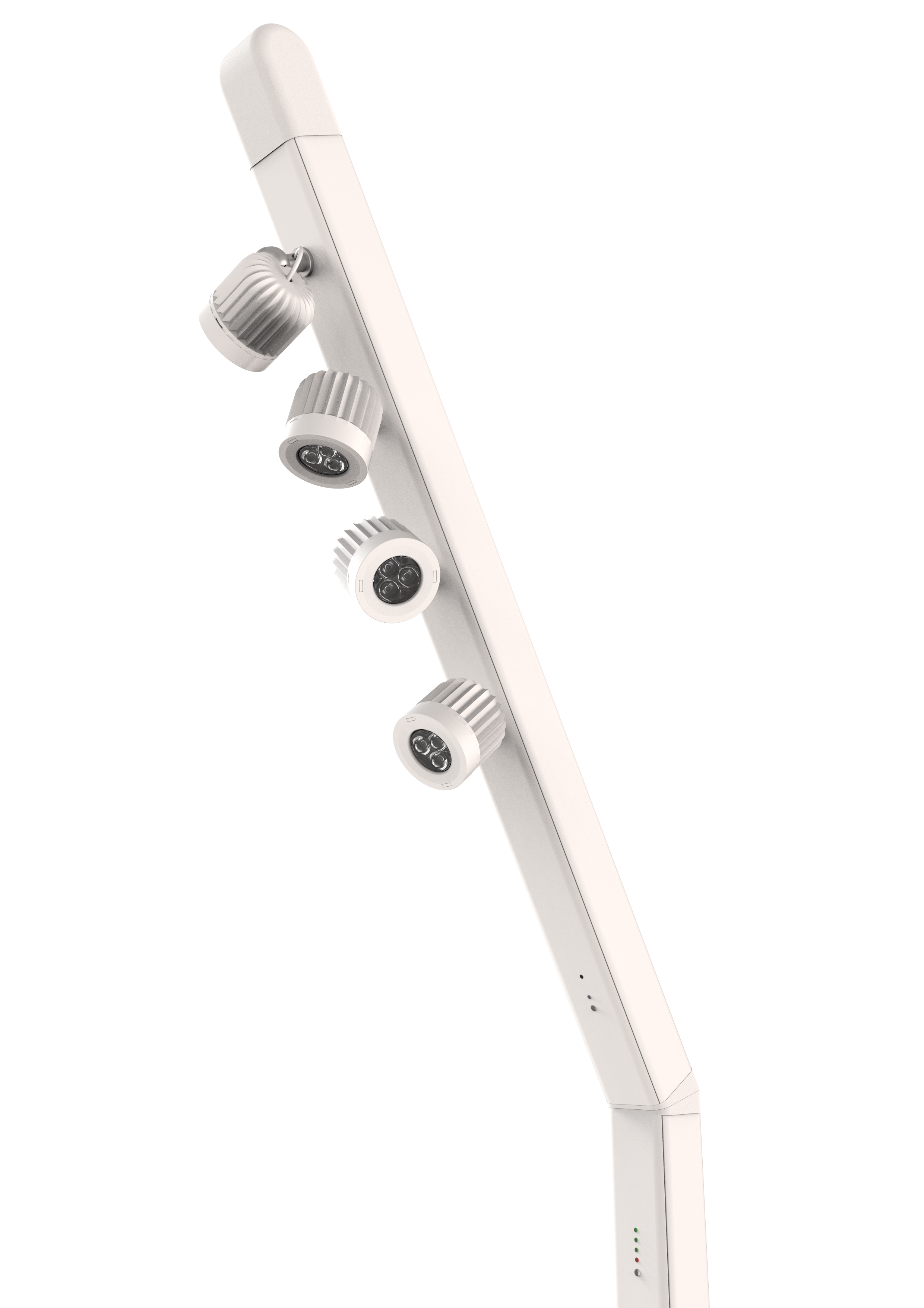

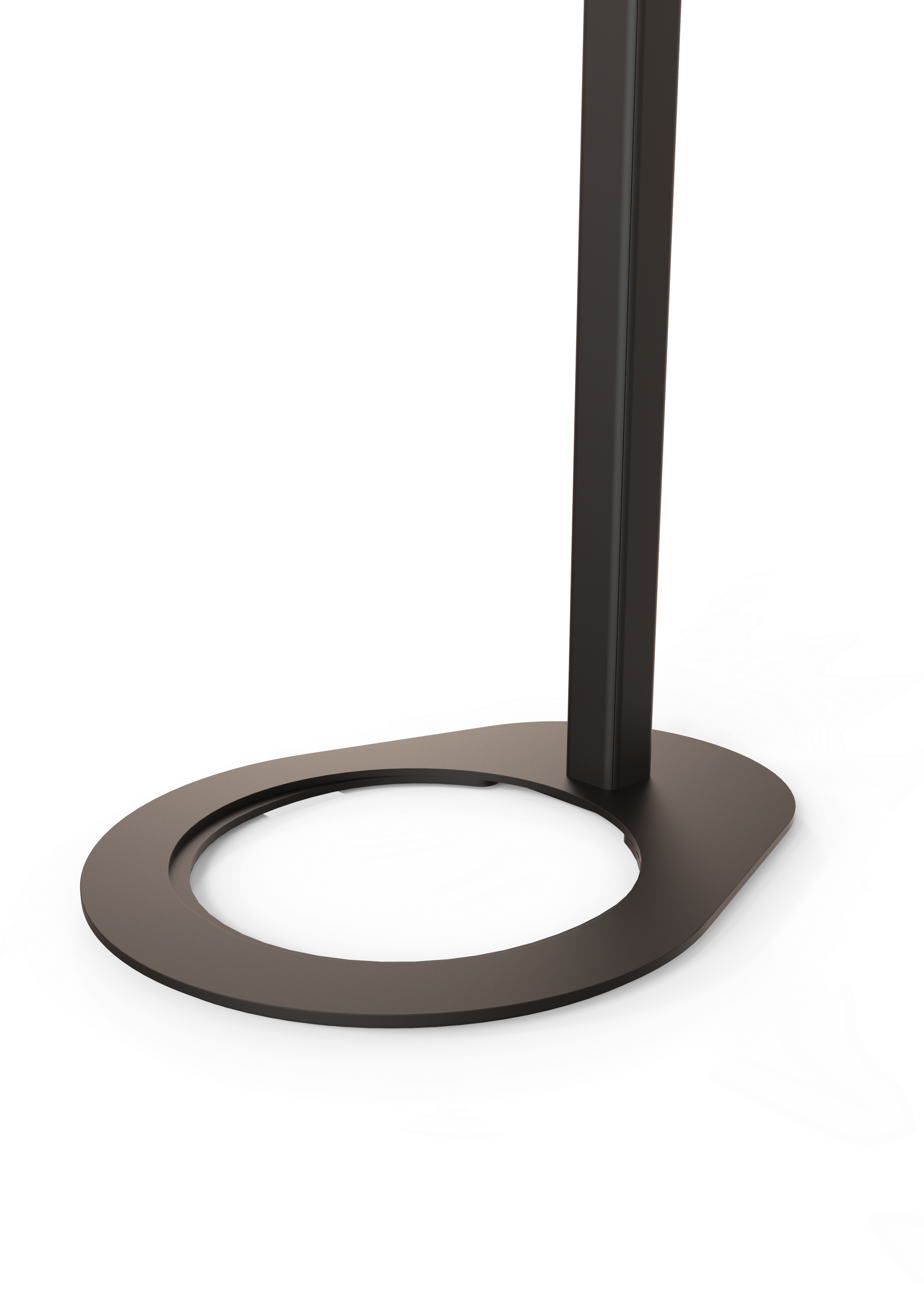

  • 180° reversible head with 4 spotlights + New Li-ion battery module + New extension tube + Open base (or full base on demand)
Materials

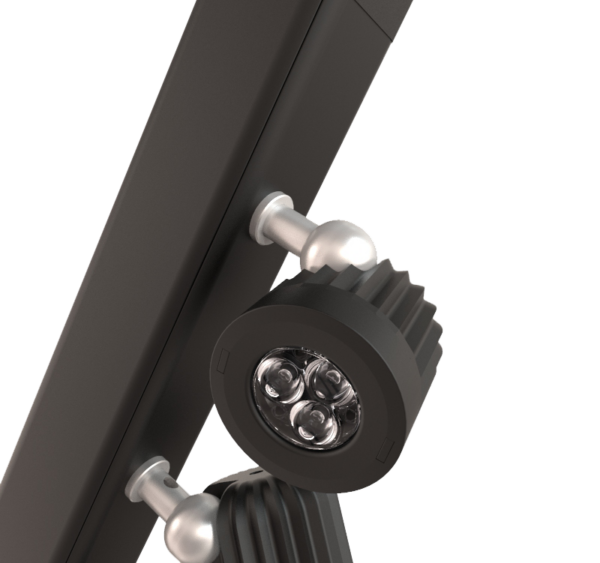

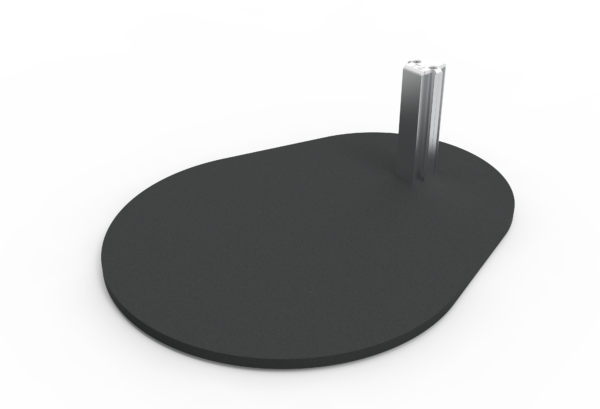

  • Extruded aluminium profile 6106T5 • AS13 Injected aluminium spotlight • Hermalink® and Hermatwist® : • Hermalink® and Hermatwist® : injected polypropylene and stainless steel pins • RF cap : injected 6-6 polyamide • Steel base and ballast
Finition
  • Powder-coated epoxy paint • Anthracite grey 2100ST (sanded) • White RAL 9003 (textured) • Contact us for colour customization
Electric power
  • 18W (4 x 4,5 W)

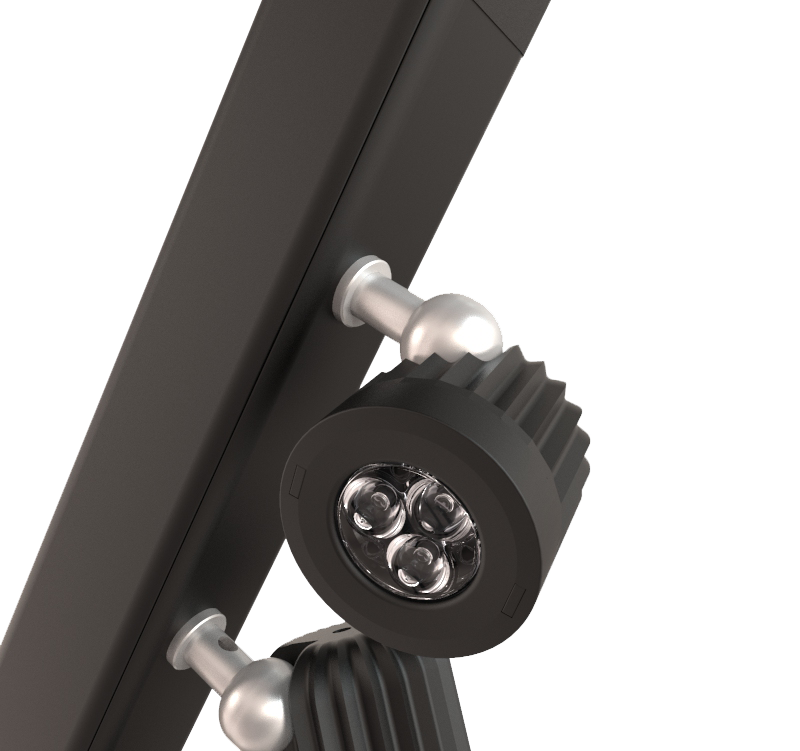

LED Spot Power
  • 4,5 W
Technology
  • LED Cree XPG3 HE
Lighting source
  • Up to 2000 lumens
Colour temperature
  • CCT tunable white (3000K – 4000K – 5600K)• 3000K• 4000K• RGB
Autonomy
  • 11h at full • Up to 110h autonomy depending on the setting of the dimmer
Temps de charge
  • Less than 8h
Temperature range
  • 0°C to 40°C
IP class
  • IP32 • IK08
Dimensions

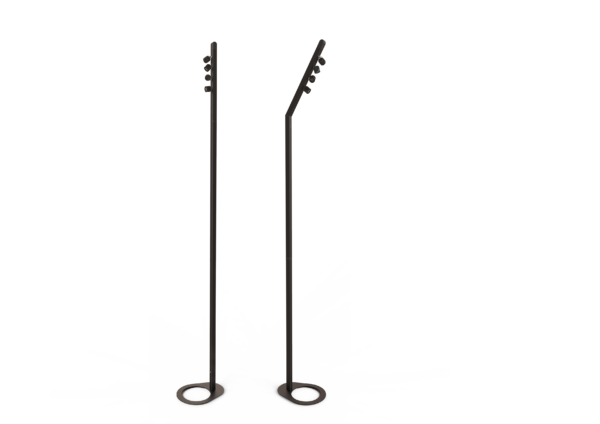

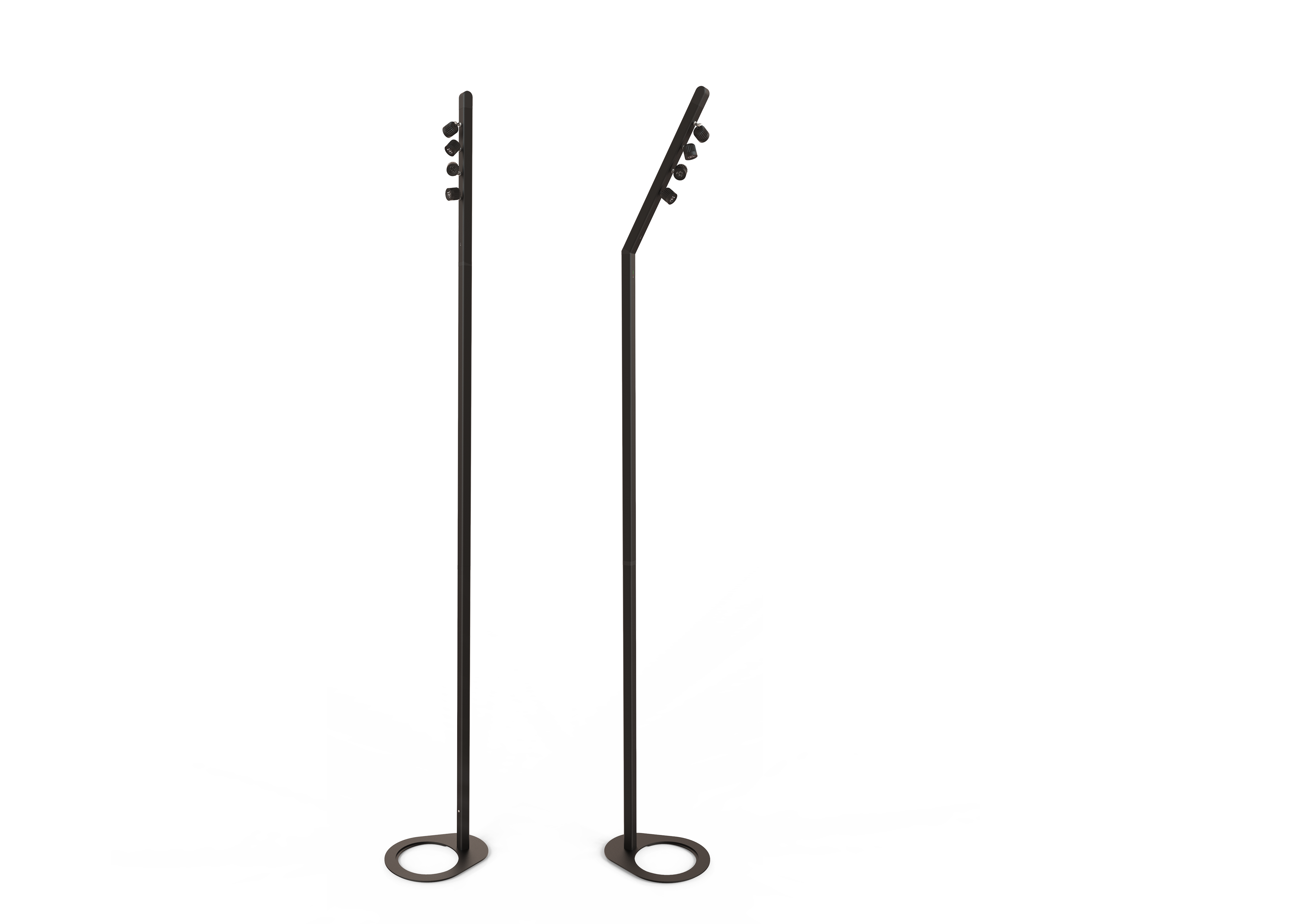

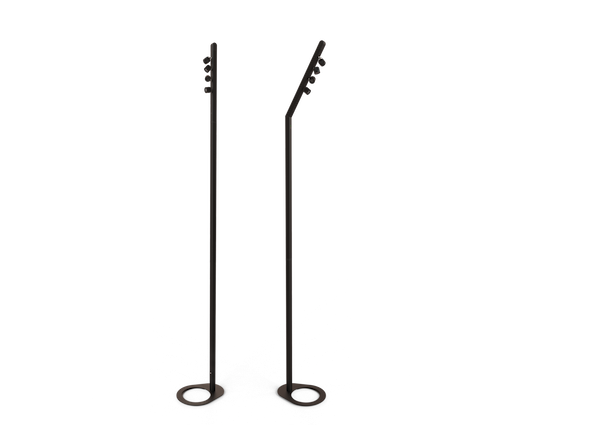

  • Vertical : 2,36m • Inclined : 2,30m
Weight
  • 6,1kg
DMX HF
  • Integrated • With Lako RF remote control (not incl.) • With RF transmitter (not incl.) • LumenRadio® CRMX protocol
Alimentation
  • 100-240V AC • 50-60Hz max 0,8A• 24,0V DC – 1,16A – 27,8W
Warranty
  • 2 years on the product • 18 months on the battery in normal use
Norm
  • CE• UN38.3 (ongoing)
Class
  • • Classe II
Dimension
  • Vertical : 2,36m• Inclined : 2,30m
Flightcases
  • Waterproof cases • Up to 3 T4-E per case • Charging of products directly in the cases
Chargeur
  • Integrated chargers
Battery and autonomy
  • Integrated battery (Li-Ion 14,8V 140Wh)• Reconditionned li-ion cells • Charger integrated in the battery

E for environment

The battery’s lithium-ion cells, derived from the circular economy, reduce CO2 emissions by 70% compared to new cells – significantly reducing the carbon footprint of the T4-E.

Above all it’s a way for INNLED to support a new European sovereignty regarding batteries.

New features to discover and a new extended warranty of 18 months applied to the battery – because we’re determined to defend and encourage the path towards a more responsible production ecosystem.

T4-E - Timeless lighting mast - Innled

E – for Equivalent

The T4-E offers improved features integrated into an identical design, allowing all T4 versions to be mixed and matched within the same event.

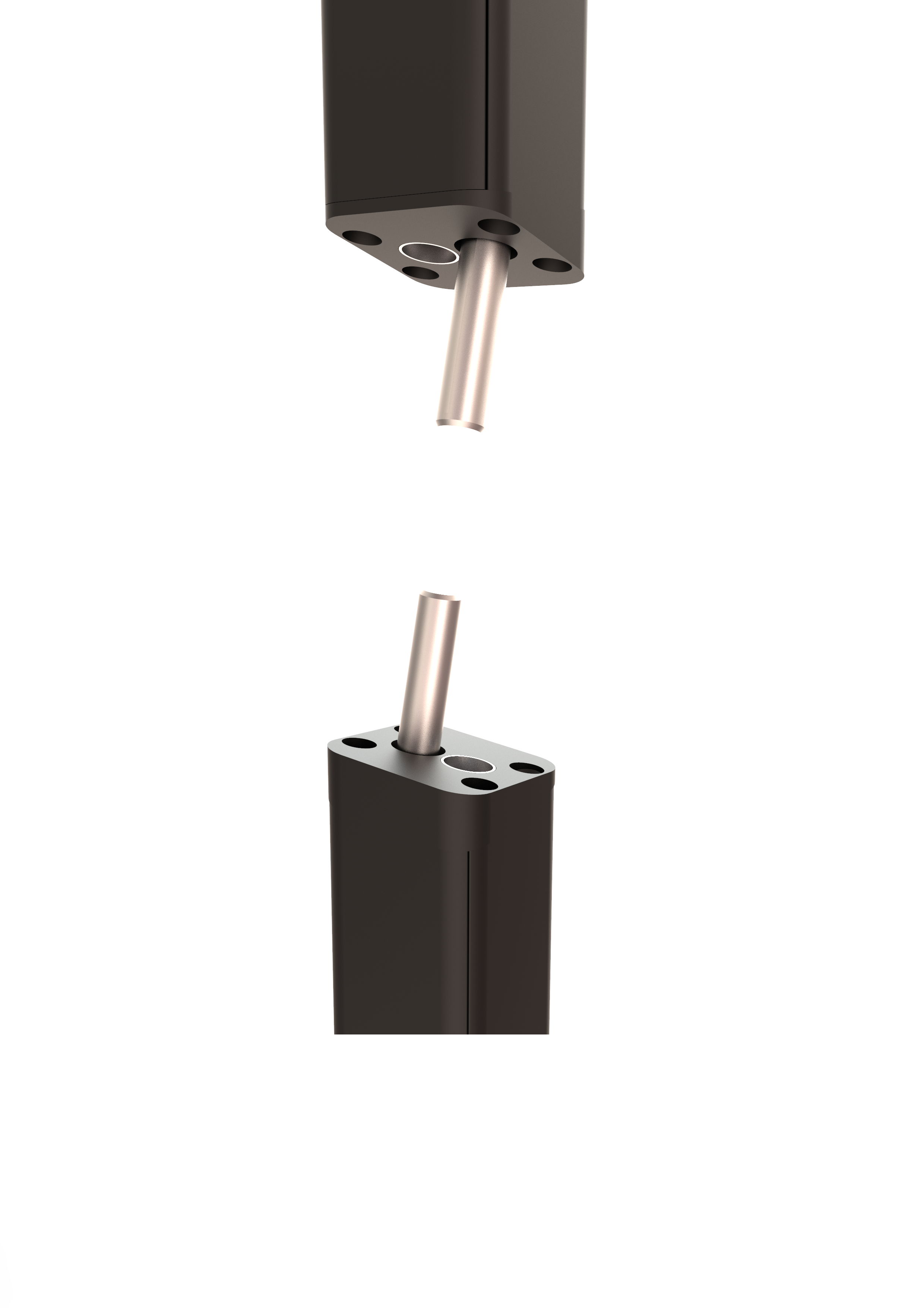

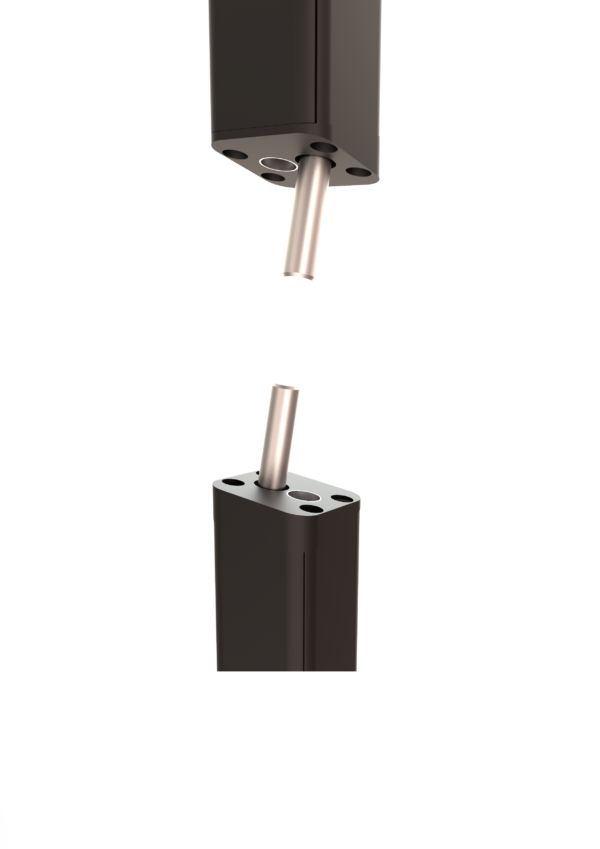

It also retains the ability to vary in height thanks to two additional extension tubes, 265mm and 500mm. Depending on how these extensions are assembled, the T4-E can be mounted at 1m60, 2m15, 2m30 or 2m80 (+ballast). .
