Technical data
- Power consumption: 160W
- Power supply voltage: 100 – 245V
- Voltage frequency: 50/60Hz
- Diode type: 4in1
- Diode power: 10W

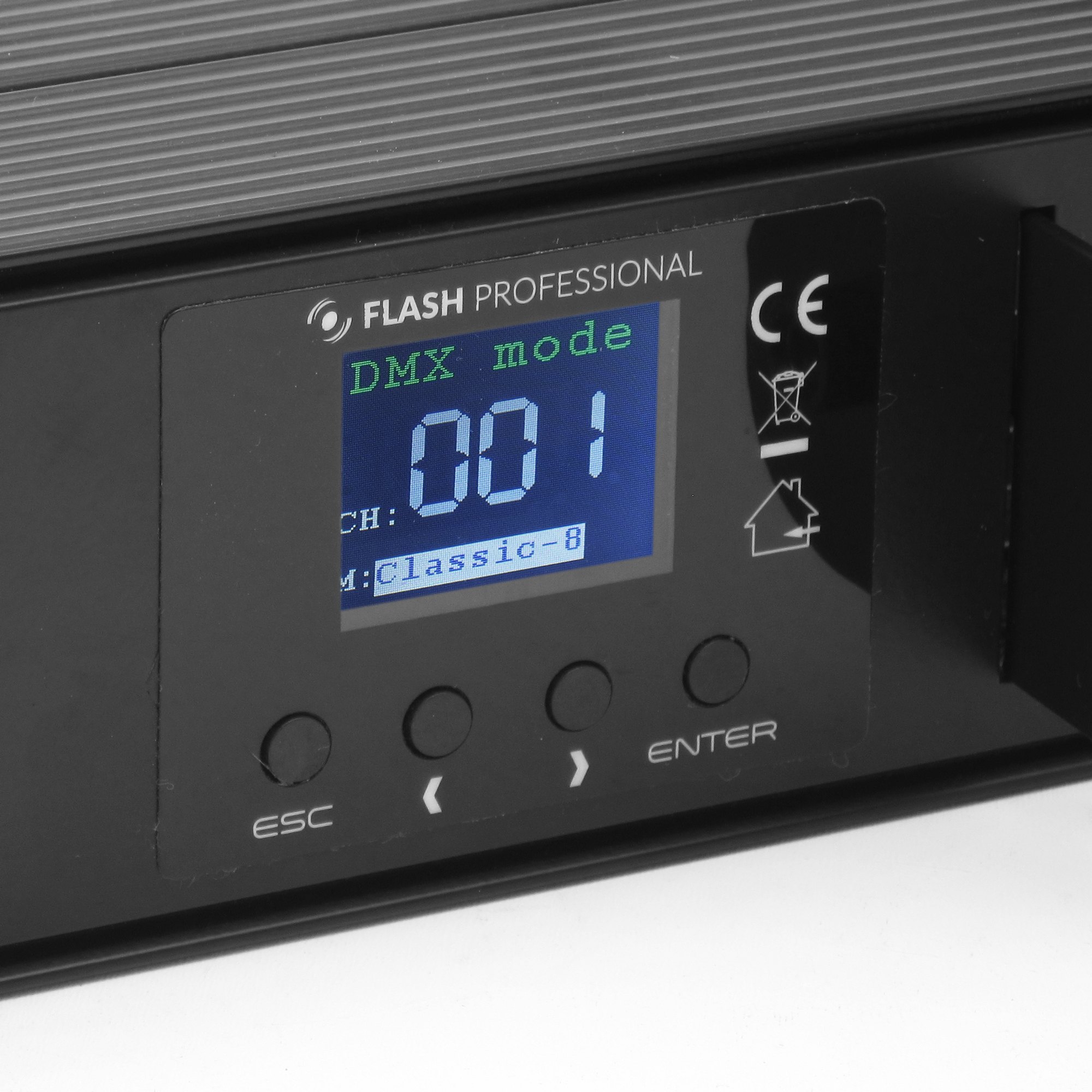

- Display: Color LCD
- Number of diodes: 16
- Pixelcontrol
Utility data
- Color: RGBW
- Luminous flux: 11 632lm
- Beam angle (min): 45°
- Beam angle (max): 45°
- Dimming: Linear: 0 – 100%
- Flash frequency (min): 1Hz
- Flash frequency (max): 20Hz
- DMX standard: DMX 512
- Numers of DMX channels: 30 modes
- Control interface: 4 buttons
- Operating modes: DMX512, Auto, Sound-controlled, Master / Slave
- Features: 16-bit dimming, various dimming curves, bulb simulation, DMX Signal regeneration,
- Electronic protection against overheating

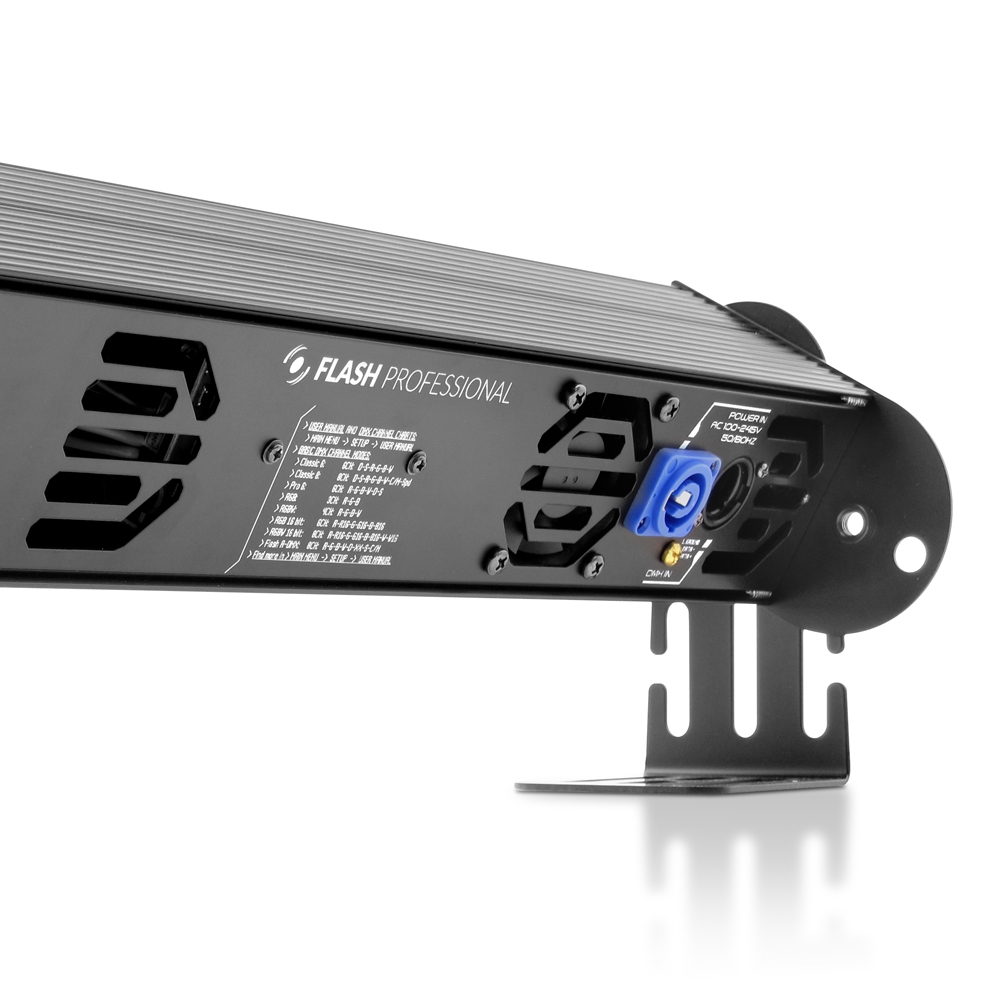

Interfaces
- AC IN: powerCON
- AC OUT: powerCON
- DMX IN: XLR – 3 pin
- DMX OUT: XLR – 3 pin
Physical characteristics
- IP Rating: IP20
- Housing made: Aluminum
- Cooling: Active
- Height [cm]: 16
- Width [cm]: 102
- Depth [cm]: 14
- Weight [kg]: 5
- Type of packaging: Carton Box
