Beschrijving

Technical data

  • Power consumption: 200W
  • Power supply voltage: 100 – 245V
  • Voltage frequency: 50/60Hz
  • Diode type: COB
  • Diode power: 200W
  • Display: LCD Matrix
  • Number of diodes: 1

Utility data

  • Color: White
  • Beam angle (min): 37°
  • Beam angle (max): 37°
  • Dimming: Linear: 0 – 100%
  • Flash frequency (min): 1Hz
  • Flash frequency (max): 20Hz
  • Number of DMX channels: 2
  • DMX standard: DMX 512
  • Control interface: 4 buttons
  • Operating modes: DMX512, Strobe, Sound-controlled, Manual
  • Features: DMX Signal regeneration, Electronic protection against overheating
  • Additional information: Sound controlled strobe mode (available from the menu)

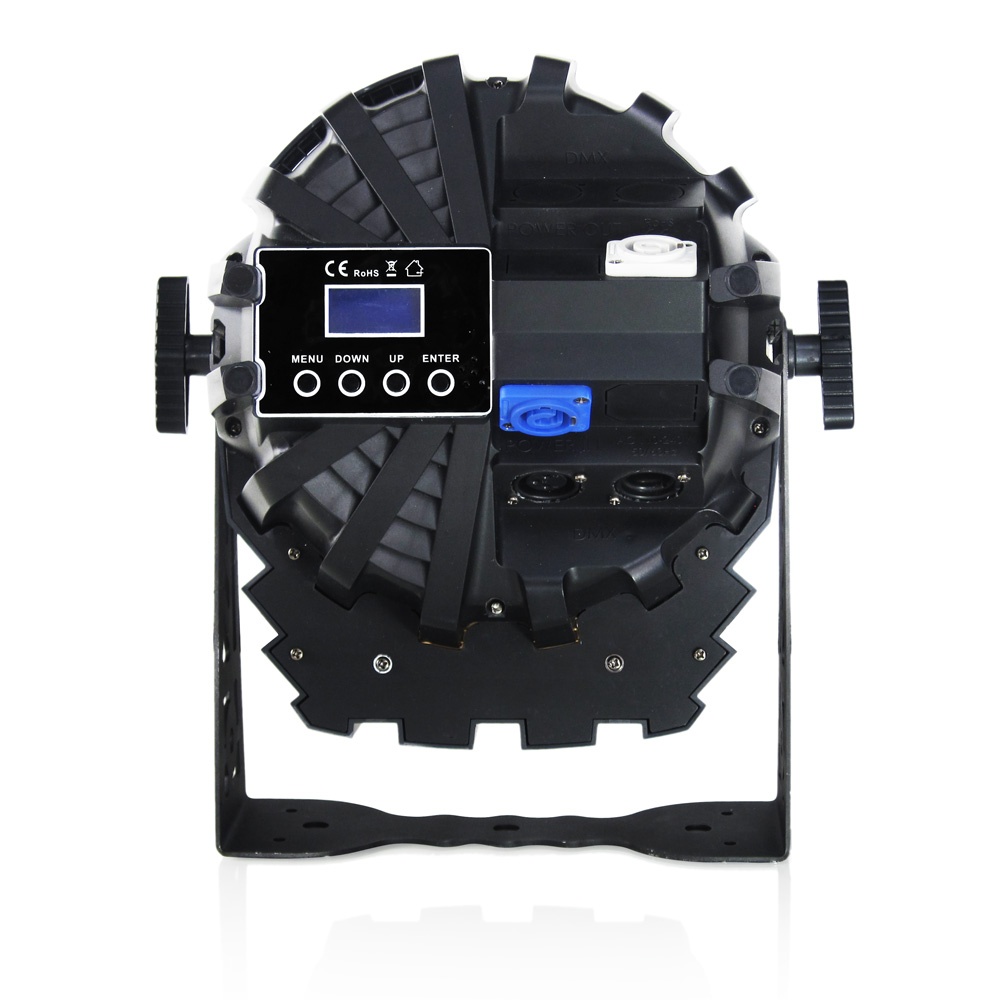

Interfaces

  • AC IN: powerCON
  • AC OUT: powerCON
  • DMX IN: XLR – 3 pin
  • DMX OUT: XLR – 3 pin

Physical characteristics

  • IP Rating: IP20
  • Housing made: ABS
  • Cooling: Active
  • Height [cm]: 27
  • Width [cm]: 30
  • Depth [cm]: 21
  • Weight [kg]: 2,9
  • Weight with packaging [kg]: 4
  • Type of packaging: Carton Box
