Technical data
- Power consumption: 300W
- Power supply voltage: 100 – 245V
- Voltage frequency: 50/60Hz
- Fuse: F5AL
- Diode type: COB 6in1
- Diode power: 300W
- Display: Color LCD
- Number of diodes: 1
Utility data
- Color: RGBWA + UV
- Luminous flux: 26 260lm
- Color rendering index (CRI): 87
- Beam angle (min): 37°
- Beam angle (max): 37°
- Dimming: Linear: 0 – 100%
- Flash frequency (min): 1Hz
- Flash frequency (max): 20Hz
- DMX standard: DMX 512
- Control interface: 4 buttons
- Operating modes: DMX512, Auto, Sound-controlled, Master / Slave

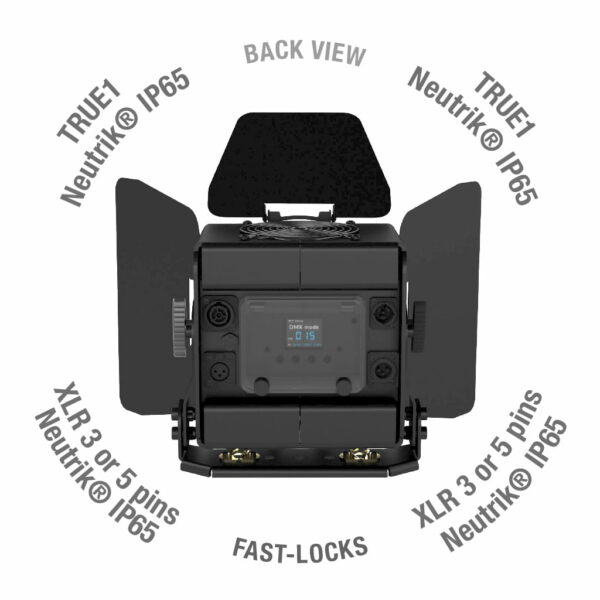

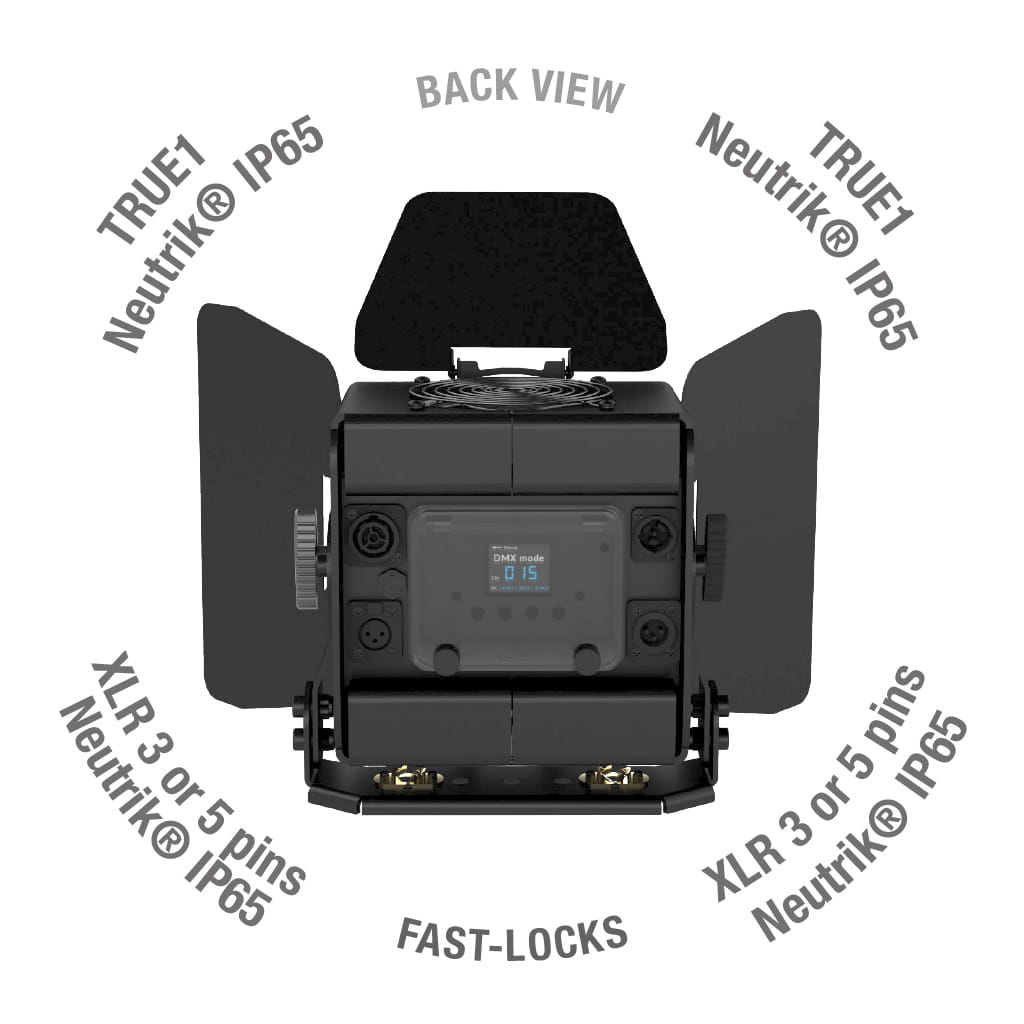

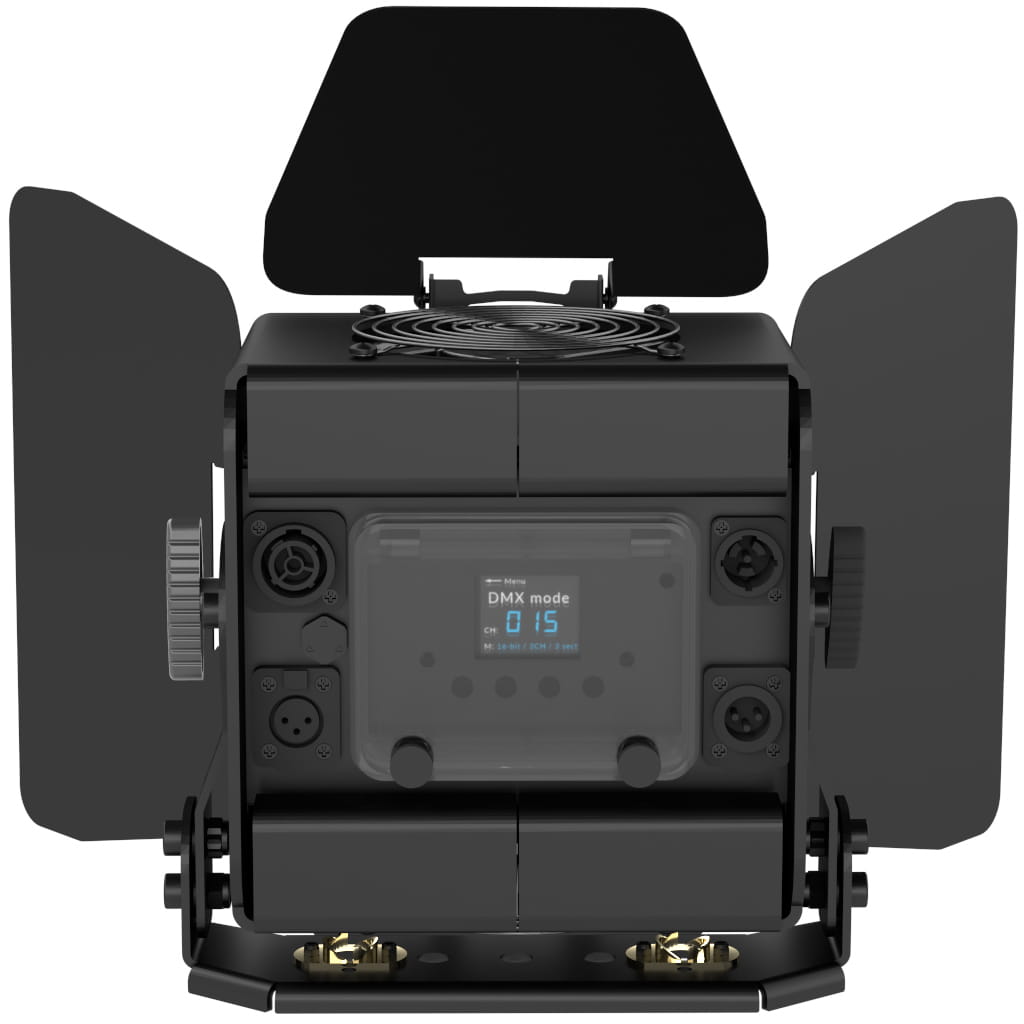

Interfaces
- AC IN: dedicated IP65 power plug
- AC OUT: dedicated IP65 power plug
- DMX IN: XLR – 3 pin, XLR – 5 pin
- DMX OUT: XLR – 3 pin, XLR – 5 pin
Physical characteristics
- IP Rating: IP65
- Housing made: Aluminum + steel
- Cooling: Active
- Height [cm]: 24
- Width [cm]: 25,7
- Depth [cm]: 16
- Weight [kg]: 7
- Weight with packaging [kg]: 7,5
- Type of packaging: Carton Box
