Beschrijving

Verkrijgbaar in RGBWA of Variabel wit 2200-5200K

Technical data

• Power consumption: 250-300W
• Power supply voltage: 100 – 245V
• Voltage frequency: 50/60Hz
• Diode type: 5in1
• Diode power: 30W
• Display: Color LCD
• Number of diodes: 1

Utility data

• Color: RGBWA / Variable white
• Dimming: Linear: 0 – 100%
• Beam angle: 37°
• Flash frequency (min): 1Hz
• Flash frequency (max): 20Hz
• Number of DMX channels: 9 modes (3-9 Channels)
• DMX standard: DMX 512
• Control interface: 4 buttons
• Operating modes: DMX512, Auto, Sound-controlled, Master / Slave
• Features: 16-bit dimming, various dimming curves, bulb simulation, DMX Signal regeneration,
• Electronic protection against overheating

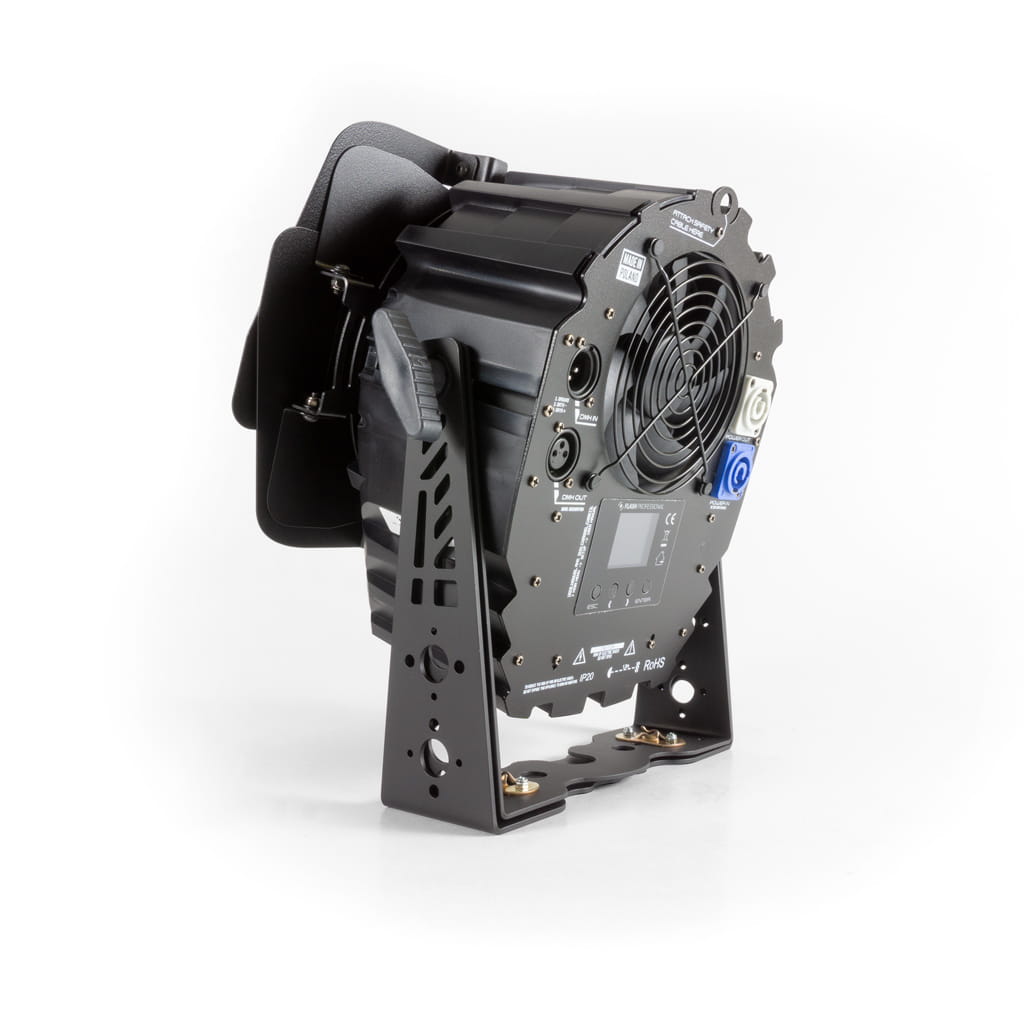

Interfaces

• AC IN: powerCON
• AC OUT: powerCON
• DMX IN: XLR – 3 pin
• DMX OUT: XLR – 3 pin

Physical characteristics

• IP Rating: IP20
• Housing made: Aluminum + steel
• Cooling: Active
• Height: 30
• Width: 27
• Depth: 13
• Weight: 3,6
• Cooling: Active
• Type of packaging: Carton Box
