Beschrijving

Technical data

• Power consumption: 120W
• Power supply voltage: 100 – 245V
• Voltage frequency: 50/60Hz
• Diode type: COB
• Diode power: 30W
• Display: Color LCD
• Number of diodes: 4

Utility data

• Color: RGBW
• Luminous flux: 7 540lm
• Beam angle (min): 50°
• Beam angle (max): 50°
• Dimming: Linear: 0 – 100%
• Flash frequency (min): 1Hz
• Flash frequency (max): 20Hz
• Number of DMX channels: 21 modes (6-32CH)
• DMX standard: DMX 512
• Control interface: 4 buttons
• Operating modes: DMX512, Auto, Master / Slave
• Features: 16-bit dimming, various dimming curves, bulb simulation, DMX Signal regeneration,
• Electronic protection against overheating
• Additional information: Schuko plug does not have a hole for the grounding pin

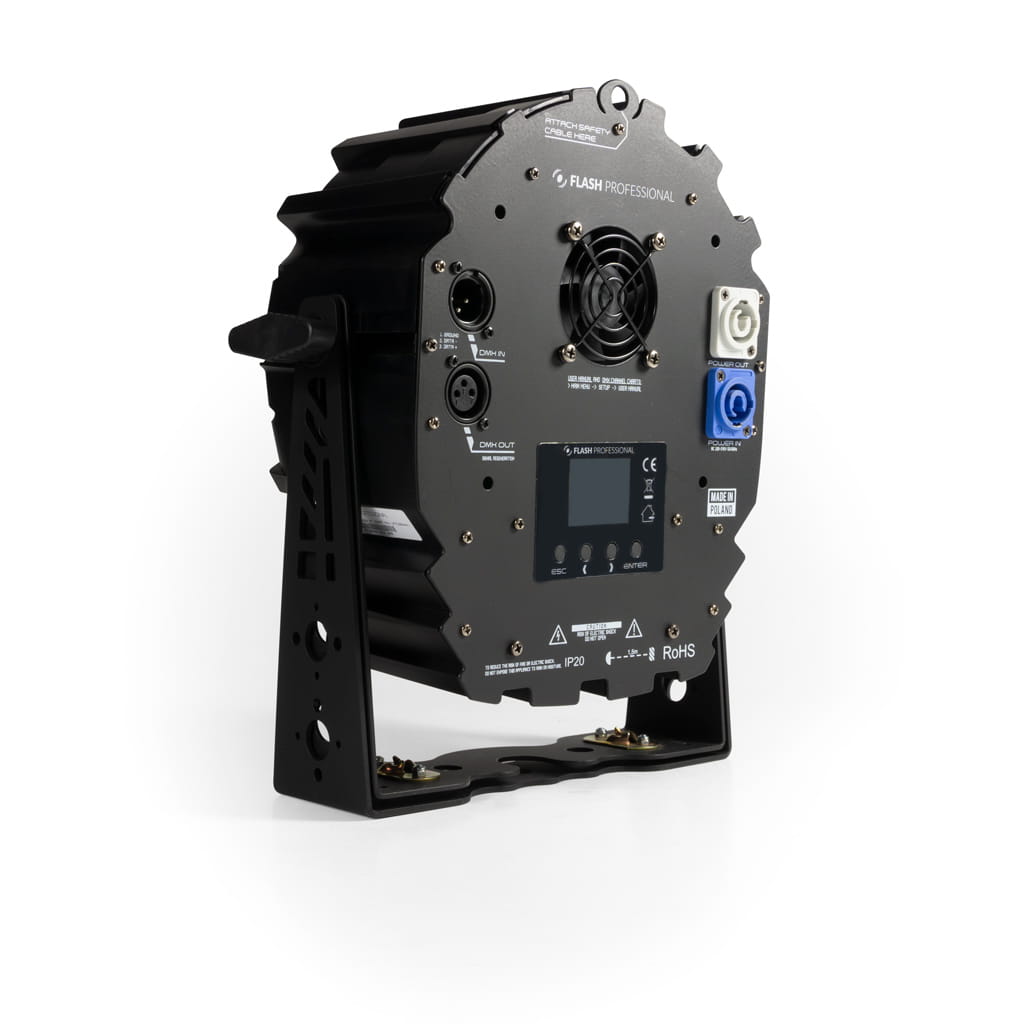

Interfaces

• AC IN: PowerCON
• AC OUT: PowerCON
• DMX IN: XLR – 3 pin
• DMX OUT: XLR – 3 pin

Physical characteristics

• IP Rating: IP65
• Housing made: ABS
• Cooling: Active
• Height [cm]: 30
• Width [cm]: 27
• Depth [cm]: 13
• Weight [kg]: 2,6
• Type of packaging: Carton Box
