Technical data

• Power consumption: 190
• Power supply voltage: 100 – 245V
• Voltage frequency: 50/60Hz
• Diode type: 4in1
• Diode power: 10W
• Display: LED – 4 characters
• Number of diodes: 19

Utility data

• Color: RGBW
• Luminous flux: 3 200 lm
• Color rendering index (CRI): 78,9
• Beam angle (min): 25°
• Beam angle (max): 25°
• Dimming: Linear: 0 – 100%
• Flash frequency (min): 1Hz
• Flash frequency (max): 20Hz
• Number of DMX channels: 12/32
• DMX standard: DMX 512
• Control interface: 4 buttons
• Operating modes: Auto, DMX512,Sound, Master/Slave

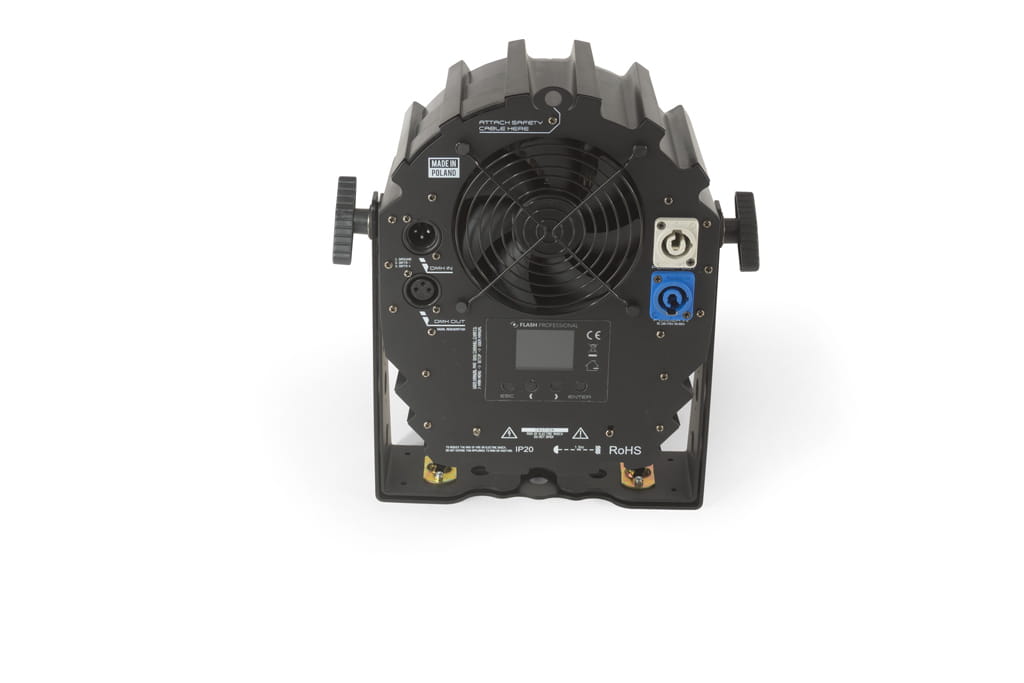

Interfaces

• AC IN: powerCON
• AC OUT: powerCON
• DMX IN: XLR – 3 pin
• DMX OUT: XLR – 3 pin

Physical characteristics

• IP Rating: IP20
• Cooling: Active
• Height [cm]: 30
• Width [cm]: 27
• Depth [cm]: 13
• Weight [kg]: 2,2
• Weight with packaging [kg]: 4
• Type of packaging: Carton Box
