Beschrijving

Technical data

  • Power consumption: 190
  • Power supply voltage: 85-265V
  • Voltage frequency: 50/60Hz
  • Diode type: 4in1
  • Diode power: 10W
  • Display: Color LCD
  • Number of diodes: 19

Utility data

  • Color: RGBW
  • Color rendering index (CRI): 78,9
  • Beam angle (min): 25°
  • Beam angle (max): 25°
  • Dimming: Linear: 0 – 100%
  • Flash frequency (min): 1Hz
  • Flash frequency (max): 9Hz
  • Number of DMX channels: 12/32
  • DMX standard: DMX 512
  • Control interface: 4 buttons

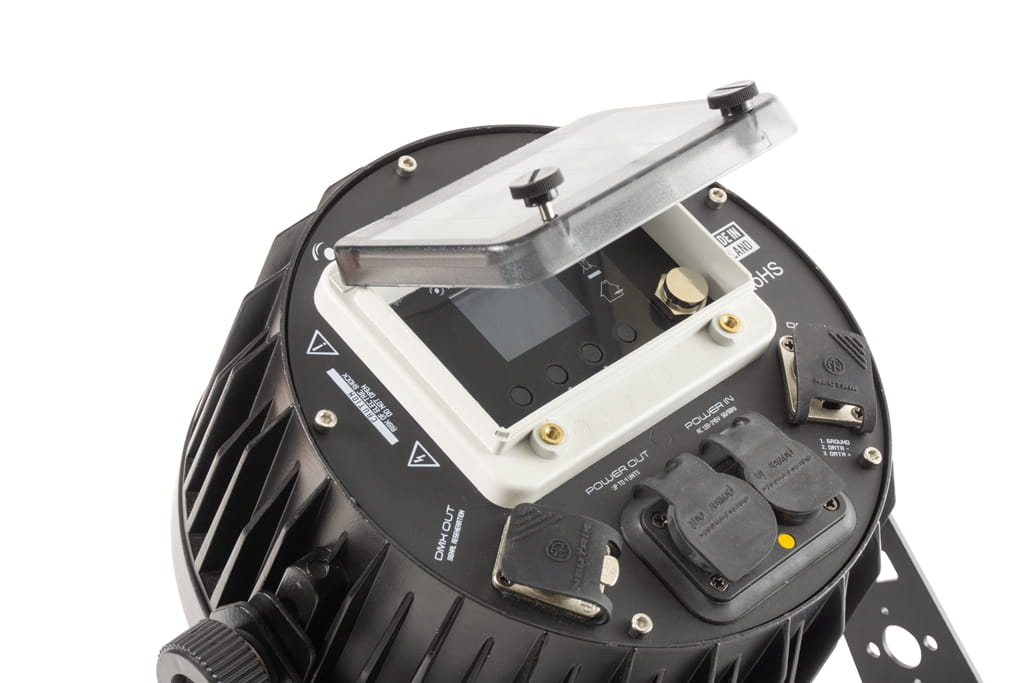

Interfaces

  • AC IN: PowerCON True1
  • AC OUT: PowerCON True1
  • DMX IN: XLR – 3 pin
  • DMX OUT: XLR – 3 pin

Physical characteristics

  • IP Rating: IP65
  • Housing made: Aluminum
  • Cooling: Passive
  • Height [cm]: 29
  • Width [cm]: 29
  • Depth [cm]: 17
  • Weight [kg]: 4,4
  • Weight with packaging [kg]: 5
  • Type of packaging: Carton Box
