Technical data

  • Power consumption: 145W
  • Power supply voltage: 100 – 245V
  • Voltage frequency: 50/60Hz
  • Diode type: 4in1
  • Diode power: 12W
  • Display: Color LCD
  • Number of diodes: 14

Utility data

  • Color: RGBW
  • Luminous flux: 10 178lm
  • Color rendering index (CRI): 78,9
  • Beam angle (min): 25°
  • Beam angle (max): 25°
  • Dimming: Linear: 0 – 100%
  • Flash frequency (min): 1Hz
  • Flash frequency (max): 20Hz
  • Number of DMX channels: 9 channel modes (3-8 channels)
  • DMX standard: DMX 512
  • Control interface: 4 buttons
  • Operating modes: DMX512, Auto, Sound-controlled, Master / Slave
  • Features: 16-bit dimming, various dimming curves, bulb simulation, DMX Signal regeneration,
  • Electronic protection against overheating

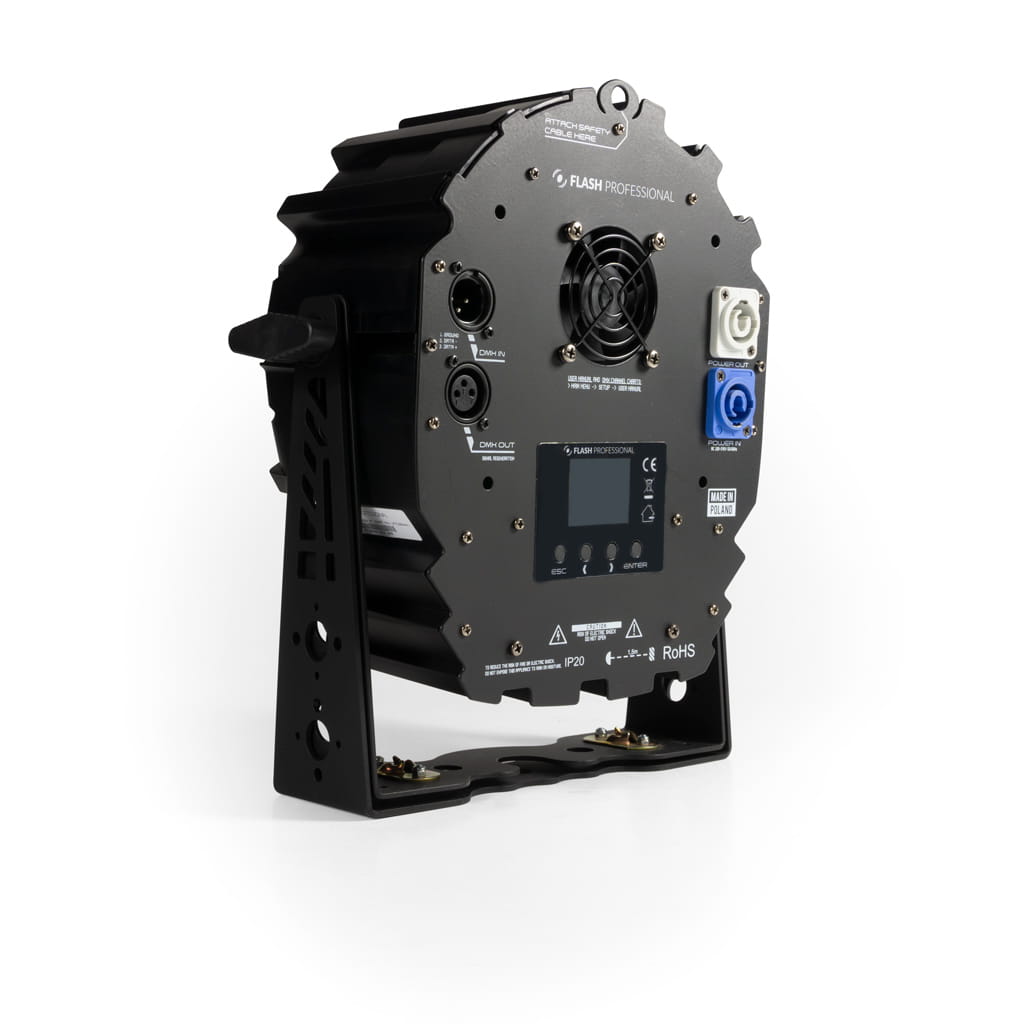

Interfaces

  • AC IN: powerCON
  • AC OUT: powerCON
  • DMX IN: XLR – 3 pin
  • DMX OUT: XLR – 3 pin

Physical characteristics

  • IP Rating: IP20
  • Housing made: ABS + steel
  • Cooling: Active
  • Height [cm]: 30
  • Width [cm]: 27
  • Depth [cm]: 13
  • Weight [kg]: 3
  • Weight with packaging [kg]: 3,8
  • Type of packaging: Carton Box
