Dot l LED par

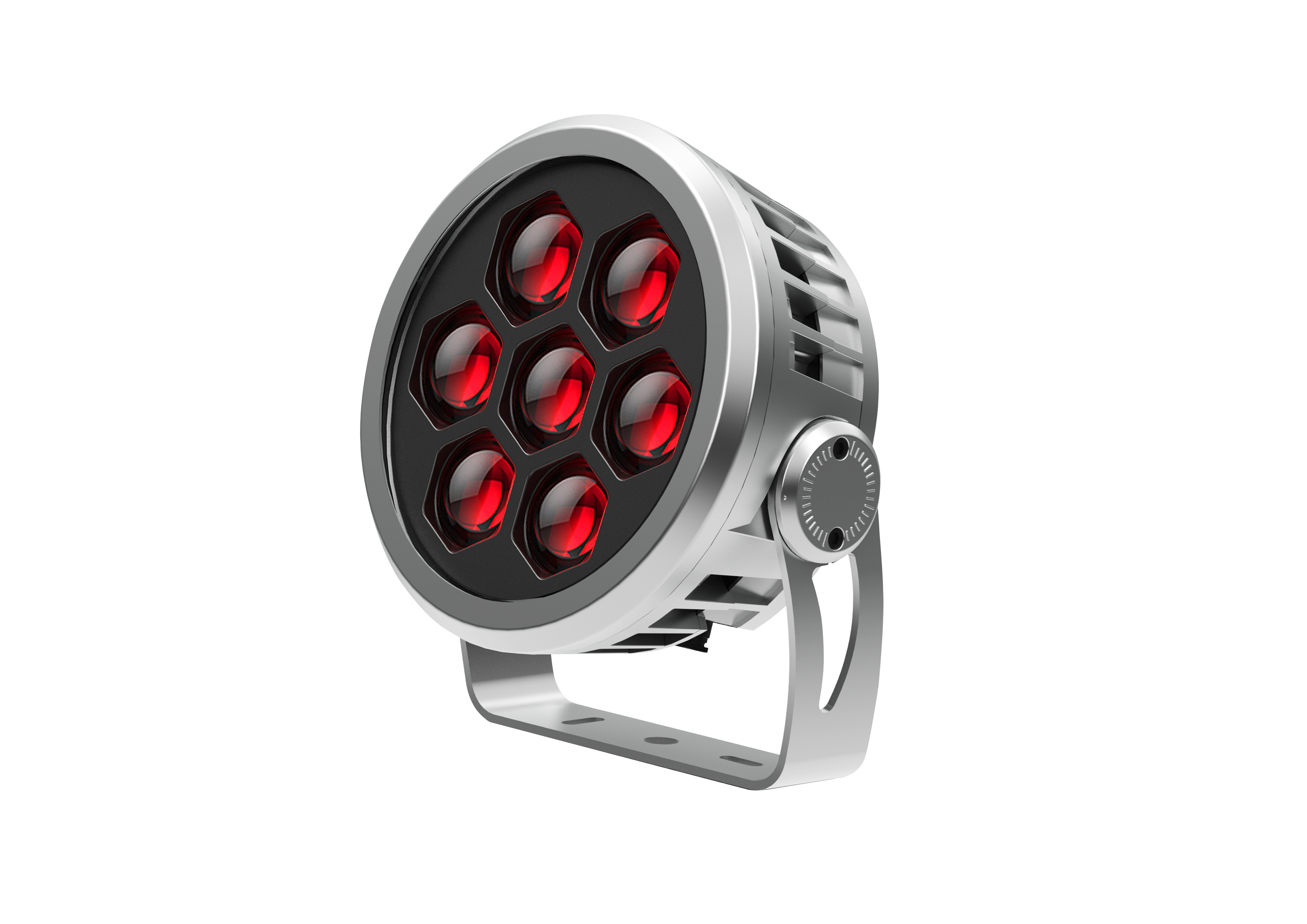

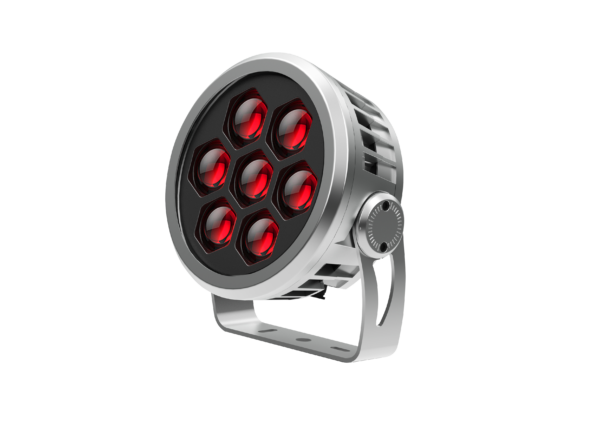

LED spot – 7 x 10W RGBW – IP66 – outdoor – Full Color – RDM – DMX – Stand alone

Beschrijving

OPTICS
LED: 7 x 10W
Multi Color (Quad): RGBW
Optional:
– Full White LED (FW): 2700K,3000K,3500K,4000K,4500K,5000K,5700K,6500K
– Tuneable White LED (TW): 3000K-6500K
Output(10°): 5728lm(FW,CRI80);4061lm(TW);3230lm(Quad)
CRI(FW version): 90,80,70
LED life span: ≥50,000hrs
Beam angle: 10°,12°,15°,25°,30°,60°,20°x65°,etc.
Dimming: linear 0-100% Optional accessory:
Visor(5.05.01.99.0398), snoot(5.05.01.99.0399), snoot wide(5.05.01.99.0400), honeycomb louvre(5.03.01.01.2143-A-N0)

MECHANICS
Dimension: 239x119x269mm
Weight: 4.55kgs
Lens material : PMMA + anti-UV lens
Mounting: floor, ceiling or wall mounting (adjustable bracket)

ELECTRONICS
Power: 85W
Power factor: >0.9,CCS auto calibrating
Components: integrated driver and power supply
Connector: 8 pin power+DMX integrated cable + IP68 connector
Power: AC 100-277V 50/60Hz
Electronic accessory: plug, leader cable

SOFTWARE
Control: DMX512 /RDM (wireless/DALI/ 0-10V available on request)
DMX channel: FW ( 1ch) ,TW ( 2chs ) ,RGBW(4chs)

ENVIRONMENT
Ta:-20℃to +45℃
Anti-condensation system: optional
Corrosion resistance: optional for marine environment
Passive cooling: die cast aluminum housing
Compliance: IK08,IP66,Class I

Afmetingen

afmetingen
