Functional Overview

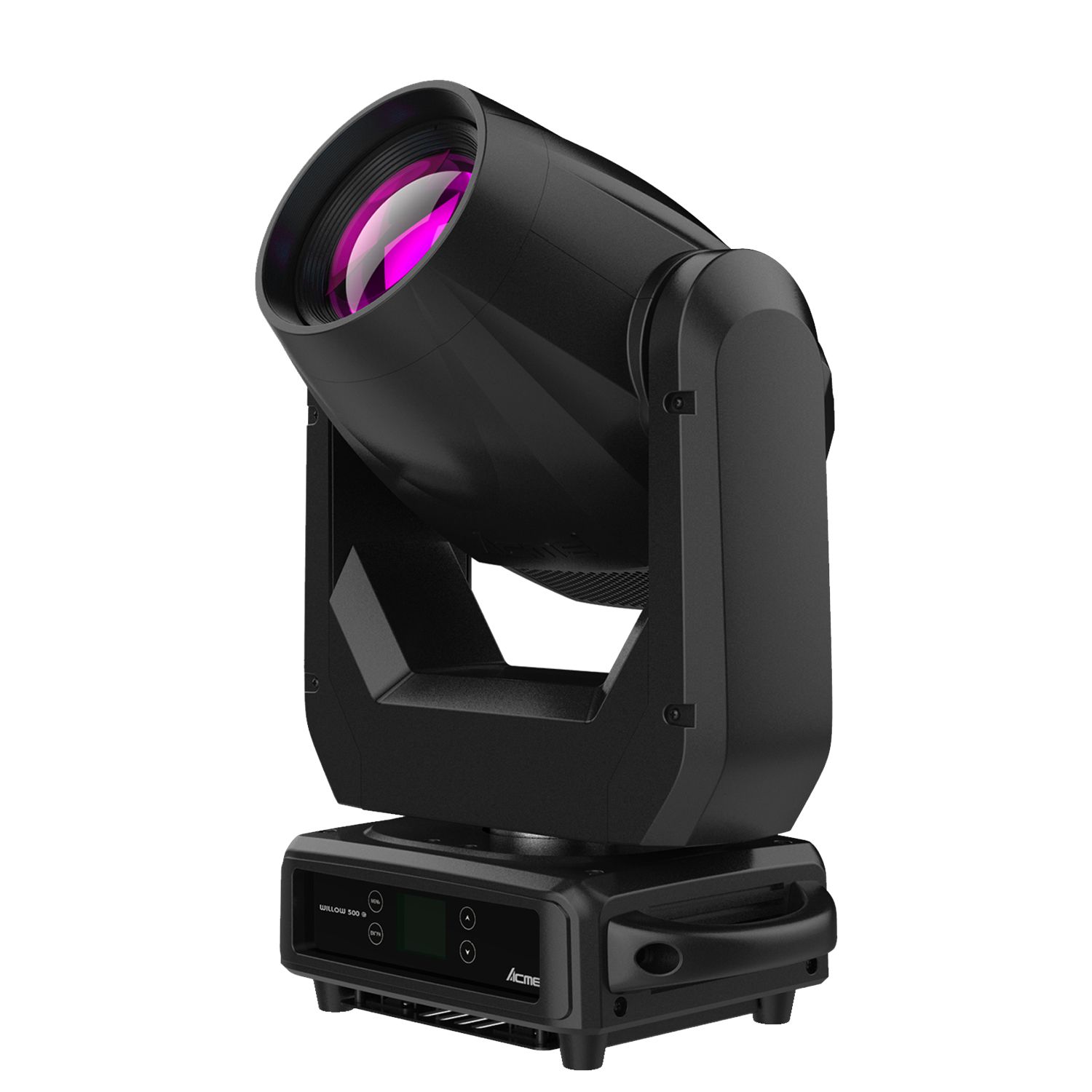

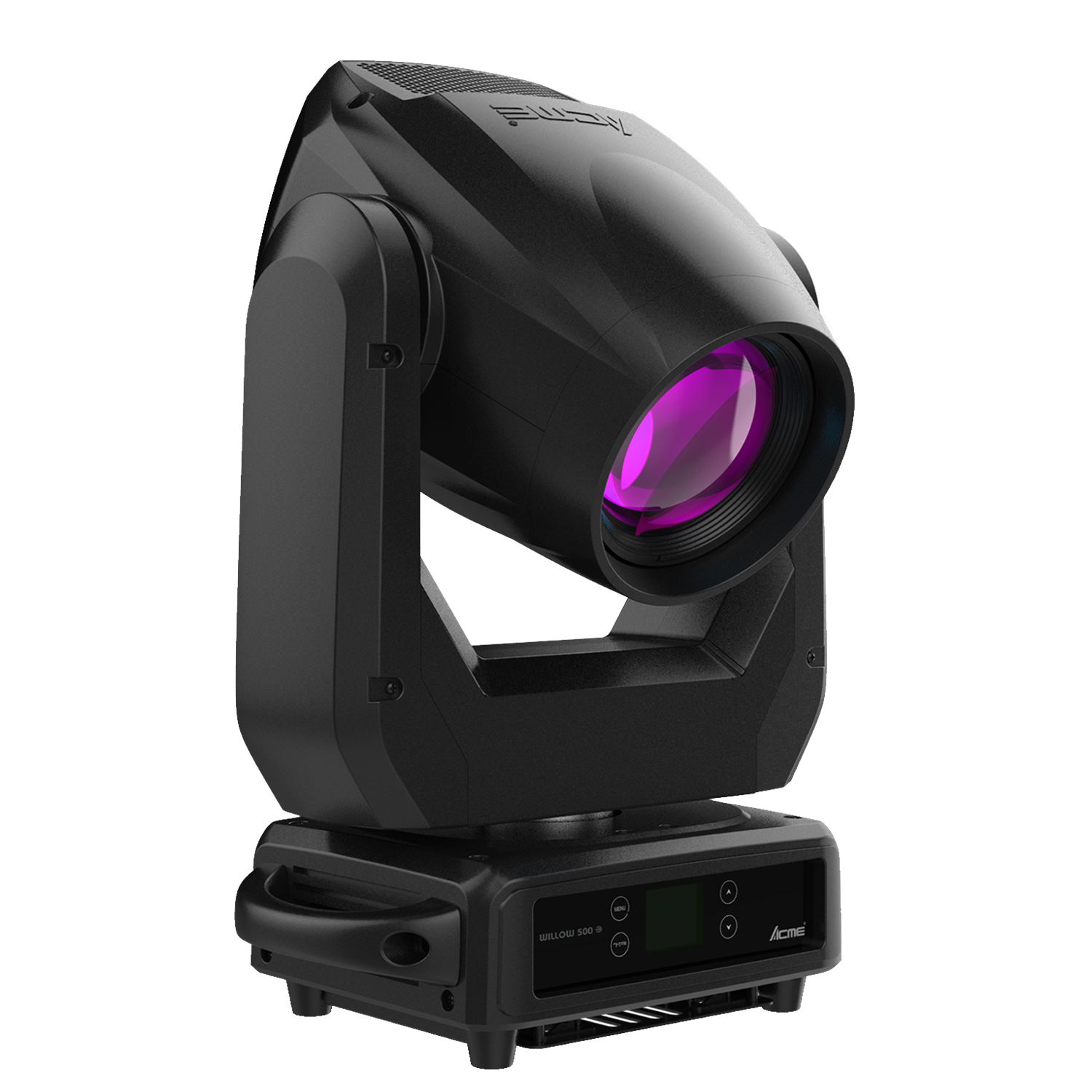

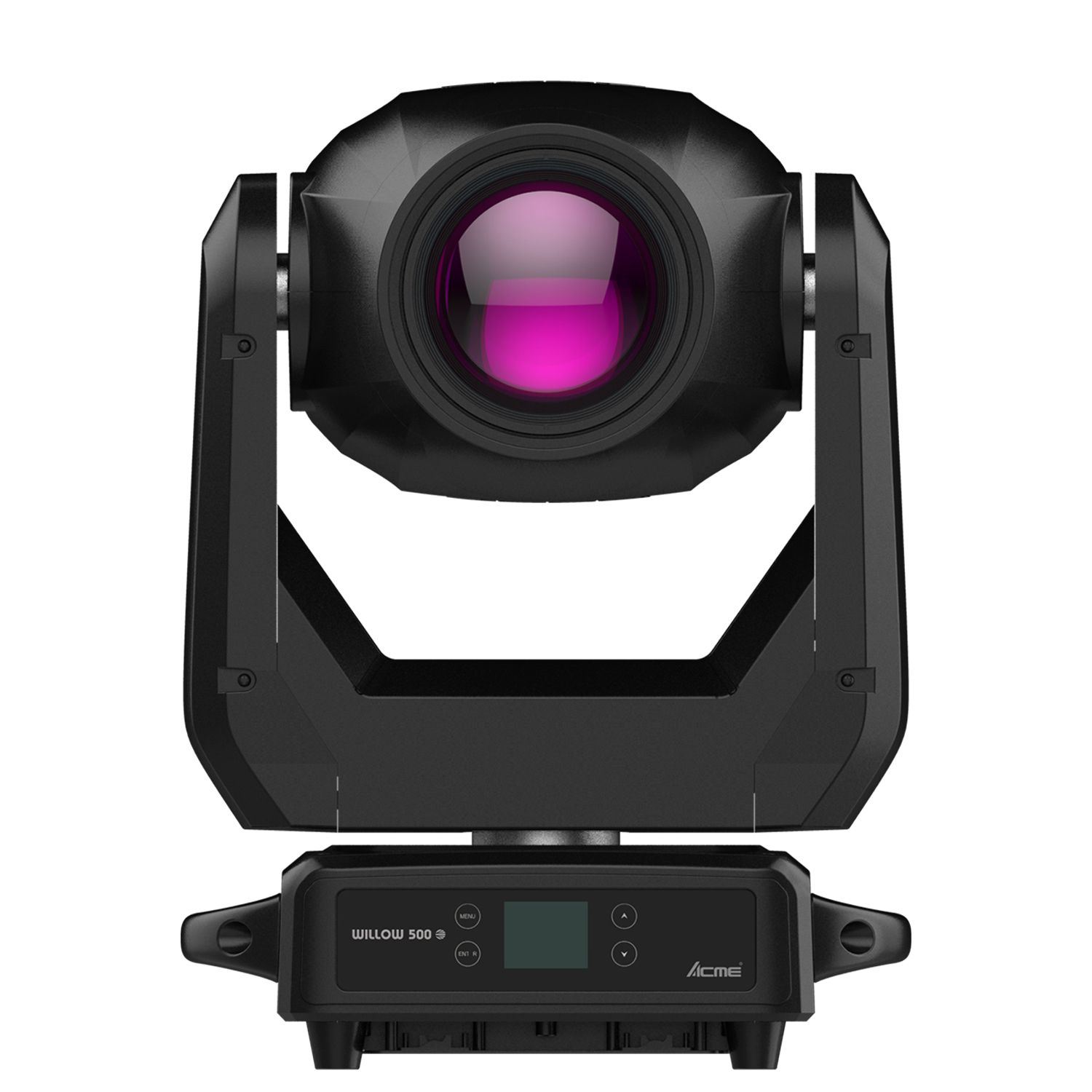

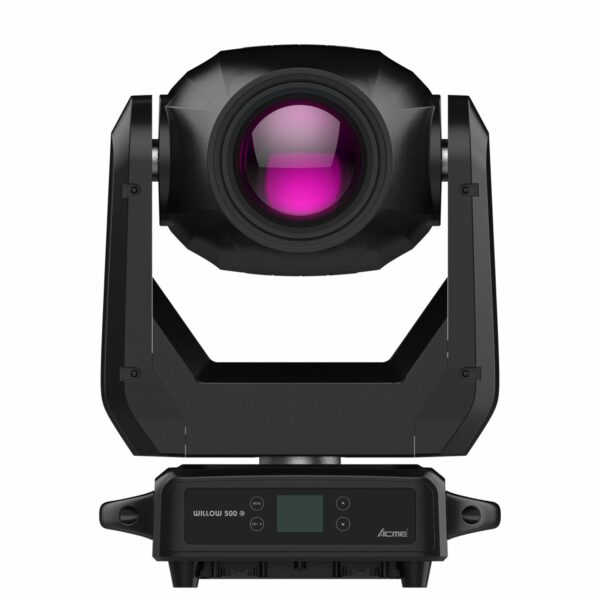

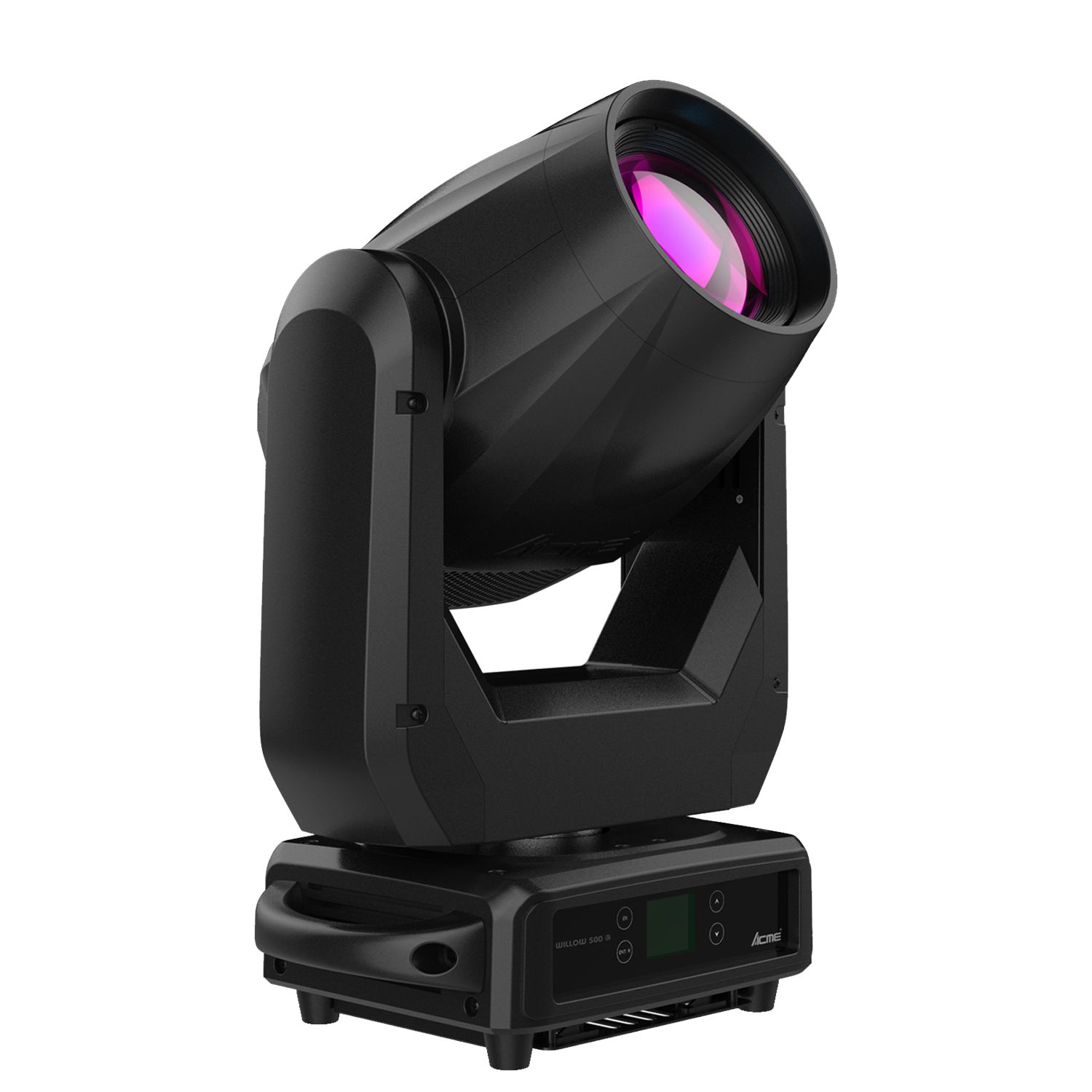

WILLOW 500, adopts 1 x 400W LED engine, which included light beam, spot and wash functions. It is energy-saving, high efficiency, long life, fast heat dissipation, powerful function and simple operation. The patterns of rotating gobo & static gobo can be projected from multiple angles with zoom lens; The degrees of beam angle will become double through a zoom lens, makes the beam more flexible and changeable. Plus with 6-facet prism, independent frost & motorized focus, etc, all-round to meet the washing needs of different occasions, very suitable for bars, ball rooms, night clubs, and other entertainment applications.
Features
Included three features: beam, spot, and wash
Rainbow effect in both directions
Motorized focus
Beam Angle: 1°/3°/6.5° /10°
Spot Angle:
Fix Gobo: 9°/18°(with zoom lens)
Rotating Gobo: 10°/20°(with zoom lens)
Wash Angle: 12°-23°

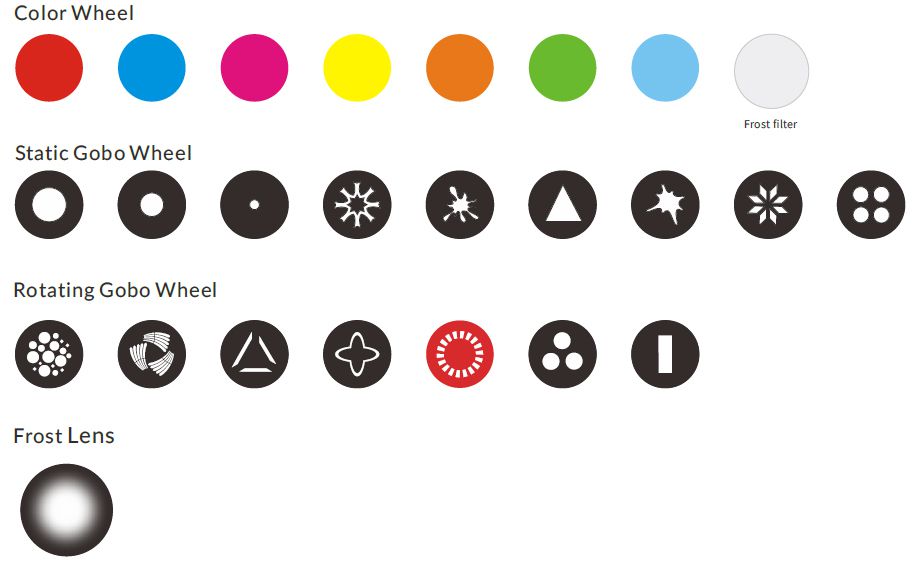

Rotating gobo wheel: 1 rotating gobo wheel with 7 gobos plus open, convenient replacement
Static gobo Wheel: 1 static gobo wheel with 9 gobos plus open
Color Wheel: 1 color wheel with 7 colors plus white
Prism: 6-facet prism, rotating in both directions
0-100% smooth dimming
Independent frost effect
Outstanding strobe effect with variable speed
Flicker free management
Dust-proof and oil-proof design
Technical & Specification
Model
AM BSW 500
Light Source
Light source: 1 x 400W LED engine
LED life expectancy: 20000 hours
Optical System
Advanced optical system to ensure image quality, clear and sharp

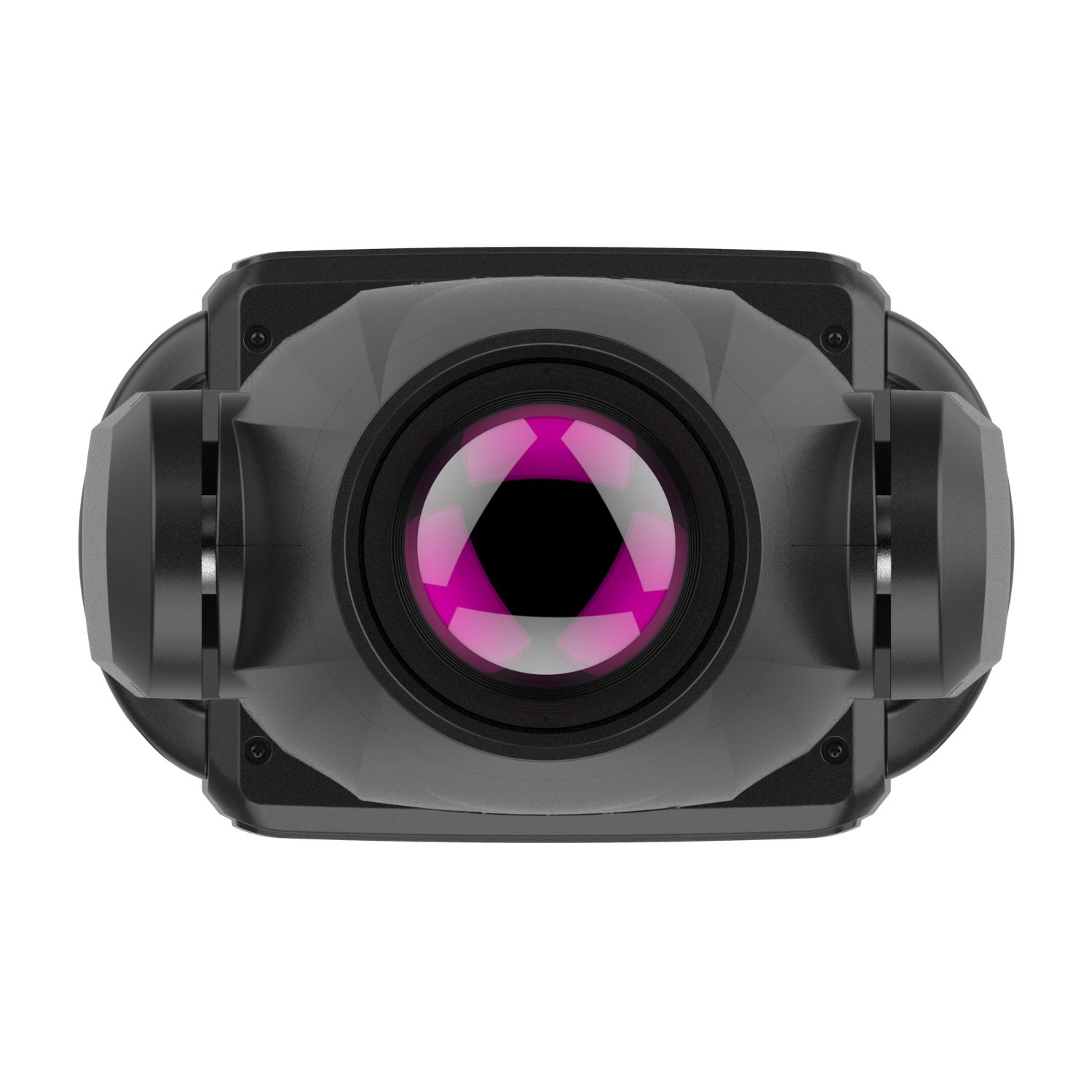

Diameter of front lens: 136.5mm

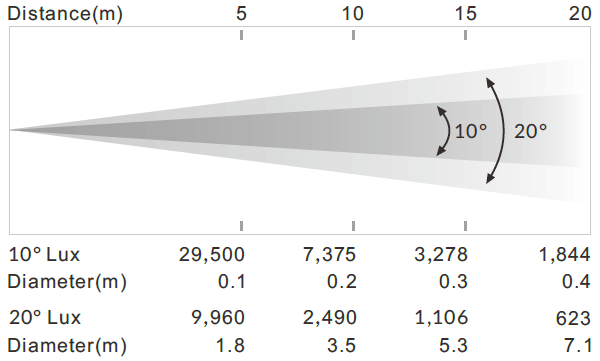

Beam Angle: 1°/3°/6.5°/10°
Spot Angle:
Fix Gobo: 9°/18°(with zoom lens)
Rotating Gobo: 10°/20°(with zoom lens)
Wash Angle: 12°-23°
Control and Program
4-buttons touch panel
Display: LCD display
Protocols: DMX,RDM
DMX Protocol modes: 2
Control channels: 17,18
Pan/Tilt Resolution: 16 bit
Automatic Pan/Tilt position correction
Dimmer: 8 bit or 16 bit
Upgrade the firmware via DMX link
PAN & TILT
Pan movement: 540°
Tilt movement: 240°
Rotating Gobos
1 x rotating gobos with 7 gobos plus open, convenient replacement
Image diameter: 16.8 mm
Outside diameter: 26.8 mm
Thickness: 1.1 mm
Max. thickness: 3mm
borofloat or better glass materials
Set with “SLOT & LOCK” system for gobos replacement
Static Gobos
1 x static gobos with 9 gobos plus open
Color Wheel
1 x color wheel with 7 colors plus white
Electrical & Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 500 W

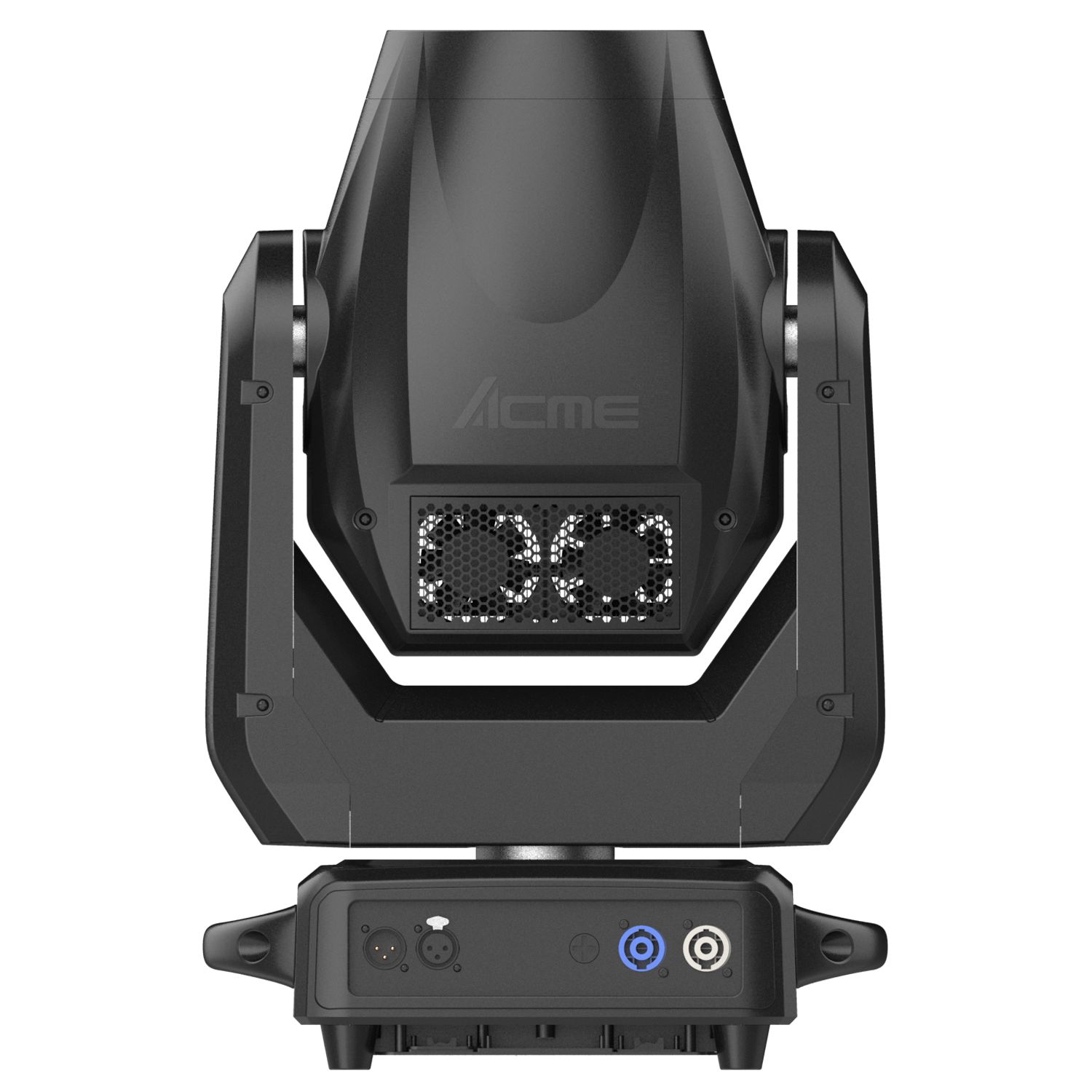

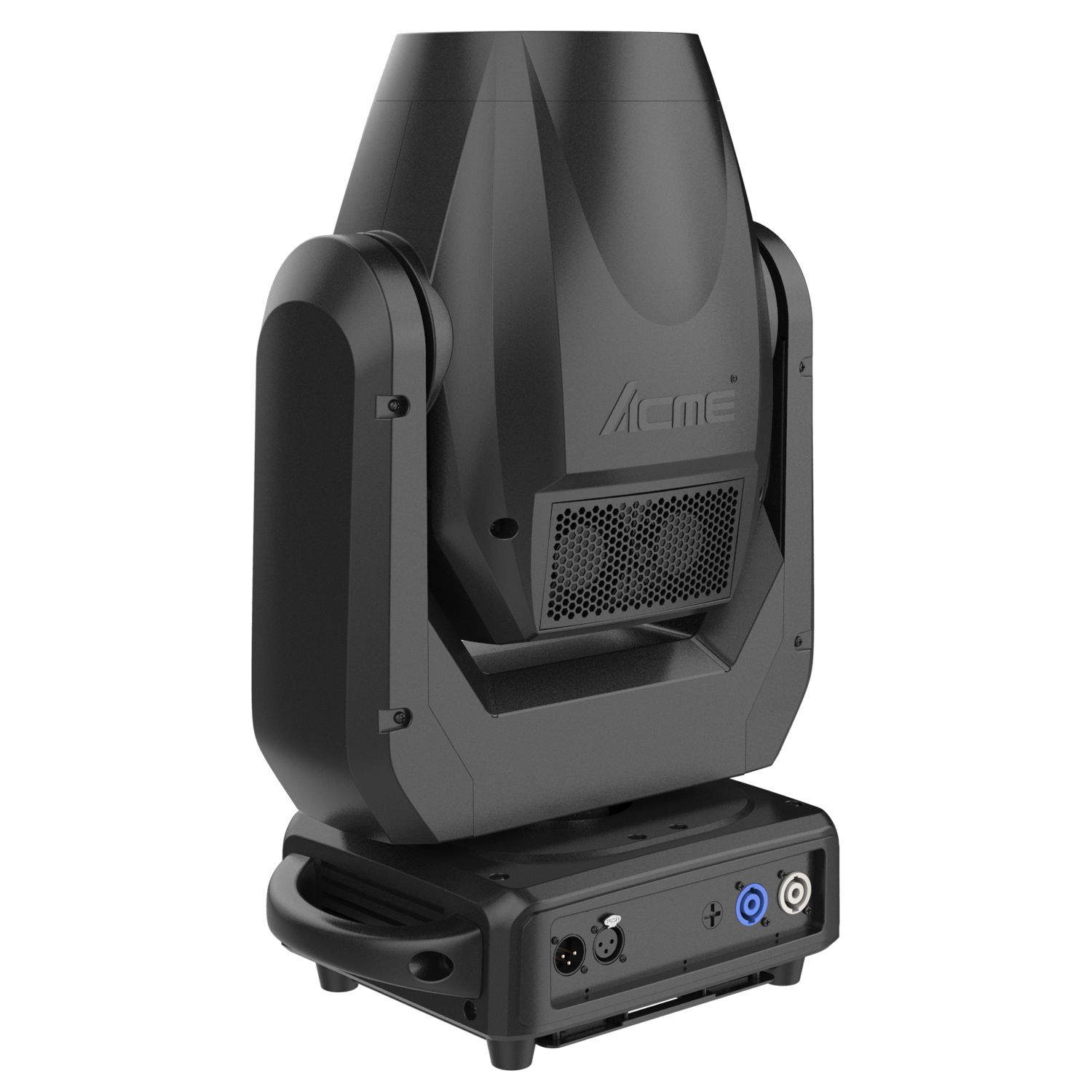

Power In/Out: Power Connector In/Out
Data in/out: 3-pin XLR

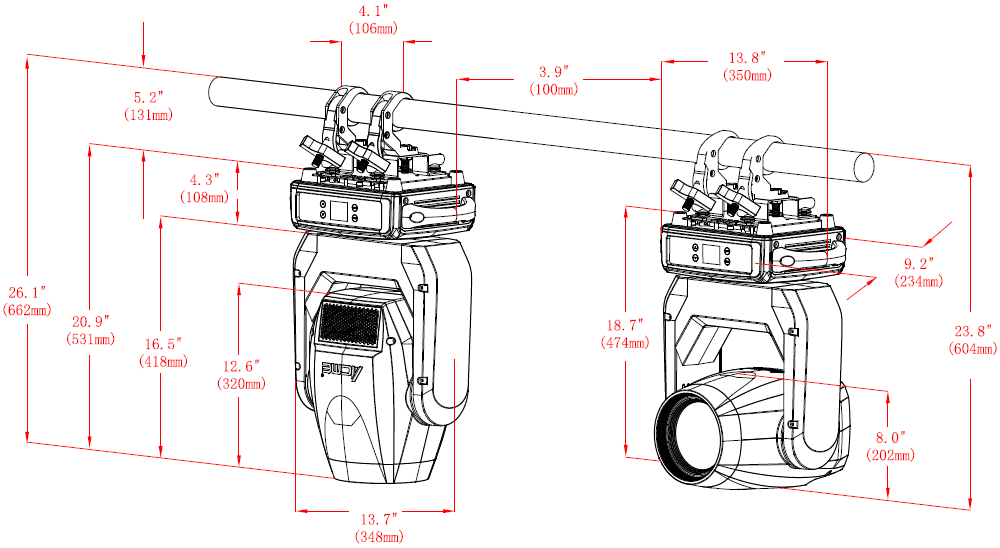

Fixture Specification
Height: 531 mm (20.9″)
Width: 234 mm (9.2″)
Depth: 350 mm (13.8″)
Weight: 17.5kg（38.6lbs）
Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Installation
Horizontally or vertically mounting are available
Operating position is universal

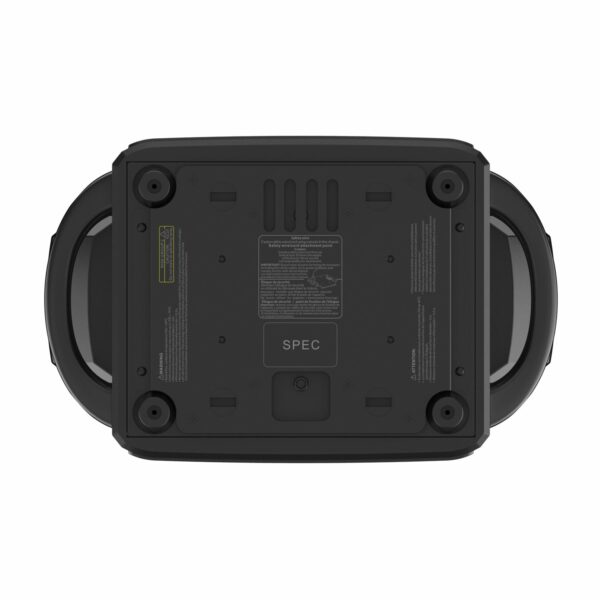

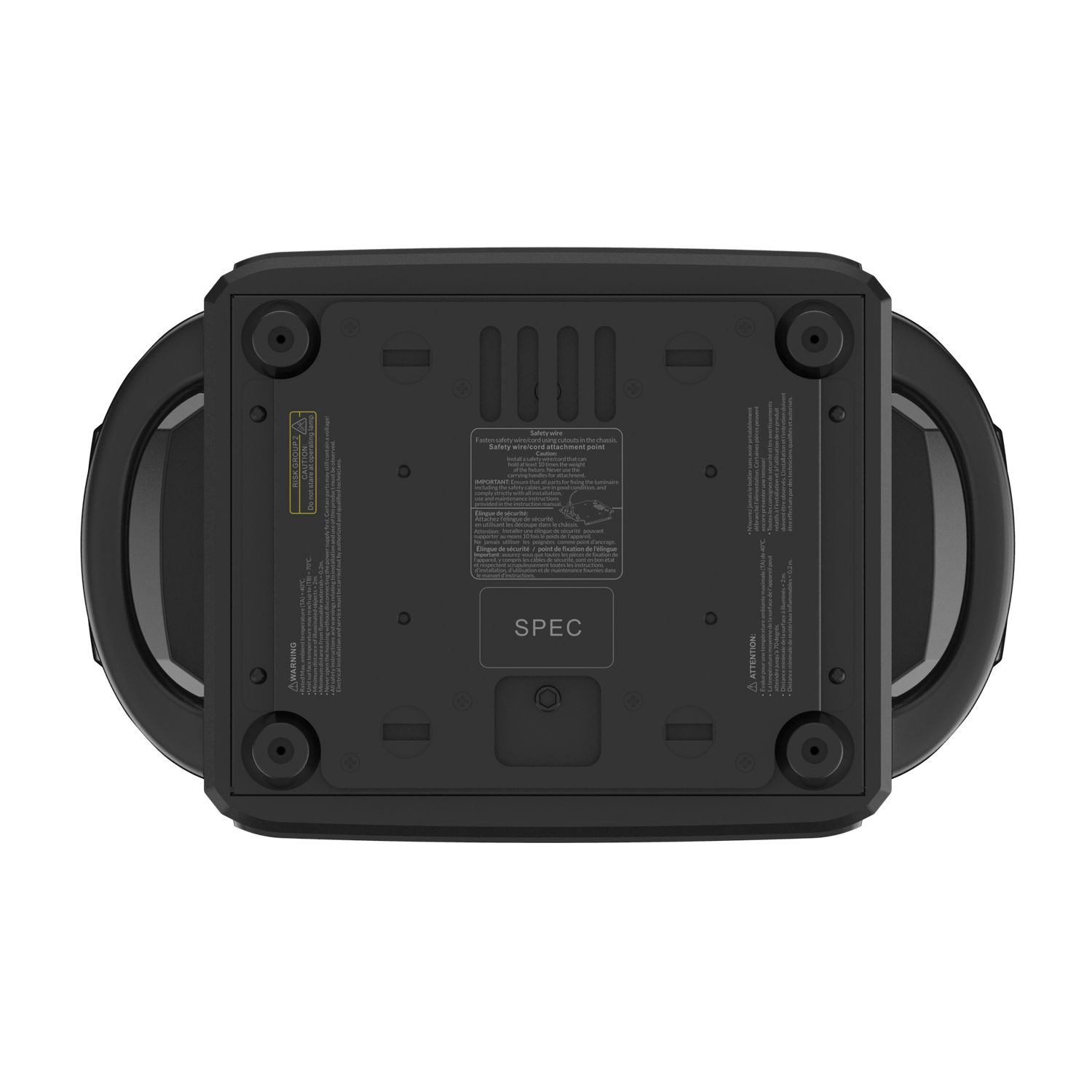

2 pairs of 1/4-turn locking points under the base

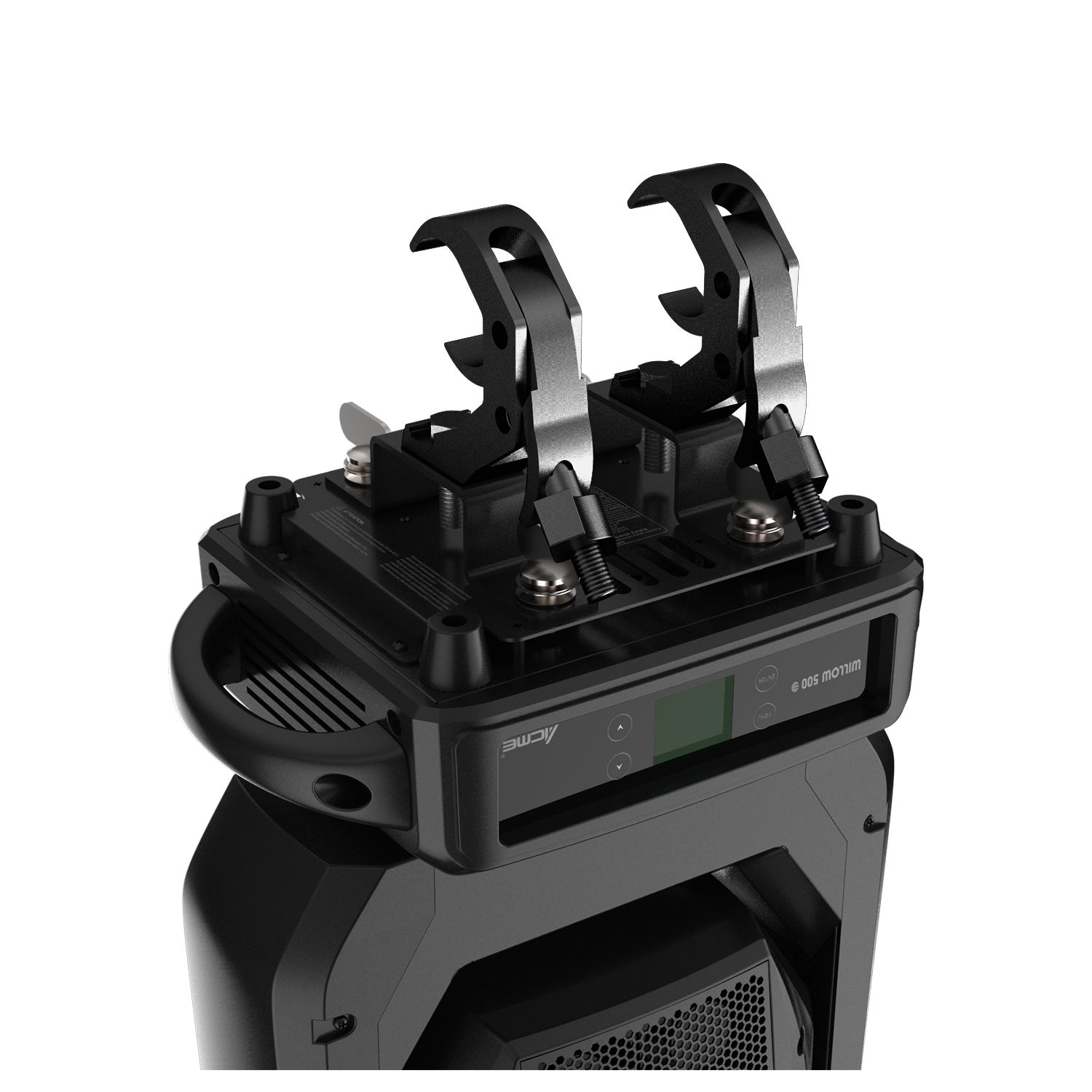

2 x fast-locked clamps for 50 millimeter truss
Safety cable attachment point
Included items
User Manual
Power Cable
2 x fast-locked clamps for 50 millimeter truss
Optional Accessories (with item code)
Raincover：3033001749
Clamp：2060001614（C-250）
Safety cable : 2060000200（SW-02）
Signal Line： 3-pin signal line
