Functional Overview

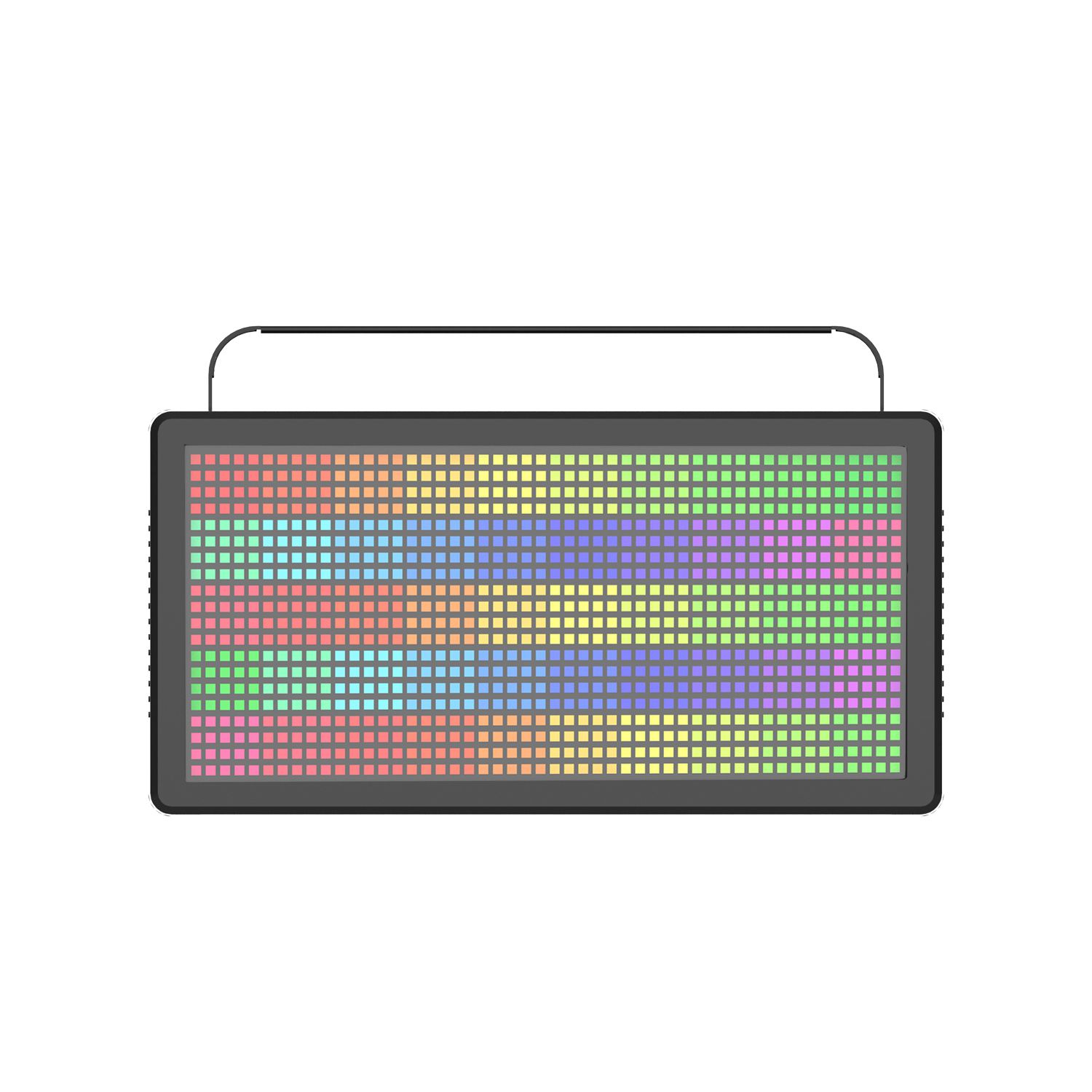

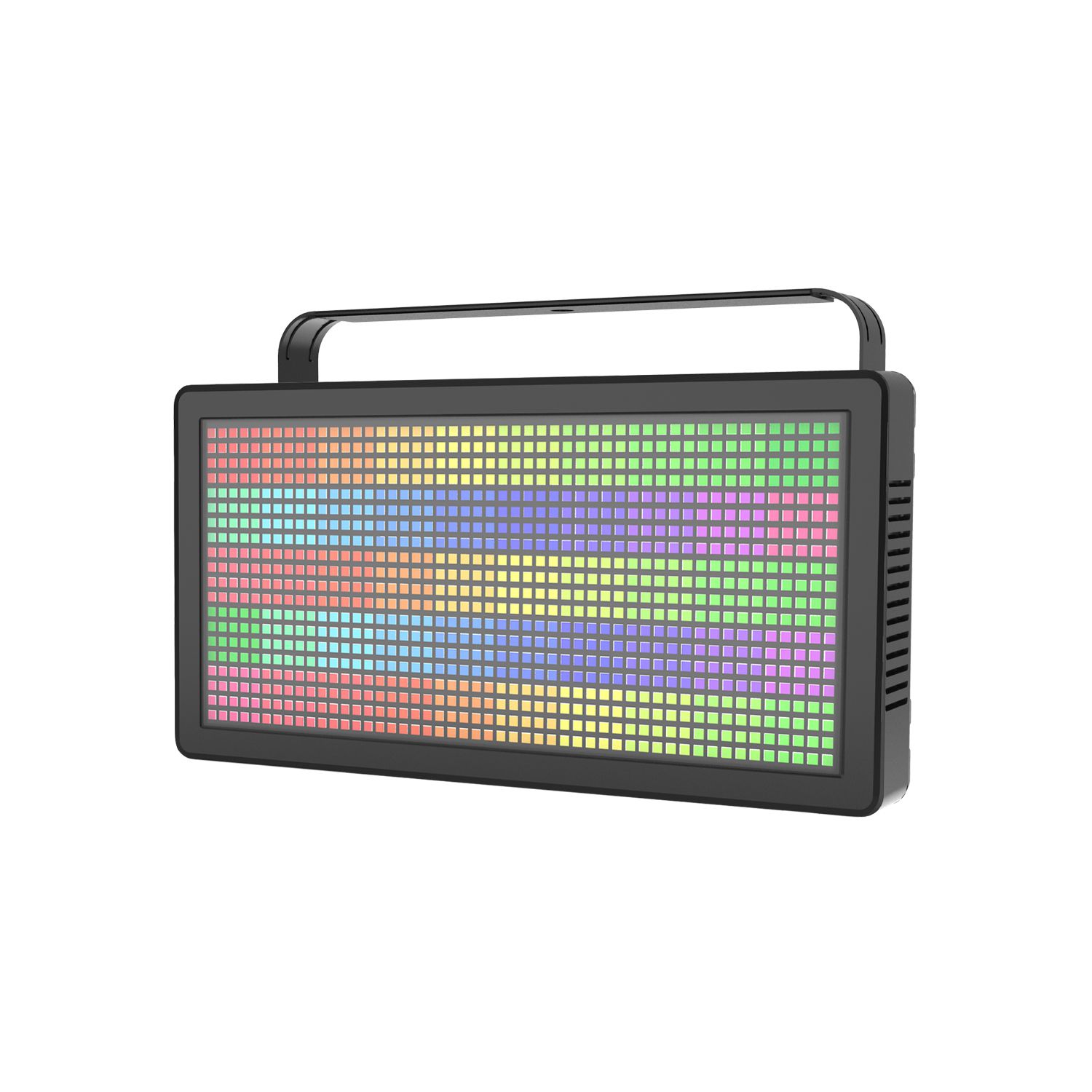

ACME VOLTKA using 1000pcs 0.3w 5050RGB LED engine, 50pcs zones LED plates can be controlled individually, each plate contains 20pcs RGB LED. The beam angle is 116°, with powerful and high output stroboscopic function, 0-100% smooth dimming, which can achieve a wide range of color wash effect.
275W power consumption, its size is 410x210x120mm, net weight 4kg. Adopts OLED display, five channel modes: 4CH/7CH/32CHA/32CHB/150CH, two control modes: DMX512/RDM, and the firmware is updated via DMX. It is equipped with 3-pin or 5-pin XLR socket and power connector input/output.
Easy to assemble and preset to program the lighting shows, the exciting multi-area macro tracking function, help you create the dynamic color and stroboscopic effect quickly to cover a wide area application, meet the lighting needs of bars, dance halls, clubs and other entertainment venues.
Features
Light Source: 1000pcs 0.3W 5050RGB
50pcs zones LED plates can be controlled individually
Beam Angle: 116°
Outstanding strobe effect with variable speed
Small size, light weight
High resolution dimmer 0–100%
Flicker free management
Technical & Specification
Model
AM STROBE 1
Light Source
Light Source: 1000pcs 0.3W 5050RGB
LED life expectancy: 20000 hours
Optical System
Beam Angle: 116°
RGB colour mixing
50pcs zones LED plates can be controlled individually
High brightness, outstanding washing effect
Outstanding strobe effect with variable speed
High resolution dimmer 0–100%
Appearance
Small size, light weight
Control and Program
4-buttons touch panel

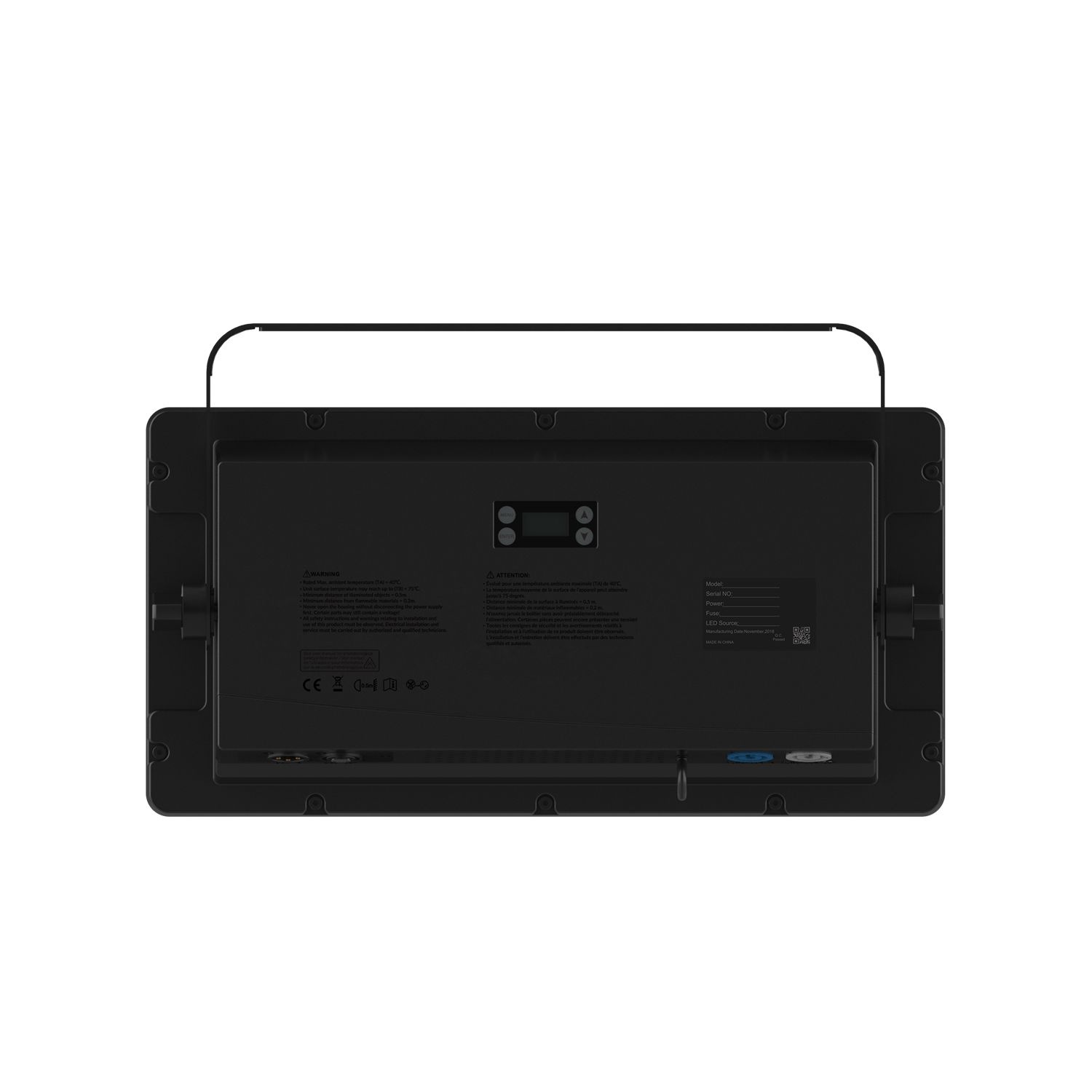

Display: OLED display
Control Mode: DMX512, RDM
DMX Protocol modes: 4CH/7CH/32CHA/32CHB/150CH
Upgrade the firmware via DMX link
Electrical & Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 275 W
Power In/Out: Power Connector in/out

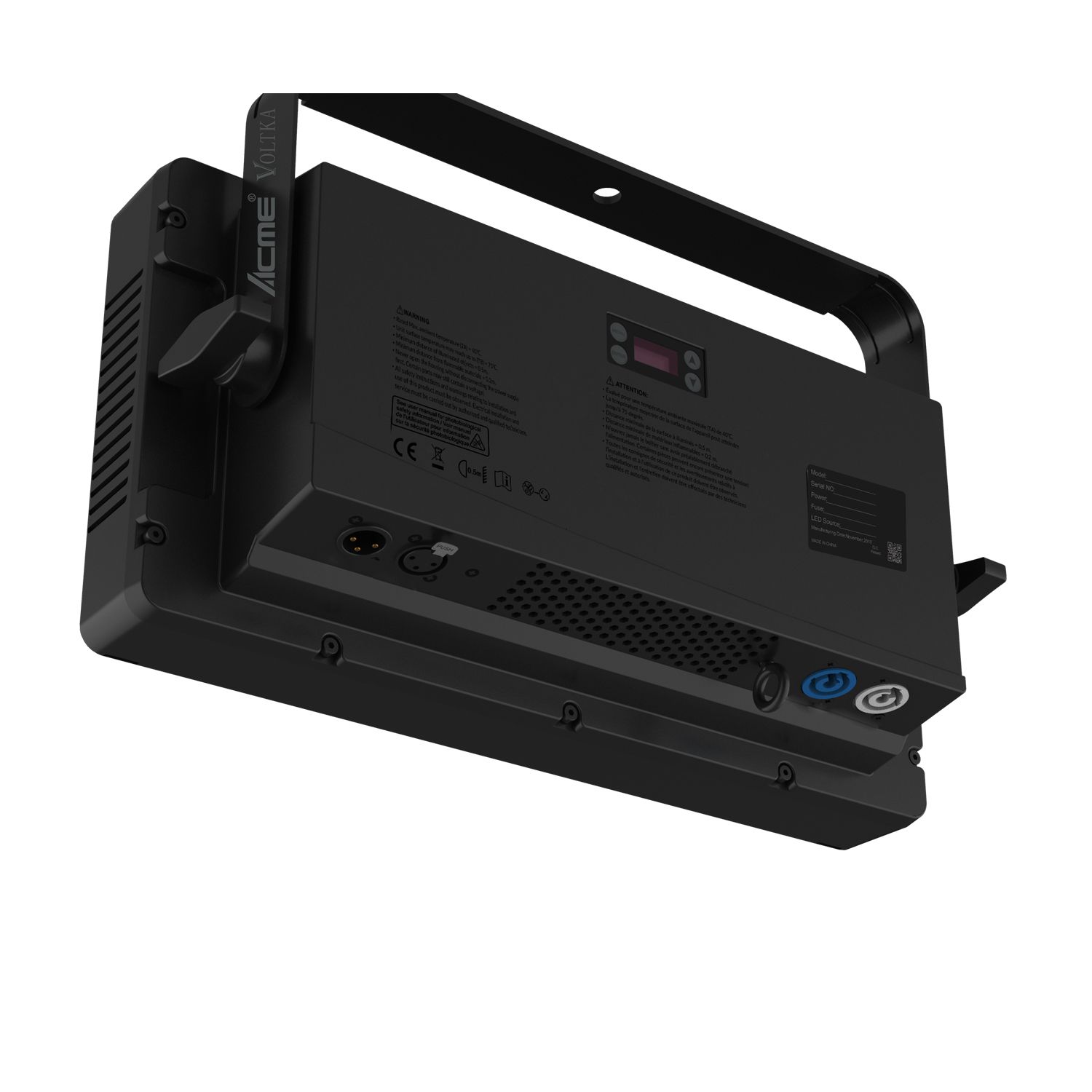

Data in/out: 3-pin or 5-pin XLR
Fixture Specification
Fixture dimension:
Height: 120 mm (4.7″)
Width: 210 mm (8.3″)
Depth: 410 mm (16.1″)
Fixture with hanger dimension:
Height: 120 mm (4.7″)
Width: 253 mm (10.0″)
Depth: 410 mm (16.1″)
Weight of fixture: 4kg (8.8lbs)
Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Installation
Horizontally or vertically mounting are available
Operating position is universal
1 x Fast-locked clamps for 50 millimeter truss
Safety cable attachment point
Included items
User Manual
Power Cable
1 x Fast-locked clamps for 50 millimeter truss
Optional Accessories (with item code)
Clamp：2060001614（C-250）
Safety cable : 2060001603-A（SW-05）
Signal Line：3-pin or 5-pin signal line
