Functional Overview

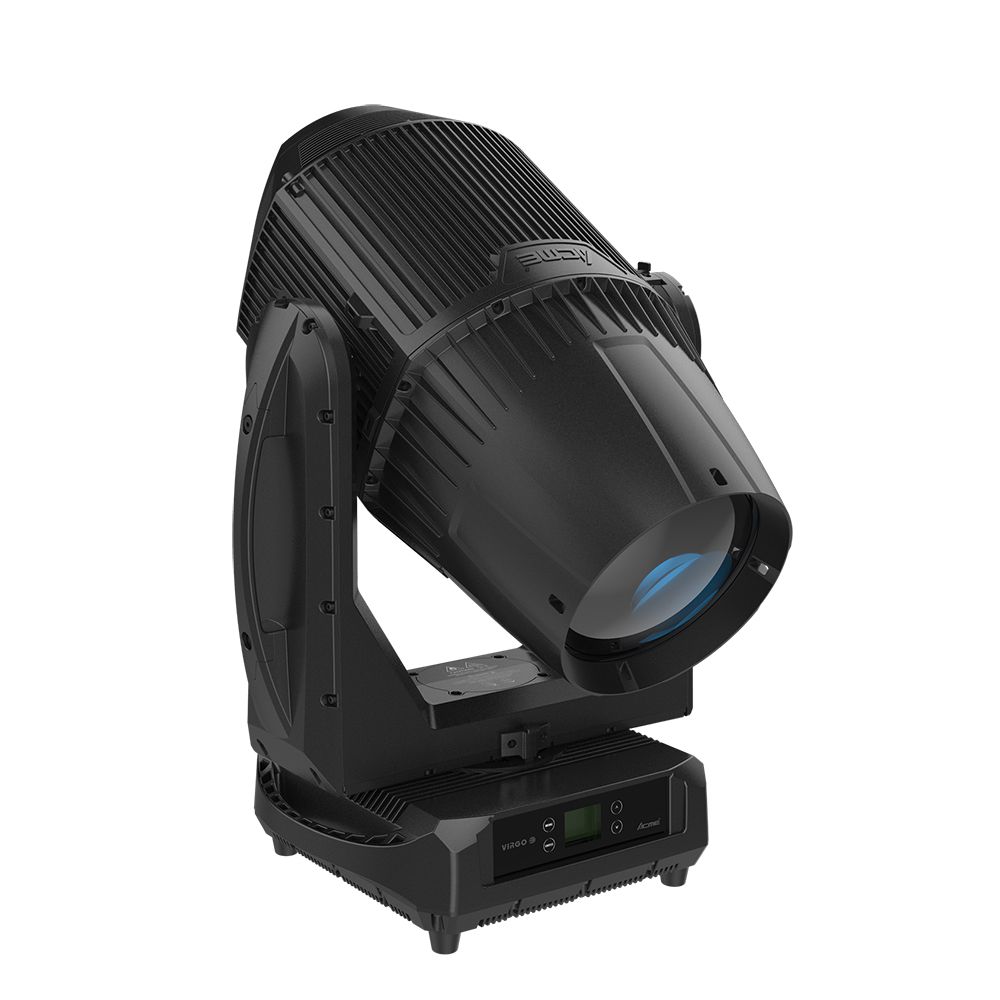

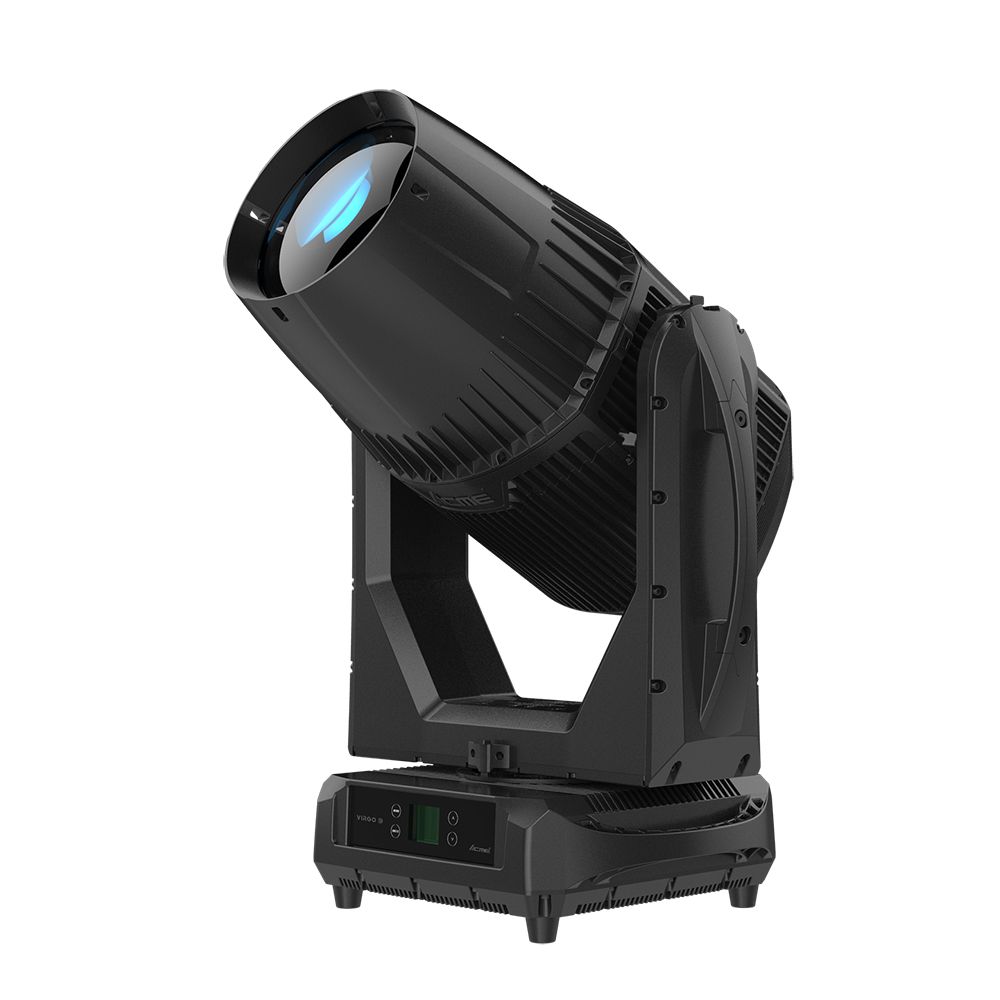

VIRGO，Follow with the LEO, the VIRGO is now released with all of our passion. ACME has included all the beam/spot/wash hybrid features of LEO in this new IP66 fixture and given it the same minimalist design. To match with the new-arrival Philips MSD Platinum 500L Flex 550W lamp, we give him a 170mm frontal lens and a 16:1 zoom high-resolution optic system for greater performance. Virgo boasts feature-rich standard parts including a smooth CMY color mixing system, a variable CTO from 3200k to 7800k with the linear gradient, a color wheel with 14 vivid colors, a continuous dynamic effects wheel, a static & rotating gobo wheel, and 2 prisms. With a max. power draw of 810w, a height of 79cm, and a weight of 40.6kg, Virgo, the waterproofing housing is not only suitable for any open area concerts but also can play the symphony with the outdoor shows. >

Features

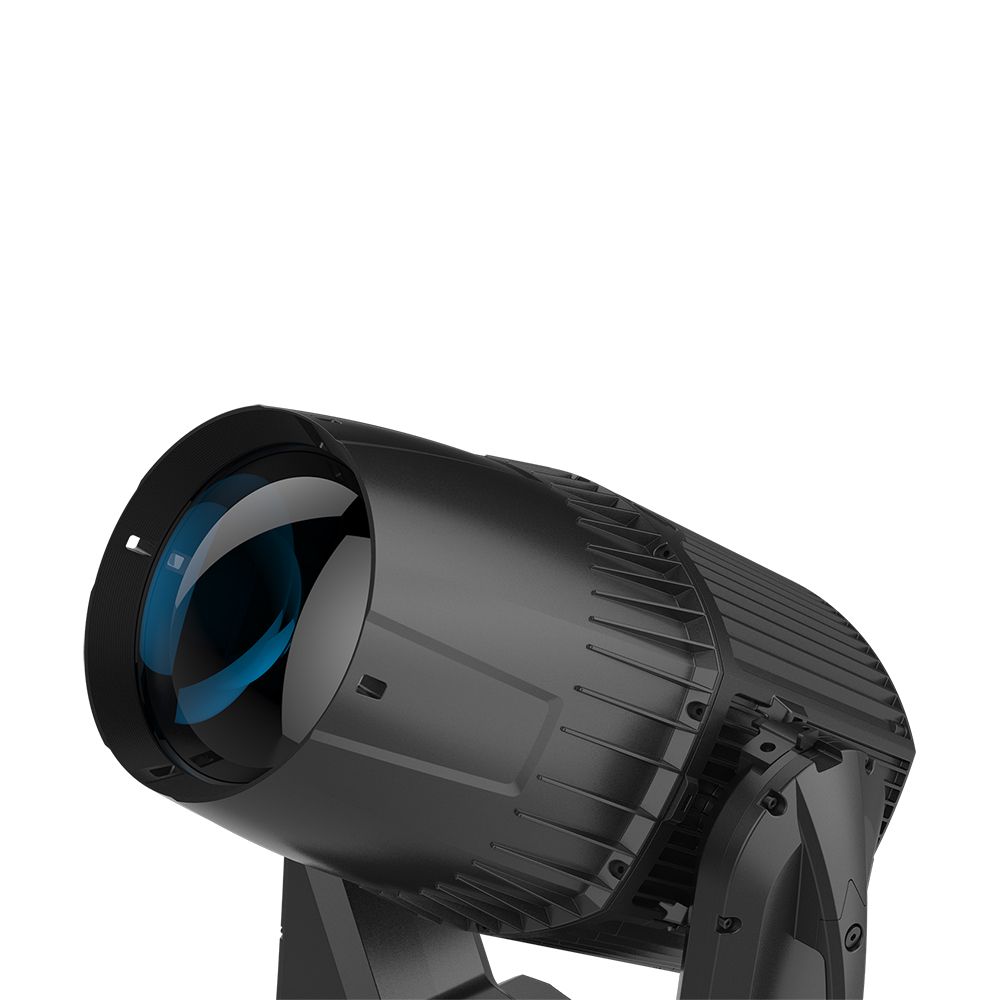

• Diameter of lens: 170mm
• Lamp life：4000 hours
• Colour mixing: Linear CMY color mixing
• CTO color temperature from 3200 kelvin to 7800 kelvin with linear-gradient
• Rainbow effect

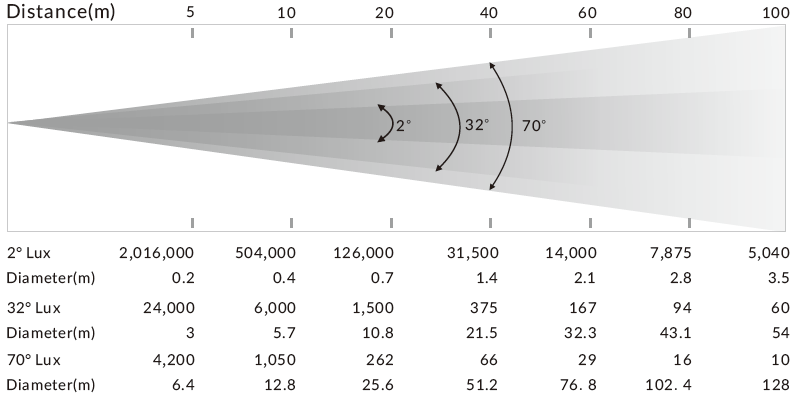

• Zoom range:
  – Beam Mode : 2°~7°
  – Spot Mode : 5°~34°
  – Wash Mode : 8°~70°

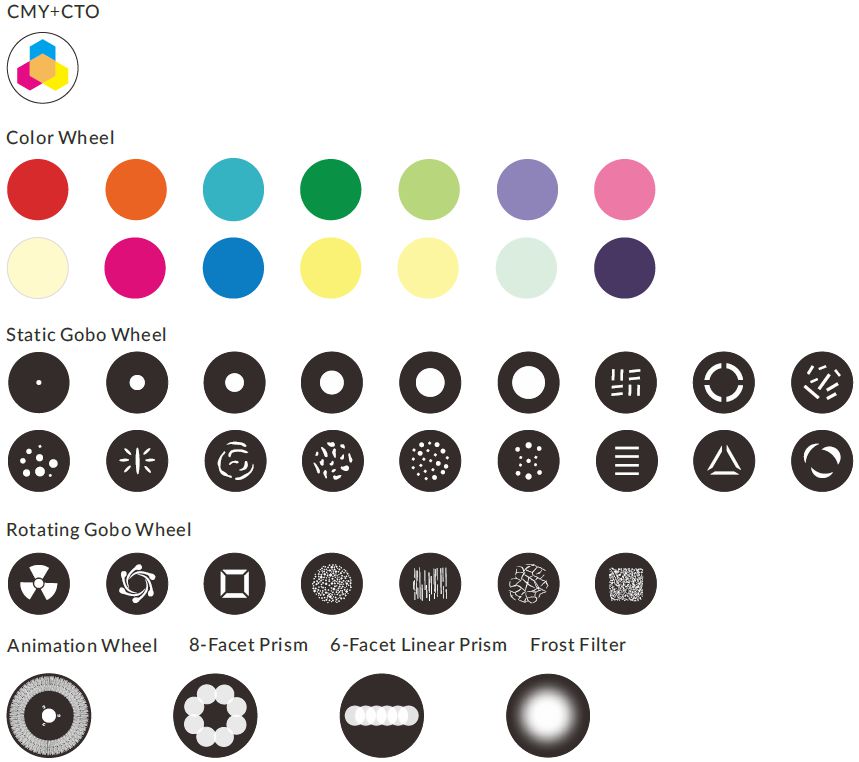

• Rotating gobo wheel: 1 rotating gobo wheel with 7 gobos plus open, convenient replacement
• Static gobo Wheel: 1 static gobo wheel with 18 gobos plus open
• Color Wheel: 1 color wheel with 14 colors plus white
• Animation wheel: 1 rotatable and replaceable animation wheel with outstanding water and flame effect
• Prism: 8-facet prism + 6-facet linear prism, rotatable in both directions and overlayable
• IP66 protection rotating
• 0~100% smooth dimming
• Motorized focus
• Outstanding strobe effect with variable speed
• Flicker free management
• Dust-proof and oil-proof design

Technical & Specification
Model
XP 550 BSW IP

Light source
Light source: Philips MSD Platinum 500L Flex – 550W
Bulb life expectancy: 4000 hours

Optical system
Advanced optical system to ensure image quality, clear and sharp
High – efficiency zoom optical system, ratio 1:16

Control and Program
4-buttons touch panel
Display: LCD display
Protocols: DMX512,RDM
DMX Protocol modes: 2
Control channels: 26,18
Upgrade the firmware via DMX link
Pan/Tilt Resolution: 16 bit
Linear CMY color mixing

PAN & TILT
Pan movement: 540°
Tilt movement: 270°
Fixation: Tilt lock
Automatic Pan/Tilt position correction

Rotating Gobos
1 x rotating gobos wheel with 7 gobos plus open, convenient replacement
Image diameter: 12 mm
Outside diameter: 22.5 mm

Static Gobos
1 x static gobos with 18 gobos plus open

Color Wheel
1 x color wheel with 14 colors plus white

Animation wheel
1 rotatable and replaceable animation wheel with outstanding water and flame effect

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 810W

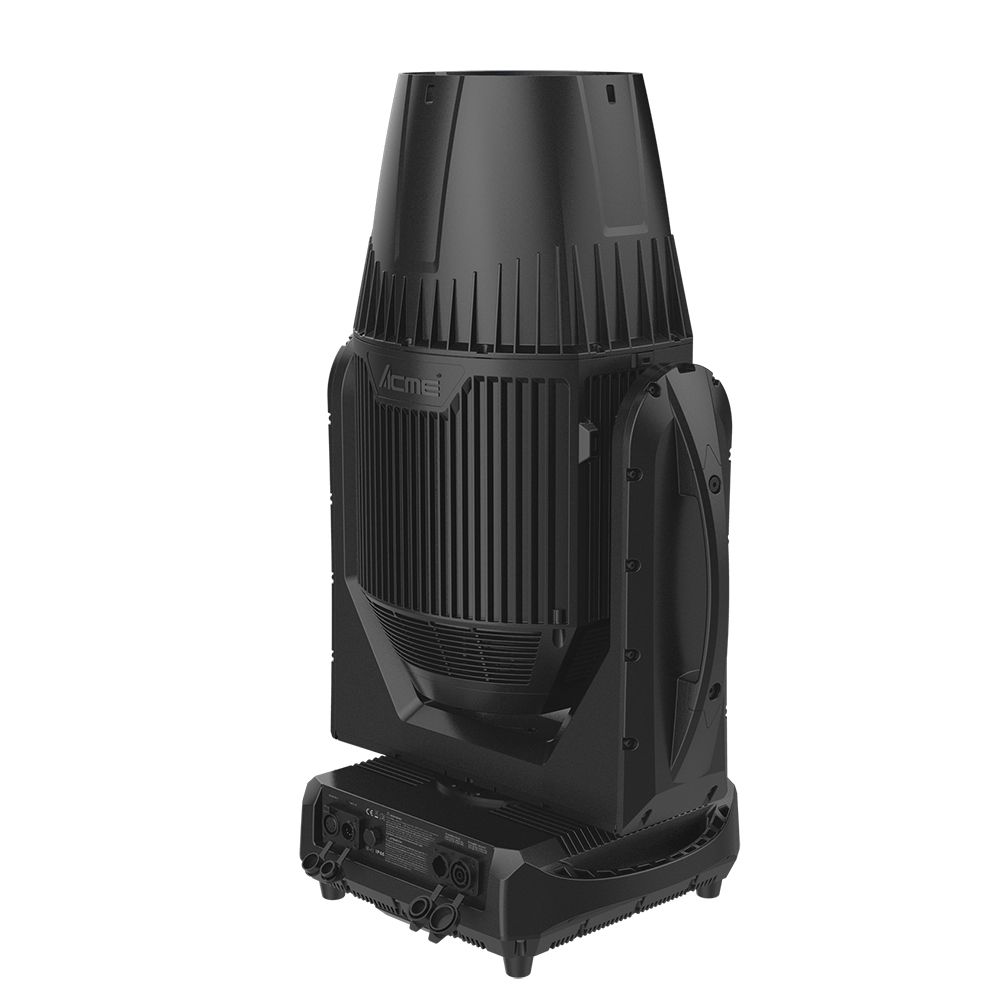

Power In/Out: Power Connector in/out
Data in/out: 5-pin XLR

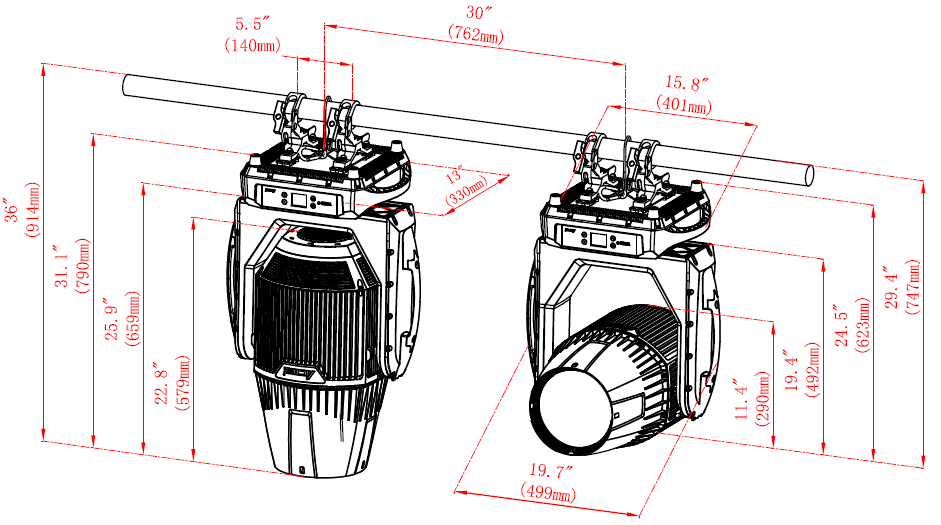

Fixture Specification
Height: 789 mm (28.5″)
Width: 326 mm (12.1″)
Depth: 499 mm (15.8″)
Weight: 40.6kg (89.5lbs)

Work environment
Maximum ambient temperature: 45°C
Maximum surface temperature: 50°C
Minimum operating temperature: 0°C
Protection rating：IP66

Installation
Available in horizontally or vertically mounting way
Multi projection angle operation
2 pairs of locking points under the base

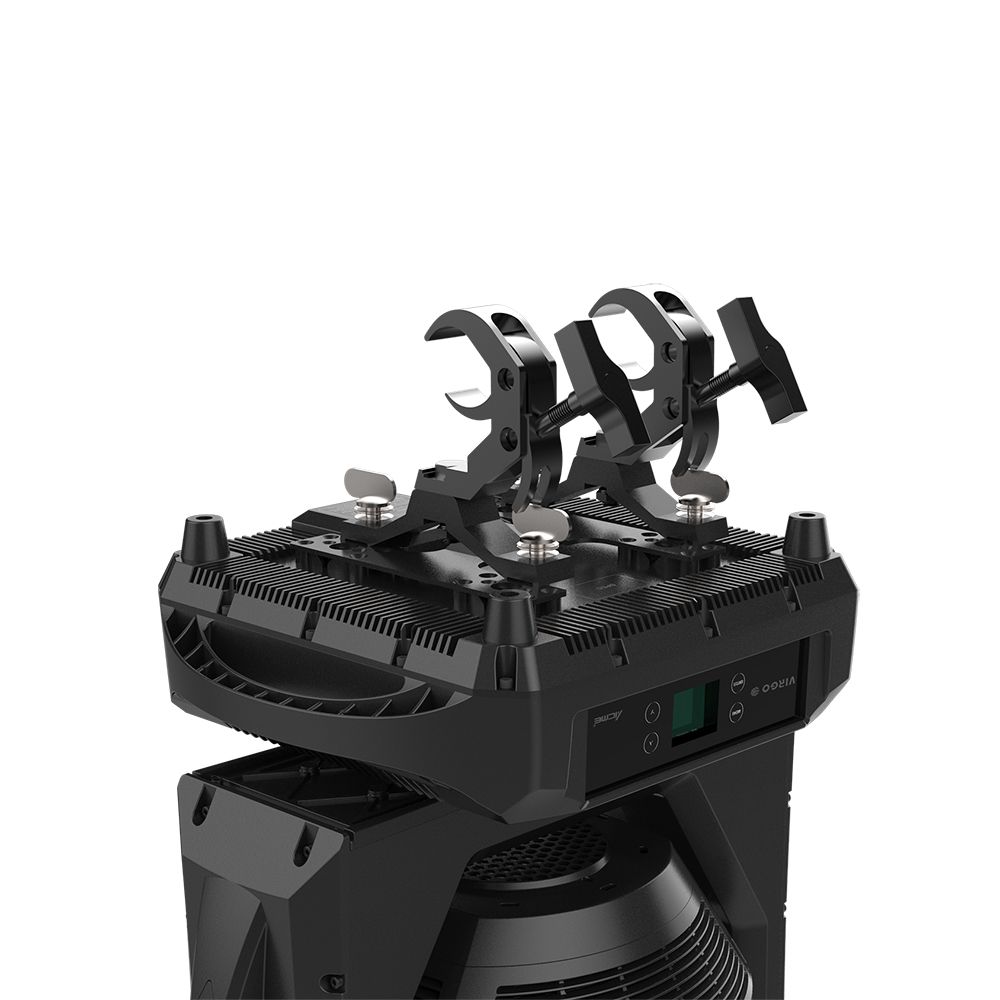

2x fast-lock clamps for 50mm truss
Safety rope hanging

Included items
User Manual
Power cable
2x fast-lock clamps for 50mm truss

Optional Accessories (with item code)
Clamp：2060001619（C-250）
Signal Line：5-pin signal line
Safety cable: 2060001603-A (SW-05)
