Functional Overview

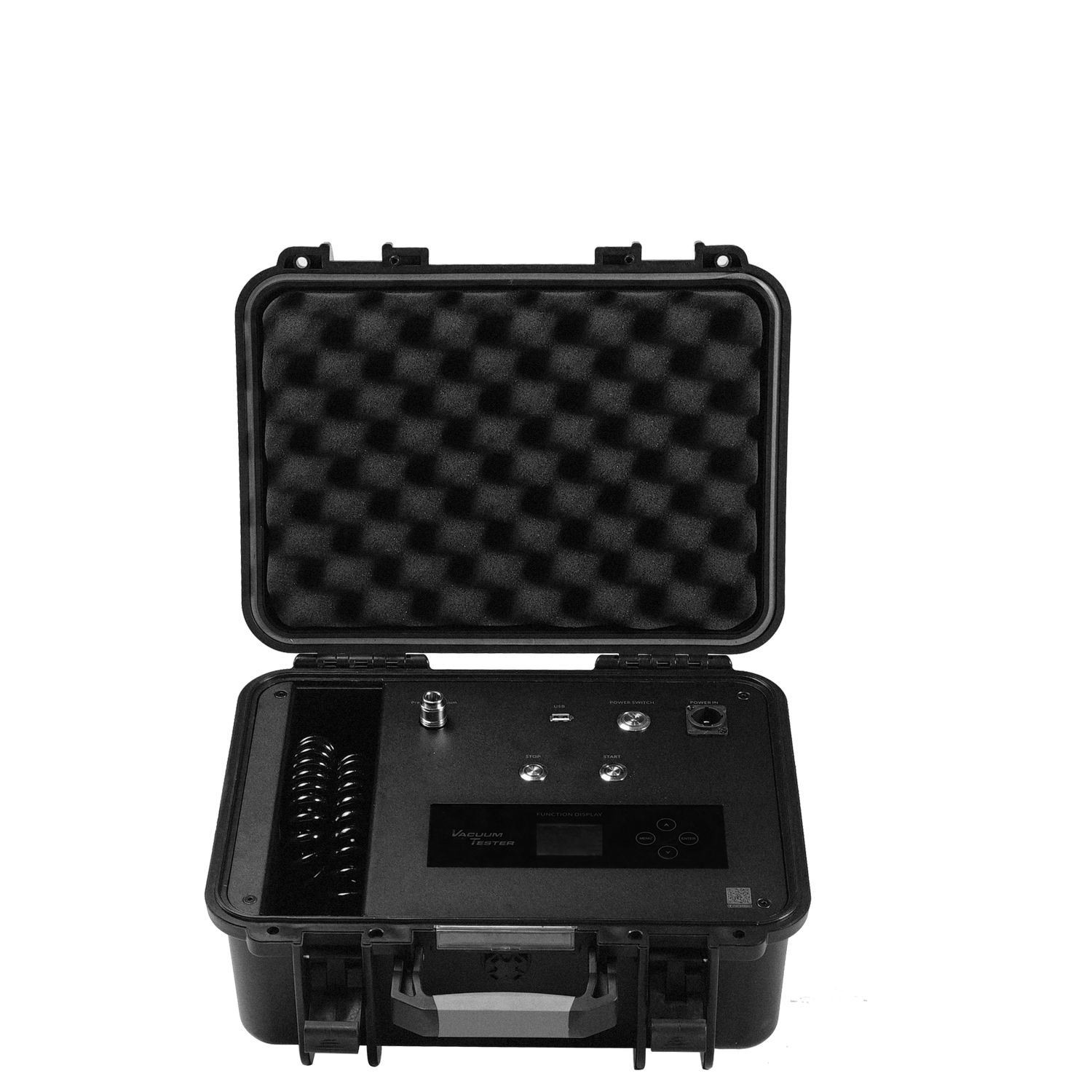

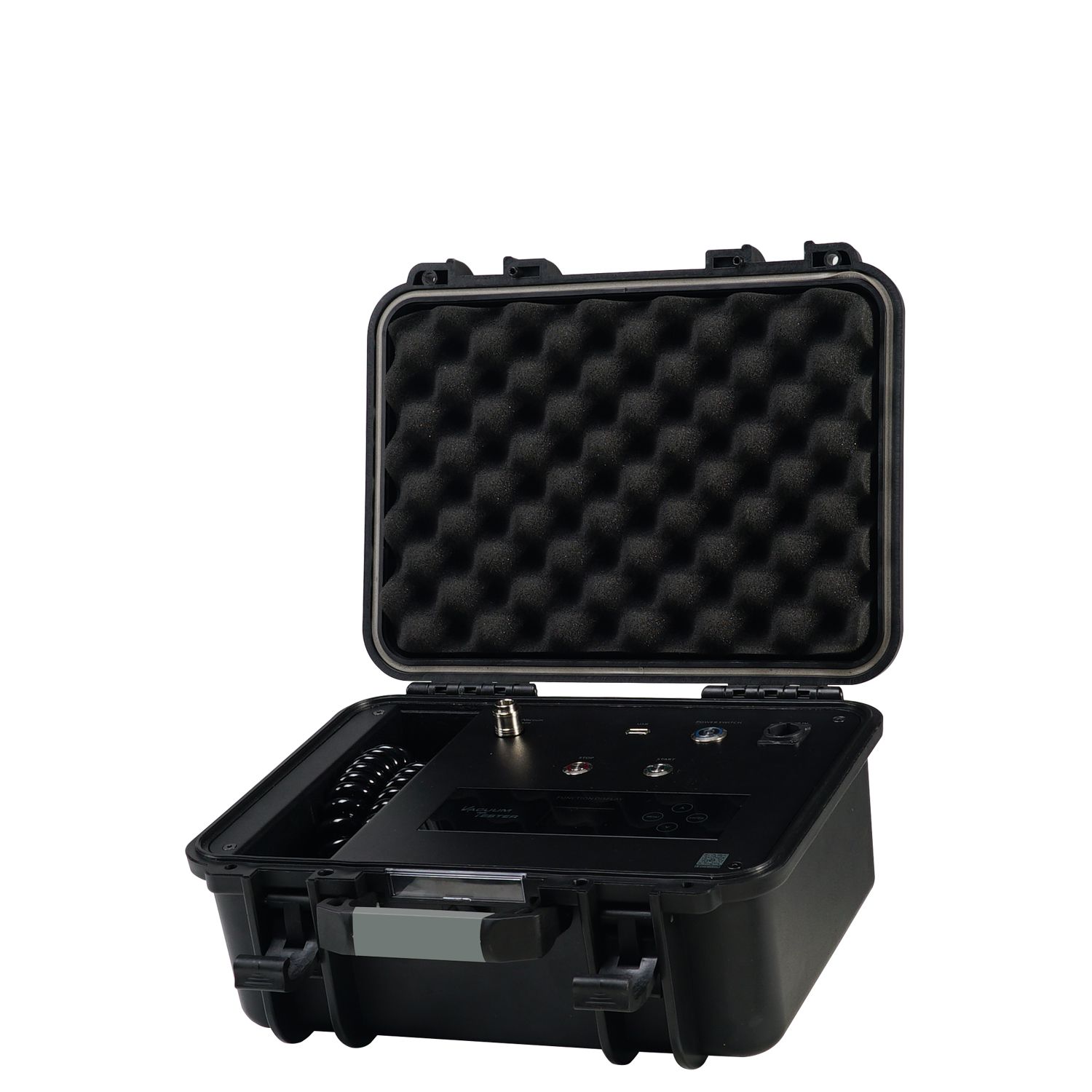

Vacuum Tester is a portable air tightness tester，the test object are water-proof moving head and non-moving head.It is a non-destructive testing instrument based on the principle of pressure drop method and using compressed air (or vacuum) as the medium to test products. The utility model has the advantages of simple structure, complete functions and sensitive precision, which can be used only by connecting the power interface and the lamp interface, and can be used as an emergency test equipment to test whether the lamp is waterproof or leaky.
Technical & Specification
Model
V-BOX
Controland Program
3-mechanical keys and 4-buttons touch panel
Display: LCD display
Upgrade the firmware via USB
Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100~240V
Power consumption: Working power 28.5W Standby power 3w

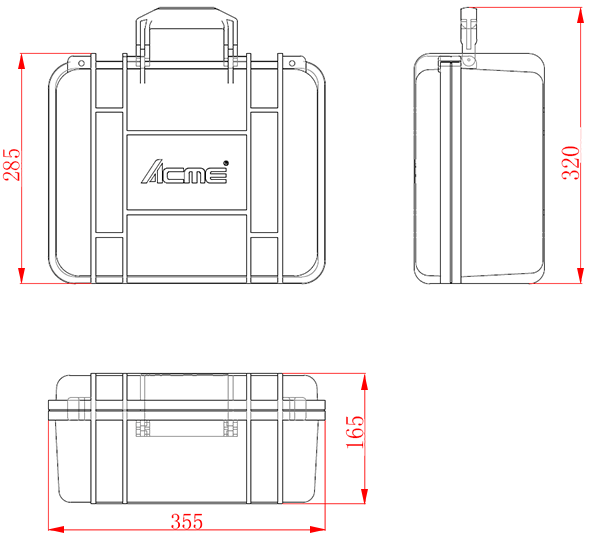

Fixture Specification
Height: 285 mm (11.2″)
Width: 355 mm (14″)
Depth: 165 mm (6.5″)
Weight: 6.8 kg (15 lbs)
Work Environment
Protection Rating: To be operated in a dry environment
Approvals
CE Compliant
Included Items
User Manual
Power Cable
An air pump
Four Pneumatic valve
