Functional Overview

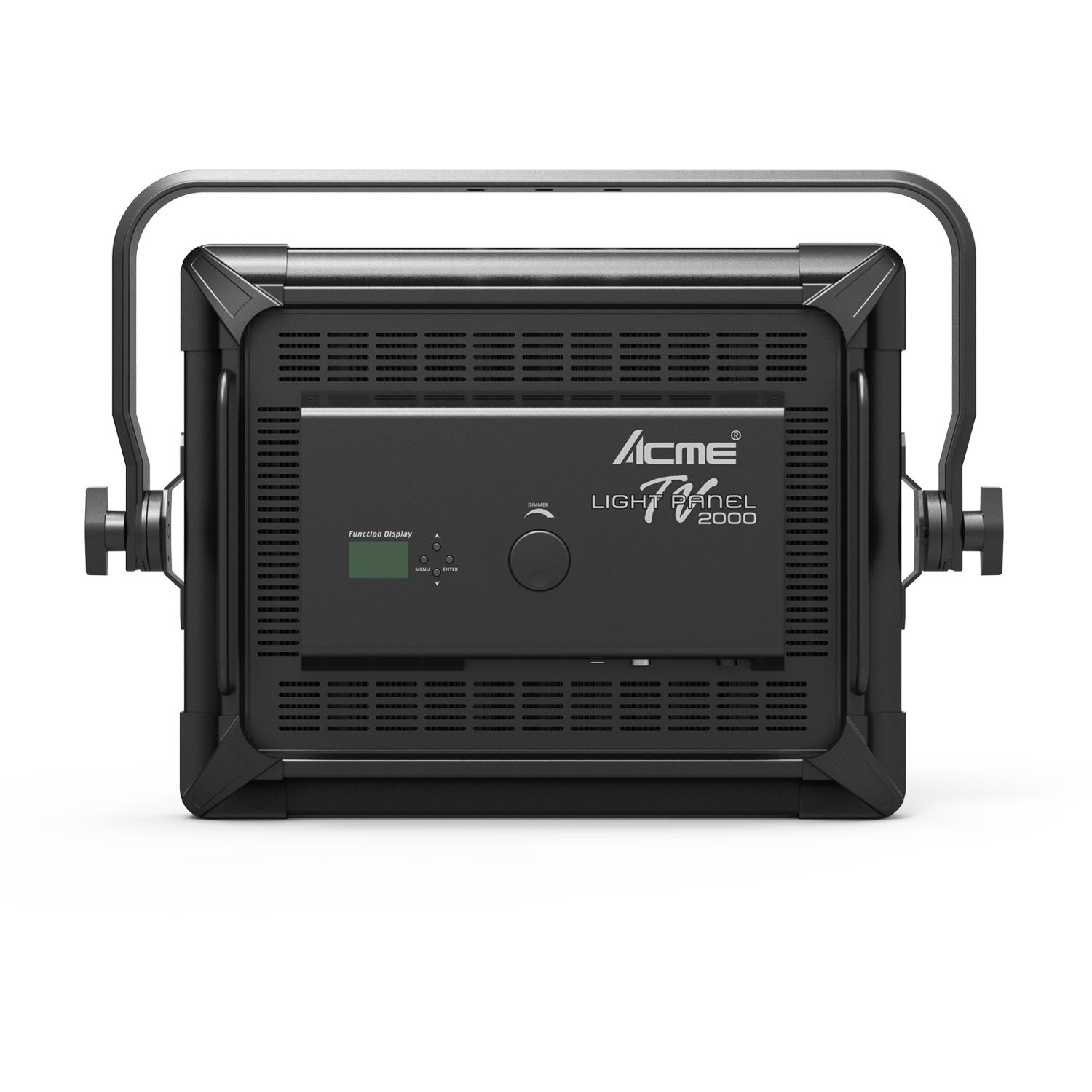

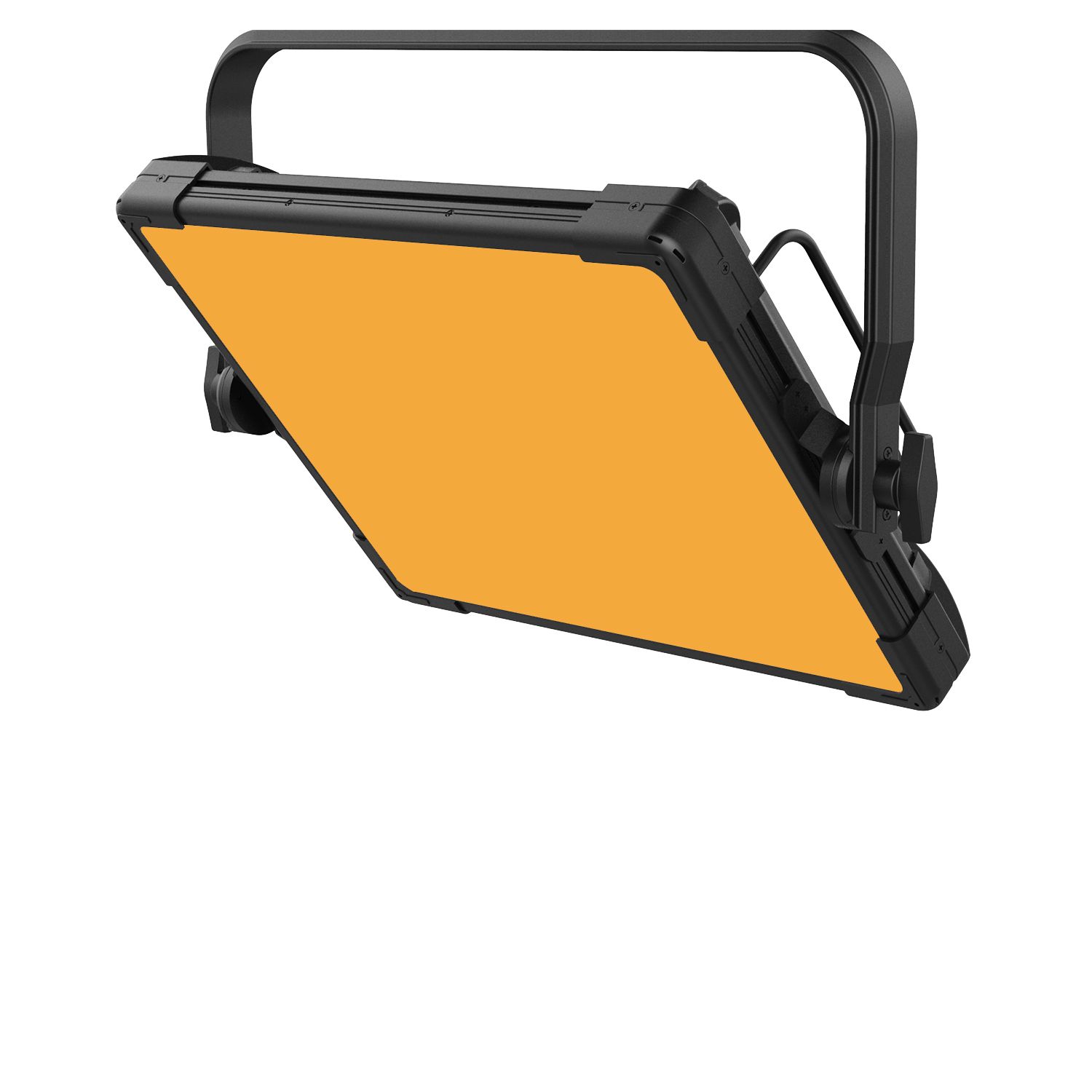

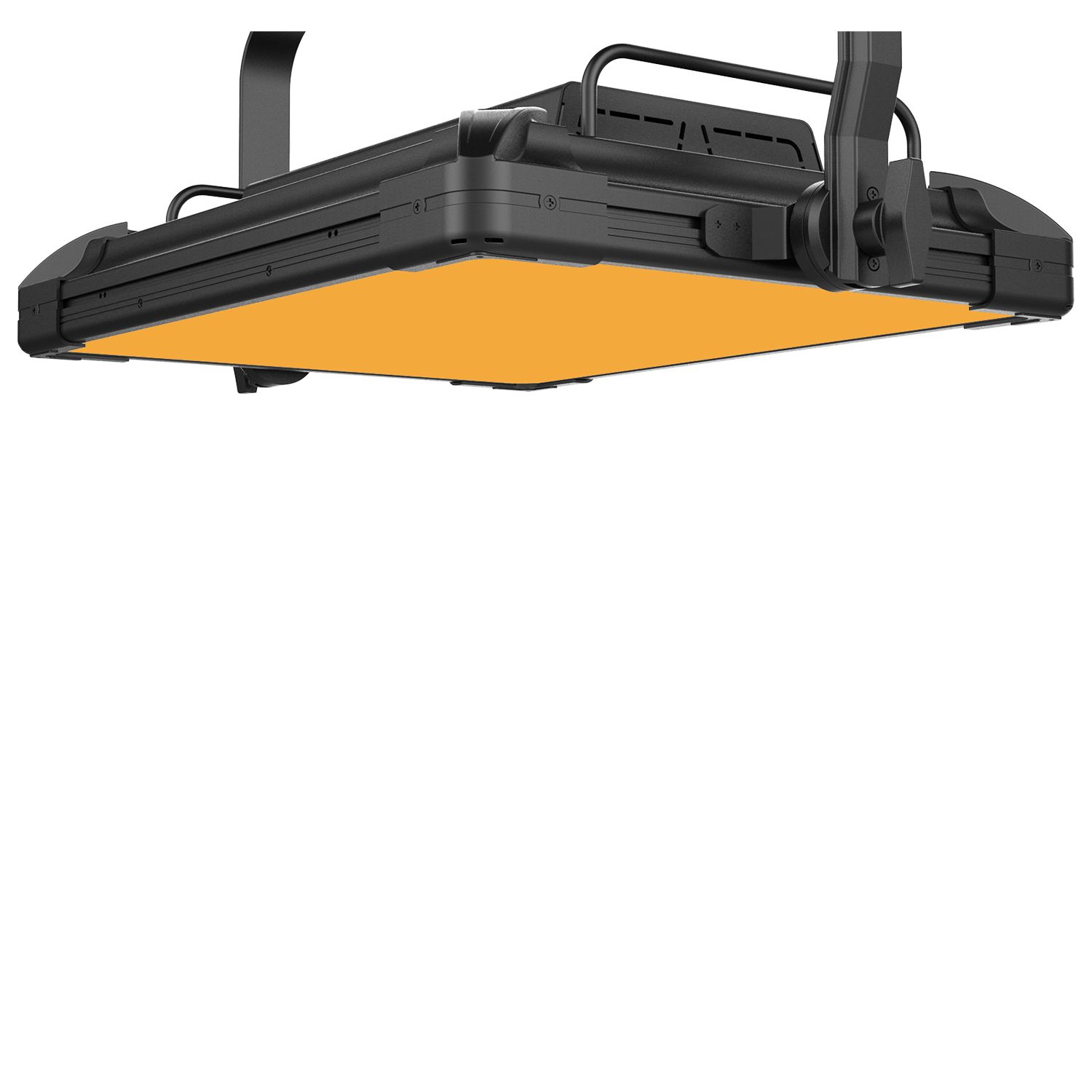

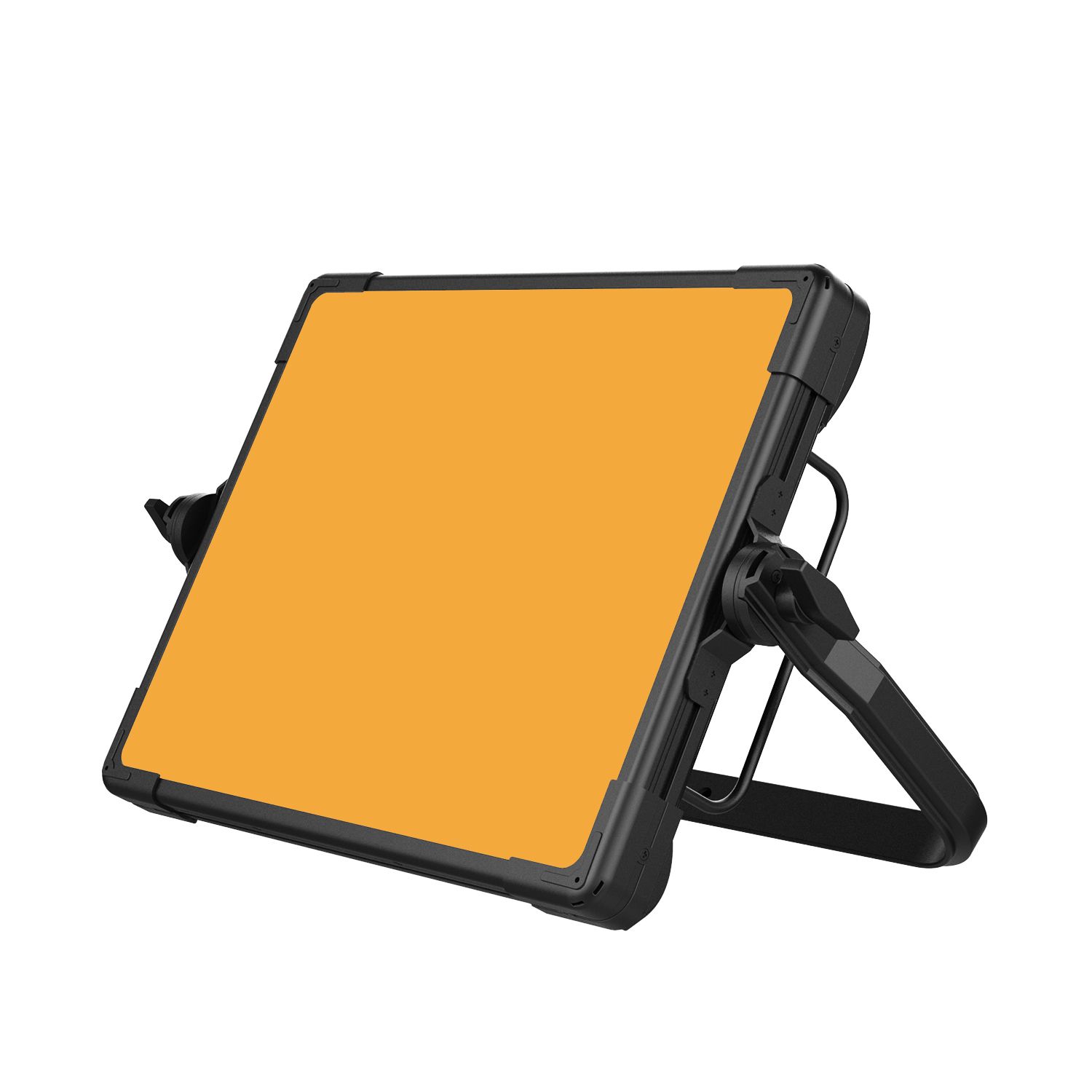

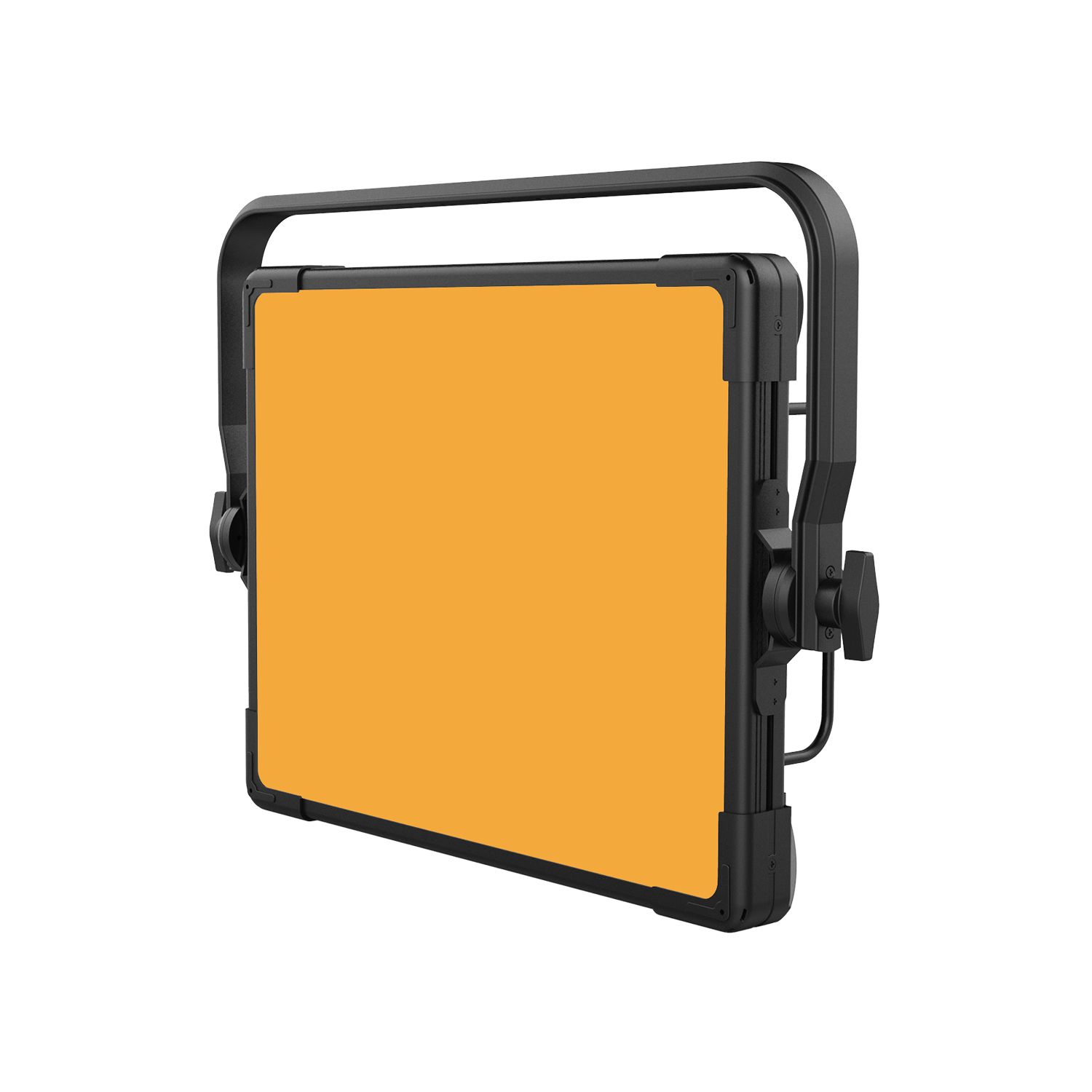

TV LIGHT PANEL 2000 series with outstanding floodlight and soft light, widely applied to photographic studio, TV station, conference room, shopping mall; Battery backup for user operation without connecting to the mains.

Features
Light Source: 480pcs warm white LED
Color Temperature: 3200±150K
Beam Angle: 110°
Flicker free management

Technical & Specification
Model
LP-F2000 WW

Light Source
Light Source: 480pcs warm white LED
LED life expectancy: 20000 hours
Color Temperature: 3200±150K

optical Systemand Effects

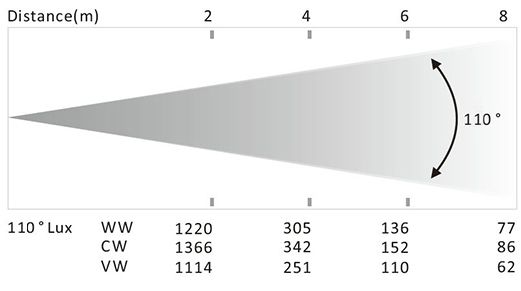

Beam Angle: 110°
CRI：≥95
CQS：≥94
TLCI：≥95

Controland Program

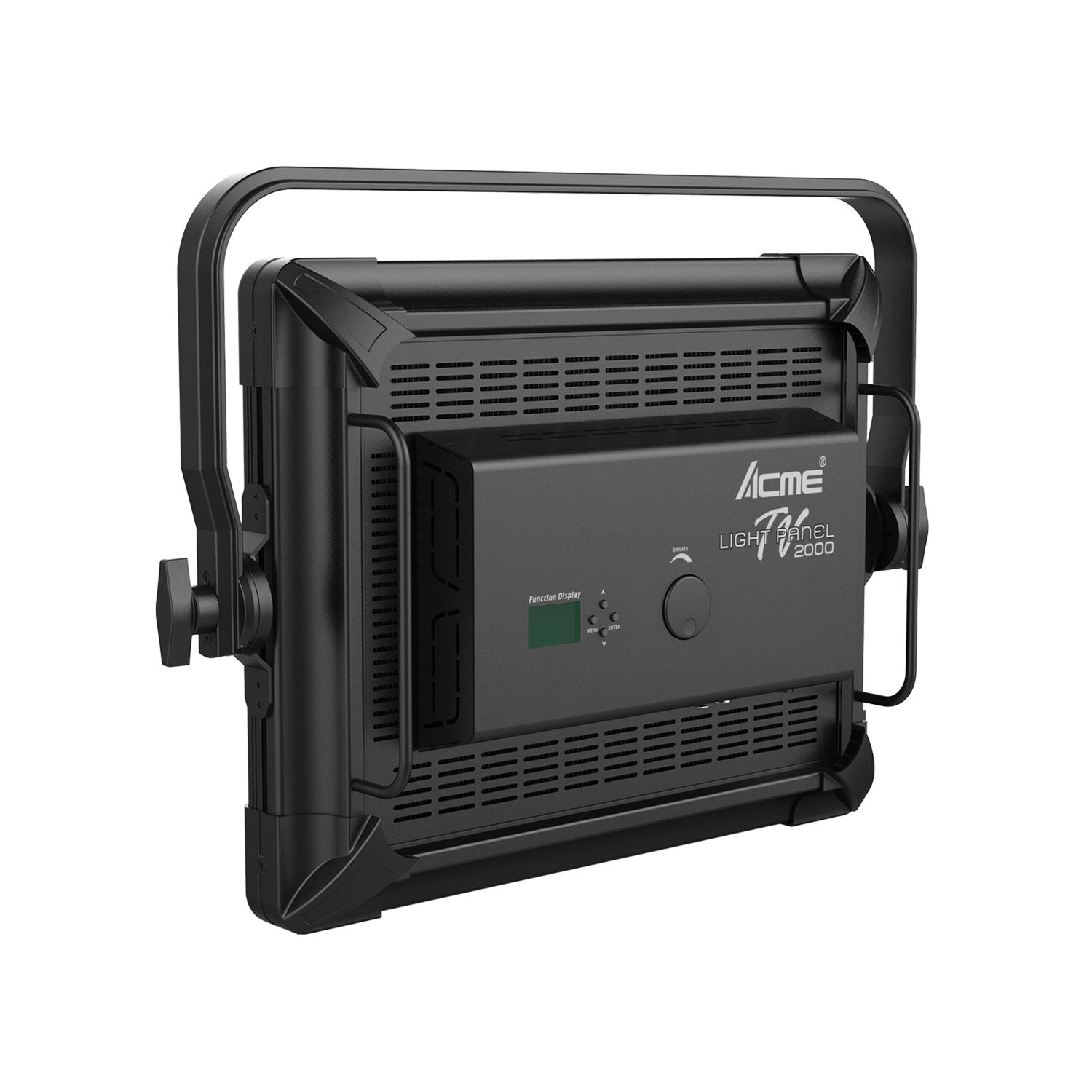

4-buttons, 1-knob
Display: LCD display
Protocols: DMX512, Master/Slave, Art-Net
DMX Protocol modes: 4
Controlchannels: 1,2A,2B,3
Upgrade the firmware via DMX link

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100–240 V, 50/60 Hz
Power consumption: 186 W

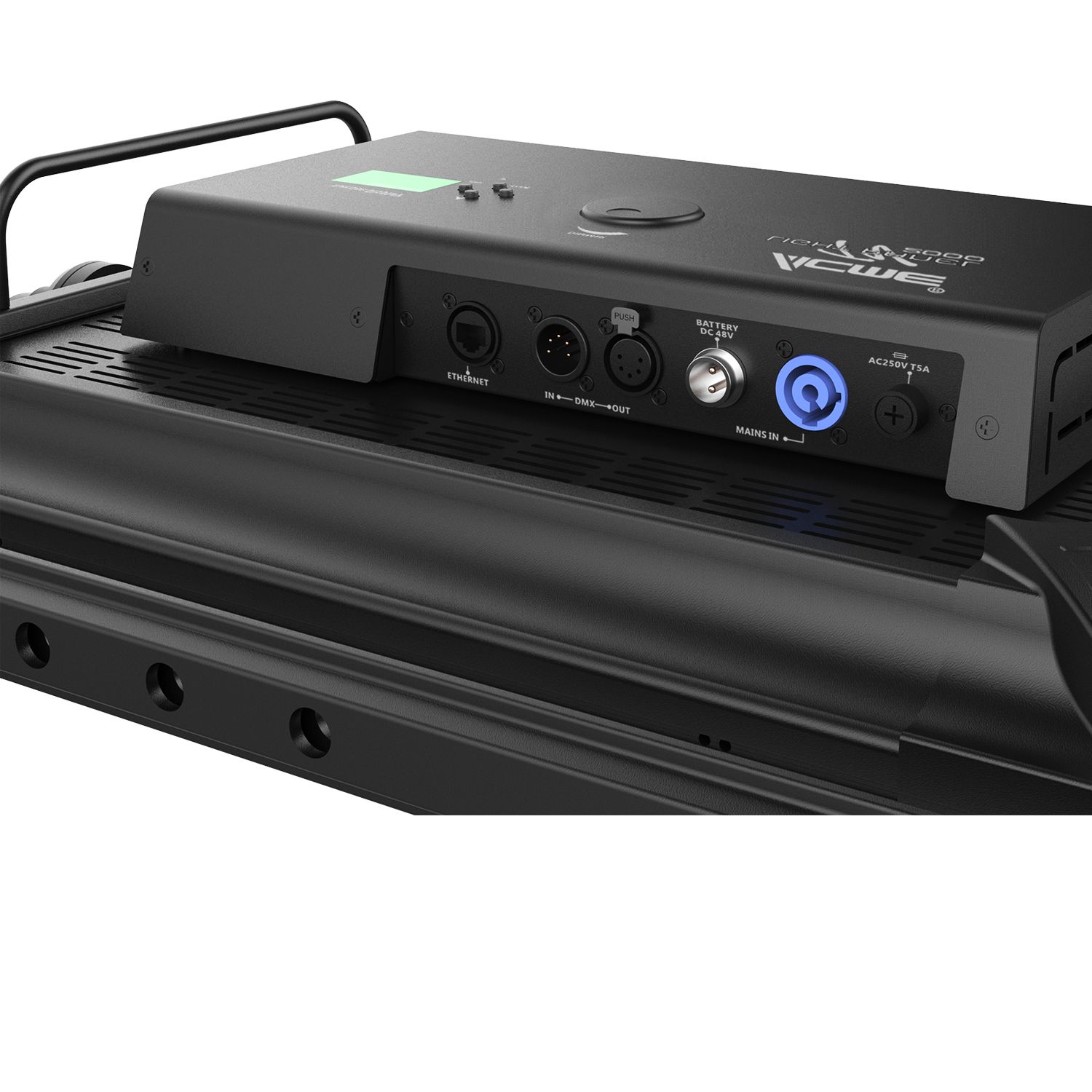

Power in/out: Power Connector input
48V input from external battery
Data in/out: 5-pin XLR
Art-Net input: RJ45

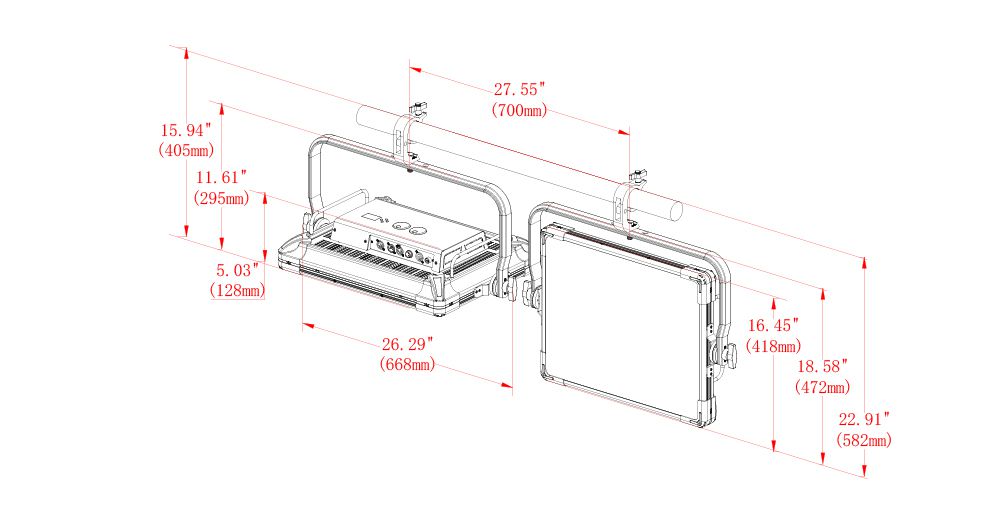

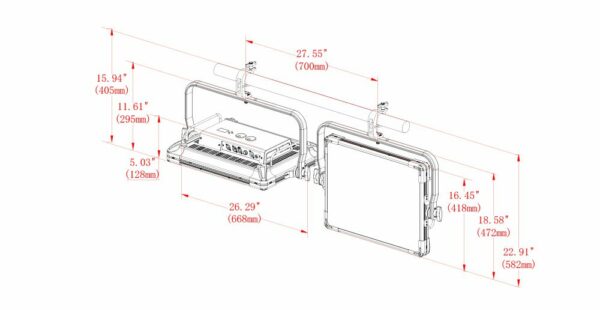

Fixture Specification
Height: 487 mm (19.1″)
Width: 148 mm (5.8″)
Depth: 668 mm (26.2″)
Weight: 10 kg (22.0 lbs)

Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Approvals
CE Compliant

Installation
Horizontally or vertically mounting are available
Operating position is universal
The feet support with 3 locking points
Safety cable attachment point

Included Items
Power Cable
User Manual

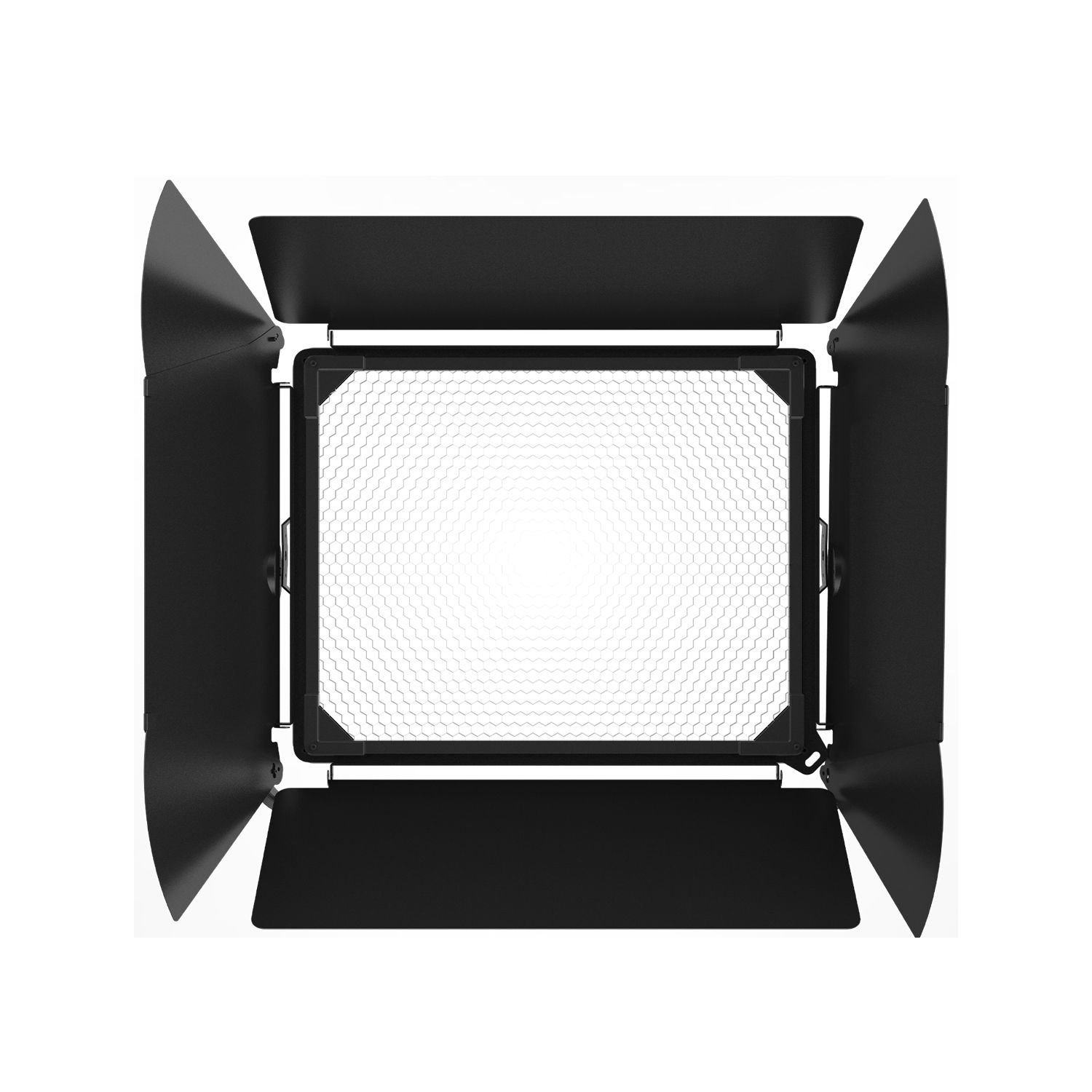

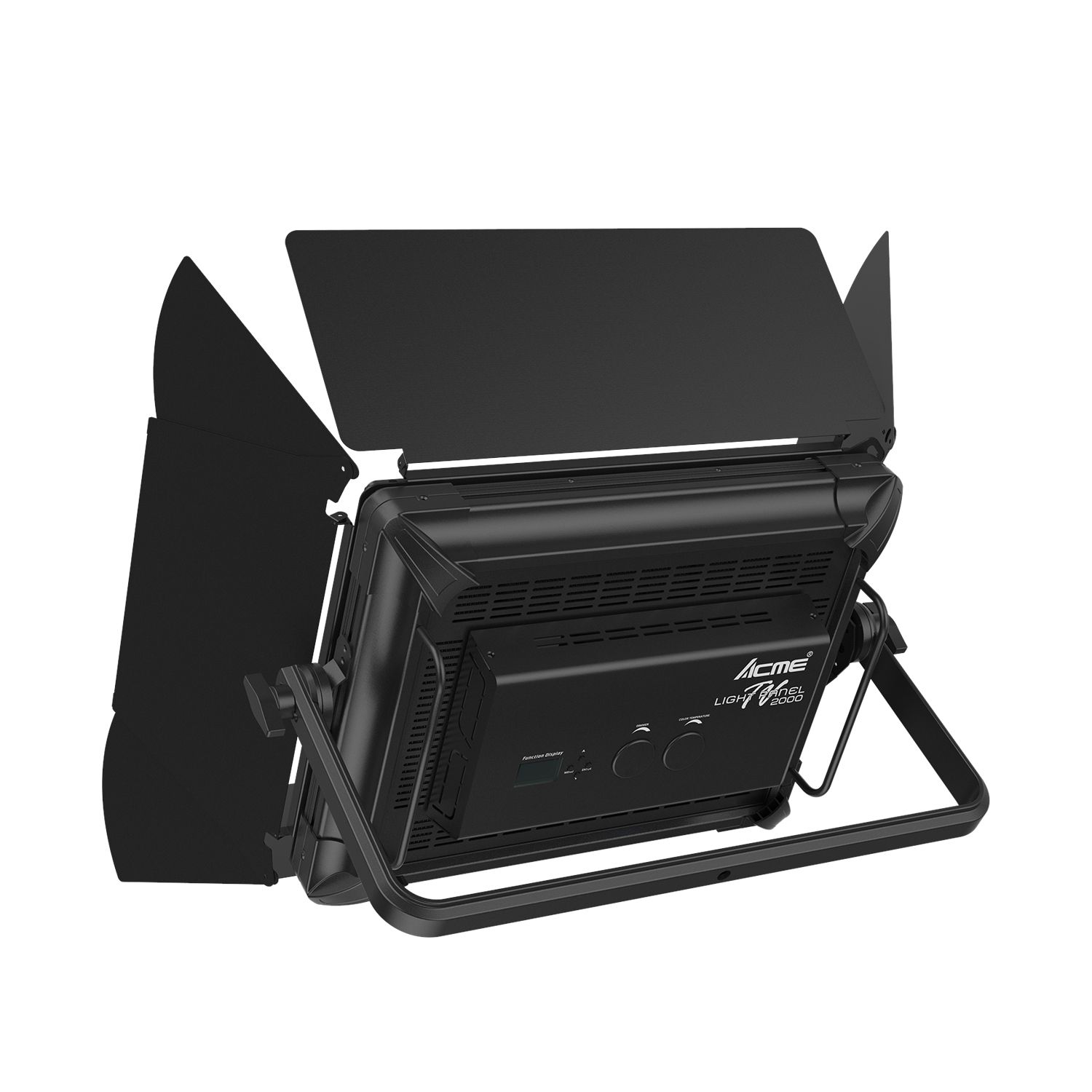

Barn door

Optional Accessories (with item code)
Clamp：2060001614（C-250）
Signal Line：5-pin signal line
Safety cable: 2060000200（SW-02）

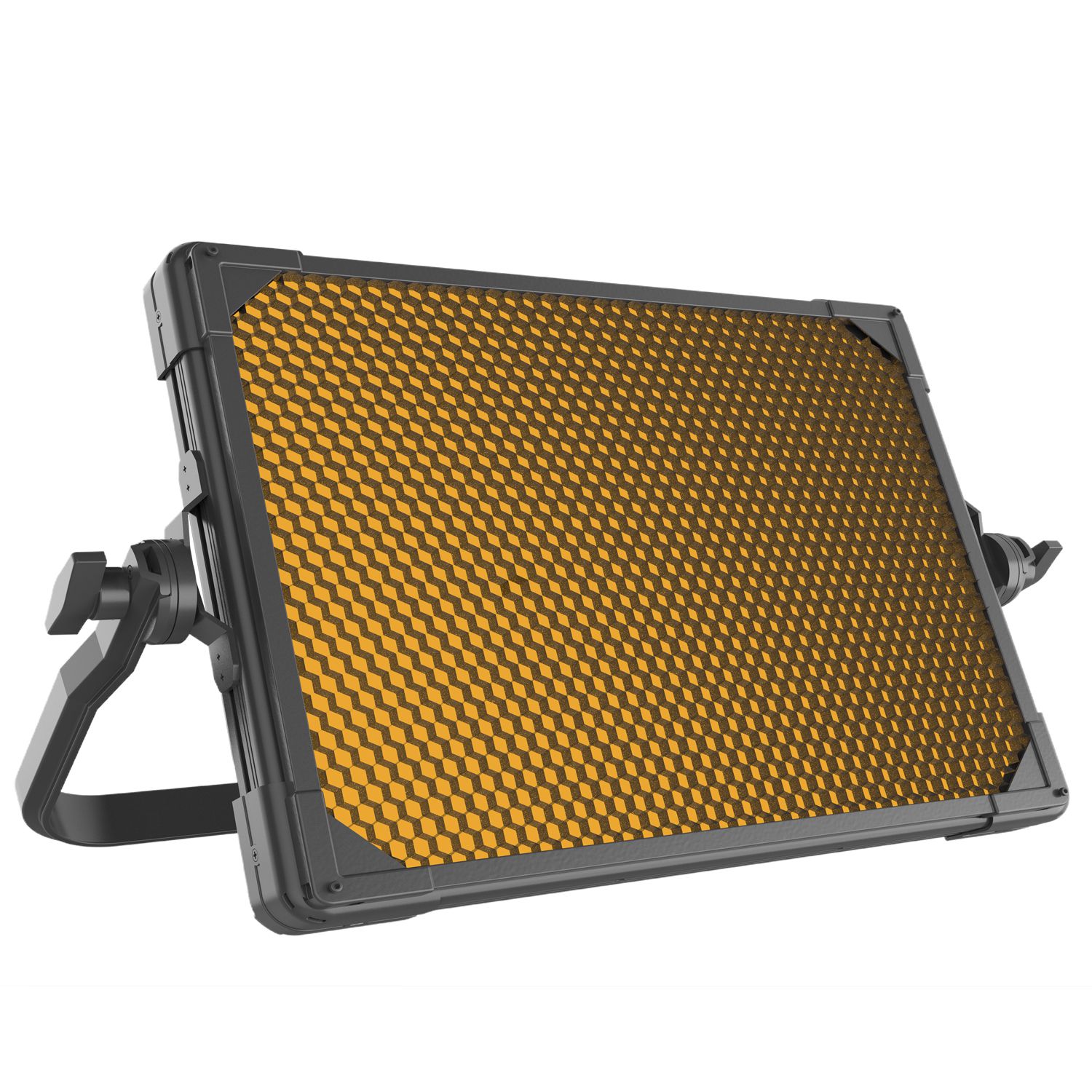

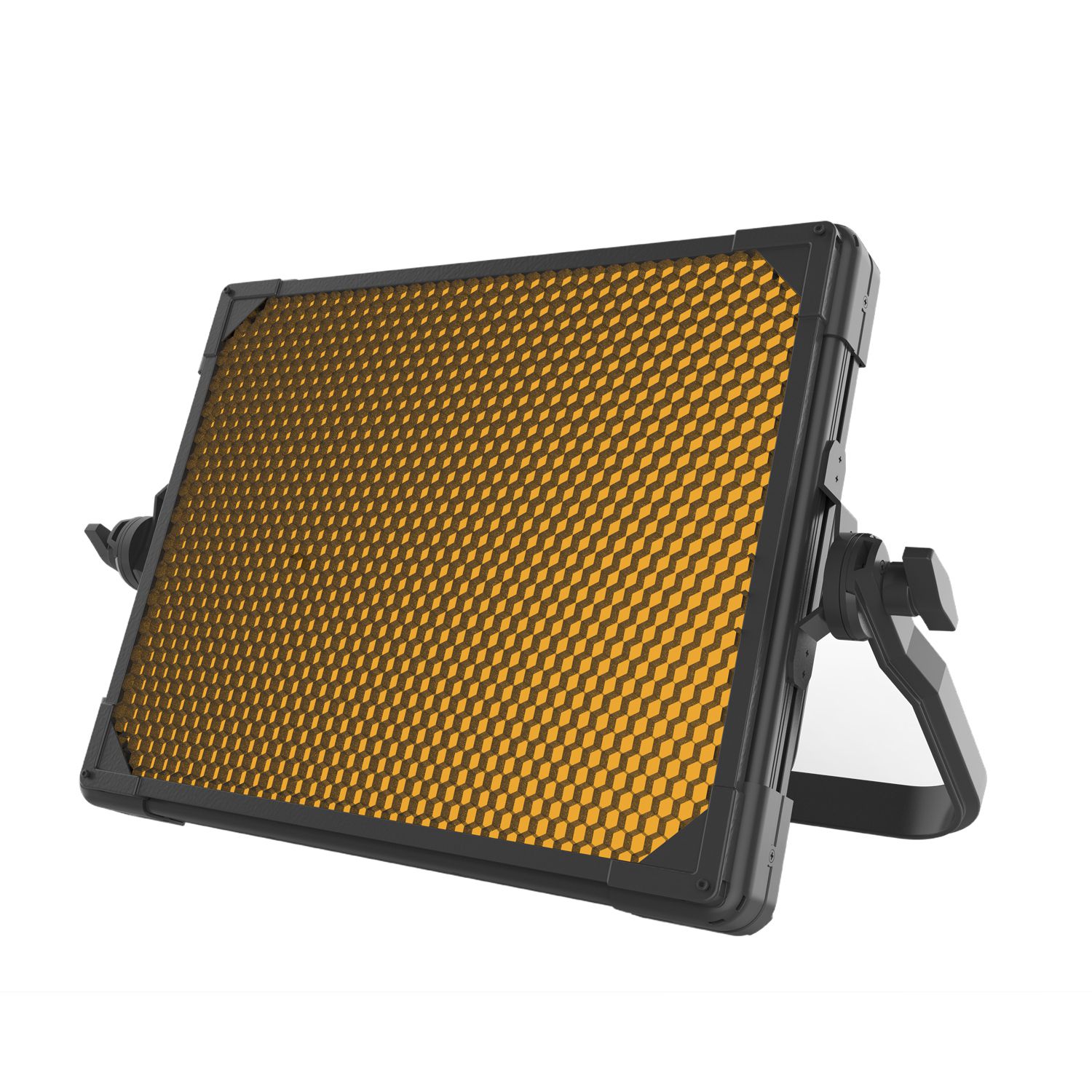

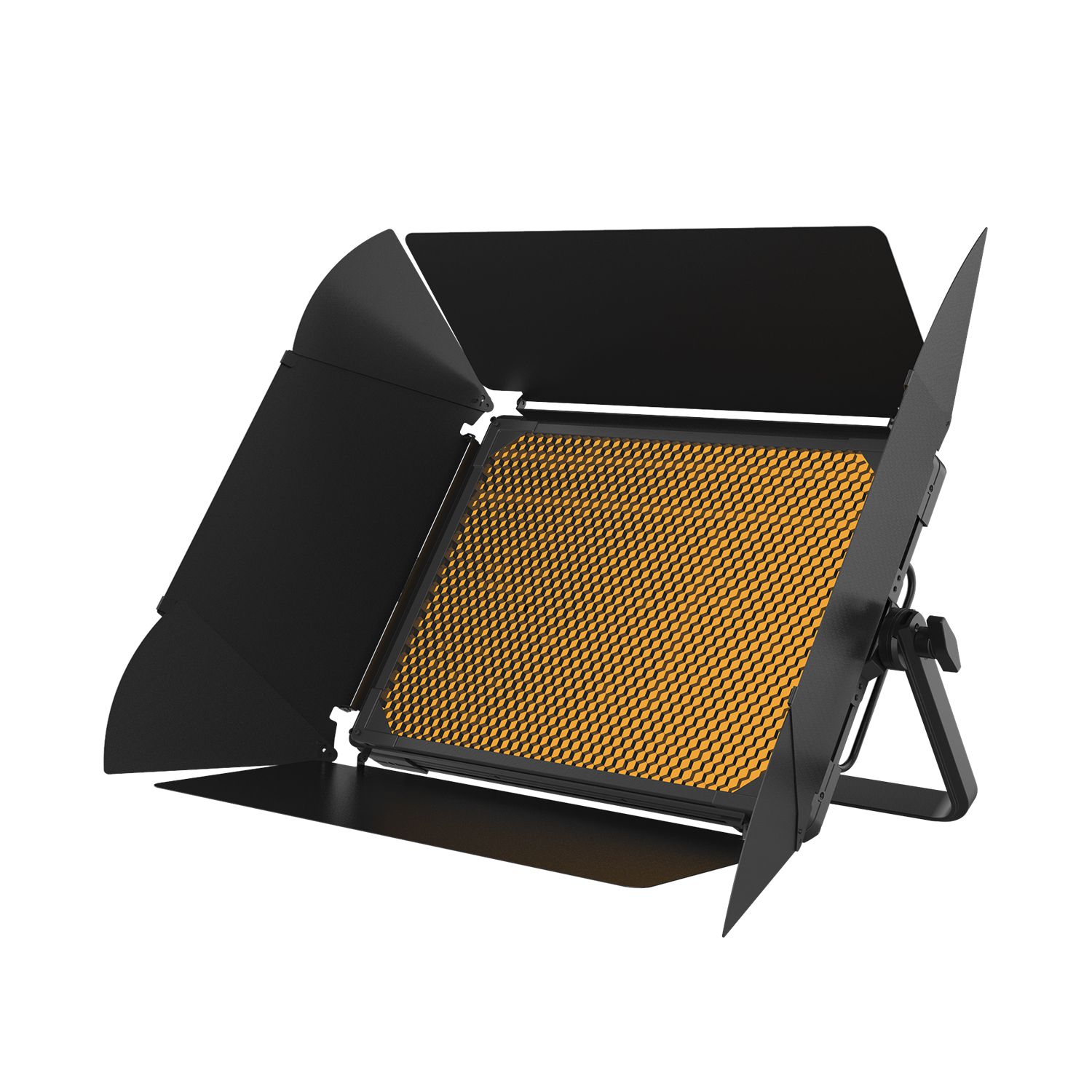

Cellular grid:
63580912（20mm thick）
63580913（10mm thick）
