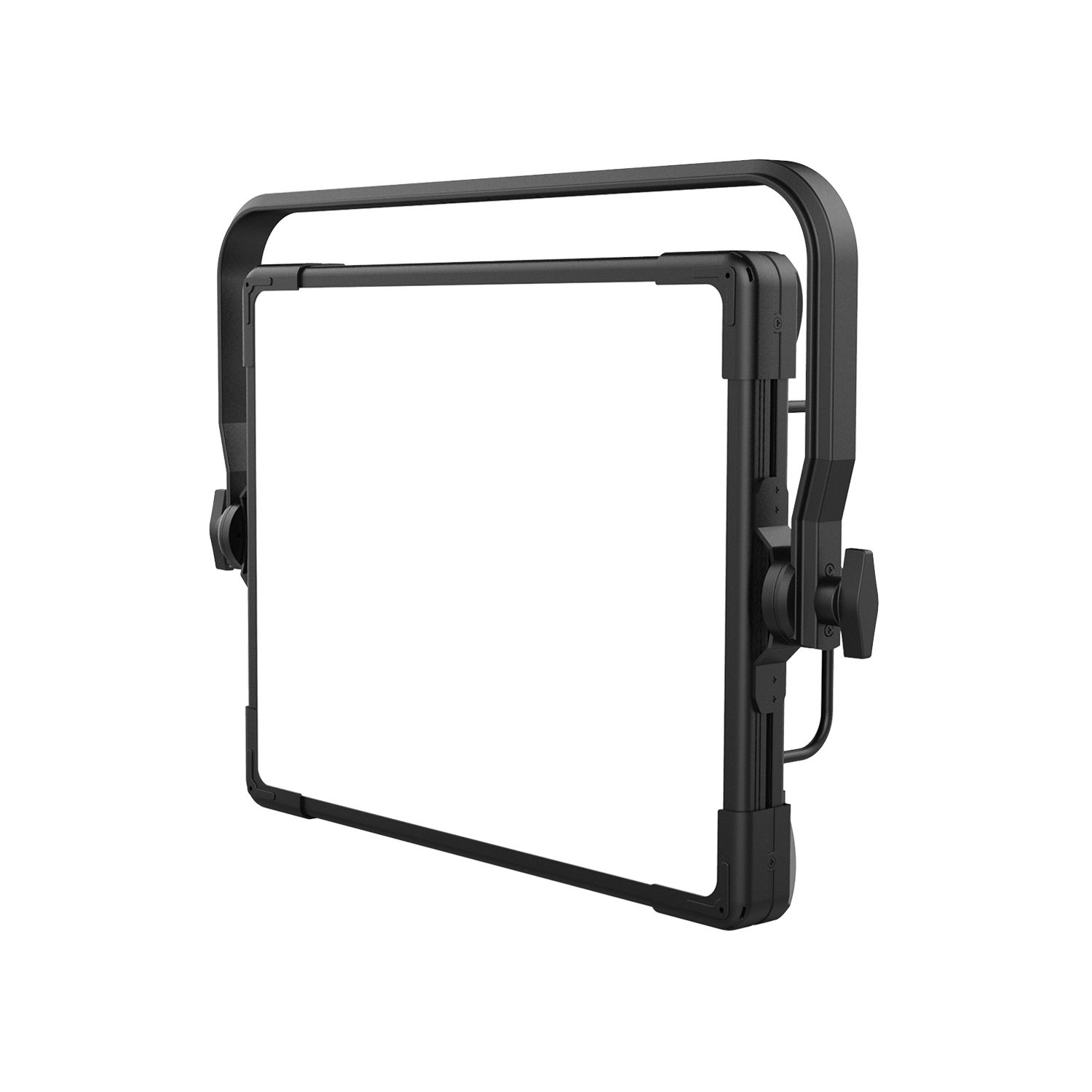

Acme STUDIO SOFTLIGHT PANEL 2000 CW

180W | Studio LED Panel | Koud wit | 5600K | High CRI

Log in of registreer om uw korting te zien.
Of vraag vrijblijvend een offerte aan.

Demo? Bezoek onze showroom of maak een afspraak voor een demo op locatie.

Wij zijn er voor de professional. Totaal leverancier stage & entertainment

Deskundig advies op maat. Wij denken graag met je mee.

Gespecialiseerd in projectie. Voor elke project een oplossing.

Functional Overview
TV LIGHT PANEL 2000 series with outstanding floodlight and soft light, widely applied to photographic studio, TV station, conference room, shopping mall; Battery backup for user operation without connecting to the mains.

Features
Light Source: 480pcs cool white LED
Color Temperature: 5600±250K
Beam Angle: 130°
Flicker free management

Technical & Specification
Model
LP-F2000 CW

Light Source
Light Source: 480pcs cool white LED
LED life expectancy: 20000 hours
Color Temperature: 5600±250K

optical Systemand Effects
Beam Angle: 130°
CRI:≥94
CQS:≥94
TLCI:≥95

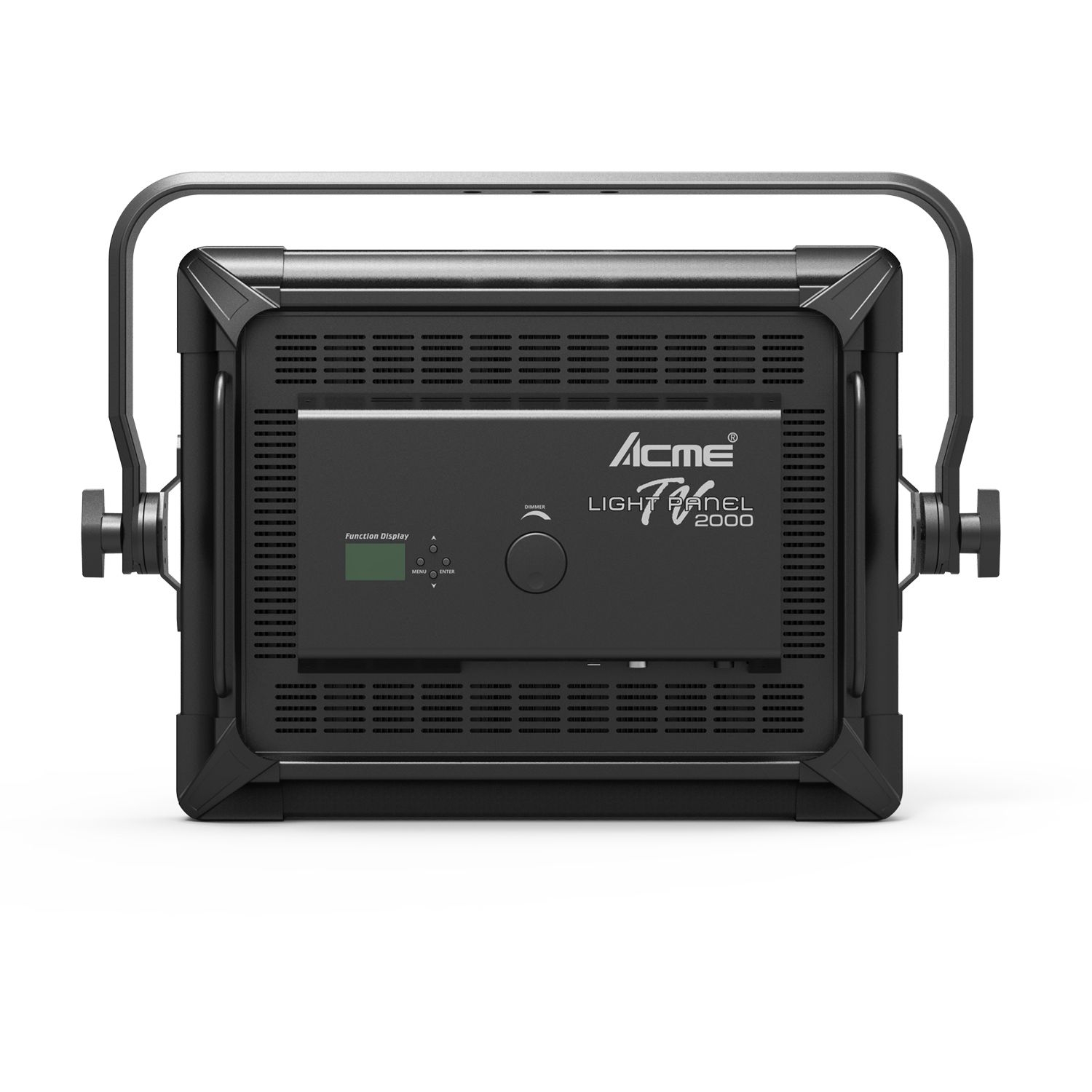

Controland Program

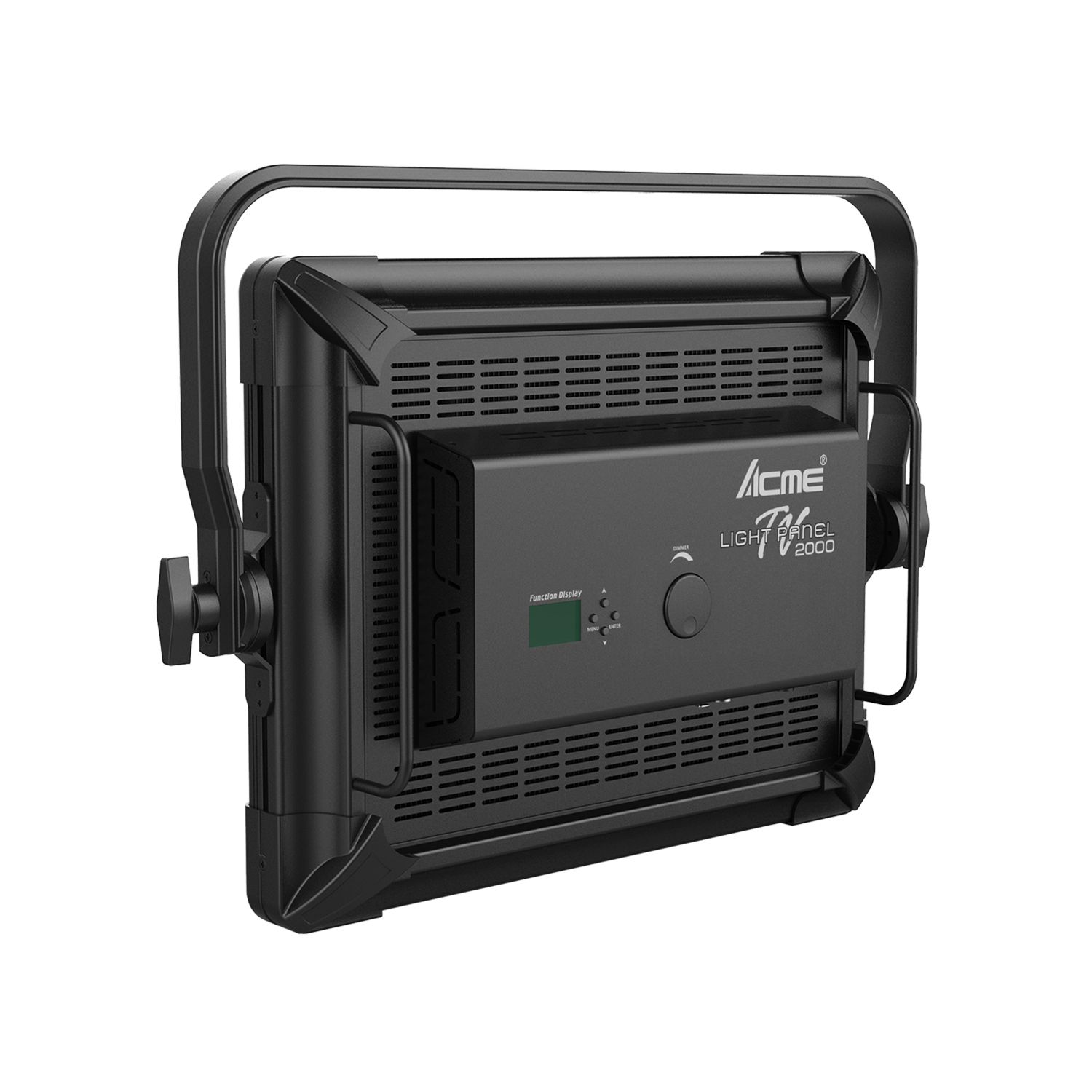

4-buttons, 1-knob
Display: LCD display
Protocols: DMX512, Master/Slave, Art-Net
DMX Protocol modes: 4
Controlchannels: 1,2A,2B,3
Upgrade the firmware via DMX link

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100–240 V, 50/60 Hz
Power consumption: 186 W

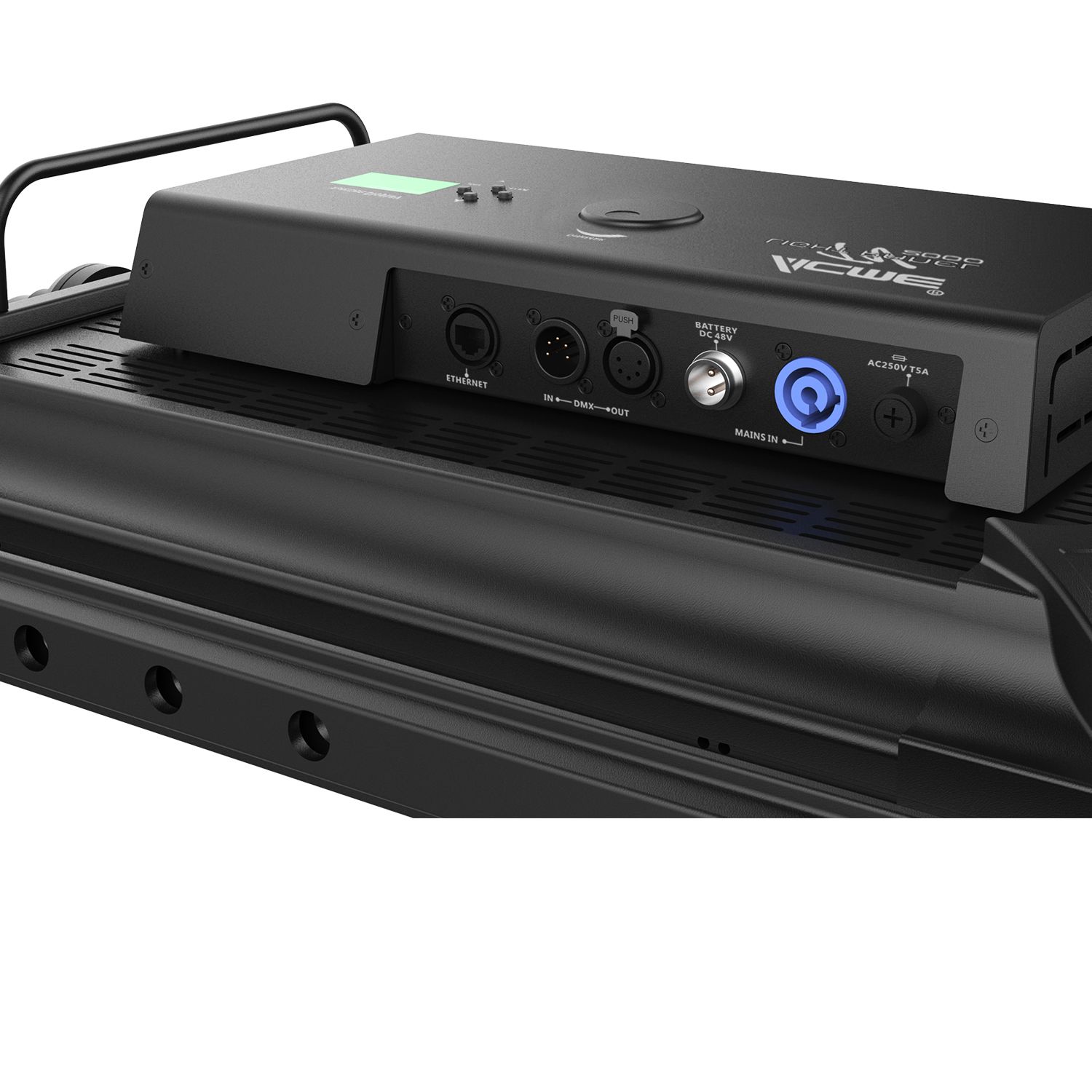

Power in/out: Power Connector input
48V input from external battery
Data in/out: 5-pin XLR
Art-Net input: RJ45

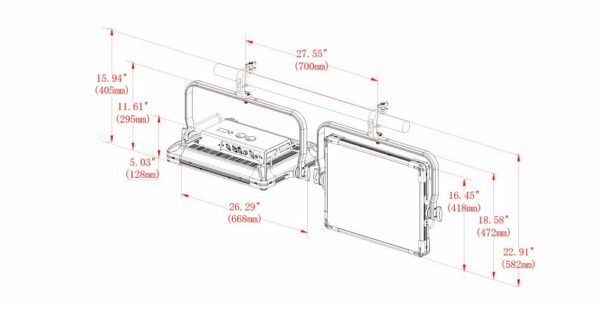

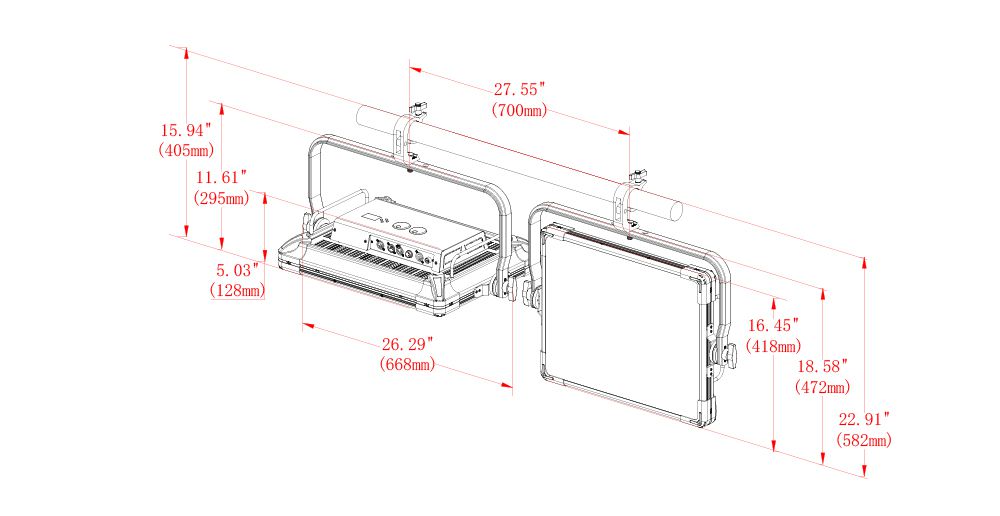

Fixture Specification
Height: 487 mm (19.1″)
Width: 148 mm (5.8″)
Depth: 668 mm (26.2″)
Weight: 10 kg (22.0 lbs)

Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Approvals
CE Compliant

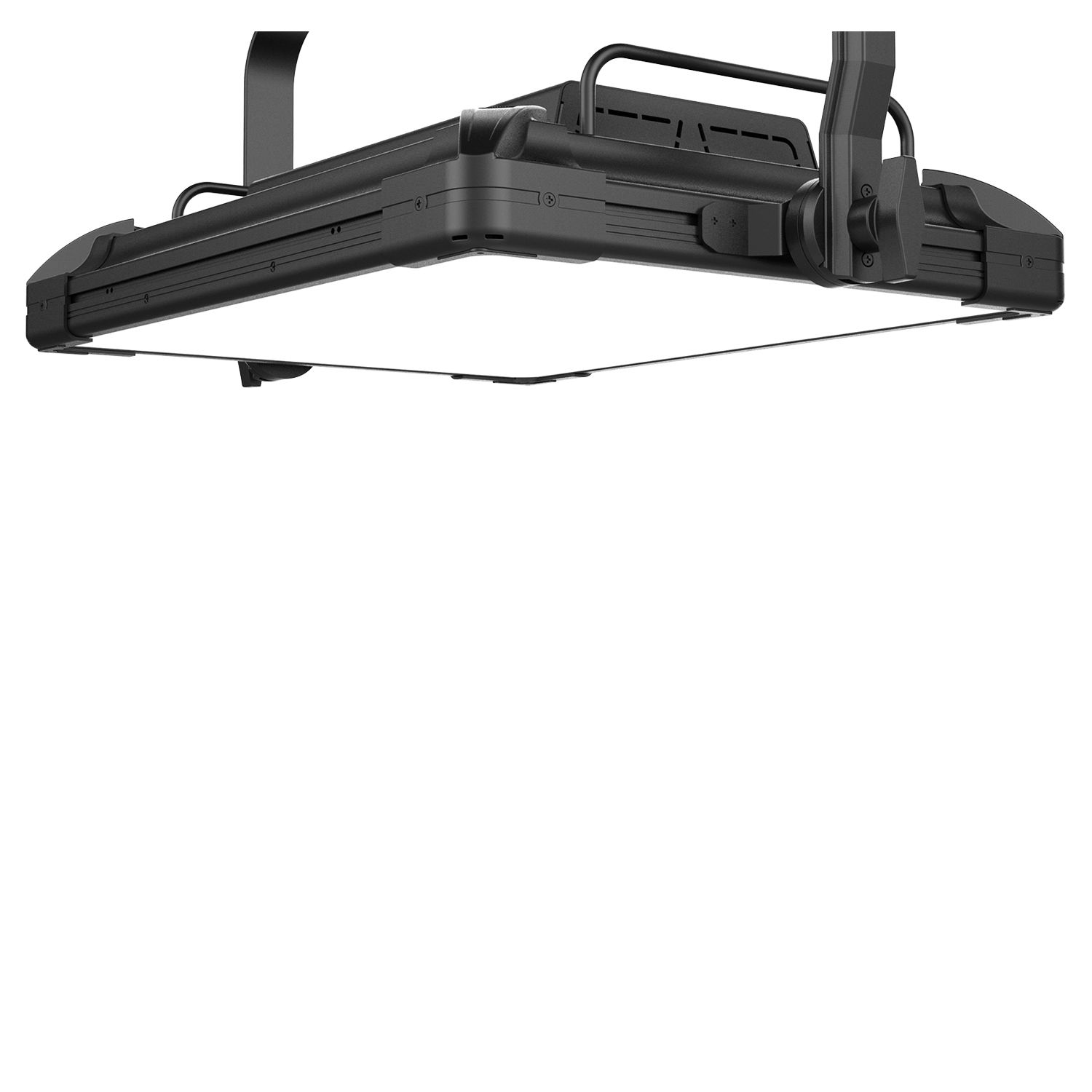

Installation

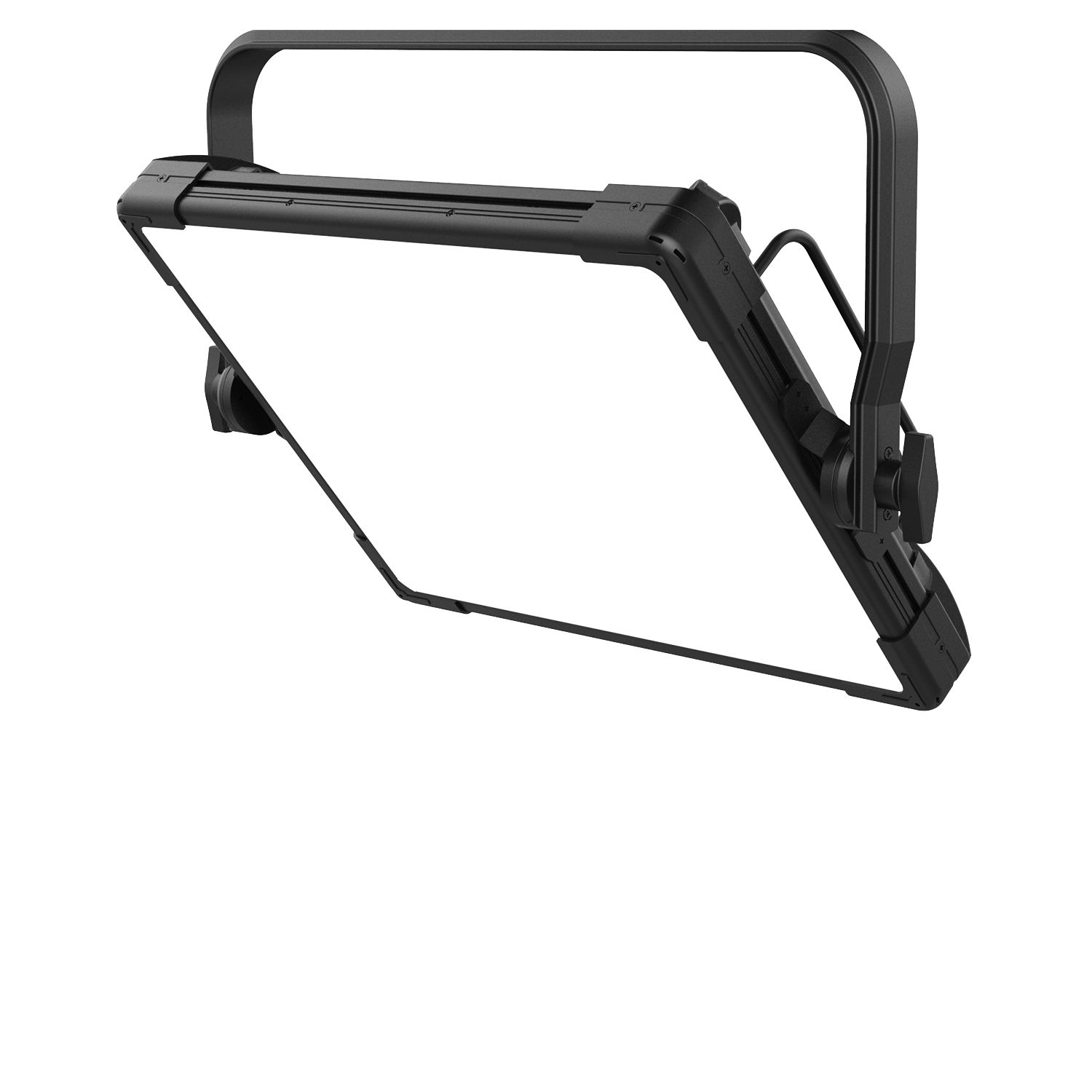

Horizontally or vertically mounting are available
Operating position is universal

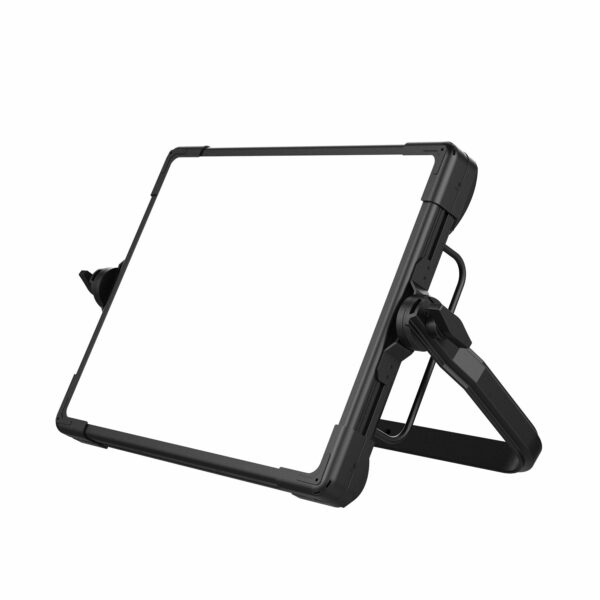

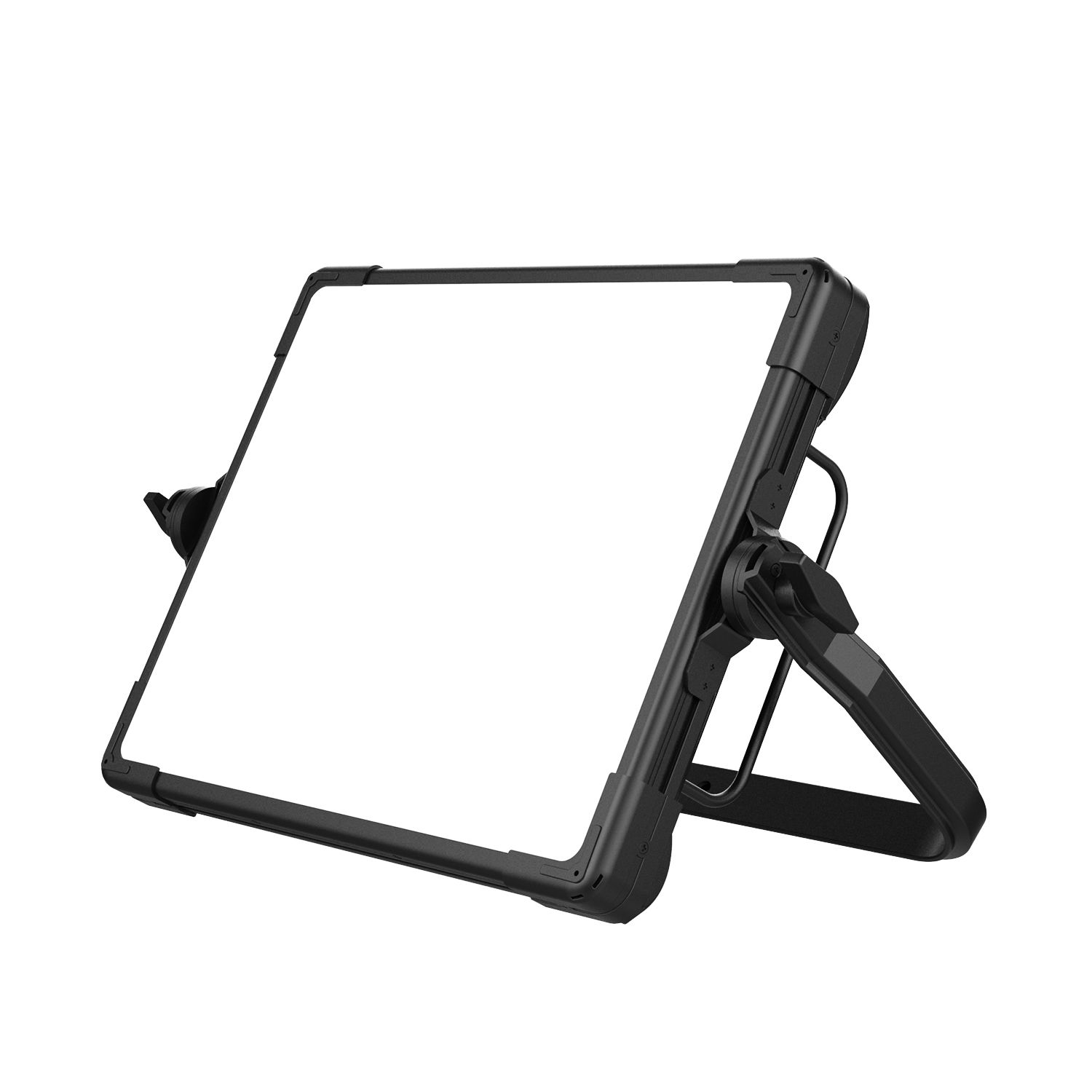

The feet support with 3 locking points
Safety cable attachment point

Included Items
Power Cable
User Manual

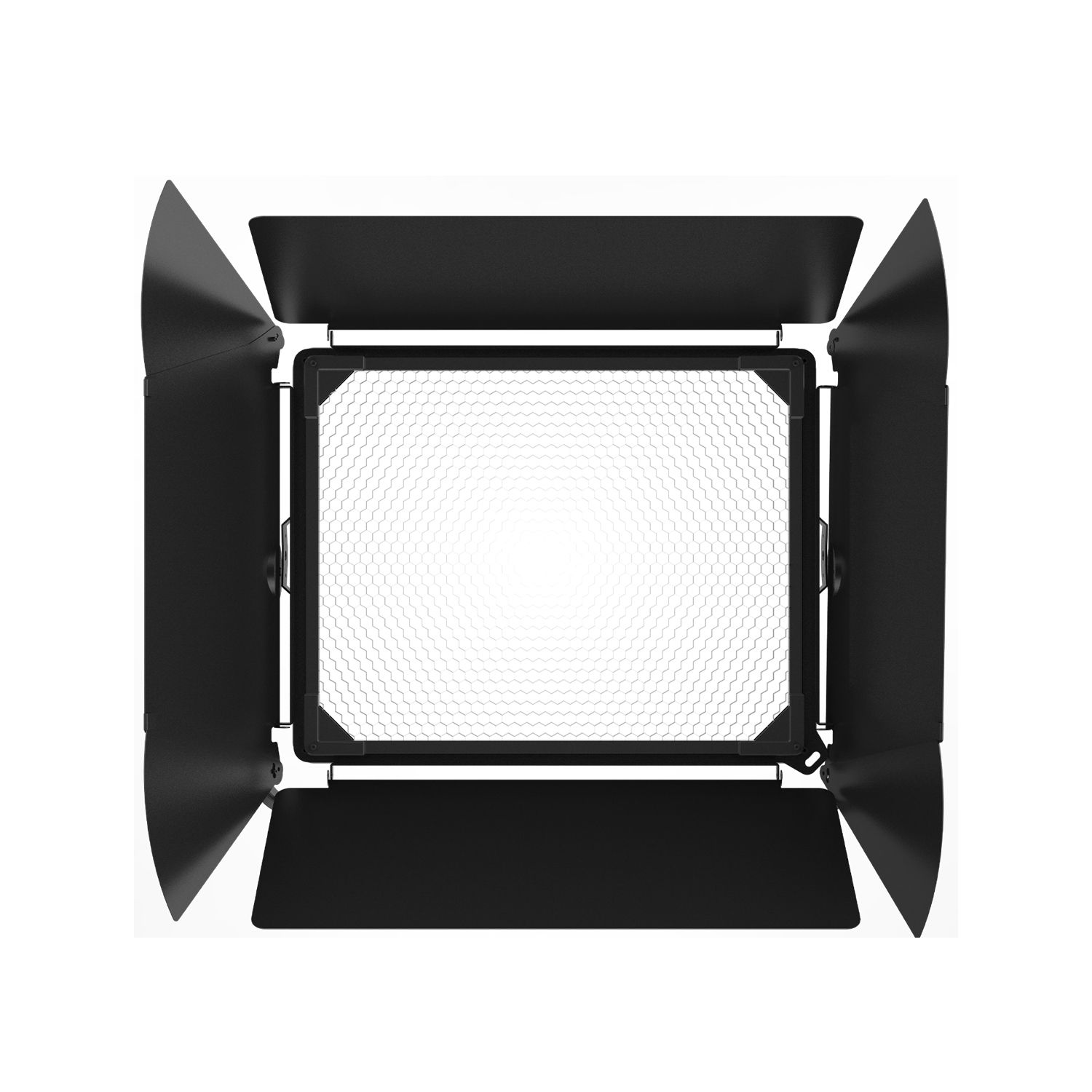

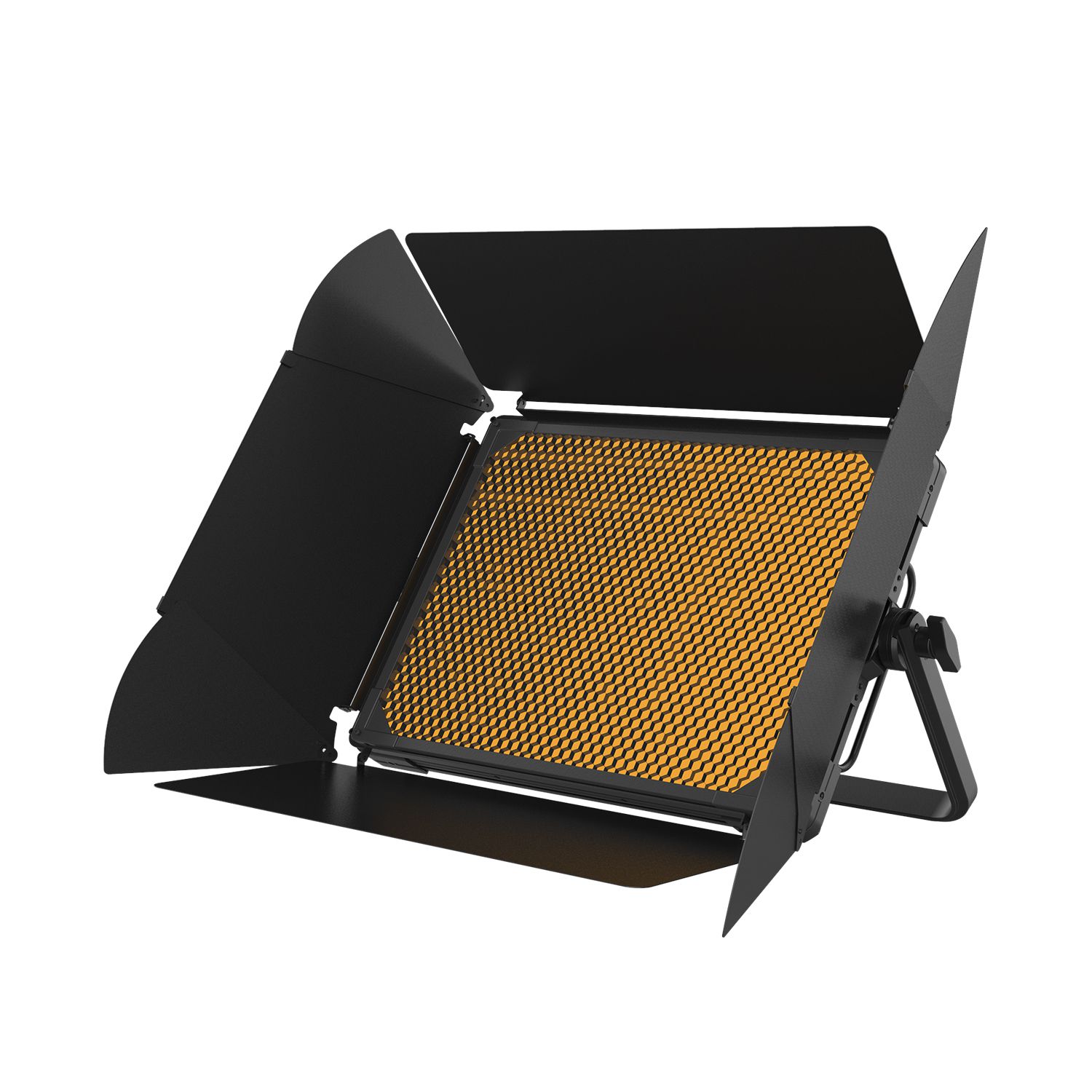

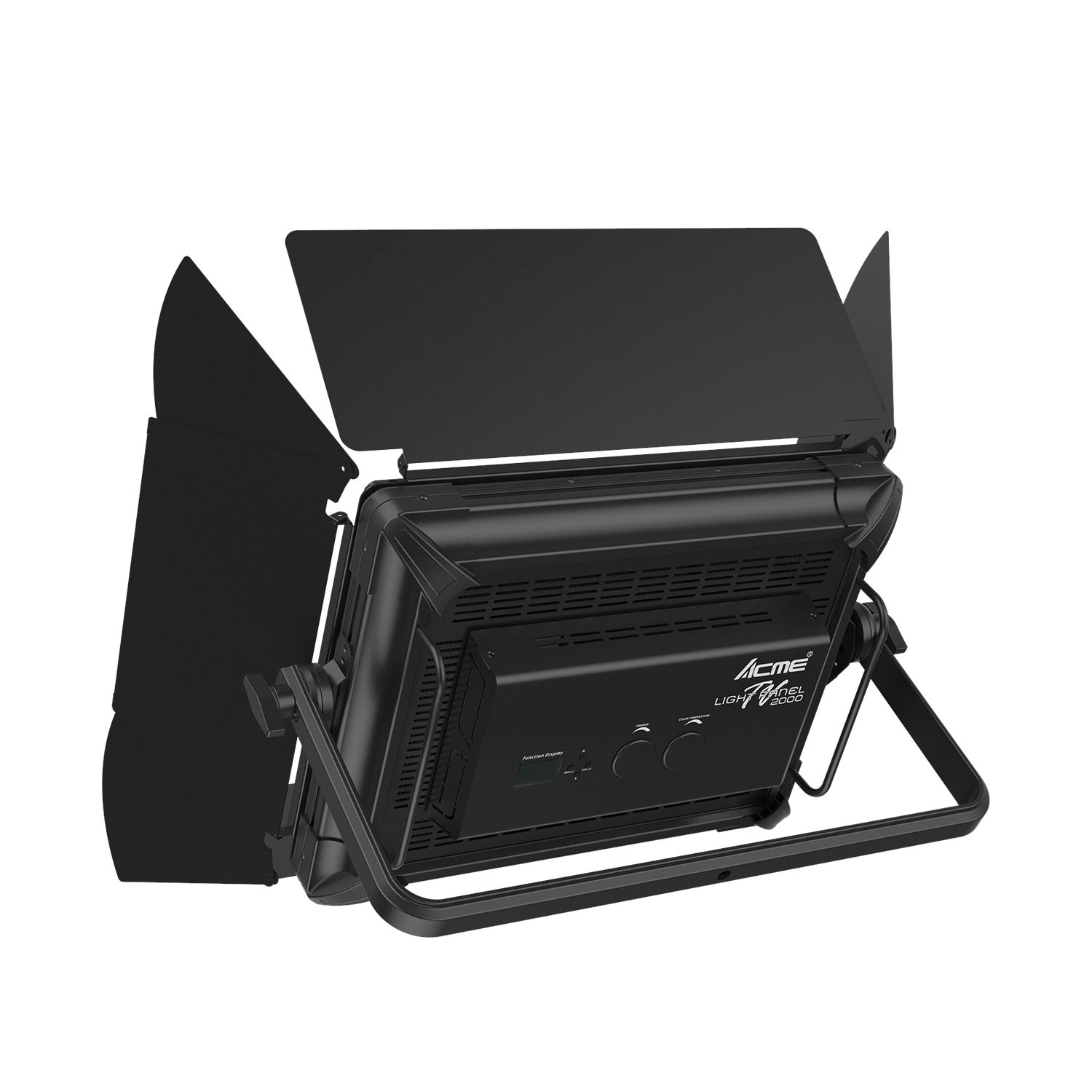

Barn door

Optional Accessories (with item code)
Clamp:2060001614(C-250)
Signal Line:5-pin signal line
Safety cable: 2060000200(SW-02)

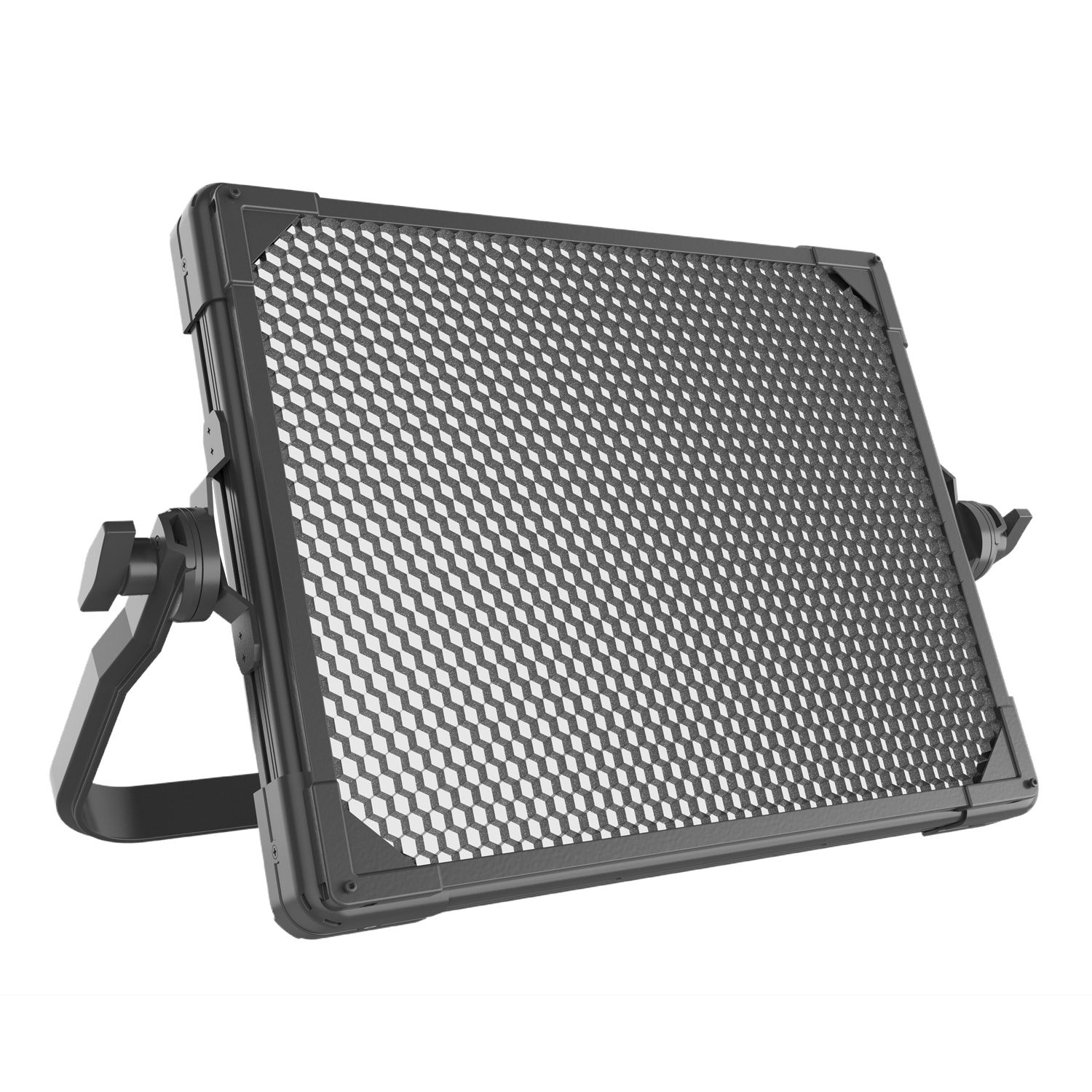

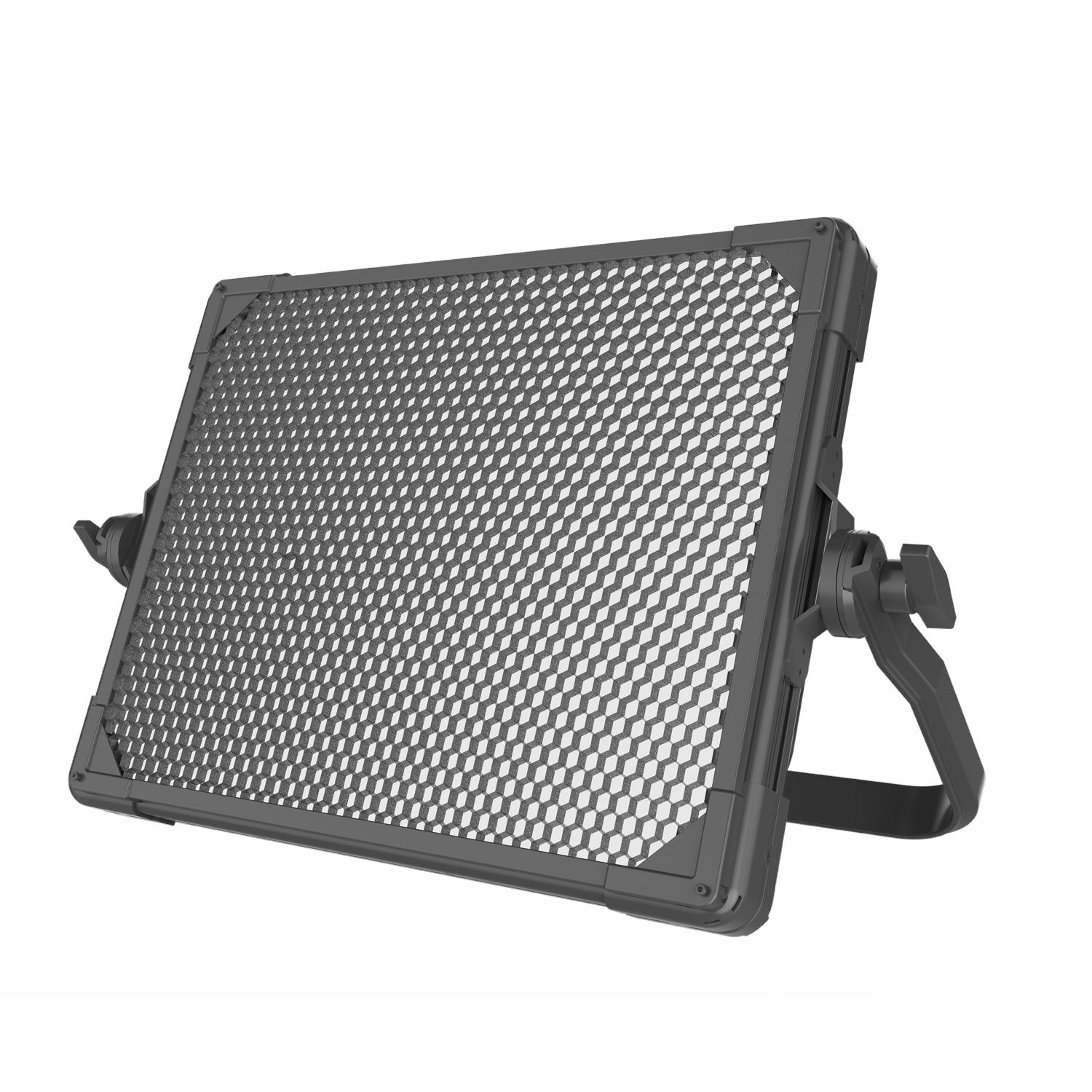

Cellular grid:
63580912(20mm thick)
63580913(10mm thick)

IP-Rating

Indoor

Type lichtbron

LED

Vermogen

Vermogen Lichtbron

180

Eigenschappen

Kleurmenging

CW

Type Fixture

Panel

Min zoom

110

Max zoom

110

Type

Kleur
