Functional Overview

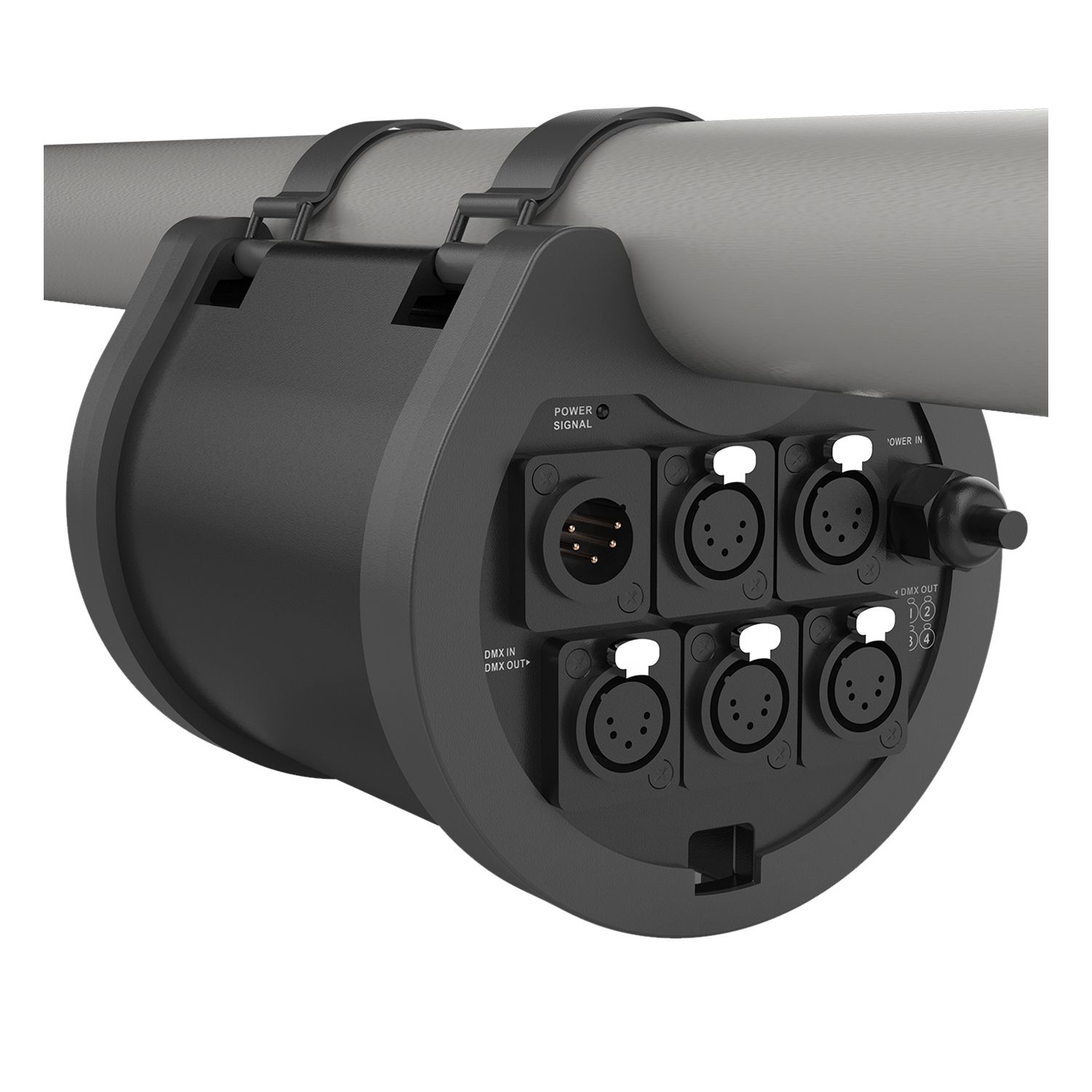

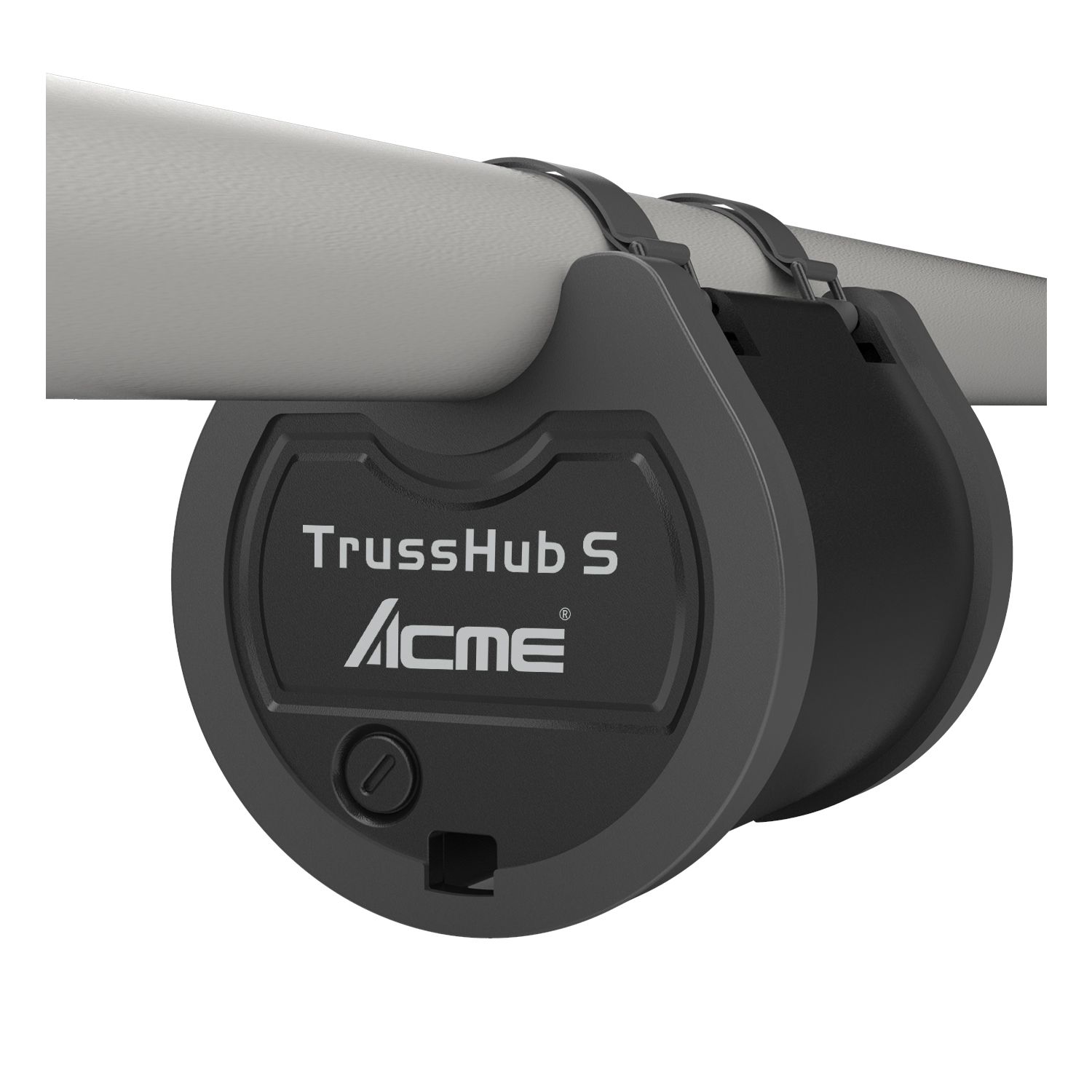

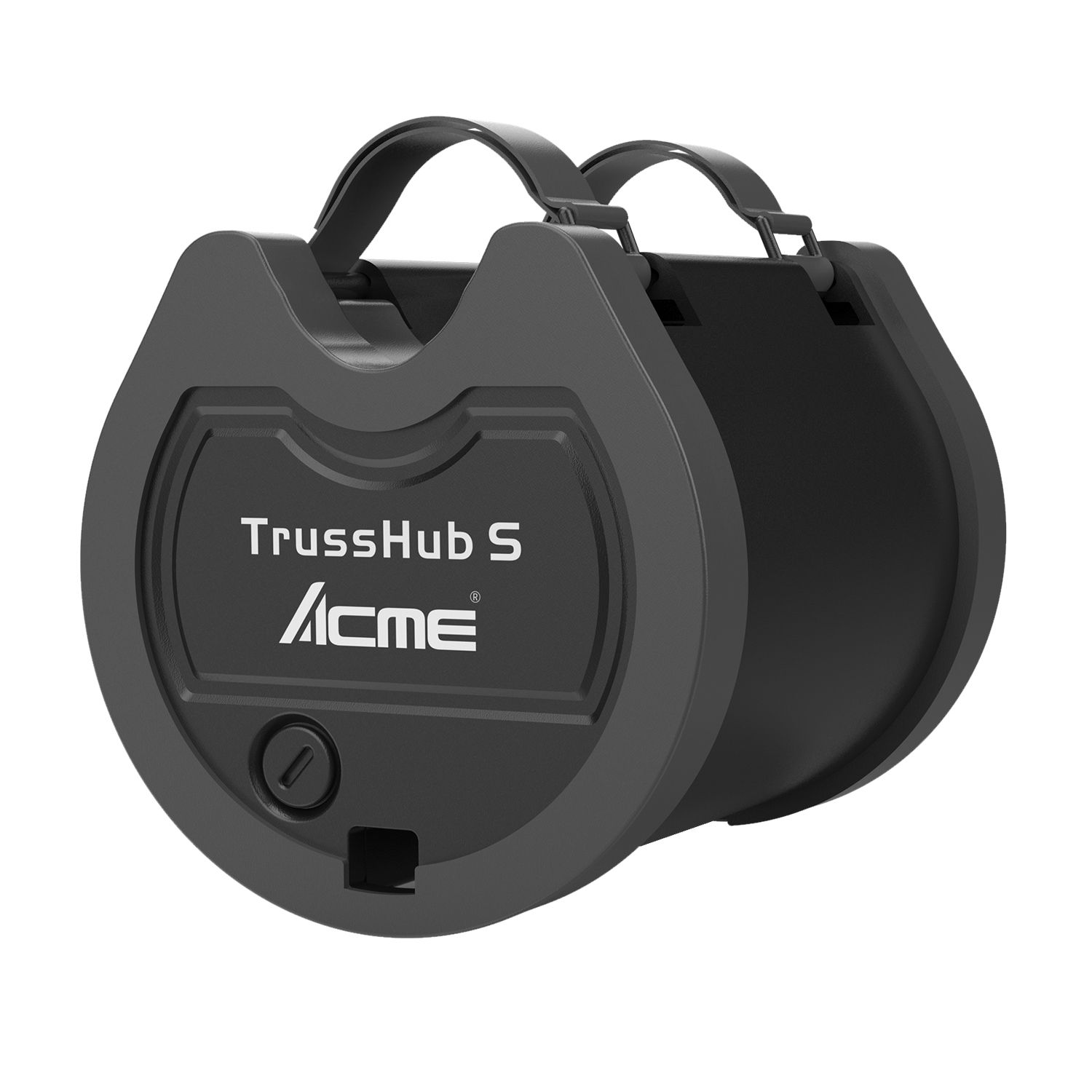

The TRUSSHUB S (CA-RS14T) is a 4-way DMX-512 (RDM) signal amplifier and splitter, dedicated to DMX-512 signal amplification and splitting. Designed for connection of DMX receivers (moving heads, color changers, dimmers etc.), the unit is protected by shock-absorbing rubber edging on both sides. Available for 40mm, 50mm or 60mm diameter truss, it is suitable for applications in which the DMX-512 signal is weakened over long-distance transmission. The TRUSSHUB S, with its IP66 waterproof protection, works perfectly indoors or out, efficiently buffering and magnifying the DMX signal, ensuring the DMX data transmission is accurate and reliable.
Features
4-way DMX Splitter (RDM)
Shock-absorbing design with rubber edging on both sides
Available for 40/50/60mm diameter truss
Includes two straps to attach securely to truss
Protection Rating: IP66
Technical & Specification
Model
CA-RS14T
Electrical and Connectors
Power supply with electronic auto-ranging
Display: OLED display
Input voltage range: AC 100-240V, 50/60Hz
Power consumption: 5W
Power in/out: Power cord out

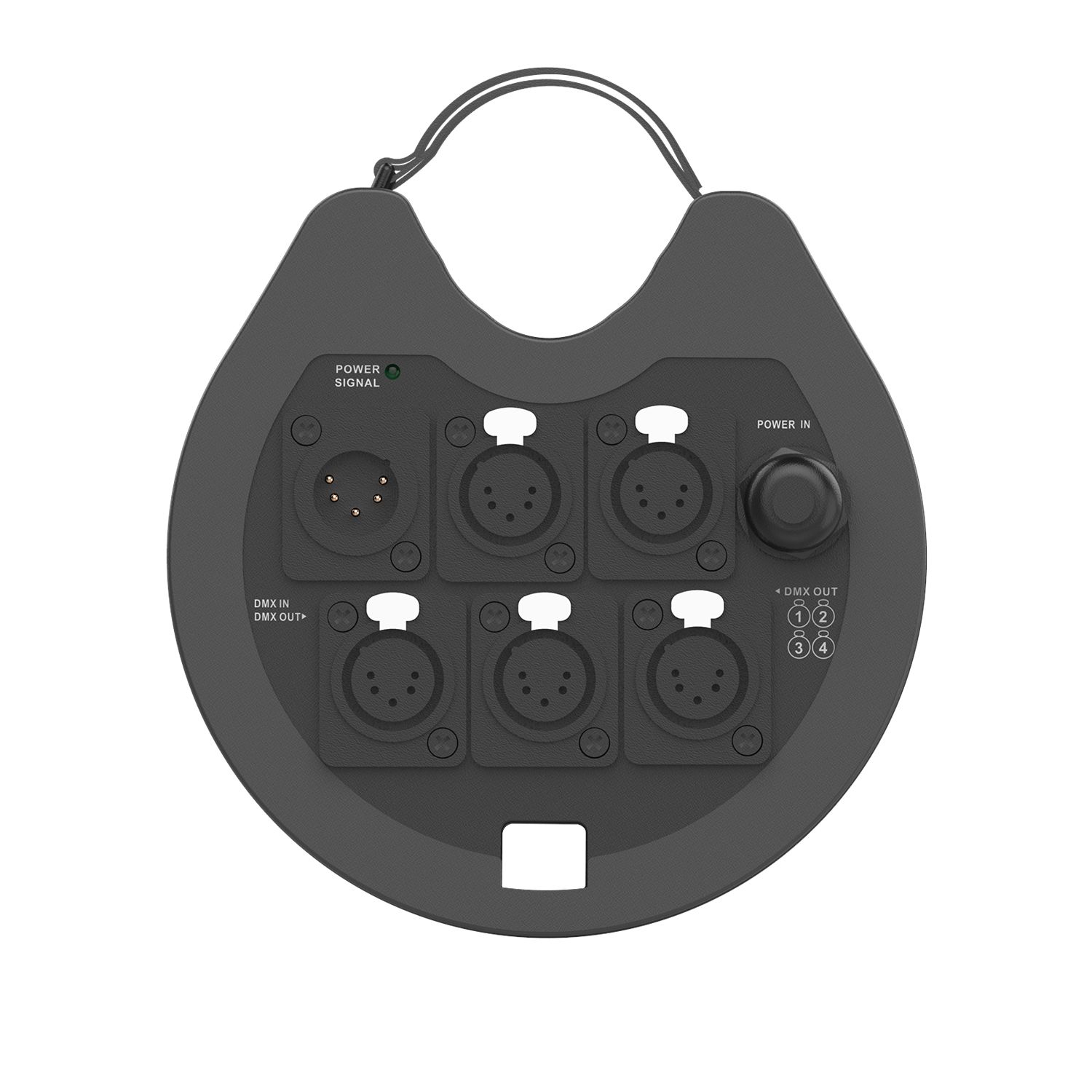

Data in/out: 3-pin or 5-pin IP XLR

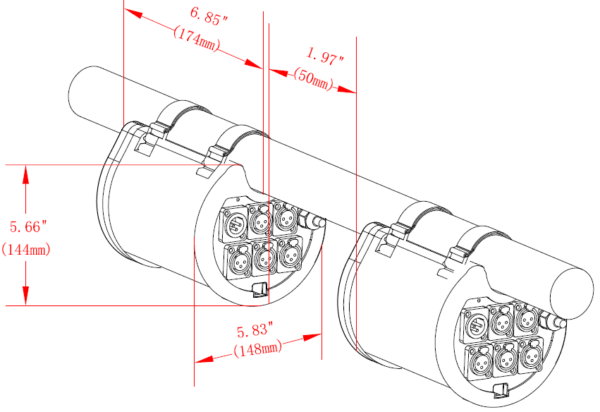

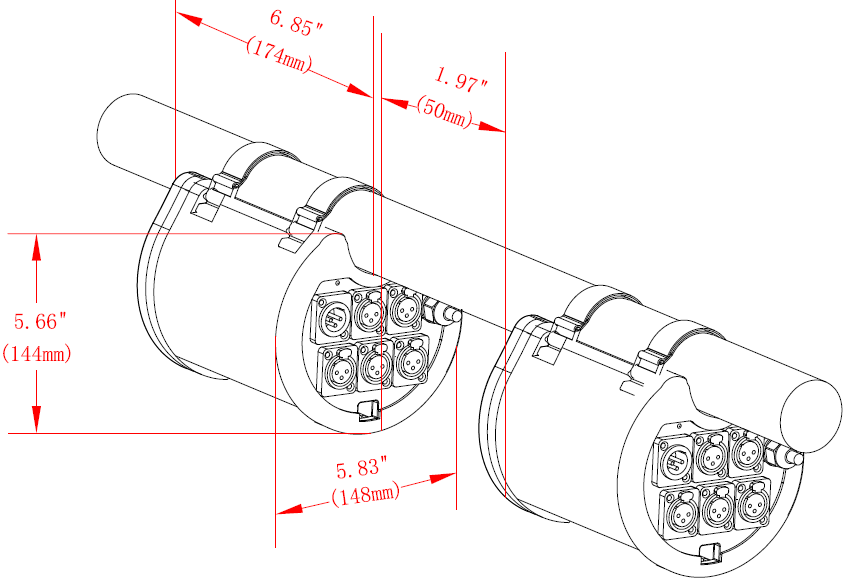

Fixture Specification
Height: 144mm (5.7”)
Width: 148mm (5.8”)
Depth: 174mm (6.9”)
Weight: 1.82kg (4.0lb)
Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IP66
Approvals
CE compliant (pending)
Installation
Shock-absorbing design with rubber edging on both sides

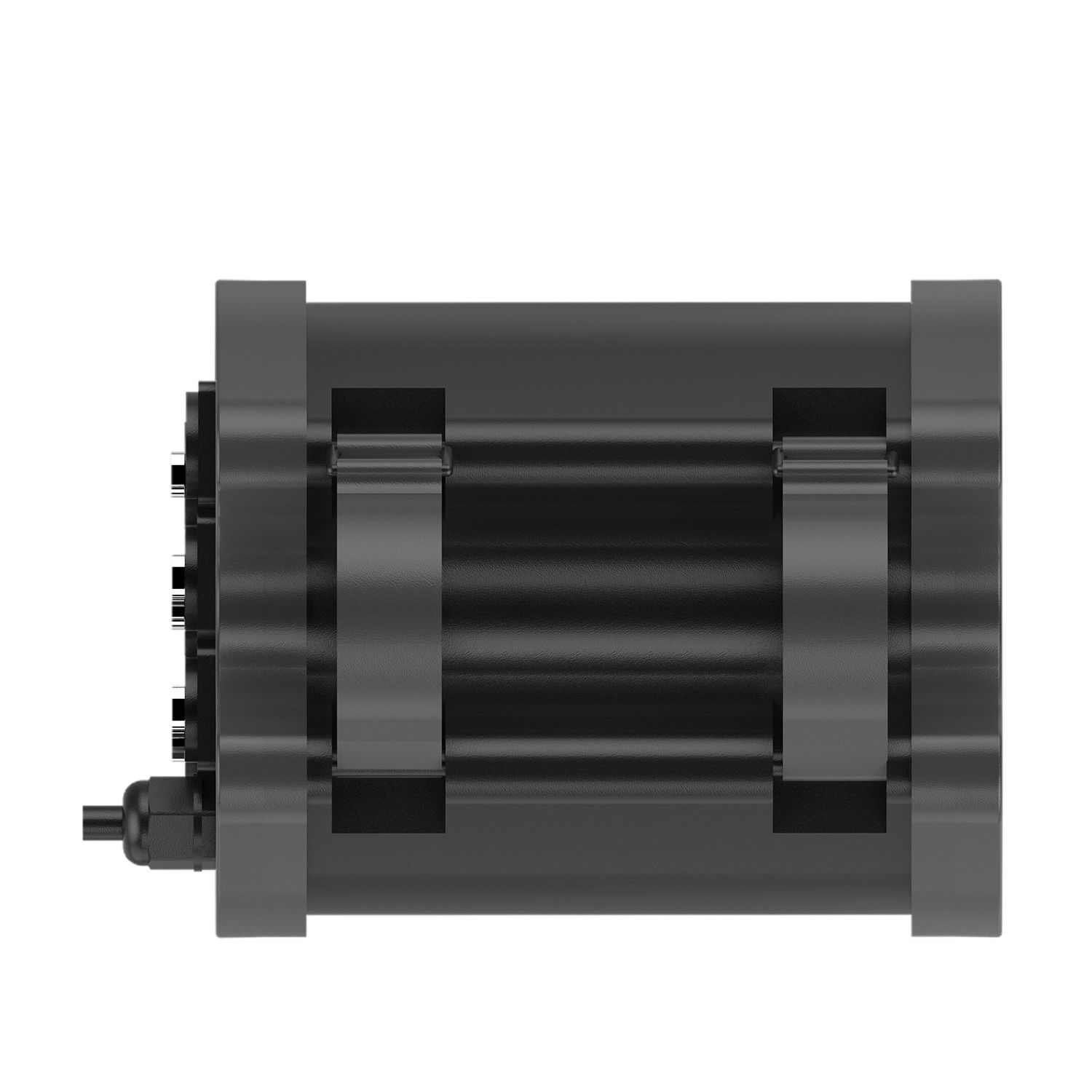

Includes two straps to attach securely to truss
Safety cable attachment point
Included Items
User Manual
Power Cable
Optional Accessories (with item code)
Signal line: 3-pin or 5-pin signal line
Safety cable: 2060000200 (SW-02)
