Acme THUNDER ROAR

Adviesprijs 1.349,26 excl.btw

48x15W | LED | Strobe | RGBW | Zone control | IPX4 | Modulair

Product prijs
Optie(s) totaal:
Totaal:
Winkelmand bekijken

Beschrijving

Functional Overview

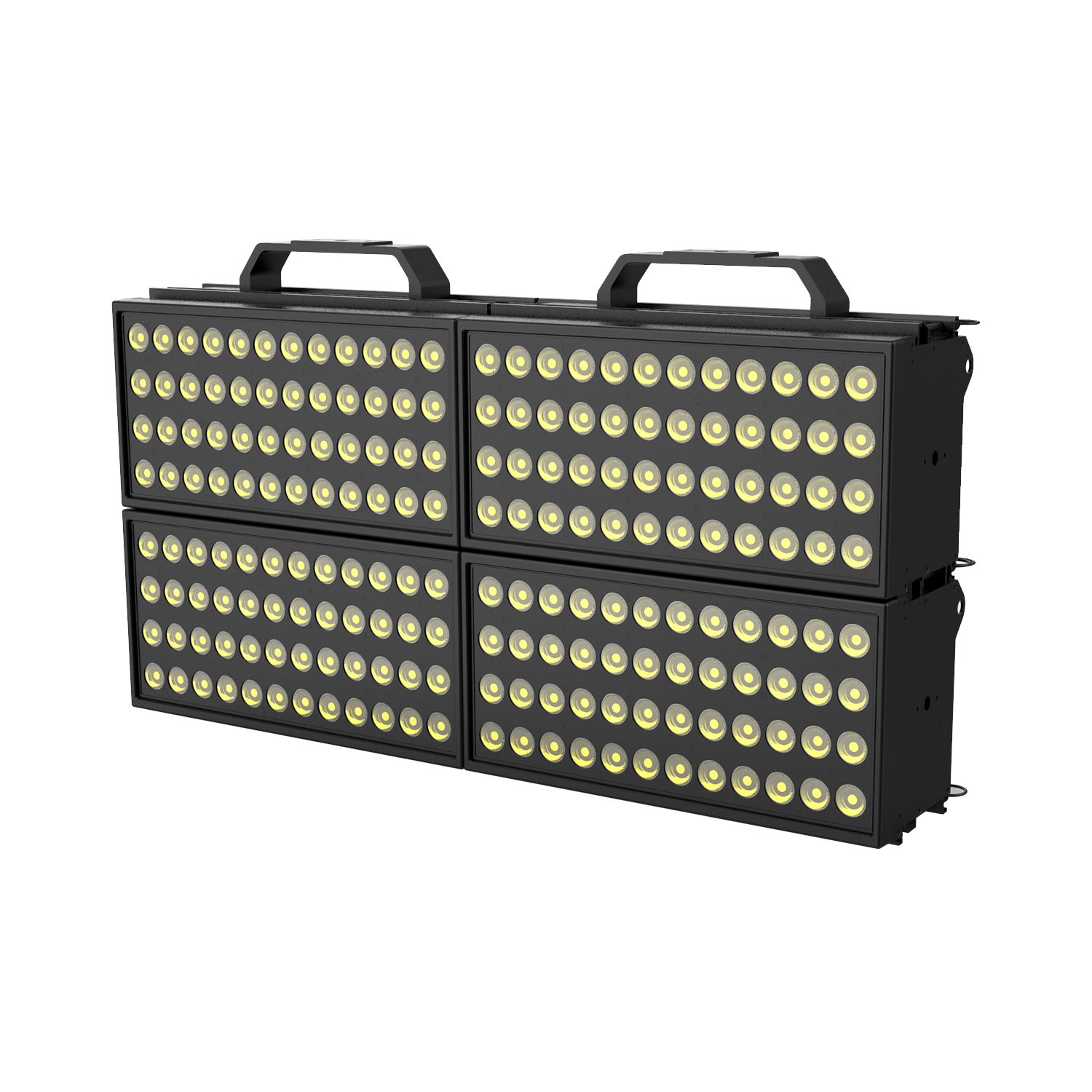

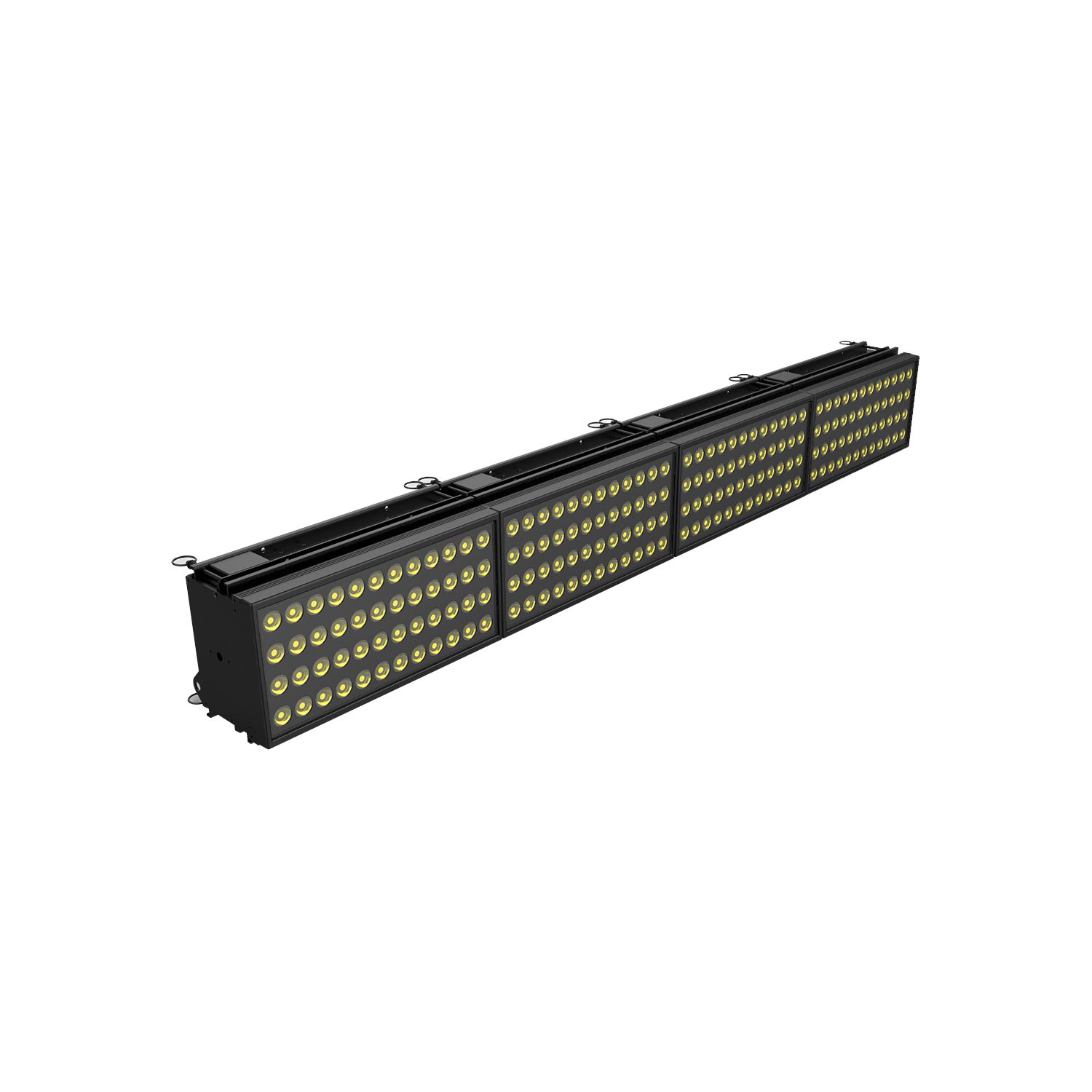

The newcomer ACME THUNDER ROAR, is another reliable partner to your stage lighting. The compact body weighs only 10.5kg while carries strong power. Equipped with 48pcs RGBW 15W LED, Thunder Roar is a high-performance luminaire that can create the outstanding strobe and colorful washing effect. The whole led panel can be divided into 16 zones and each can becontrolled individually. To meet your different beam angle demands, you are able to have 3 optional beam angle lenses at 16°, 31° and 45° in order. Fitted with the special patented plug and bracket, the Thunder Roar can be easily combined with each other or other BL200 series by horizontal or vertical Installation, or rigging without any tools. What’s more, splashing protection of the whole fixture would be a bonus in some applications.
Features
Light Source: 48pcs 15W RGBW LED
Beam angle:16°/31°/45°(three options)
16 zones LED plates can becontrolled individually; High brightness, outstanding washing effect; Powerful strobes effect with variable speed
Small size, light weight
High resolution dimmer, 0–100%
Flicker-free management
Protection Rating: IPX4
Connected quantity:
Maximum QTY of Power supply connecting mode:
sets in 120V,60Hz
230V,50Hz

Technical & Specification
Model
BL-200 CS

Light Source
Light Source: 48pcs 15W RGBW LED
LED life expectancy: 20,000 hours

optical System& Effects
Beam angle:16°/31°/45°(three options)

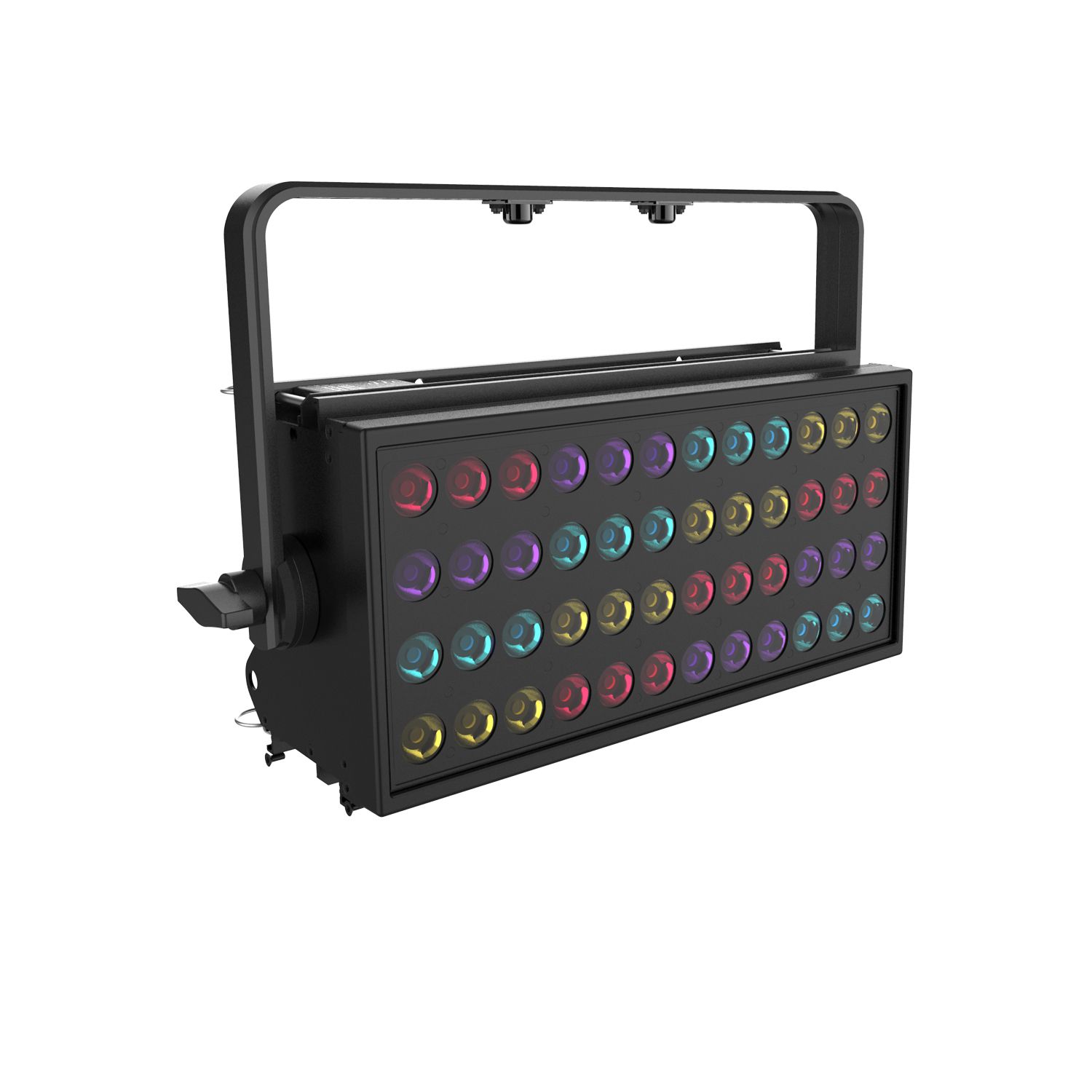

RGBW colour mixing
16 zones LED plates can becontrolled individually
High brightness, outstanding washing effect
Powerful strobes effect with variable speed
High resolution dimmer, 0–100%

Appearance
Small size, light weight
With black enclosure
Its head with handle, easy for carrying

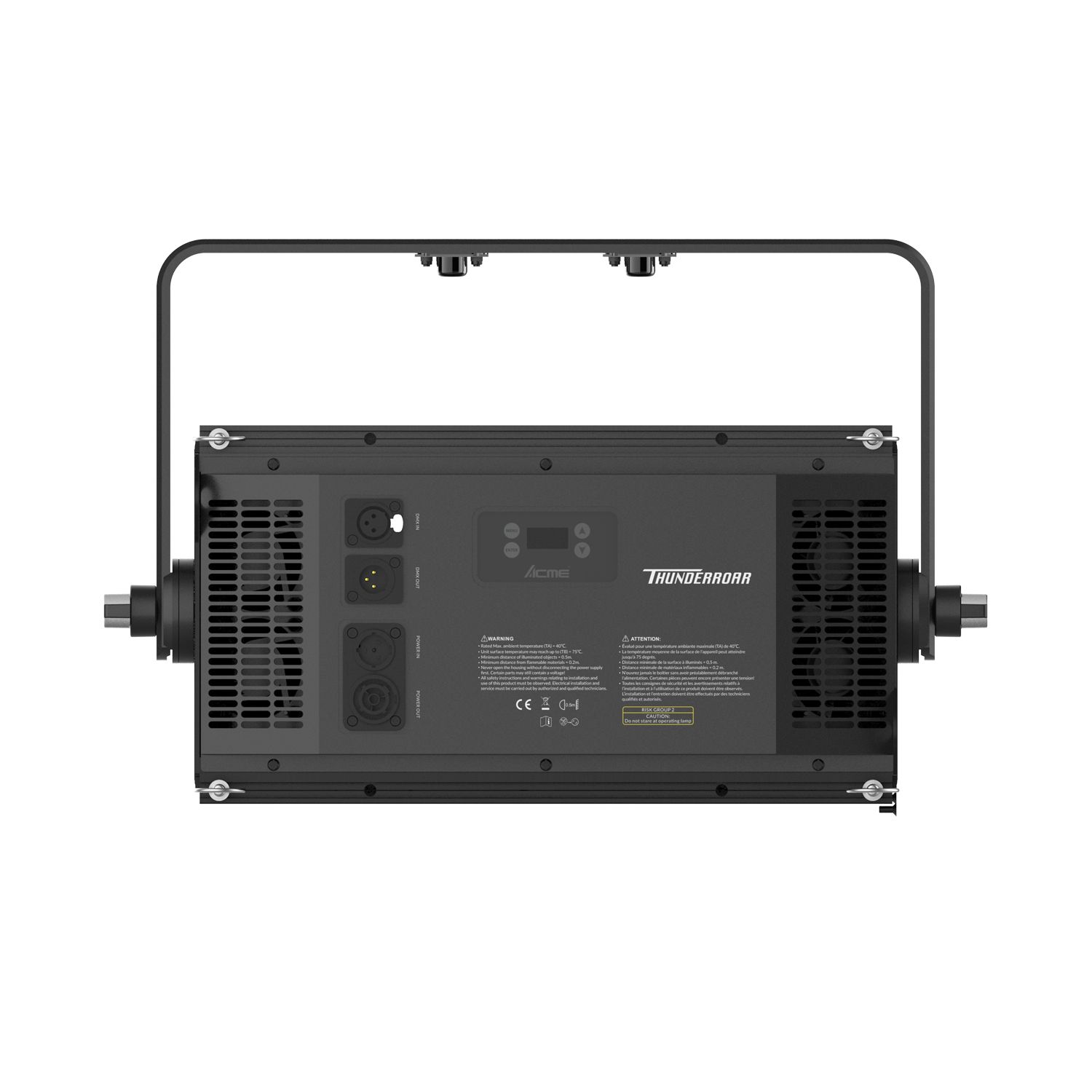

Controland Program
4-button touch panel
Display: OLED display
ControlMode: DMX512,RDM
DMX Channel:
5/10/8/9/68 channels
1 /2V/2H/4V/4H/4C/8V/8H/16 pixels
Upgrade the firmware via DMX link

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240V, 50/60Hz
Power consumption: 710 W
Power In/Out: Waterproof Power Connector in/out
Data in/out: 3-pin or 5-pin IP XLR

Fixture Specification
Fixture dimensions:
Height: 318 mm (12.5″)
Width: 503 mm (19.8″)
Depth: 183 mm (7.2″)
Fixture Net Weight: 10.5 kg (23.1 lbs)
With Carton(1 in 1): 11.7kg ( 25.8 lbs)
Carton dimensions:
Height: 405 mm (15.9″)
Width: 575 mm (22.6″)
Depth: 275 mm (10.8″)

Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IPX4

Installation
Horizontal or vertical mounting available
Operating position is universal

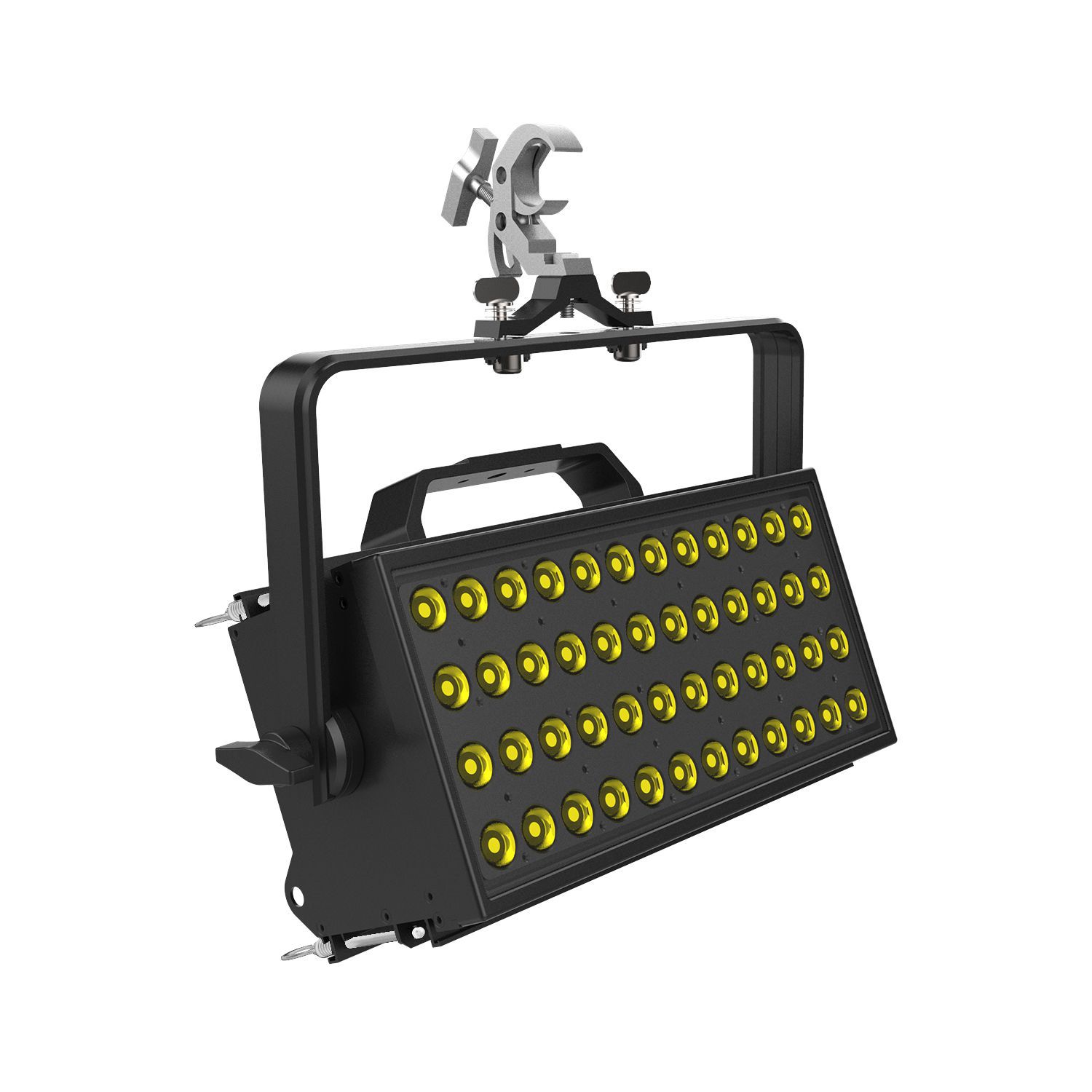

2 x Fast-locked clamps for 50 millimeter truss, install 1 or 2 clamps according to your demands.
Safety cable attachment point

Included Items
User Manual
Power Cable
Head with handle
2 x Fast-locked clamps for 50 millimeter truss

Optional Accessories (with item code)
Carton:3204126126(1 in 1)
Clamp: 2060001614 (C-250)
Safety cable: 2060001603-A (SW-05)
Signal Line:3-pin or 5-pin waterproof wire

Extra informatie

IP-Rating

Outdoor

Type lichtbron

LED

Vermogen Lichtbron

720

Kleurmenging

RGBW

Type Fixture

Strobe

Functies

Zone-aanstuurbaar

Min zoom

16

Max zoom

45

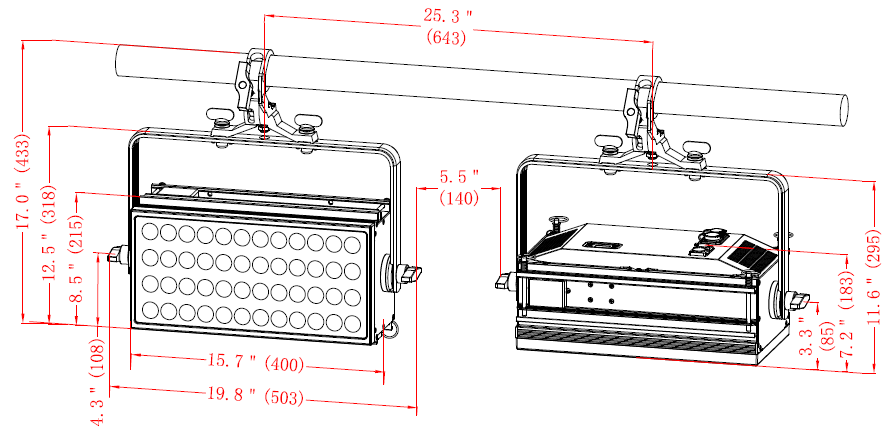

Afmetingen

afmetingen

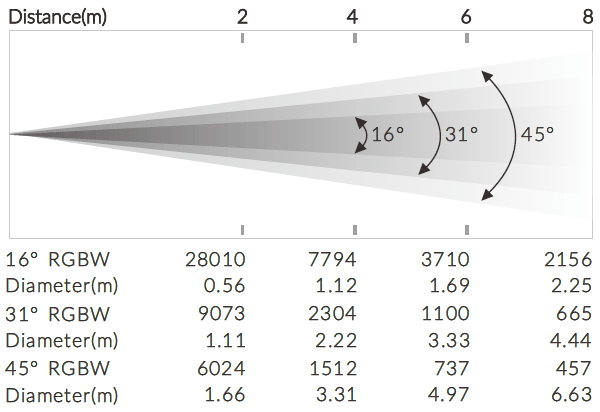

photometrics
