Acme THUNDER BREAKER

Functional Overview

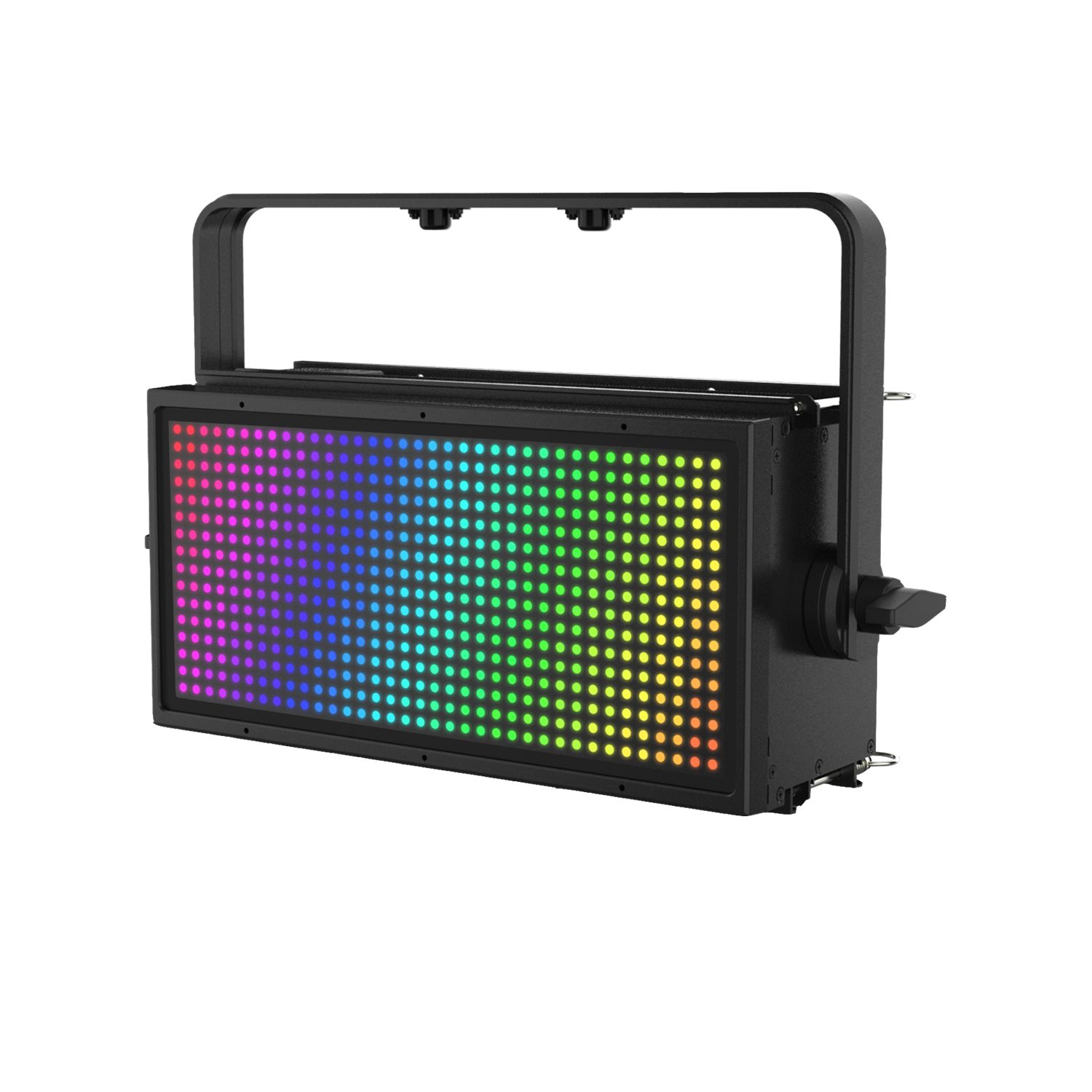

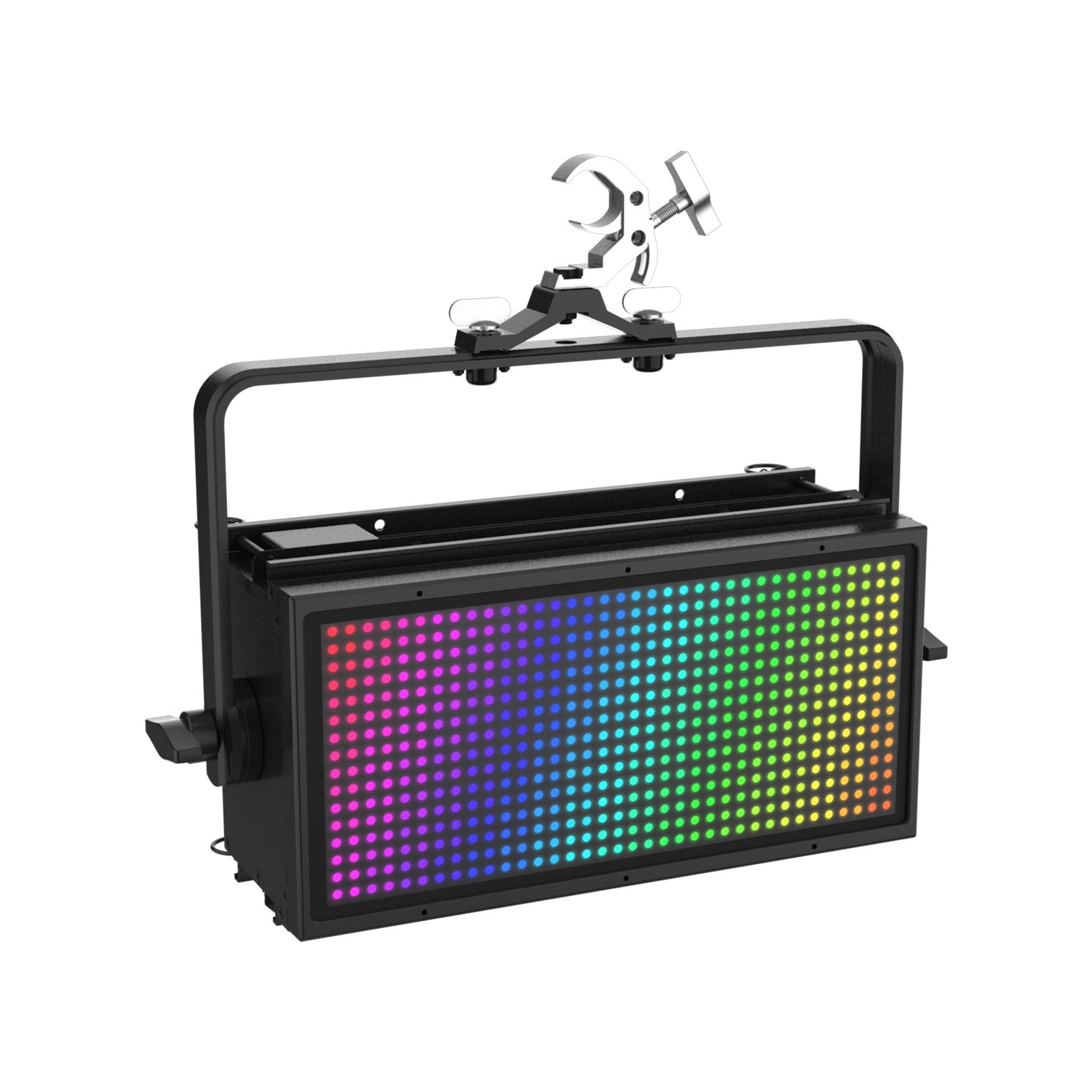

ACME THUNDER BREAKER is a LED strobe light ,small size and low weight, light output is higher than the traditional audience lamp. Features strong and variable speed strobe effect and the large-scale washing effect. It is composed of 144 led plates, each zone can be controlled individually, totally adopts 576pcs 0.7W LEDs, mix with Red / Green / Blue / White colors, to reach the outstanding washing effect. Its beam angle is 110° and spot angle is 150°, no doubt with 0-100% smooth dimming. Equipped with removable handle, easy to carry and install; embedded OLED display on the back, plus IPX4 waterproof rating, the whole fixture is splash-proof. The unique bolt splicing function can quickly achieve the horizontal and vertical assembly or hanging installation without using any tools, help you save the installation time and labor cost. THUNDER BREAKER can be used as the surface light, audience lamp and special effect lamp, which can make the performance more vivid and bring your emotions enter the performance quickly. It is very suitable for TV studios, concerts, theatres, outdoor performances and entertainment places, etc.

Features
Light source: 576pcs 0.7W RGBW LED
144 zones LED plates can be controlled individually
Outstanding strobe effect with variable speed
Small size, light weight
High resolution dimmer, 0–100%
Flicker-free management
Protection Rating: IPX4
Connected quantity:
Maximum QTY of DMX connecting mode: 32 sets;
Maximum QTY of Power supply connecting mode:
1 set in 120V,60Hz
2 sets in 230V,50Hz

Technical & Specification
Model
BL-200 VS

Light Source
Light source: 576pcs 0.8W RGBW LED
LED life expectancy: 20000 hours

Optical System & Effects
Beam Angle: 110°
Field Angle：150°
RGBW colour mixing
144 zones LED plates can be controlled individually
High brightness, outstanding washing effect
Outstanding strobe effect with variable speed
High resolution dimmer 0–100%

Appearance
Small size, light weight
With black enclosure , no gaps between the combination
Its head & bottom with handle, easy for carrying & transporting

Control and Program
4-button touch panel

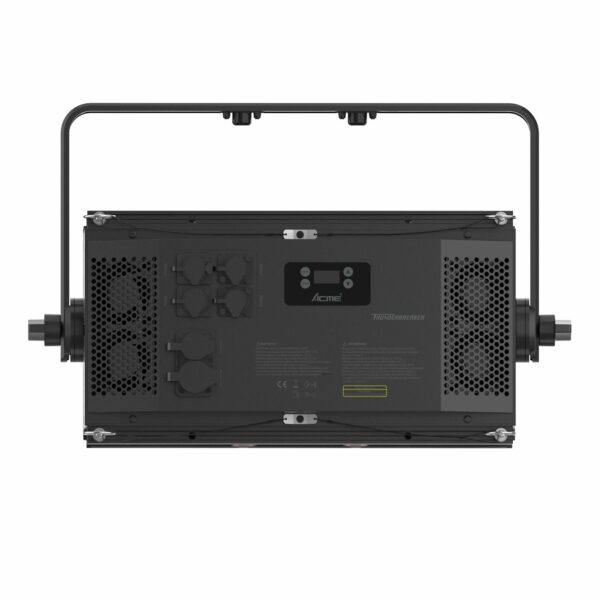

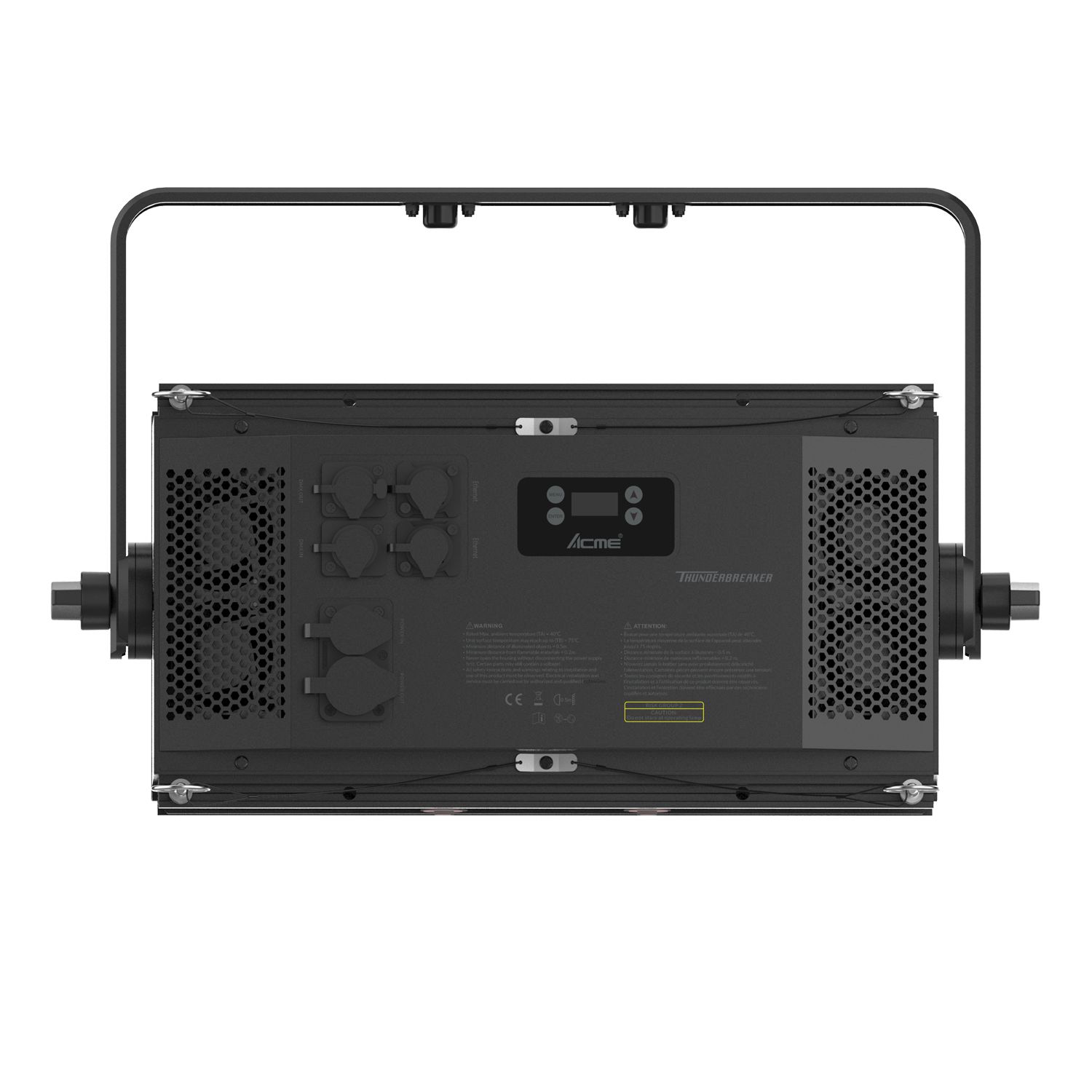

Display: OLED display
Control Mode: DMX512,RDM
DMX Protocol modes: 4, 52, 576
Upgrade the firmware via DMX link

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100~240 V, 50/60 Hz
Power consumption: 450 W
Power In/Out: Waterproof Power Connector in/out
Data in/out: 3-pin or 5-pin IP XLR

Fixture Specification

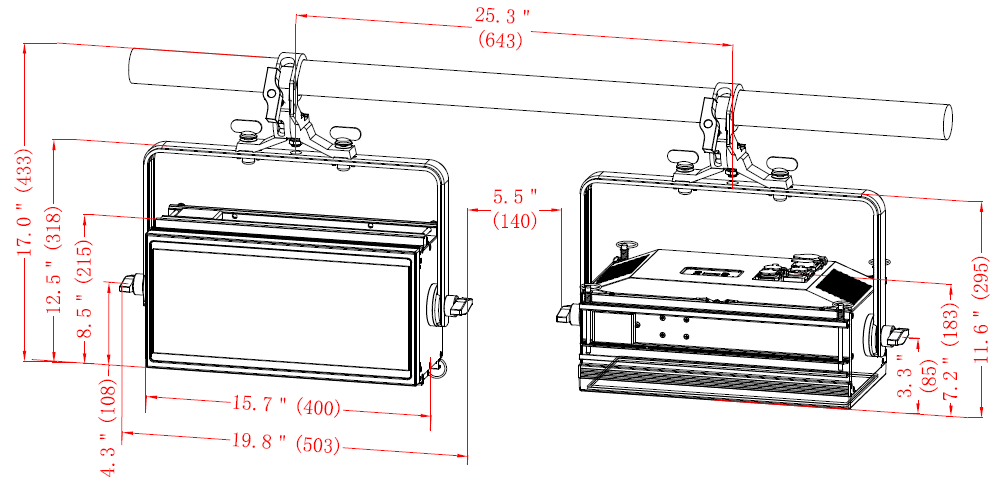

Fixture dimensions:
Height: 318 mm (12.5″)
Width: 183 mm (7.2″)
Depth: 503 mm (19.8″)
Weight: 10.5kg (23.1lbs)

Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IPX4

Installation

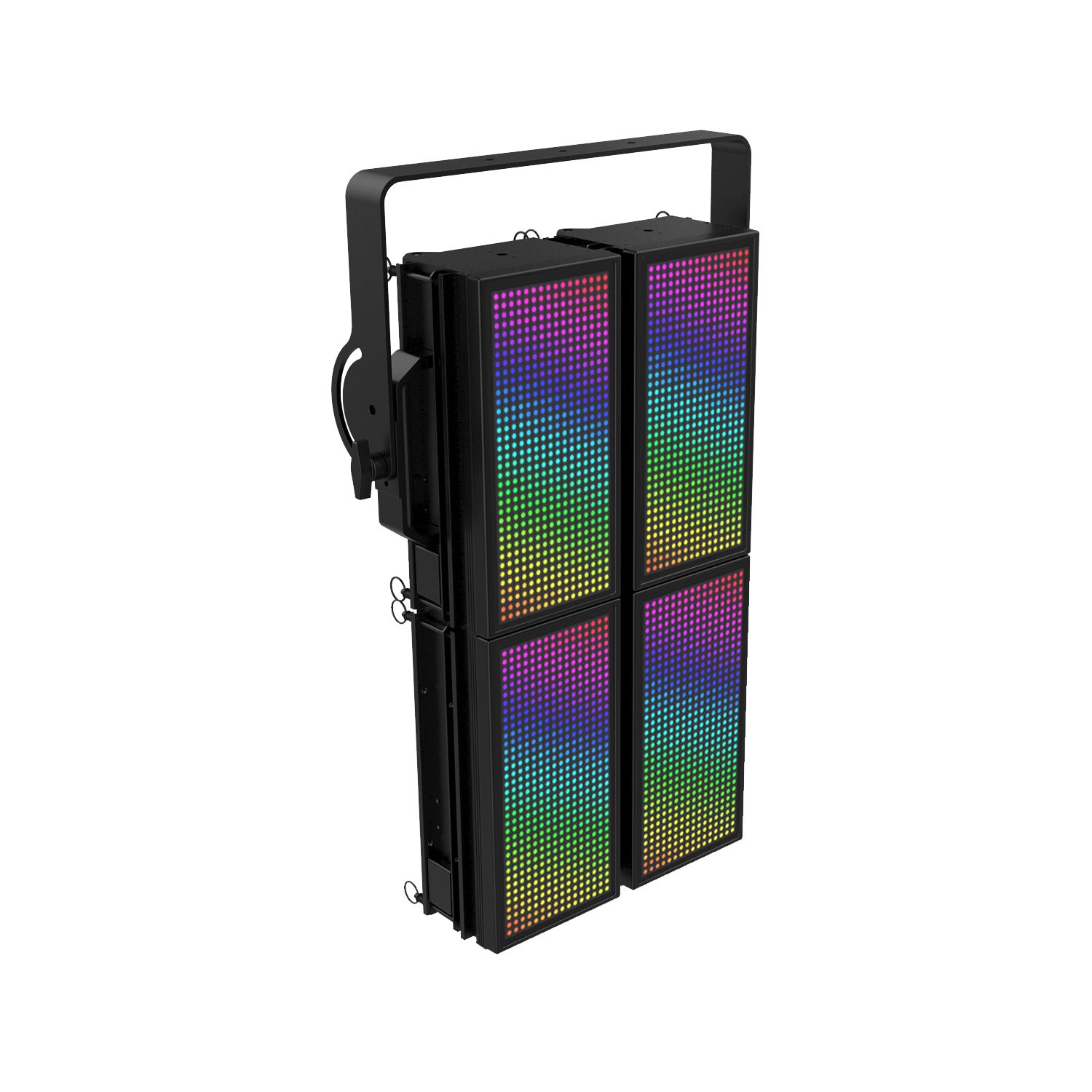

Horizontal or vertical mounting available
Operating position is universal

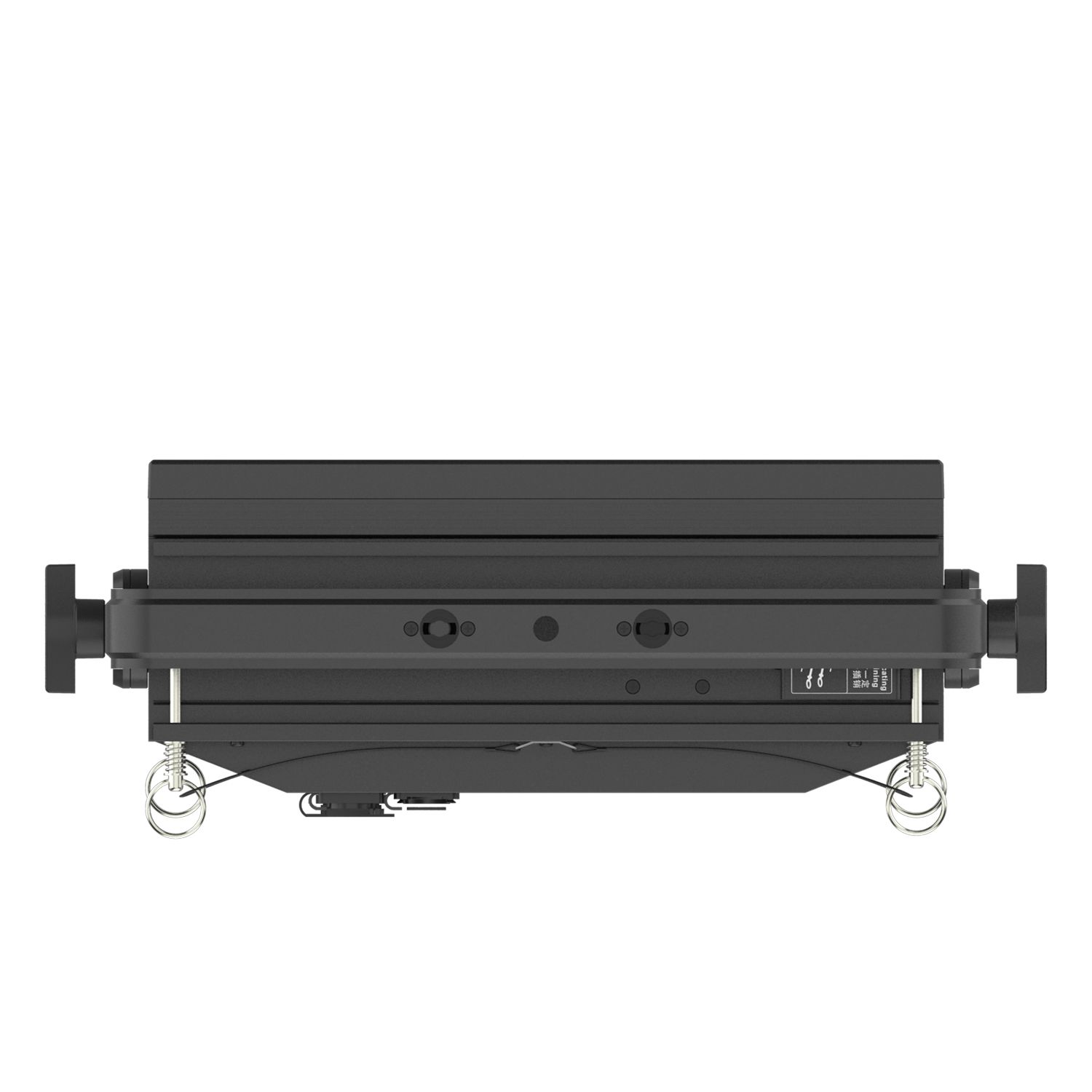

2 pairs fast-locked points under the base

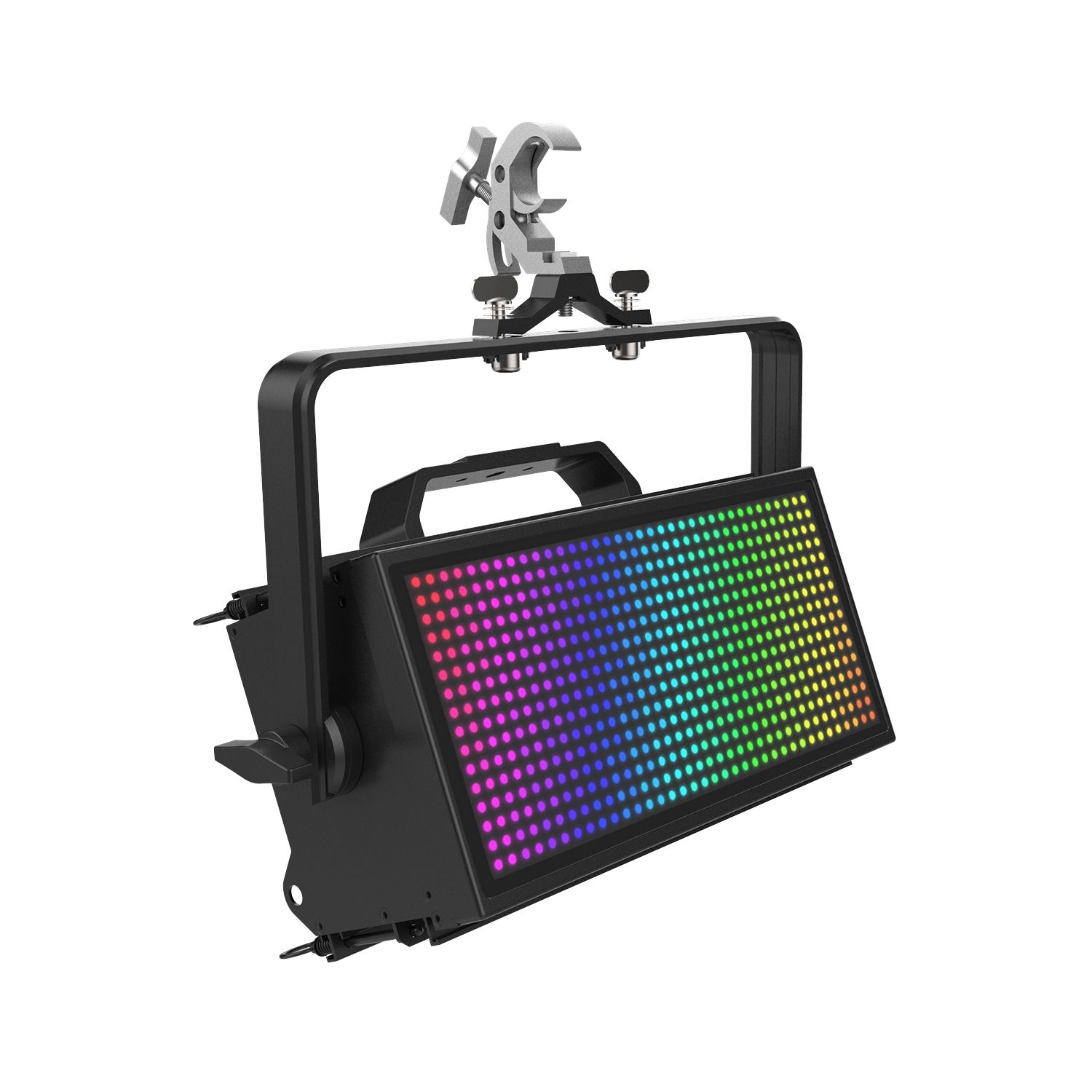

2 x Fast-locked clamps for 50 millimeter truss, install 1 or 2 clamps according to your demands
Safety cable attachment point

Included Items
User Manual
Power Cable
Head & bottom with handle
2 x Fast-locked clamps for 50 millimeter truss

Optional Accessories (with item code)
Clamp: 2060001614 (C-250)
Safety cable: 2060001603-A (SW-05)
Signal Line：3-pin or 5-pin signal line
