Functional Overview

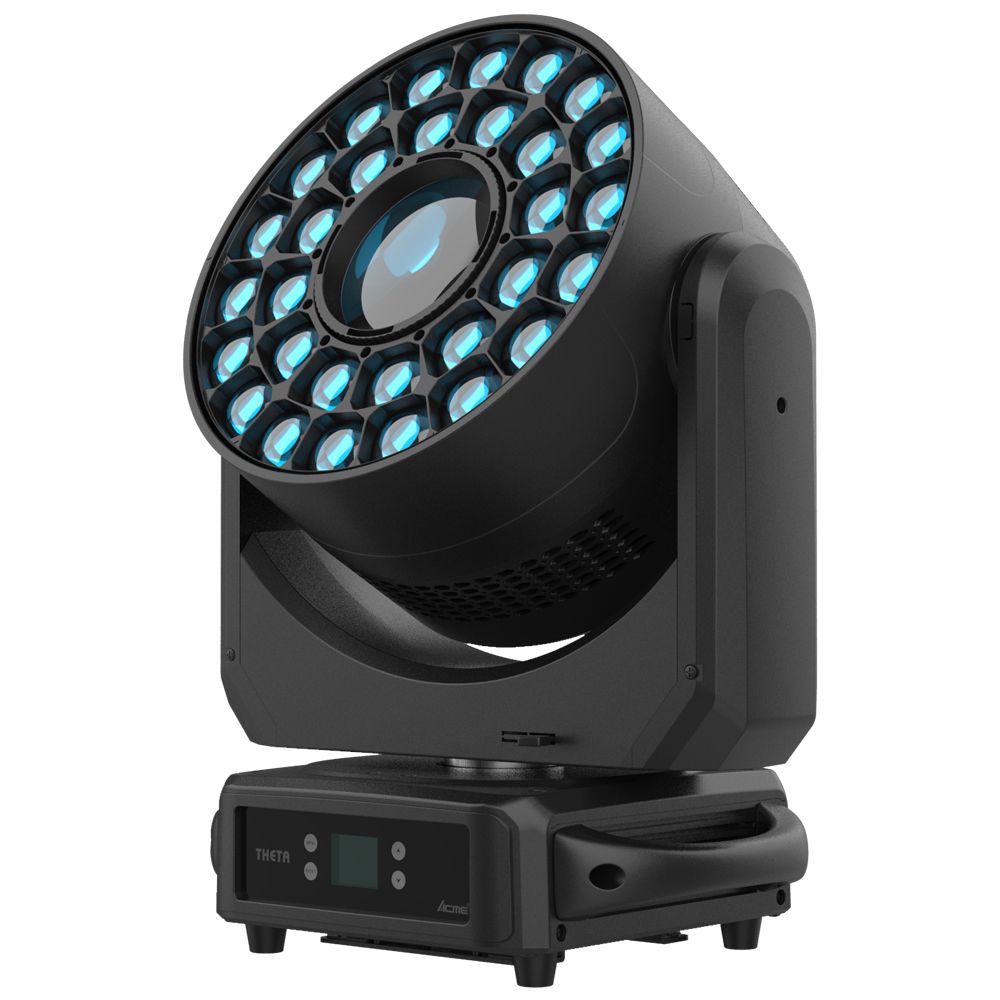

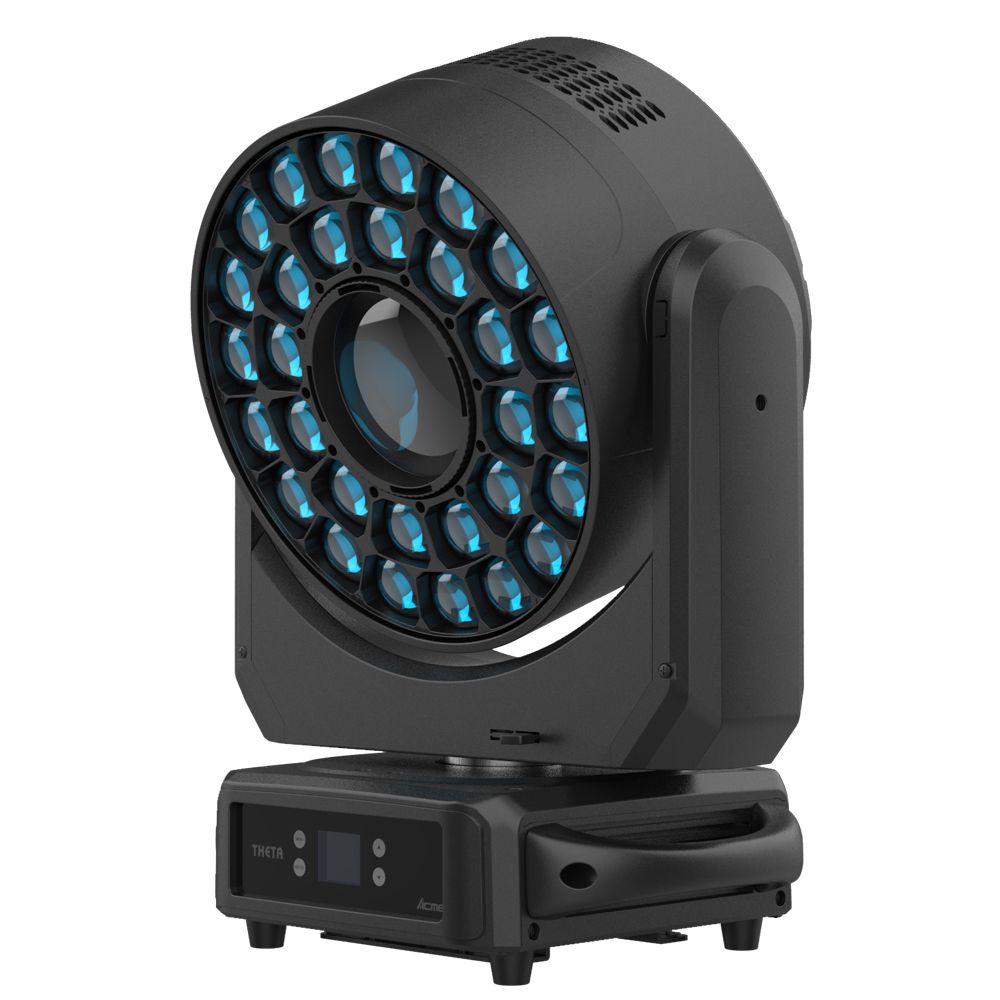

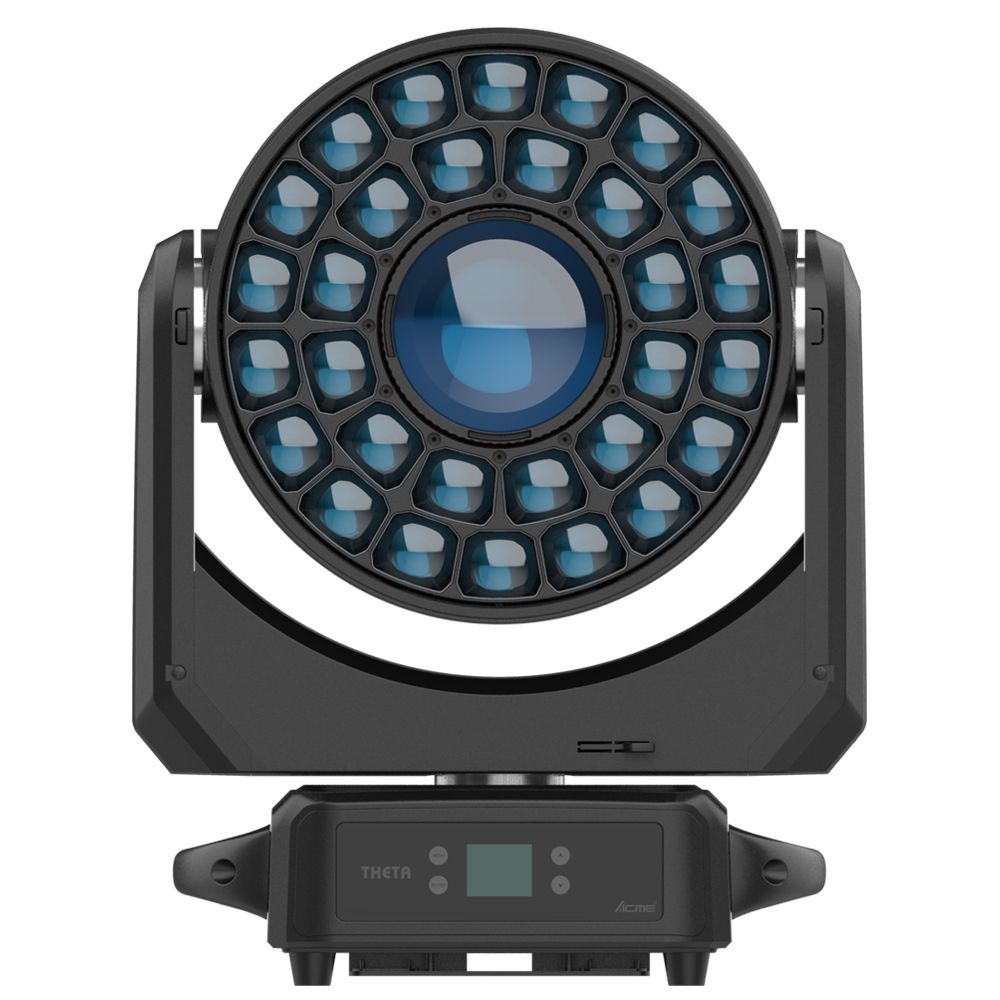

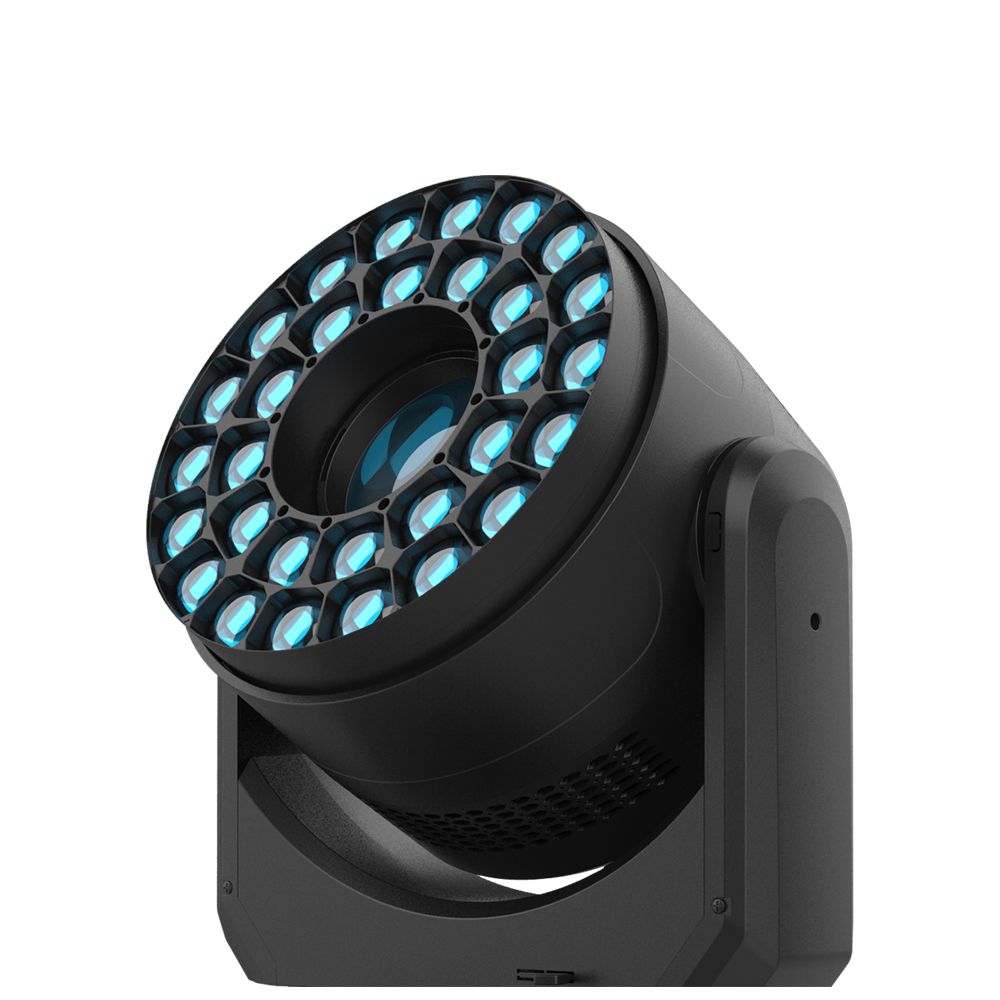

THETA combines BEAM and WASH in one, resembling a cool donut-shaped lamp head yet capable of producing outstanding color macro effects. It employs two different light sources, with 200W LED light engine in the center and an outer ring consisting of 30 pcs 40W RGBW LED light engines.
The central beam comes equipped with a built-in color wheel, static gobo wheel, 8-prism, 16-prism, and a frost lens. The two prisms can be rotatable in both directions and overlayable to create the creation of diverse lighting atmospheres. The outer ring with coloring capabilities includes zoom, individual pixel control, CTO color temperature adjustment, and color macro effects, providing lighting designers with a wide range of creative options. Both lighting effects, combined with color correction and flicker-free operation, result in a synergistic enhancement greater than the sum of its parts.
Its unique design includes 540° pan movement and 215° tilt movement, allowing the light to sway at greater angles, providing a more dynamic visual experience. Whether for stage performances, concerts, ballrooms, or television shows, THETA adds a vibrant touch to any scene. It is not just a lighting product but also a piece of art that brings joy and vitality.
Features
- Light Sources:
- 1 x 200W LED
- 30 x 40W RGBW LED
- Total Lumen Output: 5,000 lm (200W LED)
- Color Temperature Output: 7,000K (200W LED)
- Variable CTO ranging from 2,500-8,000K (40W RGBW LED)

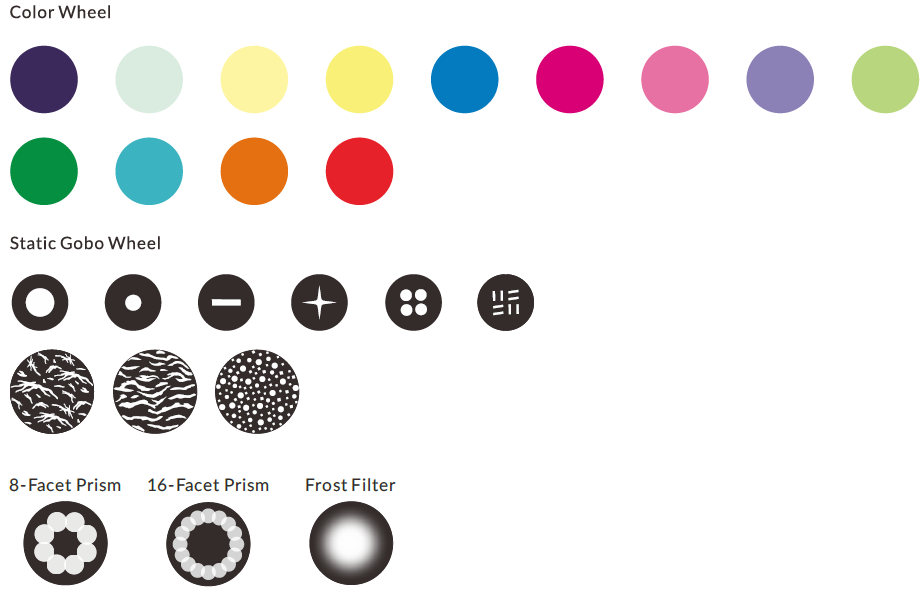

- 1 Static Gobo Wheel: 6 HD gobos, including 3 water effect gobos, plus open
- 1 Color Wheel: 13 colors, plus open, with bidirectional rainbow effects
- 2 Prisms: one 8-facet prism, one 16-facet prism, rotatable in both directions and overlayable
- 1 frost filter
- Zoom function on the outer ring
- Individual pixel control, build-in color macro effect
- Automated color correction system to ensure a consistent output
- Motorized zoom and focus
- Outstanding strobe effect with variable speed
- Variable light adjustment from 0 to 100%
Model
- CM 1000ZF
Light source
- Light Sources:
- 1 x 200W LED
- 30 x 40W RGBW LED
- Color Temperature Output: 7,000K (200W LED)
- Total Lumen Output: 5,000 lm (200W LED)
- Life Expectancy: 20,000 hours

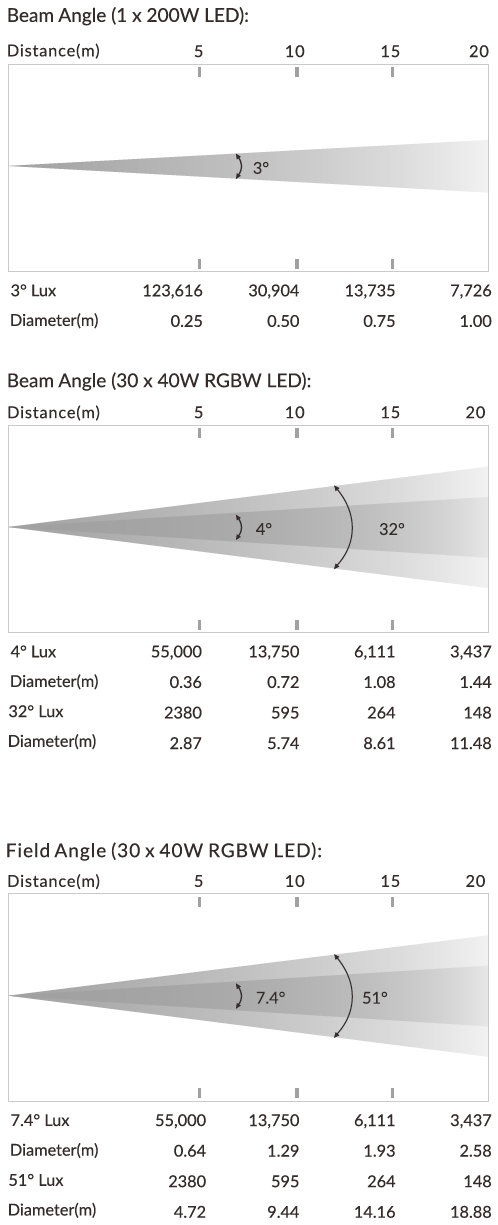

Optical system
- Beam Angle: 3° (200W LED)
- Zoom Range: 4°-51° (40W RGBW LED)
Control and Program
- 4-Button touch panel
- Display: LCD display
- Protocols: DMX512, RDM, Art-Net, sACN
- DMX Protocol Modes: 3
- Control Channels: 27/139/19
- Firmware Upgrade: Upgrade via DMX link
Pan & Tilt
- Pan Movement: 540°
- Tilt Movement: 215°
- Automatic Pan/Tilt position correction
- Moving-head operated with either 16-bit resolution
Gobo
- 1 x Static Gobo Wheel: 6 HD gobos, including 3 water effect gobos, plus open
Color
- 1 x Color Wheel: 13 complementary colors, plus open
Prism
- 2 x Combinable Rotating and Indexable Prisms: one 8-facet prism, one 16-facet prism, rotatable in both directions and overlayable
Frost Filter
- 1 x frost filter
Other Effects
- Linear CTO Color Correction: 2,500K-8,000K (40W RGBW LED)
- Outstanding strobe effect with variable speed
- Motorized zoom and focus
- Variable light adjustment from 0 to 100%

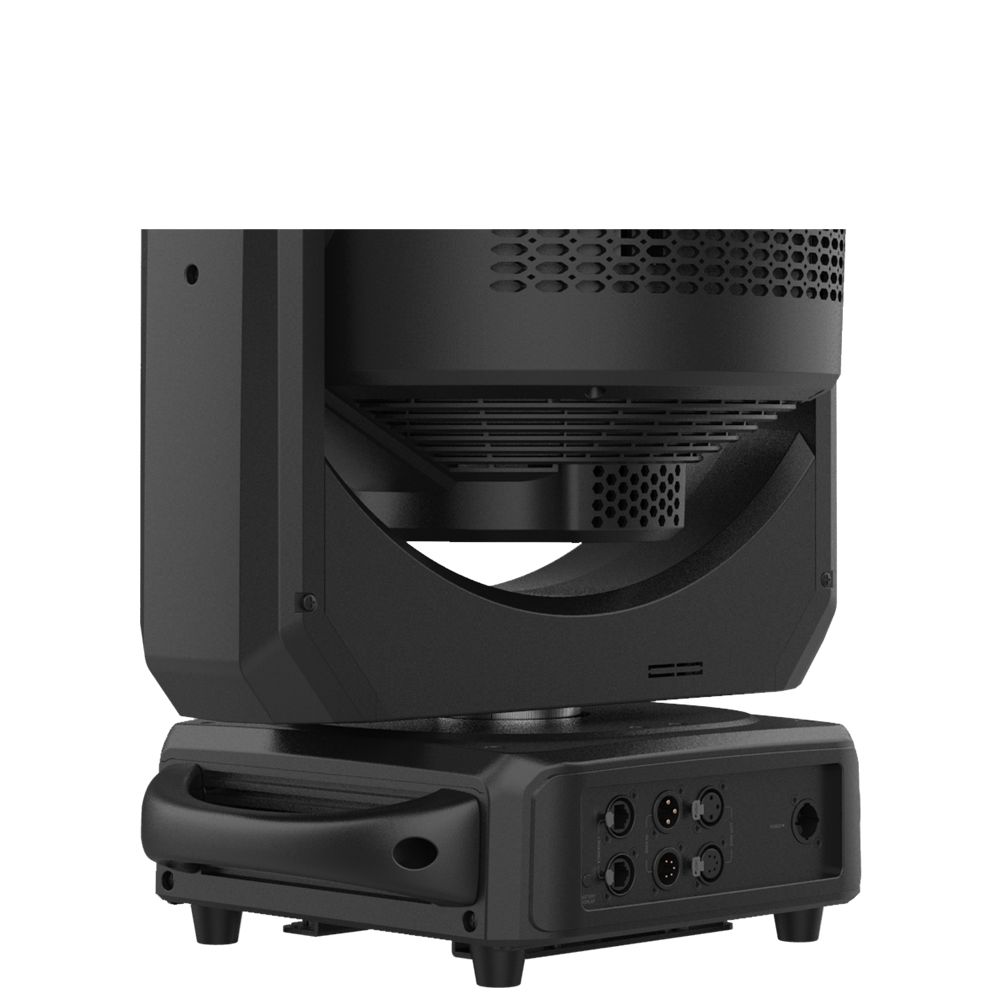

Electrical and Connectors
- Input Voltage Range: 100-240V~ 50/60Hz
- Power Consumption: 1,670 W
- Power In/Out: Power connector in
- Data In/Out: 3-pin and 5-pin XLR, RJ45 connector

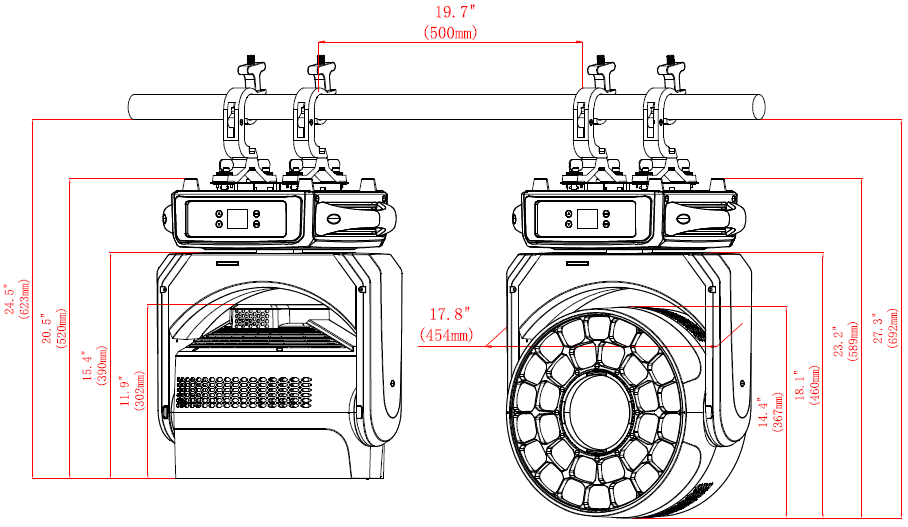

Fixture Specification
- Fixture Dimensions:
- Width: 454 mm (17.9″)
- Depth: 341 mm (13.4″)
- Height: 590 mm (23.2″)
- Weight: 33 kg (72.8 lbs)
- Flight Case Dimensions:
- Width: 1,170 mm (46.1″)
- Depth: 710 mm (28.0″)
- Height: 620 mm (24.4″)
- Weight: 116.5 kg (256.8 lbs)(include flight case, dual Loader Case)
- Carton Specification:
- Width: 560 mm (22.1″)
- Depth: 470 mm (18.5″)
- Height: 675 mm (26.6″)
- Weight: 40 kg (88.2 lbs)(include carton, one-pack per carton)
Work Environment
- Maximum Ambient Temperature: 40°C
- Minimum Operating Temperature: 0°C
- Maximum Surface Temperature: 65°C
- Protection Rating: IP20

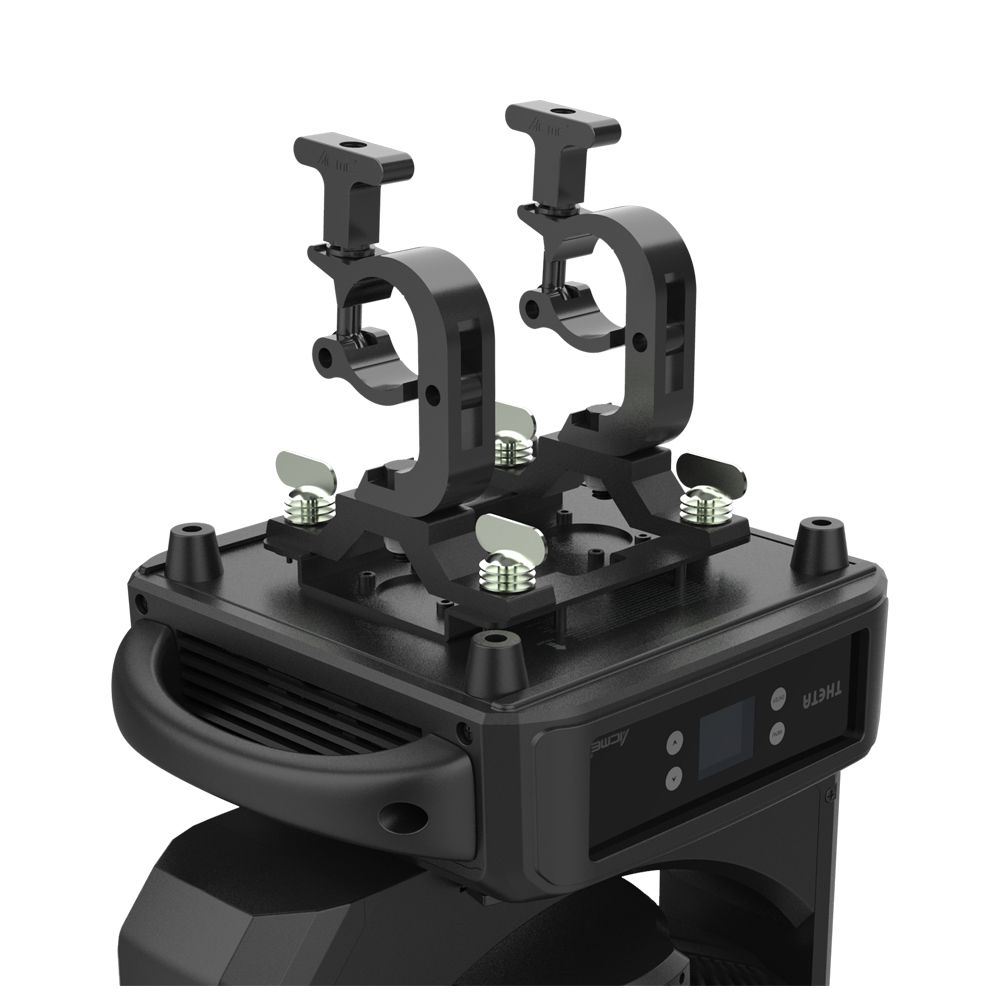

Installation
- Horizontally or vertically mounting are available
- Universal working position
- 2 x omega brackets
- Safety rope hole
Included Items
- Digital user manual
- Power cable
- 2 x omega brackets
Optional Accessories (With Order Code)
- Flight Case: 3205001338
- Clamp: 2060001632(C-250B)
- Safety Cable: 2060001603-A(SW-05)
- Signal Line: 3-pin and 5-pin signal line, RJ45 connector
