Acme – TANGO

Adviesprijs 336,94 excl.btw

Productprijs
Aanvullende opties totaal:
Bestelling totaal:
Bekijk winkelwagen

Beschrijving

Functional Overview

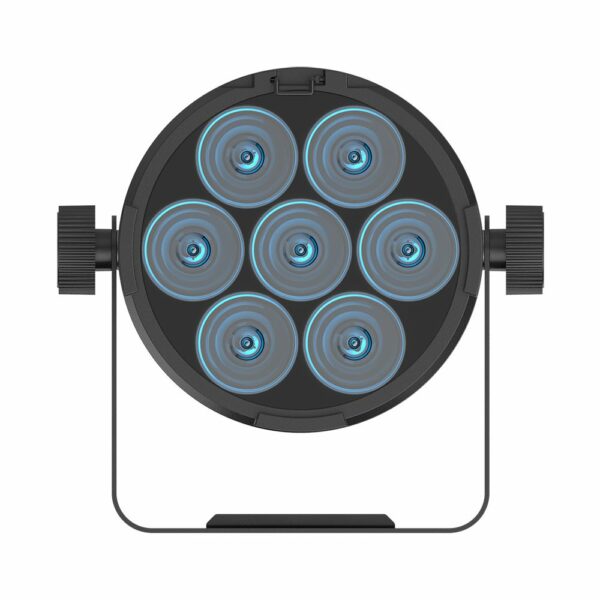

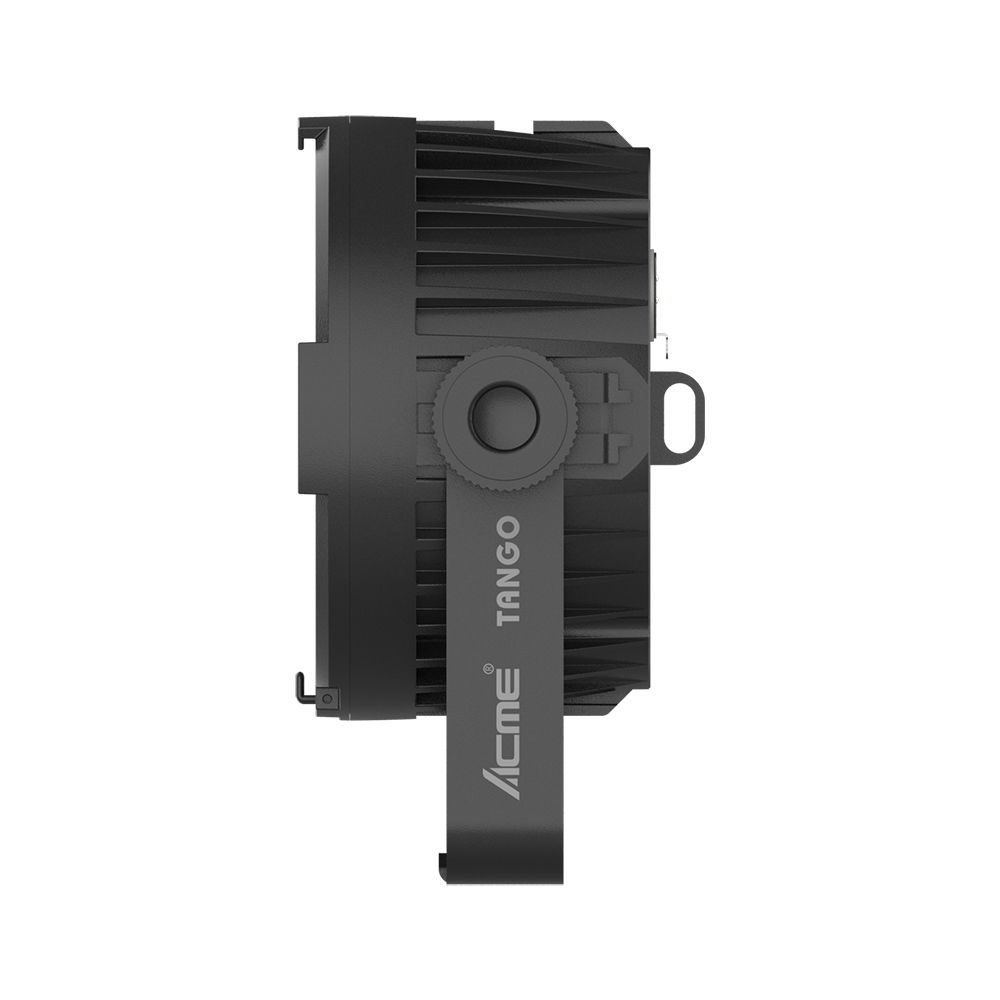

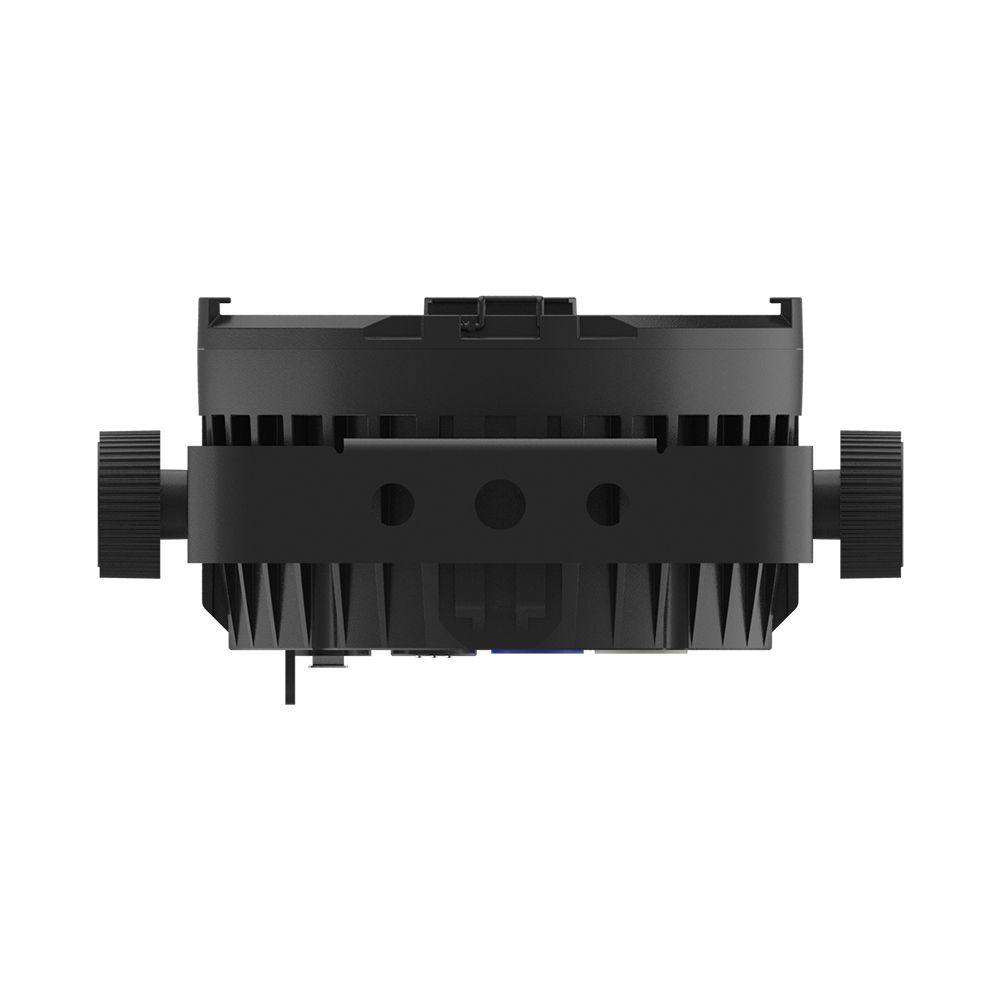

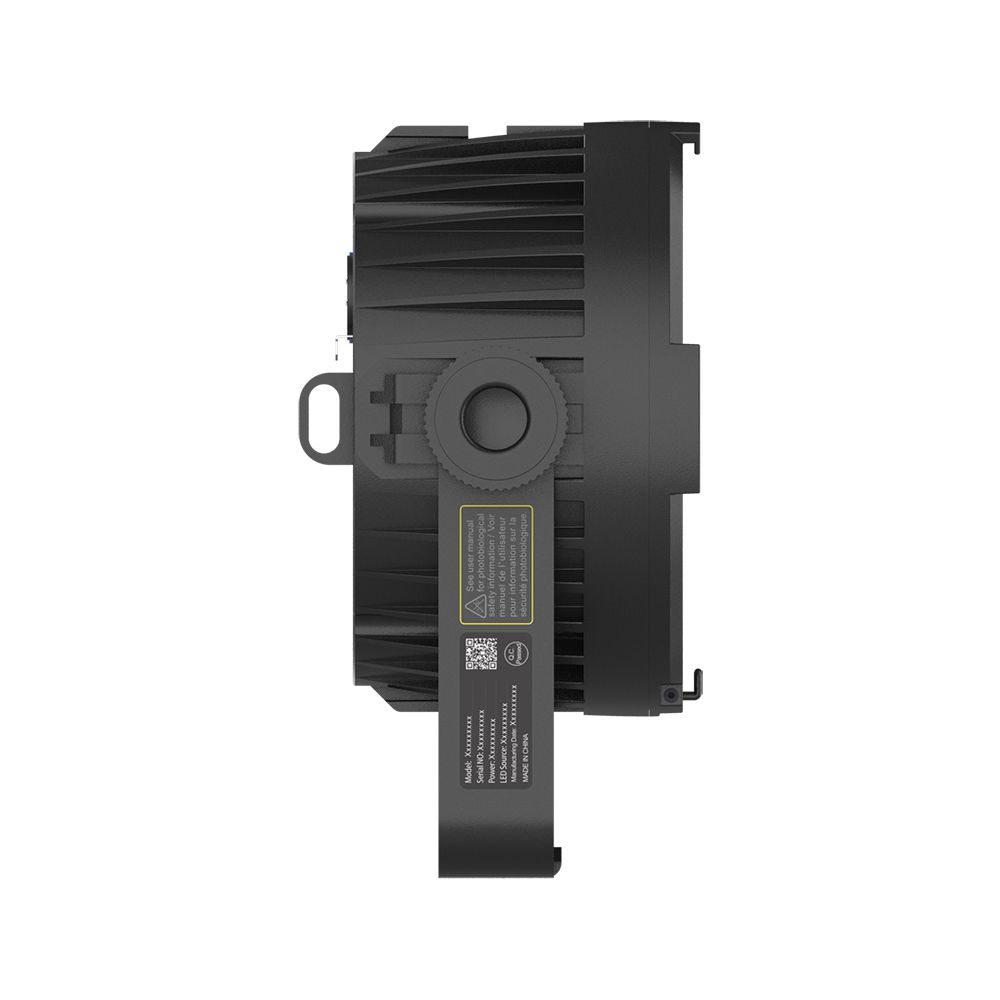

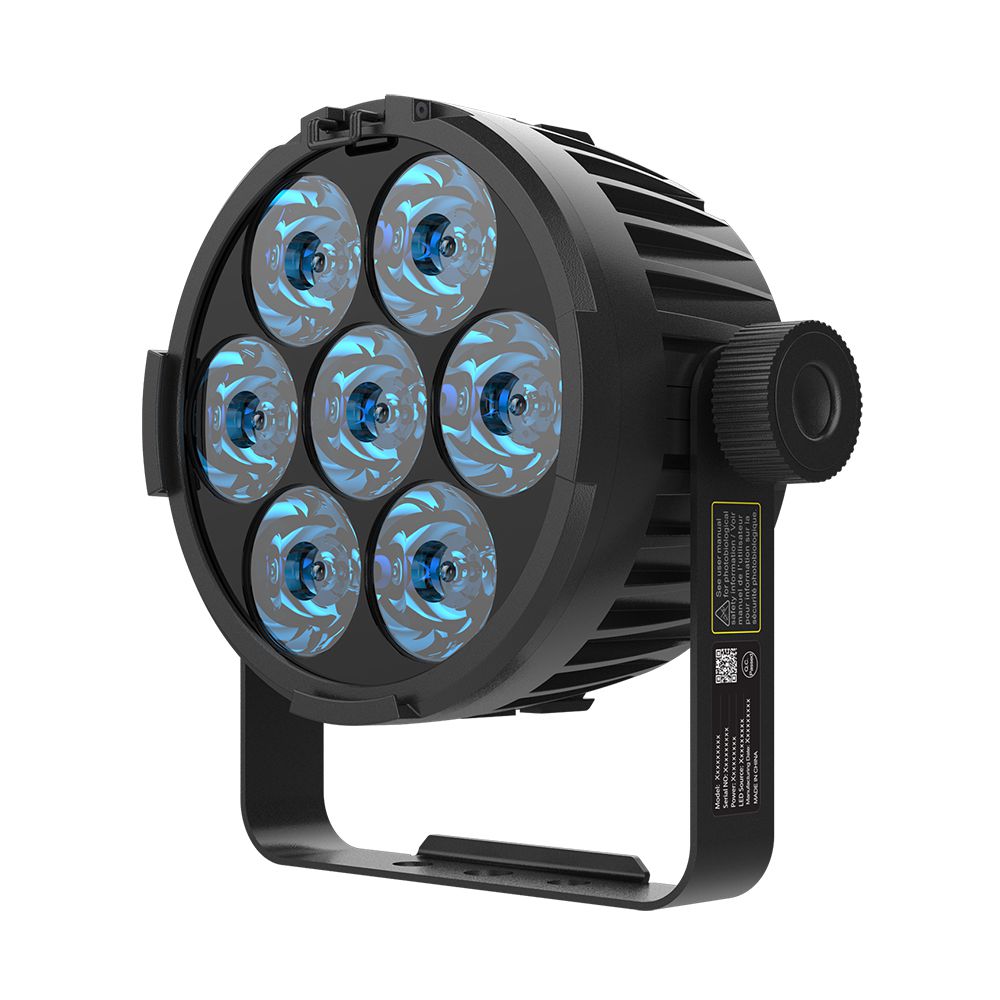

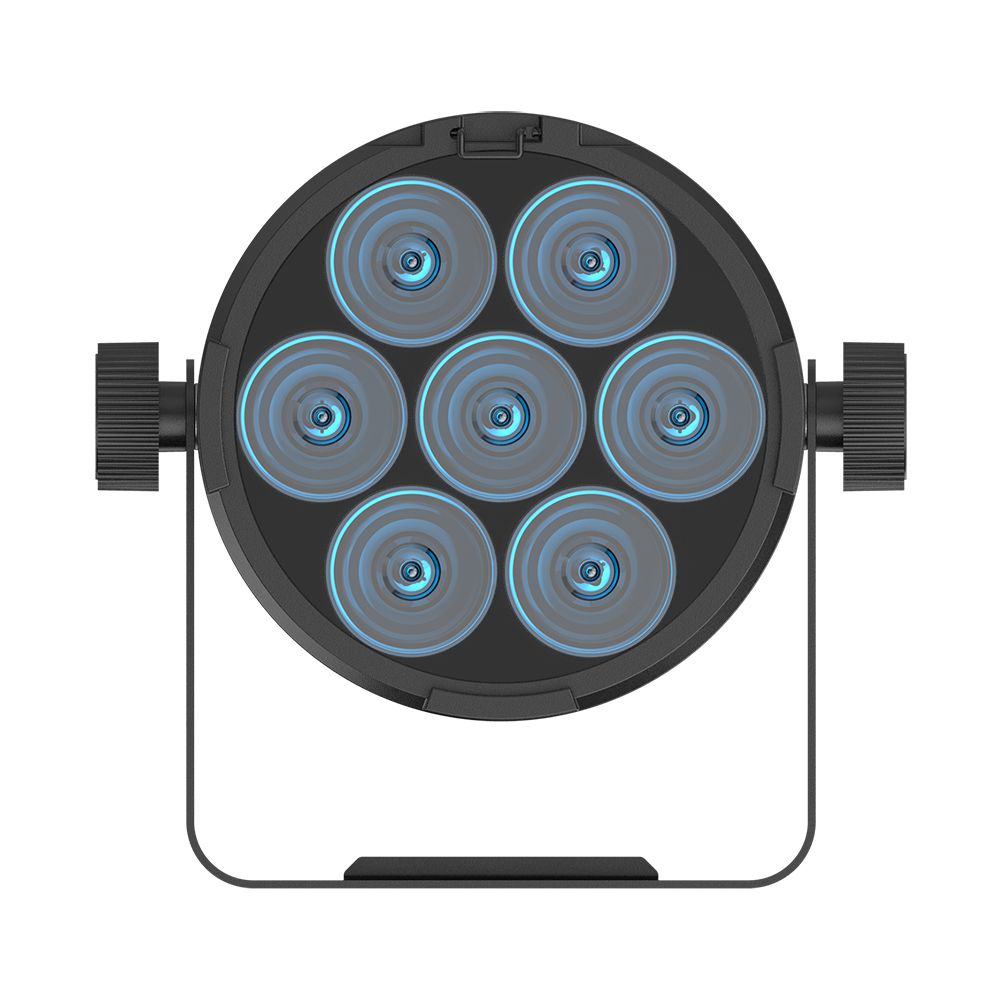

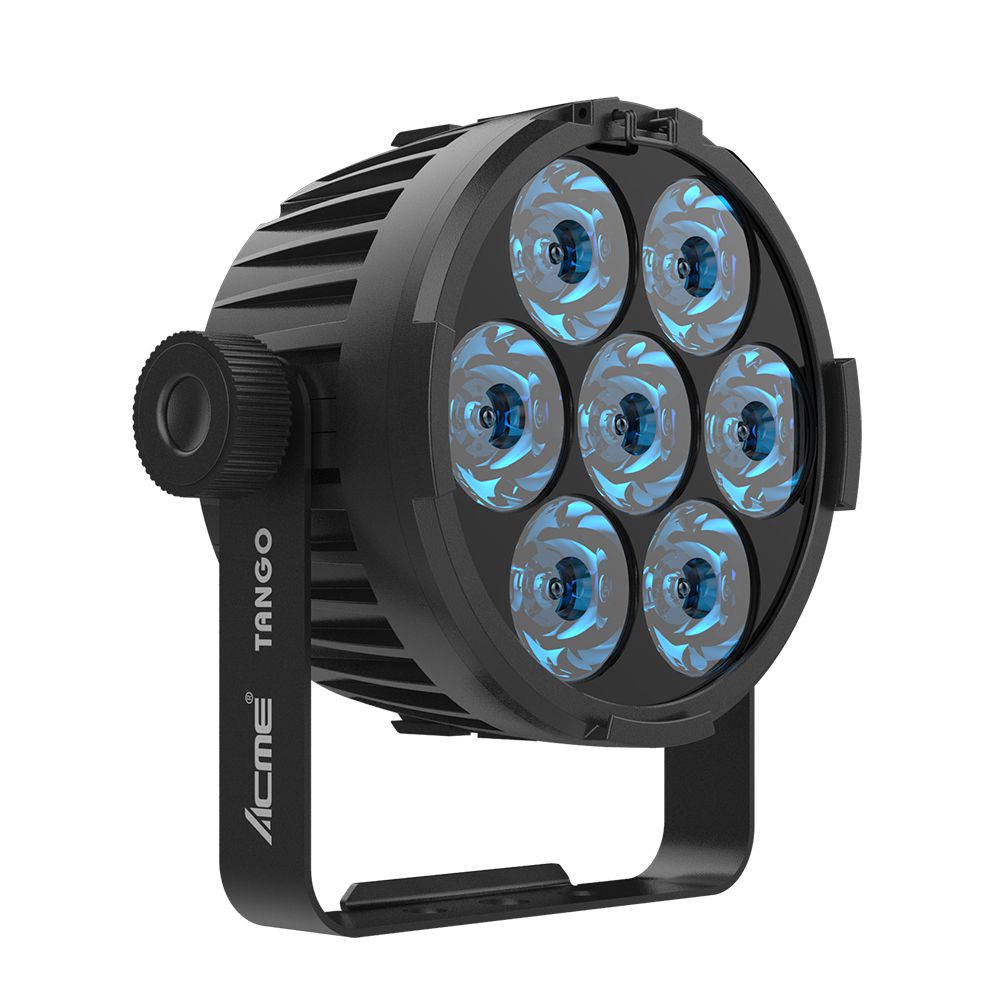

ACME TANGO. Equip with 7pcs 15W RGBW LED, the 2128lm total output, tool-free buckle design, within a 2kg weighted light, Tango is the next choice to light up the bar, club, and other entertainment places. Especially when hanging many units onto the truss frame, it can highlight the contour of the entire stage, and also creates a large-scale and outstanding washing effect. Smooth color mixing, variable strobe speed, fixed sharp beam, and an optional color frame, all benefits are at hand for you to control. Let your stage be in TANGO.

Features
Light Source: 7 x 15W RGBW LED
Outstanding color mixing effect
Compact and robust body
Beam Angle: 6°
Field Angle: 11°

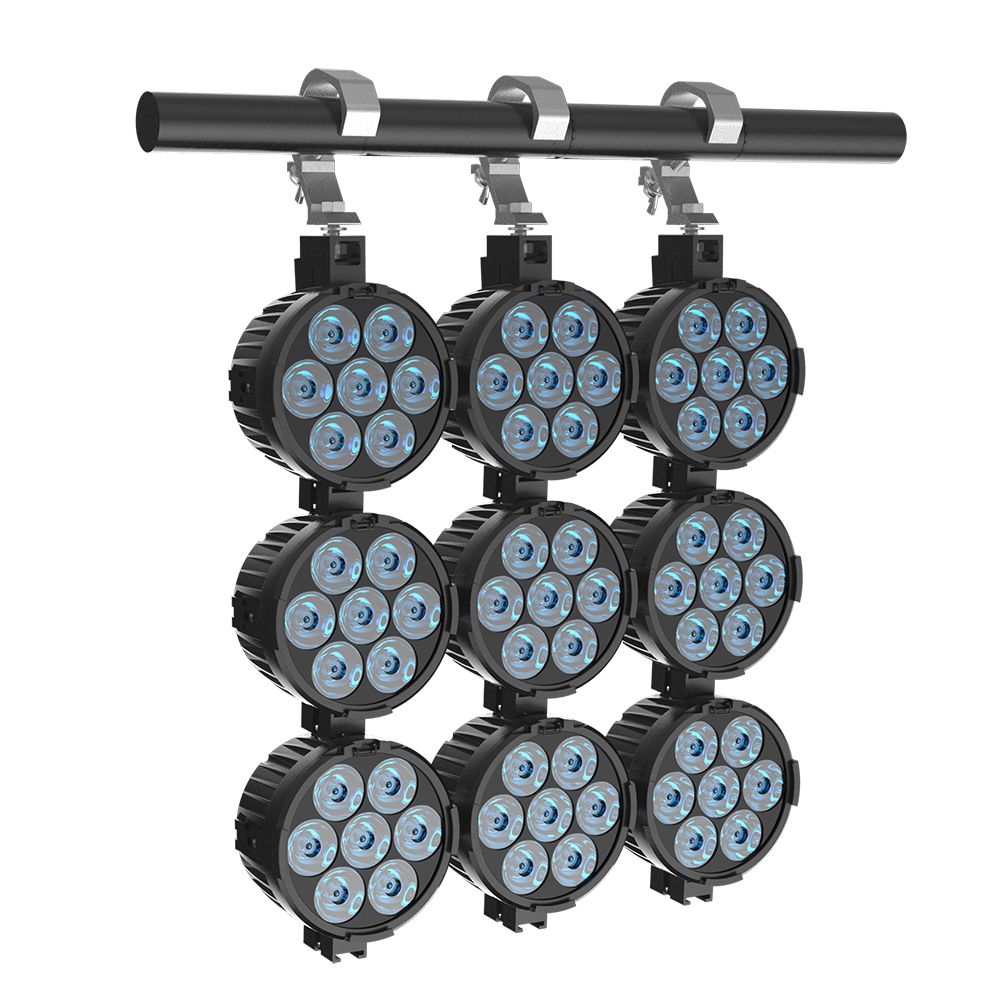

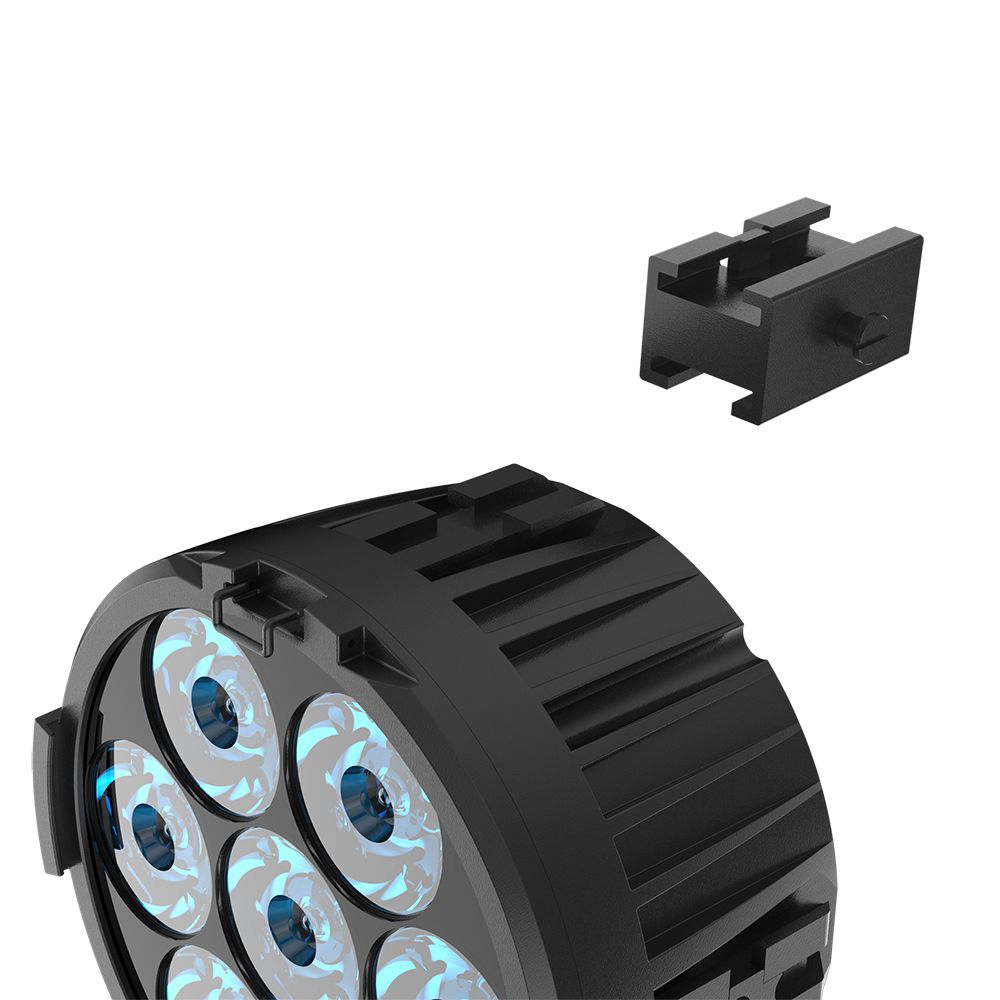

Multiple units can be split-jointed with tool-free junction buckle design
Outstanding strobe effect with variable speed
0~100% smooth dimming
Flicker free management

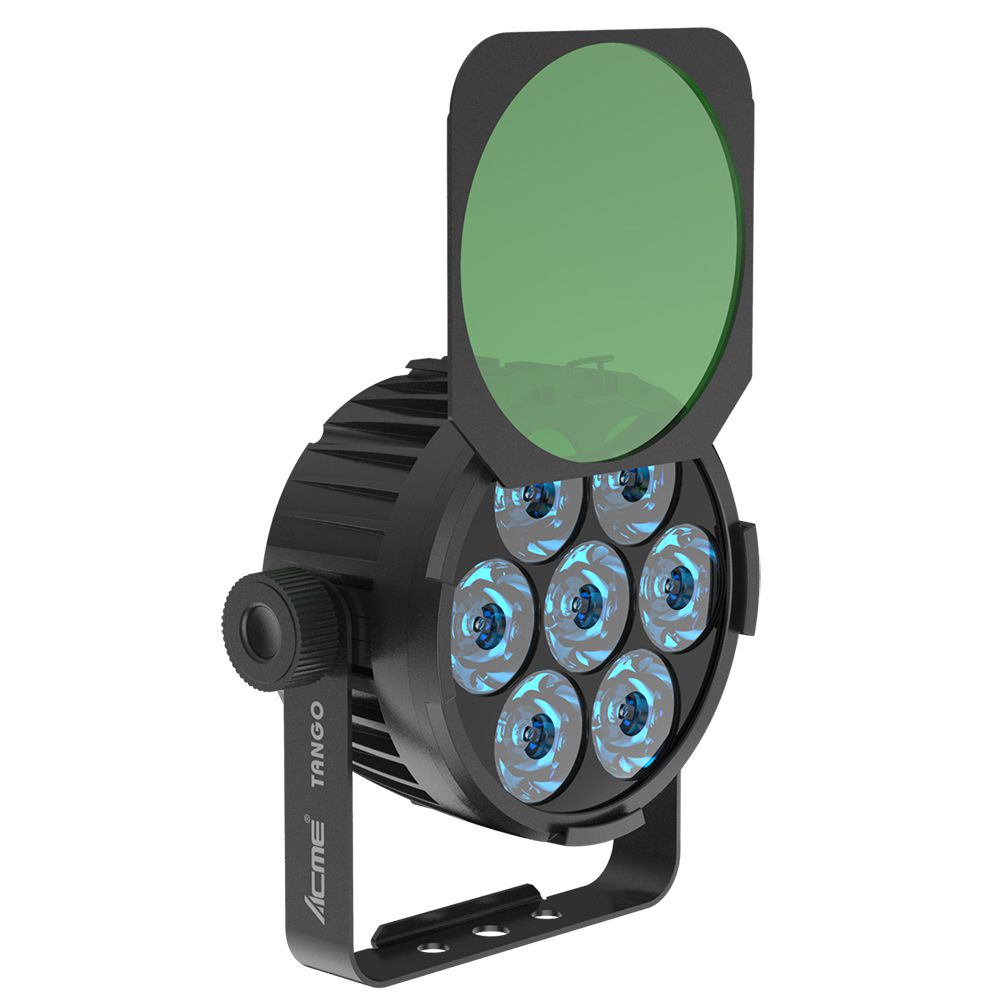

Optional color filter frame

Technical & Specification
Model
PAR 7

Light Source
Light Source: 7 x 15W RGBW LED
LED Life Expectancy: 20000 hours

Optical System
Advanced optics to ensure the fixed sharp beam angle
Beam Angle: 6°
Field Angle: 11°
Total Lumen Output: 2128lm

Control and Program
4-Button Touch Panel
Display: OLED Display
Protocols: DMX512, RDM
Upgrade the firmware via DMX link
DMX Protocol modes: 4
Control channels: 10/8/5/4

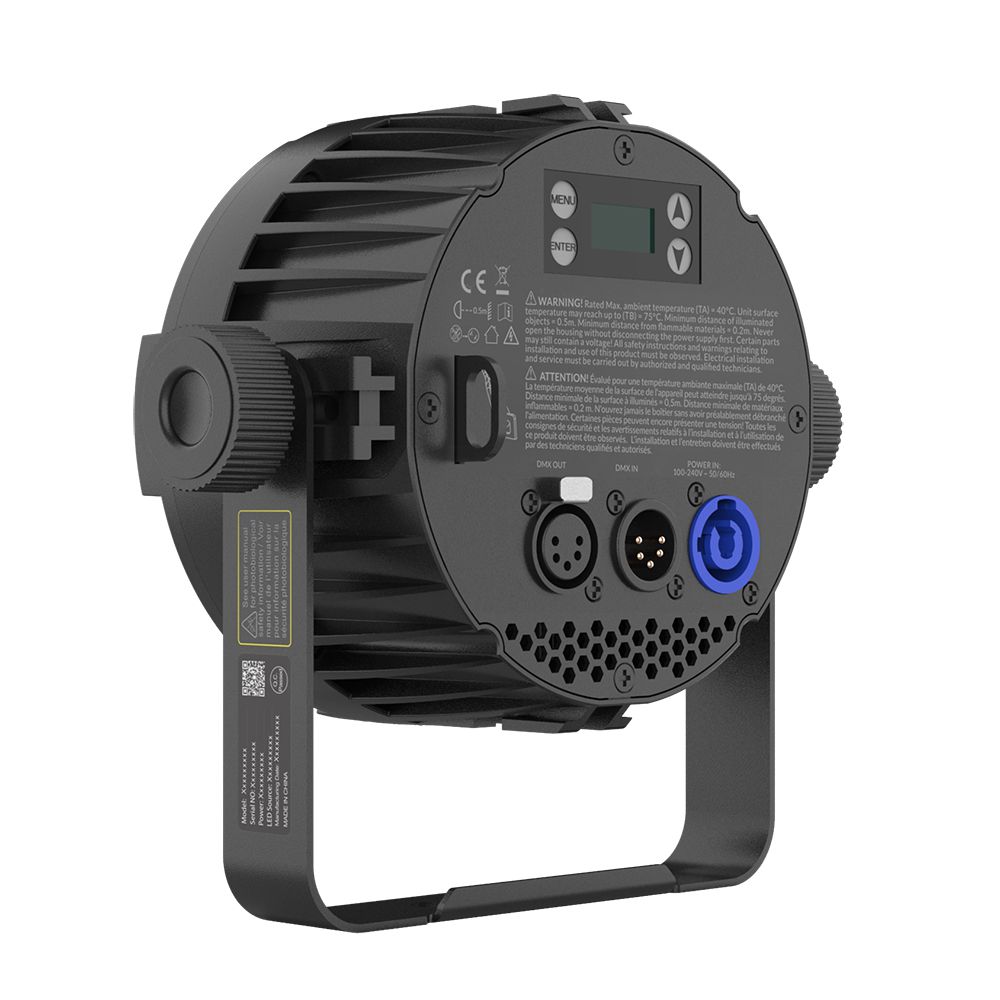

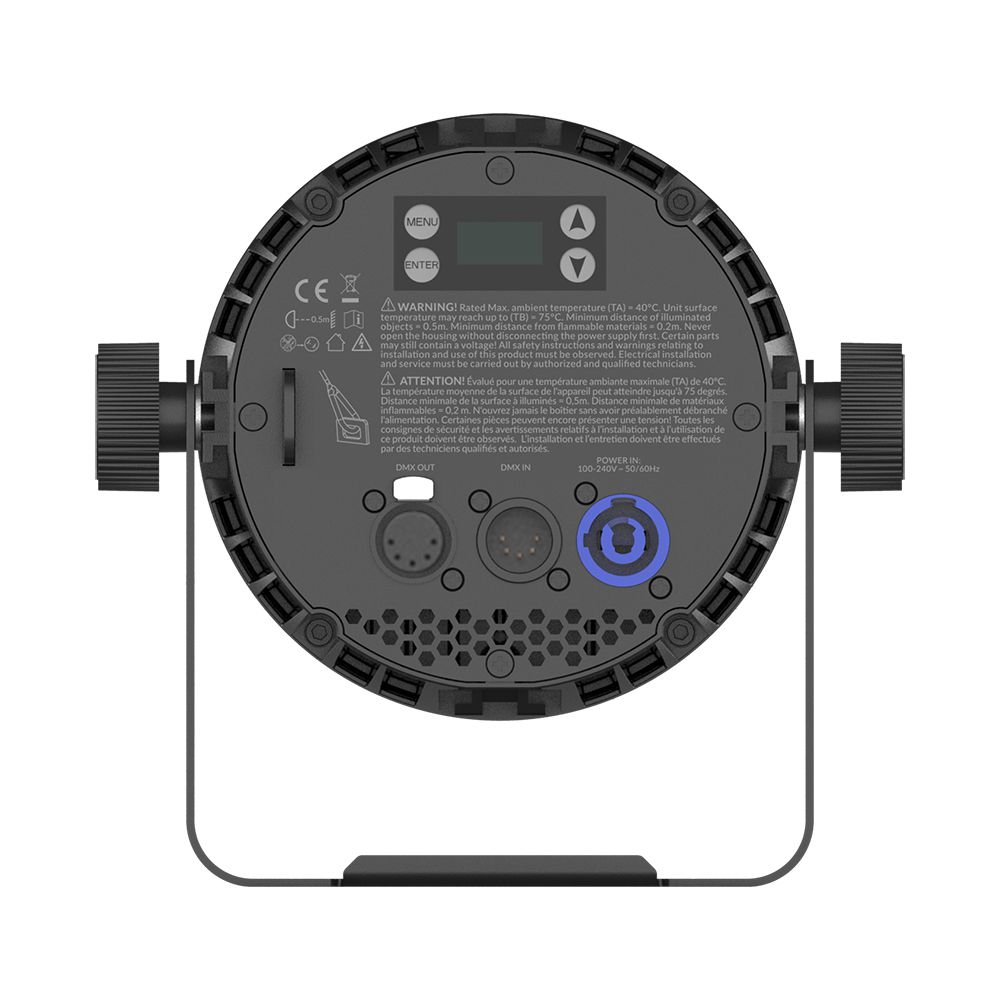

Electrical & Connectors
Input voltage range: 100-240V~ 50/60Hz
Power consumption: 55W
Power In/Out: Power Connector In
Data in/out: Optional 3-pin or 5-pin XLR

Fixture Specification
Fixture Dimensions:
Length: 206 mm (8.1″)
Width: 197 mm (7.8″)
Height: 104 mm (4.1″)
Weight: 1.62 Kg (3.6lbs)
Carton Dimensions:
Length: 540 mm (21.3″)
Width: 540 mm (21.3″)
Height: 350 mm (13.8″)
Weight: 18.7 kg (41.2lbs) (Eight-pack per carton)

Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 75°C
Minimum operating temperature: 0°C

Installation
Available in horizontal or vertical mounting
Universal operating position
The feet support with locking points
Safety Rope Hole

Included Items
Digital User Manual
Power Cable

Optional Accessories (with item code)

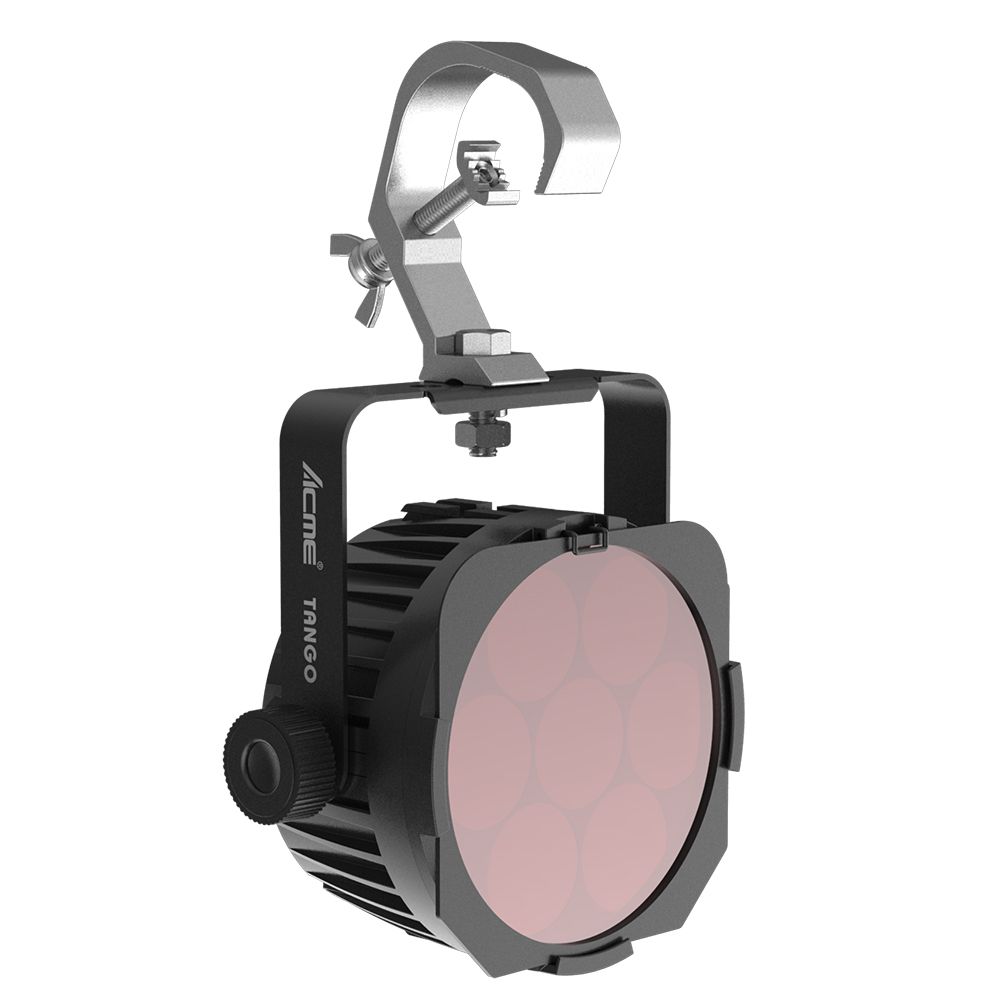

Clamp: 2060001627 (A011)
Signal Line: 3-pin or 5-pin signal line
Safety Wire: 2060001628 (A017)
Color Frame: 4014790090
Junction Buckle: 63582318

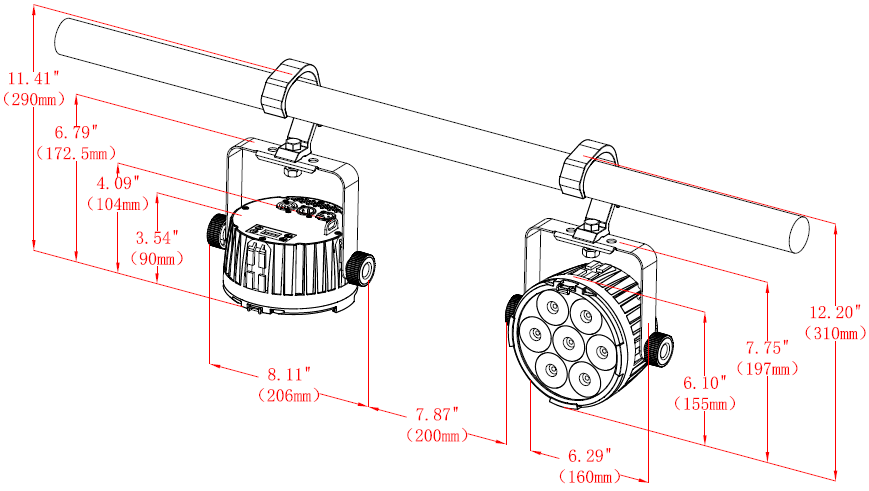

Afmetingen

afmetingen

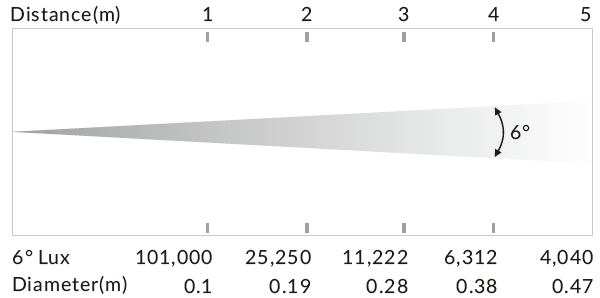

photometrics

photometrics
