Acme – Supernova

1800W | LED | Movinghead | 4°-48° zoom | Profile | CMY + CTO | High CRI

Functional Overview

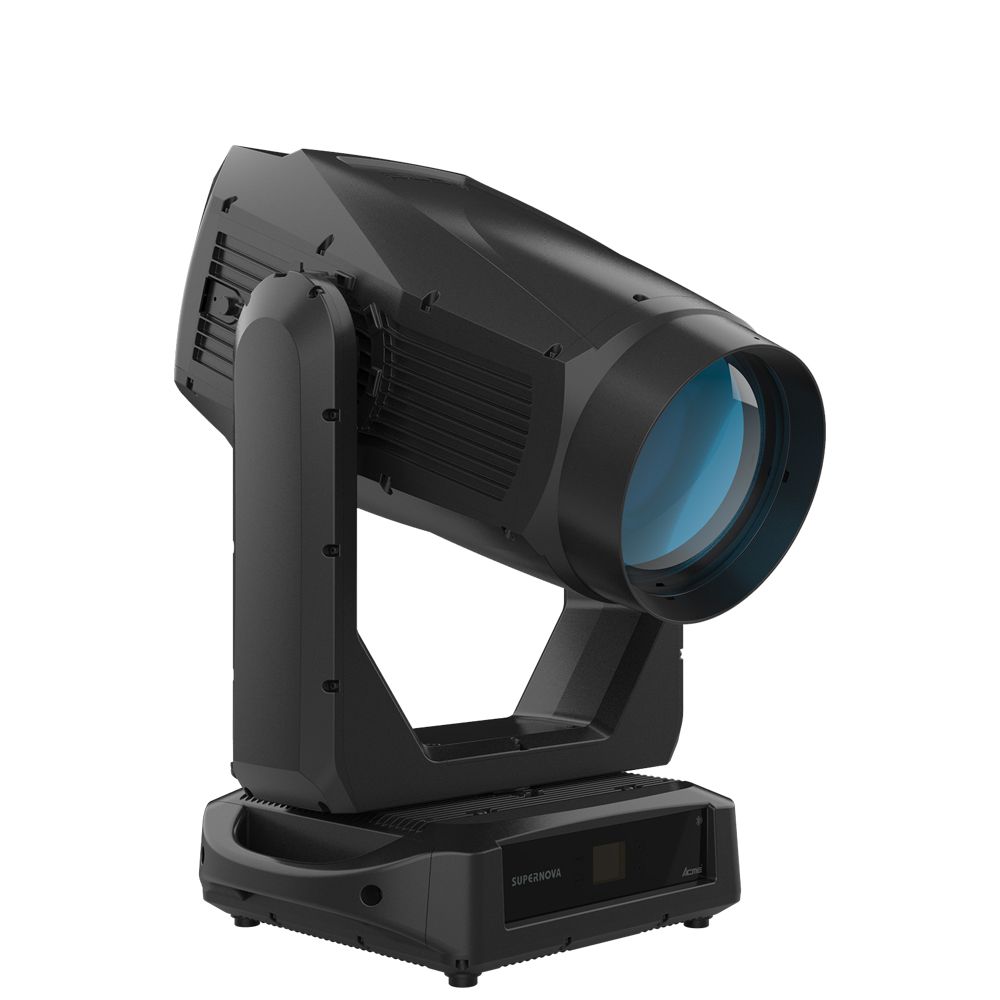

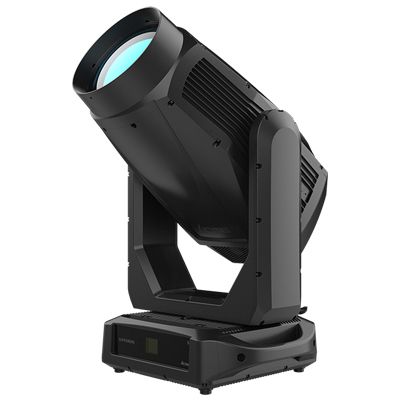

The ACME SUPERNOVA is a powerful, full-featured moving head fixture. It features an 1800-Watt LED engine that produces bright light and vibrant colors with an output of 65,000 lumens.

The SUPERNOVA has a zoom range of 4° to 48°, a linear CMY mixing system, a linear CTO color temperature system, dual color wheels and a high CRI filter to produce a CRI of at least 90. For effects, the SUPERNOVA has two rotating gobo wheels, an animation wheel, four-shutter framing module, linear iris, a four-facet prism, a four-facet linear prism, and two independent frost filters to soften the beam.

The SUPERNOVA is rated at IP66, making it suitable for outdoor use. Whether on stage or for outdoor events, the powerful fixture produces colorful and dazzling lighting effects, delivering the performance you expect from a fixture of this caliber.



Features

  • 1800W LED engine
  • 225 mm Diameter Front Lens

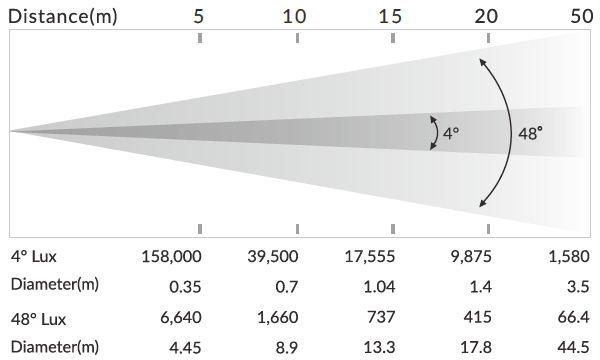

  • Zoom Range: 4°-48°
  • Total Lumen Output of Fixture: 65,000lm
  • Color Temperature Output of Fixture: 6,700K (native)
  • Standard Mode: Ra≥72, High CRI Mode: Ra≥90
  • Linear CMY color mixing
  • Variable CTO ranging from 2,700K – 6,700K
  • 2 Rotating Gobo Wheels:
    • Rotating Gobo Wheels 1: 6 gobos, plus open
    • Rotating Gobo Wheels 2: 6 gobos, plus open
  • 2 Color Wheels:
    • Color Wheels 1: 4 colors, plus open (including high CRI filter)
    • Color Wheels 2: 5 colors, plus open
  • Animation Wheel: A graphic animation wheel with continuous rotation in either direction
  • 1, 4-facet prism and 1, 4-facet linear prism, both are rotatable in either direction
  • 1 combinable light frost filter and 1 combinable medium frost filter
  • Motorized Linear Iris
  • 4 Rotating full blackout framing shutter module; Rotation of the framing system module: +/- 60°
  • IP66 rated



Model
XA 2000 BSWF IP

Light Source

  • Light Source: 1800W LED engine
  • Color Temperature Output of Fixture: 6,700K (native)
  • Total Lumen Output of Fixture: 65,000lm
  • Life Expectancy: 20,000 hours

Optical System

  • Zoom Range: 4°-48°
  • Diameter of Front Lens: 225 mm

Control

  • 4-buttons touch panel
  • Display: LCD display
  • Protocols: DMX512, RDM, Art-Net
  • DMX Protocol Modes: 4
  • Control Channels: 43/34/32/23
  • Firmware Upgrade: Upgrade via DMX link or USB disk

Pan & Tilt

  • Pan Movement: 540°
  • Tilt Movement: 270°
  • Automatic Pan/Tilt position correction
  • Moving-head operated with either 16-bit resolution
  • Pan/Tilt locks

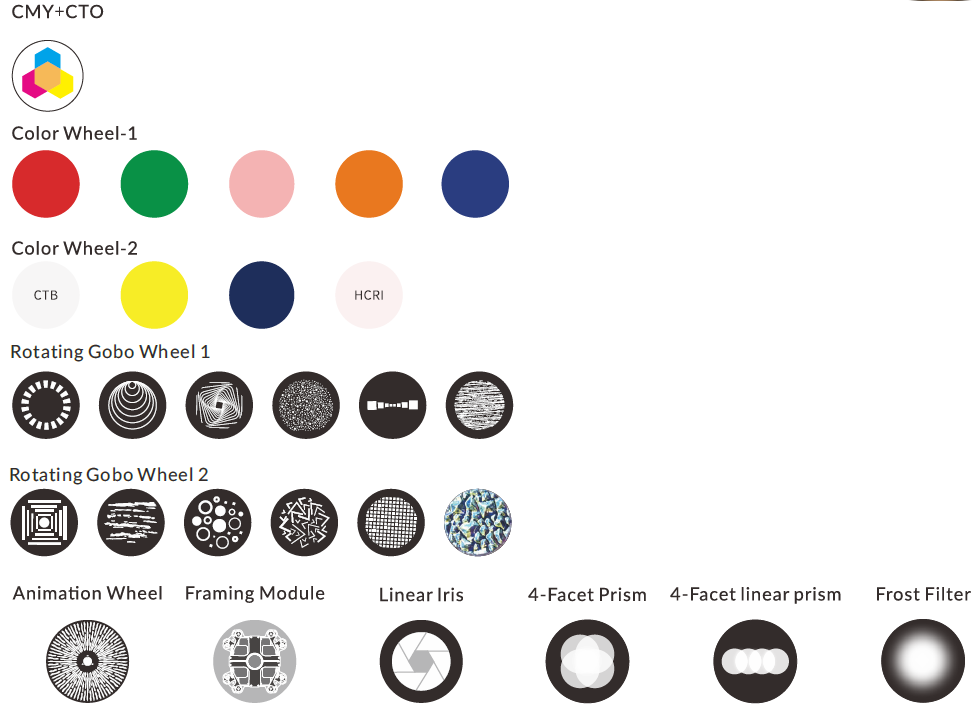

Color

  • Smooth CMY color mixing
  • Linear CTO Color Correction: 2,700K-6,700K
  • 2 Color Wheels:
  • Color Wheels 1: 4 colors, plus open
  • Color Wheels 2: 5 colors, plus open

Gobo

  • 2 Rotating Gobo Wheels:
  • Rotating Gobo Wheels 1: 6 gobos, plus open
  • Rotating Gobo Wheels 2: 6 gobos, plus open
  • Gobo Diameter: 34 mm, Image Diameter: 26.5 mm
  • Gobo Diameter: 34 mm, Image Diameter: 27.5 mm
  • Gobo Thickness: 1.1mm

Animation Wheel

  • A graphic animation wheel with continuous rotation in both directions

Prism

  • 2 Combinable Rotating and Indexable Prisms: 1, 4-facet prism and 1, 4-facet linear prism, rotatable in both directions

Frost Filter

  • 1 light frost filter and 1 medium frost filter (can be combined)

Framing System

  • Shutter Blades: 4 blades, each with separate movement and full blackout
  • Rotation: ±60° of the complete framing system

Other Effects

  • Standard Mode: Ra≥72, HCRI Mode: Ra≥90
  • Outstanding strobe effect with variable speed
  • Motorized linear iris
  • Smooth Dimming from 0 to 100%

Electrical and Connectors

  • Input Voltage Range: 180-240V~ 50/60Hz
  • Power consumption: 2,265W

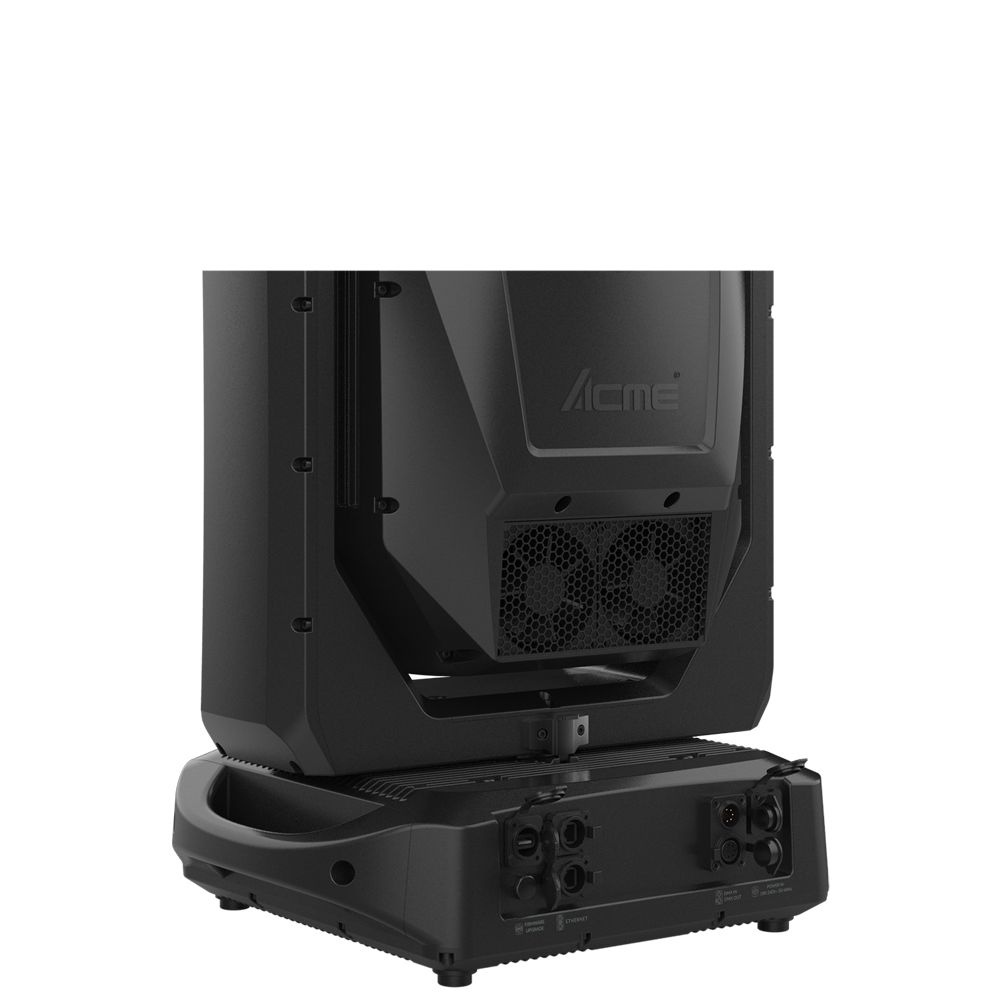

  • Power In/Out: Waterproof power connector in/out
  • Data In/Out: 3-pin or 5-pin waterproof XLR, RJ45

Fixture Specification

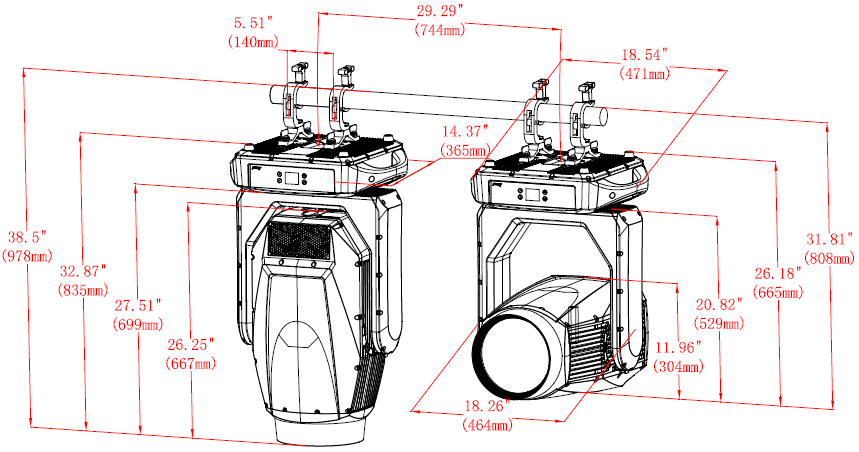

Fixture Dimensions:

  • Width: 471 mm (18.5″)
  • Depth: 365 mm (14.4″)
  • Height: 835 mm (32.9″)
  • Weight: 51.5 kg (113.5 lbs.)
  • Carton Dimensions:
  • Width: 750 mm (29.5″)
  • Depth: 575 mm (22.6″)
  • Height: 805 mm (31.7″)
  • Weight: 61.5 kg (135.6 lbs.) (include carton, one per carton)

Work Environment

  • Maximum ambient temperature: 40°C
  • Minimum Operating Temperature: -10°C
  • Maximum Surface Temperature: 70°C
  • Protection Rating: IP66

Approvals

  • cETLus compliant

Installation

  • Horizontal or vertical mounting
  • Universal working position

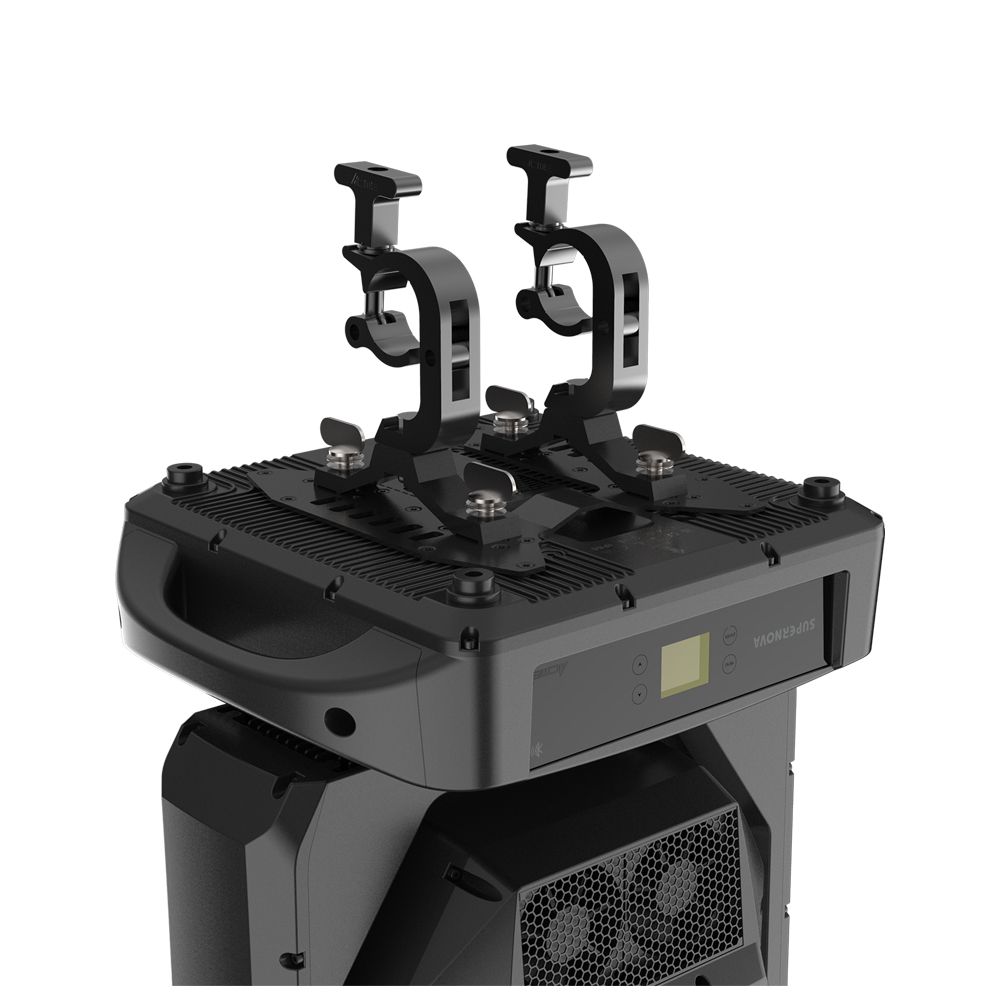

  • 2 omega brackets (accepts most hooks or clamps)
  • Safety cable hole
  • Included Items
  • Digital user manual
  • Power cable (TRUE1 type)
  • 2 omega brackets

Optional Accessories

  • Flight Case: 3205001346
  • Clamp: 2060001632 (C-250B)
  • Signal Line: 3-pin or 5-pin waterproof signal line
  • Safety Cable: 2060001603-A (SW-05)
IP-Rating

Indoor

Kleurmenging

CMY, CMY+CTO

Vermogen

Vermogen Lichtbron

1800W

Eigenschappen

, , , ,

Functies

4f prisma, Animatiewiel, Framing, Frost, Iris

Min zoom

5

Max zoom

50
