Functional Overview

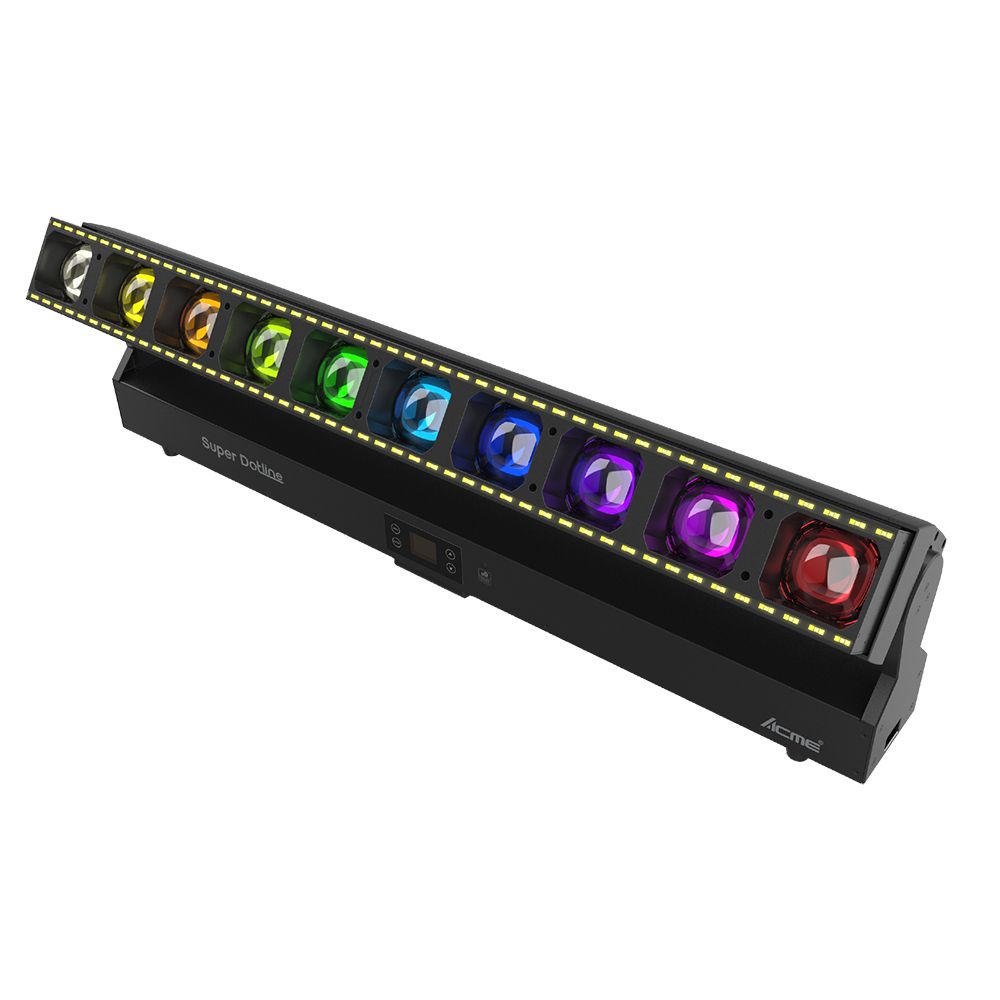

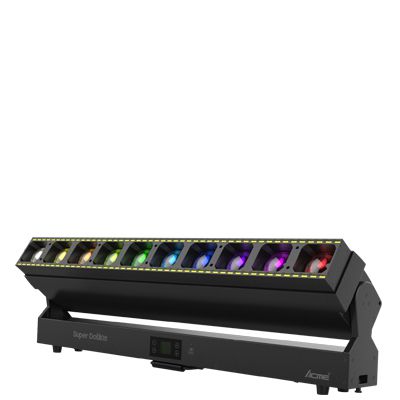

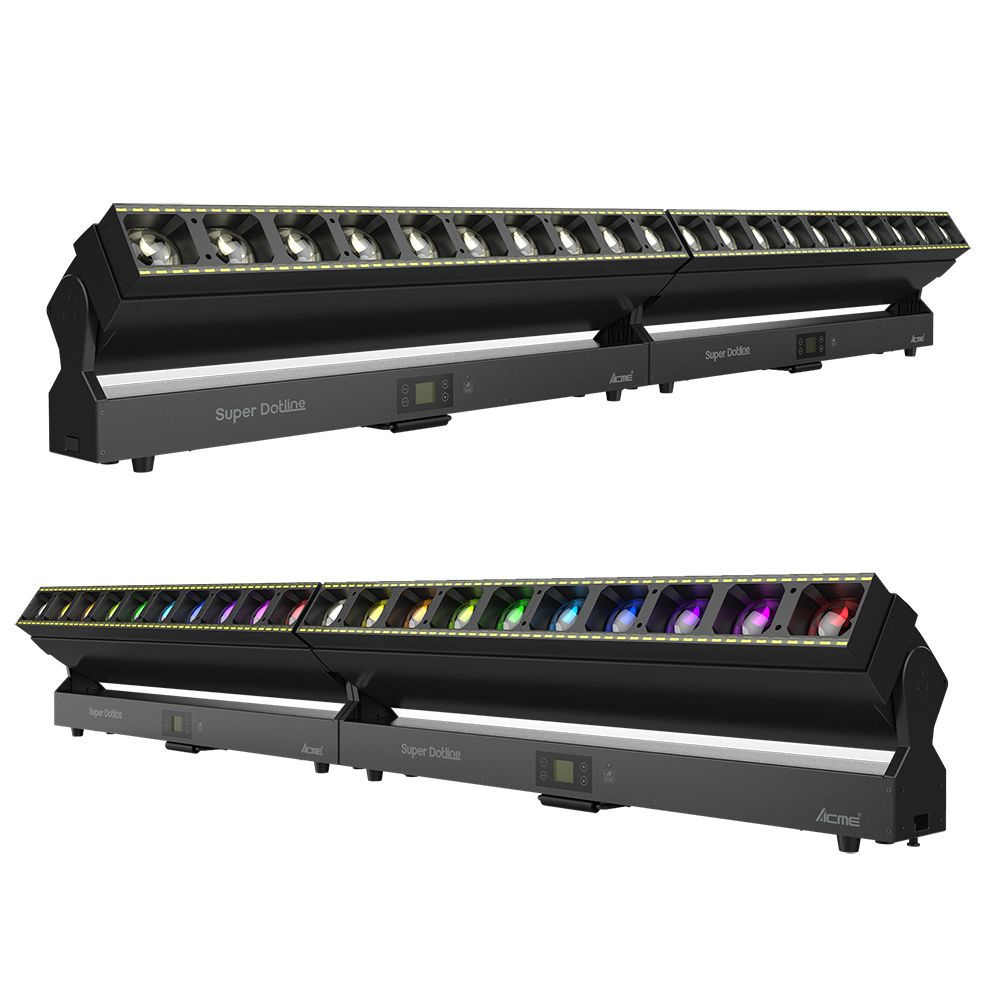

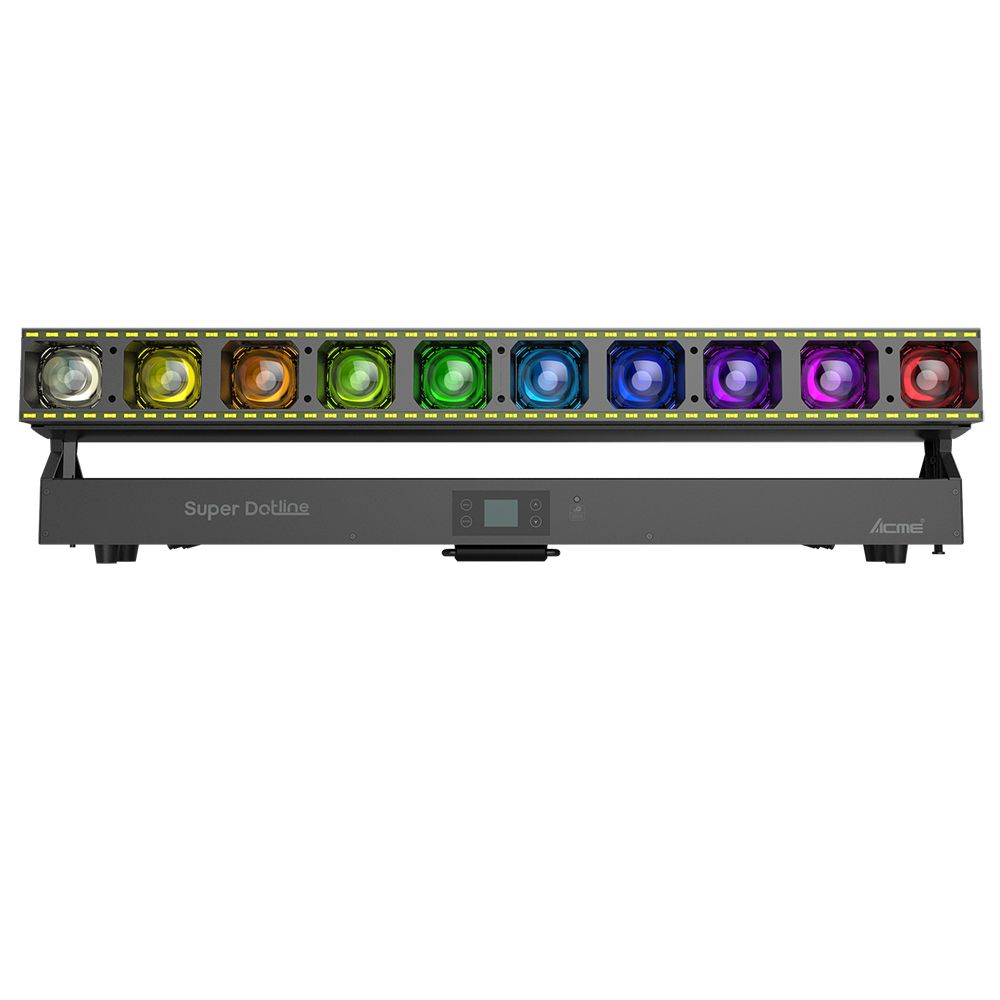

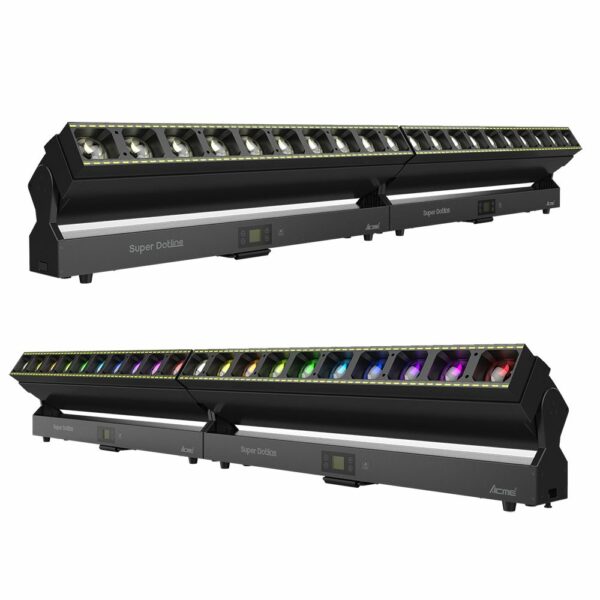

SuperDotline, a visual combination of beam, wash & strobe, an overall upgrade based on our classic DOTLINE360. The main light section features 10x60W RGBW LEDs providing high-brightness multicolored mixing lighting. Two Strobe sections have 12 individually controlled areas empowered by 96x3W LEDs of cold and warm white and 96×0.5W LEDs of RGB, delivering high-powered strobe effects at variable speeds. With a beam angle of 2.8°-31° and a field angle of 5°-46°, it can provide an intense and broad beam and wash effect at large spatial coverage. Motorized linear iris offers fast and smooth changes of effects. Unlimited placement such as hanging/ fast- interlocking/ up-right placement continues to expand its application for concerts, projecting charismatic in-air animations.

Features

• Light Source:
  • Main Light: 10 x 60W RGBW LED
  • Strip Light:
    • 96 x 3W CW LED
    • 96 x 3W WW LED
    • 96 x 0.5W RGB LED
• Zoom angle:
  • Beam angle: 2.8°-31°
  • Field angle: 5°-46°
• Total lumen output up to 22,400 lm
• Motorized linear iris fast and smooth
• Sharp and saturated beam effect
• Outstanding color mixing
• Outstanding strobe effect with variable speed

Model

• TB 1060

Light Source

• Light Source:
  • Main Light: 10 x 60W RGBW LED
  • Strip Light:
    • 96 x 3W CW LED
    • 96 x 3W WW LED
    • 96 x 0.5W RGB LED
• Color Temperature:
  • Main Light(White): 6,300K
  • Strip Light(ColdWhite): 6,000-7,000K
  • Strip Light(WarmWhite): 2,600-2,900K
• Total lumen output up to 22,400 lm
• Rated Source Life: up to 20,000hours

Optical System

• Zoom angle:
  • Beam Angle: 2.8°-31°(60W)
  • Field angle: 5°-46°(60W)

Control and Program

• 4-Button touch panel
• Display: LCD Display
• Protocols: DMX512, RDM, Art-Net, sAcn
• DMX Protocol modes: 5
• Control channels: 20/30/102/111/171
• Firmware Upgrade: Upgrade via DMX link

PAN & TILT

• Tilt movement: 220°

Electrical and Connectors

• Input Voltage Range: 100-240V~ 50/60Hz
• Power consumption: 1,200W
• Power In/Out: Power Connector In/Out
• Data in/out: 3-pin or 5-pin XLR Socket, RJ45

Fixture Specification

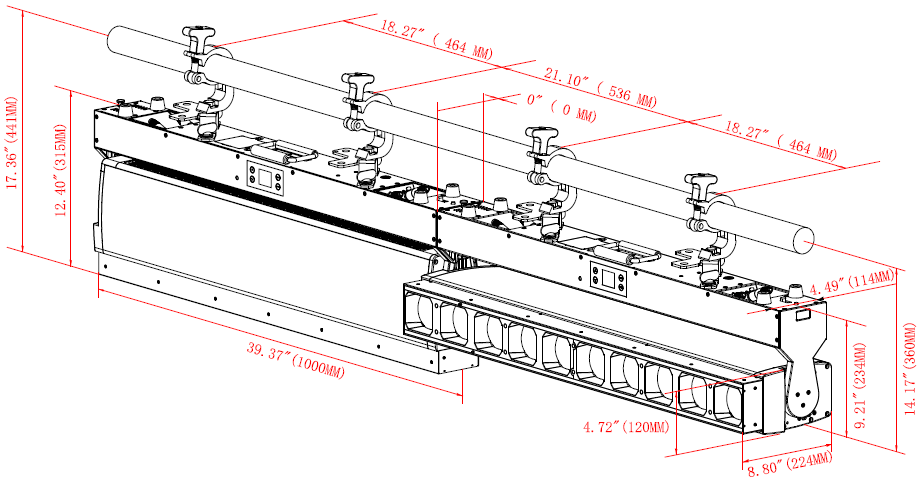

• Fixture Dimensions:
  • Width: 1,000 mm (39.4″)
  • Depth: 290 mm (11.4″)
  • Height: 120 mm (4.7″)
  • Weight: 23 kg (50 lbs)
• Carton Dimensions:
  • Width: 1,200 mm (47.2″)
  • Depth: 400 mm (15.7″)
  • Height: 245 mm (9.6″)
  • Weight: 27 kg (60 lbs)(One-pack per carton)

Work Environment

• Maximum ambient temperature: 40°C
• Minimum operating temperature: 0°C
• Maximum surface temperature: 65°C
• Protection rating: IP20

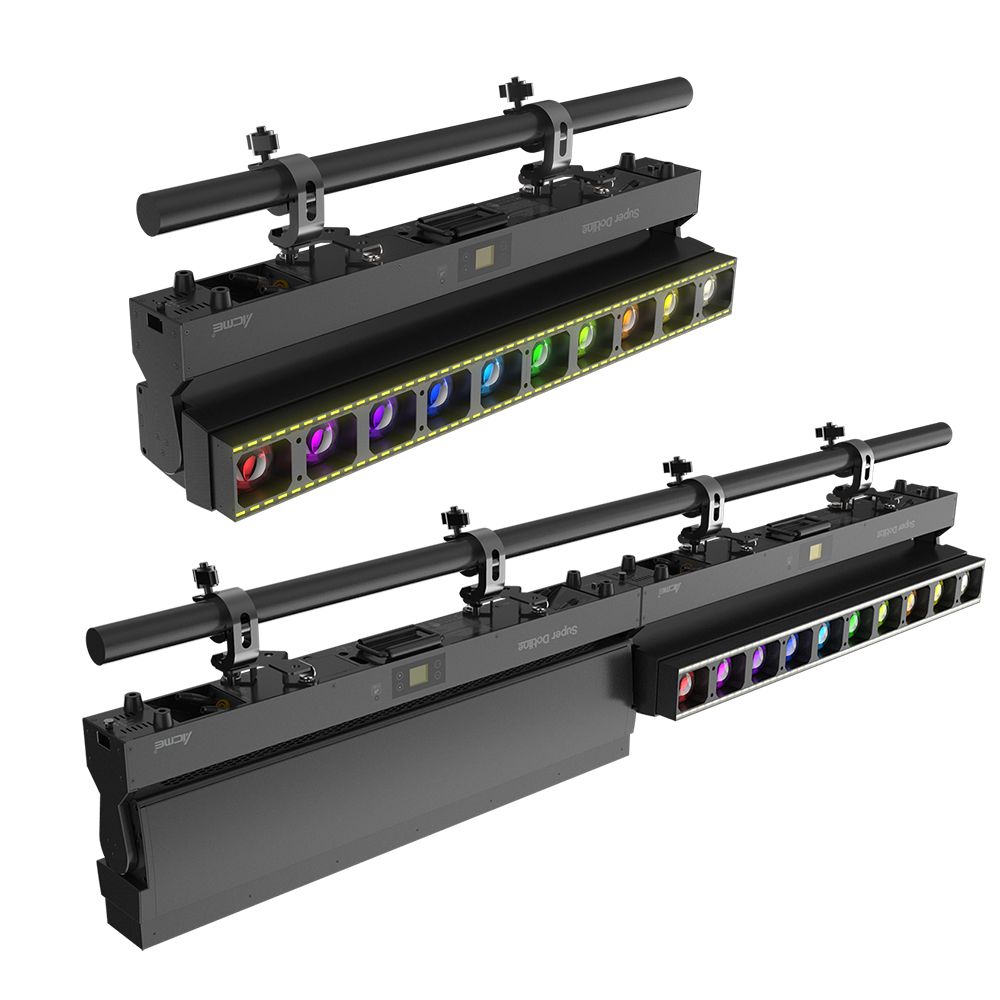

Installation

• Available in horizontal or vertical mounting
• Universal operating position

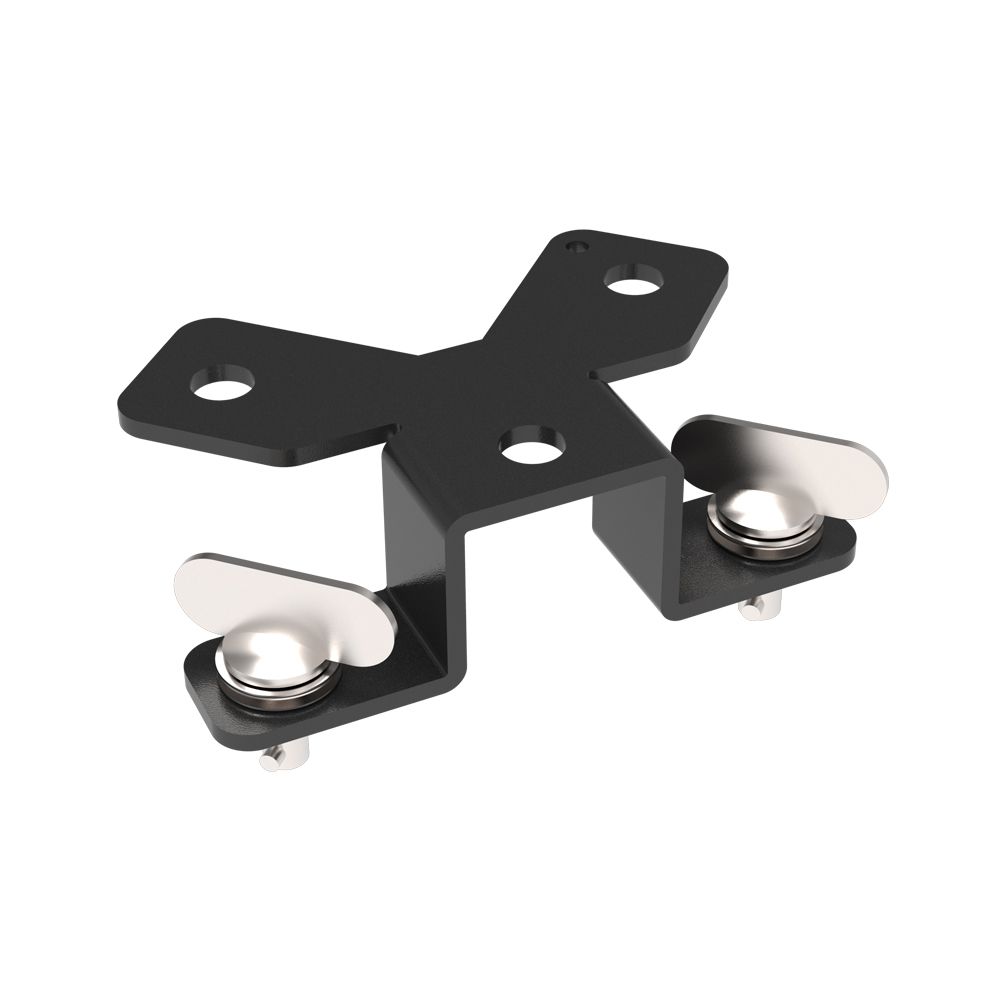

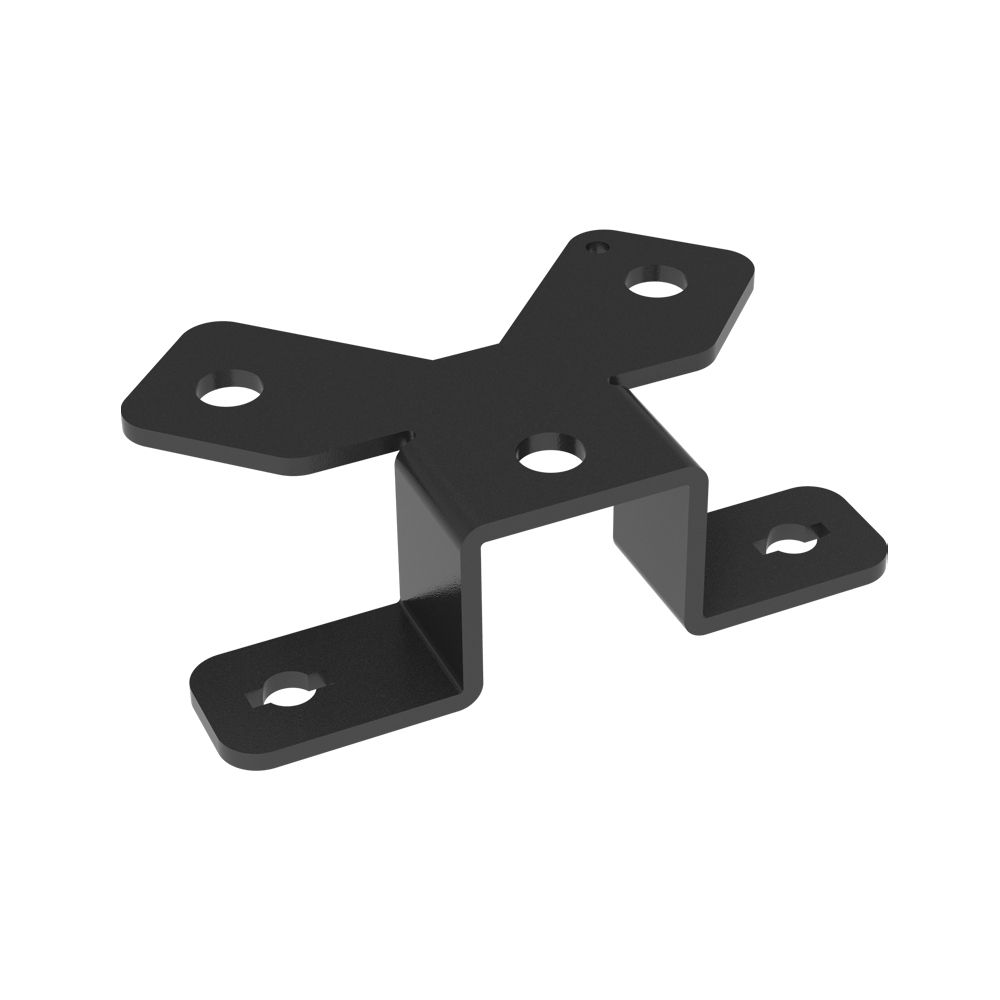

• 2x Omega adaptors with 1/4-turn quick locks
• Safety Rope Hole

Factory Configuration

• Digital User Manual
• Power Cable
• Two Fast-lock Omega Brackets

Optional Accessories(with item code)

• Signal Line: 3-pin or 5-pin XLR signal line
• Safety cable: 2060000200(SW-02)

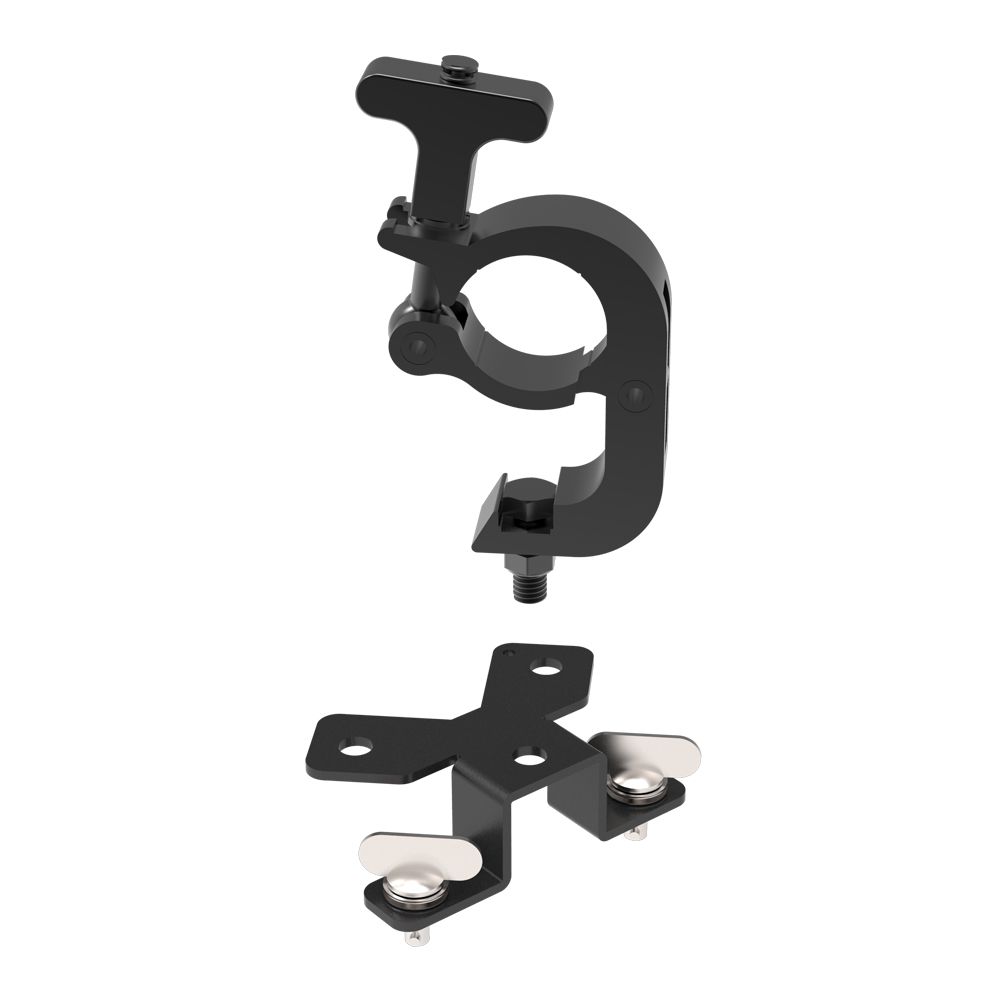

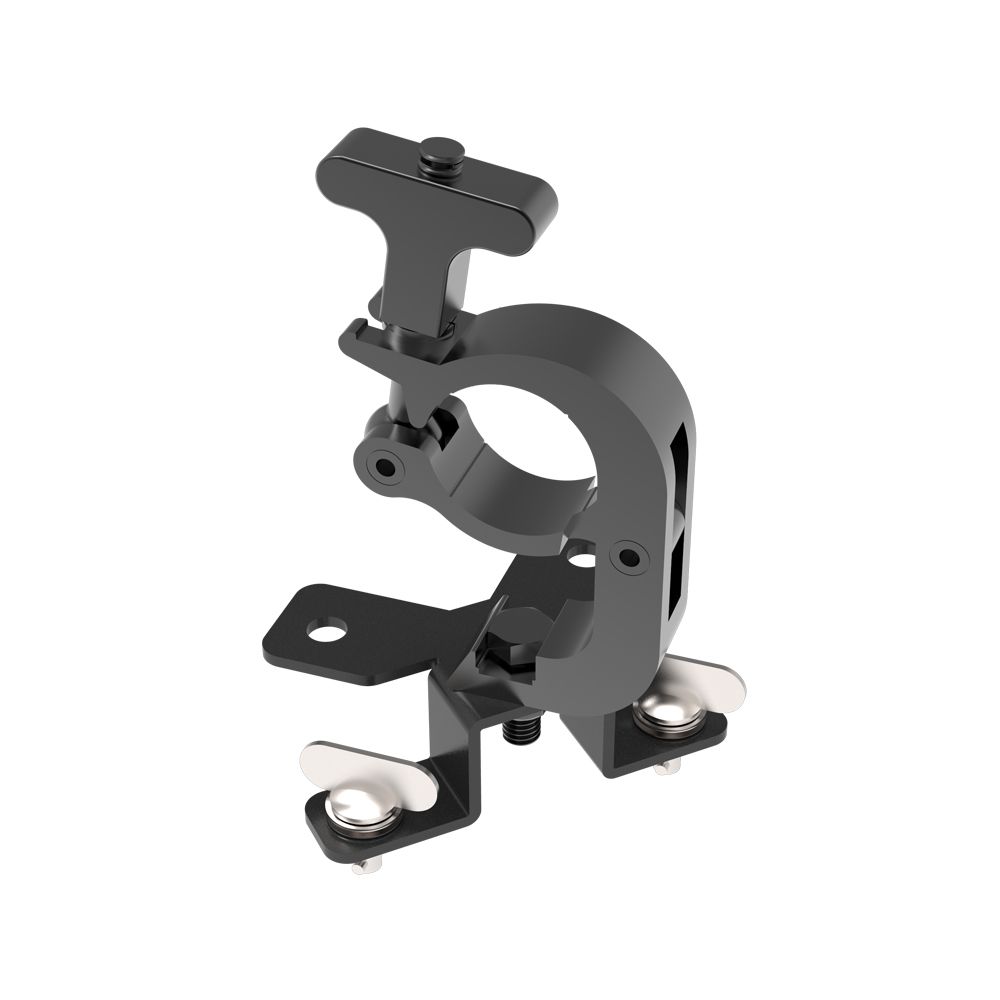

• Clamps: 2060001632(C-250B)
