Functional Overview

TV LIGHT PANEL 1000 series with outstanding floodlight and soft light, widely applied to photographic studio, TV station, conference room, shopping mall; Battery backup for user operation without connecting to the mains.

Features

• Light source: 240pcs cool white LED + 240pcs warm white LED
• Color Temperature: 3200±150K~5600±250K
• Beam Angle: 110°
• Flicker free management

Model

• LP-F1000 VW

Light Source

• Light source: 240pcs cool white LED + 240pcs warm white LED
• LED life expectancy: 20000 hours
• Color Temperature: 3200±150K~5600±250K

Optical System and Effects

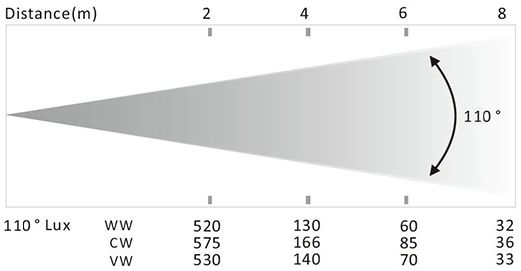

• Beam Angle: 110°
• CRI：≥94
• CQS：≥94
• TLCI：≥95

Control and Program

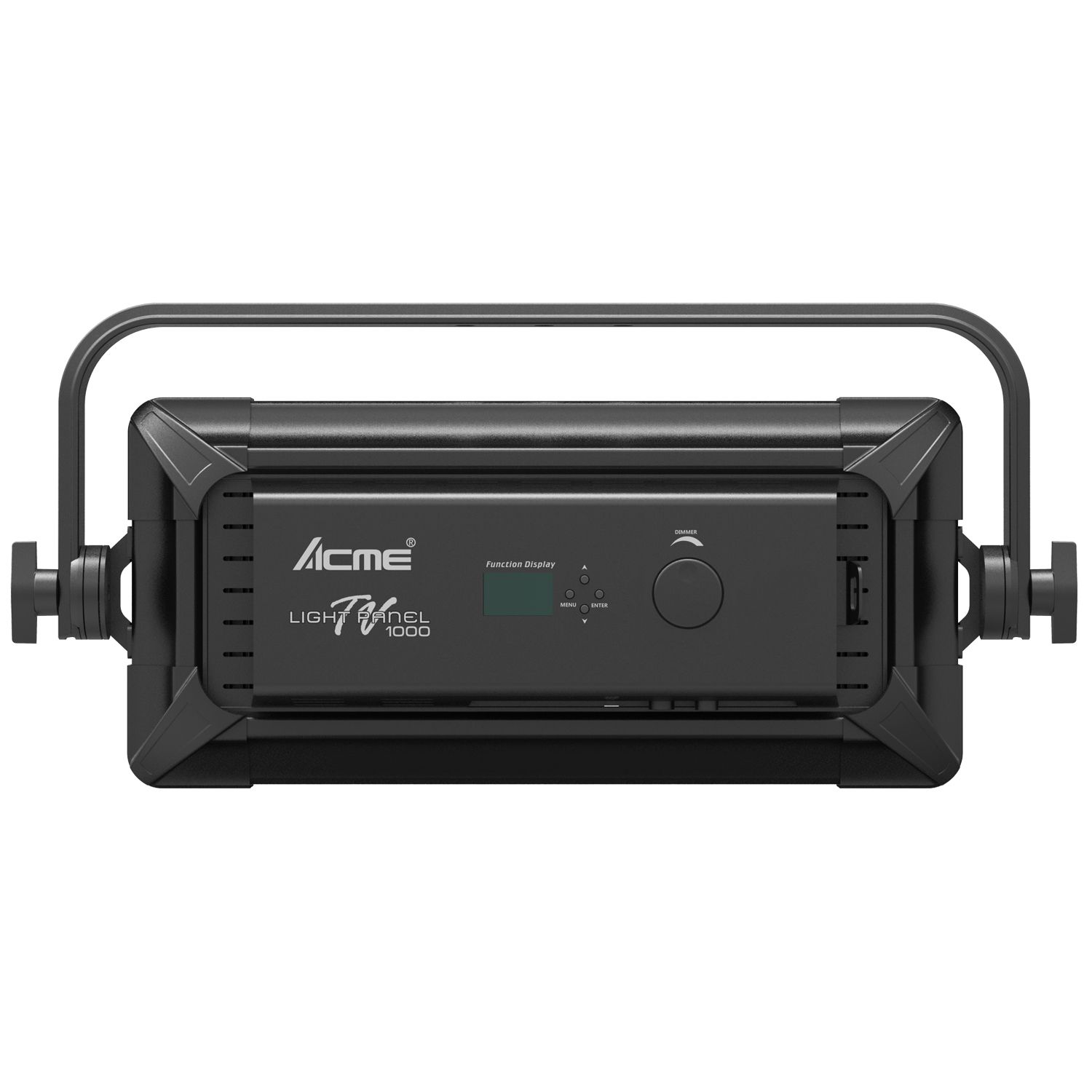

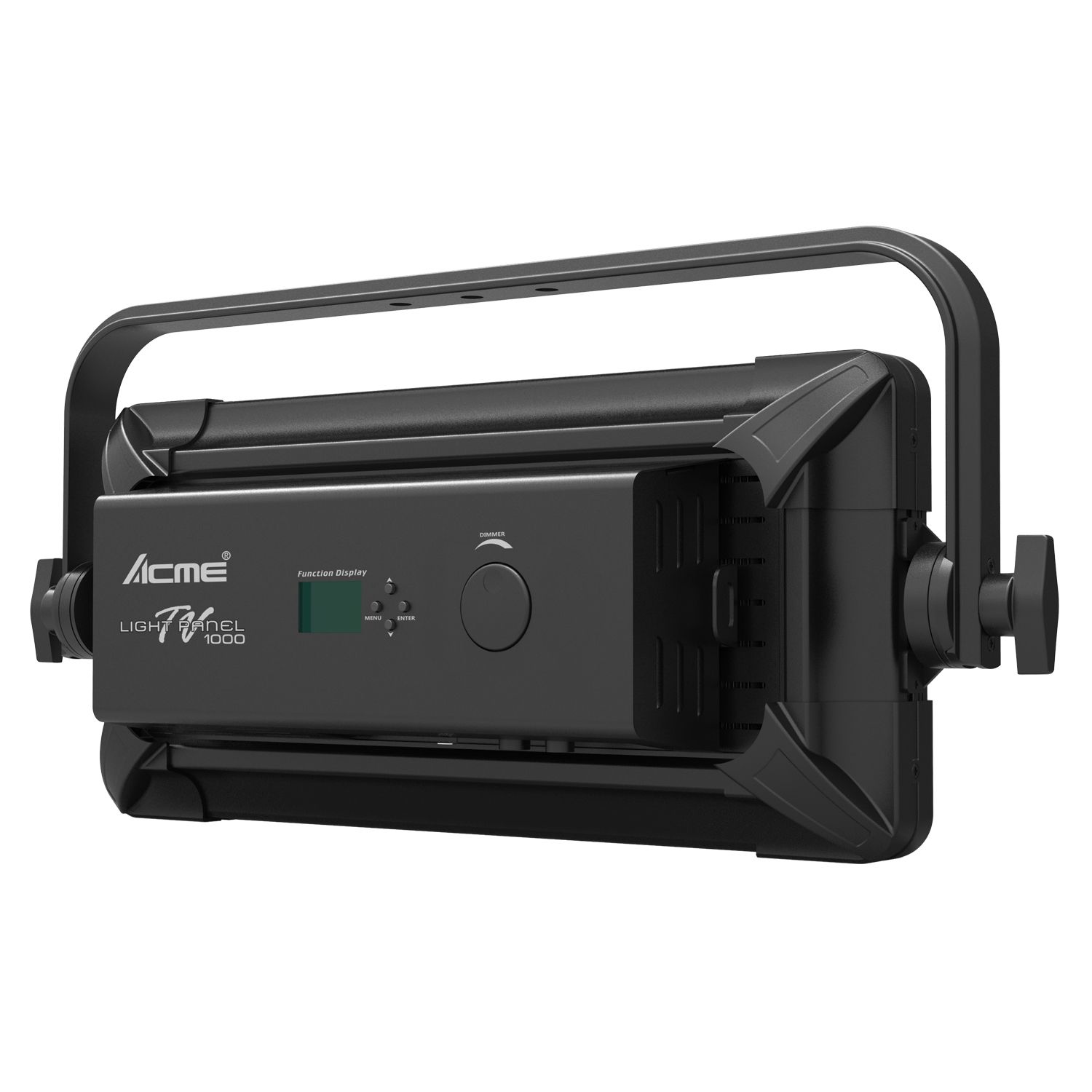

• 4-buttons, 2-knobs
• Display: LCD display
• Protocols: RDM,DMX512,Master/Slave,Art-Net
• DMX Protocol modes: 6
• Control channels: 2,3A,3B,4,5,6
• Upgrade the firmware via DMX link

Electrical and Connectors

• Power supply with electronic auto-ranging
• Input voltage range: AC 100–240 V, 50/60 Hz
• Power consumption: 100 W

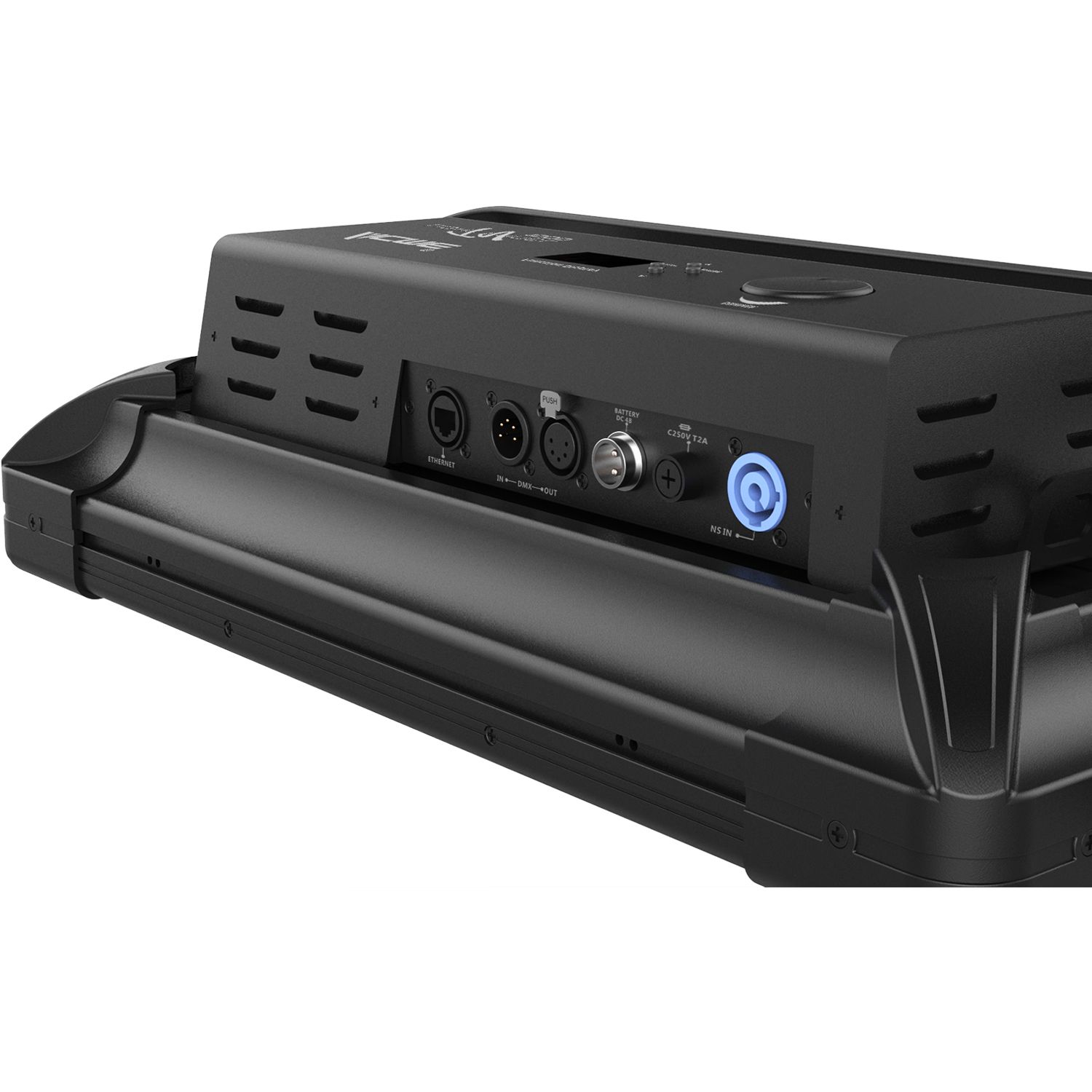

• Power in/out: Power Connector input
• 48V input from external battery
• Data in/out: 5-pin XLR
• Art-Net input: RJ45

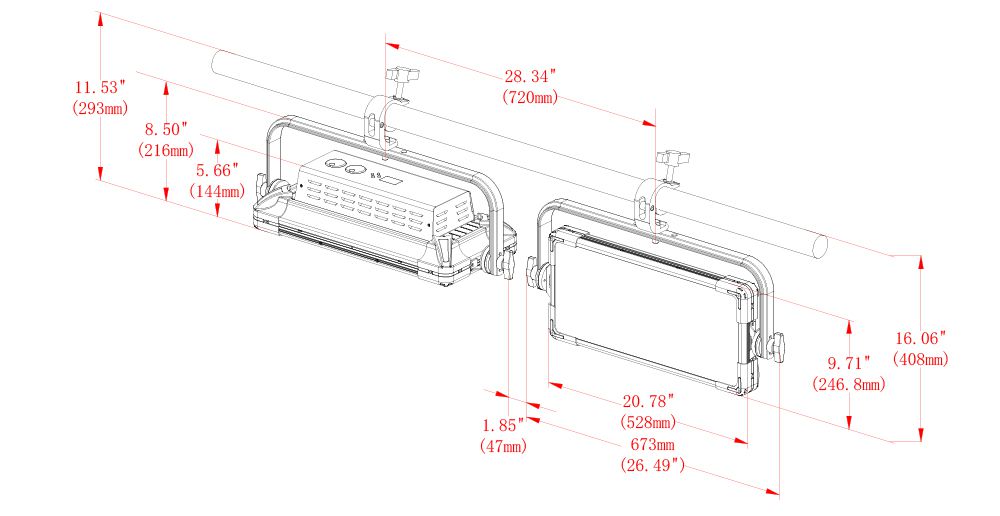

Fixture Specification

• Height: 301 mm (11.8″)
• Width: 151 mm (5.9″)
• Depth: 661 mm (26.0″)
• Weight: 8 kg (17.6 lbs)

Work Environment

• Maximum ambient temperature: 40°C
• Maximum surface temperature: 65°C
• Minimum operating temperature: 0°C

Approvals

• CE Compliant

Installation

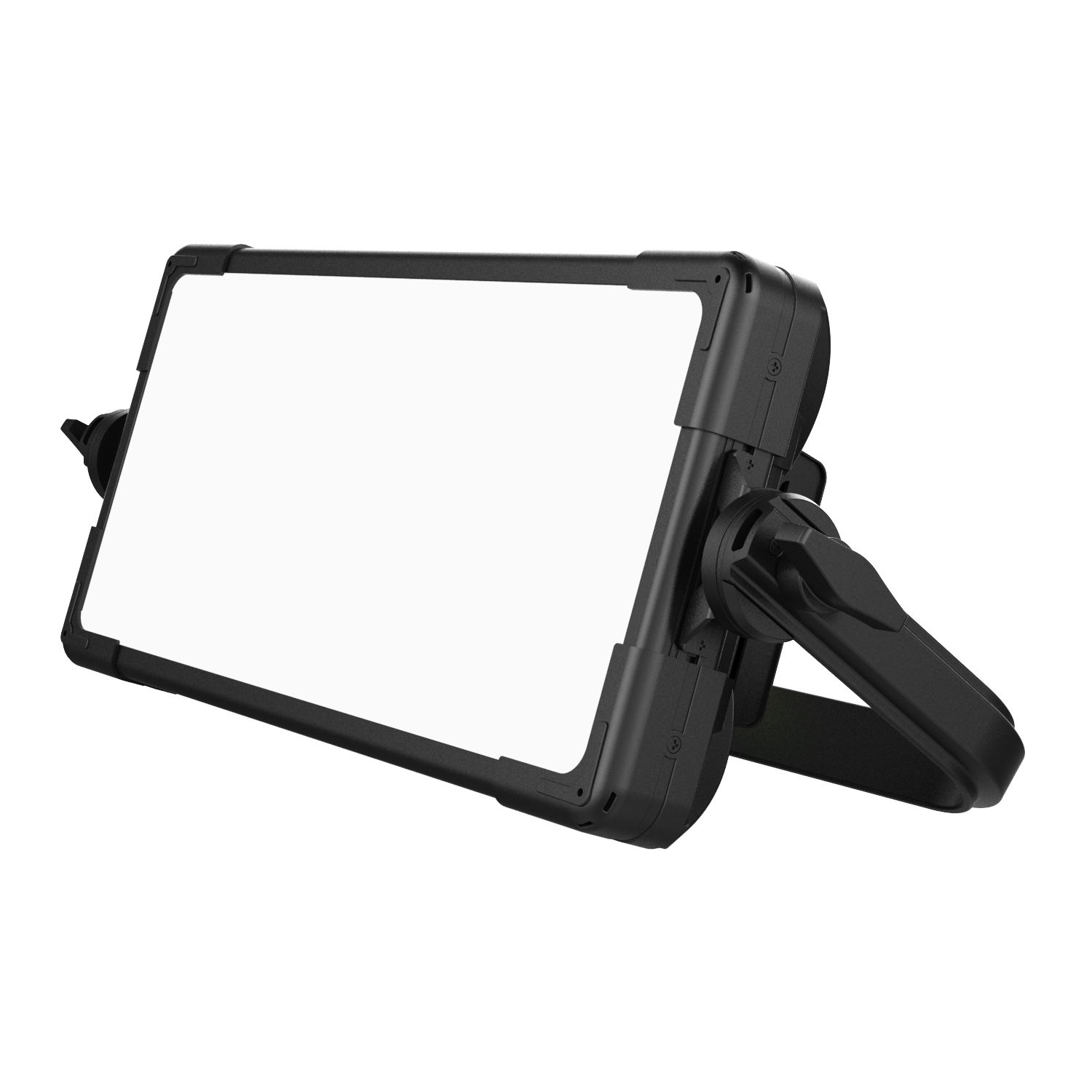

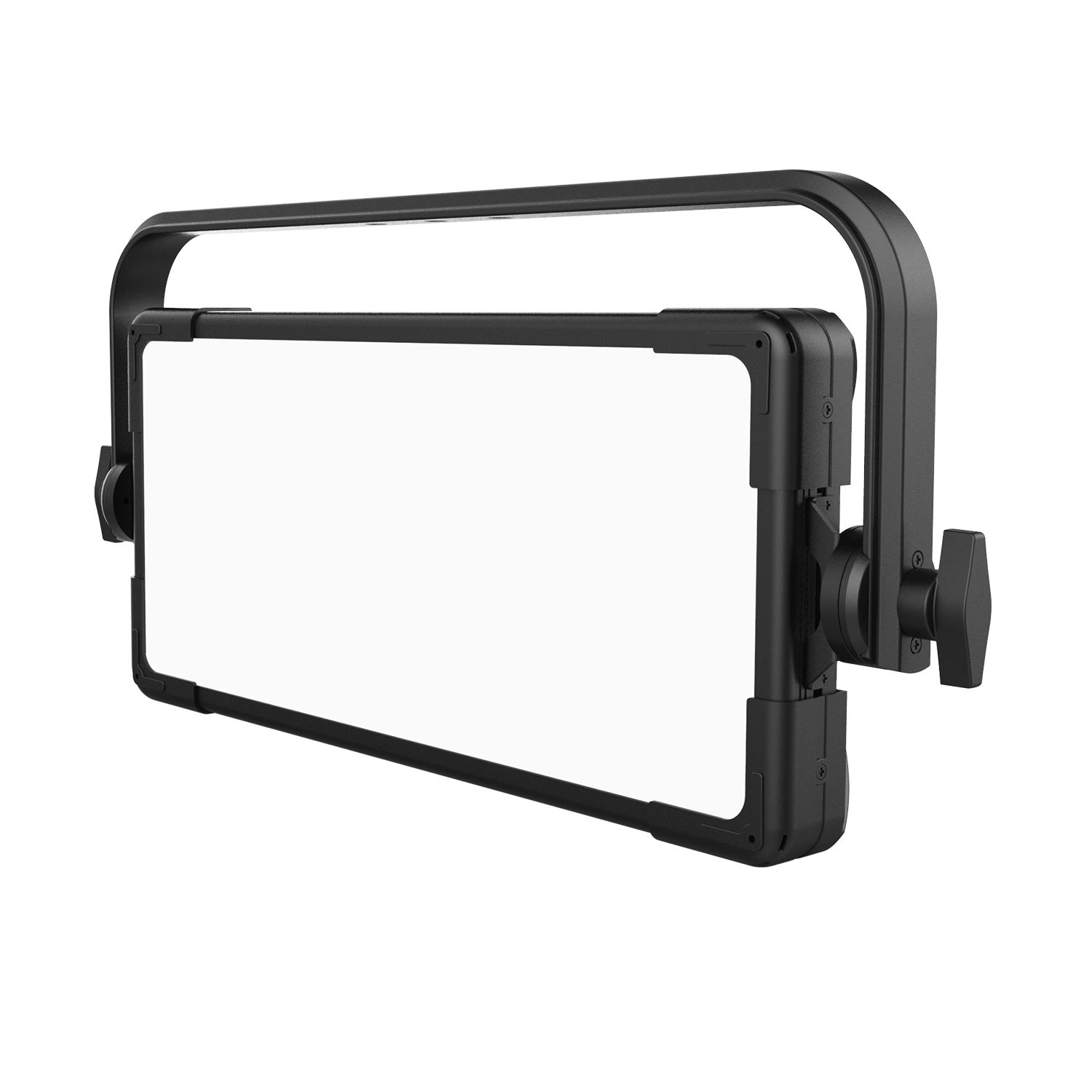

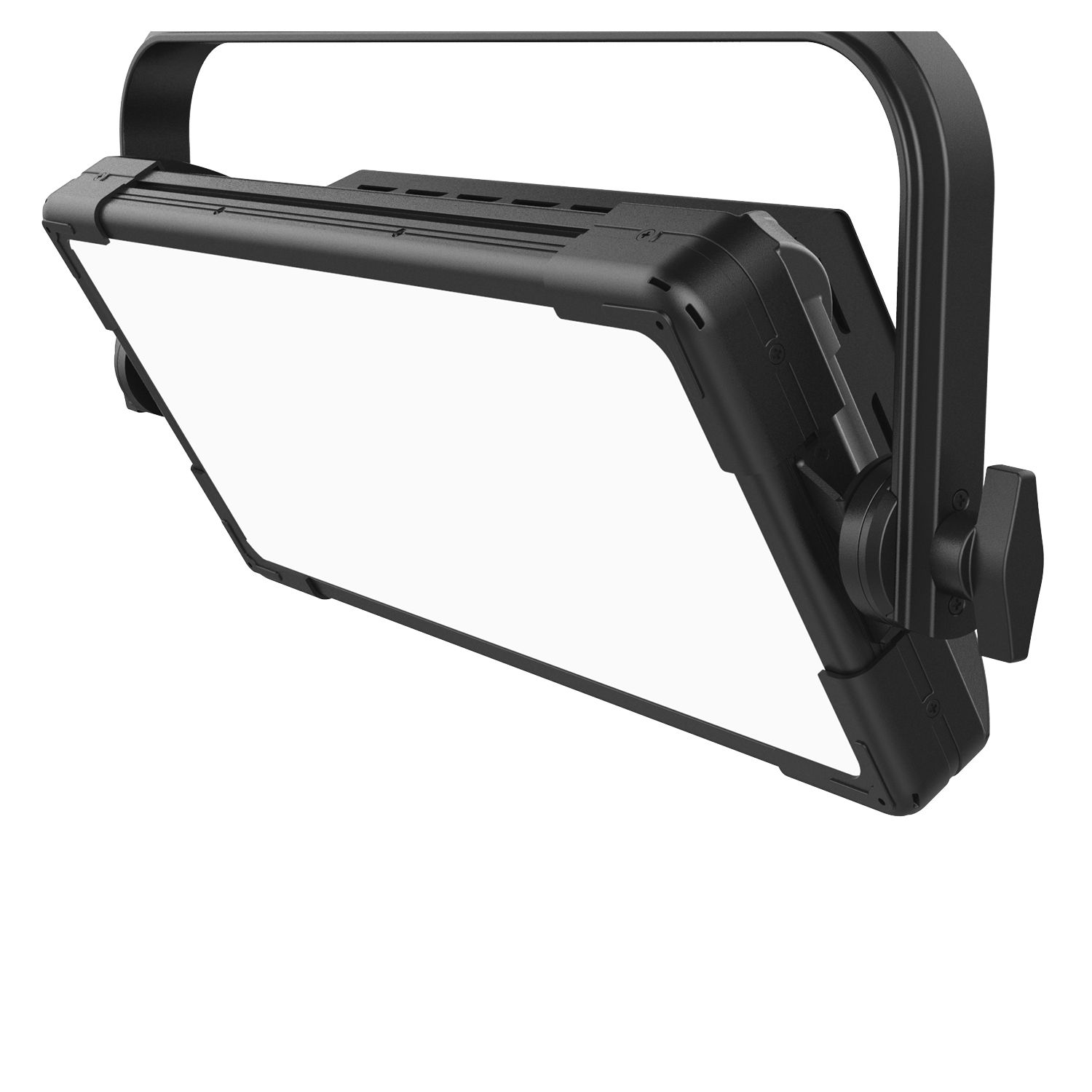

• Horizontally or vertically mounting are available
• Operating position is universal
• The feet support with 3 locking points
• Safety Rope Hole

Included Items

• Power Cable
• Digital User Manual

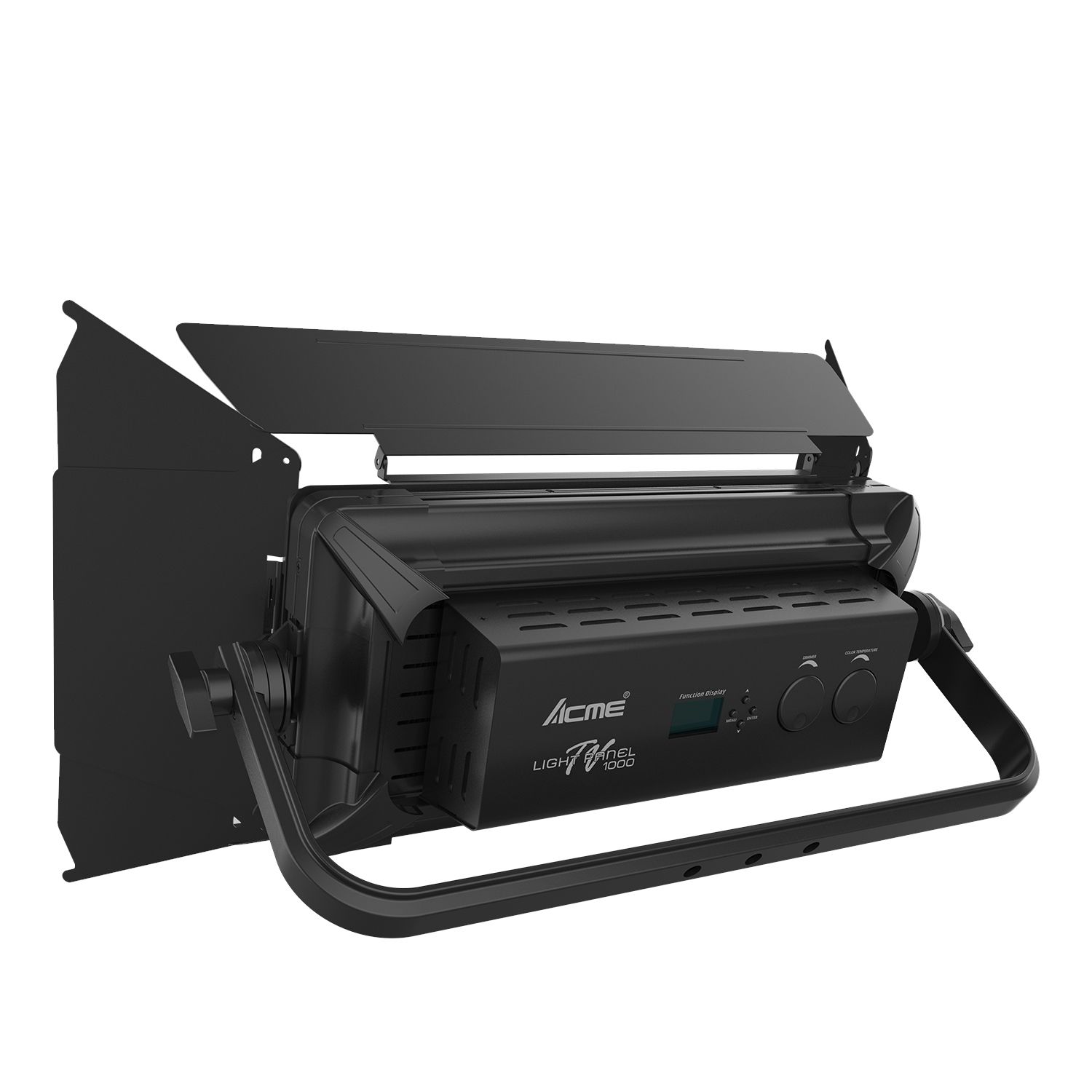

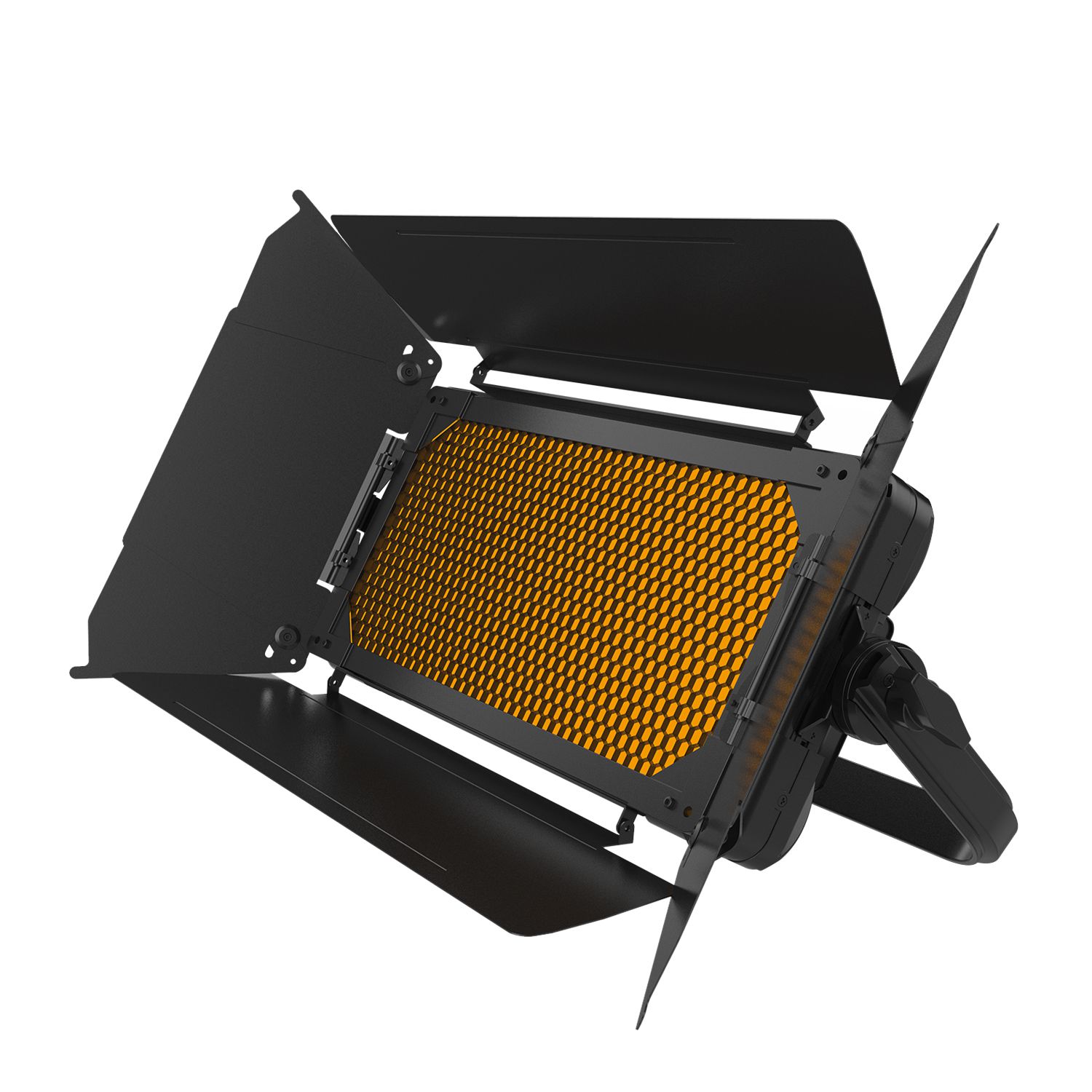

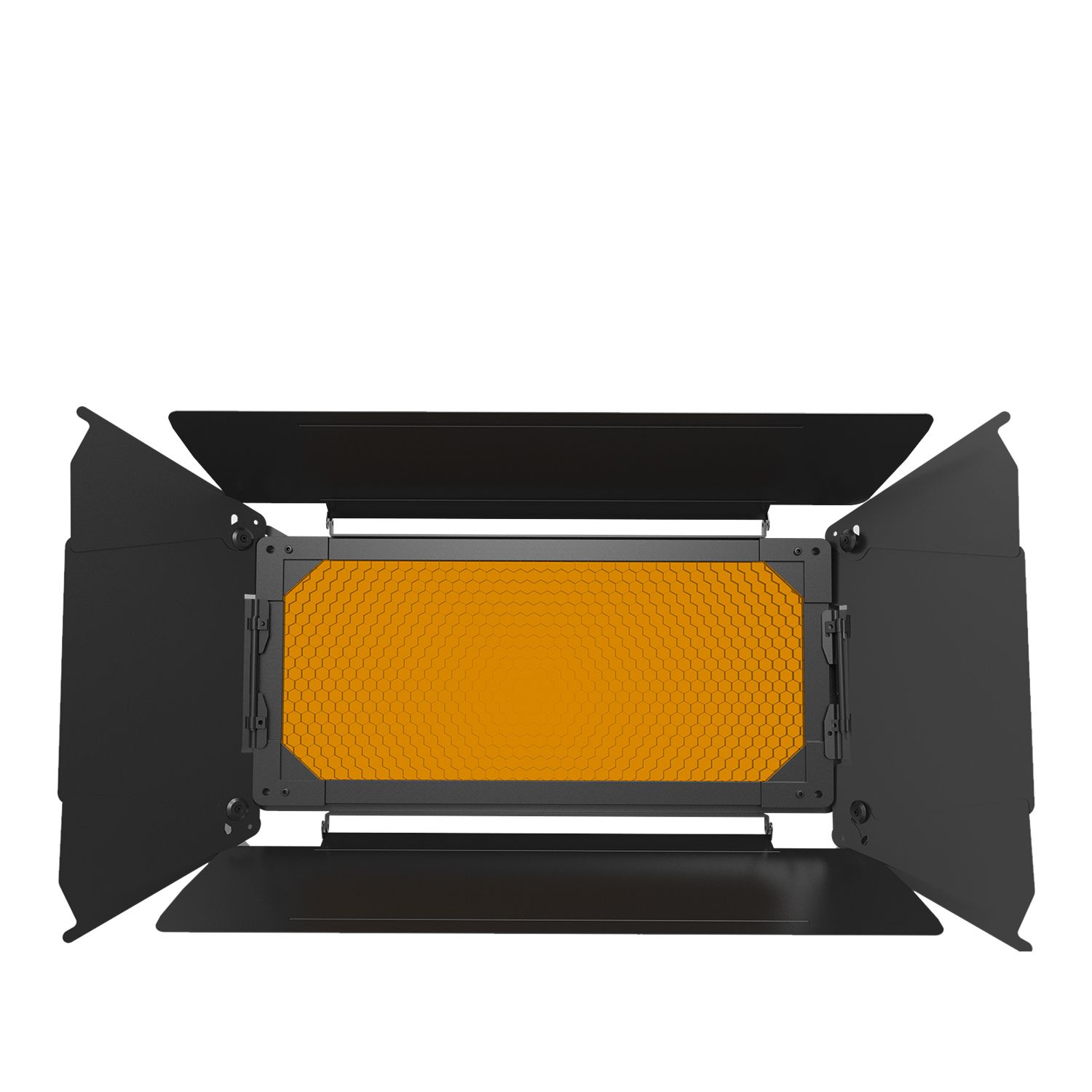

• Barn door

Optional Accessories (with item code)

• Clamp：2060001632（C-250B）
• Signal Line：5-pin signal line
• Safety cable: 2060000200（SW-02）

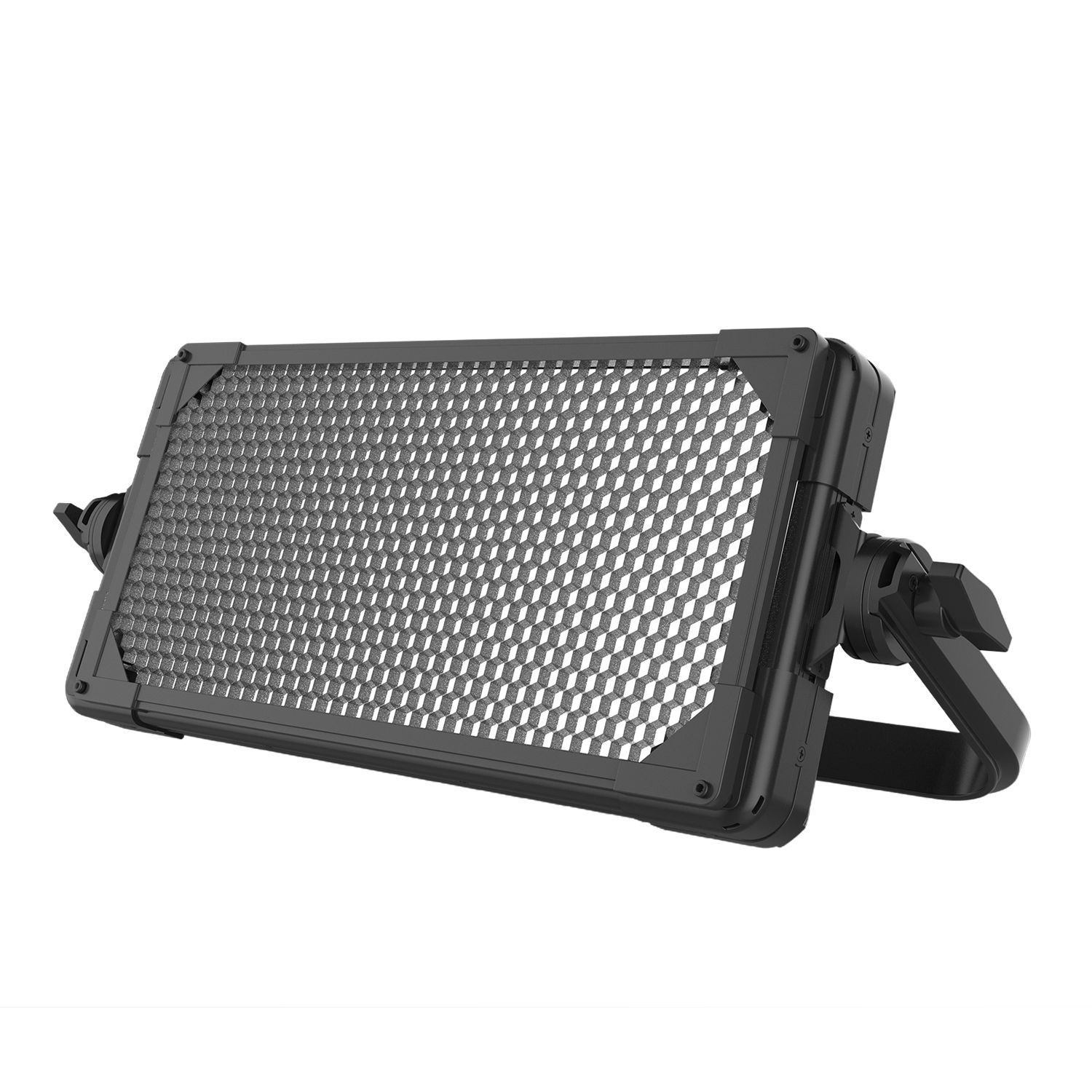

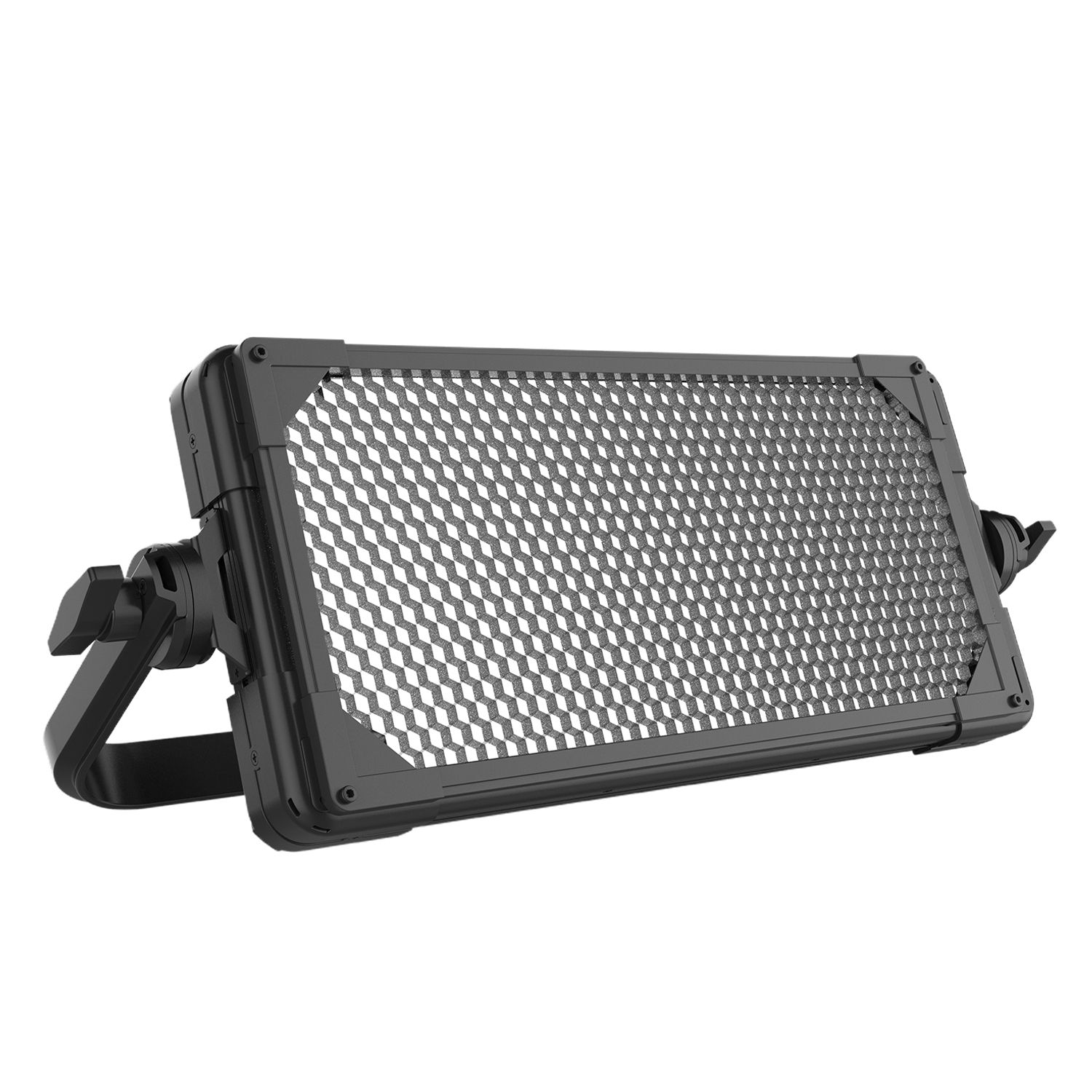

• Cellular grid:
  • 63580911（20mm thick）
  • 63580910（10mm thick）
