Acme STAGE PAR 600 ZOOM IP

Log in of registreer om uw korting te zien.
Of vraag vrijblijvend een offerte aan.

Demo? Bezoek onze showroom of maak een afspraak voor een demo op locatie.

Wij zijn er voor de professional. Totaal leverancier stage & entertainment

Deskundig advies op maat. Wij denken graag met je mee.

Gespecialiseerd in projectie. Voor elke project een oplossing.

Functional Overview

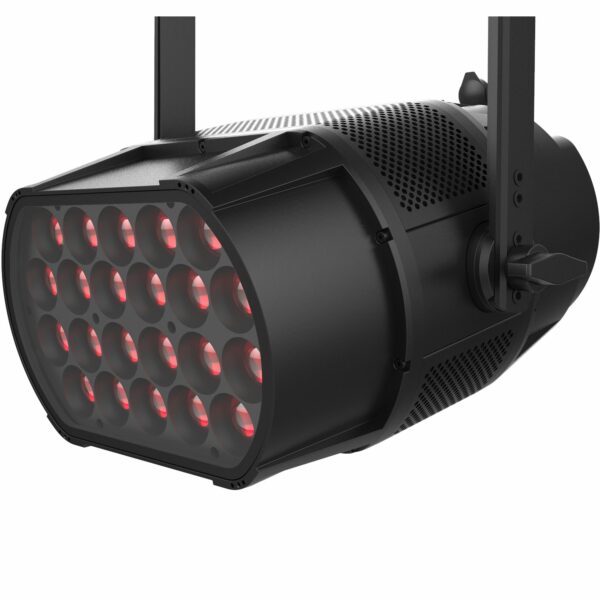

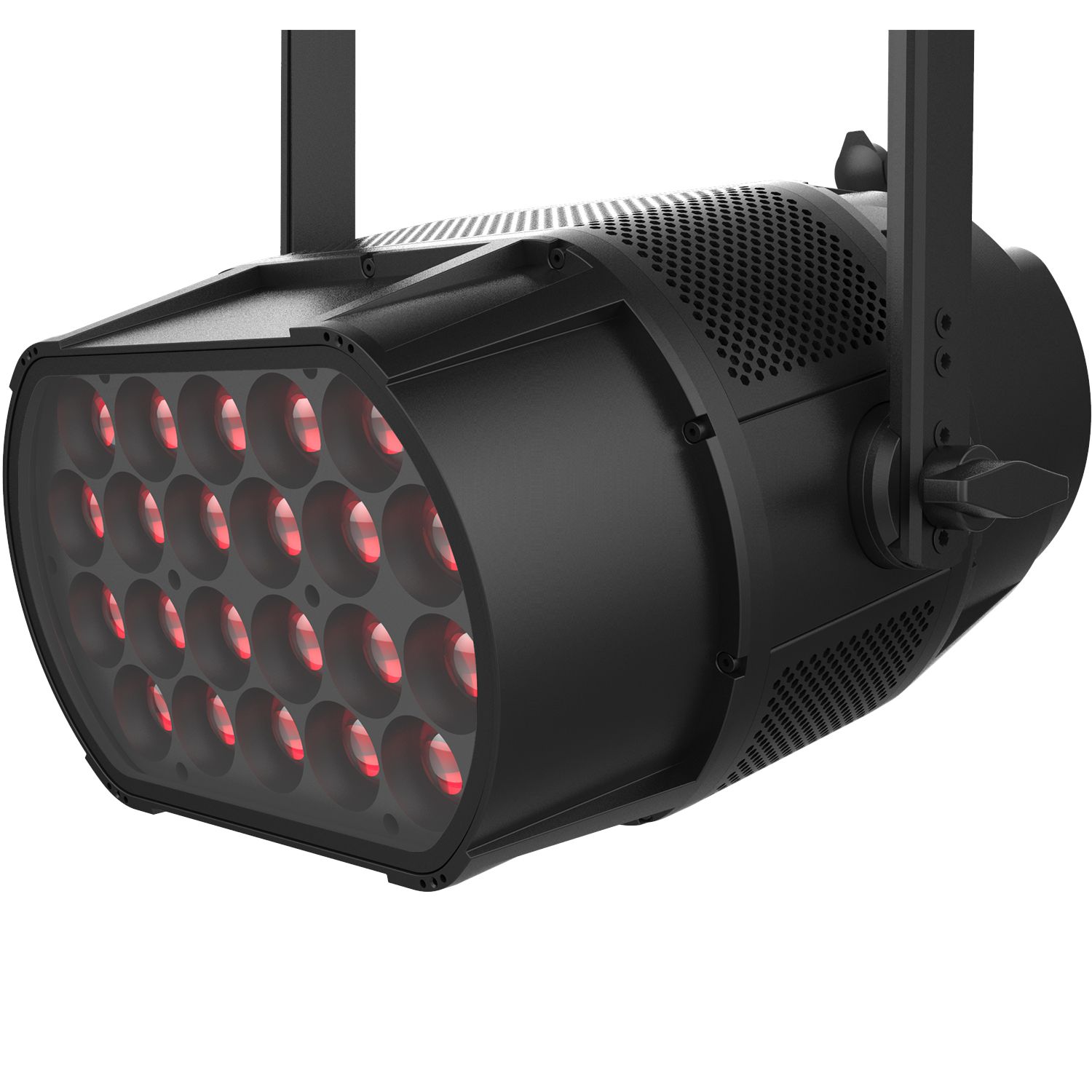

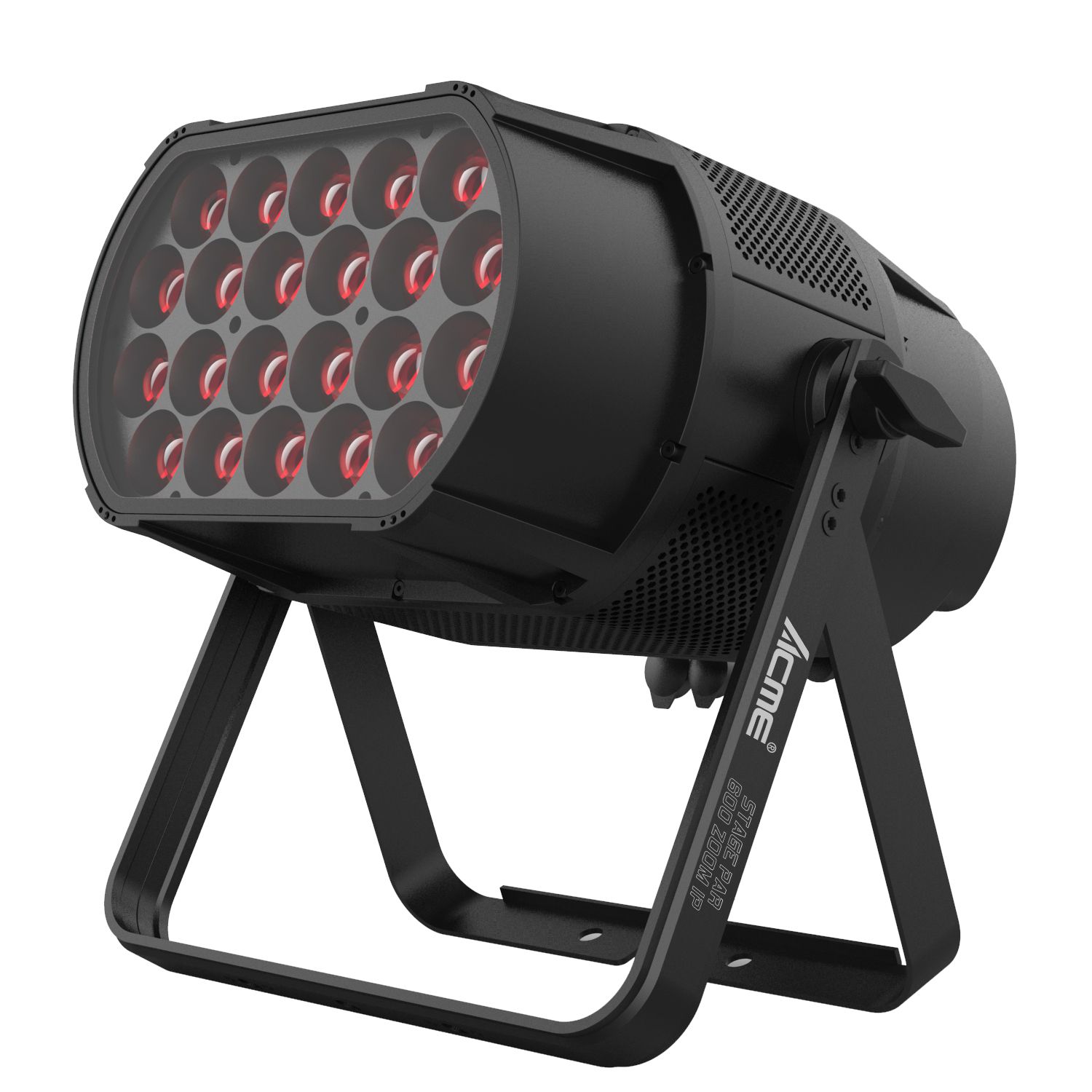

The ACME STAGE PAR 600 ZOOM IP is the upgraded version from Stage Par 400 Zoom IP, which featuring 22x30W Osram RGBW 4in1 LED, providing you much more brightness and possibilities. With powerful output and 1:6.5 ratio motorized zooming from 6° to 40° degree,it offers smooth color mixing and variable preset macro effects, and the unique color calibration system also contributing the ever best color mixing and color consistency performance. With robust constructionand IP66-ratings, the Stage Par 600 Zoom IP is designed for both indoor and outdoor use. Its durable aluminum die casting housing protects it from dust, sand, moisture and liquids, making it ideal for use in all situations from dusty deserts to rainy fields. What’s more, it’s available to adjust CCT from 3,200 to 10,000K, selectable dimming curve effects, adjustable LED refresh rate and gamma brightness for flicker free operation in TV and FILM application, RDM is supported as well. Equipped with a 5pin DMX In&Out and powerCON TRUE1 power In/Out connections, OLED display menu, integrated dual rigging yoke, such a compact versatile luminaire is only around 15kg. In one word, this user friendly IP Par light innovation significantly saves cost and time in any shipping work & limited outdoor application.

Features

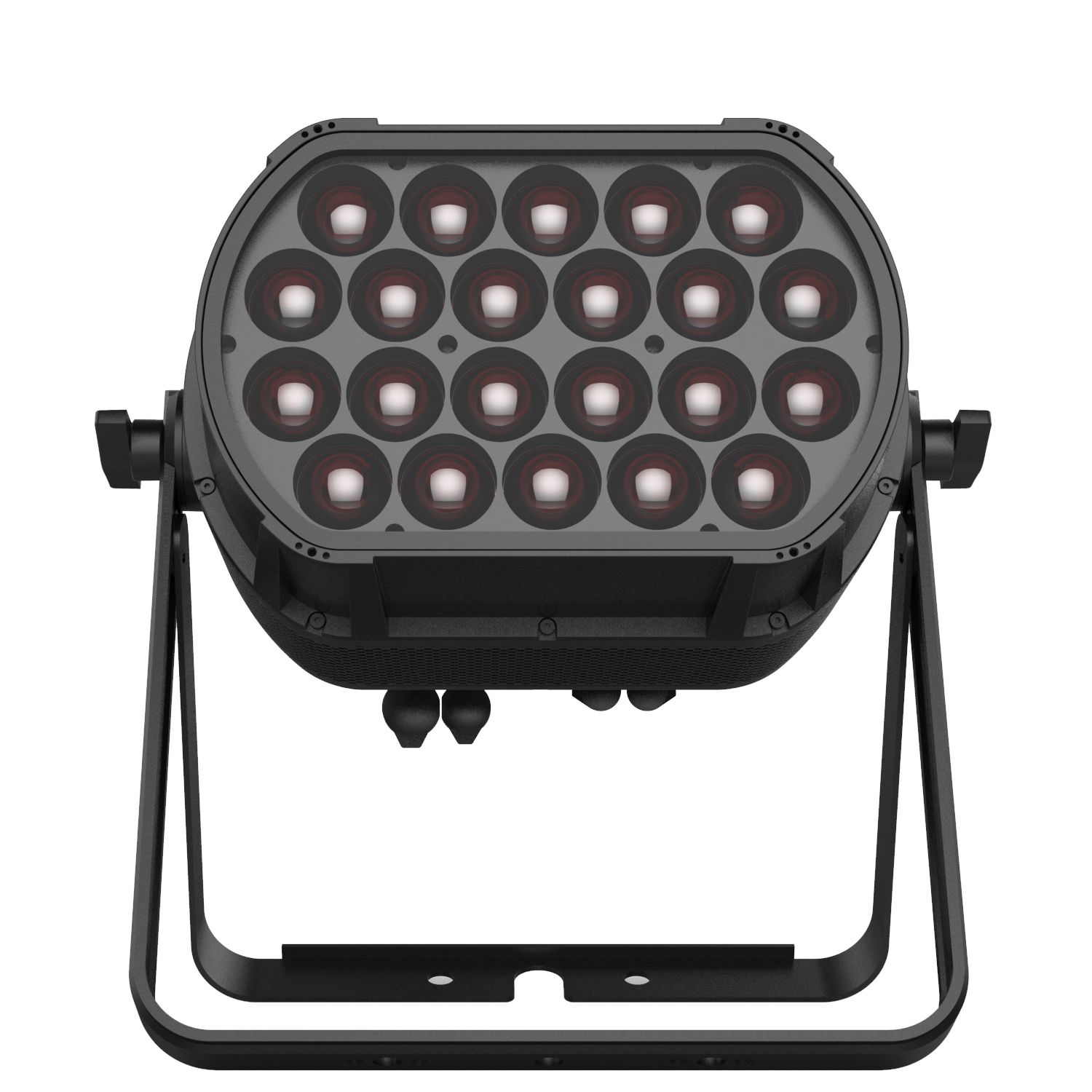

Light Source: 22x30W RGBW LED
Uniform RGBW color mixing and rainbow effect
0~100% smooth dimming
Outstanding strobe effect with variable speed
Advanced RDM function
Built-in programs for selection
Can change the DMX address code, reset the lighting, transform the voice Controlmode by console
Flicker free management
Dust-proof and oil-proof design
Protection rating: IP66
Maximum QTY of connnection:
120V,60Hz: 3 sets
230V 50Hz: 5 sets

Technical & Specification
Model
MP-600Z IP

Light Source
Light Source: 22x30W RGBW LED
LED life expectancy: 30000 hours

Optical System
Advanced optical Systemto ensure clear and excellent static effect

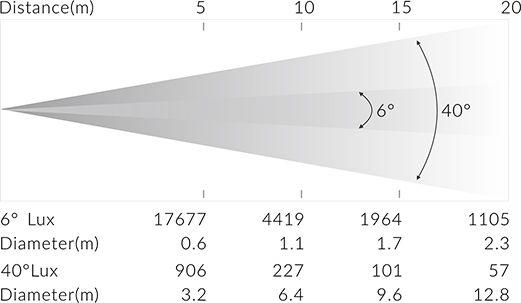

Beam Angle: 6°~40°

Controland Program

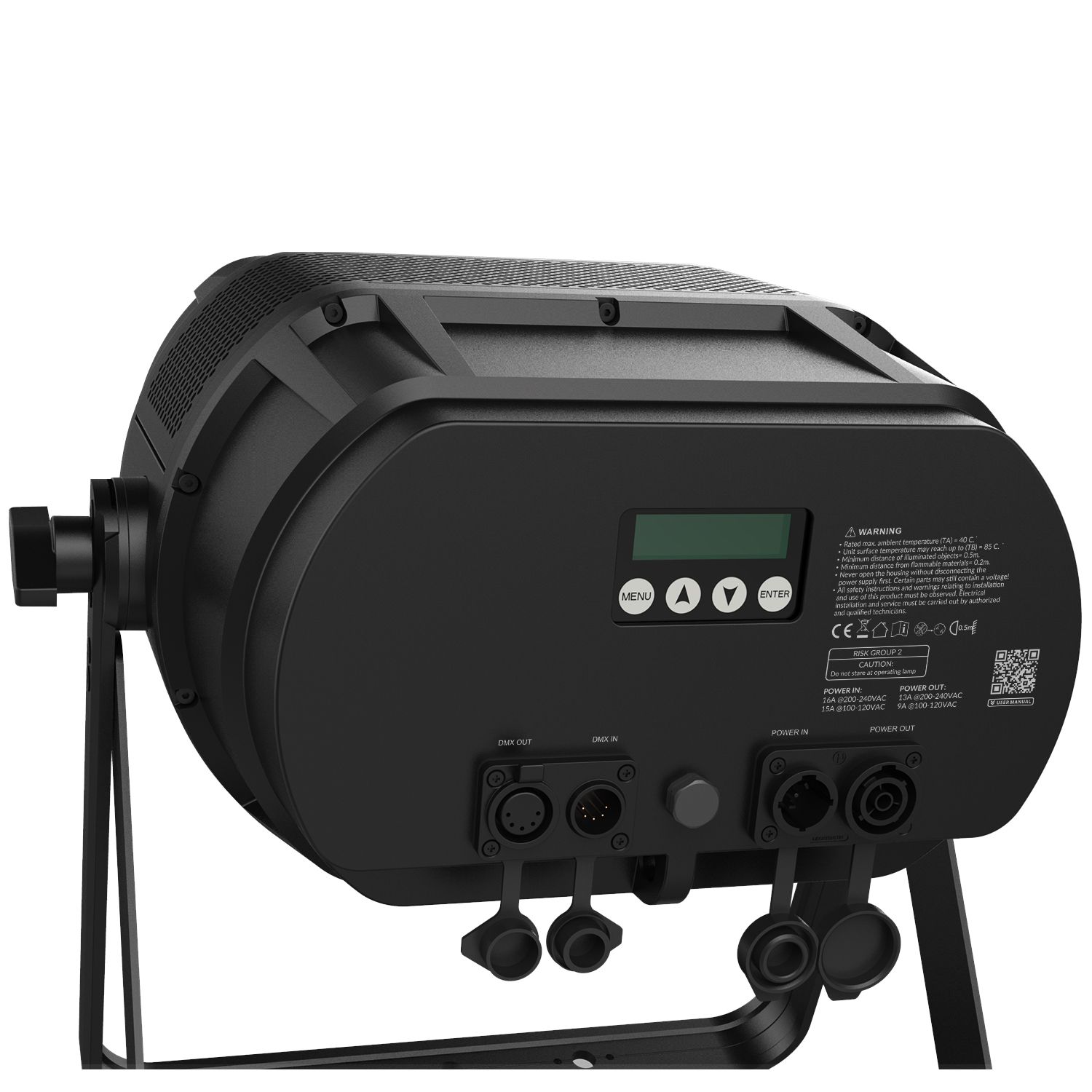

4-buttons touch panel
Display: OLED display
Protocols: DMX512,RDM
DMX Protocol modes: 3
Controlchannels: 5,7,9
Upgrade the firmware via DMX link

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 640 W

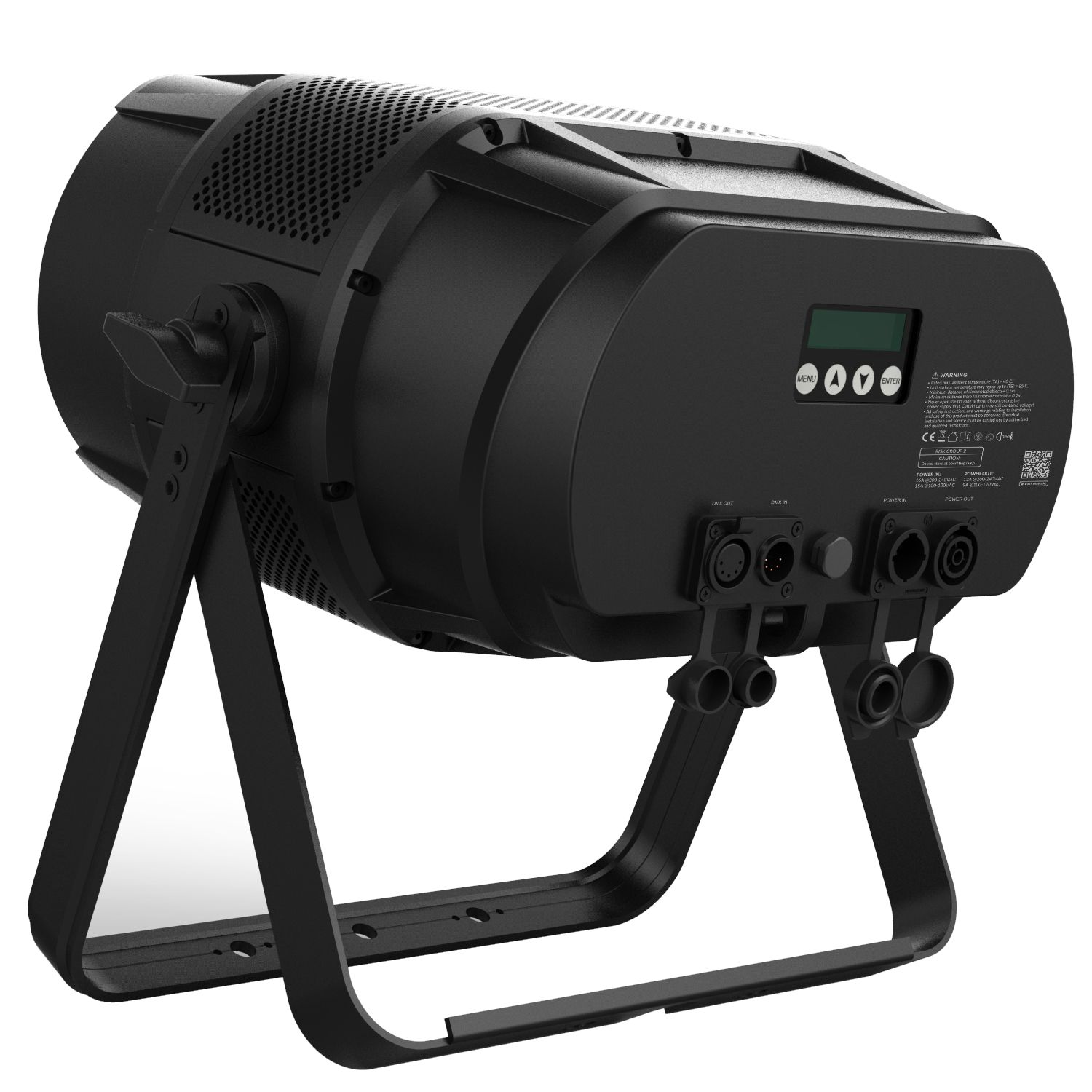

Waterproof connector
Data in/out: Waterproof 5-pin XLR

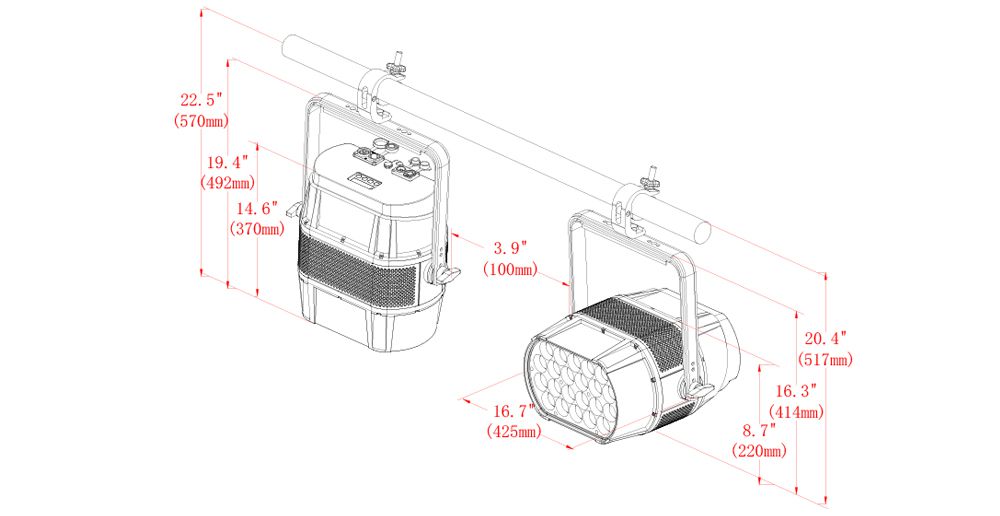

Fixture Specification
Height: 370 mm (14.5″)
Width: 370 mm (14.5″)
Depth: 425 mm (16.7″)
Weight: 15.4 kg (33.9lbs)

Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection rating: IP66

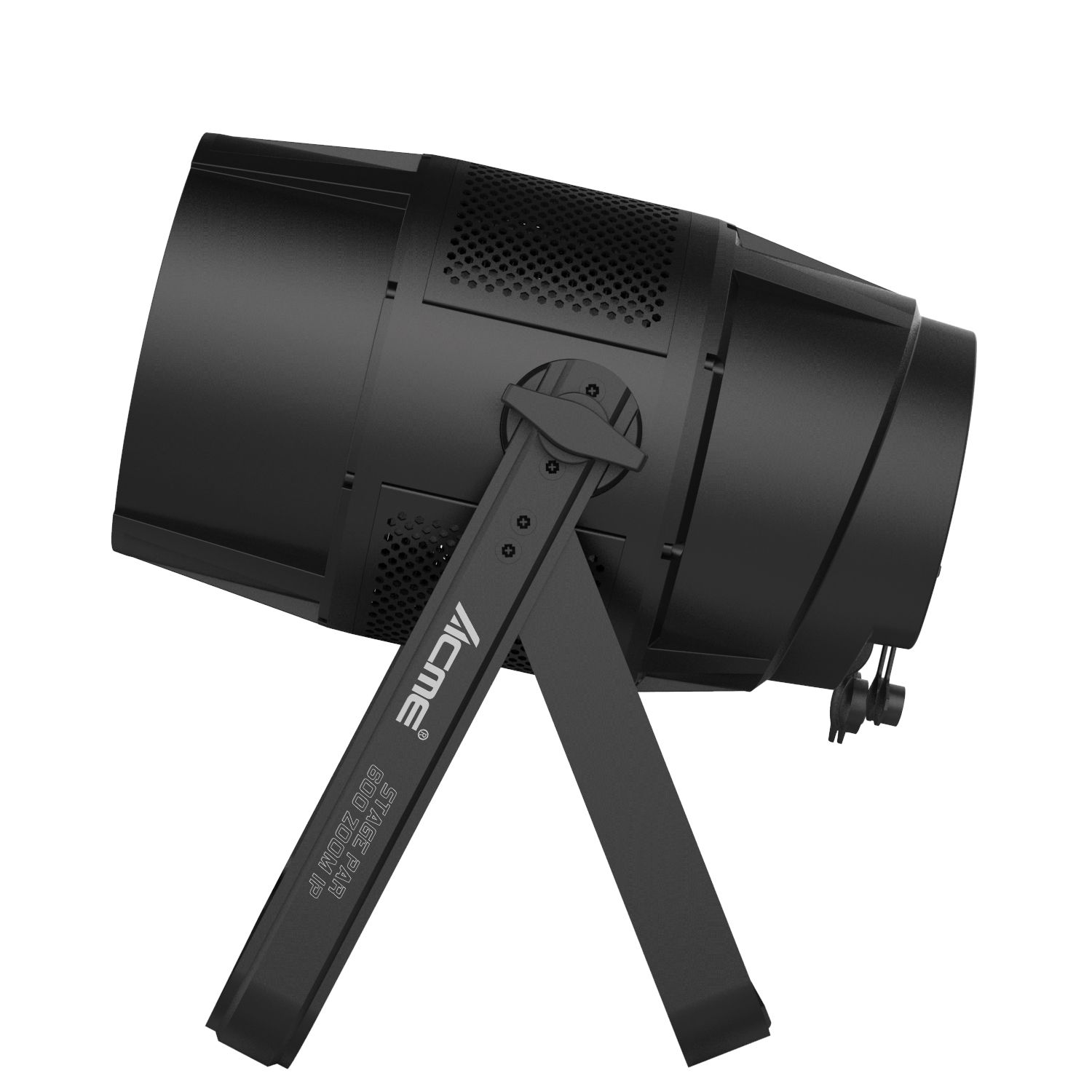

Installation
Horizontally or vertically mounting are available
Operating position is universal
The feet support with 3 locking points
Safety cable attachment point

Included Items
User Manual

IP-Rating

Outdoor

Type lichtbron

LED

Vermogen

Vermogen Lichtbron

660

Eigenschappen

, ,

Kleurmenging

RGBW

Type Fixture

Par

Min zoom

6

Max zoom

40

Kleur

Zoom
