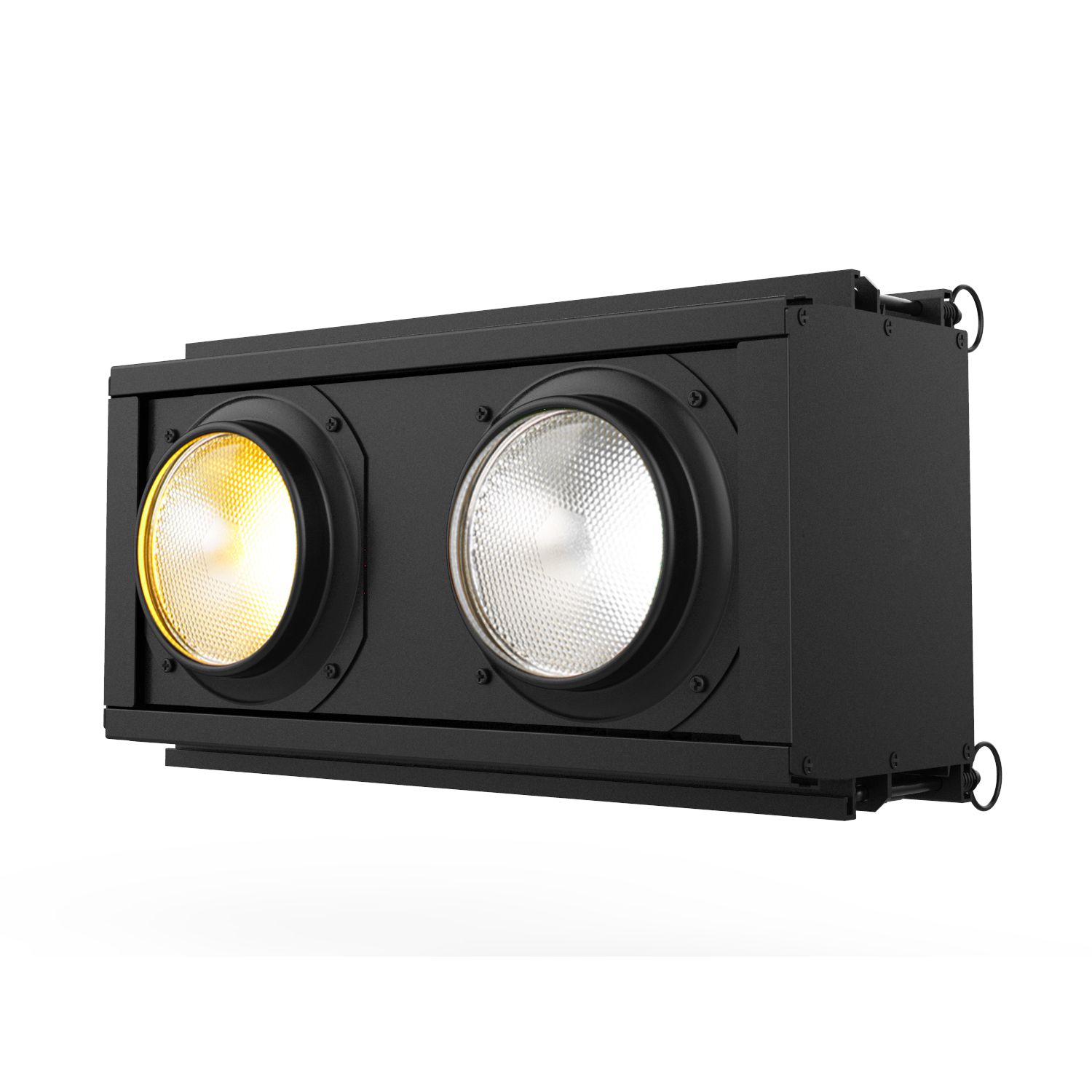

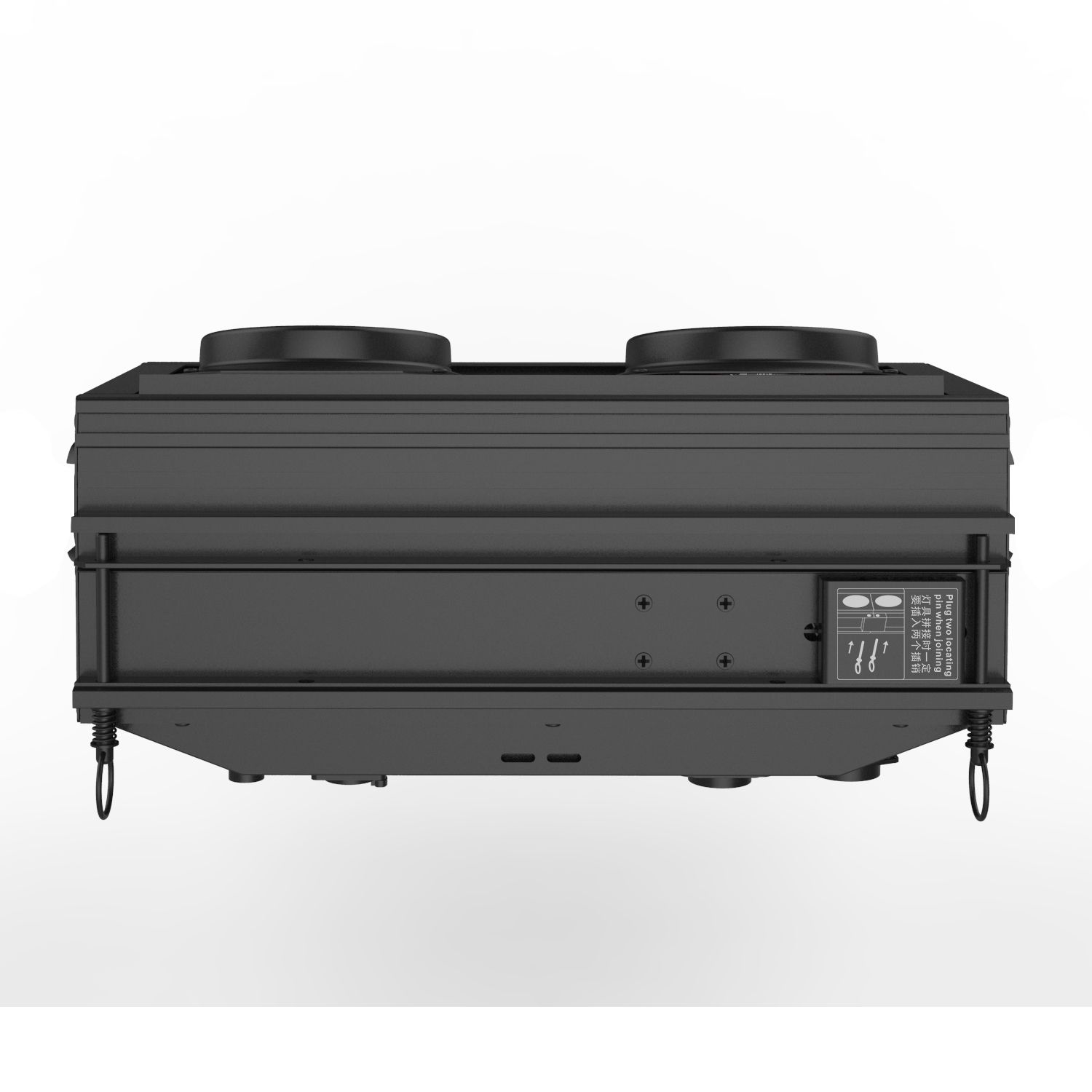

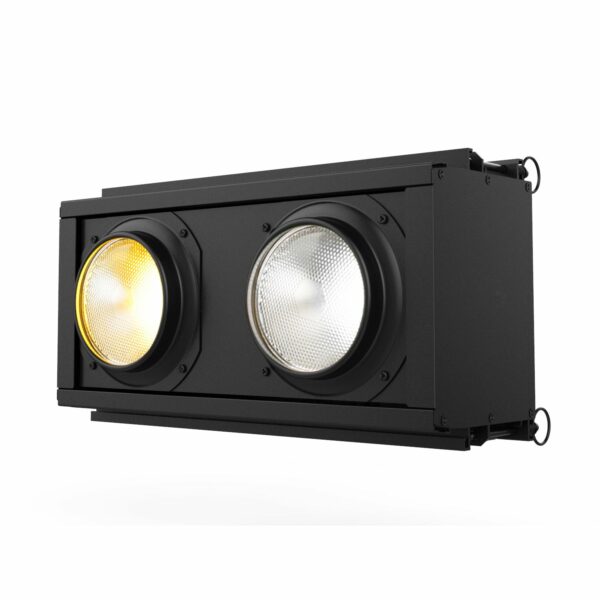

Acme STAGE BLINDER IP VW

Adviesprijs 712,64 excl.btw

2x150W | LED | Strobe | Variabel wit | Pixel control | IPX4 | Modulair

Bekijk winkelwagen

Beschrijving

Functional Overview
STAGE BLINDER IP (BL-200 VW) with adjustable color temperature, equipped with patented plug-in function, the lighting can quickly achieve horizontal and vertical assembly or bracket Installationwithout any tools. And it can be assembled freely with BL-200 series lighting. Provide multiple rotation angles, each of them can be located easily. Its brightness is higher than the traditional spectator lamp, carrying outstanding strobe effect with variable speed and IPX4 protection rating, STAGE BLINDER IP is suitable for large and medium-sized concerts, variety arts and other professional stage or entertainment places, where requiring high background.

Features
Light Source: 2 x 125W LED module
Color Temperature: 2700~6500K
Adjustable color temperature
Beam Angle: 50°
0~100% smooth dimming
Outstanding strobe effect with variable speed

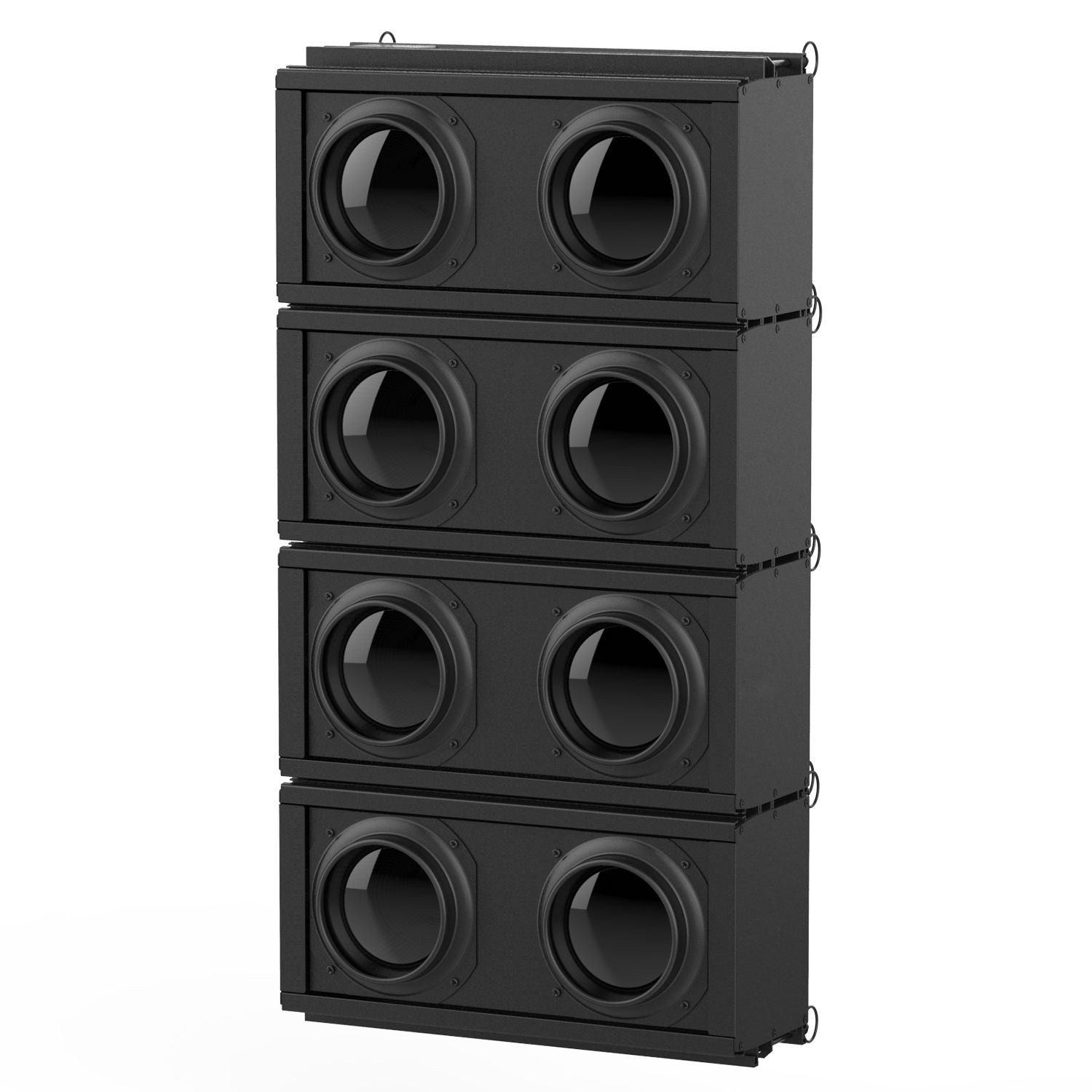

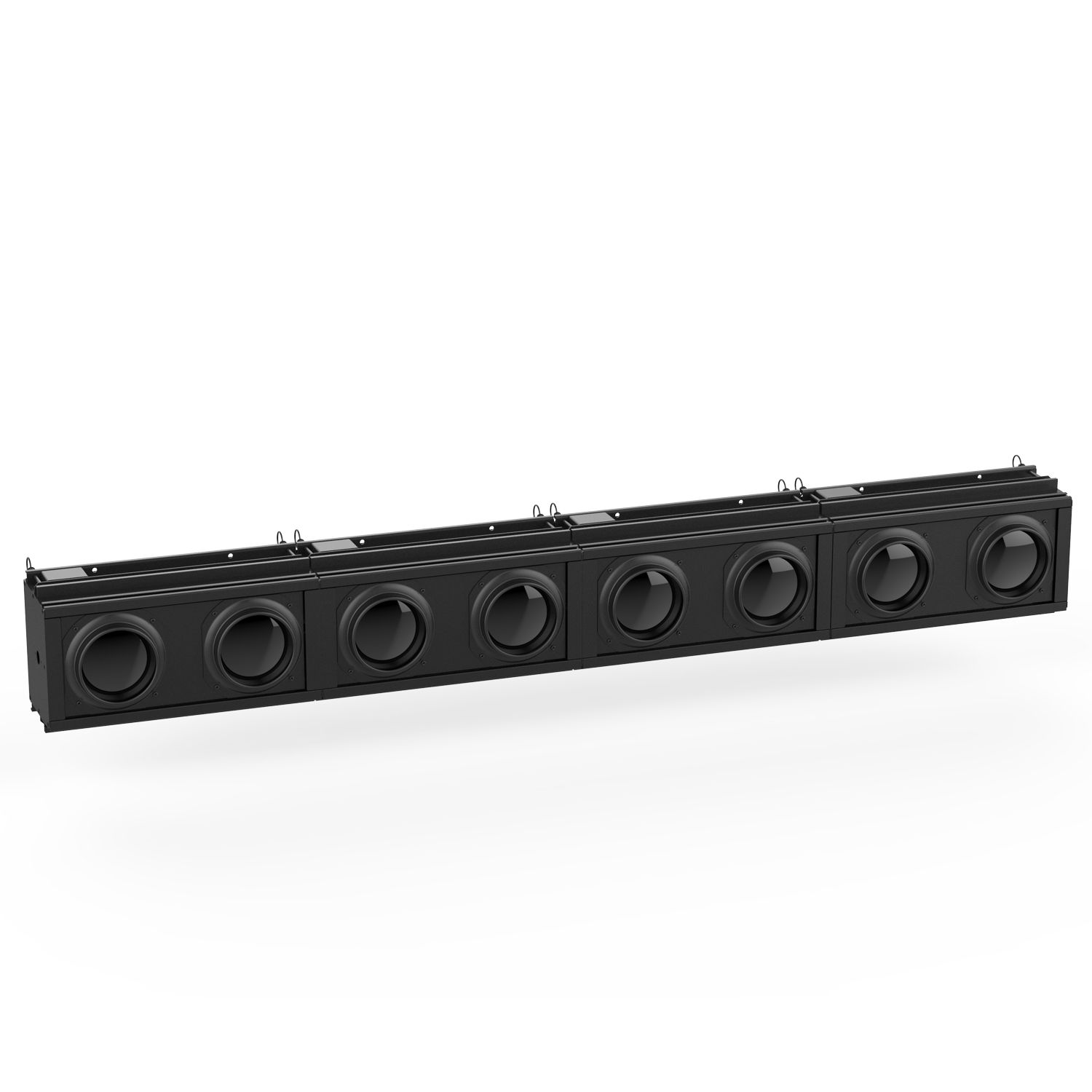

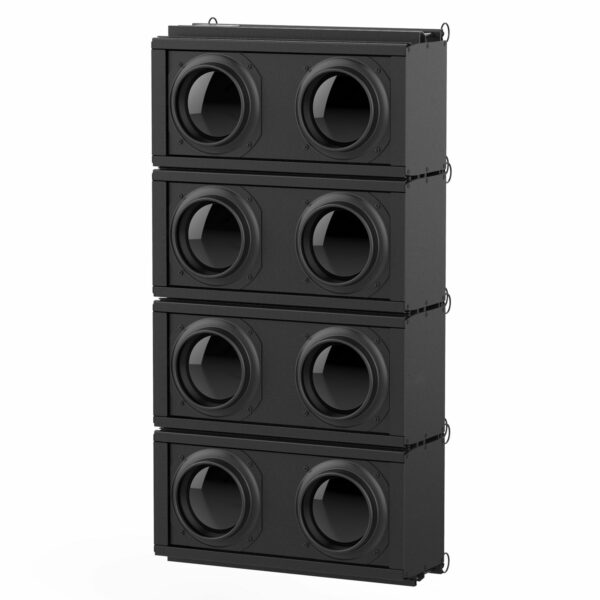

Multiple units can be joined in horizontal and vertical rapidly without accessary or tool
Provide multiple rotation angles, each of them can be located easily
Ultra-high brightness, higher than traditional spectator lamp
Compact design, excellent thermal design, easy to install
Suitable for large and medium concerts, events, professional stages, and entertainment venues where needs high brightness environment
Flicker free management
Dust-proof and oil-proof design
Protection Rating: IPX4
Maximum QTY of connnection:
230V,50Hz: 8 sets
120V,60Hz: 4 sets

Technical & Specification
Model
BL-200 VW

Light Source
Light Source: 2 x 125W LED module
LED life expectancy: 10000 hours

Optical System
Advanced optical Systemto ensure clear and excellent static effect

Controland Program
4 buttons
Display: LED display
Protocols: DMX512,RDM
DMX Protocol modes: 5
Controlchannels: 3,4,4CHr,5,6
Dimmer: 8 bit or 16 bit
Upgrade the firmware via DMX link

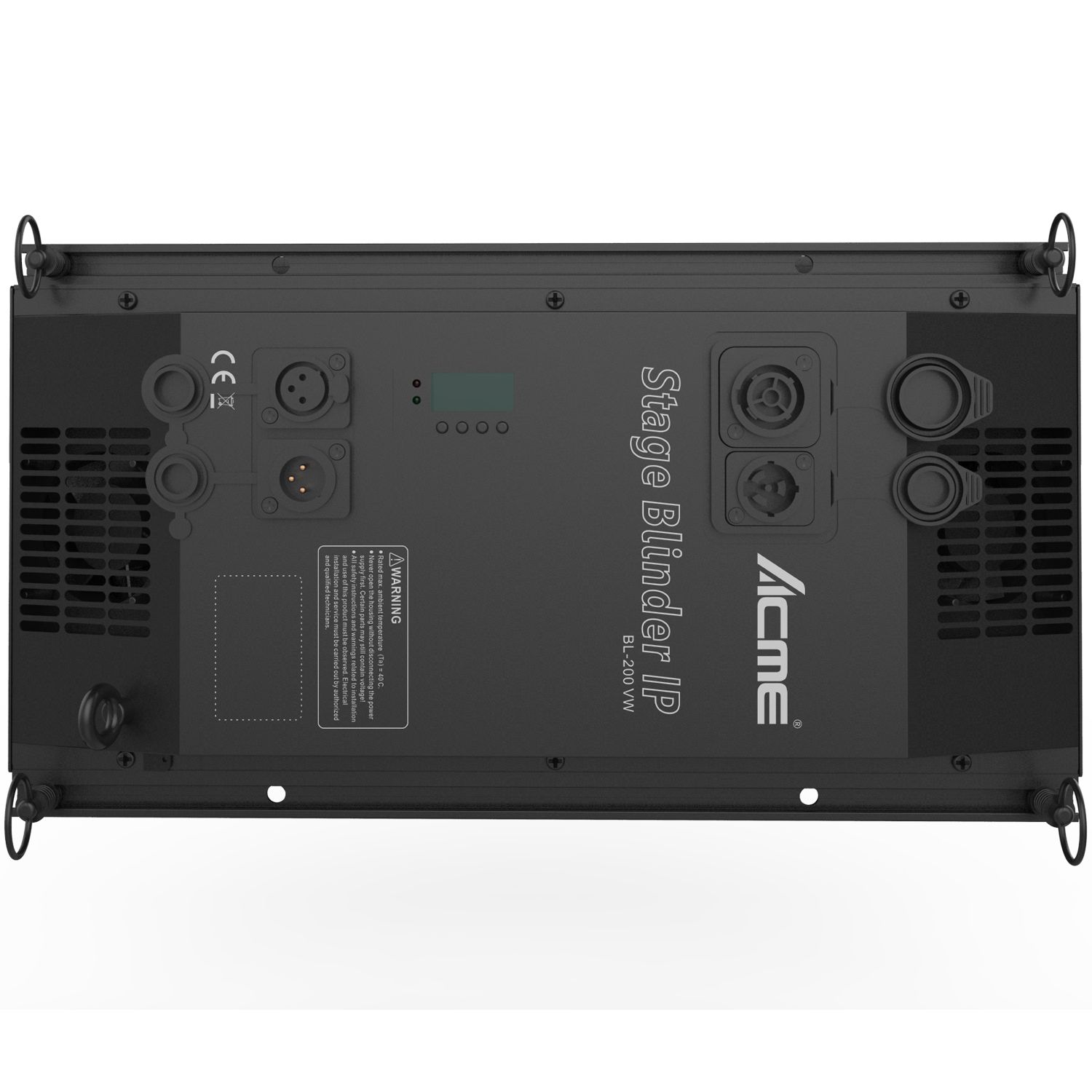

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 235 W

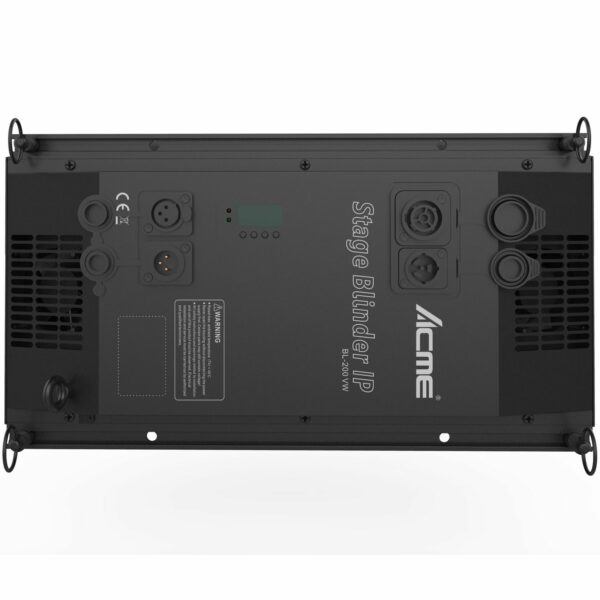

Waterproof Power Connector in/out
Data in/out: 3-pin or 5-pin XLR

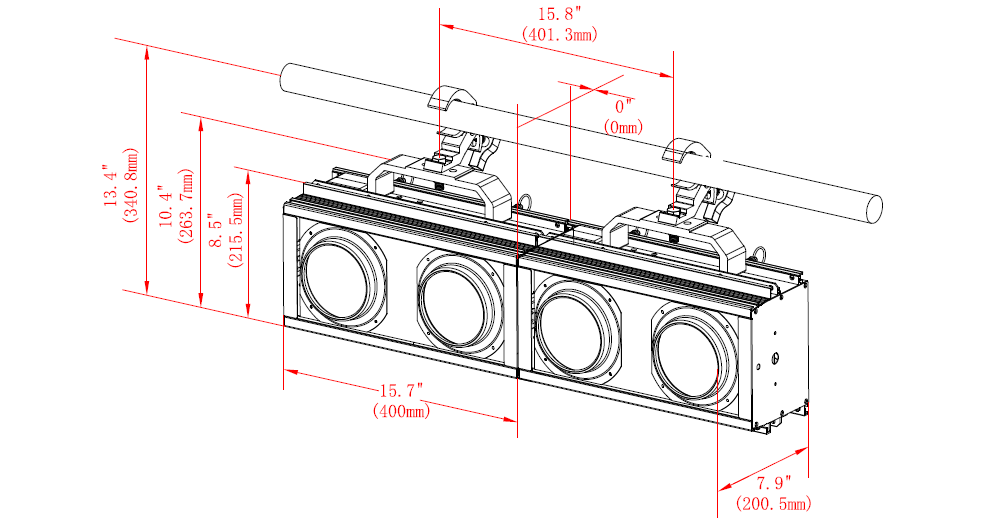

Fixture Specification
Height: 200 mm (6.8″)
Width: 215 mm (8.4″)
Depth: 400 mm (15.7″)
Weight: 6.8 kg (14.9 lbs)

Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IPX4

Approvals
CE Compliant

Installation
Horizontally or vertically mounting are available
Operating position is universal
The feet support with 3 locking points
Safety cable attachment point

Included Items
User Manual

Optional Accessories (with item code)
Flight Case:3205001171(8 in 1)
Clamp:2060001614(C-250)
Safety cable: 2060000200(SW-02)

Extra informatie

IP-Rating

Outdoor

Type lichtbron

LED

Vermogen Lichtbron

250

Kleurmenging

VW

Type Fixture

Blinder

Functies

Pixel-aanstuurbaar

Min zoom

50

Max zoom

50
