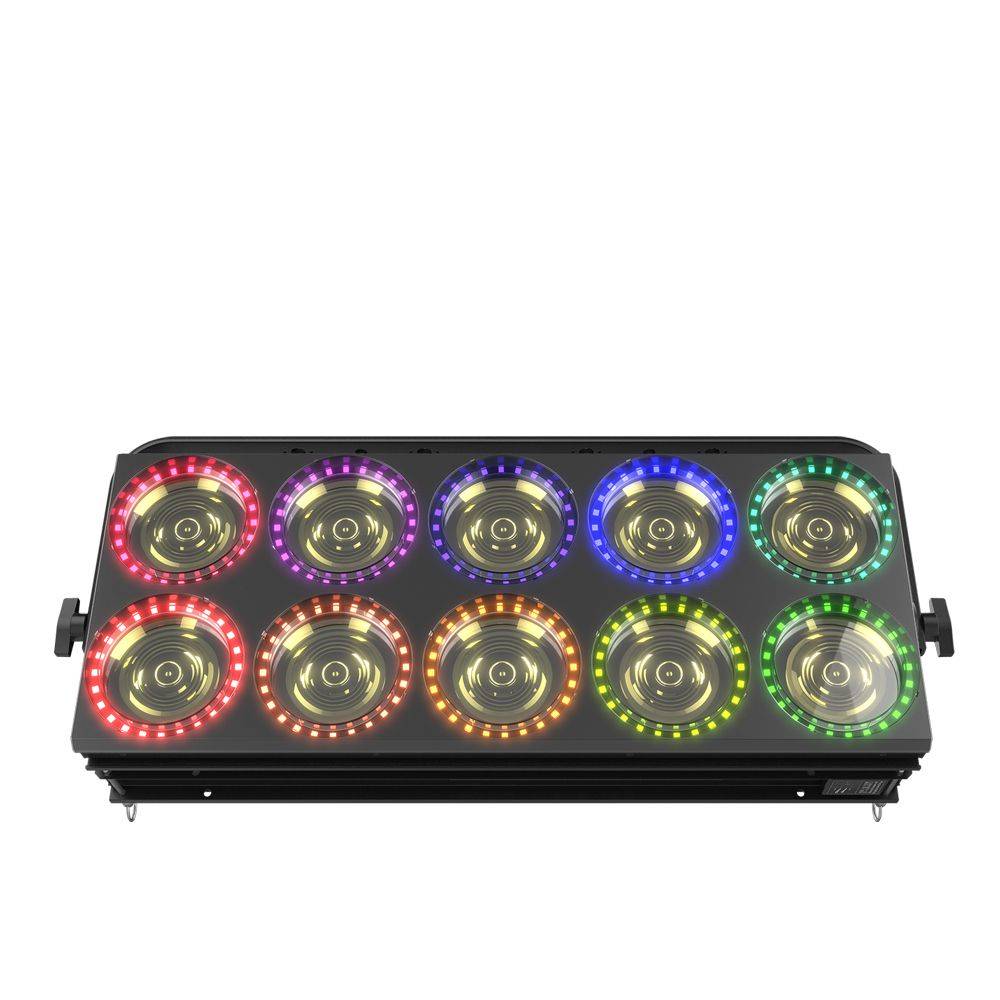

Acme – SNOWSTORM

Adviesprijs 3.830,00 excl.btw

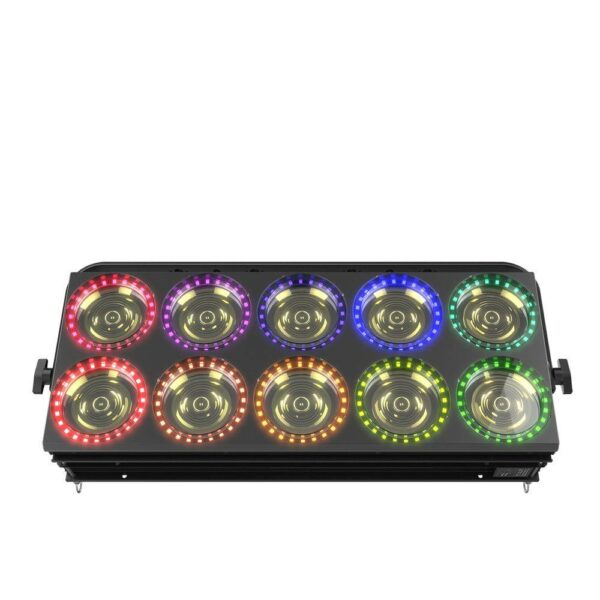

Blinder – 10x 100W ww – Halo ring – Backlight

Bekijk winkelwagen

Beschrijving

Als je kracht combineert met flexibiliteit, krijg je een masterpiece. Storm en Snowstorm zijn ontstaan vanuit inspiratie. Gemaakt vanuit iets nieuws, iets dat tot dan toe niet op de markt bestond.
Storm en Snowstorm verlichten niet langer alleen de show, ze worden zelf onderdeel van de show.

Features

  • Light Sources:
    • 10 x 100W LED (RAA4WW)
    • Led inside ring: 10 x 6 x 0.5W LED (RGB)
    • Led outside ring: 10 x 24 x 0.5W LED (RGB)
  • unique ‘tungsten’ LED effect
  • Multi-point surface light, multi-point back light with pixel control,Rainbow effect in both directions。
  • High output,low engry consumption,good heat dissipation,long life
  • Outstanding strobe effect with variable speed
  • Fixed Beam Angle at a Tight 4° with sharp effect
  • Smooth dimming from 0-100%
  • Outstanding strobe effect with variable speed
  • Optioanl Forst fliters

Model

  • BL 1000

Light Source

  • Light Sources:
    • 10 x 100W LED (RAA4WW)
    • Led inside ring: 10 x 6 x 0.5W LED (RGB)
    • Led outside ring: 10 x 24 x 0.5W LED (RGB)
  • Total lumen output up to 30,000Lm
  • LED life expectancy: 20,000 hours
  • Beam angle: 4°
  • Field Angle: 6°

Control and Program

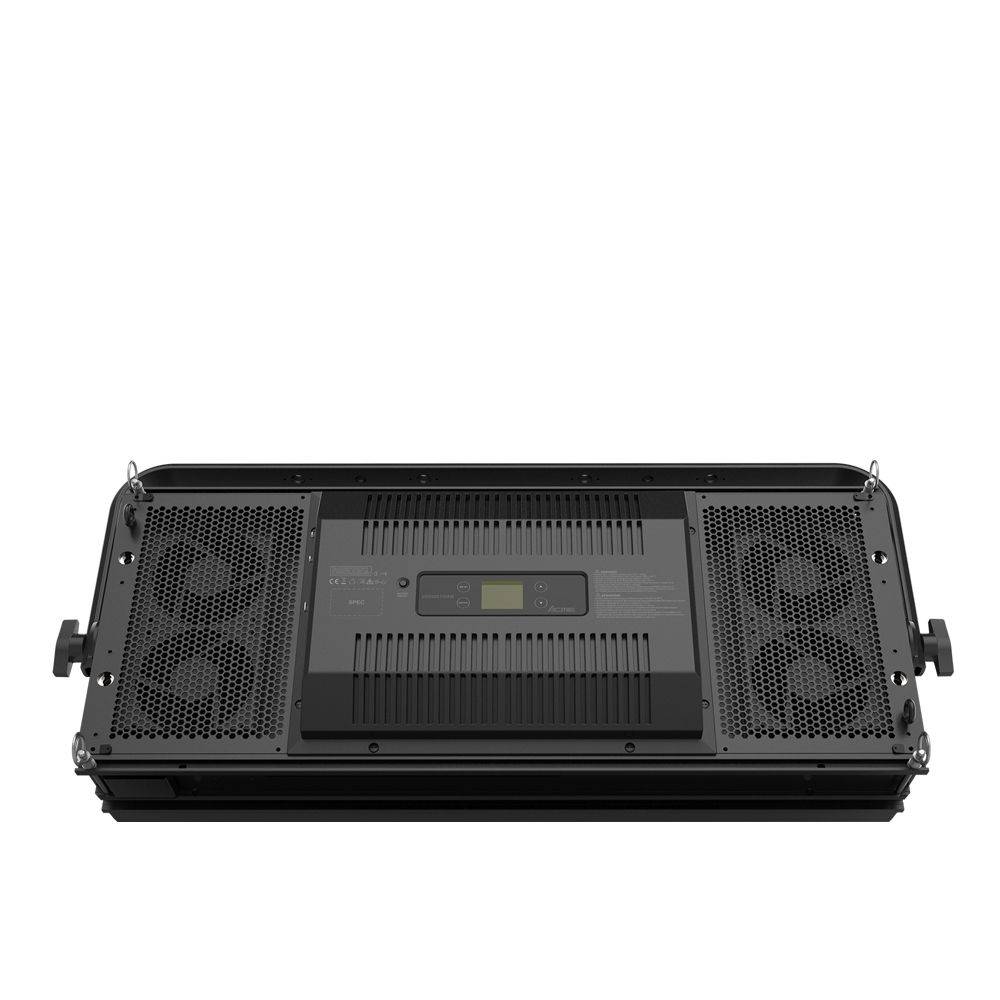

  • 4-buttons touch panel
  • Display: LCD display
  • Control Mode: DMX512,RDM,Art-Net,sACN
  • DMX Protocol modes: 2
  • Control channels: 10/83
  • Upgrade the firmware via DMX link

Electrical and Connectors

  • Power supply with electronic auto-ranging
  • Input voltage range: 100-240V~ 50/60Hz
  • Power consumption: 1,000 W
  • Power In/Out: Power Connector in/out
  • Data in/out: 3-pin or 5-pin XLR,RJ45

Fixture Specification

  • Fixture Dimensions:
    • Width: 920 mm (36.2″)
    • Depth: 398 mm (15.6″)
    • Height: 194 mm (7.6″)
    • Weight: 20 kg (44 lbs)
  • Flight Case Dimensions:
    • Width: 985 mm (38.8″)
    • Depth: 585 mm (23″)
    • Height: 630 mm (24.8″)
    • Weight: 88.4 kg (195 lbs) (Dual loader case)

Work Environment

  • Maximum ambient temperature: 40°C
  • Minimum operating temperature: 0°C
  • Maximum surface temperature: 60°C
  • Protection Rating: IP20

Installation

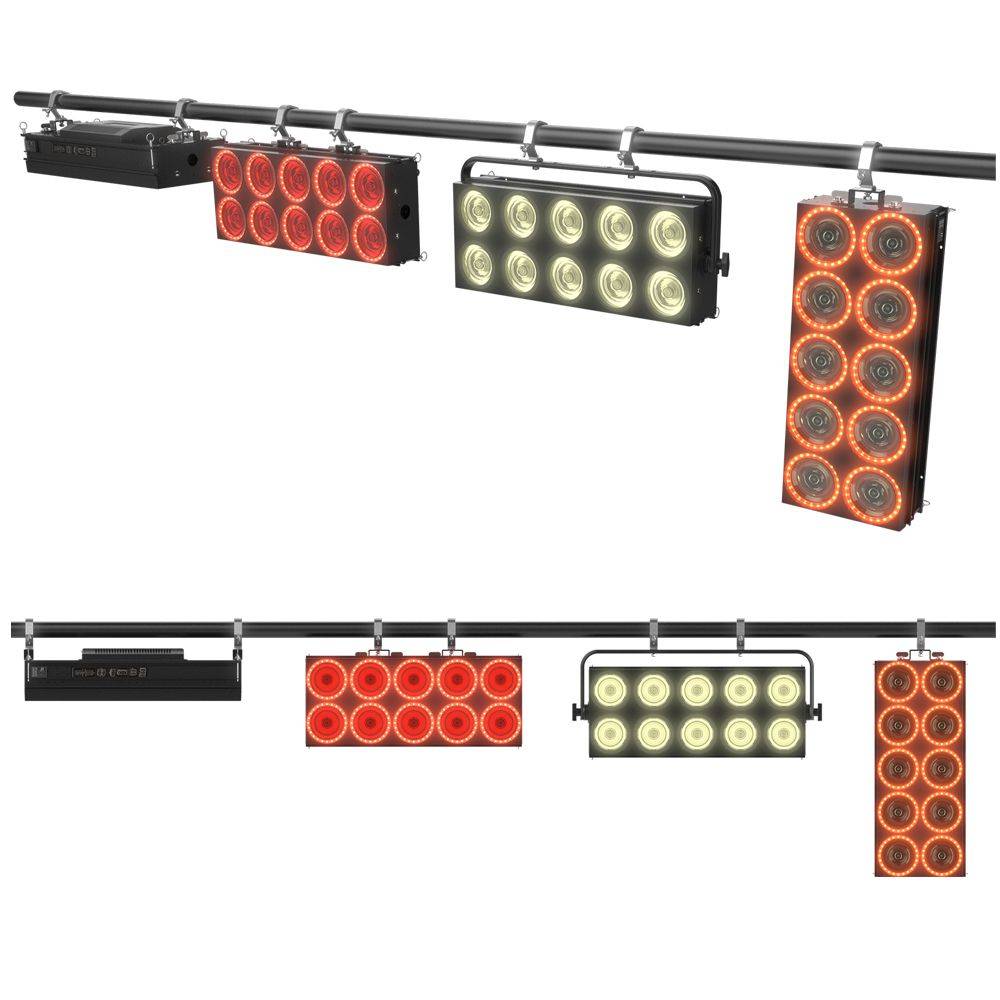

  • Available For Horizontal or vertical mounting
  • Operating position is universal
  • Safety Rope Hole

Included items

  • User Manual
  • Power Cable
  • Omega Bracket: 3002001497

Optional Accessories (with item code)

  • Flight Case: TBA
  • Signal Line: 3-pin or 5-pin XLR signal line
  • Clamps: 2060001635(C-100A)
  • Safety cable: 2060000200(SW-02)

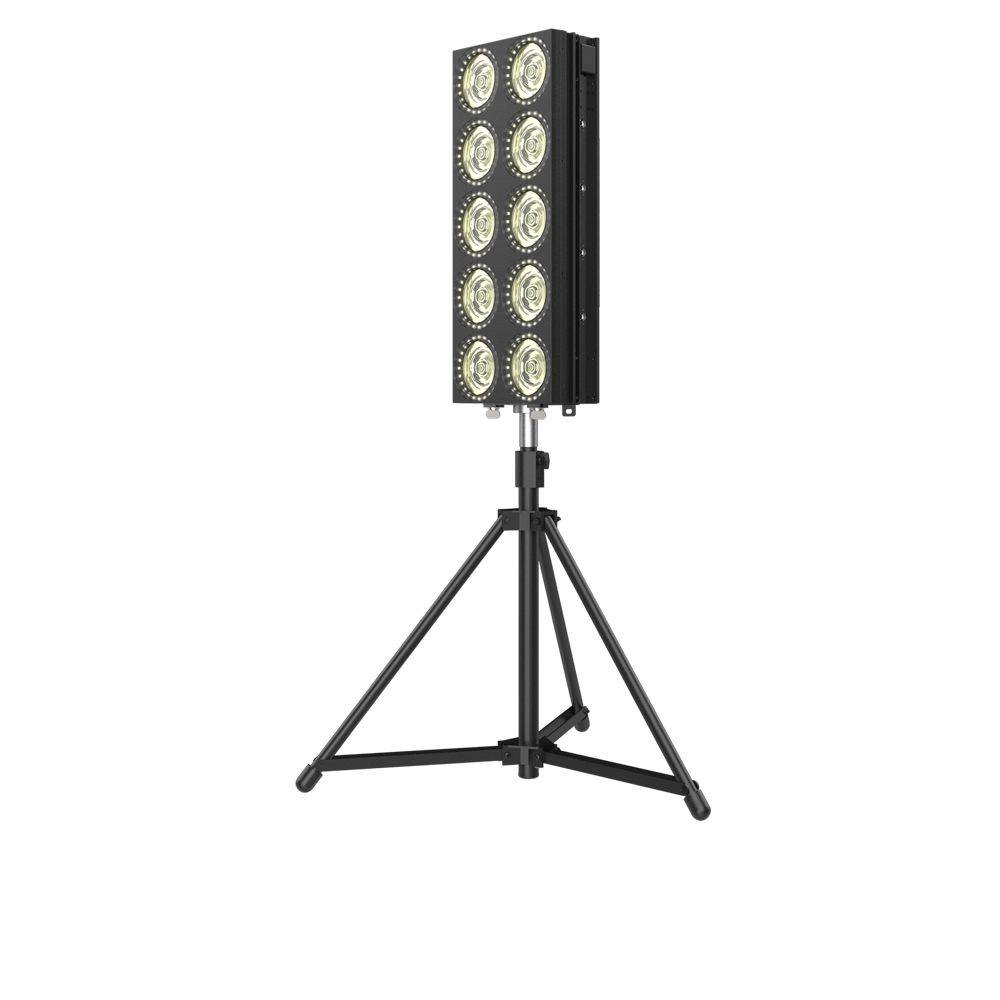

  • Tripod Stand
*verplicht

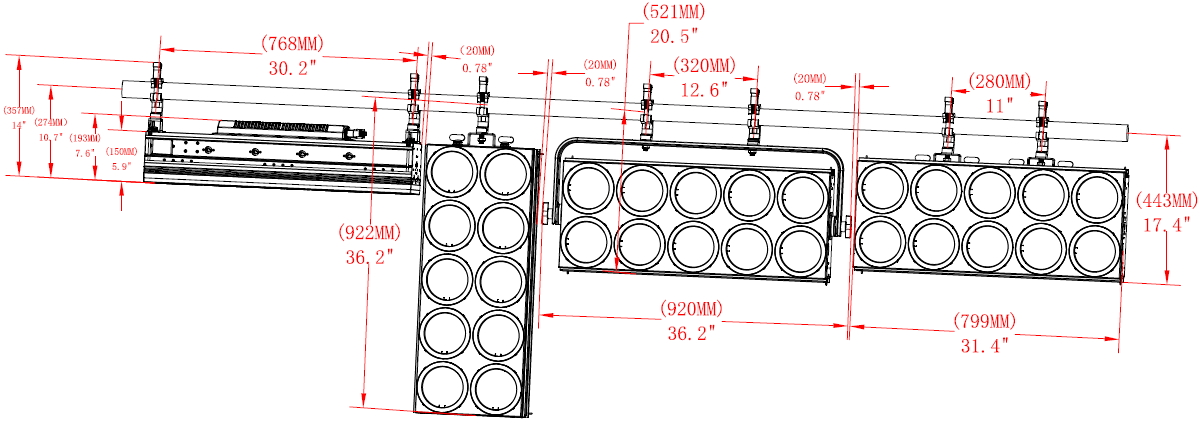

Afmetingen

afmetingen

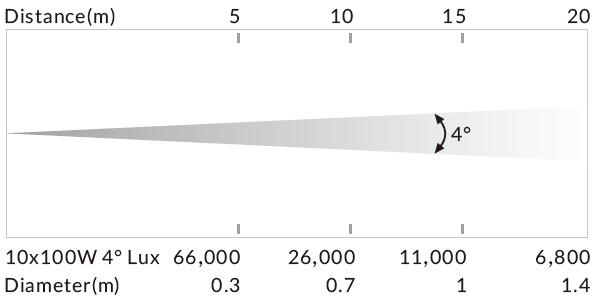

photometrics

photometrics
