Functional Overview
ACME SCORPIUS is the all-weather beam moving head fixture. It powered by the Philips® MSD Platinum 25R discharge lamp technology, color temperature 7800K, and CTO color temperature from 2700 kelvin to 7800 kelvin with linear-gradient. High quality & large optical lens, diameter of the front lens is 193mm. Beam angle is 1.8 degrees, the illuminance at 5 meters distance is 4,400,000 lux; At 10 meters distance is 1,100,000 lux, creates a long throw beam light. It looks solid, uniform and ultra-sharp in the dark sky. Furthermore, the Scorpius is equipped with mutil-functions to make the lighting effect more and more wonderful! Smooth CMY color mixing, 14 colors plus white, easily creates the rainbow effect in bi-direction, as well as offering this wide range of color options, the Scorpius has also fitted with two independent GOBO wheels. One boasts 7 interchangeable rotating GOBOs plus open, and the other features 18 static GOBOs plus open. Equipped with 6-facet liner prism and 8-facet prism, both are individually rotatable & be overlaid to generate unique effects. Independent frost filter, easily turn the hard-edged beam into a more subtle wash effect that’s perfect for flooding stages and seating areas with color. Each effect can be switched flexibility by the motorized focus. The enclosure is made of die-casting aluminum, with IP66 protection rate, which can be used outdoors all year round. With smart design of heat dissipation construction, to ensure the discharge lamp life and smooth operation. ACME SCORPIUS, the all-weather fixture, really a great partner for outdoor performances, theme parks, stadiums, landscape lighting and other venues, creating colorful beam effects for the dark sky!
Features
Diameter of front lens: 193mm
Colour mixing: Linear CMY color mixing
Color Temperature: 7800K
CTO color temperature from 2700 kelvin to 7800 kelvin with linear-gradient
Rainbow effect

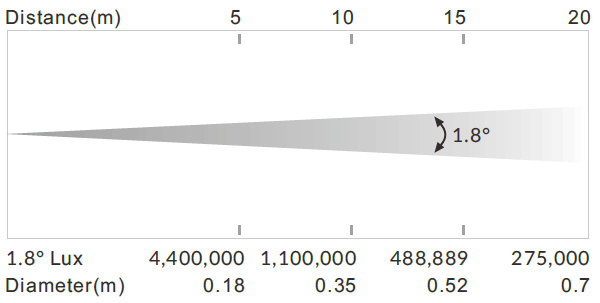

Beam Angle: 1.8°

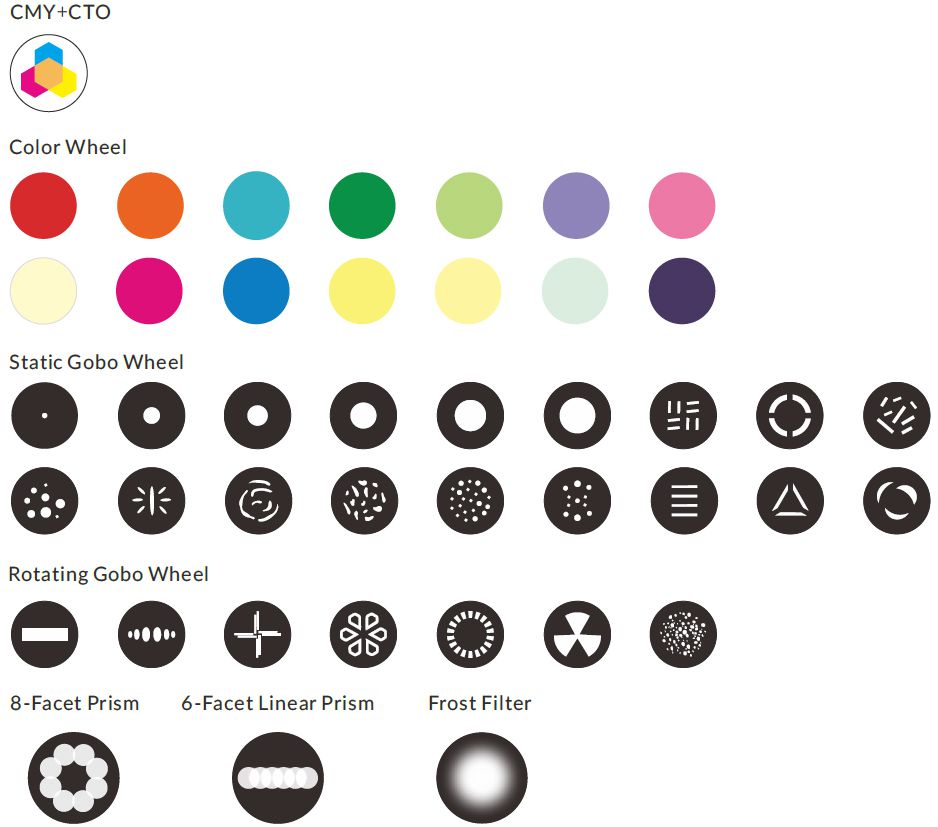

Rotating gobo wheel: 1 rotating gobo wheel with 7 gobos plus open, convenient replacement
Static gobo Wheel: 1 static gobo wheel with 18 gobos plus open
Color Wheel: 1 color wheel with 14 colors plus white
Prism: 8-facet prism + 6-facet linear prism, rotatable in both directions and overlayable
0~100% smooth dimming
Motorized focus
Outstanding strobe effect with variable speed
Independent frost effect
IP66 protection rotating, can be used outdoors all year round
Flicker free management
Dust-proof and oil-proof design
Technical & Specification
Model
XP-550 BEAM IP
Light Source
Light source: Philips MSD Platinum 25R
Bulb life expectancy: 1500 hours
Optical System
Advanced optical system to ensure image quality, clear and sharp
Control & Program
4-buttons touch panel
Display: LCD display
Protocols: DMX512,RDM,Wireless (optional)
DMX Protocol modes: 2
Control channels: 23,17
Pan/Tilt Resolution: 16-bit
Linear CMY color mixing
Electronic ballast
Dimmer: 8 bit or 16 bit
Upgrade the firmware via DMX link
Pan & Tilt
Pan movement: 540°
Tilt movement: 270°
Fixation: Pan/Tilt lock
Automatic Pan/Tilt position correction
Rotating Gobos
1 x rotating gobos wheel with 7 gobos plus open, convenient replacement
Image diameter: 8 mm
Outside diameter: 22.5 mm
Thickness: 1.1 mm
borofloat or better glass materials
Set with “SLOT & LOCK” system for gobos replacement
Static Gobos
1 x static gobos with 18 gobos plus open
Color Wheel
1 x color wheel with 14 colors plus white
Electrical & Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240V, 50/60Hz
Power consumption: 720W
Power In/Out: Waterproof Power Connector in/out
Data in/out: 3-pin or 5-pin IP XLR

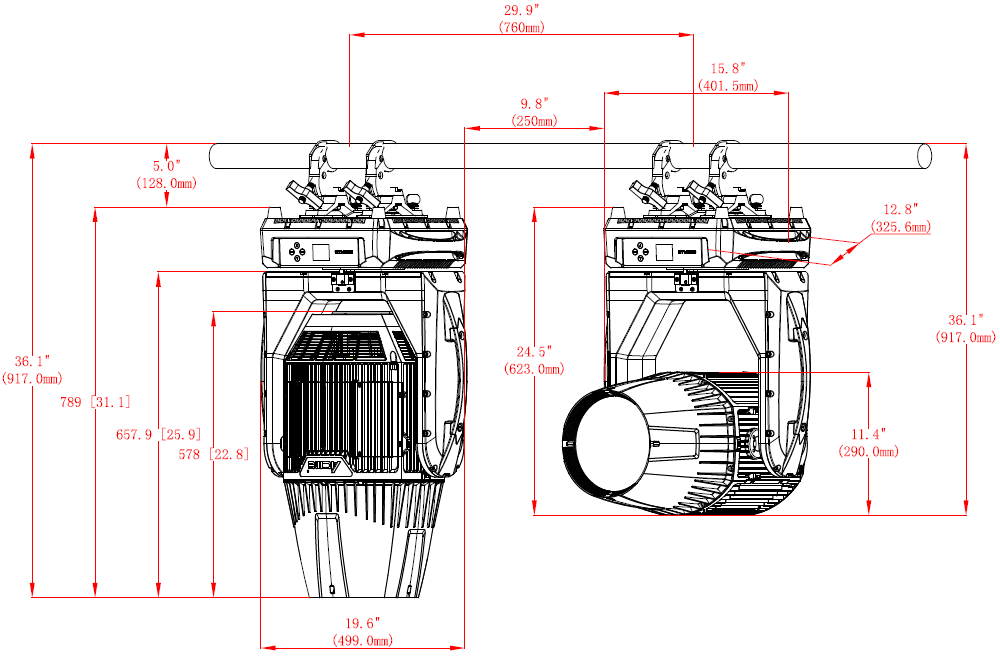

Fixture Specification
Height: 789 mm (31.1″)
Width: 326 mm (12.8″)
Depth: 499 mm (19.6″)
Weight: 39.8 kg (87.7 lbs)
Work environment
Maximum ambient temperature: 45°C
Maximum surface temperature: 50°C
Minimum operating temperature: 0°C
Protection Rating: IP66
Installation
Horizontally or vertically mounting are available
Operating position is universal

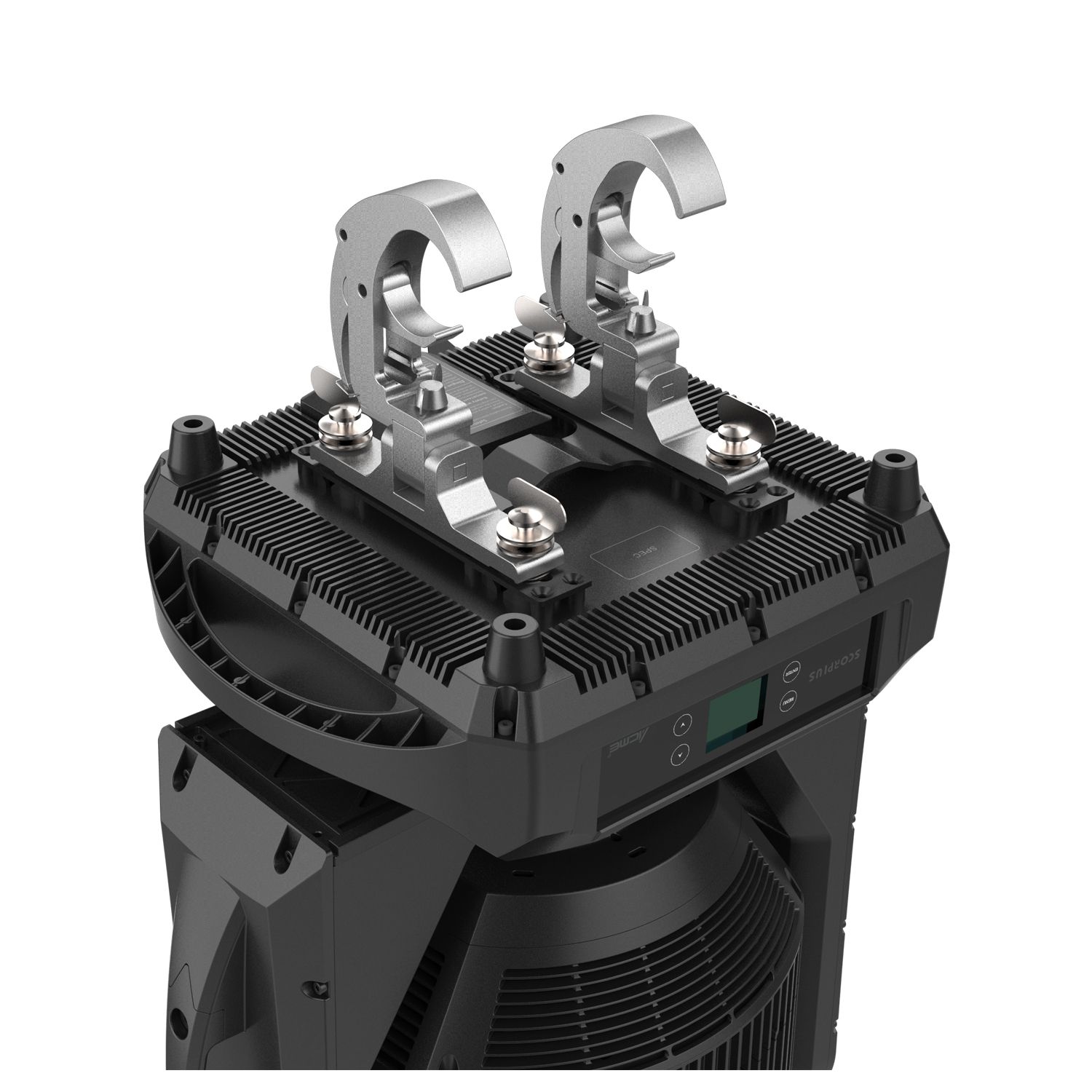

2 x integrated clamps for 50 millimeter truss
Safety cable attachment point
Pan/Tilt lock
Included items
User Manual
Power Cable
2 x integrated clamps for 50 millimeter truss
Optional Accessories (with item code)
Clamp: 2060001614 (C-250)
Safety cable: 2060001603-A (SW-05)
Signal line: 3-pin or 5-pin signal line
