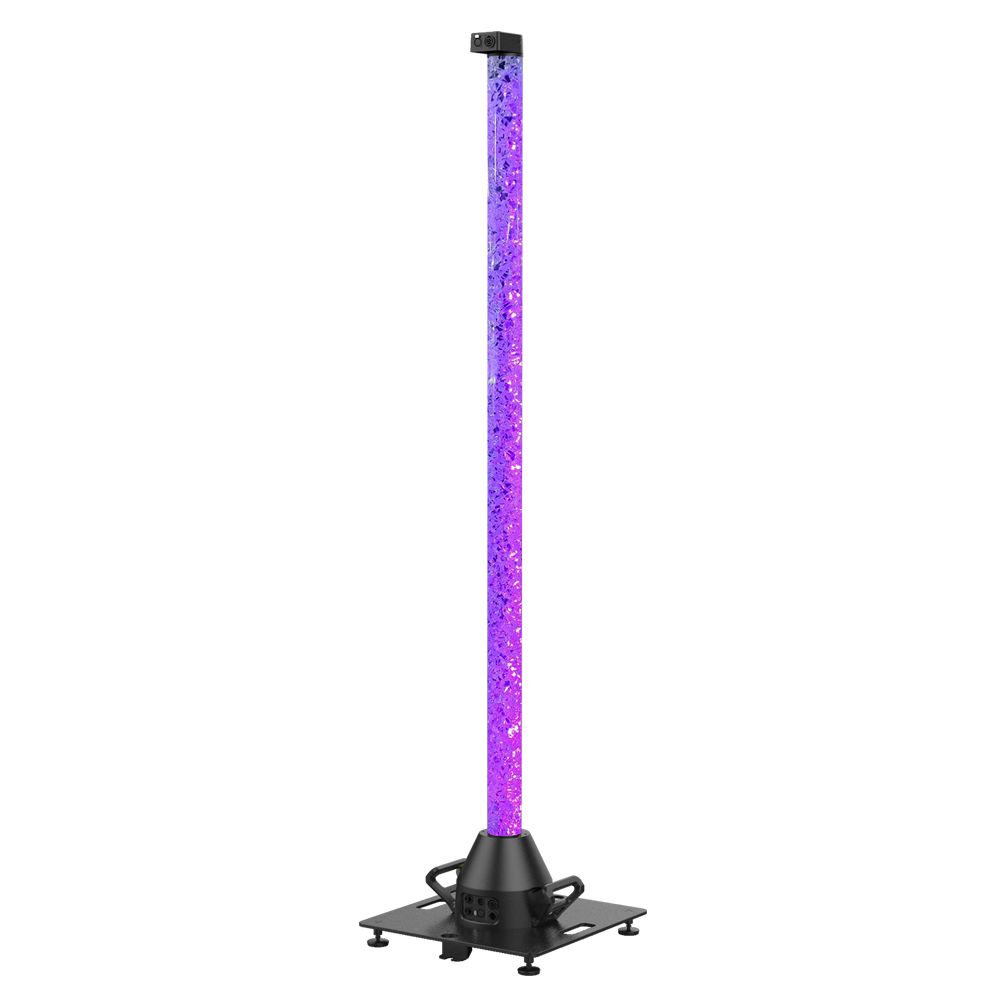

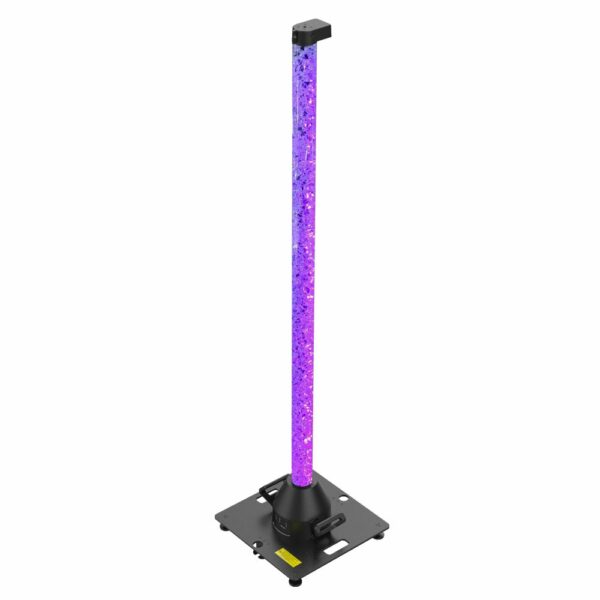

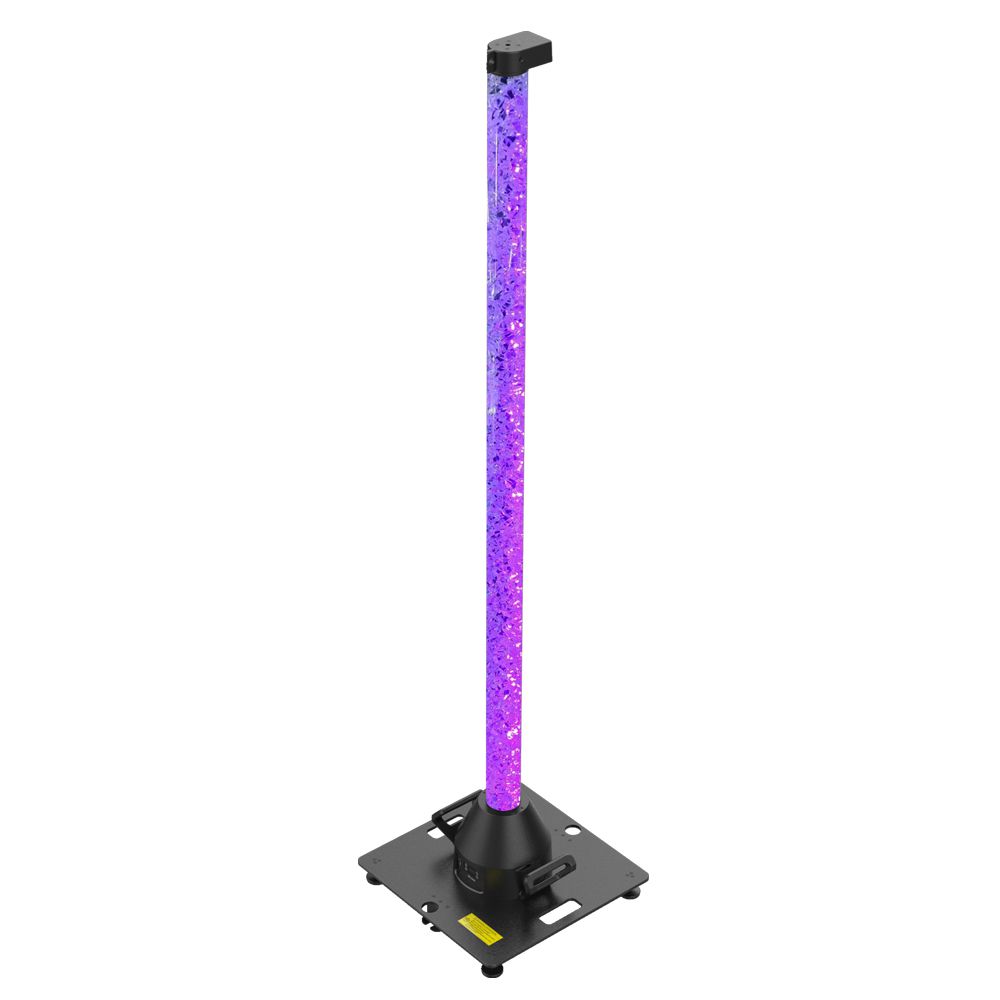

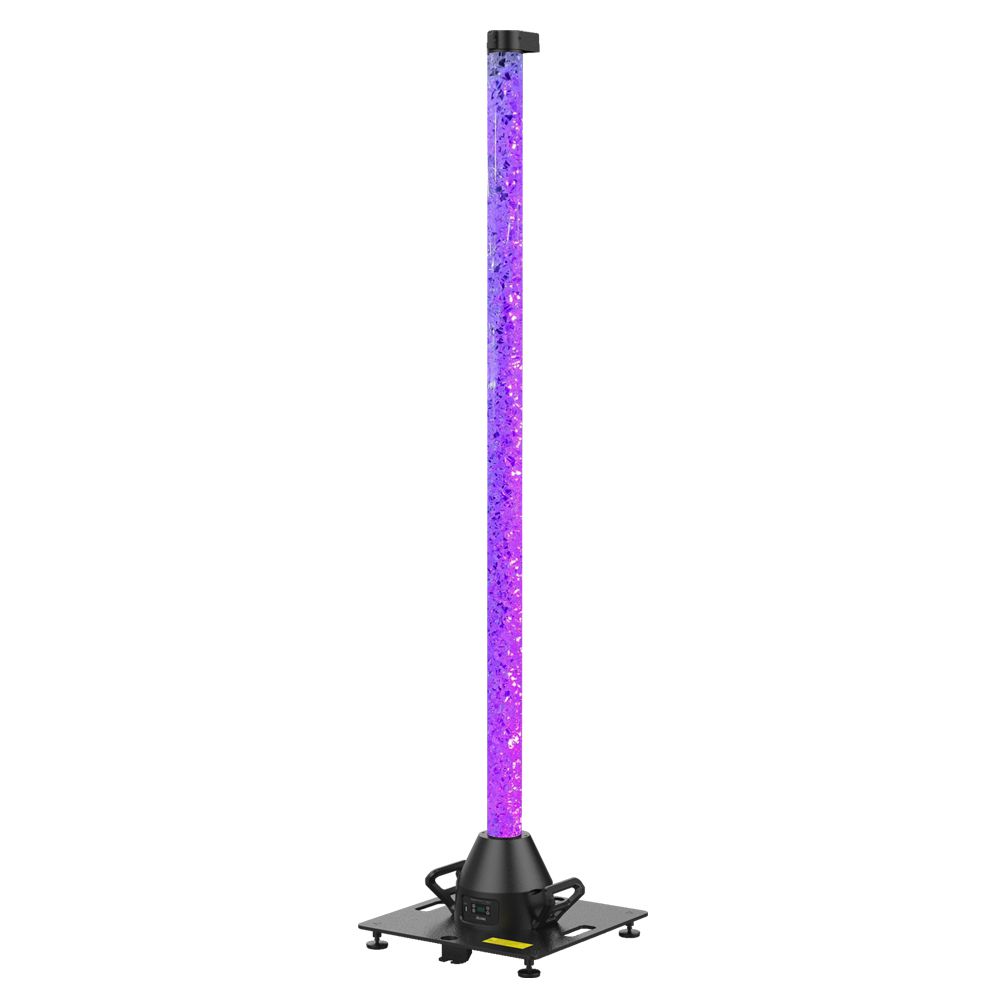

Acme – Refracted Light Stand

Functional Overview

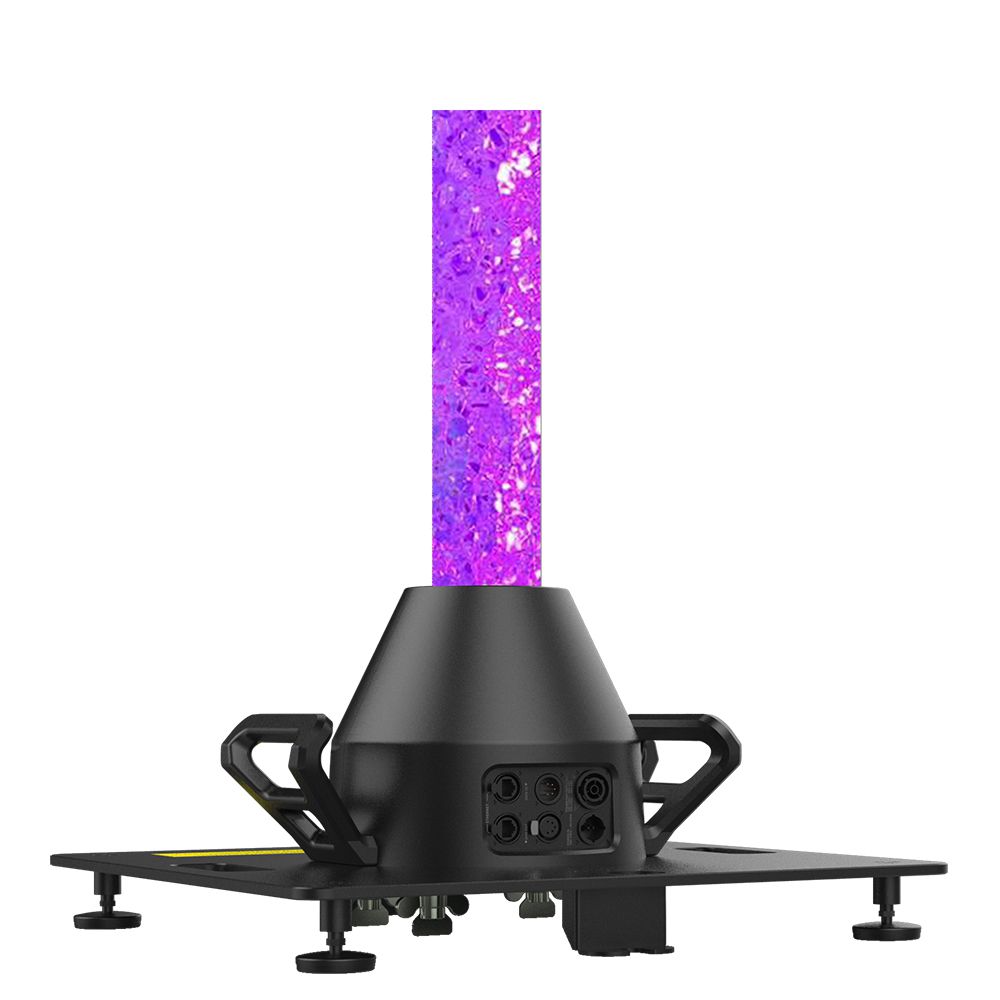

ACME REFracted Light Stand is more than just a light stand but also an artistic expression. This is a never before seen functional, self-illuminating light stand in the industry – making lighting fixtures more adorable and pretty.

Thousands of crystal particles fill up the slim body, making the led strips invisible, dazzling and more mysterious. With the rare 2-meter height, REFracted Light Stand can open up a new world of the wedding hall or ballroom, stage, DJ or concert venue. Triggered by 3 LED strips, each contains 54*0.2W RGB, it’s just good for a more dramatic effect than usual, not too bright, not too dull. Adding in smooth color mixing, 21 built-in effects, speed and direction control, 2 random strobing settings, a special mount for attaching a moving or fixed lighting fixture at the top, and added creativities of pixel mapping in art-net mode, REFracted Light Stand is ready to capture everyone’s emotion.

Features

• Light Source: 162 x 0.2W RGB 5050 LED
• Color Temperature: 8,000K
• Filling in thousands of crystal particles, making the light dazzling
• 3 LED Strips, each contains 54 x 0.2W RGB
• Outstanding color changing and mixing effect
• 21 Built-in effects and 2 Random strobing
• Individual Pixel Controllable

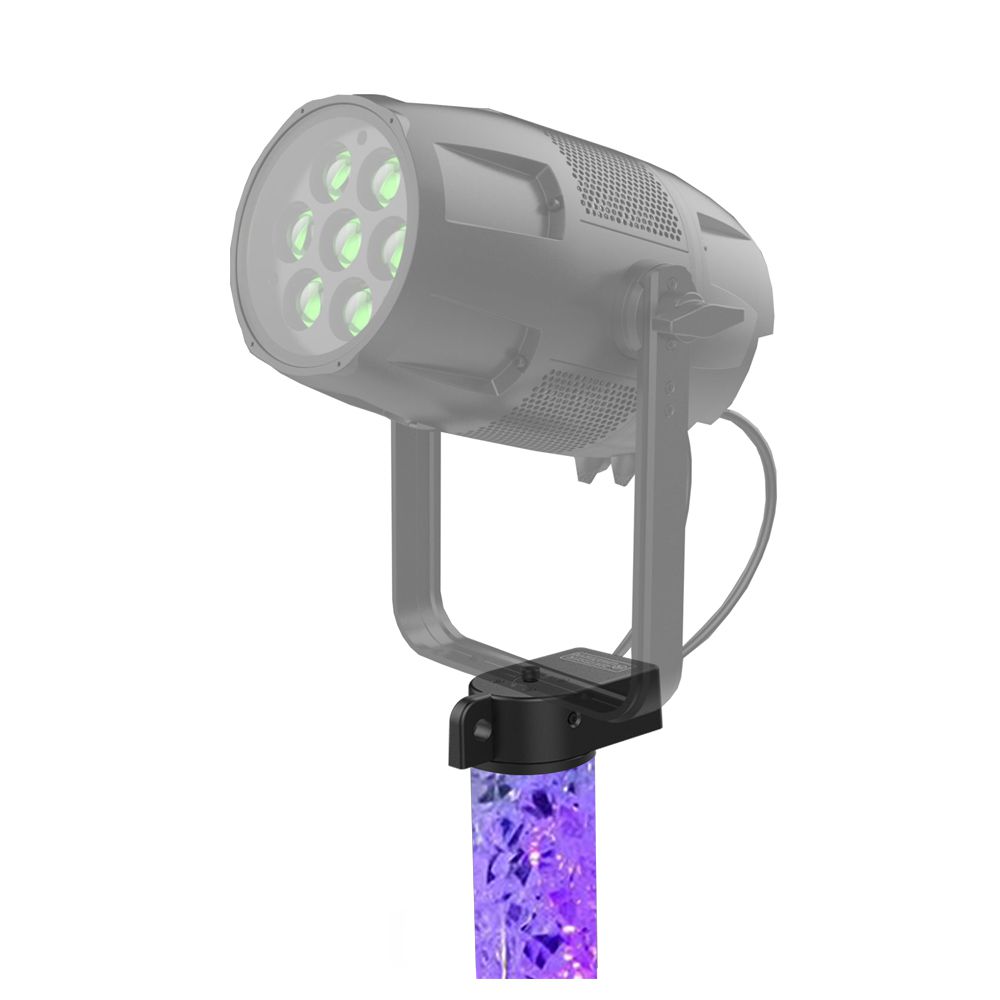

• Adding a special seat on top with power and DMX connections for loading another partner fixture. max. weight=15kg
• Smooth dimming from 0-100%

Light Source

• Light Source: 162 x 0.2W RGB 5050 LED
• LED life expectancy: 20,000 hours

Control and Program

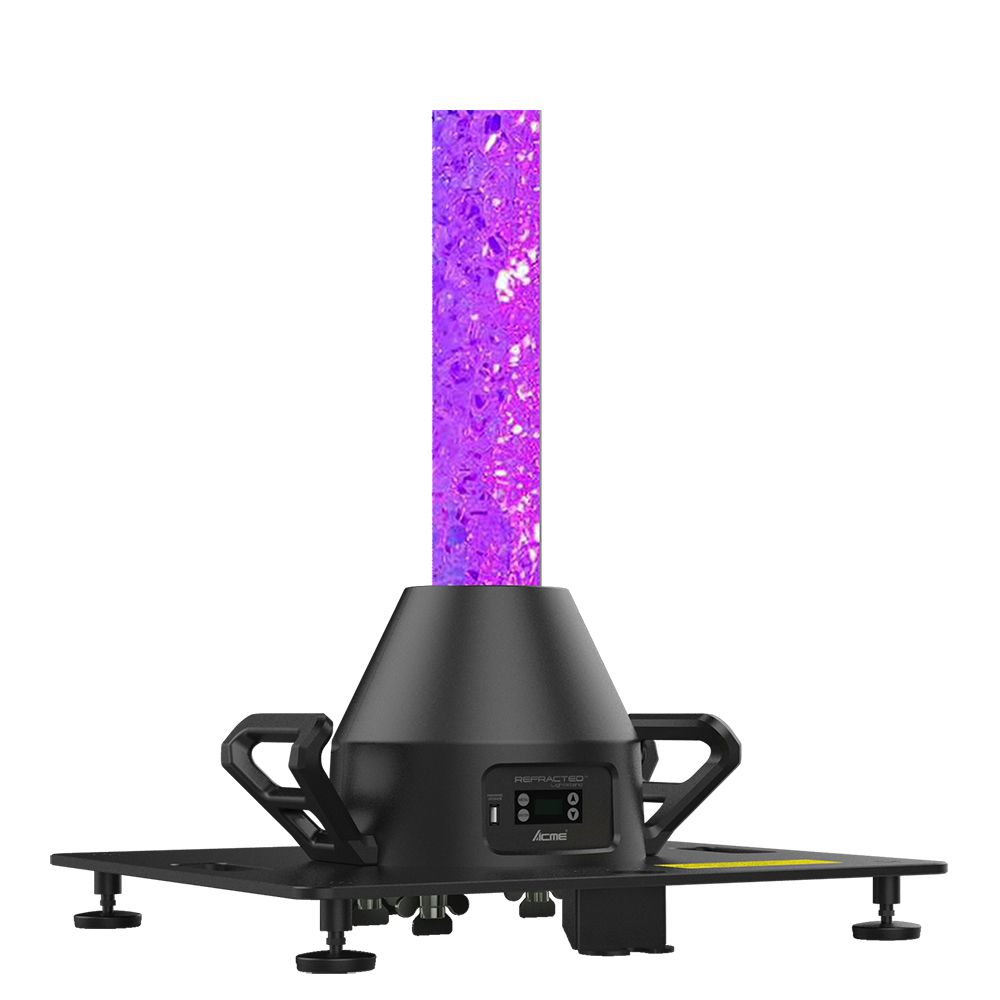

• 4-Button touch panel
• Display: OLED display
• Protocols: DMX512, RDM, Art-Net
• DMX Protocol modes: 3
• Control channels: 10/165/489
• Firmware Upgrade: Upgrade via DMX link or USB disk

Electrical and Connectors

• Input voltage range: 100-240V~ 50/60Hz
• Power consumption: 28 W
• Power In/Out: Power Connector In/Out
• Data in/out: 5-pin XLR, RJ45

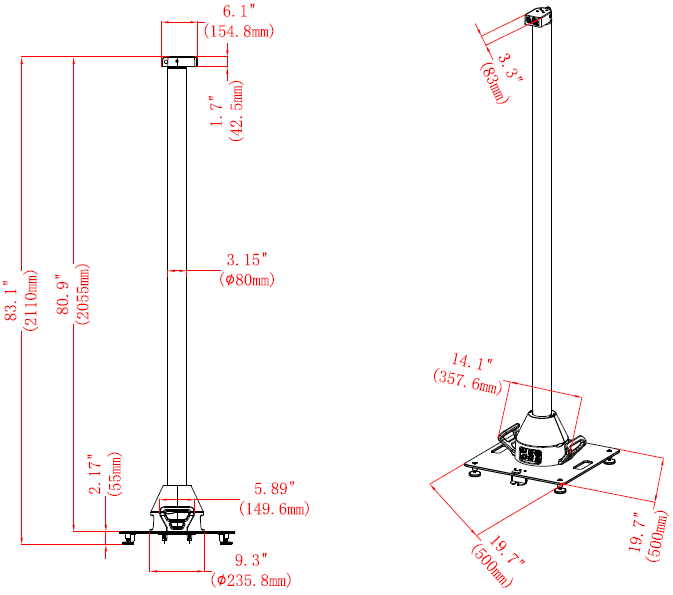

Fixture Specification

• Fixture Dimensions:
  • Width: 358 mm (14.1″)
  • Depth: 236 mm (9.3″)
  • Height: 2,055 mm (80.9″)
  • Weight: 15.6 kg (34.4 lbs)

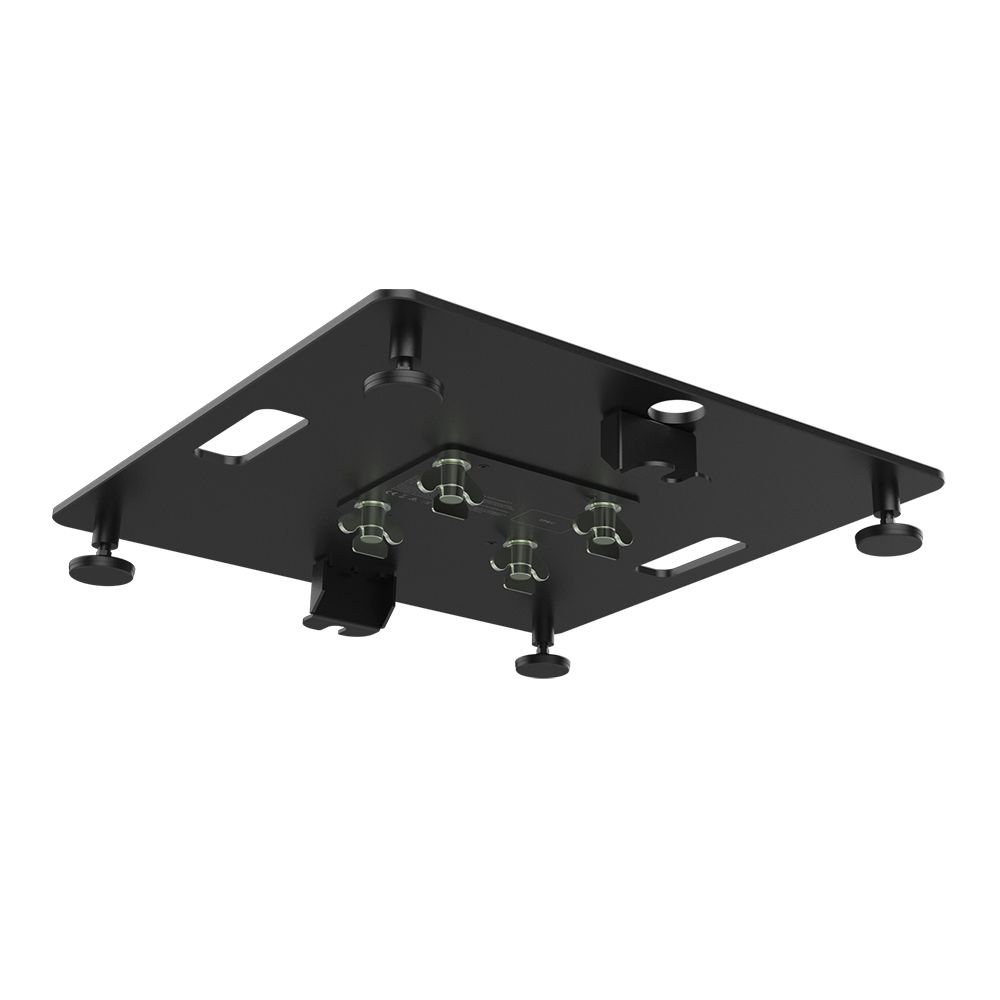

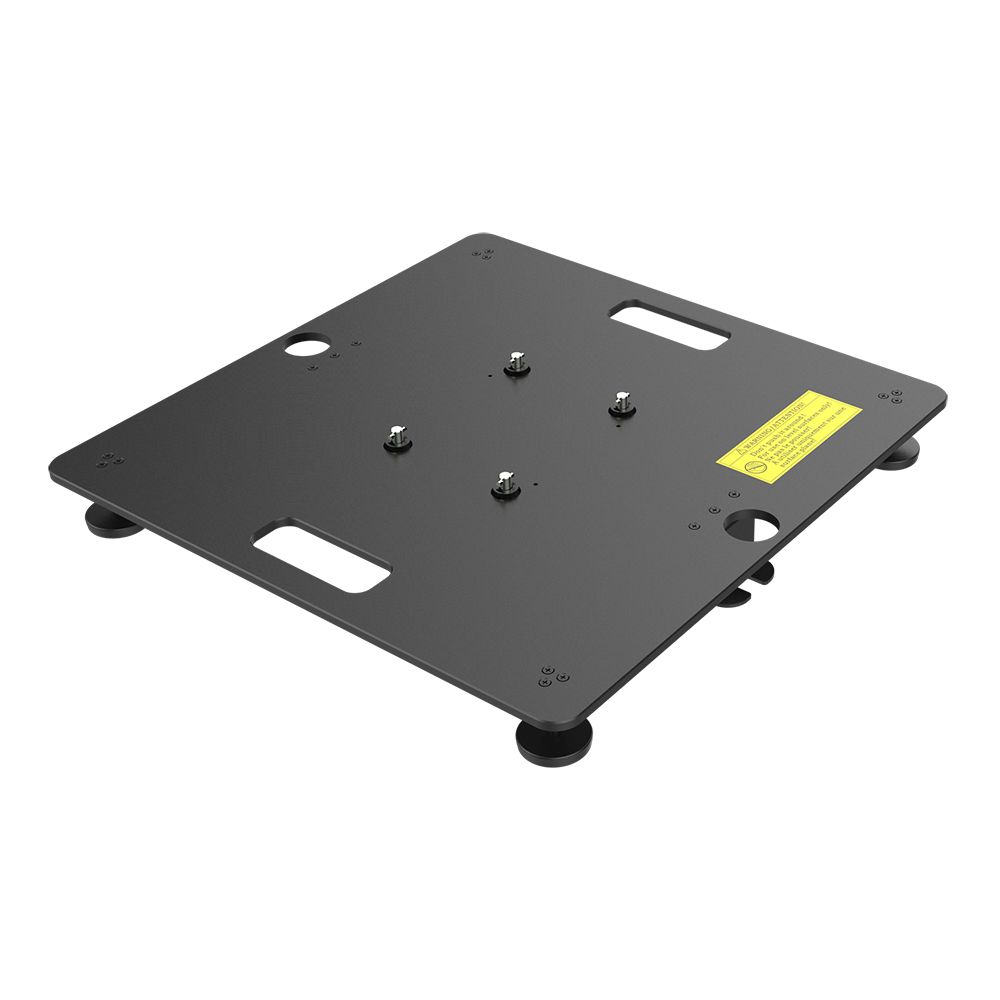

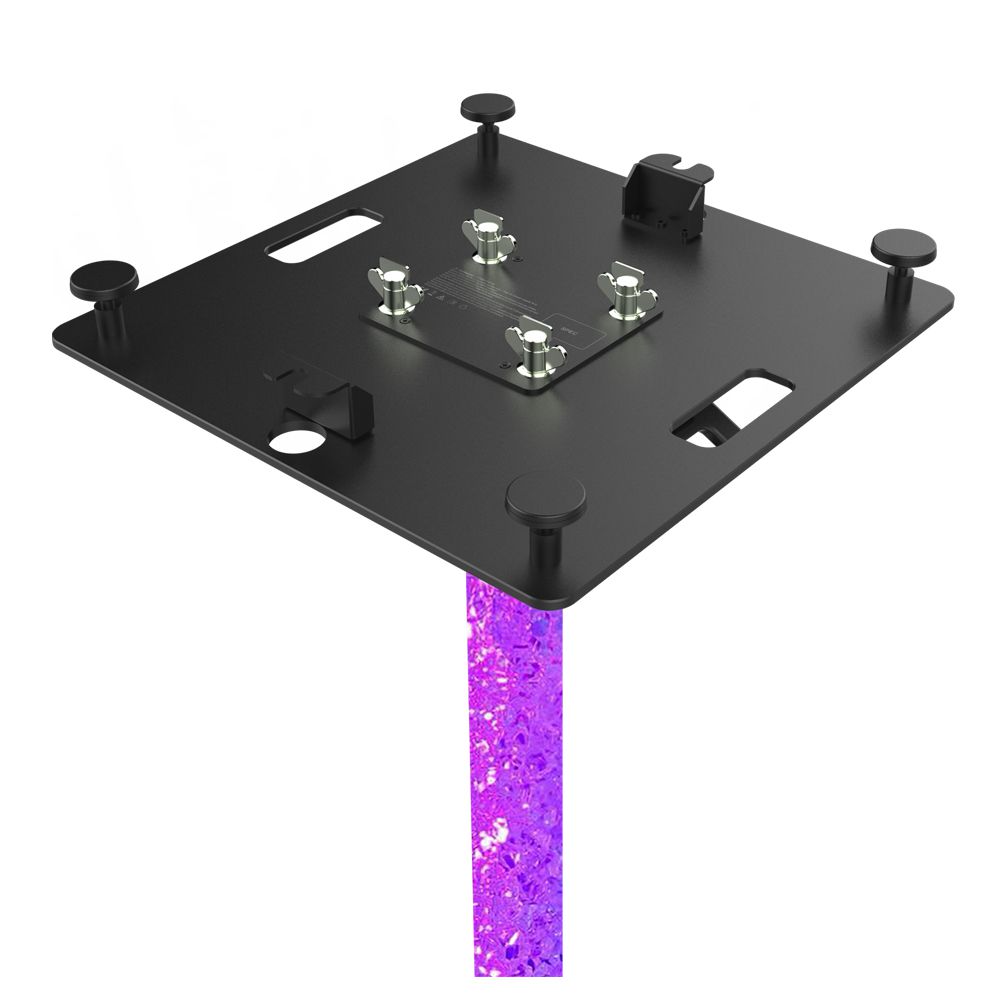

• Grounding Metal Plate Dimensions:
  • Width: 500 mm (19.6″)
  • Depth: 500 mm (19.6″)
  • Height: 55 mm (2.2″)
  • Weight: 15.7 kg (34.6 lbs)
• Flight Case Dimensions:
  • Width: 2,440 mm (96.0″)
  • Depth: 610 mm (24.0″)
  • Height: 910 mm (35.8″)
  • Weight: 177 kg (390 lbs)(quad loader case)

Work Environment

• Maximum ambient temperature: 40°C
• Minimum operating temperature: 0°C
• Maximum surface temperature: 50°C
• Protection rating: IP20

Approvals

• CE compliant

Installation

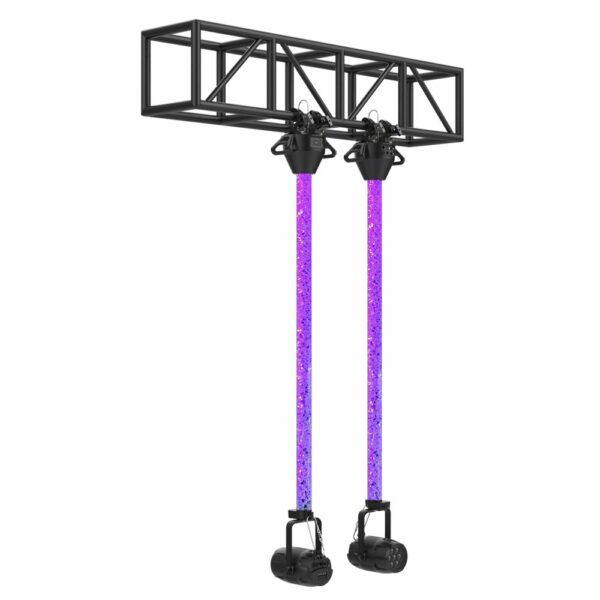

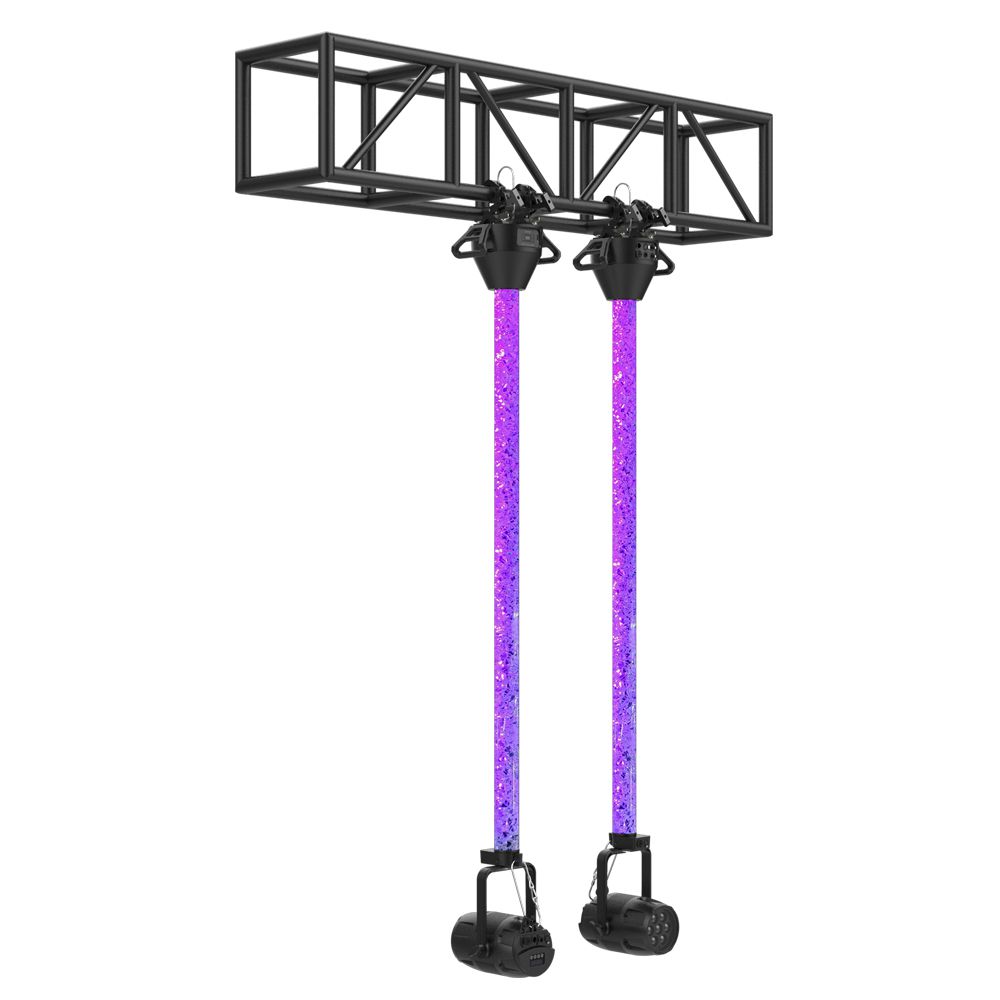

• Available in horizontal or vertical mounting
• Universal operating position
• Safety Rope Hole

Factory Configuration

• Digital User Manual
• Power Cable
• Factory certificate and warranty card
• Grounding Metal Plate: 63582707

Optional Accessories (with item code)

• Quad-Loader Flight Case: 3205096022
• Cart: 3205001323
• 2 x Fast-locked clamps
• Safety Cable: 2060000200(SW-02)
• Signal Line: 5-pin signal line
