Functional Overview

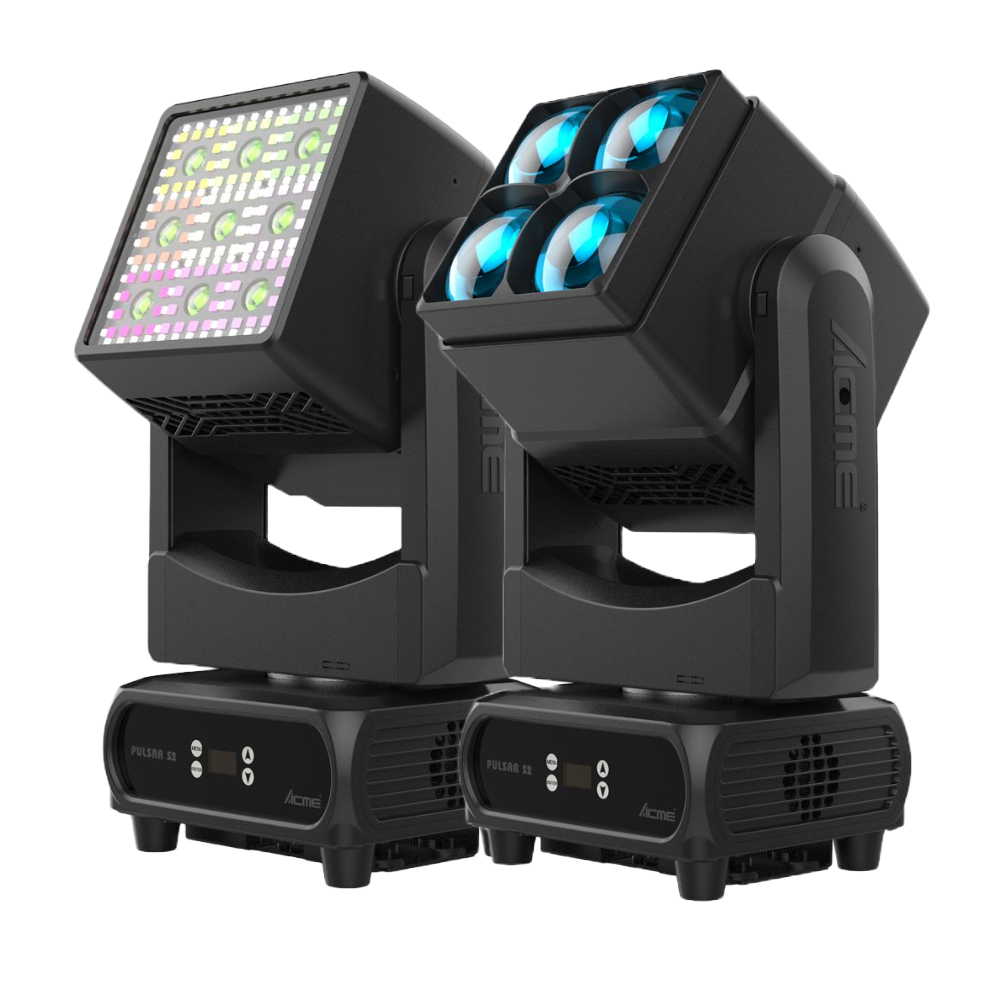

Get the most out of PULSAR S2. It brings rugged model, as well as multi-effect lighting, to an explosive dual-head design.

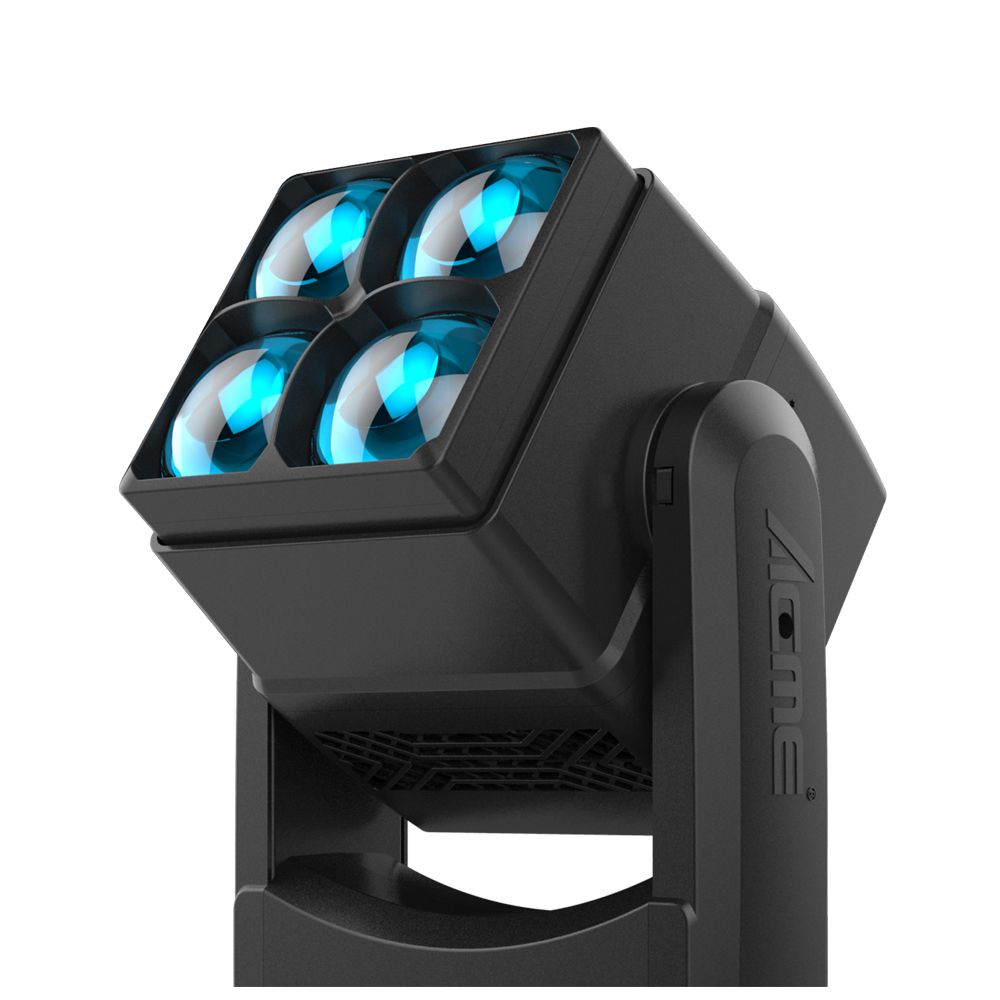

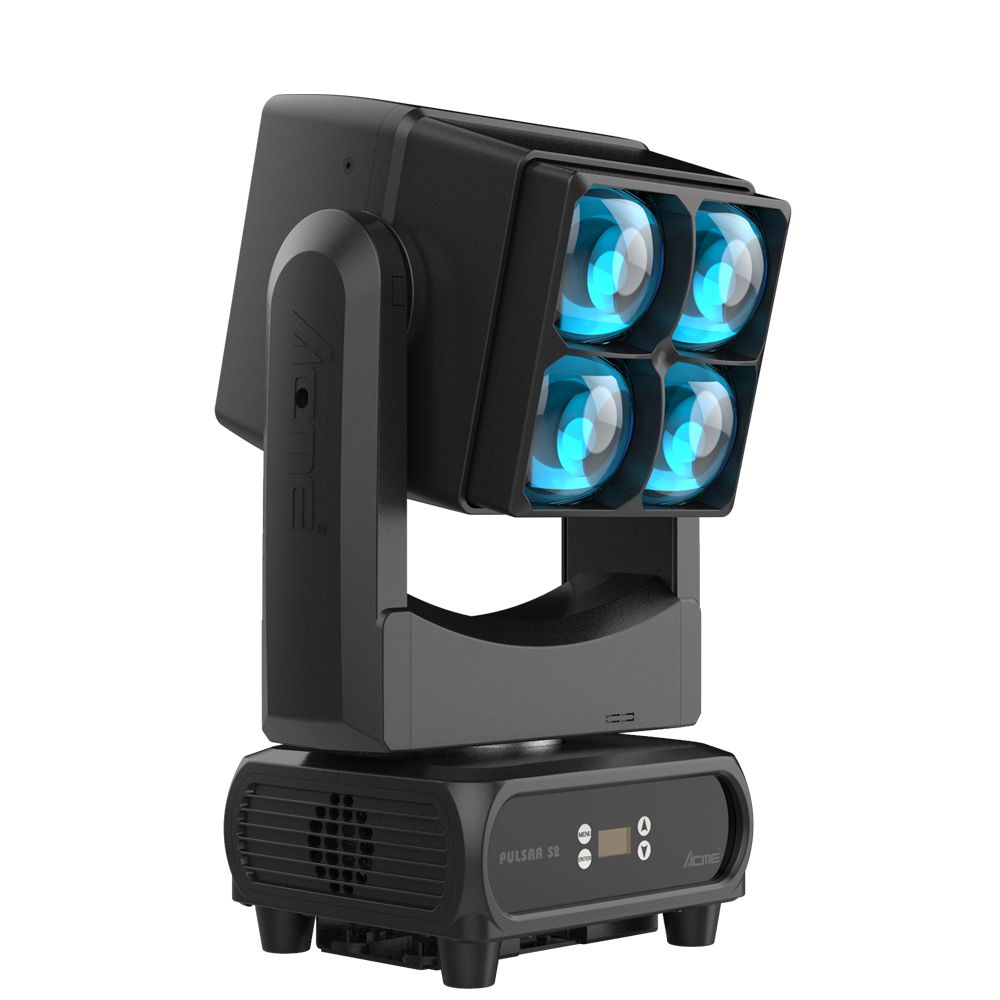

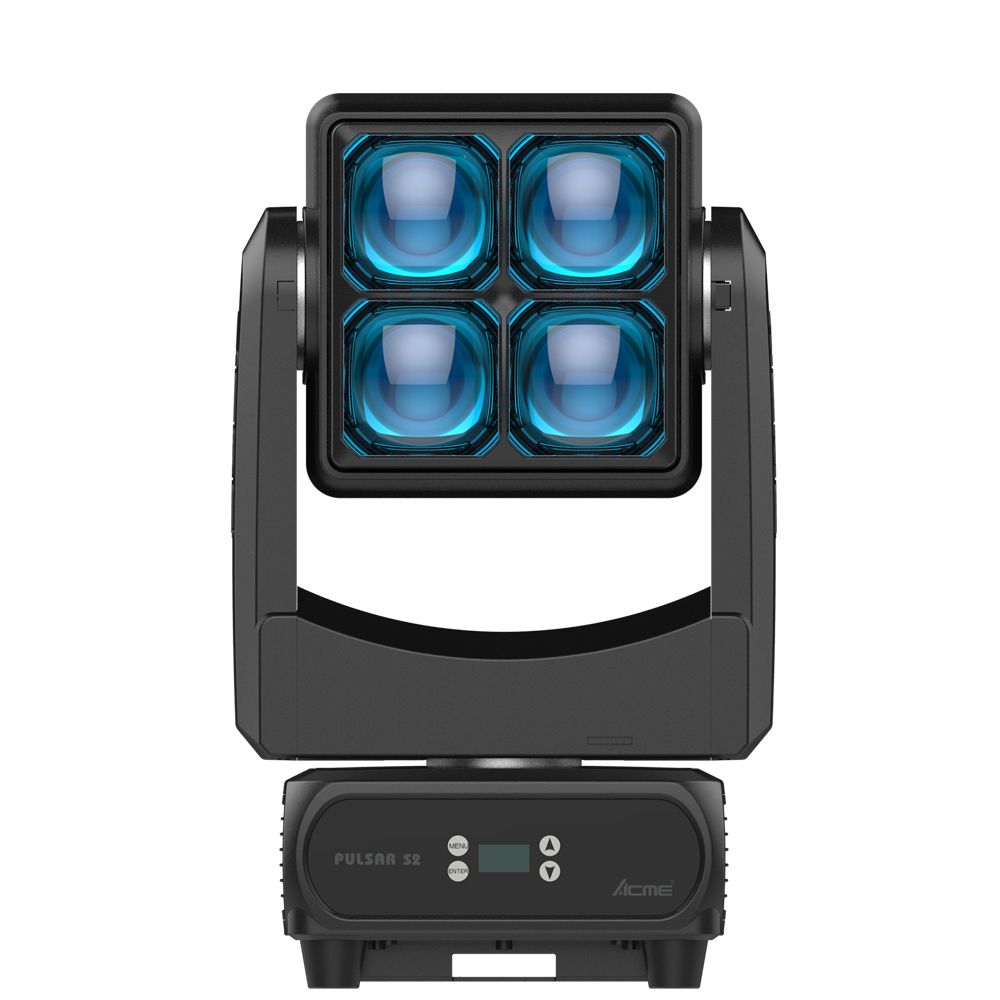

PULSAR S2 takes you beyond the limits of multi-functional lighting fixtures. The front part features 4x 60W RGBW LEDs, allowing powerful beams and wash to flow seamlessly through smooth zooming capabilities of 2.5°-28°. Individual pixel control offers the designer a wide range of effect choices.

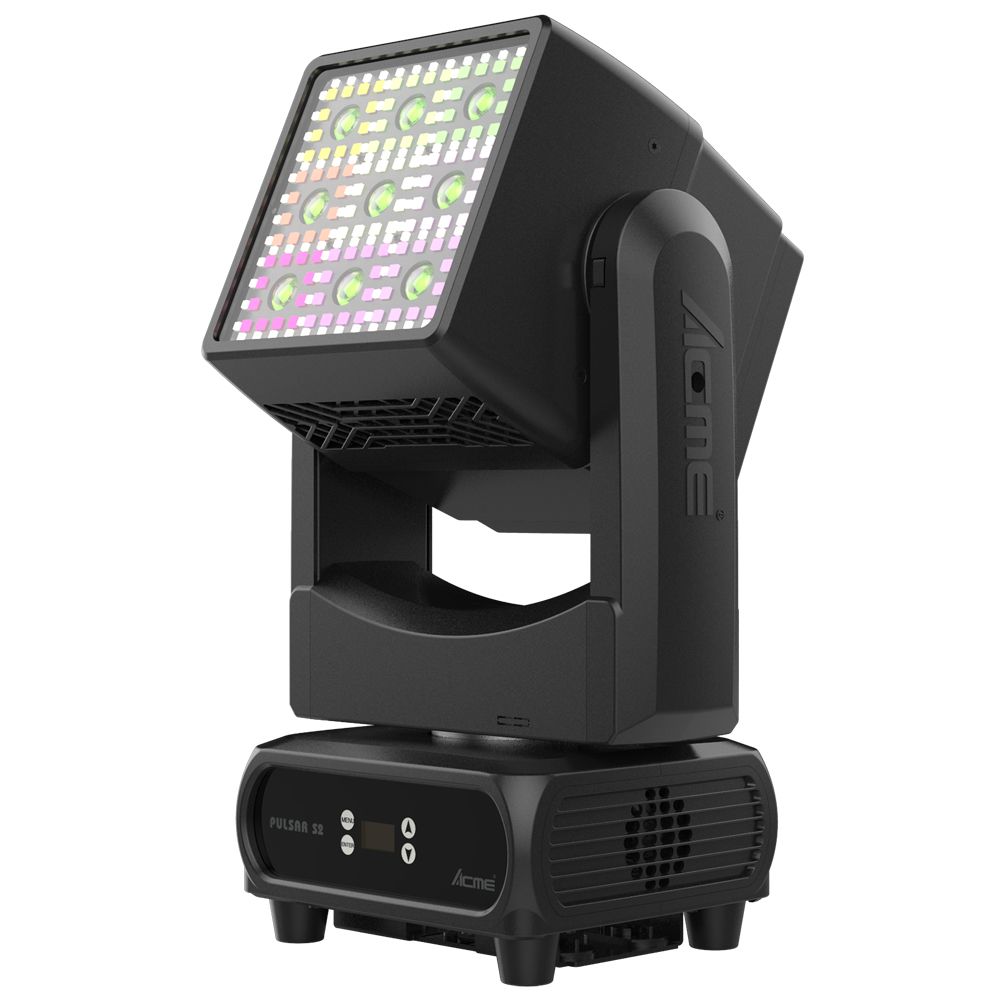

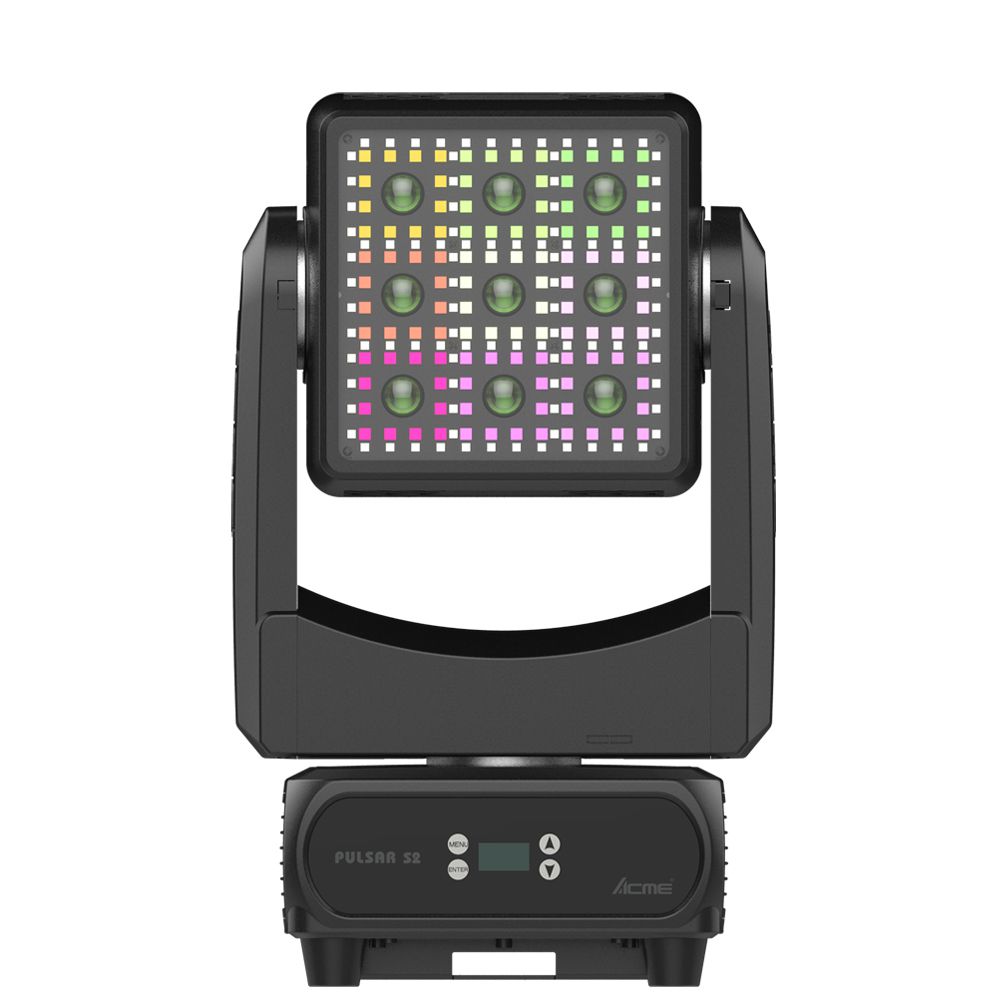

The rear part is equally remarkable, a marvelous formation of pixel strobe and beam-24 controllable zones of 96 CW LEDs, 9 zones of 108 RGB LEDs and 9 LEDs for with pixel control beam, delivering rich, saturated mixed colors and captivating effects that go from point to surface

A wide 100° coverage in pixel strobe section dynamic strobe capabilities and a tight 3.5°angle sharpens intense and well-defined mid-air beams and light curtains.

With linear focus adjustment for seamless transitions between sharpness and softness, infinite pan/tilt rotation ensuring no blind spots in your stage, the compact size making installation hassle-free, PULSAR S2 will instantly set the concerts, TV studios, variety shows, and other large and medium-sized events impossibly high.



Features

  • With zoom and strobe function
  • Beam/Wash section: 4 pcs LED has pixel control function
  • Strobe section:
    • 96 pcs CW LEDs are divided into 24 controllable zones
    • 108 pcs RGB LEDs are divided into 9 controllable zones
  • Motorized liner zoom system
  • Outstanding mixing color effect
  • Outstanding strobe effect with variable speed
  • 0~100% smooth dimming

Light Source

  • Light Source:
    • Beam/Wash section: 4 x 60W RGBW LED
    • Pixel/Strobe section:
      • 96 x 3W CW
      • 108 x 0.5W RGB
    • 10W Beam section: 9 x 10W CW
  • Color Temperature Output: 6700K
  • Total Lumen Output:
    • Beam/Wash section: 3,427 lm
    • Pixel section(RGB): 2,326 lm
    • Strobe section(CW): 15,072 lm
    • 10W Beam section: 1,224 lm
  • Rated Source Life: up to 20,000 hours*

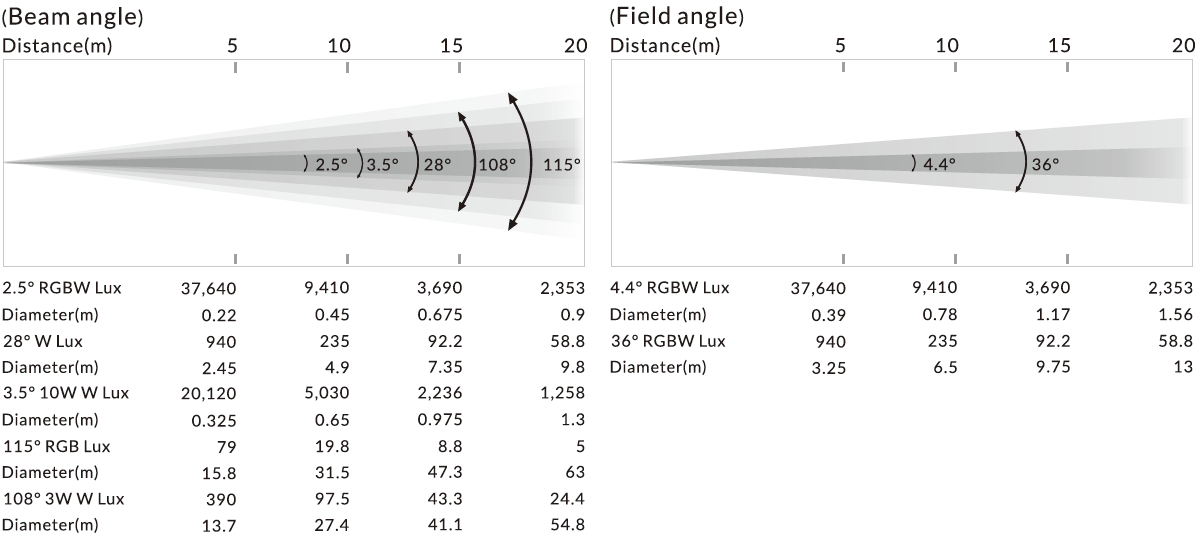

Optical System

  • Beam/Wash section:
    • Beam angle: 2.5°-28°
    • Field angle: 4.4°-36°
  • Pixel section: 115°
  • Strobe section: 108°
  • 10W Beam section: 3.5°
  • Diameter of Front Lens: 70*70mm

Control and Program

  • 4-Button touch panel
  • Display: OLCD display
  • Protocols: DMX512, RDM, Art-Net, sACN
  • DMX Protocol modes: 4
  • Control channels: 24/39/97/21+76
  • Firmware Upgrade: Upgrade via DMX, RDM, Art-Net link

PAN & TILT

  • Pan movement: Infinite
  • Tilt movement: Infinite
  • Automatic Pan/Tilt position correction
  • Moving-head operated with either 16-bit resolution

Other Effects

  • Motorized liner zoom system
  • Outstanding mixing color effect
  • Outstanding strobe effect with variable speed
  • 0~100% smooth dimming

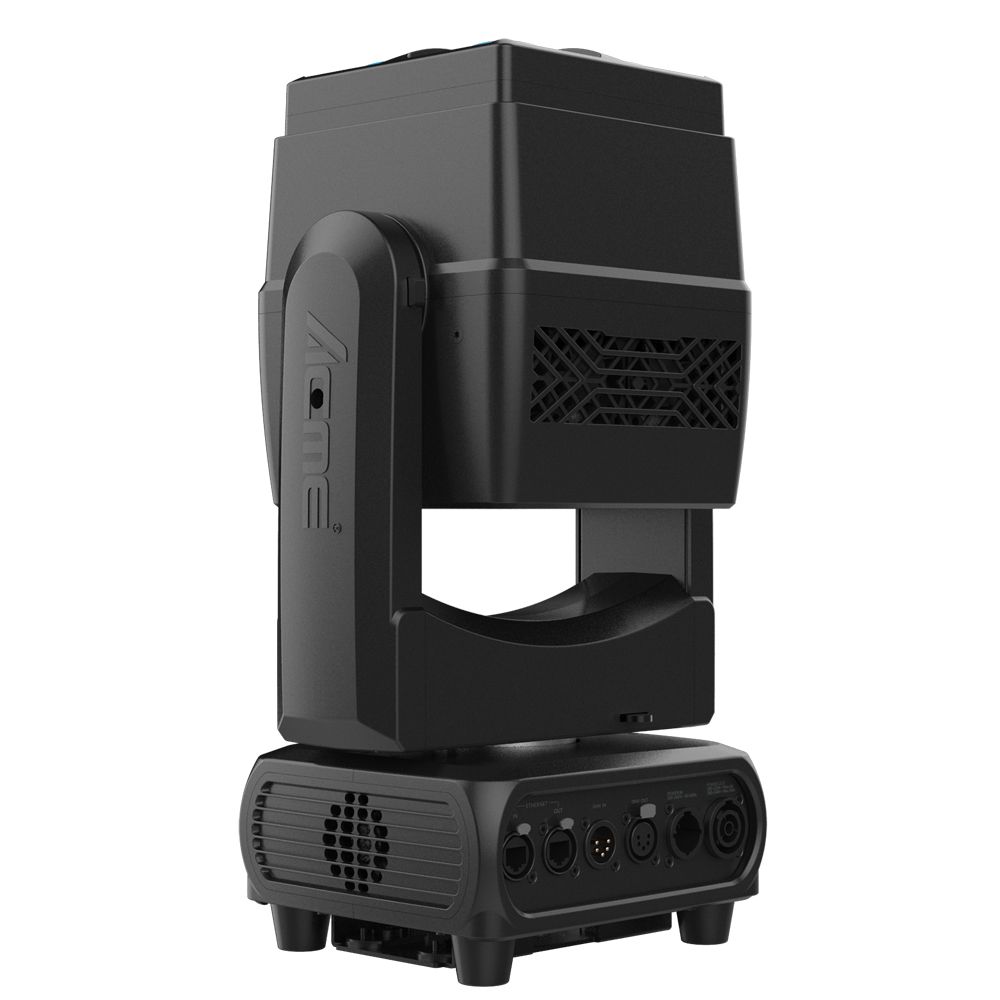

Electrical and Connectors

  • Input voltage range: 100-240V~ 50/60Hz
  • Power consumption: 570 W
  • Power In/Out: Power Connector in/out
  • Date In/Out: 3 pin or 5 pin XLR In/Out, Art-Net In/Out

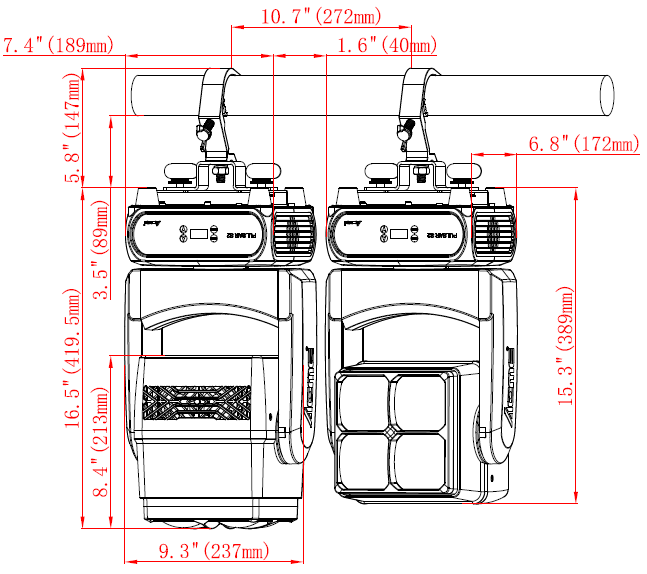

Fixture Specification

  • Fixture Dimensions:
    • Width: 237 mm (9.3″)
    • Depth: 176 mm (6.9″)
    • Height: 381 mm (15.0″)
    • Weight: 10 kg (22 lbs)
  • Flight Case Dimensions:
    • Width: 1,220 mm (48.0″)
    • Depth: 610 mm (24.0″)
    • Height: 640 mm (25.2″)
    • Weight: 115 kg (253.5 lbs)(Hexa Loader Case)
  • Carton Specification:
    • Width: 365 mm (14.4″)
    • Depth: 265 mm (10.4″)
    • Height: 480 mm (18.9″)
    • Weight: 12 kg (26.5 lbs))(include carton, one-pack per carton)

Work Environment

  • Maximum ambient temperature: 40°C
  • Minimum operating temperature: 0°C
  • Maximum surface temperature: 65°C

Installation

  • Horizontally or vertically mounting are available
  • Universal working position

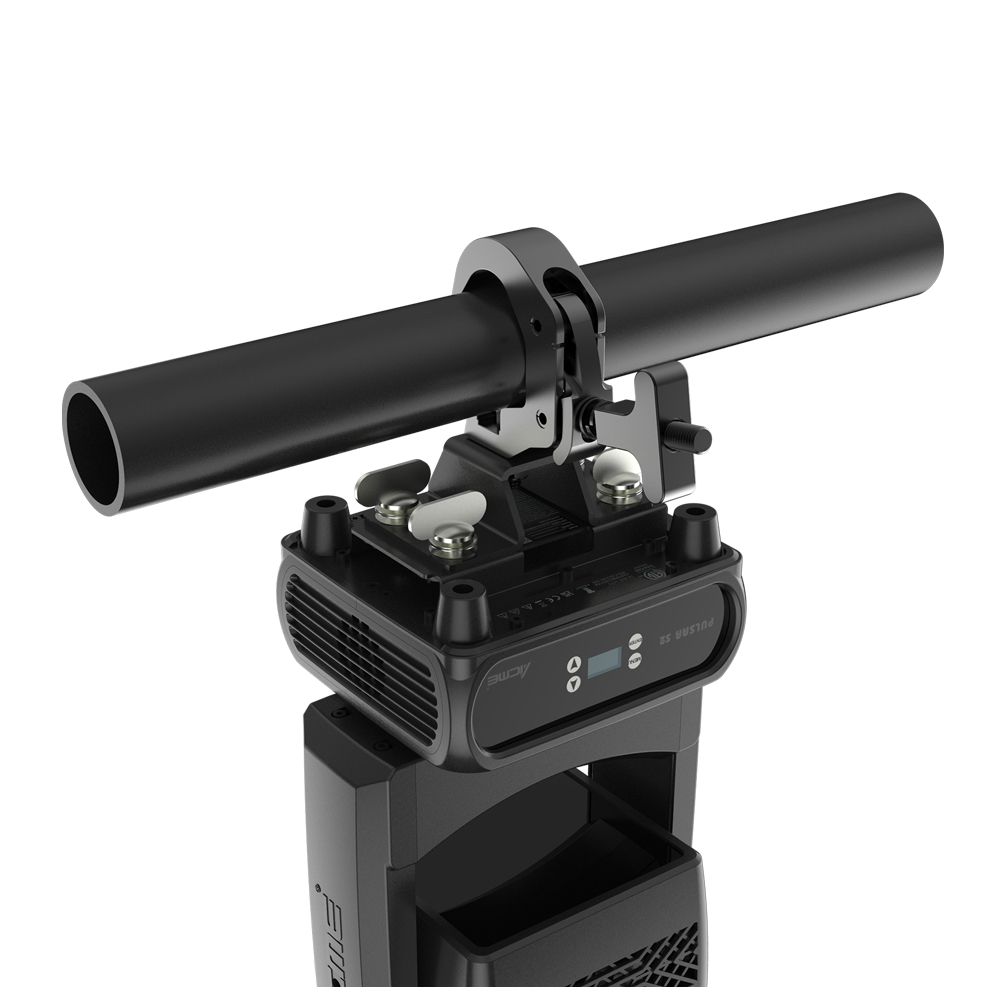

  • 1x omega brackets
  • Safety cable attachment hole

Included Items

  • Digital User Manual
  • Power Cable
  • 1x omega brackets

Optional Accessories (with item code)

  • Flight Case: 3205001335
  • Signal Line: 3-pin or 5-pin XLR signal line
