Beschrijving

Functional Overview

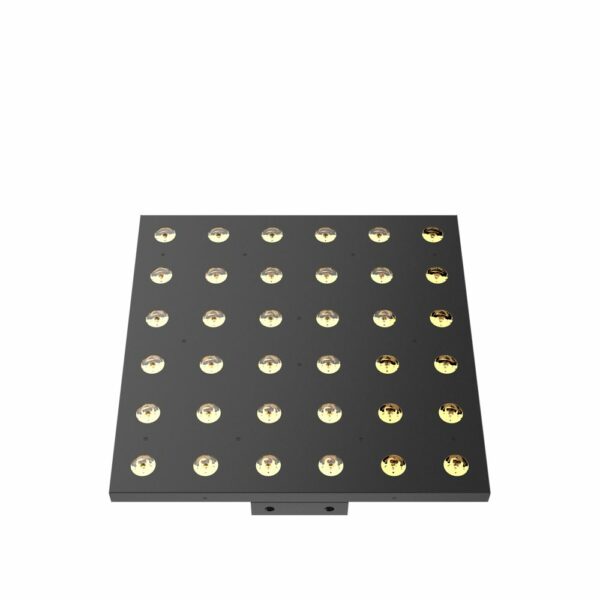

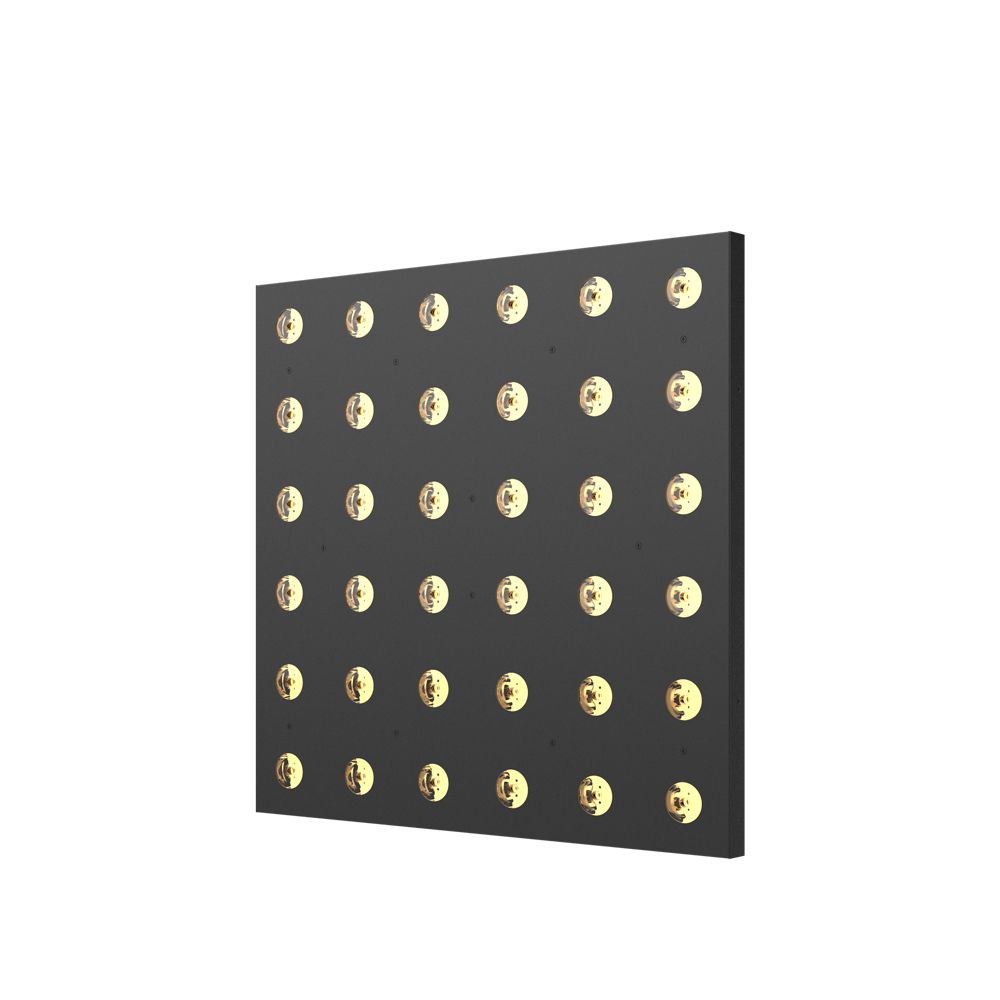

ANIMA W is an 6×6 3W WW matrix LED Panel at standard size 500x500mm.Optional beam angles at 4°/8°/12°/25°/45°.An ideal pixel mapping effect wall solution for any install application at a reasonable cost but also quickly create dynamic graphics and starlight effects. Easy multiple structure design, build-in macro preset, 0-100% smooth dimming, flicker-free operation, and very lightweight loading. Fitting for night club install, ballroom, entertaining lighting project, etc.

Features
Light Source: 36pcs 3W WW LED
Color temperature:2700K
LED can be controlled individually
Optional Beam Angle: 4°/8°/12°/25°/45°
Outstanding strobe effect with variable speed
Compact design size, light in weight
High resolution dimmer 0–100%
Flicker free management

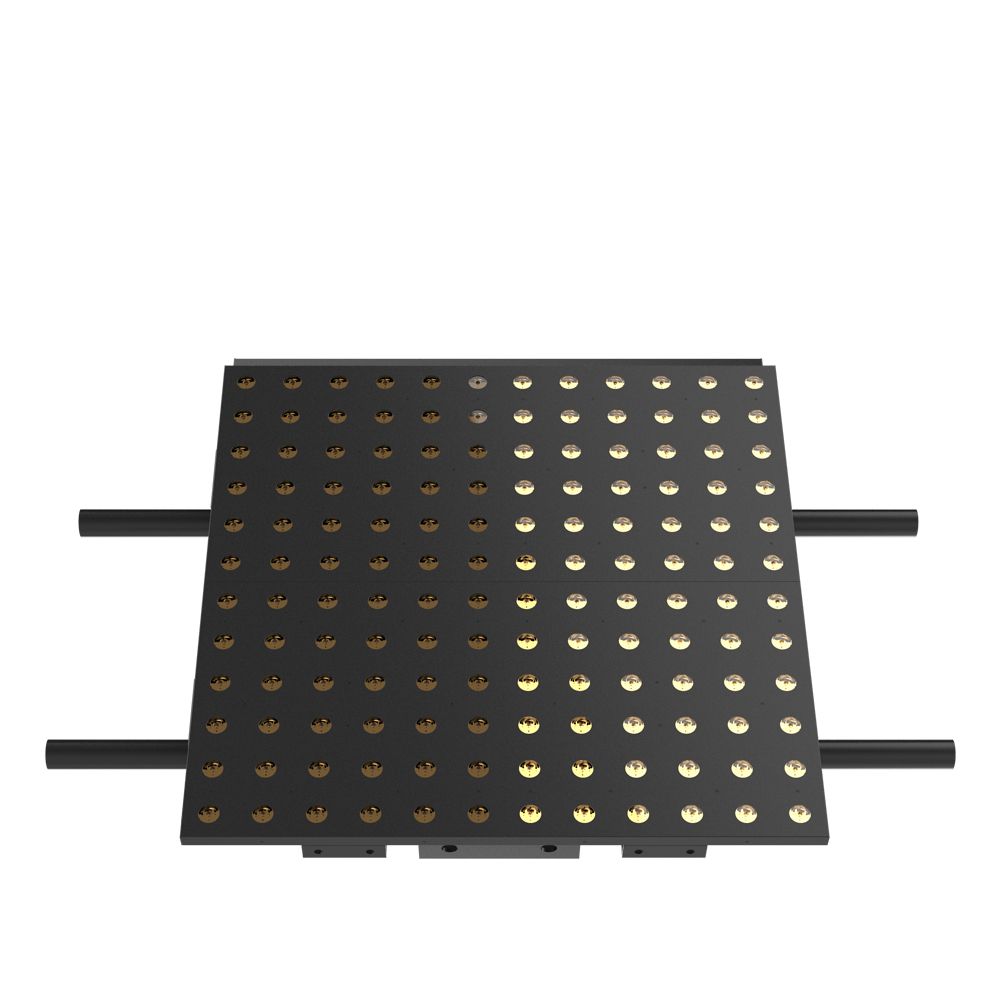

Multiple units can be split-jointed horizontally with connecting board

Technical & Specification
Model
PANEL 36 WW

Light source
Light Source: 36pcs 3W WW LED
LED life expectancy: 20000 hours
Lens Option: 4°/8°/12°/25°/45°

Optical System & Effects
LED can be controlled individually
Can create a variety of lighting effects
Outstanding strobe effect with variable speed
High resolution dimmer 0–100%

Appearance
Compact design size, light in weight

Control and Program

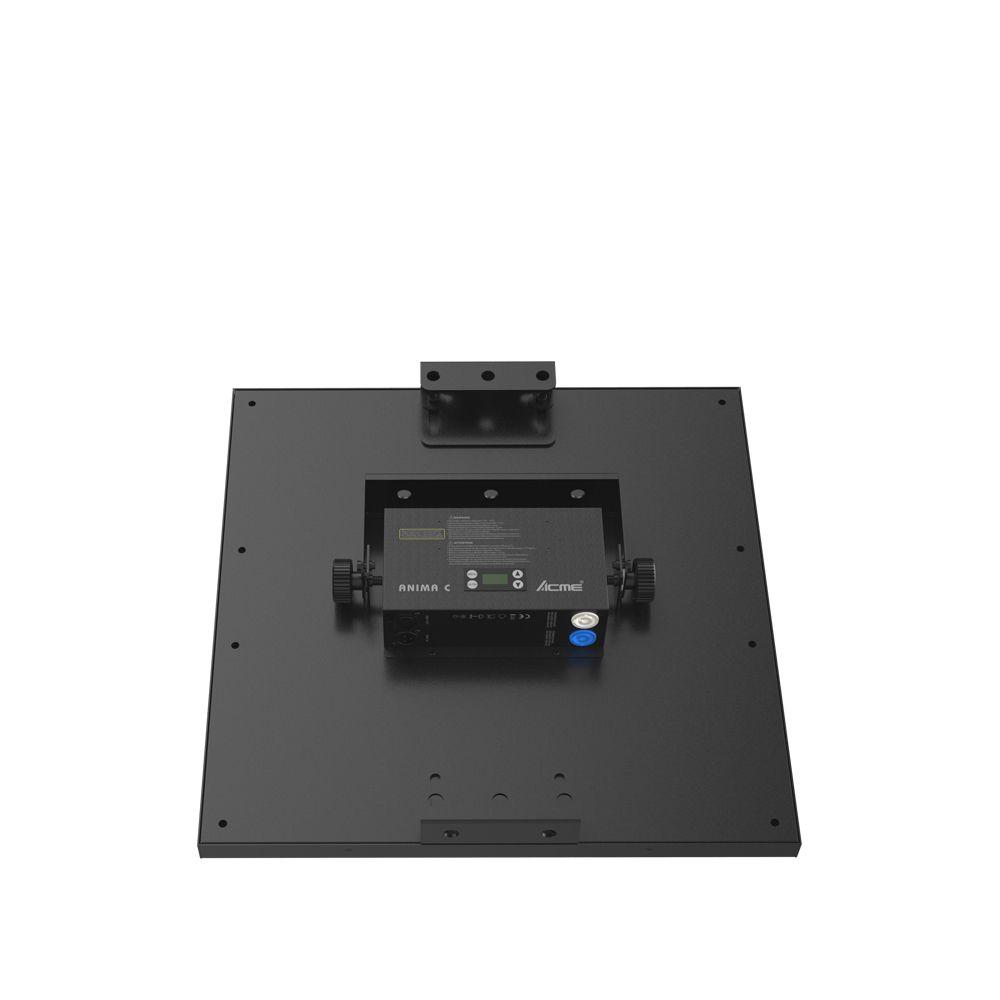

4-buttons touch panel
Display: OLED display
Control Mode: DMX512, RDM
DMX Protocol modes: 42CH/40CH/36CH
Upgrade the firmware via DMX link

Electrical and Connectors
Input voltage range: AC 100-240V, 50/60Hz
Power consumption: 110 W

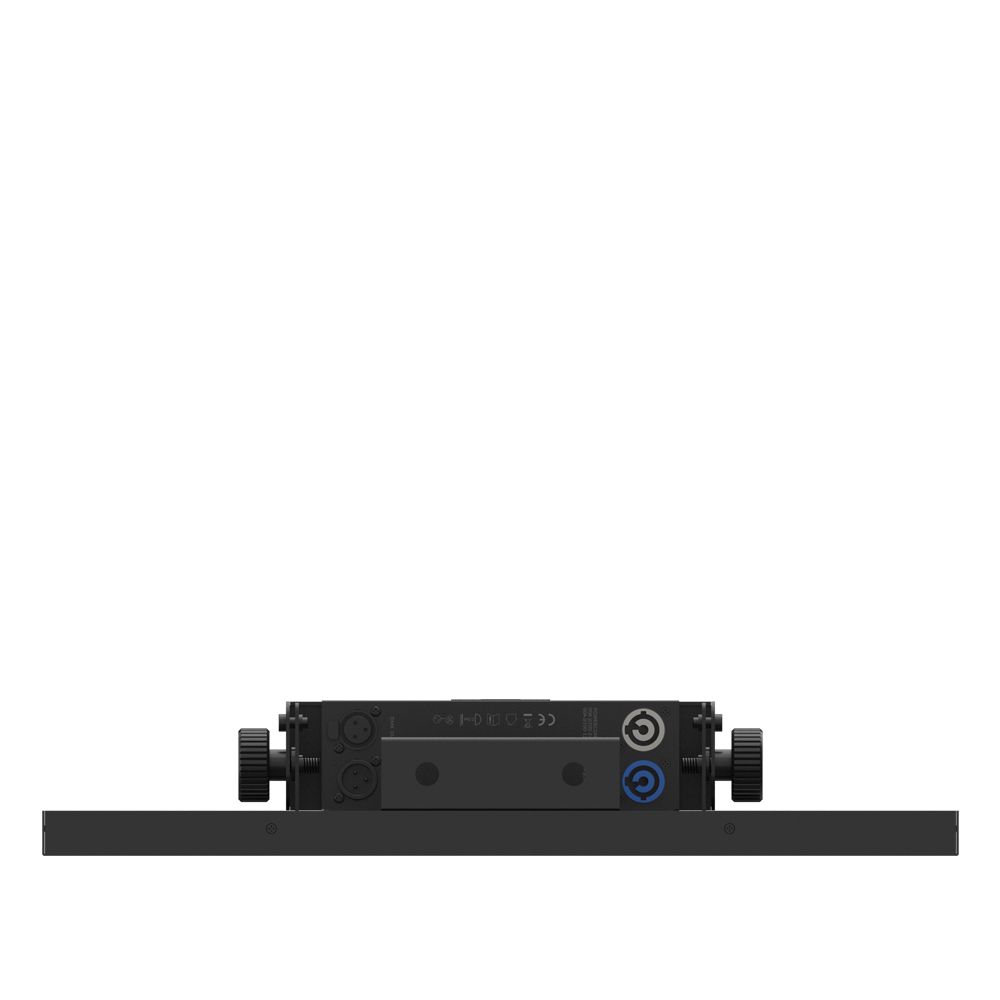

Power In/Out: Power Connector in/out
Data in/out: 3-pin or 5- pin XLR

Fixture Specification
Height: 85 mm (4.1″)
Width: 500 mm (19.6″)
Depth: 500 mm (19.6″)
Weight of fixture:9.3kg (20.5lbs)
Carton Dimension:
Height: 180mm (7.1″)
Width: 575 mm (22.6″)
Depth: 595 mm (23.4″)
Weight: 11.2kg(24.7lbs))(with carton, 1 in 1 standard)

Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Installation

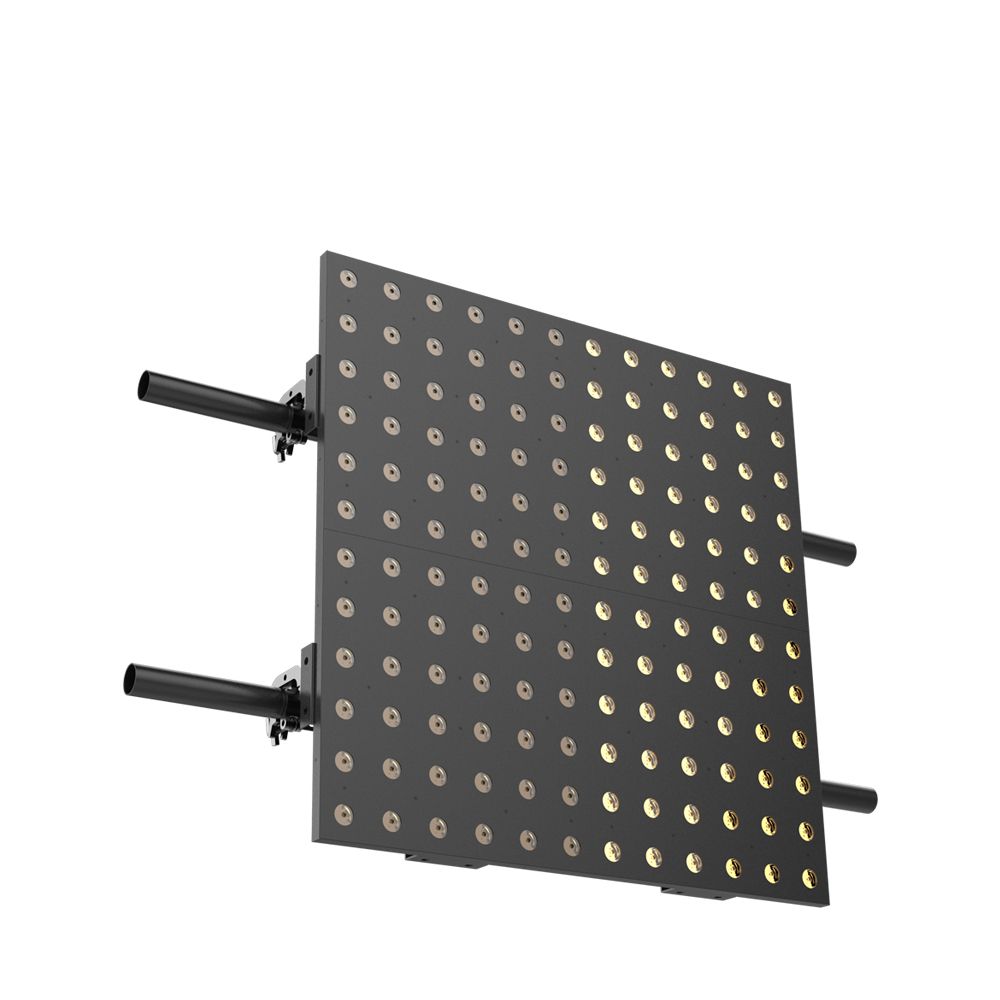

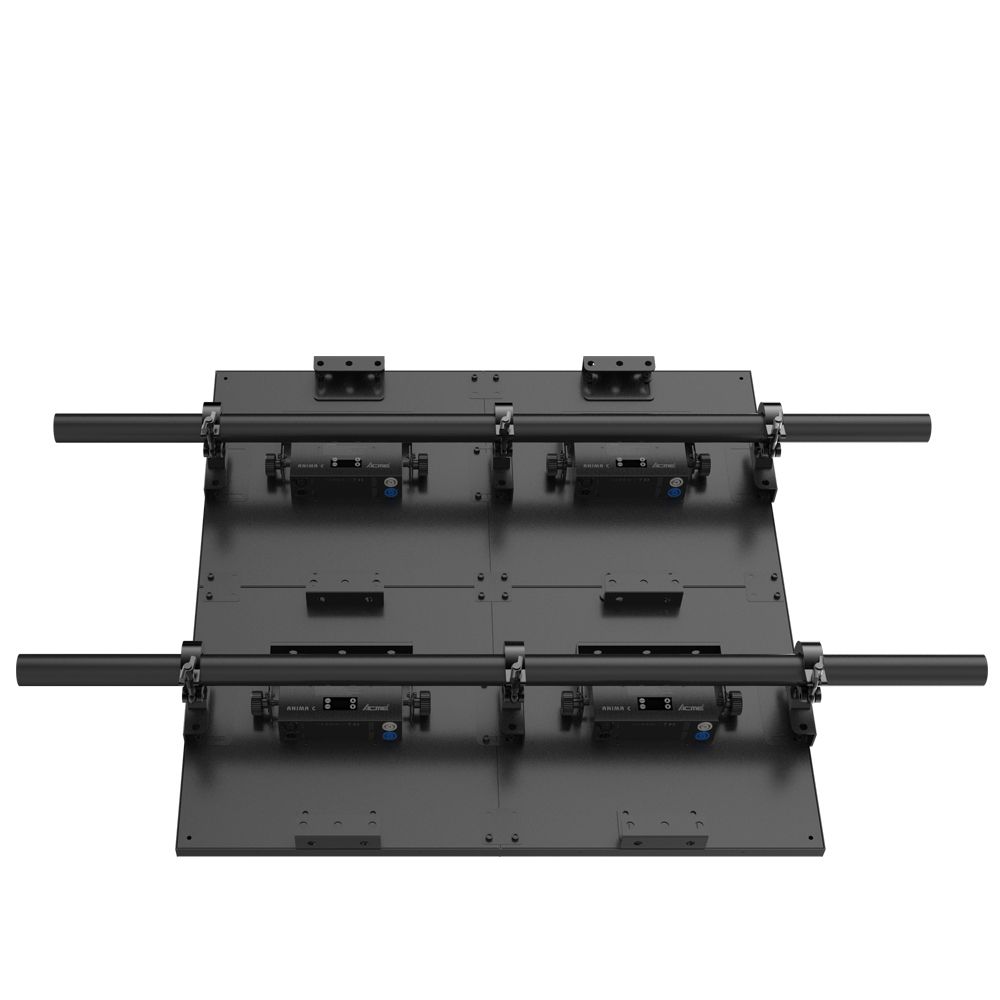

Multiple units can be split-jointed horizontally with connecting board

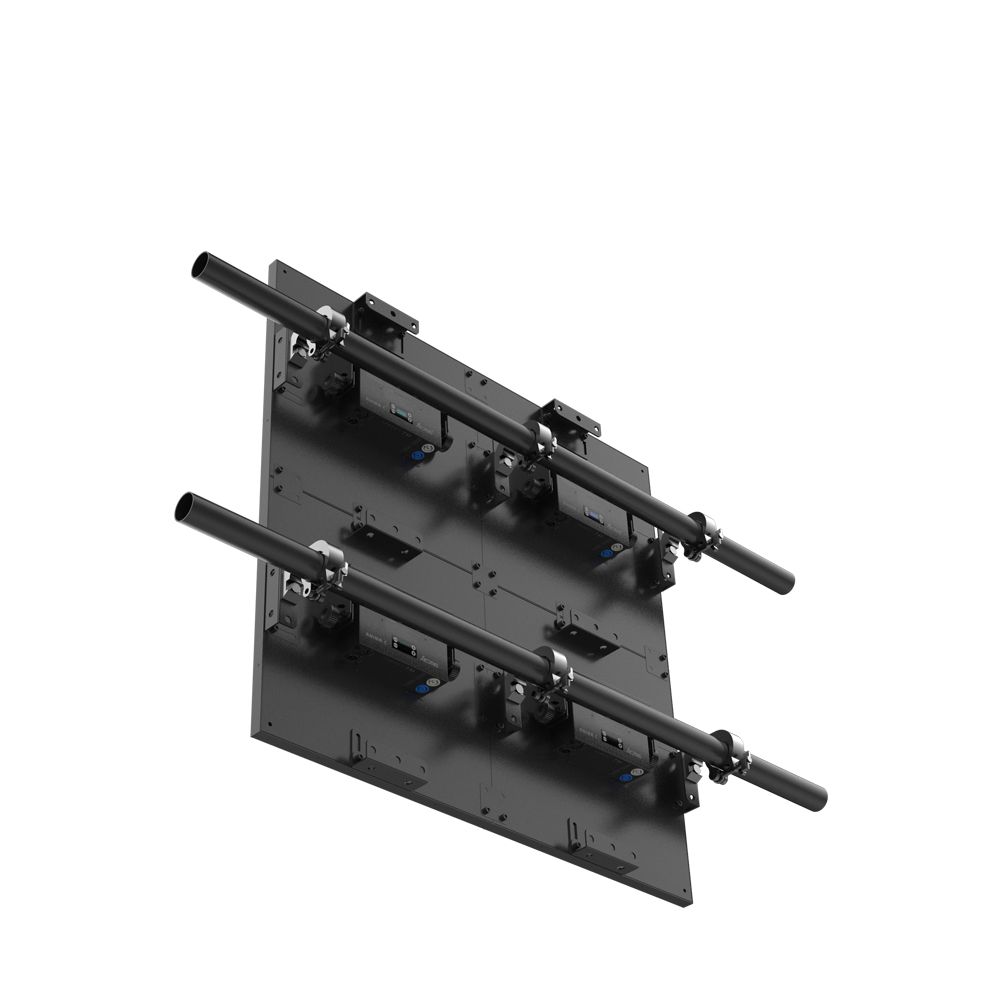

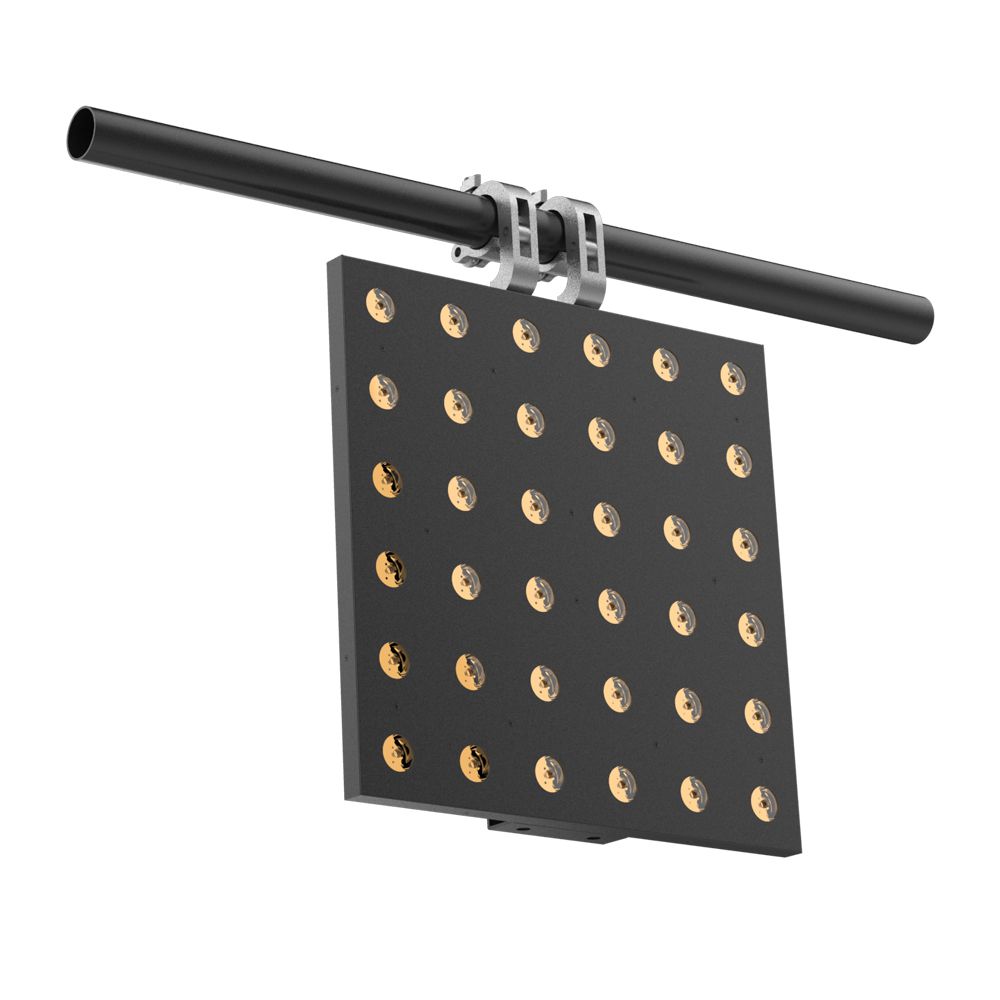

2 x clamps for 50 millimeter truss, install 1 or 2 clamps according to your demands.
Safety cable attachment point

Included items
User Manual
power cable
Carton: 3204128066

Optional Accessories (with item code)
Clamp:2061111635(C-100A)
Signal Line:3-pin or 5-pin signal line
Safety cable : 2060000200(SW-02)

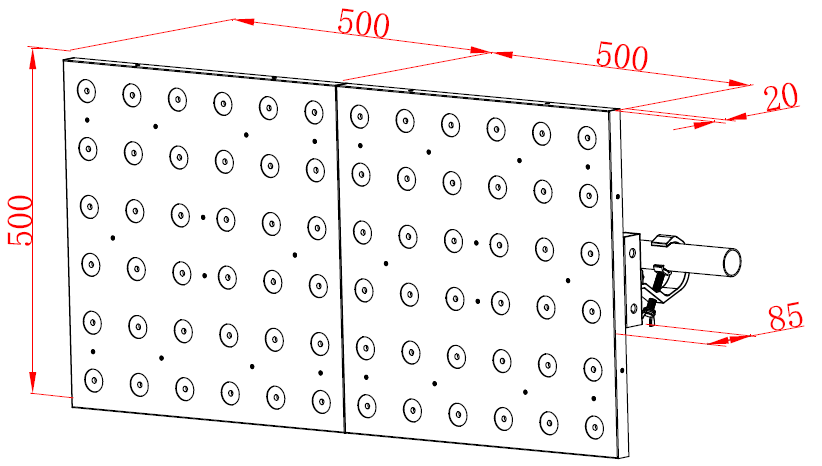

Afmetingen

afmetingen

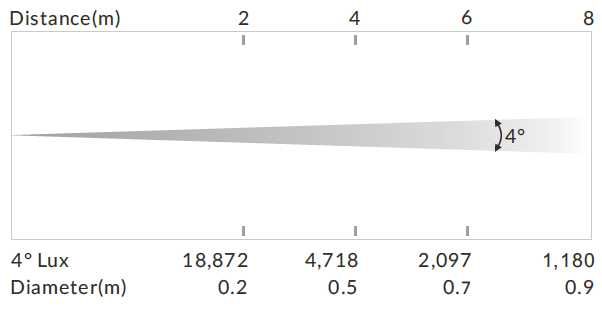

photometrics

photometrics
