Functional Overview

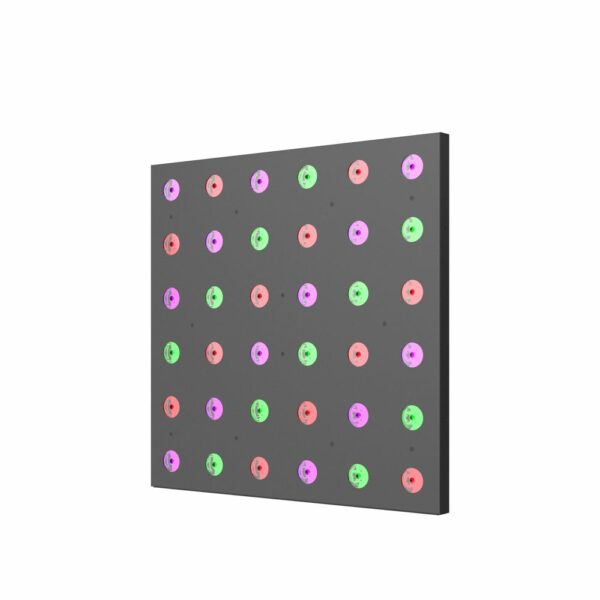

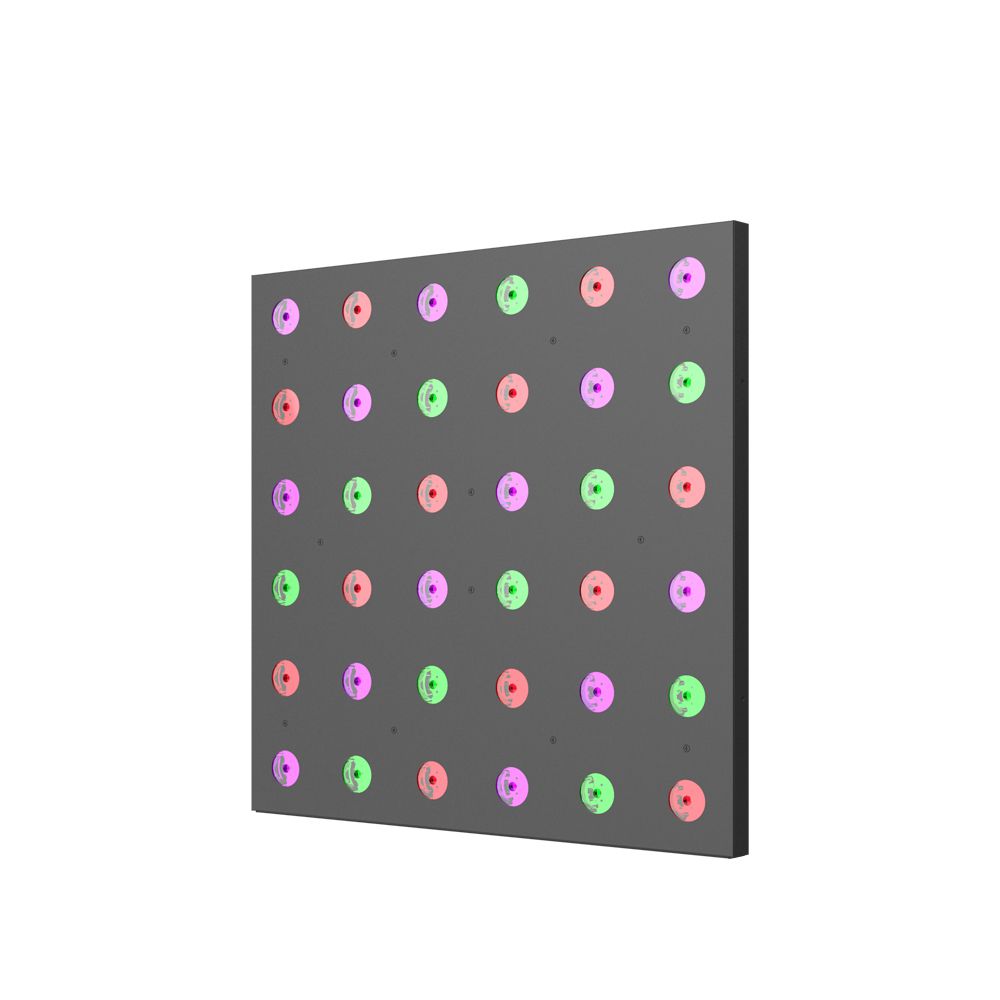

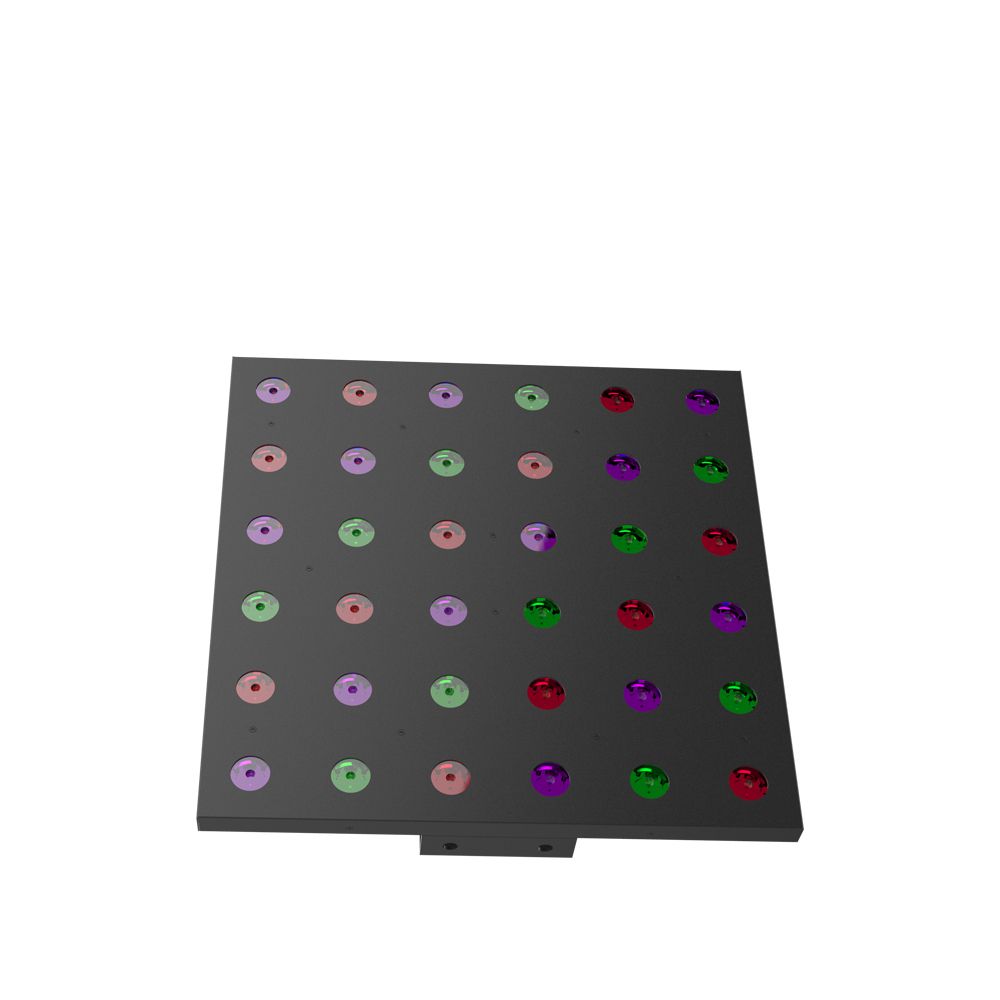

ANIMA C is an 6×6 3W RGB matrix LED Panel at standard size 500x500mm.Optional beam angles at 4°/8°/12°/25°/45°.An ideal pixel mapping effect wall solution for any install application at a reasonable cost. Easy multiple structure design, build-in macro preset, 0-100% smooth dimming, flicker-free operation, and very lightweight loading. Fitting for night club install, ballroom, entertaining lighting project, etc.

Features
Light Source: 36pcs 3W RGB LED
LED can be controlled individually
Lens Option: 4°/8°/12°/25°/45°
Outstanding strobe effect with variable speed
Small size, light weight
High resolution dimmer 0–100%
Flicker free management

Technical & Specification
Model
PANEL 36 RGB

Light source
Light Source: 36pcs 3W RGB LED
LED life expectancy: 20000 hours

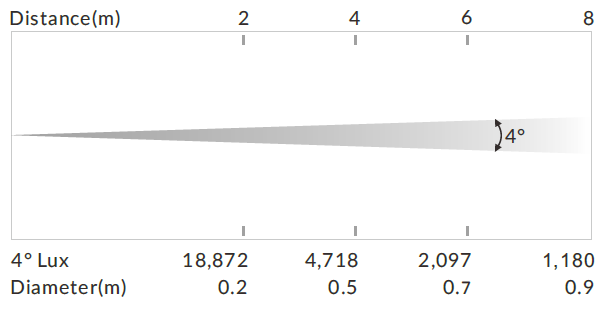

Lens Option: 4°/8°/12°/25°/45°

Optical System & Effects
LED can be controlled individually
Outstanding strobe effect with variable speed
High resolution dimmer 0–100%

Appearance
Small size, light weight

Control and Program

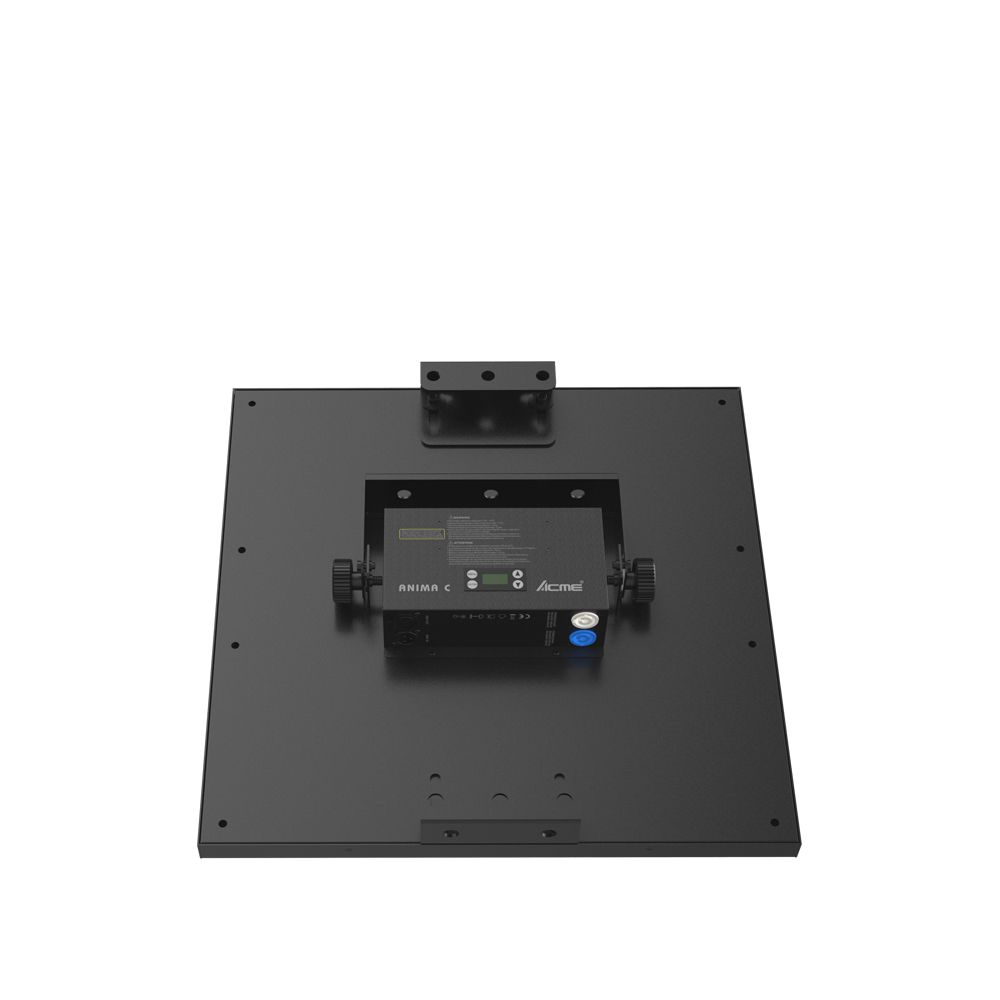

4-buttons touch panel
Display: OLED display
Control Mode: DMX512, RDM
DMX Protocol modes: 108,15,11,3
Upgrade the firmware via DMX link

Electrical and Connectors
Input voltage range: AC 100-240 V, 50/60 Hz
Power consumption: 110 W

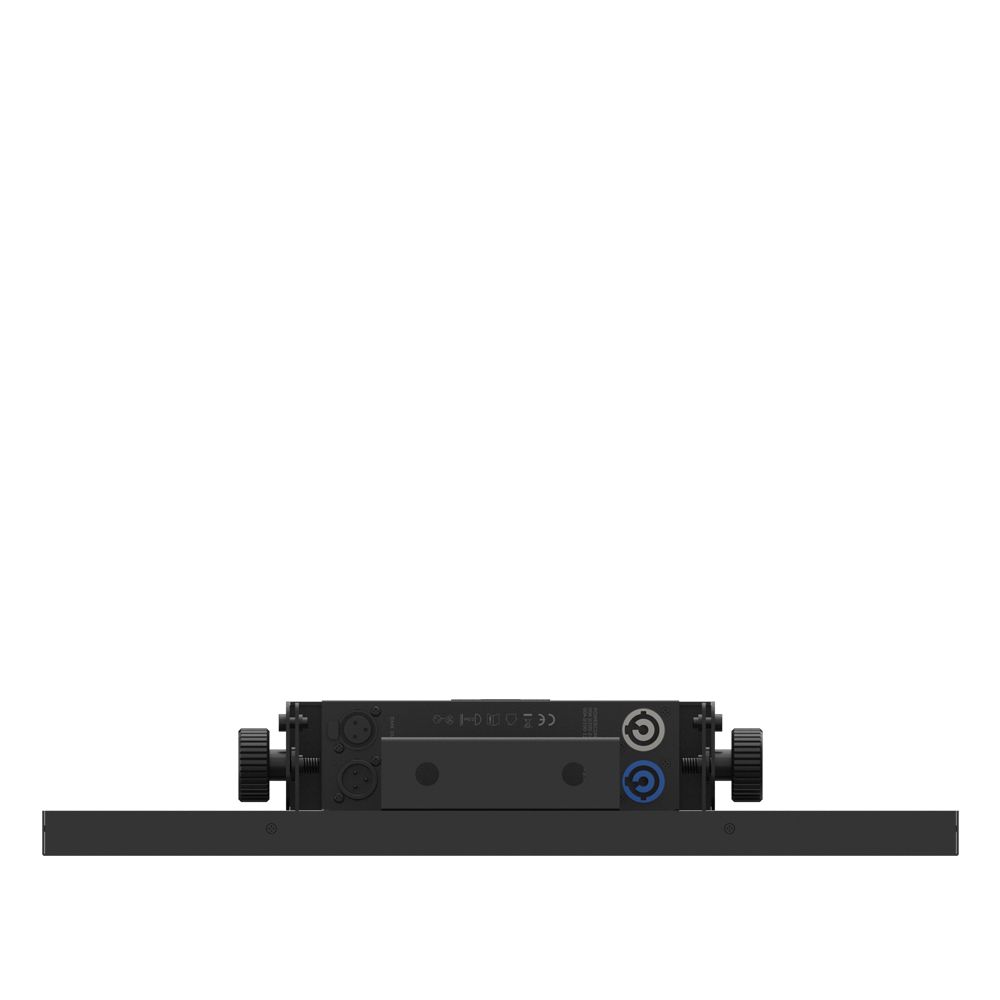

Power In/Out: Power Connector in/out
Data in/out: 3-pin or 5-pin XLR

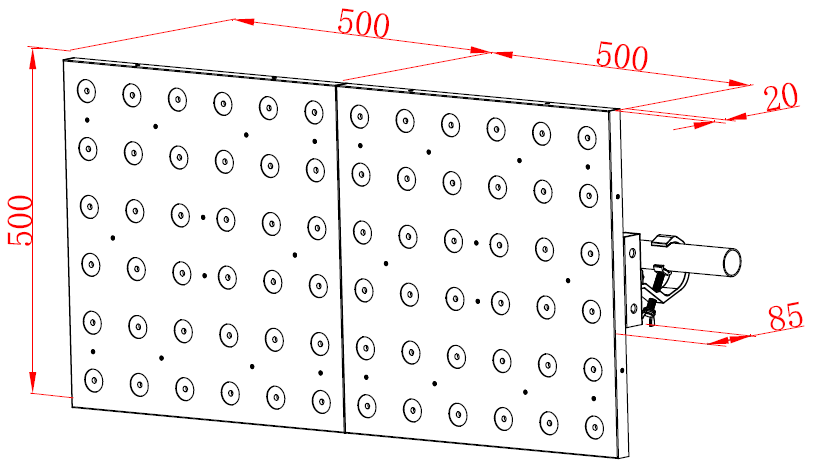

Fixture dimension:

Fixture Specification
Height: 85 mm (4.1″)
Width: 500 mm (19.6″)
Depth: 500 mm (19.6″)
Weight of fixture:9.3kg (20.5lbs)

Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Installation

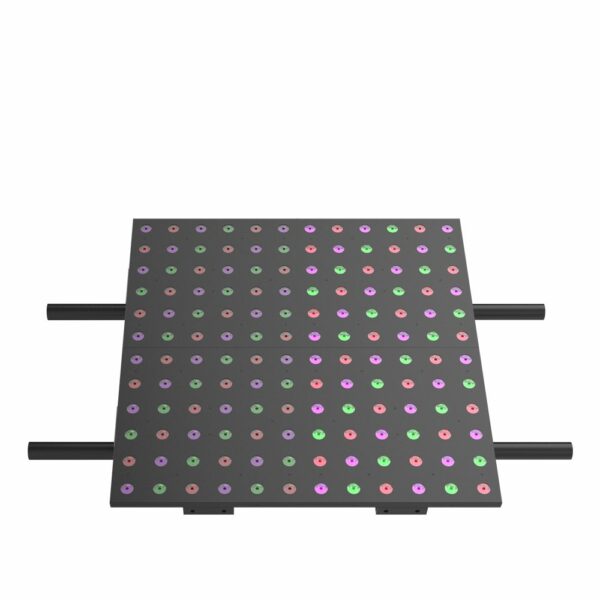

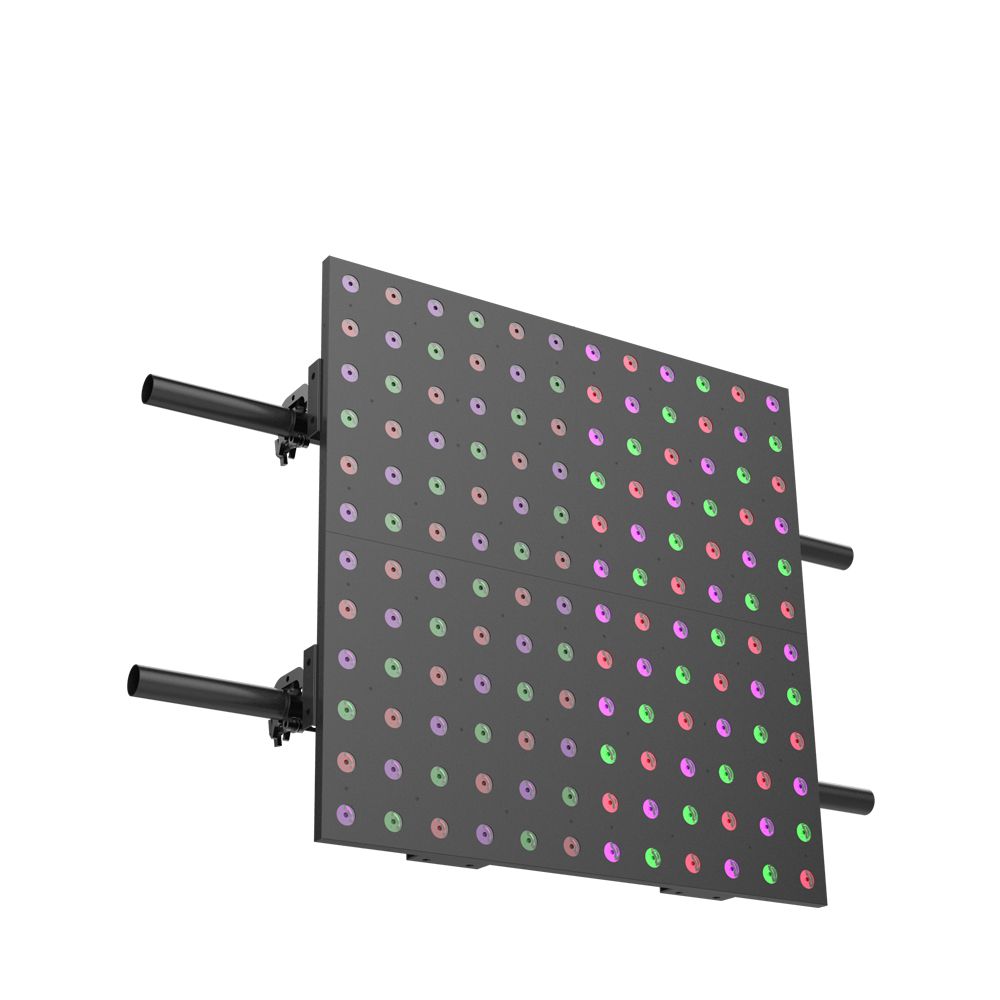

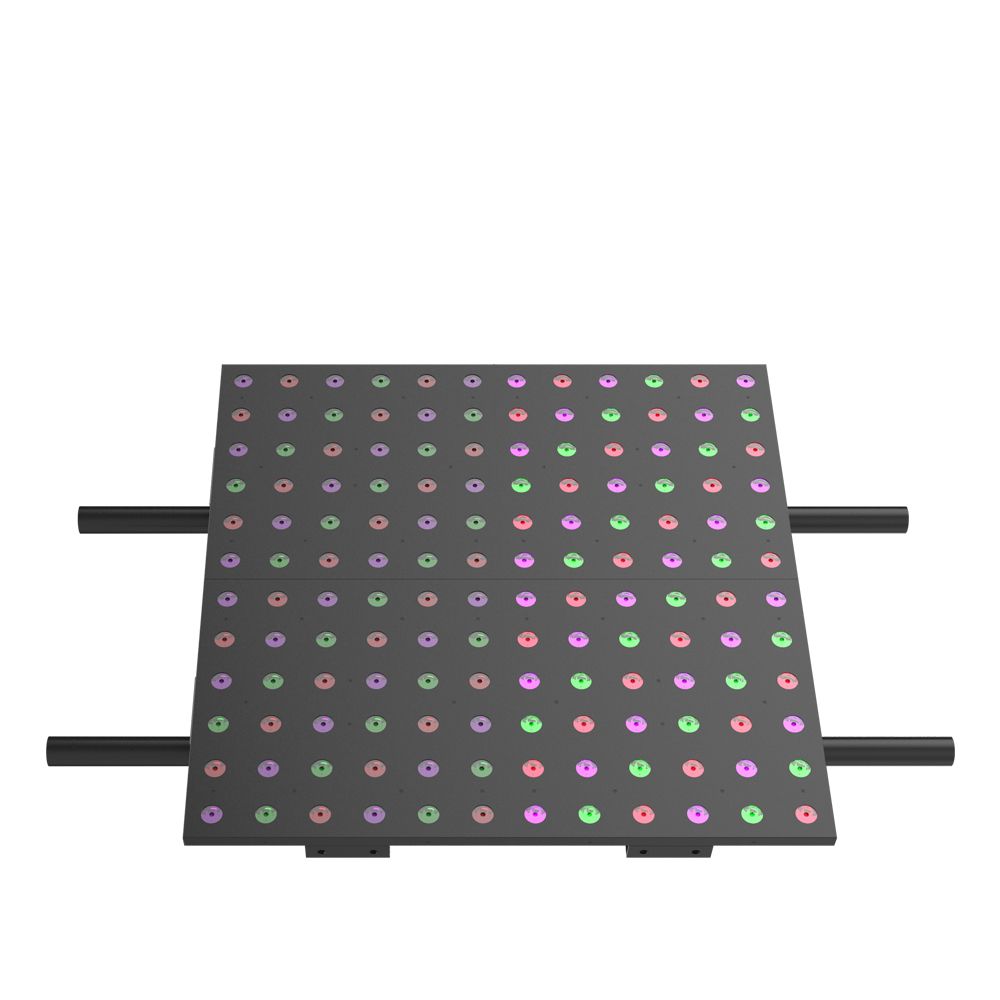

Horizontally or vertically mounting are available
Operating position is universal

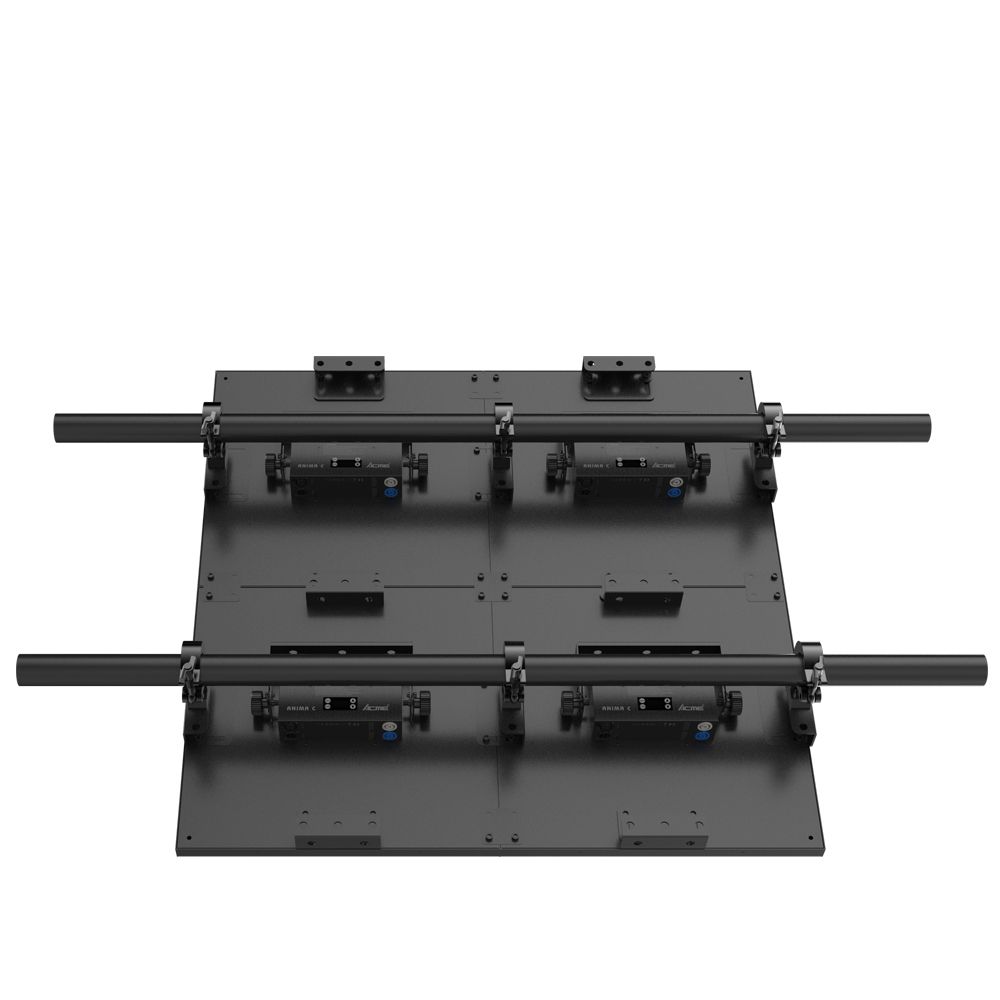

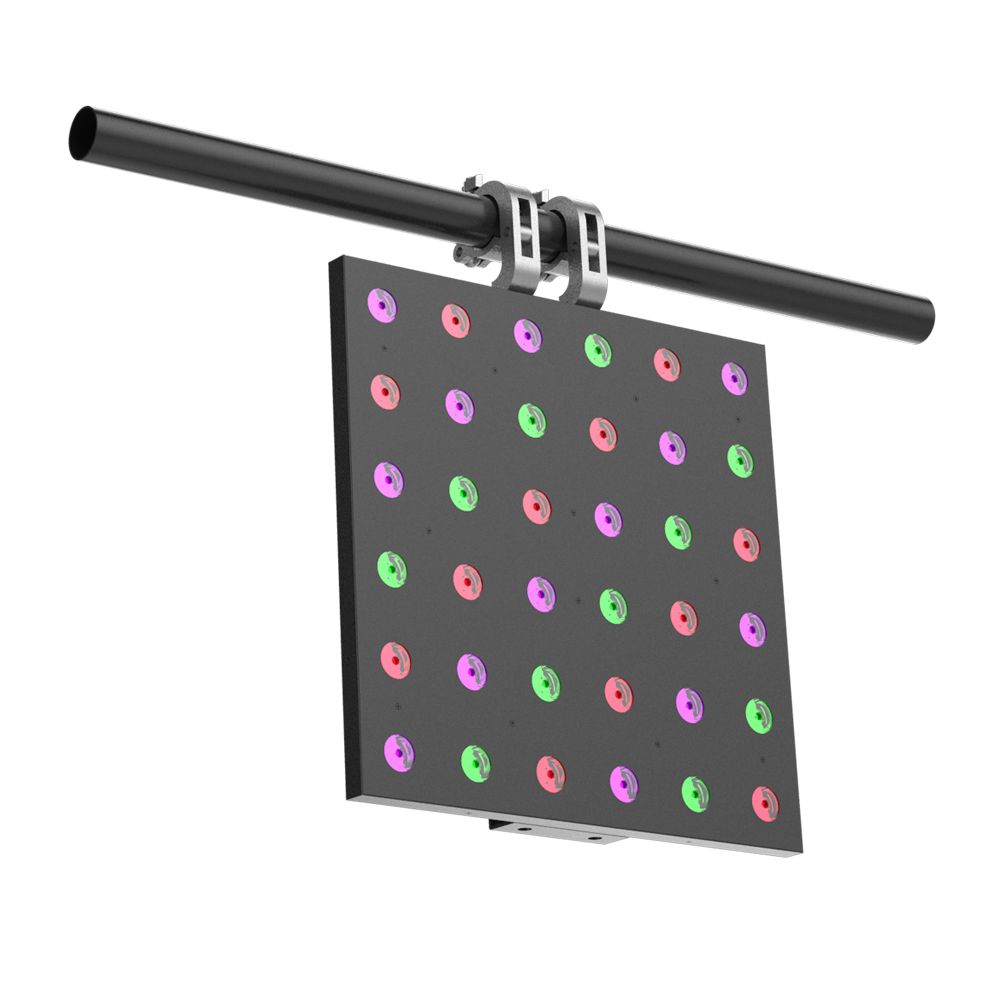

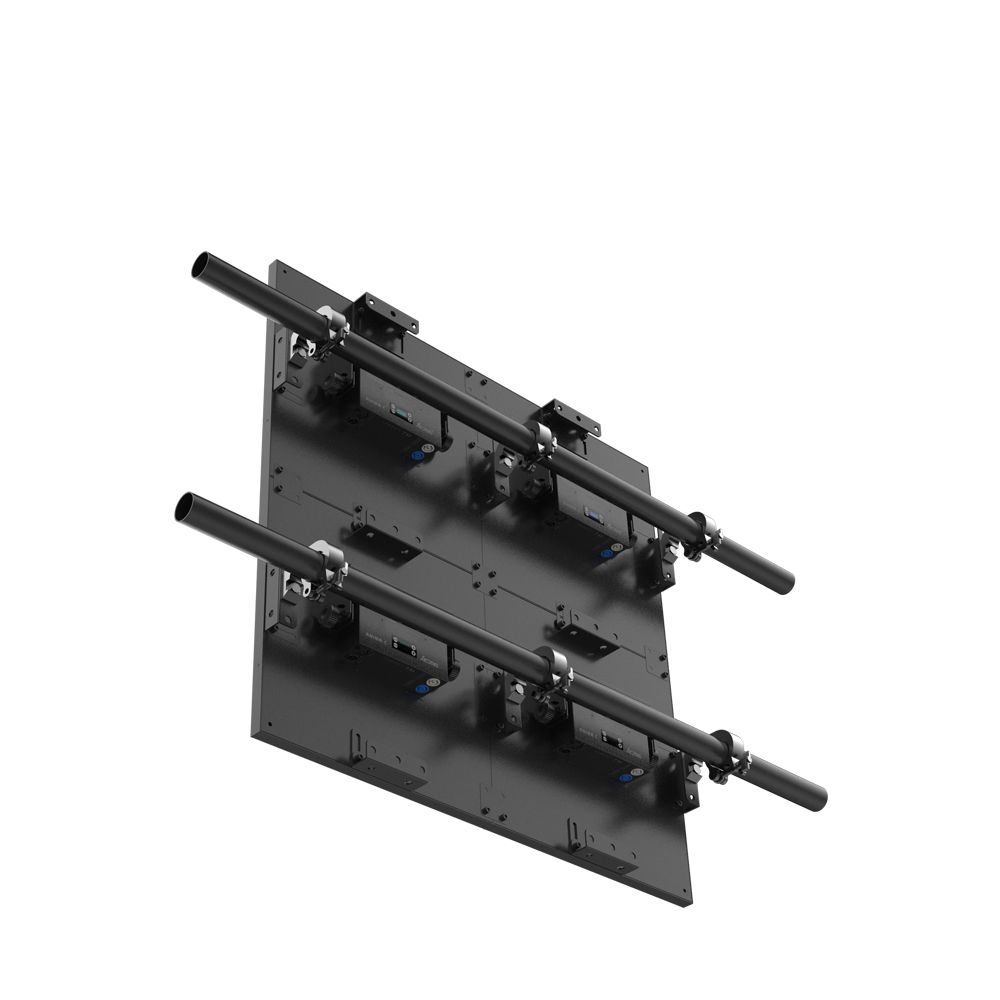

2 x clamps for 50 millimeter truss, install 1 or 2 clamps according to your demands.
Safety cable attachment point

Included items
User Manual
power cable
2 x clamps for 50 millimeter truss

Optional Accessories (with item code)
Carton: 3204128066
Clamp: 2061111635(C-100A)
Signal Line: 3-pin or 5-pin signal line
Safety cable: 2060000200（SW-02）
