Acme OXYGEN

7x40W | LED | Movinghead | Wash | Pixel control | RGBW |  6-40° zoom

Log in of registreer om uw korting te zien.
Of vraag vrijblijvend een offerte aan.

Demo? Bezoek onze showroom of maak een afspraak voor een demo op locatie.

Wij zijn er voor de professional. Totaal leverancier stage & entertainment

Deskundig advies op maat. Wij denken graag met je mee.

Gespecialiseerd in projectie. Voor elke project een oplossing.

Functional Overview
Oxygen is a small, super-fast, bright and lightweight LED wash luminaire utilizinga 7x40W Osram RGBW 4-in-1 Light Source. The fast zoom(1:7 ratio, 6-40˚)cango from a tight 6˚ beam to a wide, soft 40˚wash. The 7 LEDs offer variable-speed strobe, smooth dimming and color changing to create striking psychedelic effects. Other Features include familiarpowerconnectors, 5-pin XLR pass-through/daisy-chain, OLED touch display and remote RDM function.
The extremely compact fixture weighs just 5kg, so it can fit into virtually any position. It is ideal for all small-to-medium applications, particularly those where space and accessibility is an issue.

Features

  • Light Source: Osram 7x40W RGBW LED
  • Powerful beam and wash effects
  • Variable CTO: 2500K – 8000K
  • Pixelcontrol
  • Uniform RGBW color mixing and rainbow effect
  • Motorized linear zoom system

[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_column_text]

  • Zoom range: 6-40°
  • Outstanding strobe effect with variable speed
  • Smooth dimming from 0-100%
  • Compact design, small size
  • Fast and silent operation
  • Flicker-free management
  • Dust-proof and oil-proof design

Technical & Specification
Model
CM-400Z

Light Source
Light Source: Osram 7x40W RGBW LED
Color Temperature: 2500-8000K
LED life expectancy: 30,000 hours

Optical System
Advanced optical Systemfor clear, wide-ranging beam & wash effects
High-efficiency zoom optical System(ratio 1:6.7)

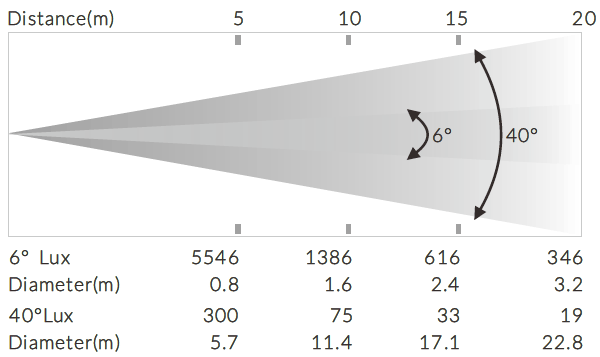

Zoom range: 6-40°
Total lumen output: up to 4,200 lumens

Control& Program
4-button touch panel
Display: OLED display
Protocols: DMX512, RDM
DMX Protocol modes: 2
Controlchannels: 17,37
Pan/TiltResolution: 16-bit
Dimmer: 16-bit
Firmware upgrade via DMX link & USB

PAN & TILT
Pan movement: 540°
Tilt movement: 250°
Automatic position correction

Electrical & Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100-240V, 50/60Hz
Power consumption: 340W
Power Connector input/output
Data in/out:  5-pin XLR (3p on order)

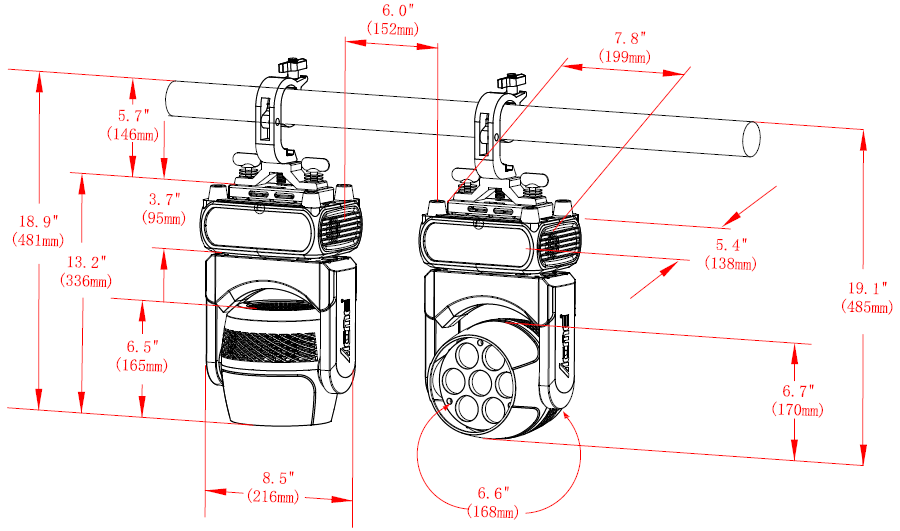

Fixture Specification
Height: 336mm (13.2”)
Width: 216mm (8.5”)
Depth: 138mm (5.4”)
Weight: 5kg (11lb)

Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Approvals
CE compliant

Installation
Horizontal or vertical mounting
Operating position is universal
2 pairs of 1/4-turn locking points under the base
1x fast-locked clamps with 1/4-turn locks for 50mm truss
Safety cable attachment point

Included Items
User Manual
Power Cable

Optional Accessories (with item code)
Raincover: 3033001749
Clamp: 2060001614 (C-250)
Safety cable: 2060000200 (SW-02)
Signal line: 3-pin or 5-pin signal line

IP-Rating

Indoor

Type lichtbron

LED

Vermogen

Vermogen Lichtbron

280

Eigenschappen

,

Kleurmenging

RGBW

Type Fixture

Wash

Functies

Pixel-aanstuurbaar

Min zoom

6

Max zoom

40

Type

Kleur
