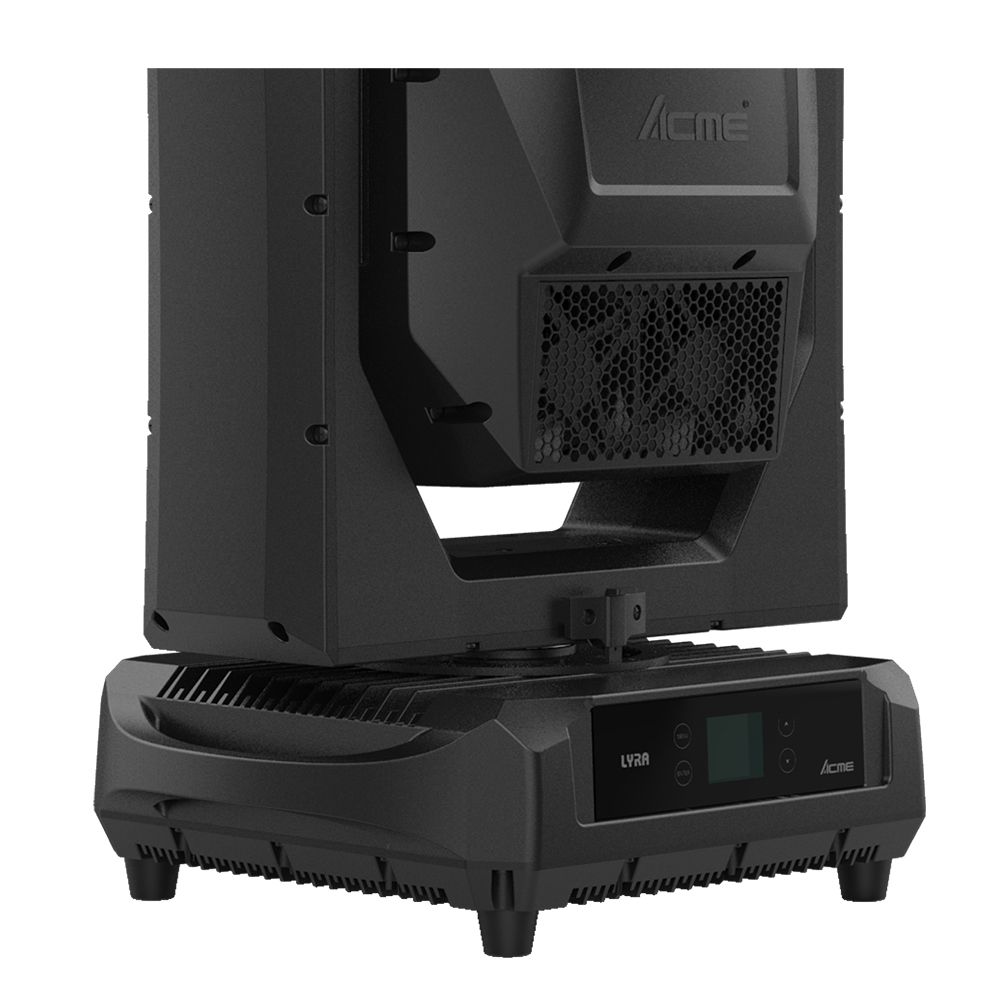

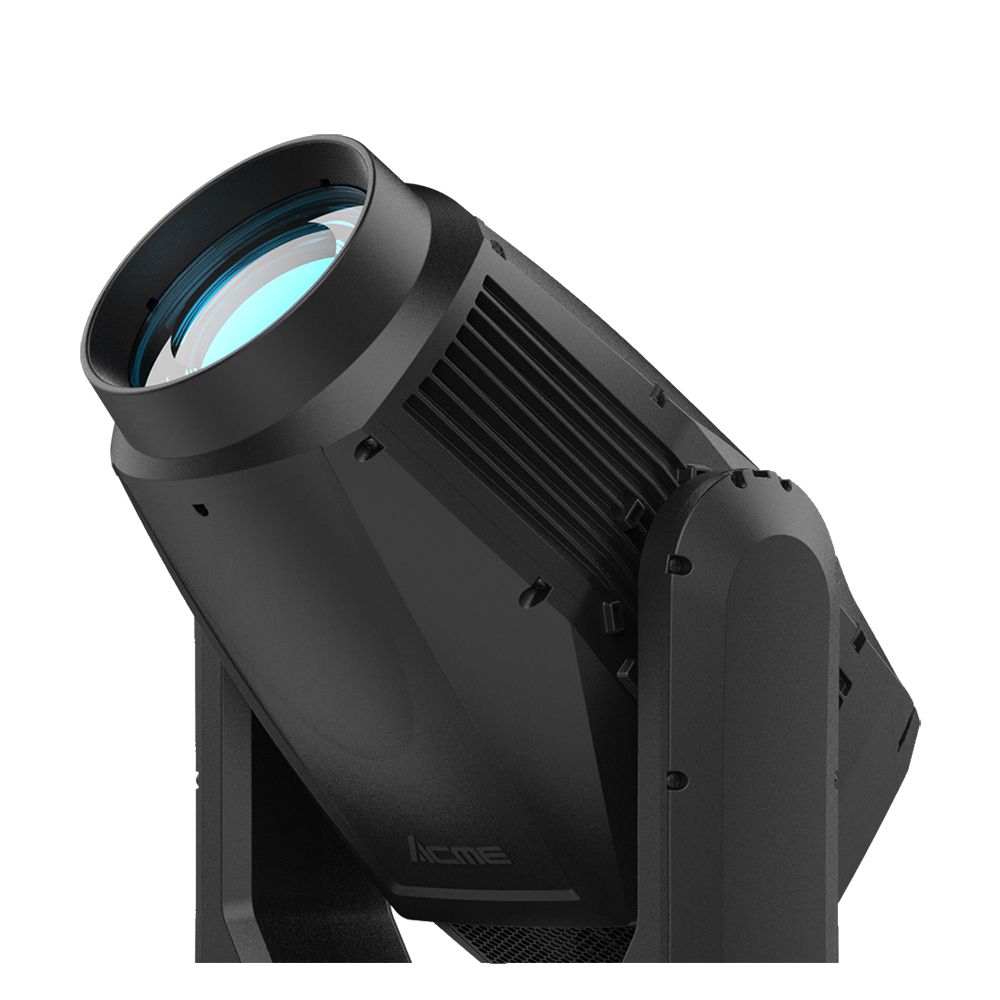

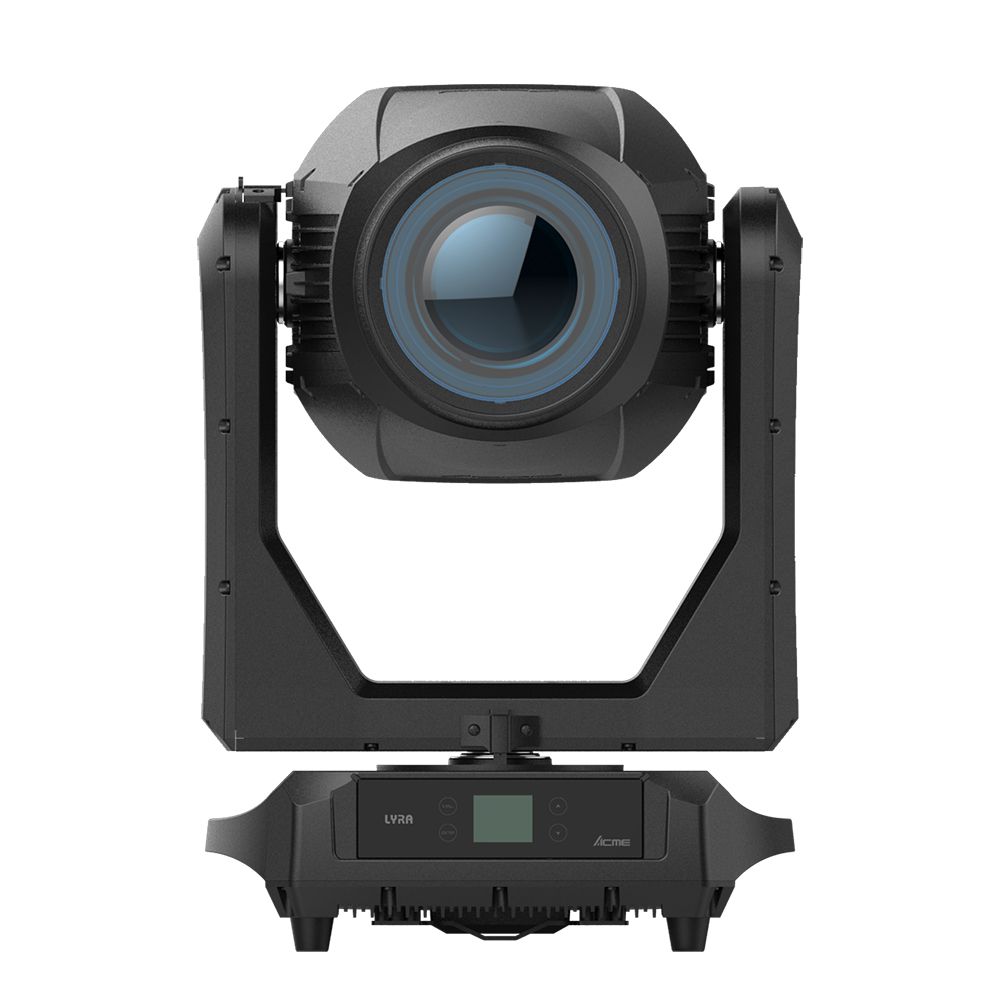

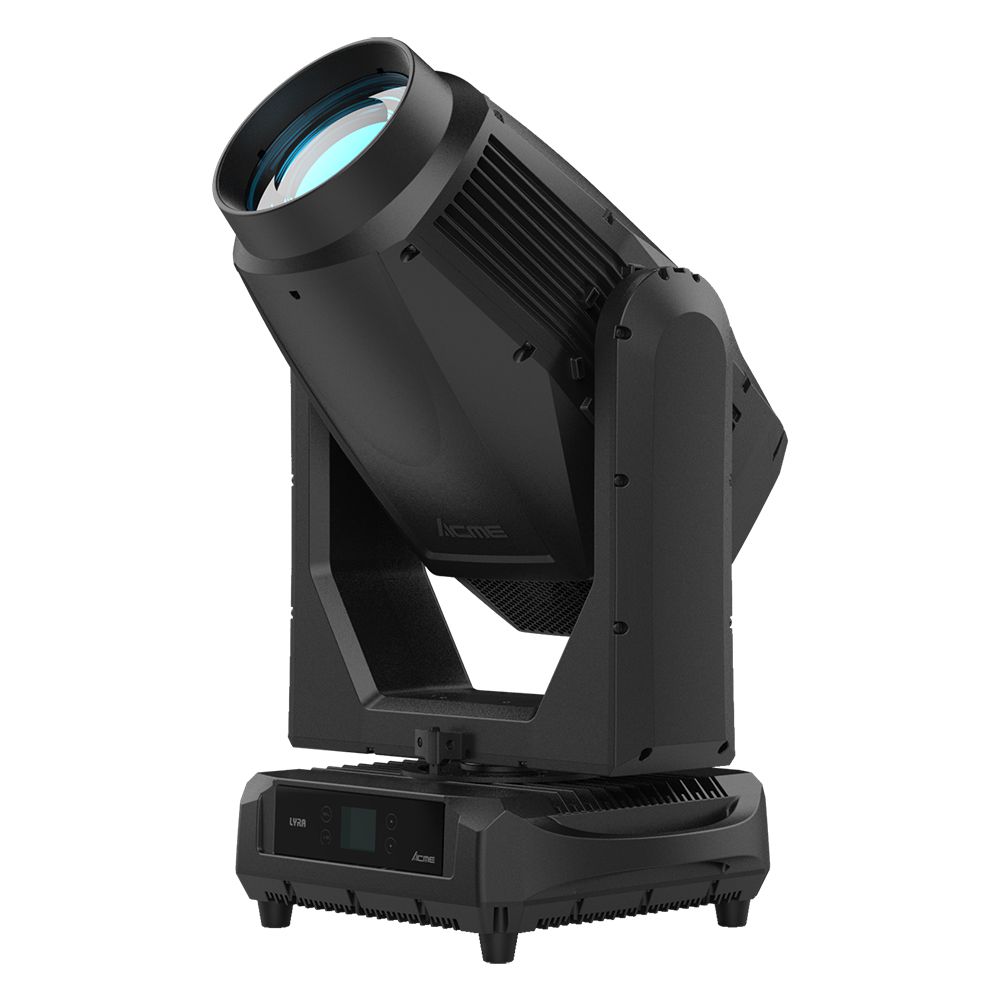

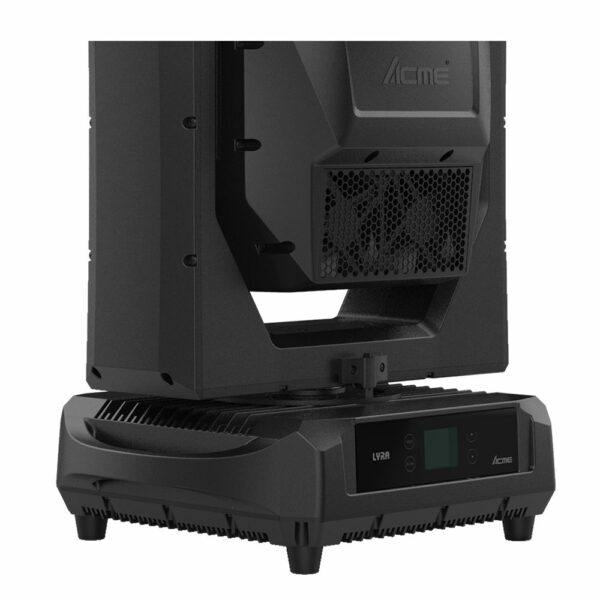

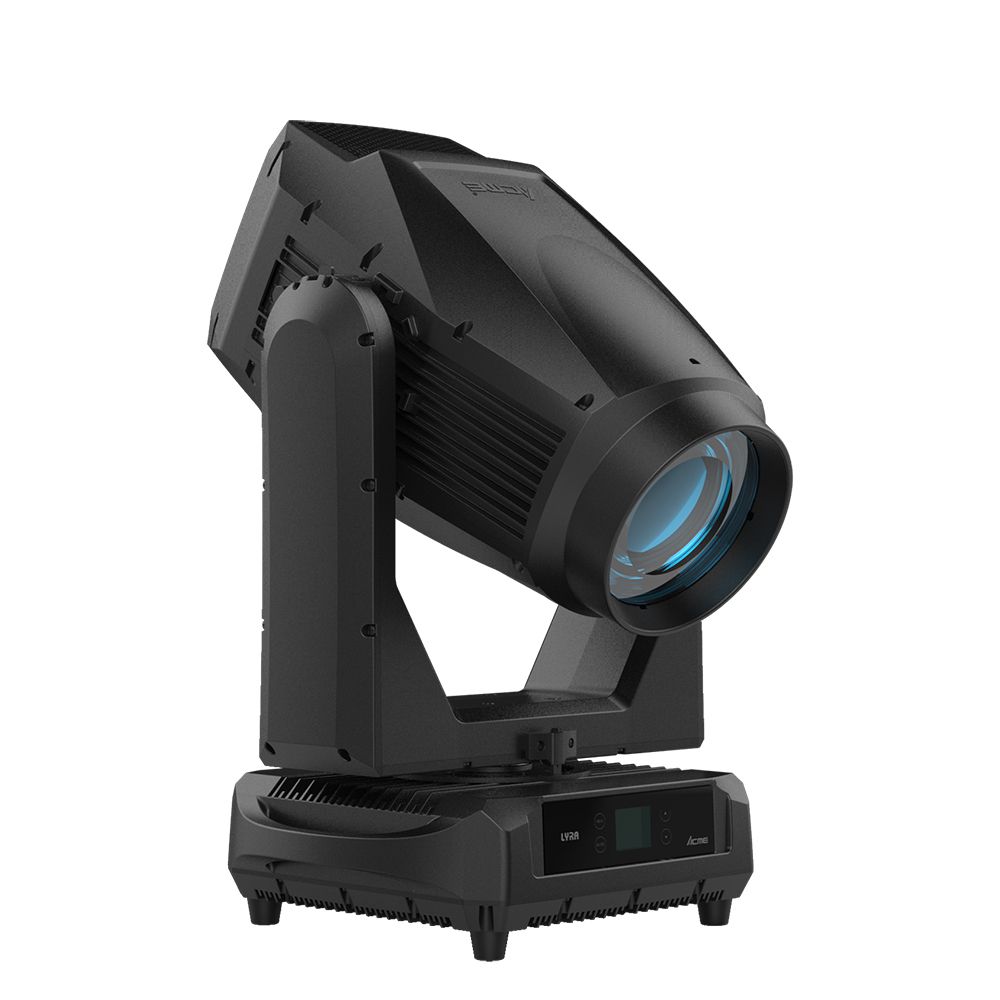

Functional Overview

LYRA, take on the elements, is the new all-terrain unit that withstands all weather conditions. Giving the 1,000W strong heart a waterproof armor, this hybrid moving head delivers a record performance of 35,000lm at 8,000k. By switching on the CRI Optimizer Filter, Lyra can reproduce high-definition images impeccably. Other benefits including CMY plus CTO flags, a color wheel, a continuous dynamic effect wheel, a static & rotating gobo wheel, dual prisms, dual frost filters, and precise shutter blades. Squeezed Beam Wash Spot Framing 4 functions into one IP-rated body that no more than 40kg is a real success, which can be deployed outdoors, at festivals, at cultural tourism sites, or as an architectural effect, without the need for expensive and heavy rain protection.

Features

• High Efficiency 1,000W 8,000K White LED Engine with 160 mm frontal lens for greater performance
• Beam Angle: 6°-50°
• Variable CTO Flags(2,700-6,500K) and CMY Filters easily switching
• Dual output modes at your hand:
  Standard Mode: Ra>70, 35,000lm; HCRI Mode: Ra>90, 25,600lm
• Color Wheel: 5 colors plus open
• Static Gobo Wheel: 9 gobos plus open
• Rotating Gobo Wheel: 7 indexable and interchangeable gobos
• Animation Wheel: 1 graphic animation effect wheel with continuous rotation in both directions and can be changed into other wheels
• Dual Prisms and Dual Frost Filters for more dynamic effects
• 4 Rotating full blackout framing shutter blades with individual positionable; Rotation of the framing system module: ±60°
• Flicker Free Management from 900 Hz to 25,000 Hz

Model

• XA 1000 BSWF IP

Light Source

• Light Source: 1,000W 8,000K White LED Engine
• Color Temperature Output: 6,500K
• Total Lumen Output (Ra>70): 35,000lm
• HCRI Mode Output (Ra>90): 25,600lm
• Rated Source Life: up to 20,000 hours

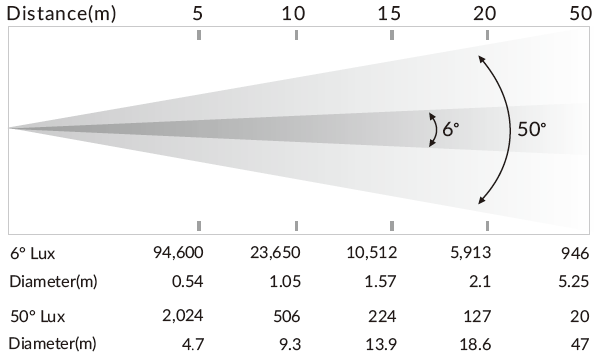

Optical System

• Advanced optical design to ensure precise gobos and colors
• High – efficiency zoom optical system
• Beam angle: 6°-50°
• Diameter of Front Lens: 160mm

Control and Program

• 4-Button touch panel
• Display: LCD display
• Protocols: DMX512, RDM
• DMX Protocol modes: 4
• Control channels: 39/30/31/22
• Firmware Upgrade: Upgrade via DMX link

Movement

• Pan movement: 540°
• Tilt movement: 270°
• Automatic Pan/Tilt position correction
• Moving-head operated with either 8-bit or 16-bit resolution

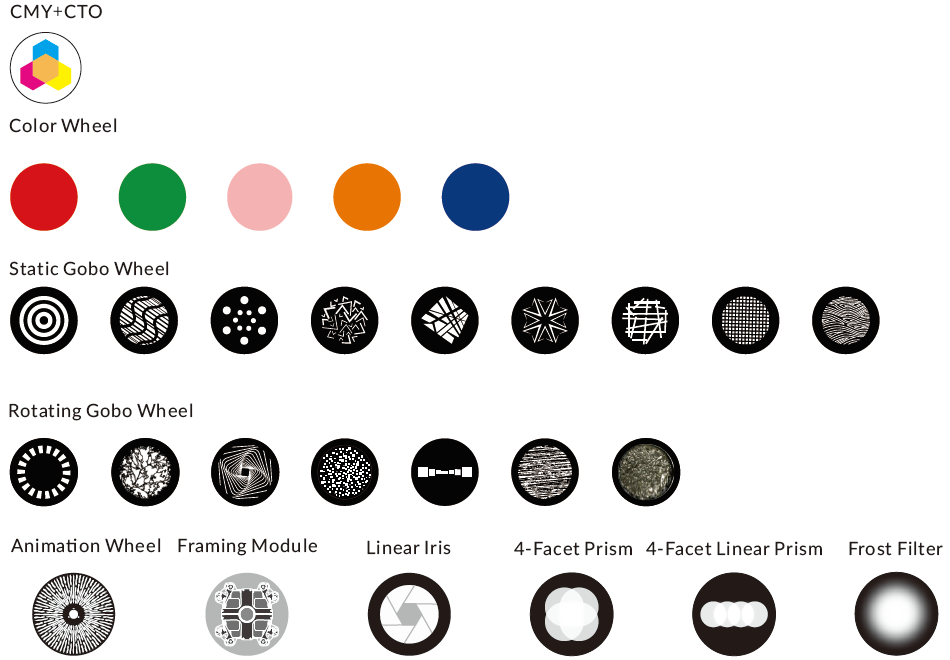

Color

• CMY Color Mixing
• Linear CTO Color Correction: 2,700K-6,700K
• 1 x Color Wheel: 5 complementary colors plus open
• CRI Optimizer Filter

Gobos

• 1 x Static Gobo Wheel: 9 gobos, plus open
• 1 x Rotating & Interchangable Gobo Wheel: 7 high-precision glass gobos, plus open
• Adjustable-speed rotating gobo in both directions
• Rotating Gobo Diameter: 22.5 mm
• Image Diameter: 17.0 mm

Animation Wheel

• A graphic animation effect wheel with continuous rotation in both directions to create the splendid water wave and flame effect, and can be changed into other wheels

Prism

• 2 Combinable Rotating and Indexable Prisms: one 4-facet prism, one 4-facet linear prism

Frost Filter

• 2 Variable Frost Filters: Light and Medium

Others Effects

• Motorized Zoom and Focus
• Motorized Linear Iris
• 4 Dimming Curves: Variable light adjustment from 0 to 100%

Framing System

• Shutter Blades: 4 Blades, each with separate movement and full blackout
• Movement: Smooth with variable speed, ultrafast for creating mid-air effects
• Positioning: The blades can be precisely positioned
• Rotation: ±60° of the complete framing system

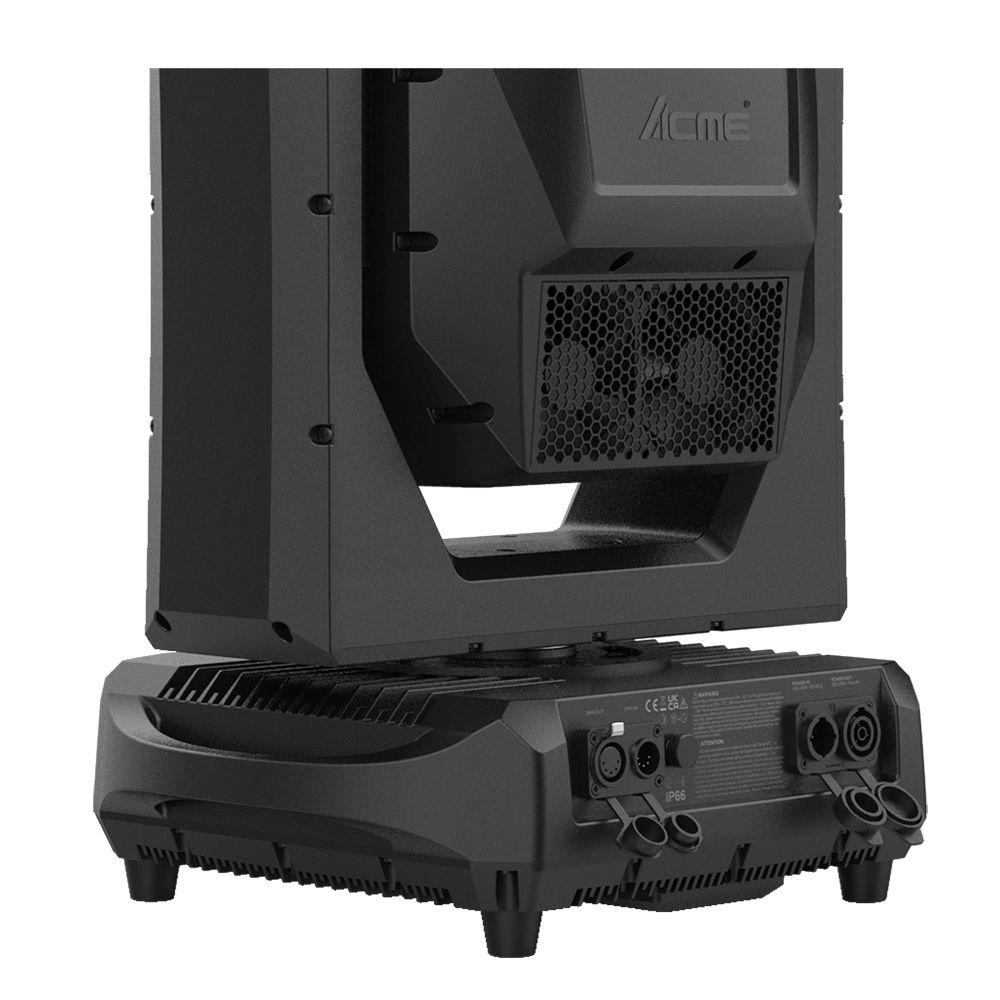

Electrical and Connectors

• Input Voltage Range: 100-240V~ 50/60Hz
• Power consumption: 1,190 W
• Power In/Out: Waterproof Power Connector In
• Data in/out: 3-pin or 5-pin Waterproof XLR Socket

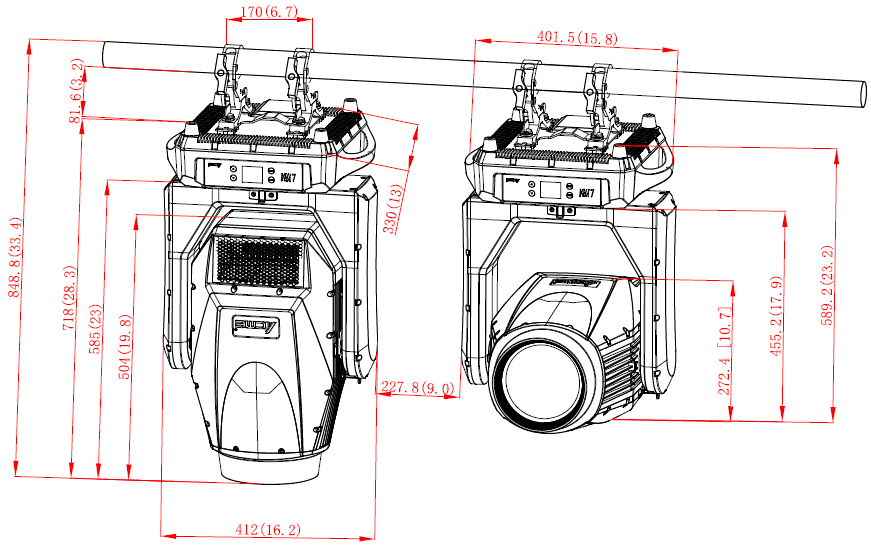

Fixture Specification

• Width: 412 mm (16.2″)
• Depth: 330 mm (13.0″)
• Height: 718 mm (28.3″)
• Weight: 40 kg (86 lbs)

Work environment

• Maximum ambient temperature: 40°C
• Minimum operating temperature: -10°C
• Maximum surface temperature: 85°C
• Protection rating：IP66

Approvals

• CE compliant
• UKCA compliant
• cETLus compliant

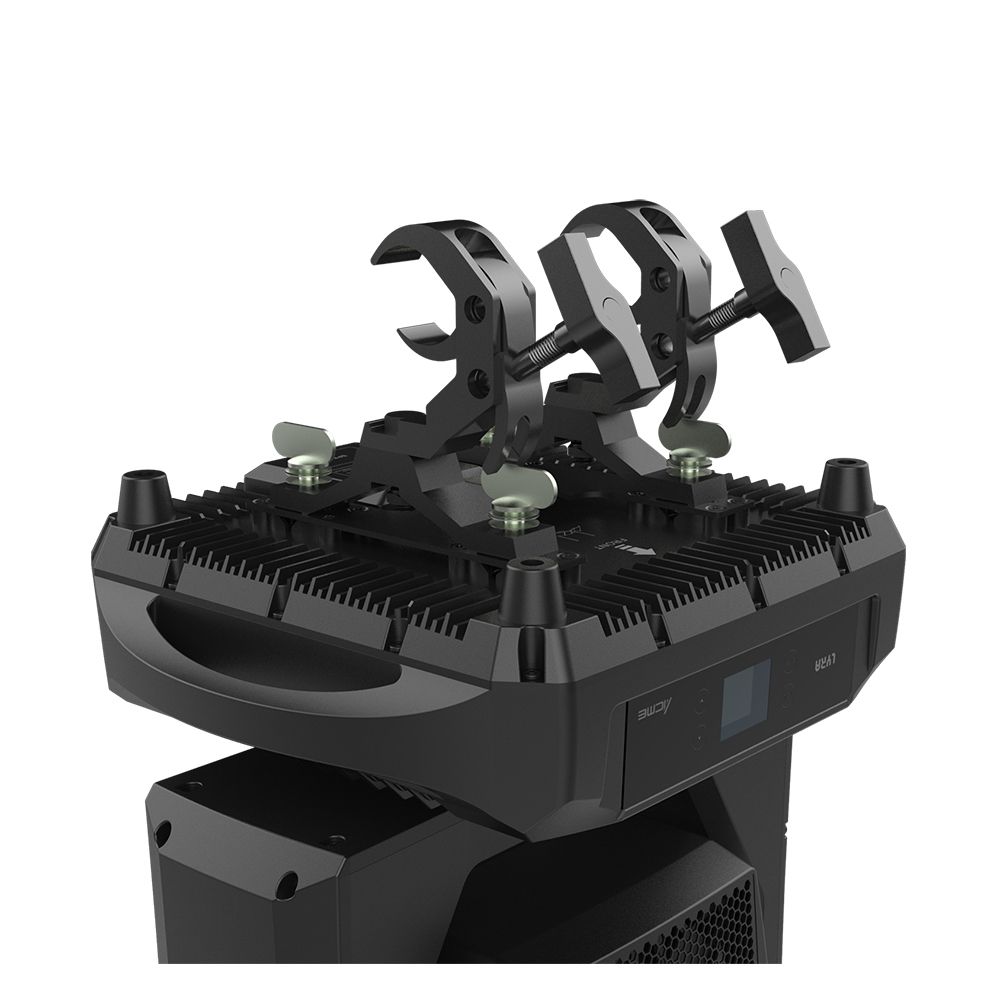

Installation

• Available in horizontal or vertical mounting
• Universal operating position
• 2x 1/4-turn locking points under the base
• 2x Fast-locked clamps
• Safety Rope Hole

Included Items

• Digital User Manual
• Power Cable
• Factory certificate and warranty card
• 2 x Fast-locked clamps

Optional Accessories (with item code)

• Clamp：2060001614 (C-250B)
• Signal Line：3-pin or 5-pin IP XLR signal line
• Safety cable : 2060001603A（SW-05）
• Grounding metal plate: 63582156
