Beschrijving

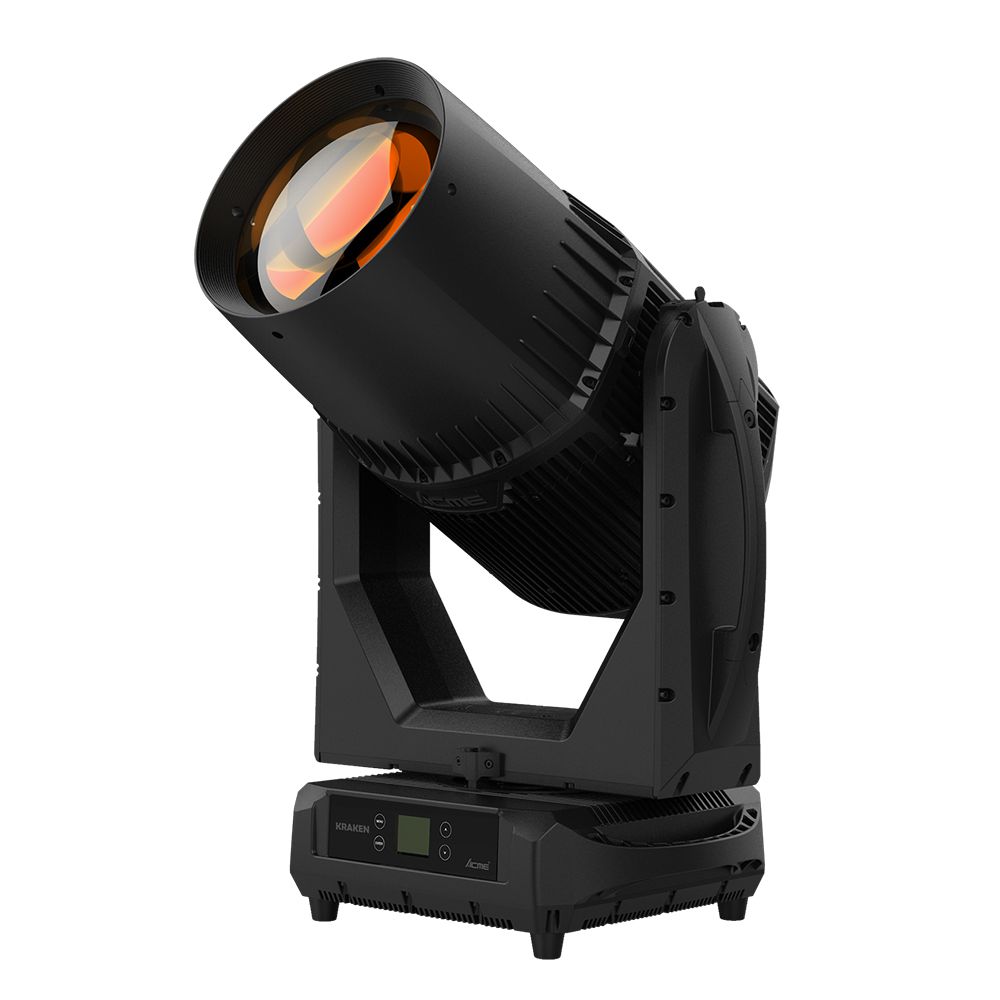

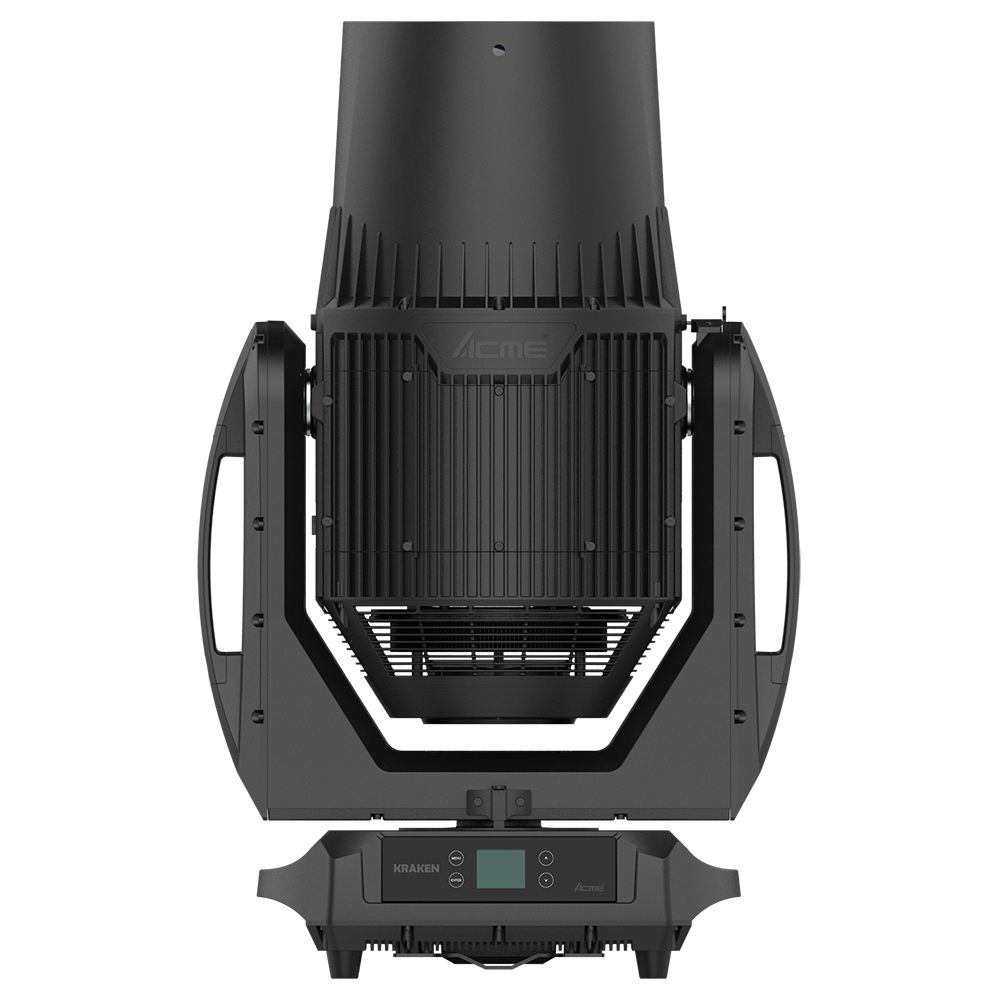

ACME KRAKEN, a full-new safety laser led evaluation with unique optical and great color performance, mainly serving for the outdoor big scale application. Equipped with a 230mm ultra-large lens, coming out a super powerful and sharp 0.8 degrees beam which able to achieve 356,000Lux at a far away 20m distance. What’s more, the rebelling tradition on the gobo wheel design is creating a WOW effect mixing by the colors, gobos, and overlay prism rotating. The incredible array of colours from the unique laser source is always inspire the user in many ways of design.
With robust construction and IP66 protection, its durable aluminum die-cast housing protects it from dust, sand, moisture, and liquids, making it ideal for use in all situations from dusty deserts to rainy fields. Perfect for festivals and outdoor shows, as well as installation in open-air applications and other outside entertainment spaces, this ground-breaking fixture offers an exceptional operational life and reduced need for maintenance, thanks to its sealed casing design. The KRAKEN has the characteristics of long-throw distance, strong penetration, intensive beam power, and ultra-high-quality color effect. It is born for the outdoor application market.

Features

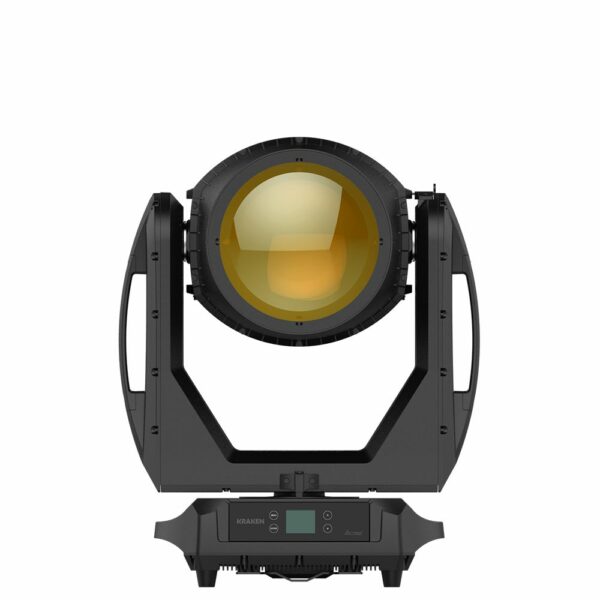

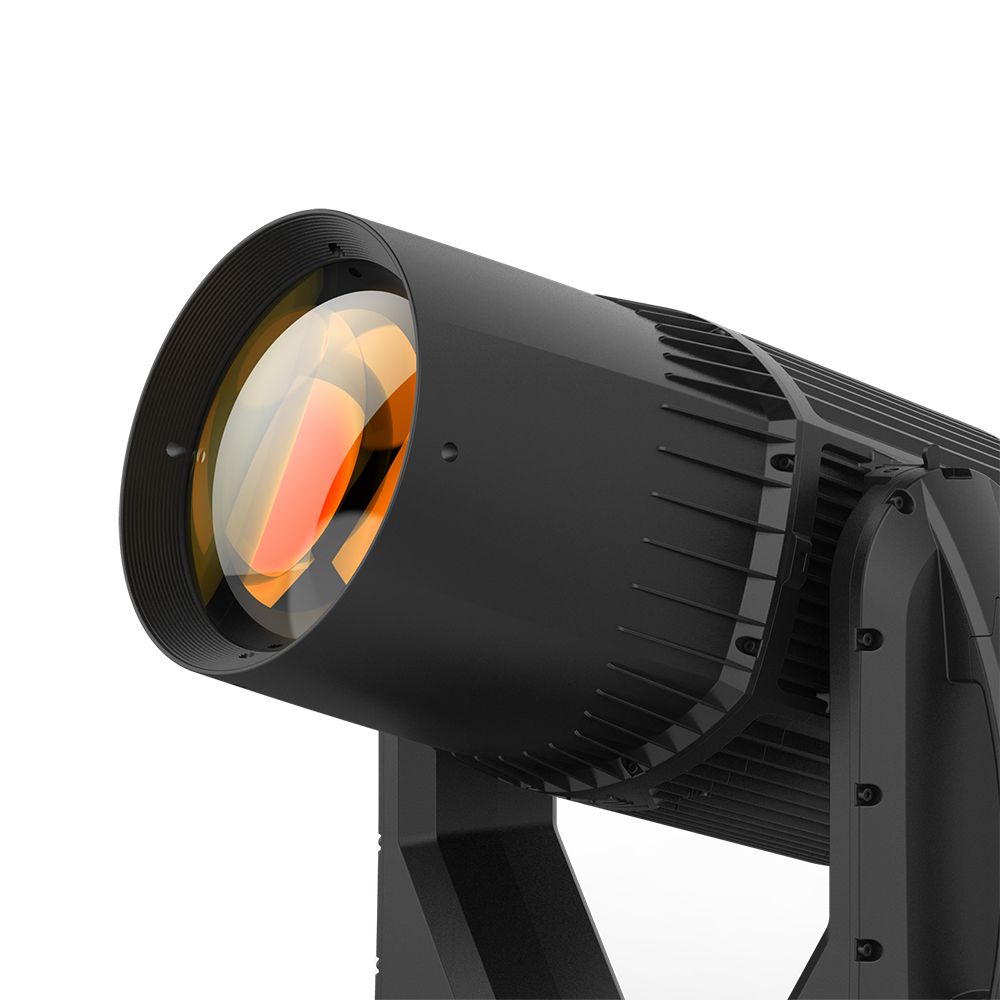

Diameter of front lens: 230mm
Color Temperature: 7000K-9000K
Light Sources: 1 x 260W LED Laser Engine(A safe module encloser)
LED life expectancy: 12000 hours
Exclusive turbo boost colours effect
Dynamic color output and colour consistency
Outstanding strobe effect with variable speed
0-100% smooth dimming
Linear motorized focus
Flicker free management
Water – Dust-proof and oil-proof design – IP66

Light Source
Light Sources: 1 x 260W LED Laser Engine(A safe module encloser)
LED life expectancy: 12000 hours

Optical System
Advanced optical system to ensure image quality, clear and sharp

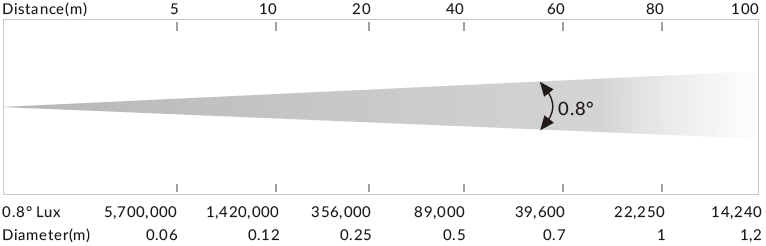

Beam Angle: 0.8°

Control and Program
4-buttons touch panel
Display: LCD display
Protocols: DMX512, RDM
DMX Protocol modes: 1
Control channels: 18
Firmware Upgrade: Upgrade via DMX link
Pan/Tilt Resolution: 16 bit

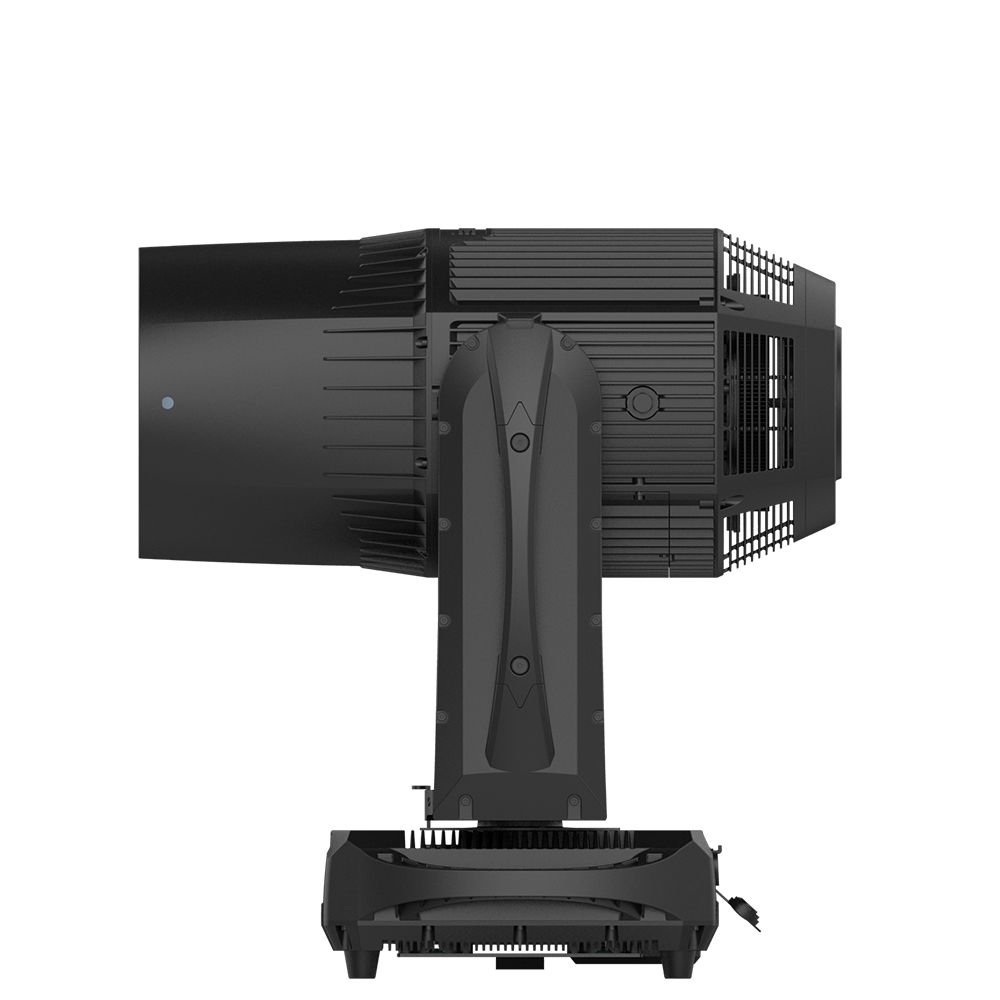

PAN & TILT
Pan movement: 540°
Tilt movement: 270°
Automatic Pan/Tilt position correction

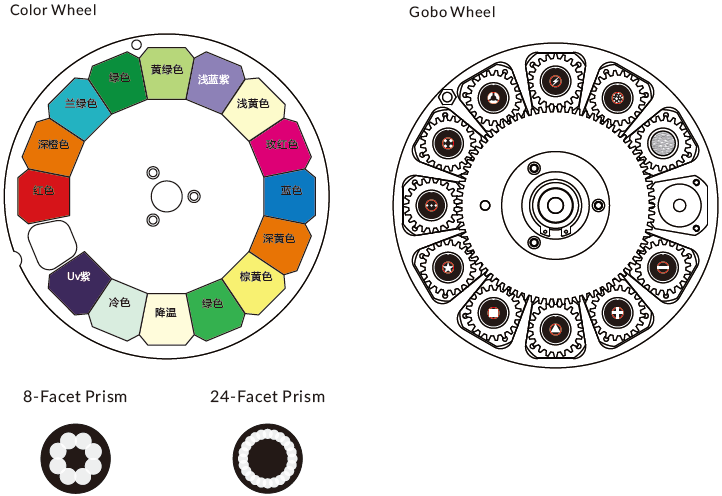

Color Wheel
1 x color wheel: 15 colors+open, with rainbow effect

Static Gobos
1 x roating gobo wheel:11 gobos plus open
Gobo outer diameter：9.8mm
Gobo inner diameter：4mm

Prisms
1 x 8-facet prism & 1 x 24-facet prism, rotatable in both directions and overlayable

Electrical & Connectors
Input voltage range: 100-240V~ 50/60Hz
Power consumption: 420 W
Power In/Out：IP Power Connector in/out
Date In/Out：3-pin or 5 pin IP XLR

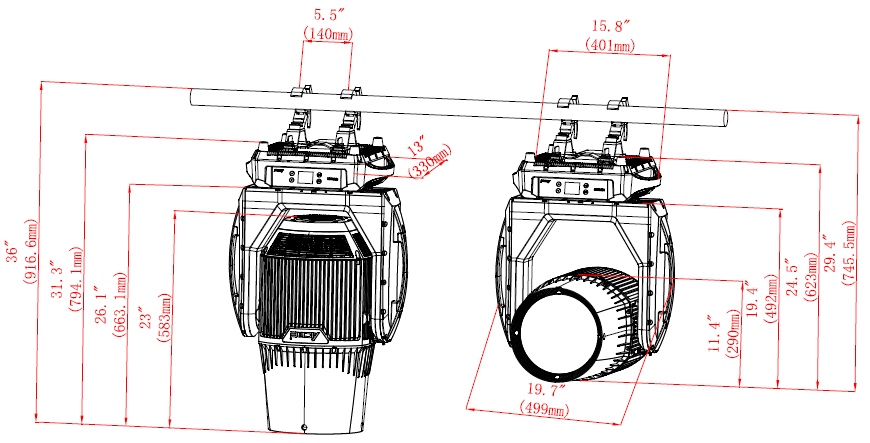

Fixture Specification
Width: 499mm (19.6″)
Depth: 330mm (13″)
Height: 794mm (31.3″)
Weight:45kg (99.2lbs)

Work Environment
Maximum ambient temperature: 45°C
Maximum surface temperature: 65°C
Minimum operating temperature: -10°C

Installation
Available in horizontal or vertical mounting
Universal operating position

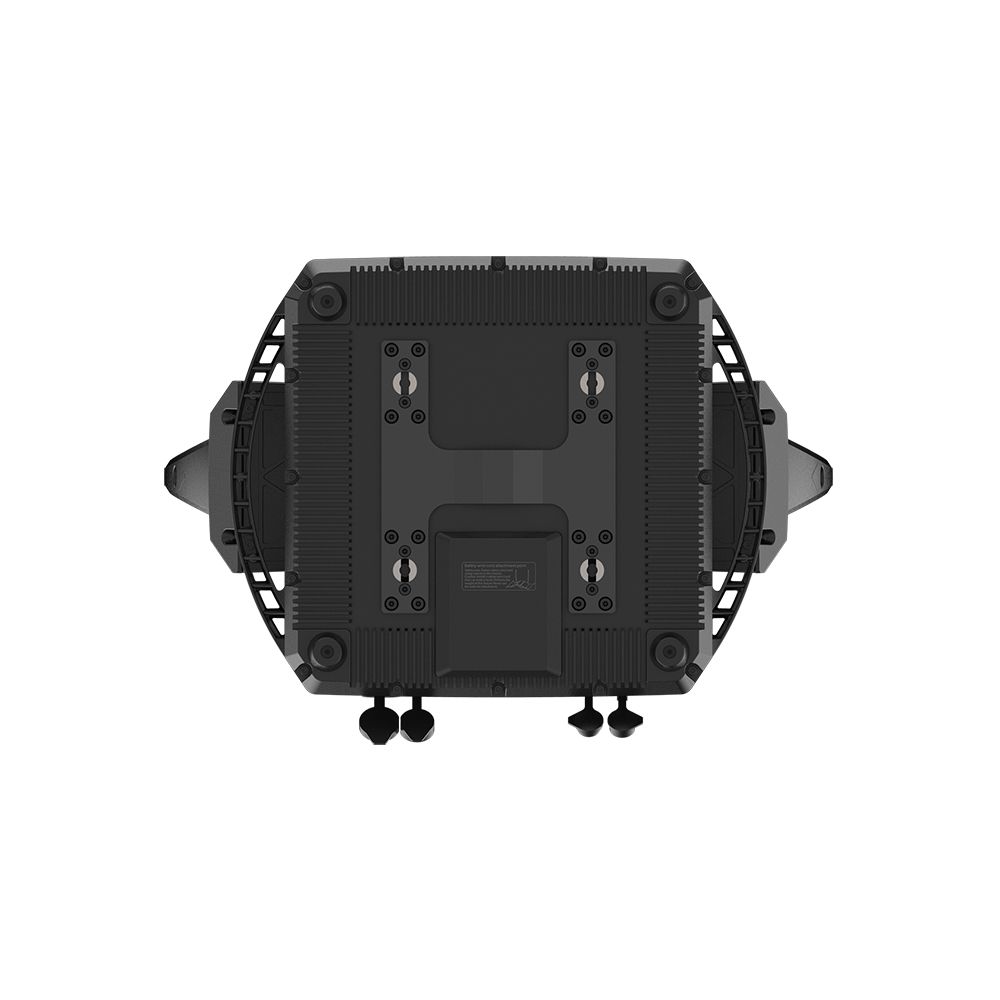

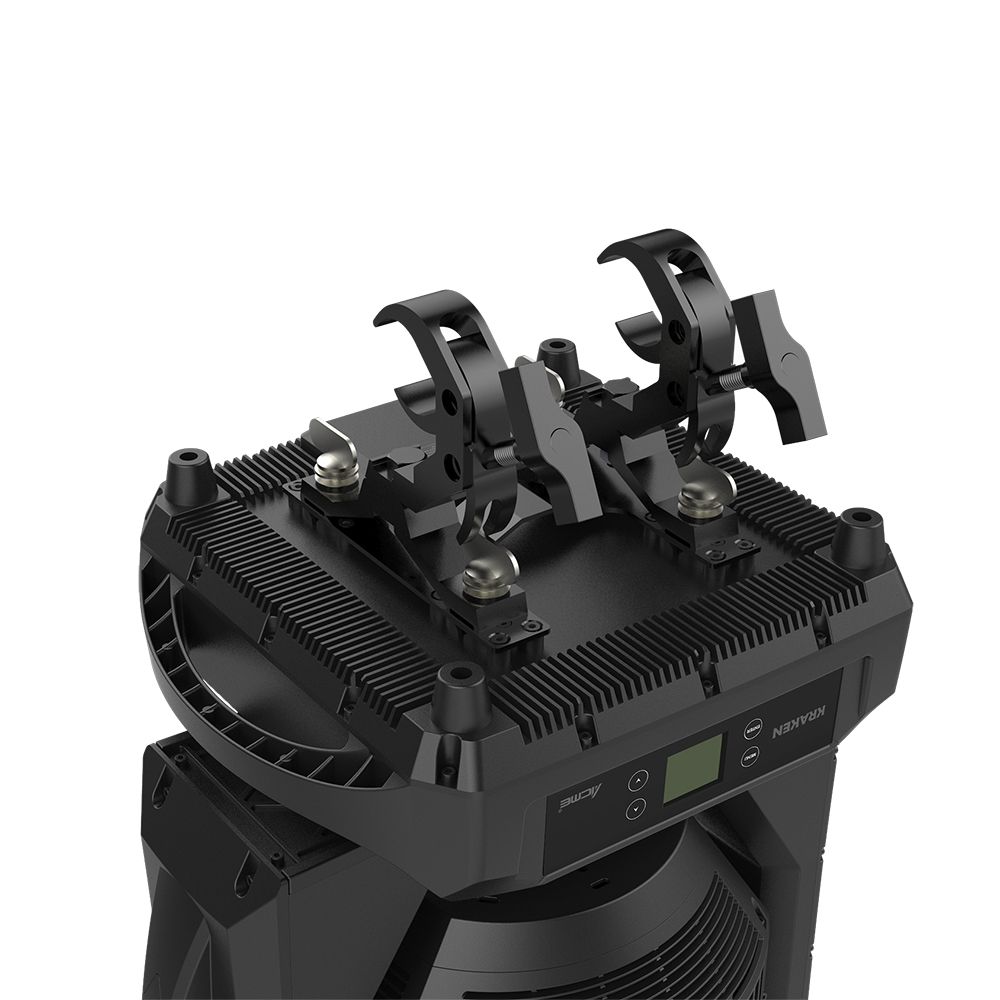

2 pairs of 1/4-turn locking points under the base
2x 1/4 fast-lock clamps
Safety rope hole

Factory configuration
Digital User Manual
Power Cable
2 x 1/4 fast-locked clamps
