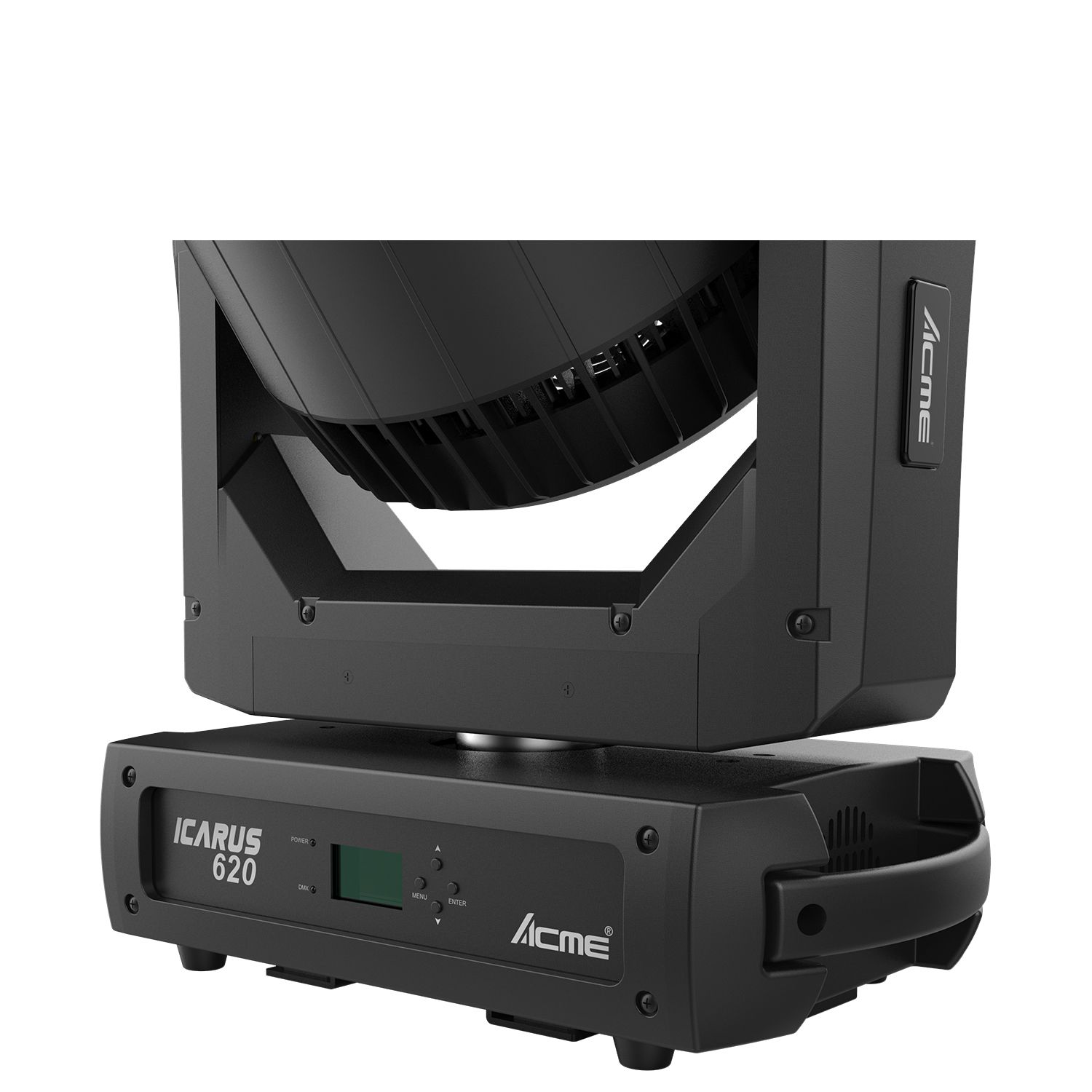

Acme ICARUS 620

Adviesprijs 2.660,00 excl.btw

27x20W | LED | Movinghead | Wash | Pixel control | RGBW

Log in of registreer om uw korting te zien.
Of vraag vrijblijvend een offerte aan.

Demo? Bezoek onze showroom of maak een afspraak voor een demo op locatie.

Wij zijn er voor de professional. Totaal leverancier stage & entertainment

Deskundig advies op maat. Wij denken graag met je mee.

Gespecialiseerd in projectie. Voor elke project een oplossing.

Functional Overview

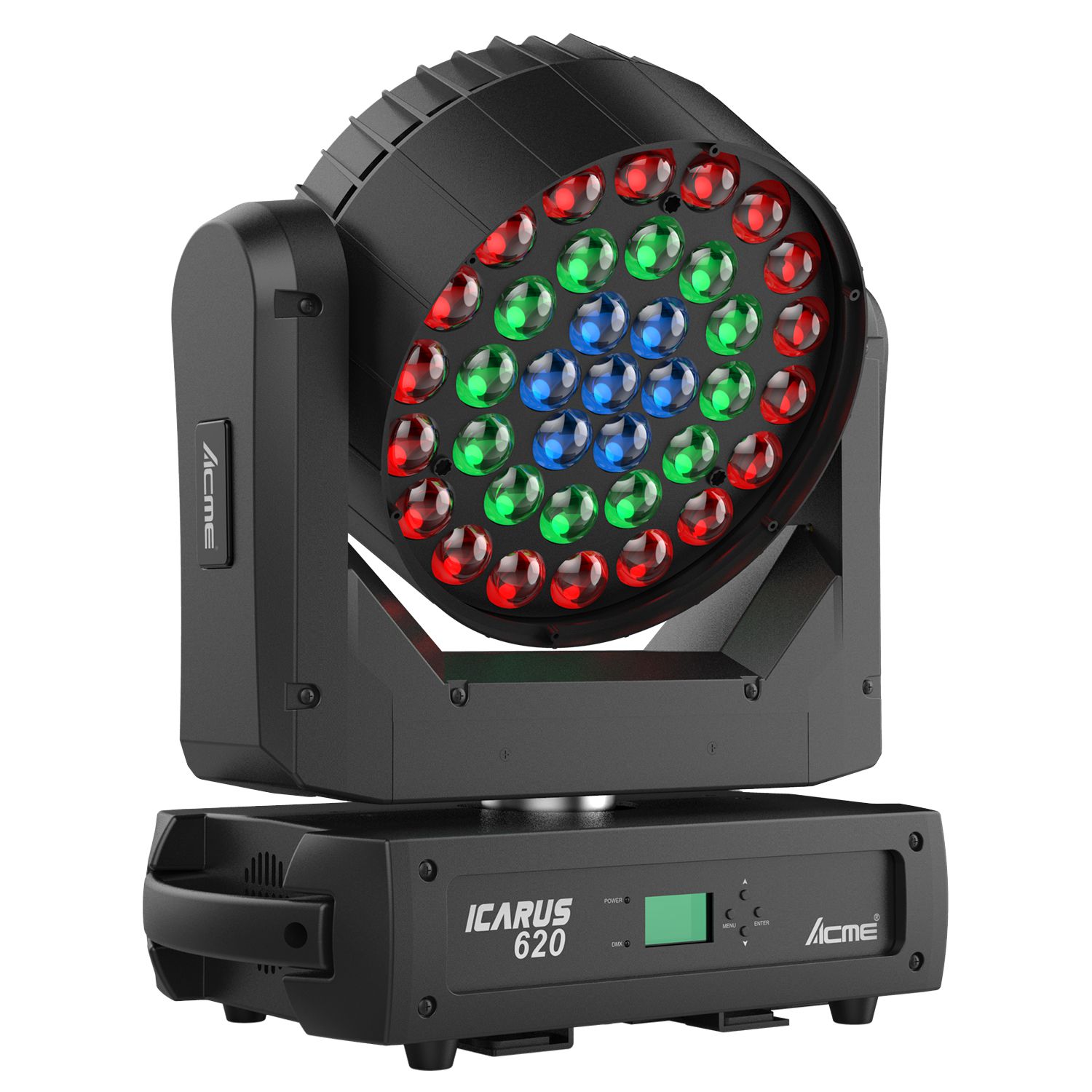

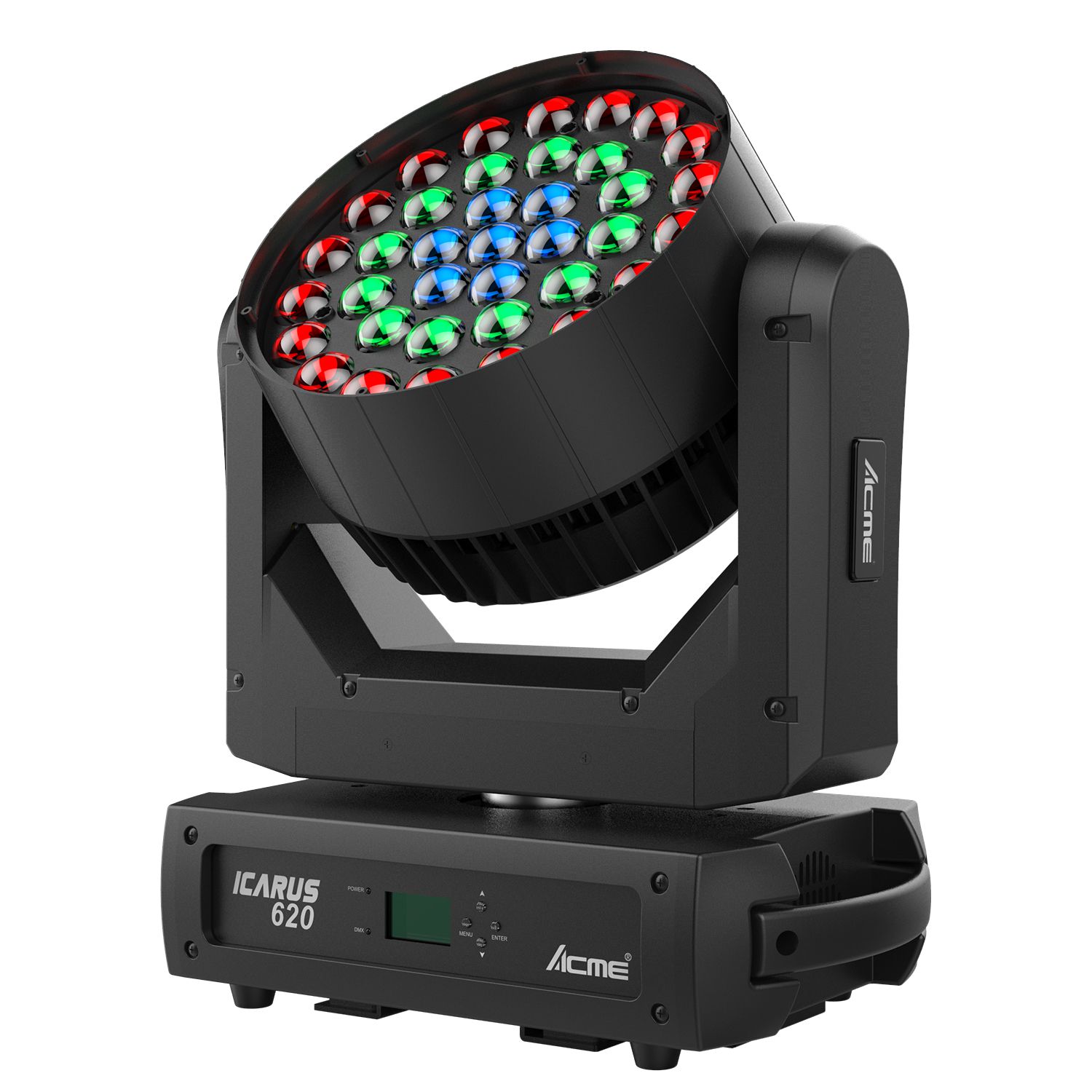

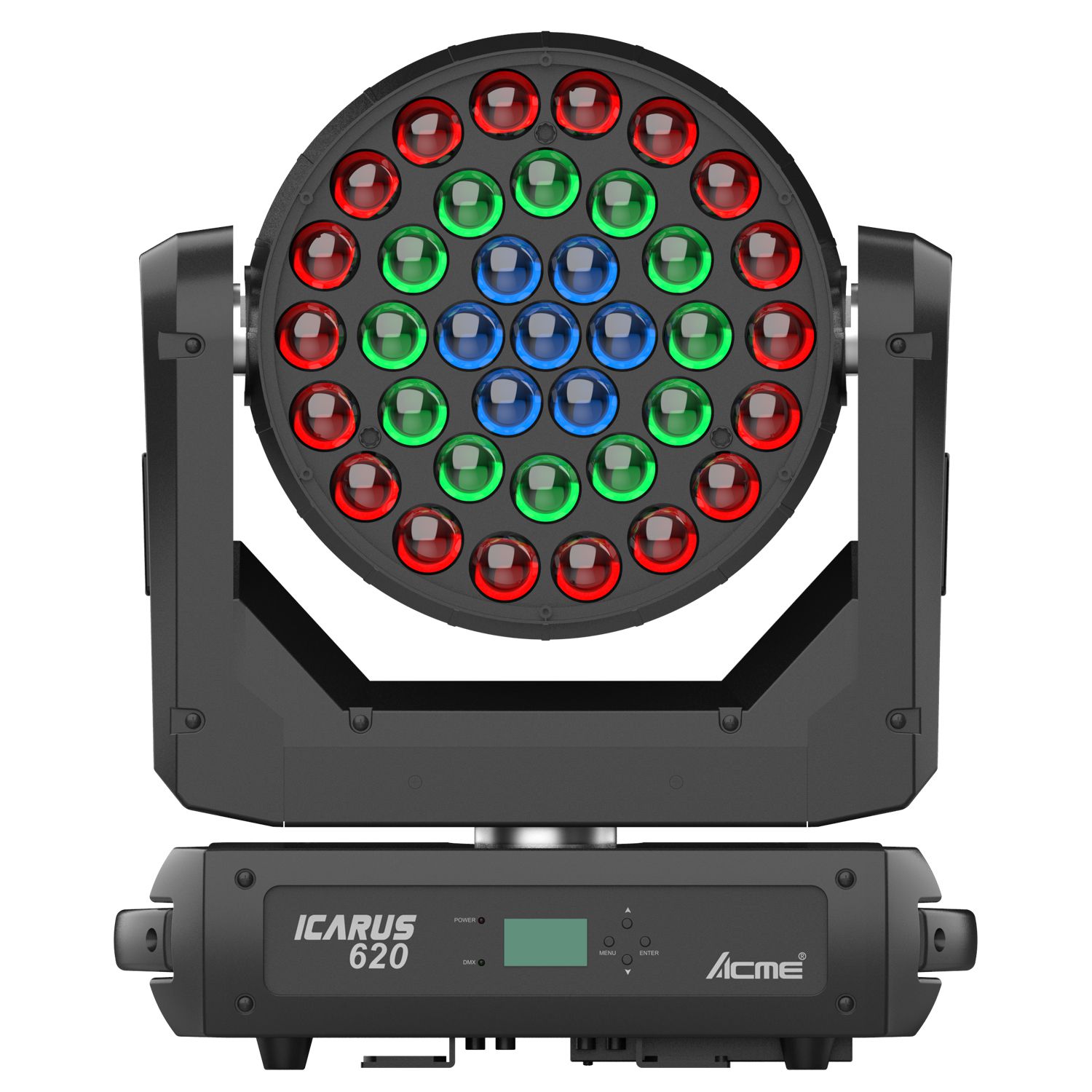

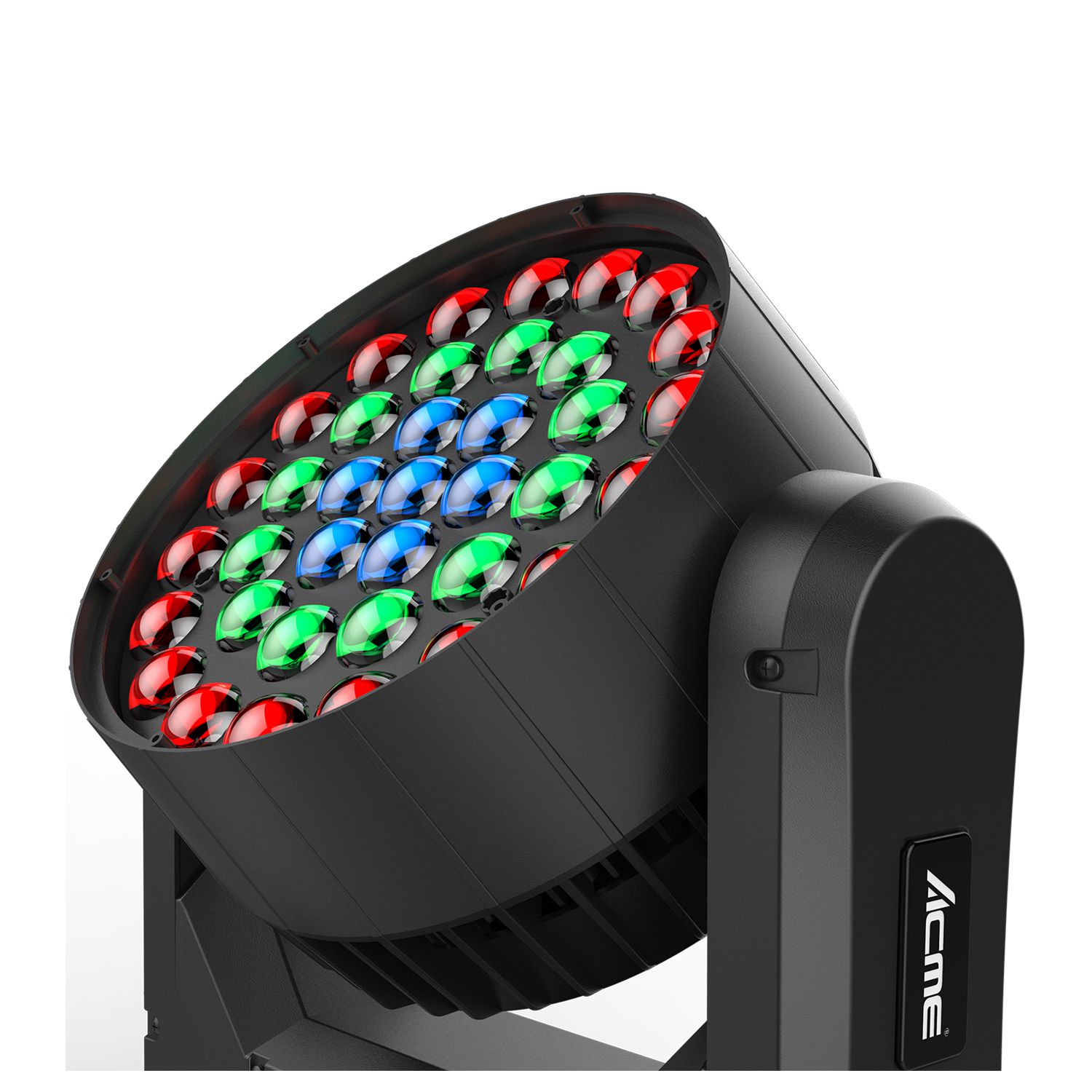

The ICARUS 620 has upgraded the light source from the PAGEANT 600Z II . It offers a washing effect by adding all the benefits of LED technology with lower energy consumption, longer lifespan, lighter weight and compact design. The ICARUS 620 is equipped with 37pcs 20W multicolor RGBW 4in1 LEDs that produce a vivid colors as well as excellent color mixing effect. It is also equipped with a motorized 1:6 zoom ratio from 10°-60° degree. Each ring of LED circle color can be controlled independently, this unique ring control not only allows you to create an endless ring chasing effect, but also to use each circle of LEDs ring as a graphic images that change dynamically in a circle. The 0-100% smooth dimming, flicker free management system and a reasonable output at 14,067lm should be confident for multi small to medium stage wash application.

Light source: 37x20W RGBW LED
With powerful beam and wash effects
Individual control of each LED rings
Outstanding color macro effect
Variable CTO: 2500K – 8000K
Electronic linear zoom system
Zoom range: 10°~60°
Outstanding strobe effect with variable speed
0~100% smooth dimming
Flicker free management
Dust-proof and oil-proof design
Maximum connected quantity:
3 sets (120V, 60Hz)
5 sets (230V, 50Hz)

Technical & Specification

Light Source
Light source: 37x20W RGBW LED
LED life expectancy: 20000 hours

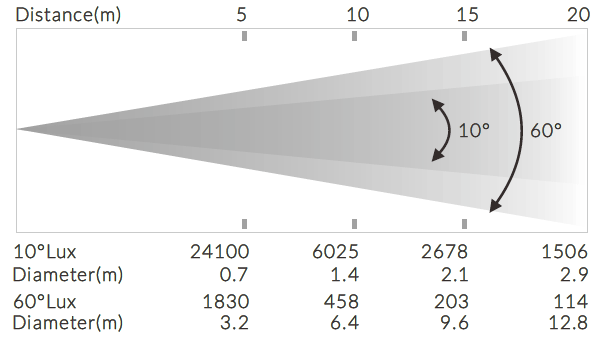

Optical System
Advanced optical system to ensure clear and large-range beam & wash effect
High – efficiency zoom optical system, ratio 1:6
Zoom range: 10° – 60°
Fixture total lumen output: up to 14067 lm

Control and Program
4-buttons touch panel
Display: LCD display
Protocols: DMX, RDM, Master/Slave, Wireless control (Optional)
DMX Protocol modes: 3
Control channels: 14,26,15
Pan/Tilt Resolution: 16 bit
Dimmer: 16 bit
Upgrade the firmware via DMX link

Pan movement: 540°
Tilt movement: 270°
Automatic Pan/Tilt position correction

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100–240 V, 50/60 Hz
Power consumption: 628 W

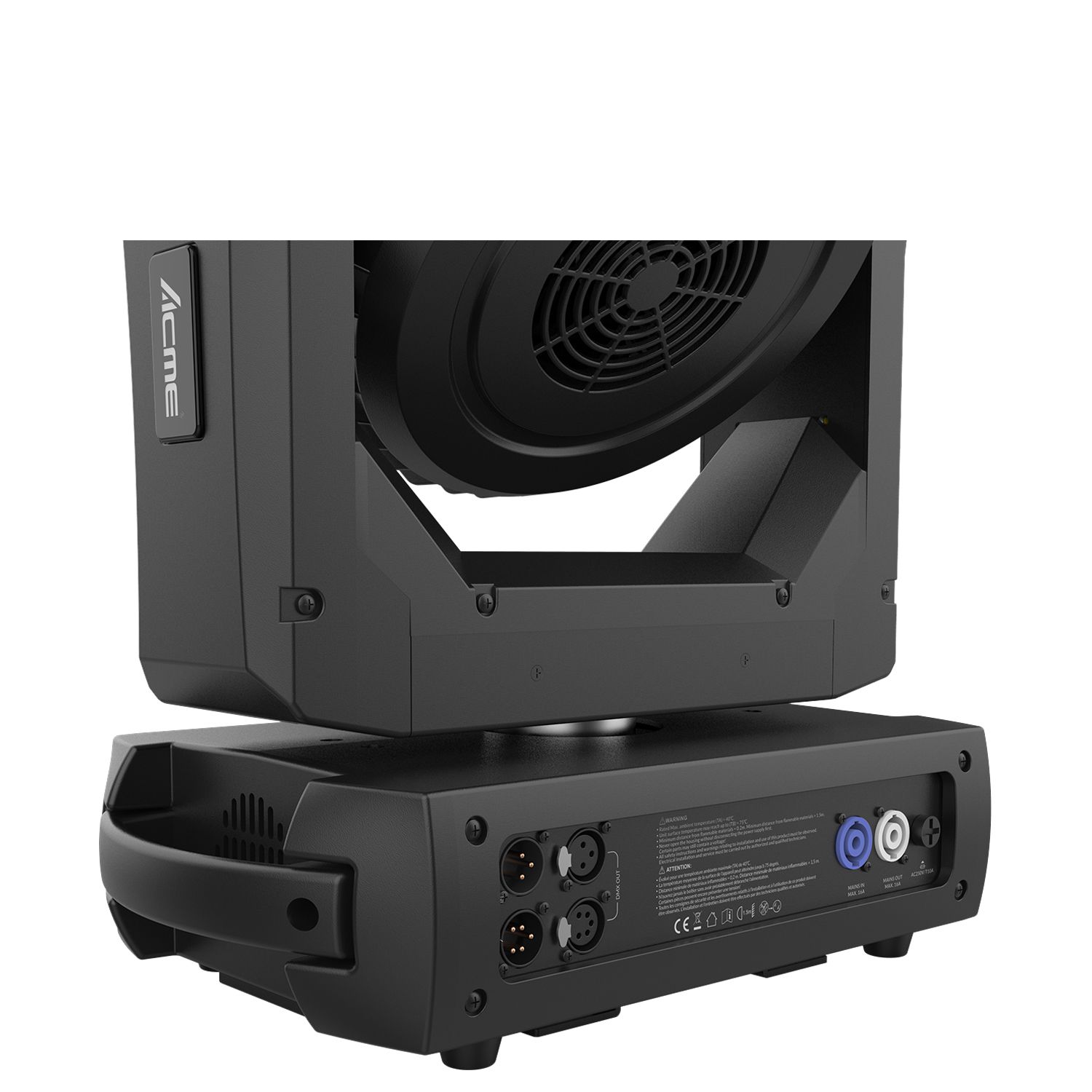

Power In/Out: Power Connector in/out
Data in/out: 3-pin and 5-pin XLR

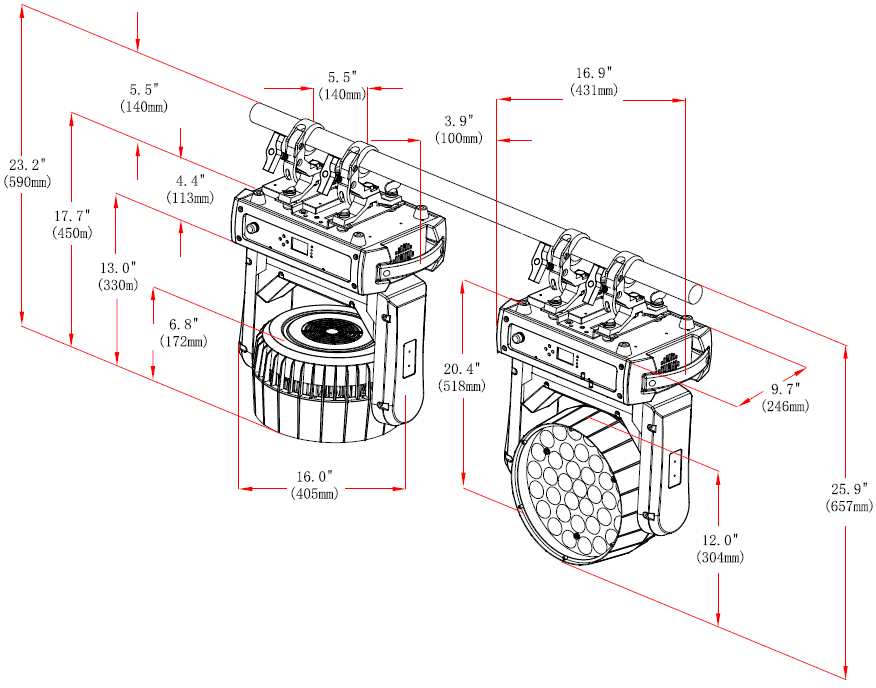

Fixture Specification
Height: 520 mm (20.5″)
Width: 246 mm (9.6″)
Depth: 430 mm (16.9″)
Weight: 19.5 kg (42.9 lbs)

Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C

Horizontally or vertically mounting are available
Operating position is universal
2 pairs of 1/4-turn locking points under the base

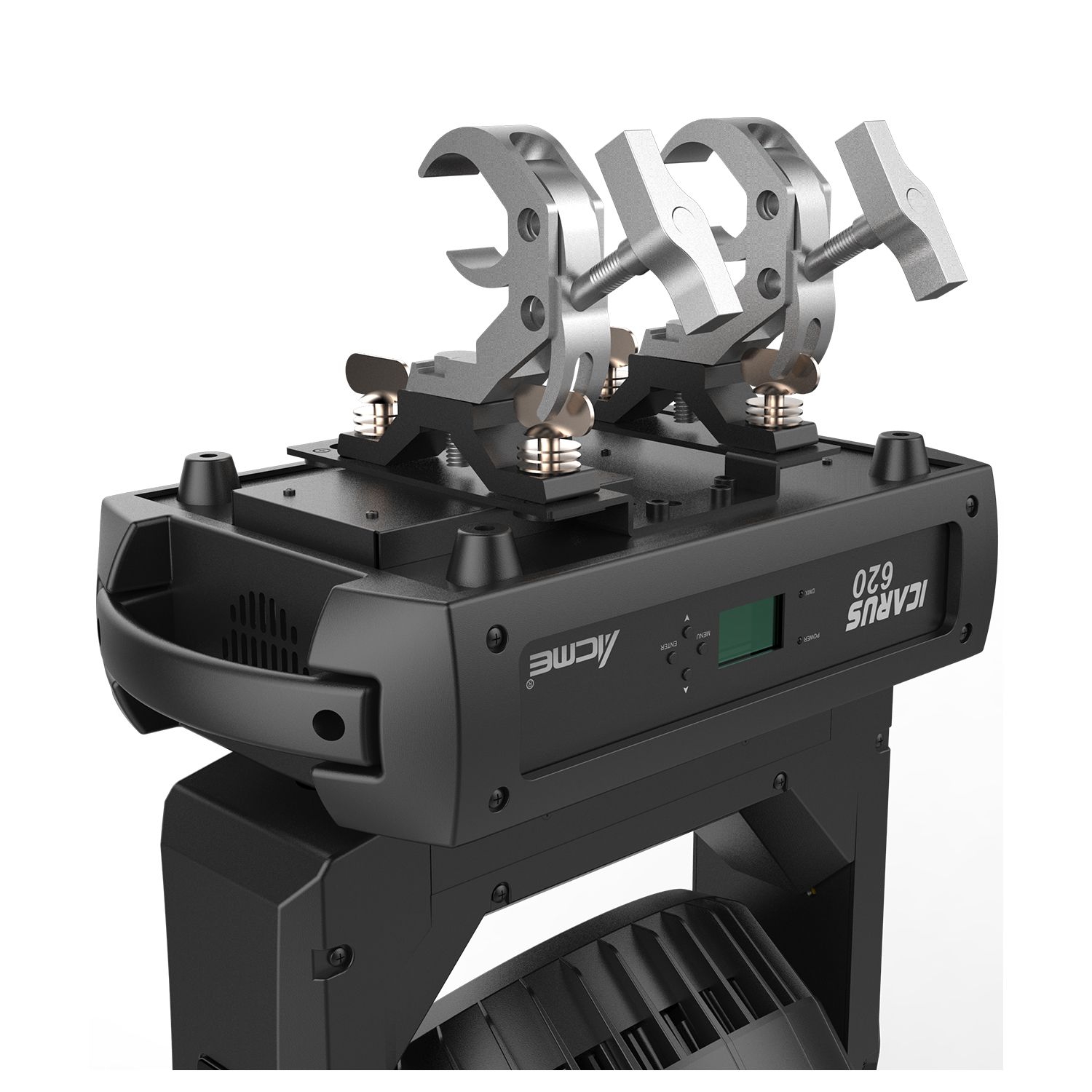

2 x fast-locked clamps with 1/4-turn locks for 50 millimeter truss
Safety cable attachment point

Included Items
User Manual
2 pairs of 1/4-turn locking points under the base
Safety cable : SW-05

Optional Accessories (with item code)
