Acme – GEMINI

Adviesprijs 2.490,08 excl.btw

5x 60W rgbw zoom wash – 36 x18W strobe – 2.8°- 31° zoom – pixel aanstuurbaar – oneindig pan & tilt

Productprijs
Aanvullende opties totaal:
Bestelling totaal:
Winkelmand bekijken

Beschrijving

Functional Overview

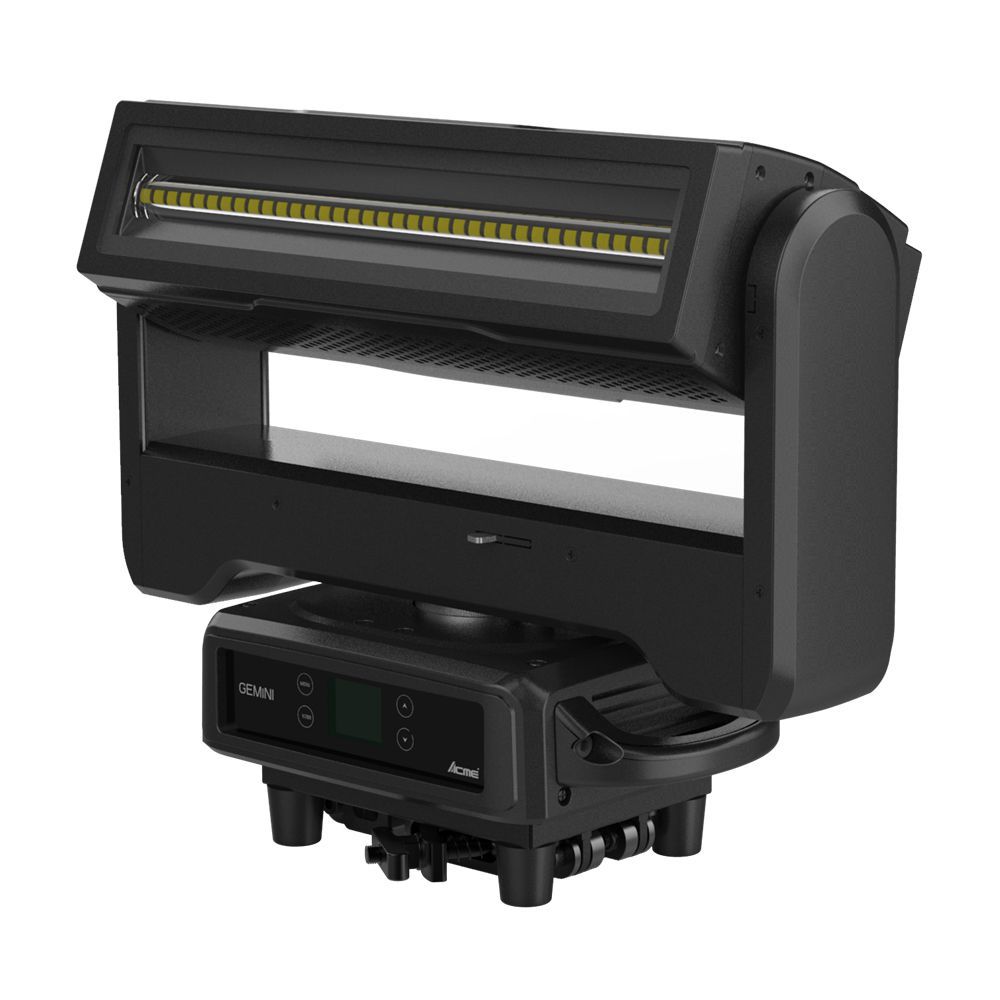

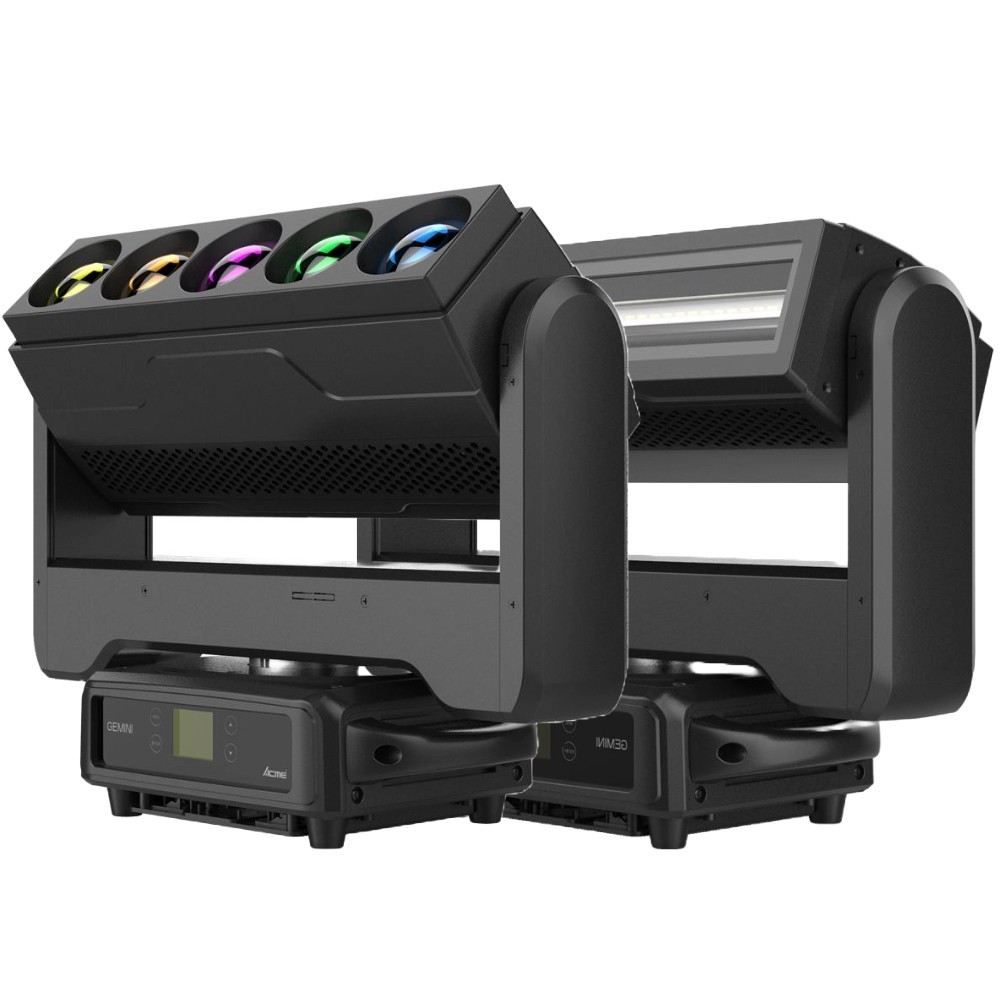

GEMINI integrates stroboscopic, beam, dyeing, and pixel control functions in one. The X-axis and Y-axis infinitely rotate, which can realize the full envelopment of the stage by the light. The design of 5x 60W RGBW LEDs and 36x 18W CW LED double-sided lights can produce vivid colors and excellent dyeing effects. High-brightness strobe and point-by-point control can emit a strong white light effect. The stroboscopic flux is as high as 41,000lm, and the beam angle can be scaled freely. The smaller the angle, the stronger the sharpness. GEMINI is very suitable for TV programs as the main effect lights and concerts and other large-scale events.

Features
Light Source:

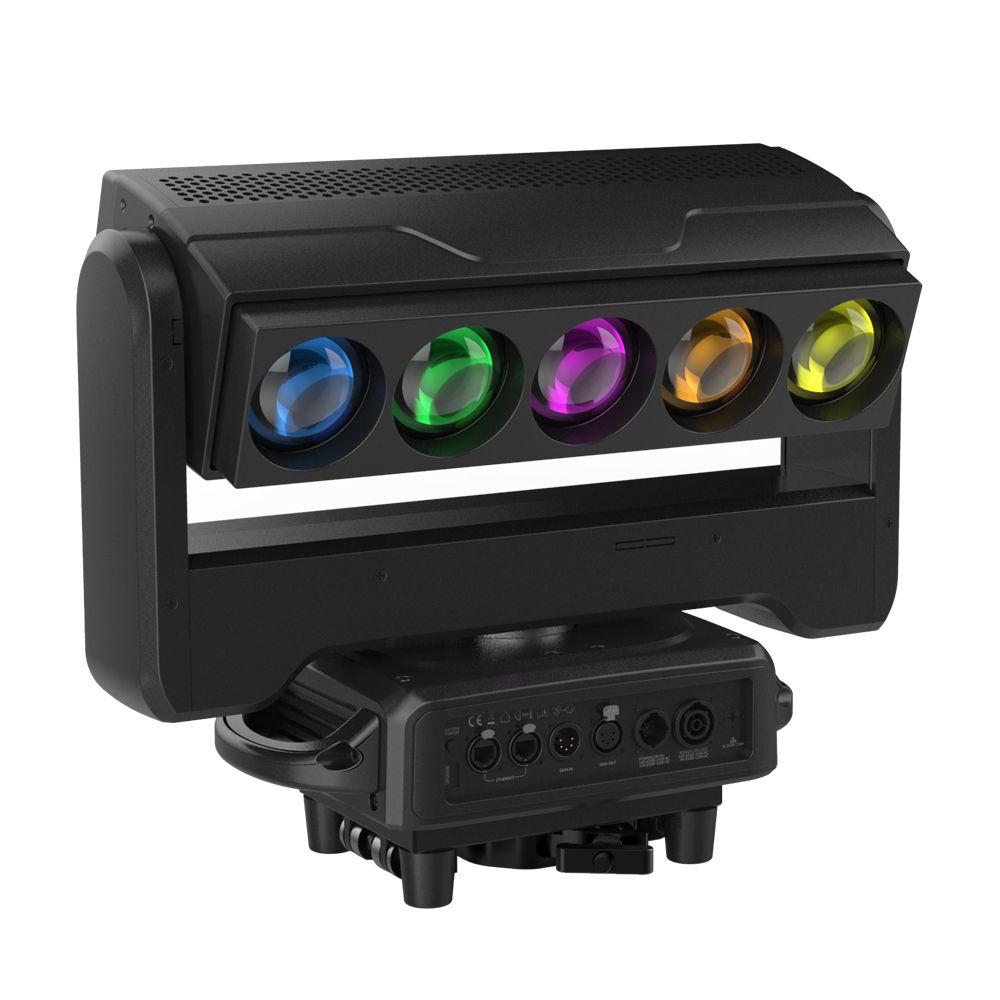

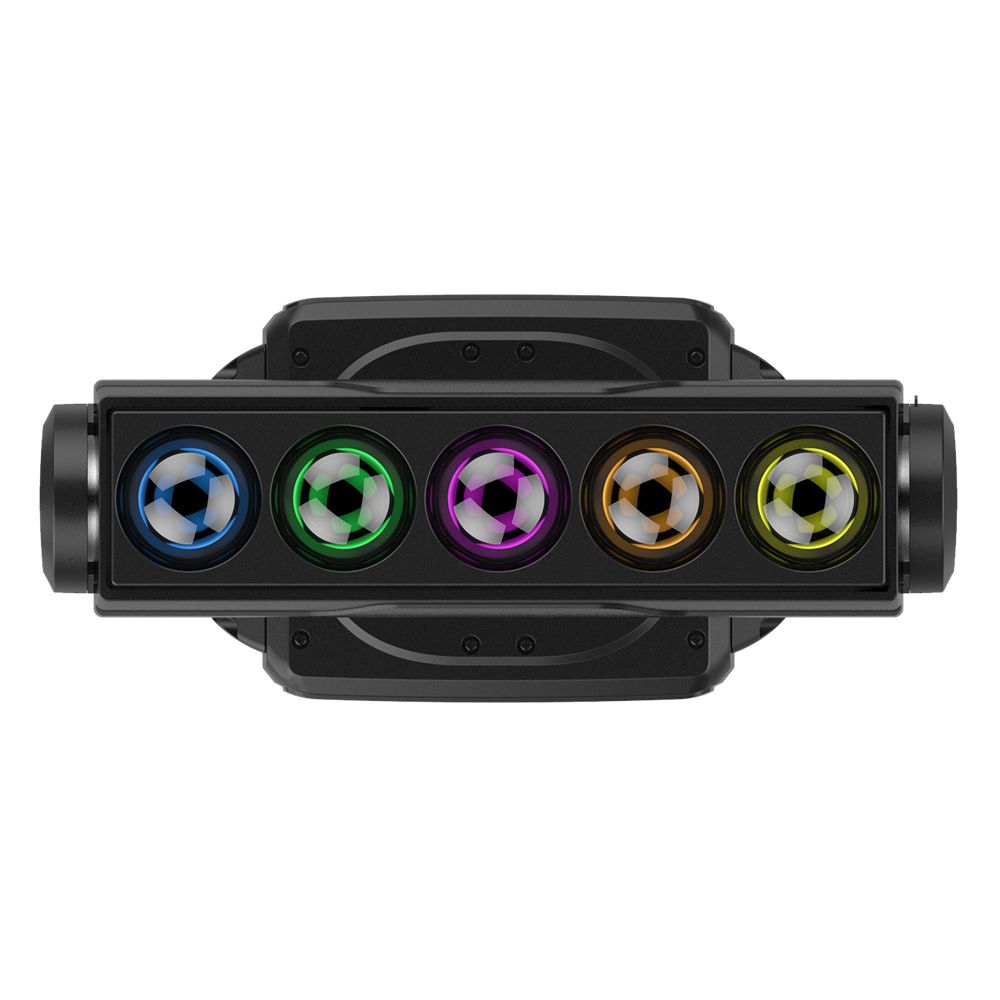

Beam: 5 x 60W RGBW LED

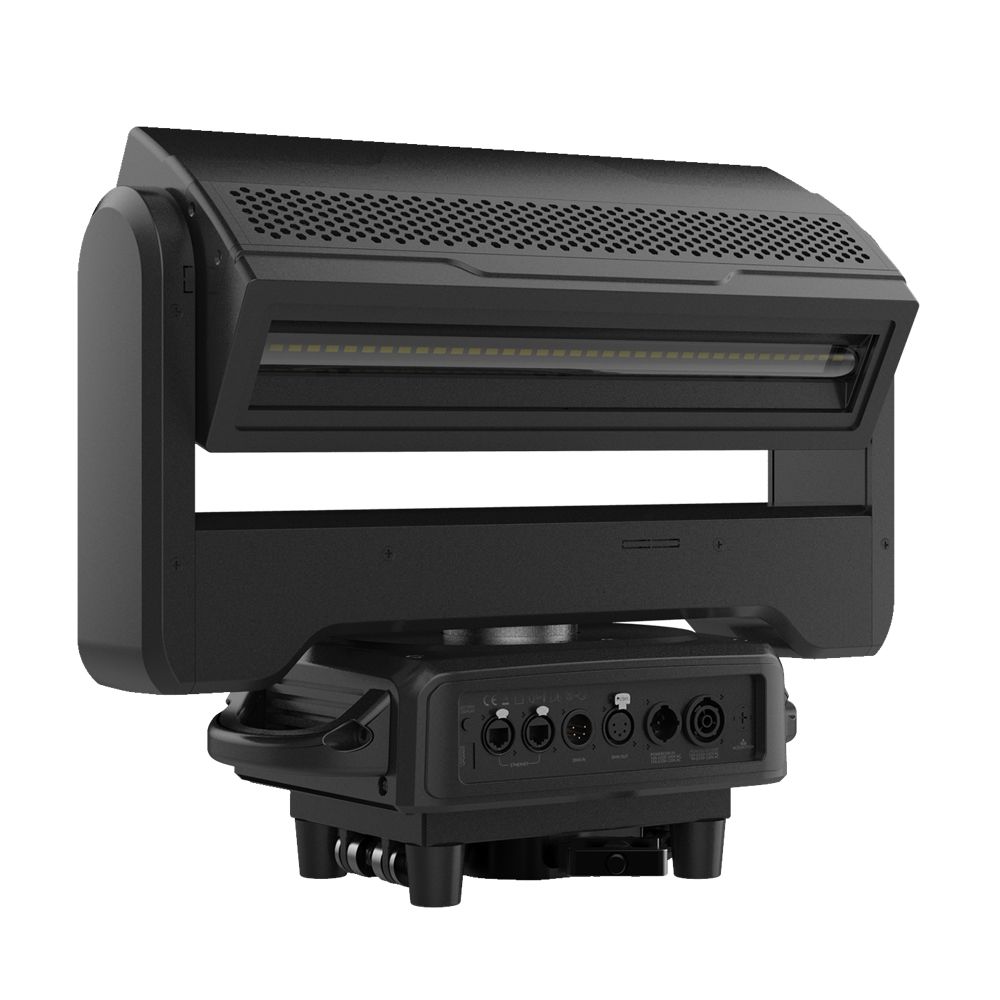

Strobe: 36 X 18W CW LED
With zoom and strobe function
Beam mode: 5 pcs LED pixel control
Strobe mode: 18 zones individually controlled
Motorized liner zoom system
Outstanding mixing color effect
Outstanding strobe effect with variable speed
0~100% smooth dimming
2 x fixed clamps for 50mm truss
Flicker free management

Technical & Specification
Model
CM 560Z

Light source
Light Source:
Beam: 5 x 60W RGBW LED
Strobe: 36 X 18W CW LED
LED life expectancy: 20000 hours

Optical system
Advanced optical system to ensure clear and large-range beam & wash effect
High – efficiency zoom optical system, ratio 1:11
Beam/Wash Batten:

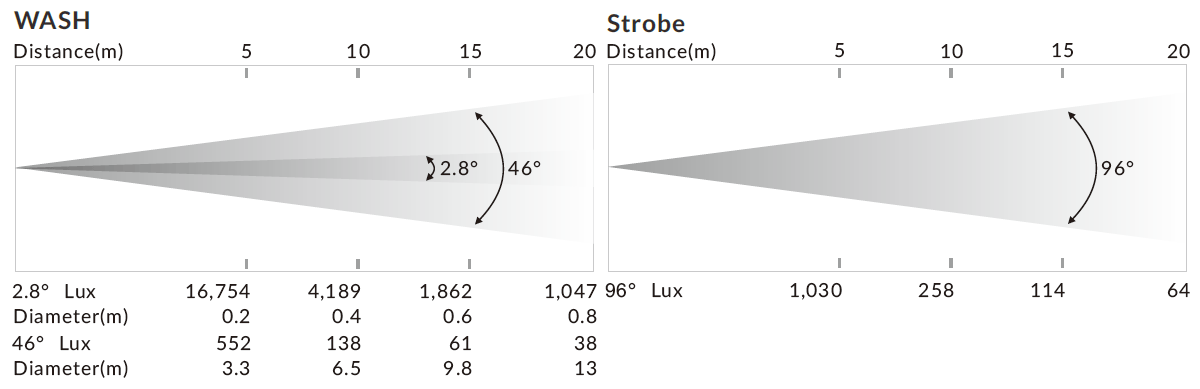

Beam Angle:2.8°- 31°
Field Angle:5°-46°
Strobe Tube:
Beam Angle:96°
Field Angle:116°
Fixture total lumen output: 41,000lm (Strobe Tube)

Control and Program
4-buttons touch panel
Display: LCD display
Control Mode: DMX512, RDM,Art-Net
DMX Protocol modes: 4
Channel Mode:24,56,36+,28
Upgrade the firmware via DMX link
Pan/Tilt Resolution: 16 bit
Dimmer: 16 bit

PAN & TILT
Pan & Tilt movement: Infinite
Automatic Pan/Tilt position correction
Fixation: Pan/Tilt lock

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: AC 100~240V, 50/60Hz
Total Power Consumption: 1200W
Beam Power Consumption: 460W
Strobe Power Consumption:820W

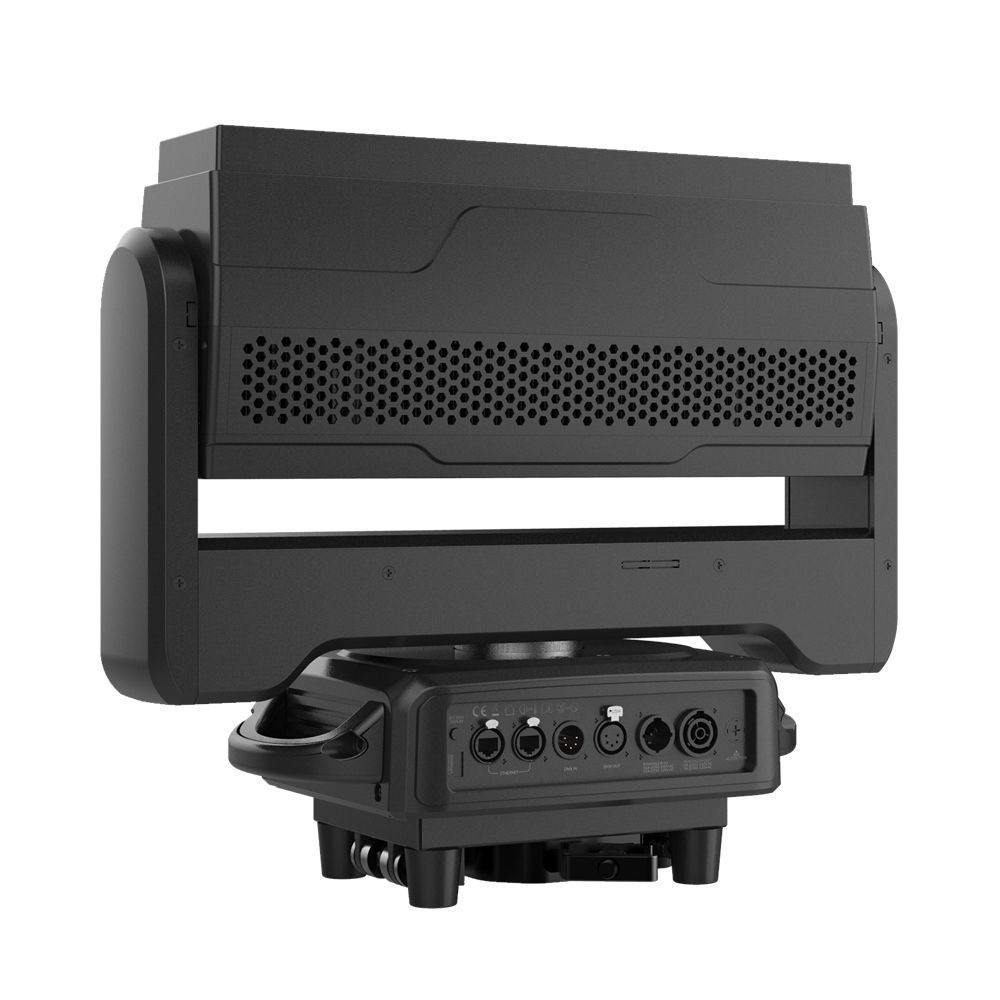

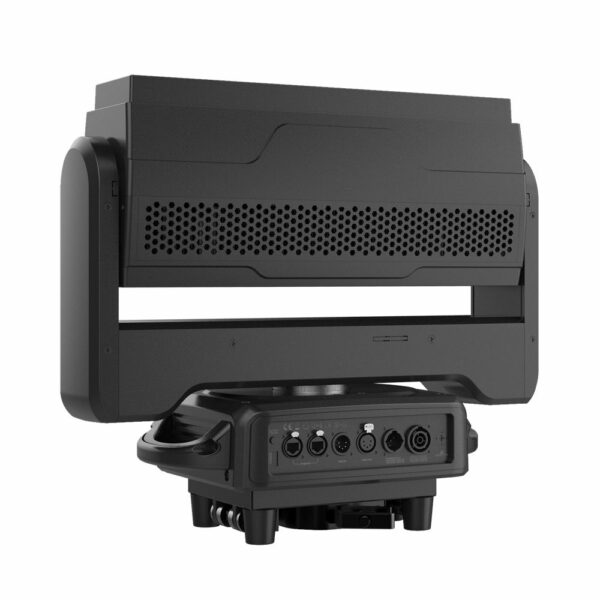

Power In/Out: Power Connector in/out
Data in/out: 3-pin or 5-pin XLR

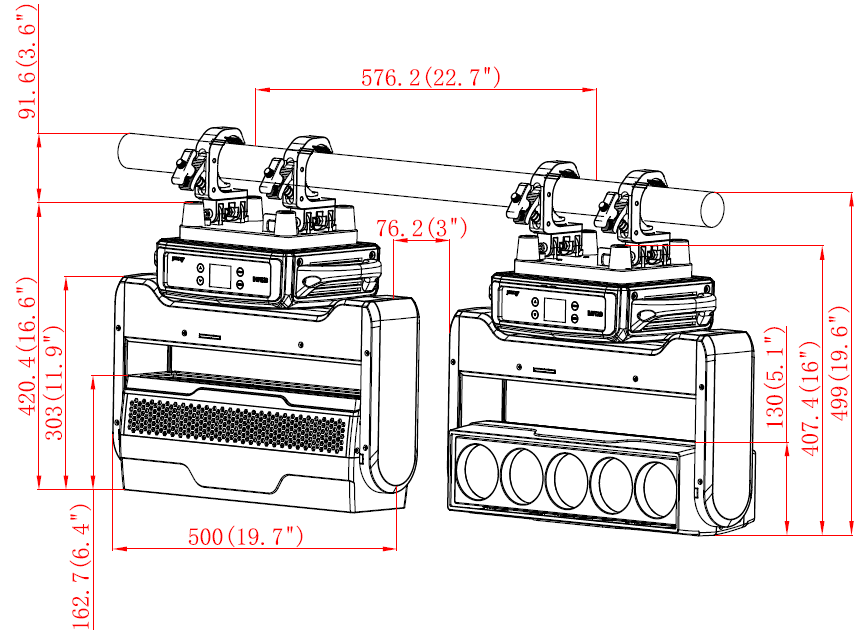

Fixture Specification
Height:420 mm (16.5”)
Width: 130 mm (5.1”)
Depth: 500 mm (19.7″)
Weight:19.5kg (43 lbs)
Flight Case Dimensions:
Height: 655 mm (25.8″)
Width: 580 mm (22.8″)
Depth: 1110 mm (43.7″)
Weight: 123kg (271.2 lbs) (With Quad-Loder Case)

Work environment
Maximum ambient temperature: 45°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IP20

Installation
Horizontally or vertically mounting are available
Operating position is universal

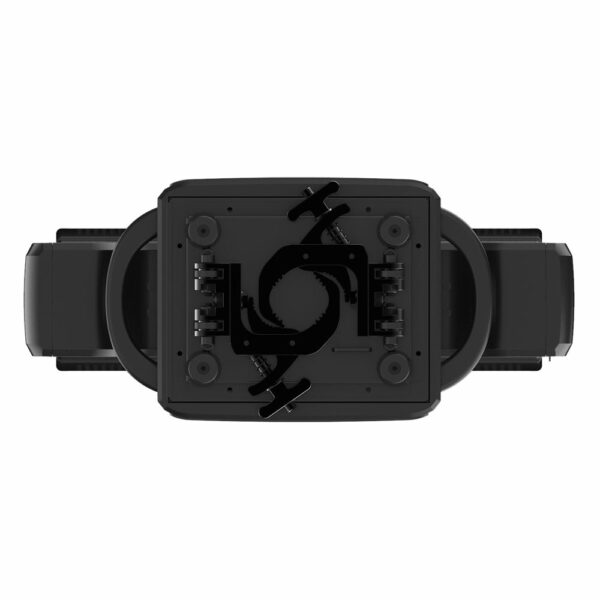

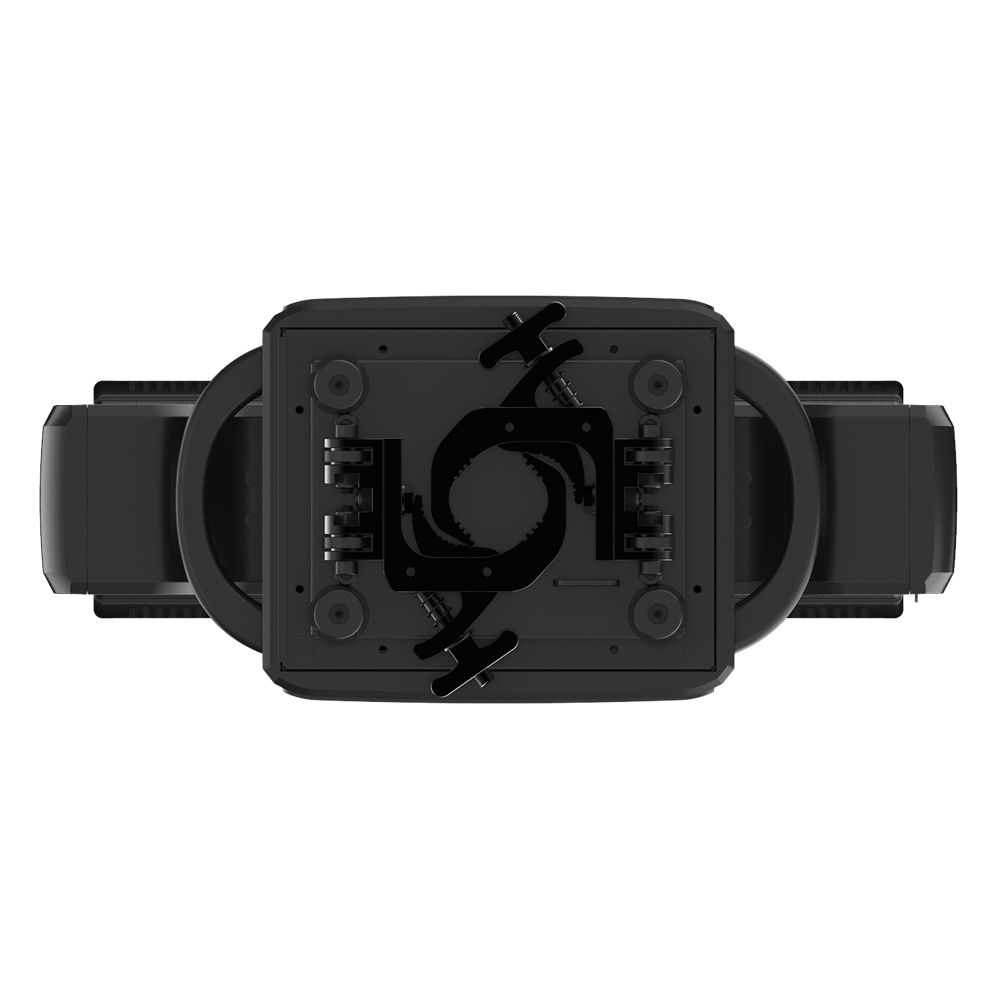

2 pairs of locking points under the base

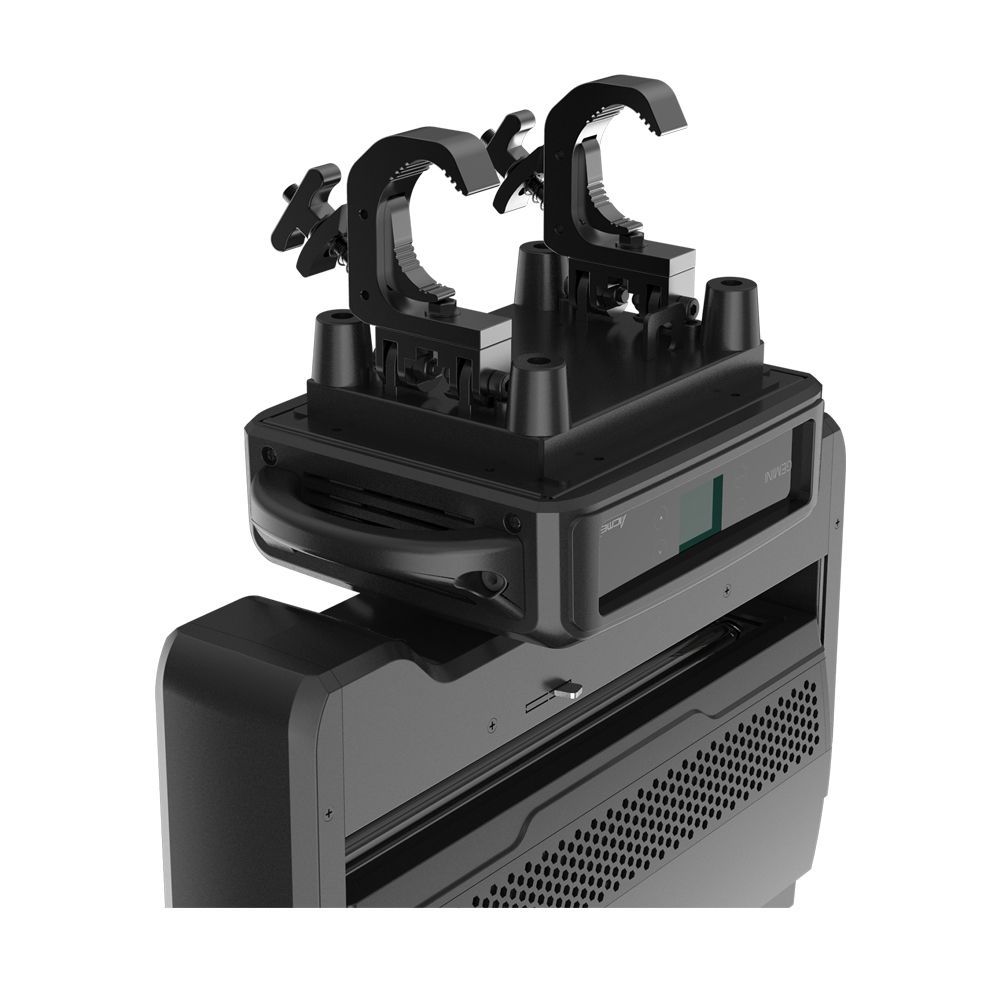

2x Flodable integrated clamps fits for 50mm truss
Safety cable attachment point

Included items
User Manual
Power Cable
2x Flodable integrated clamps fits for 50mm truss

Optional Accessories (with item code)
Safety cable : 2060001603-A(SW-05)
Signal Line:3-pin or 5-pin signal line

Extra informatie

IP-Rating

Indoor

Type lichtbron

LED

Vermogen Lichtbron

300, 648

Type Fixture

Beam, Strobe, Wash

Kleurmenging

CW, RGBW

Min zoom

2,8

Max zoom

31

Functies

Oneindig Pan & Tilt, Pixel-aanstuurbaar
